Ozito DMM-080 User manual

2
1
12
Motor: 1050W
Input: 230V ~ 50Hz
No load speed: 0-550/min
Max. mixing capacity: 80L
Mixing paddle size: 600mm (length) 120mm (Ø)
Mixing paddle thread: M14 x 2.0mm
Tool weight: 3.05kg
1. Mid Handle (with soft grip)
2. Lock-on button
3. On/off trigger switch
4. Variable speed dial
5. Forward/reverse lever
6. Metal gear casing
7. Collet
8. Mixing paddle
9. Side handle (3 position)
10. Rear spade handle
11. Securing knob
12. 19mm Spanner
13. 22mm Spanner
3
SPECIFICATIONS MODEL NO. DMM-080
13
8

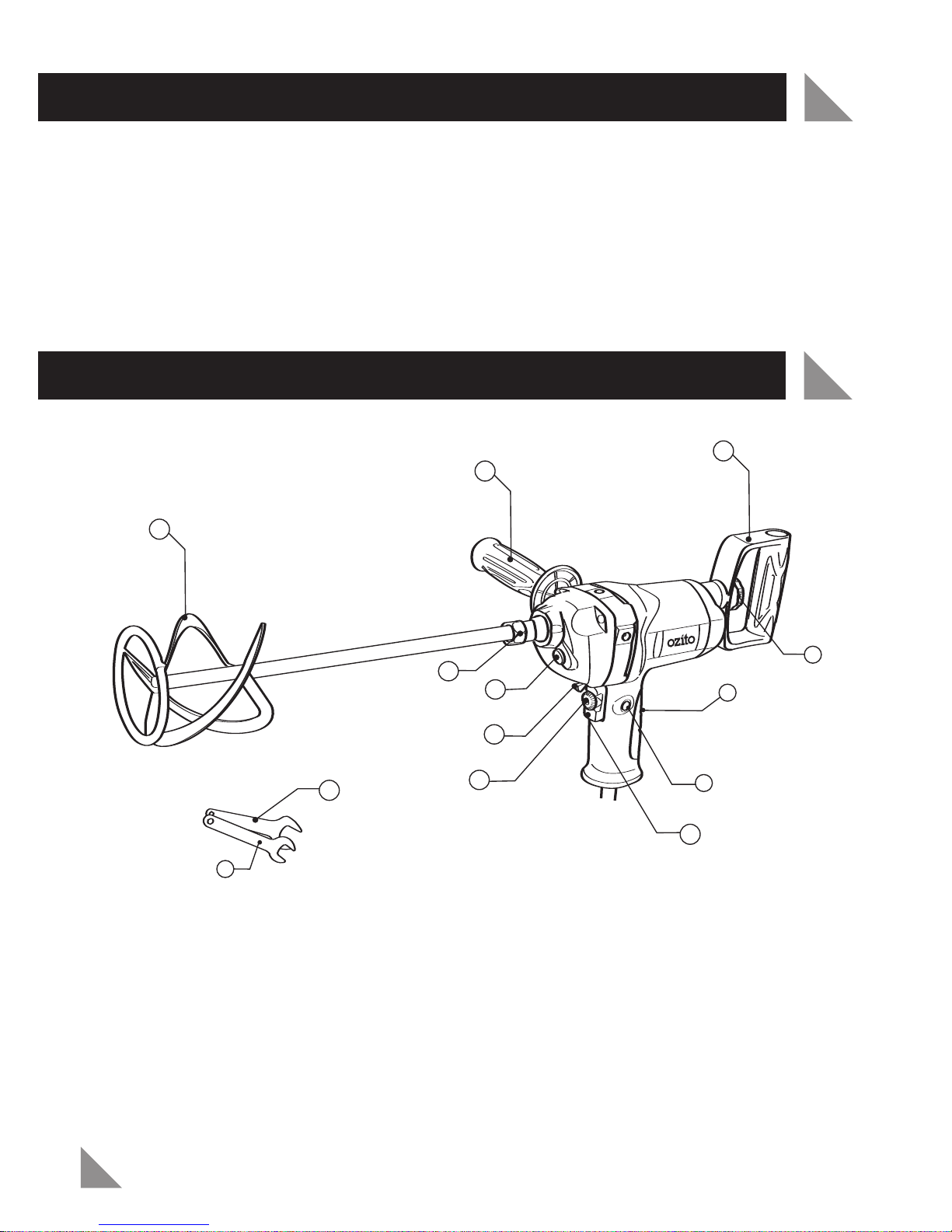

KNOW YOUR PRODUCT
4
5
9
10
1
11
6
7

2
TABLE OF CONTENTS
SPECIFICATIONS ………………………………………..
INTRODUCTION…………………………………………
ELECTRICAL SAFETY…………….………………………
GENERAL POWER TOOL SAFETY WARNINGS………
MULTI PURPOSE MIXER SAFETY WARNINGS………
ASSEMBLY…………………………………………………
OPERATION………………………………………………
MAINTENANCE…………….……………………………
SPARE PARTS …………….……………………………...
DESCRIPTION OF SYMBOLS ………………………….
PACK CONTENTS ………………………………………
WARRANTY………………………………………………
Page 1
Page 3
Page 3
Page 4
Page 6
Page 7
Page 8
Page 9
Page 10
Page 10
Page 11
Page 13

INTRODUCTION
3
WARNING! When using mains-powered equipment, basic safety
precautions, including the following, should always be followed to reduce
risk of fire, electric shock, personal injury and material damage.
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that
the power supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for
Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60745-1; therefore
no earth wire is required.
If the supply cord is damaged, it must be replaced by a qualified electrician or a
power tool repairer in order to avoid a hazard.
If operating a power tool in a damp location is unavoidable use a residual current
device (RCD) protected supply Use of an RCD reduces the risk of electric shock.
Note: Double insulation does not take the place of normal safety precautions
when operating this tool. The insulation system is for added protection against
injury resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing.
Replace the extension lead if damaged or defective. When using an extension lead
on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may
result in a risk of fire and electric shock.
Congratulations on purchasing an Ozito Multi-purpose Mixer.
We aim to provide quality tools at an affordable price.
We hope you will enjoy using this tool for many years. Your
Multi-purpose Mixer DMM-080 has been designed to mix
various materials (paint, mortar, adhesives, plaster) into
consistent batches as required for the end user and is
intended for DIY use only.
!
!
ELECTRICAL SAFETY
!!

4
WARNING! Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term “power tool" in all of the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of
electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool. Carrying power tools with your finger on the switch or energising power
tools that have the switch on invites accidents.
!
!
GENERAL POWER TOOL SAFETY WARNINGS
!!

5
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/or the battery pack from
the power tool before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tool's operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to
be performed. Use of the power tool for operations different from those
intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
GENERAL POWER TOOL SAFETY WARNINGS
!!

MULTI PURPOSE MIXER SAFETY WARNINGS
6
!
!
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause
personal injury.
Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting
accessory contacting a "live" wire may make exposed metal parts of the power tool
"live“ and could give the operator an electric shock.
WARNING! Some dust created by power sanding, sawing, grinding, drilling
and other construction activities contain chemicals known to cause cancer,
birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated timber
Your risk from these exposures vary, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area and work
with approved safety equipment, such as dust masks that are specially designed to
filter out microscopic particles.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Recommendations for the use of a residual current device with a rated residual
current of 30mA or less.
!!

7
ASSEMBLY
WARNING! Always turn off the tool and disconnect from the power
supply prior to changing any accessories or making any handle adjustments.

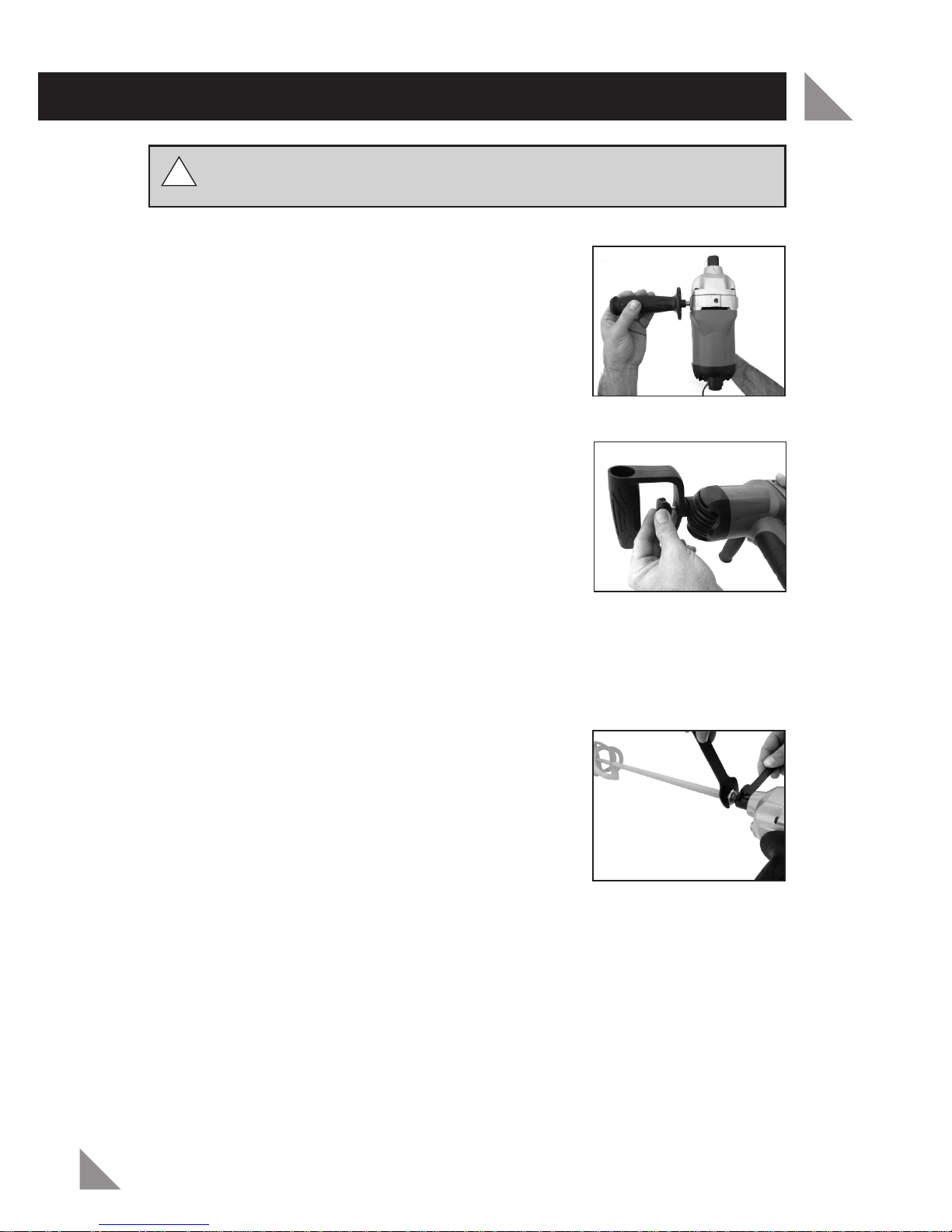

Side Handle
The 3 position side handle (9) will provide additional
control, support and guidance when using the tool. The
side handle (9) can be assembled to the left, top or
right side of the metal gear casing (6). Align the thread
on the end of the side handle (8) with the
corresponding hole in the metal gear casing, screw the
side handle (8) clockwise till secured (Fig. 1).
Spade Handle
The rear spade handle (10) provides additional control
and support when using the tool. It can be attached
either horizontally, vertically or should you require it,
diagonally.
To assemble, place the rear spade handle (10) into the
locating boss at the angle you desire. Then, screw the
securing knob (11) clockwise into the recess to secure
the rear spade handle (10) (Fig. 2).
To change the angle simply loosen the securing knob (anti-clockwise), pull the
handle off the locating boss, replace the handle back into the locating boss at the
angle desired. Secure as previously described.
Mixing Paddle
Place the mixing paddle (8) at the opening of the
threaded collet (7). Carefully rotate the mixing paddle
(8) flush to the collet (7) and turn clockwise until tight.
Then by using the spanners provided hold the
threaded collet (7) in place whilst tightening the mixing
paddle (8) (Fig. 3).
Fig. 1
Fig. 2
Fig. 3
!
!

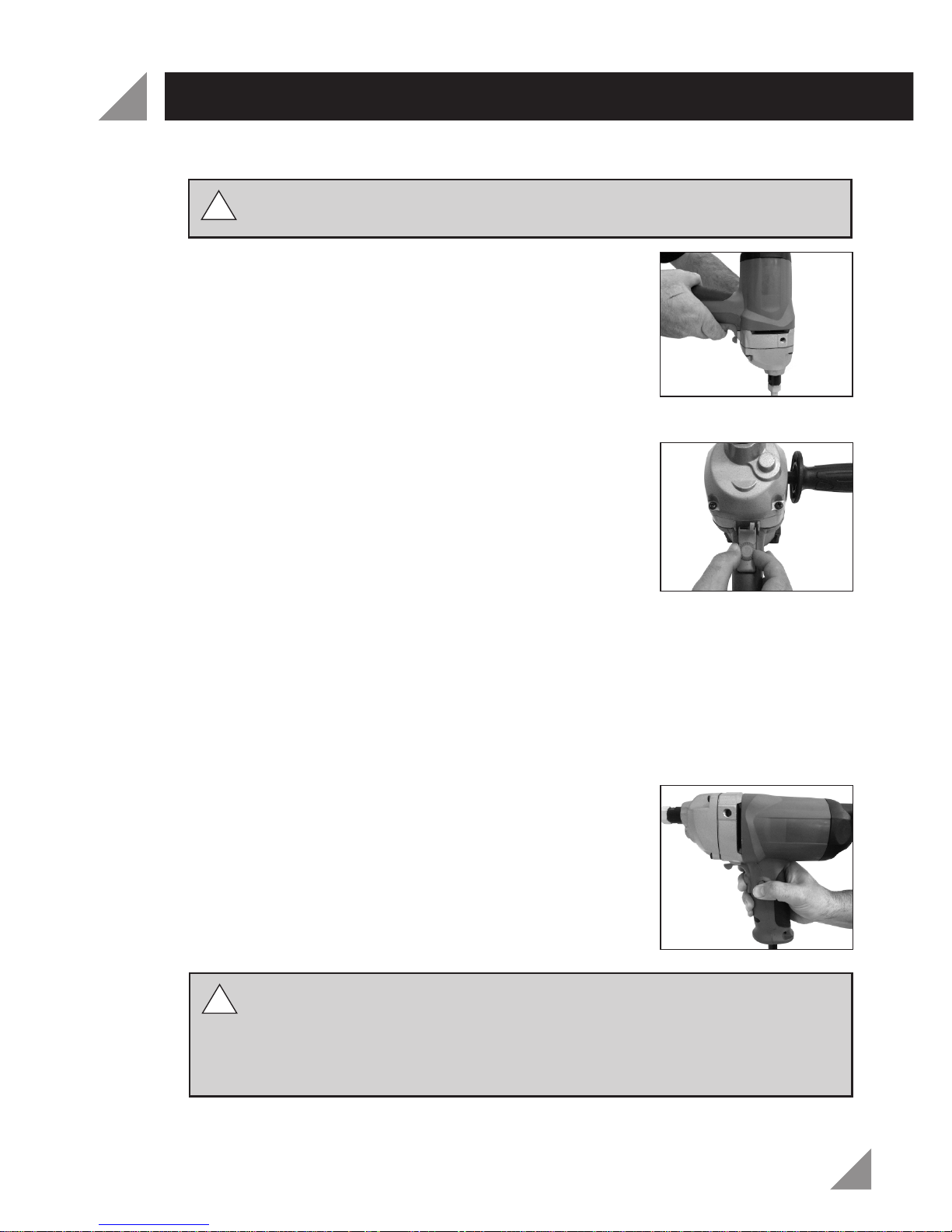

OPERATION
On/off Trigger Switch
WARNING! Prior to turning on the Multi purpose Mixer ensure you have a
secure hold of the Mid handle (1).
To turn on the Multi-purpose Mixer, depress the on/off
trigger switch (3) (Fig. 4); to stop the Multi-purpose Mixer ,
release the on/off trigger switch (3).
The Multi-purpose Mixer has a variable speed trigger, the
further you depress the on/off trigger switch (3) the higher
the speed of the Multi-purpose Mixer.
Variable Speed Dial
The on/off trigger switch (3) has a variable speed dial (4).
By rotating the variable speed dial (4) you are able to limit
the maximum speed of the Multi-purpose Mixer (Fig. 5).
The variable speed dial (4) can increase the source of your
power from low to high speed depending on what
consistency or how thick the materials you are mixing.
Lock on Button
The Multi-purpose Mixer has a lock-on button (2) incorporated to the side of the mid
handle (1).
As the name suggests it enables the on/off trigger switch (3) to be locked 'ON'
without the need to continuously hold in the on/off trigger switch (3).
To engage the lock on feature, depress the on/off trigger
switch (3), then depress the lock-on button (2) with the side
of thumb (Fig. 6). Once you release both the on/off trigger
switch (3) and lock-on button (2), the on/off trigger switch (3)
will remain engaged. To turn off the Multi-purpose Mixer
when the lock-on button (2) has been engaged; simply
squeeze and release the on/off trigger switch (3).
WARNING! Ensure the lock-on button (2) has been released before
disconnecting the plug from the power supply. This is done when turning
the Multi-purpose Mixer off by squeezing and releasing the on/off trigger
switch (3). Failure to do so will cause the tool to start immediately the next
time it is plugged in resulting in possible bodily harm or property damage.
8
Fig. 4
!
!
!
!
Fig. 5
Fig. 6

9
OPERATION (cont.)
Forward/Reverse Lever
The direction of the mixing paddle (7) is controlled by
the forward/reverse lever (5) located above the on/off
trigger switch (3) (Fig. 7).
FORWARD ROTATION: Move the lever to the right.
FOR REVERSE ROTATION: Move the lever to the left.
Note: The speed of the operation is different in forward
and reverse. Reverse speed is slower than forward speed.
Note: Do not change the direction of rotation while the chuck is still in motion.
Damaged caused to the gear box by such actions will not be covered under warranty.
WARNING! Always turn off the tool and disconnect from the power supply
prior to changing any accessories or making any handle adjustments.
• Ensure the mixing paddle (7) is properly cleaned after use.
• Keep the ventilation vents of the tool clean at all times, if possible, prevent
foreign matter from entering the vents.
•After each use, blow air through the tool housing to ensure it is free from all
dust particles which may build up. Build up of dust particles may cause the
tool to overheat and fail.
• If the enclosure of the tool requires cleaning do not use solvents but a moist
soft cloth only. Never let any liquid get inside the tool; never immerse any part
of the tool into a liquid.

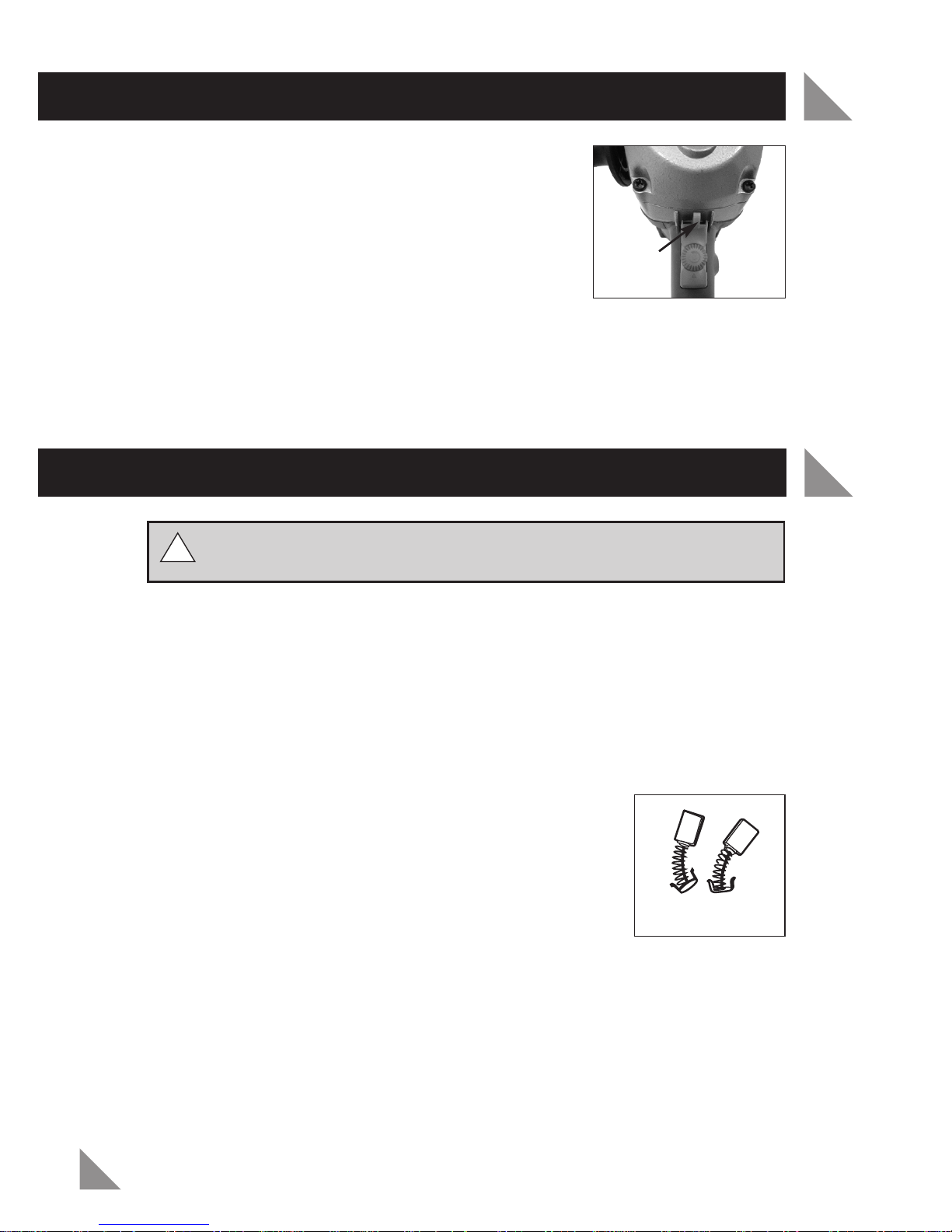

Carbon brushes
When the carbon brushes wear out, the Multi-purpose Mixer
will stop. Discontinue use as soon as this happens. They
should be replaced prior to recommencing use of the Multi-
purpose Mixer. Carbon brushes are a wearing component of
the Multi-purpose Mixer and therefore not covered under
warranty. Continuing to use the Multi-purpose Mixer when carbon brushes need to
be replaced may cause permanent damage to the tool. Carbon brushes will wear
out after many uses but when the carbon brushes need to be replaced take the
Multi-purpose Mixer to an electrician or a power tool repairer for a quick and low
cost replacement. Always replace both carbon brushes at the same time.
Note: : Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the tool by an unauthorised person or by mishandling of the tool.
Fig. 7
MAINTENANCE
Carbon brushes
forward/
reverse
lever
!
!

10
SPARE PARTS
Limited spare parts are available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare parts.
Most common spare parts listed below
Spare Part Part No.
Carbon Brush (set) SPDMM080-27
Switch SPDMM080-34
Mixing Paddle SPDMM080-45
DESCRIPTION OF SYMBOLS
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
ø Diameter Regulator compliance mark
n o No load speed
Read operation instruction
Warning
Double insulated
Wear ear protection
Wear eye protection
Do not use in raining
Wear breathing protection
Disconnect from power supply
when performing maintenance

11
CARING FOR THE ENVIRONMENT
PACK CONTENTS
Power tools that are no longer usable should not be disposed
of with household waste but in an environmentally friendly
way. Please recycle where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
1 x Multi-Purpose Mixer DMM-080
1 x Mixing Paddle
1 x Side Handle
1 x Rear Spade Handle
2 x Spanners
1 x Spare Carbon Brushes (set)
1 x Instruction manual

12
OZITO INDUSTRIES PTY LTD
AUSTRALIA (Head Office)
1-23 Letcon Drive, Bangholme Victoria, Australia, 3175
Telephone: [phone]
Facsimile: [phone]
Website: www.ozito.com.au
Email: [email protected]

3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the original date of purchase
and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in
accordance with the terms of this warranty. Warranty excludes consumable parts, for example:
carbon brushes, mixing paddle, spanner, bearing.
WARNING
The following actions will result in the warranty being void.
Professional, Industrial or high frequency use.
If the tool has been operated on a supply voltage other than that specified on the tool.
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
Failure to perform maintenance as set out within the instruction manual.
If the tool is disassembled or tampered with in any way.
OZITO
Australia/New Zealand (Head Office)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
•
•
•
•
•
OW5
WARRANTY
YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER
TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO
YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT.
PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
` Australia 1800 069 486
New Zealand 0508 069 486
