Pakole LLV-400 User guide

AIR DESTRATIFIER VENTILATORS
EN
www.pakole.com
Appliance types:
LLV-400
LLV-450
LLV-500
LLV-650
LLV-800
LLV_008_036_011_220628_V004_EN
(For qualified persons)

LLV Air destratifier ventilator family Contents
������������������������������������������������������������������������������������������������������������������������������������3
�����������������������������������������������������������������������������������������������������������������������������������4
Data board ��������������������������������������������������������������������������������������������������������������������������������������������������4
Installer’s responsibilities ����������������������������������������������������������������������������������������������������������������������������4
Corrosive materials ������������������������������������������������������������������������������������������������������������������������������������5
Standards and laws ������������������������������������������������������������������������������������������������������������������������������������5
Safety signs�������������������������������������������������������������������������������������������������������������������������������������������������5
Safe usage ��������������������������������������������������������������������������������������������������������������������������������������������������5
����������������������������������������������������������������������������������������������������6
����������������������������������������������������������������������������������������������������������������������������������7
�����������������������������������������������������������������������������������������������������������������������������������������������7
The main components of air destratifier������������������������������������������������������������������������������������������������������7

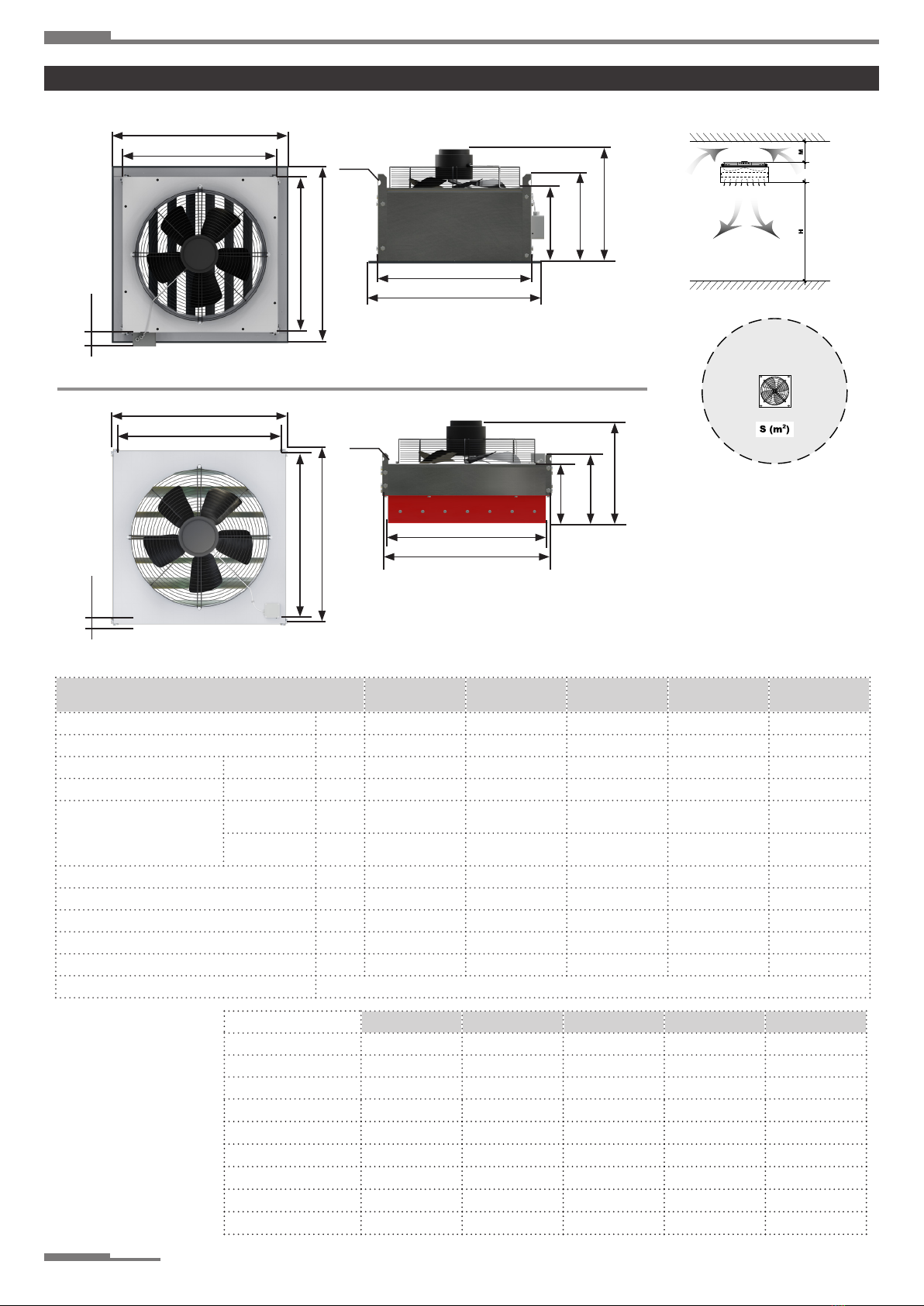

Technical data ���������������������������������������������������������������������������������������������������������������������������������������������8
Direction of airflow���������������������������������������������������������������������������������������������������������������������������������������9
�������������������������������������������������������������������������������������������������������������������������������9
Installation distances���������������������������������������������������������������������������������������������������������������������������������10
Electrical connection ���������������������������������������������������������������������������������������������������������������������������������10
Connecting cable data ������������������������������������������������������������������������������������������������������������������������������ 11
Electrical wiring ����������������������������������������������������������������������������������������������������������������������������������������� 11
Connection of the speed controller ����������������������������������������������������������������������������������������������������������� 11
Decommissioning��������������������������������������������������������������������������������������������������������������������������������������12
Improper use ���������������������������������������������������������������������������������������������������������������������������������������������12
�����������������������������������������������������������������������������������������������������������������������������12
Start up������������������������������������������������������������������������������������������������������������������������������������������������������13
Useful information �������������������������������������������������������������������������������������������������������������������������������������13
�����������������������������������������������������������������������������������������������������������������������������������������13
Starting and stopping the device���������������������������������������������������������������������������������������������������������������13
Fault or unsatisfactory operation���������������������������������������������������������������������������������������������������������������13
Operating ��������������������������������������������������������������������������������������������������������������������������������������������������13

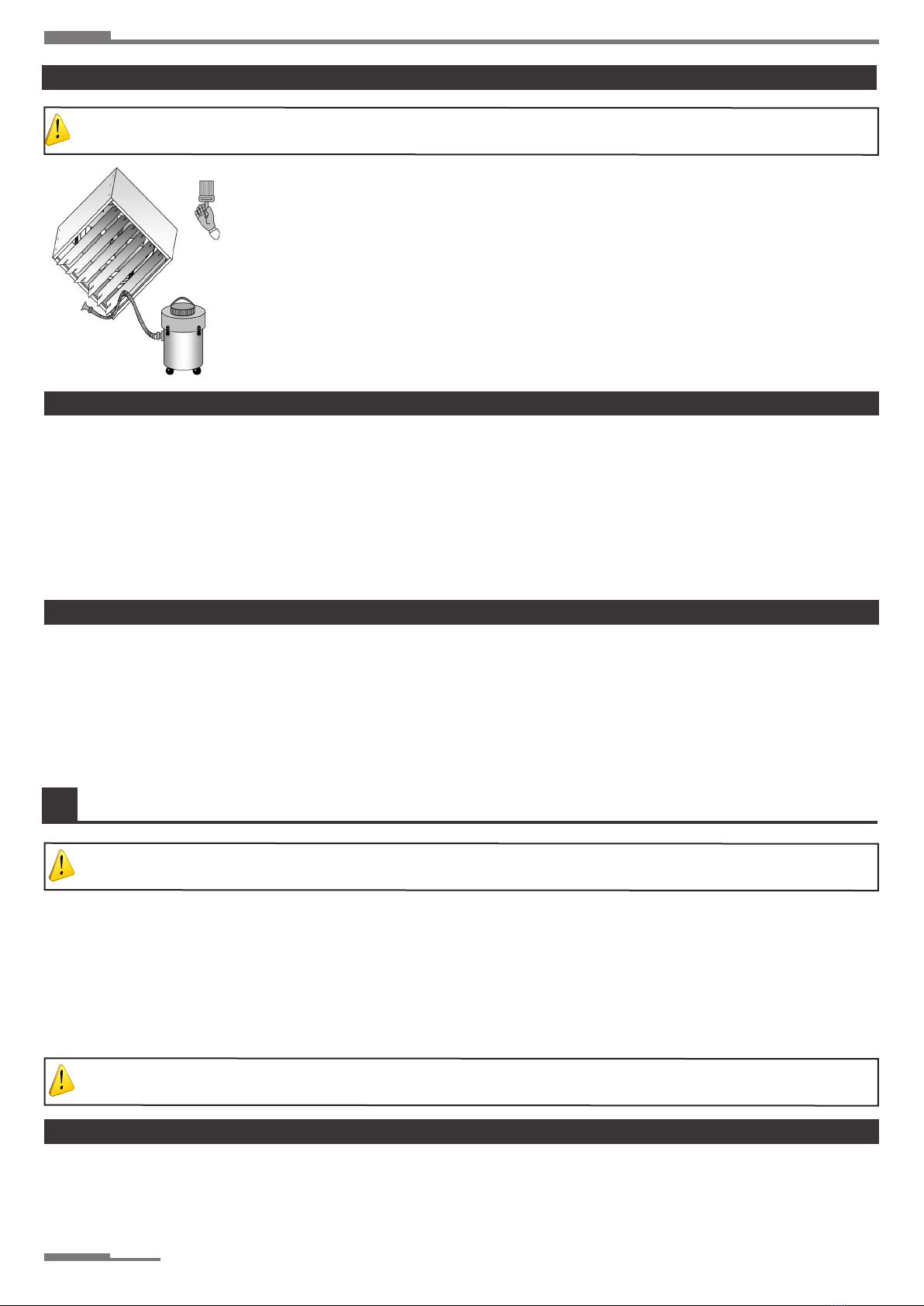

Cleaning the device�����������������������������������������������������������������������������������������������������������������������������������14
User periodic maintenance �����������������������������������������������������������������������������������������������������������������������14
Annual review��������������������������������������������������������������������������������������������������������������������������������������������14
���������������������������������������������������������������������������������������������������������������������������������������������������������14
Replacement parts ������������������������������������������������������������������������������������������������������������������������������������14
��������������������������������������������������������������������������������������������������������������������������������15
���������������������������������������������������������������������������������������������������������������������������������������15

LLV Air destratifier ventilator family Instructions for Installation and Servicing
3
ATTENTION! Read and understand this Installation and Maintenance Instruction before using the equipment! Keep this
Installation and Maintenance Guide to answer any questions you may have later!
GENERAL SAFETY WARNINGS!
Failure to follow the warnings and instructions in the enclosed Installation and Maintenance Manual may result in seri-
ous injury or property damage.
The appliance may only be used by persons who have understood and followed the instructions in the Installation and
manufacturer.
appliance.
ATTENTION! The appliance must not be used at home!
!
!
!
1.

LLV Air destratifier ventilator family Instructions for Installation and Servicing
4
• Make sure you have read and understood all the warnings, the exact observance of which guarantees safe and perfect opera-
tion!
• Always use caution when using the device! Follow the regional regulations and recommendations!
• Use the device only at the electrical voltage and frequency indicated on the nameplate! The electrical connections and earthing
have been designed in accordance with EN 60335!
• Electrical grounding requirements: this appliance is equipped with a three-point (earthed) connector for your protection!
• Keep the unit away from the following strong impacts: wind, high-pressure water jet, rain or dripping water! The equipment can-
not be used in outdoor!
• Always check the appliance for damage before starting it� Never use damaged equipment!
• Keep the appliance in its original condition, do not allow it to age!
• Do not use severely obsolete equipment!
• Hang the device from a stable surface that maintains its stability during operation despite the device warming up!
• If the appliance is not used, always disconnect it from the power supply!
• Never block the air intake and exhaust vents!
• Never service equipment that is in operation or under electrical load!
• Never attach an air duct element to the front or back of the appliance that is not approved by the manufacturer!
• Use only original spare parts approved by the manufacturer, do not install replacement parts with the same operating character-
istics as the original part� Such replacement parts can cause serious damage to the operation of the system!
The device is equipped with a data board, which is located on the outside of the device� The data board contains information on the type
of appliance, the type of gas and the electrical connection� For example:
1. figure: Data board
2.
Data board
• Construction of electrical connections in accordance with regulations,
• installation of the device according to the arrangement specified in this manual,
• installation in accordance with fire protection regulations,
• providing materials for installation (not included in the device),
• performing the service, providing the Owner with a copy of this Manual,
• ensuring satisfactory air circulation around the device,
Installer’s responsibilities
11435 m³/h
Airflow:
0,75 kW
Type
Electrical power:
Series number:
IP protection:
Electrical connection:
Max.current entry:
IP40
AC 230V, 50Hz, 1 Ph.
Date/place of
production
15.02.2021
102-9334-135
14 A
GB
Targeted country:
PAKOLE Trade Kft.
8000 Székesfehérvár,
Börgöndi út 8-10.
Manufacturer
LLV-650
2806 20
9400 m3/h
THE DEVICE HAS BEEN MANUFACTURED IN ACCORDANCE WITH DIRECTIVE 2014/35/EU.
!

LLV Air destratifier ventilator family Instructions for Installation and Servicing
5
ATTENTION! Do not use the device in a place where there may be corrosive substances in the air!
The manufacturer accepts no liability for damage to the device if it has not been installed as described above� This responsibility is en-
tirely the responsibility of the person performing the design� To avoid such possibilities, if you are not sure about the fit to the building or
activity, ask our staff for help�
The owner(s) and the person(s) coordinating the installation must identify any gaseous or solid substances present in the
space to be heated which may be present in the building and which could significantly affect the operation or service life of the
All devices must be installed in accordance with laws and standards� These laws refer to electrical wiring (there are special regulations
for parking garages, aircraft hangars, etc�)�
CAUTION
DANGER
CAUTION
ELECTRIC
SUPPLY
CAUTION
DANGEROUS
OPERATION
CAUTION
HIGH
TEMPERATURE
CAUTION
DISCONNECT
POWER LINE
ATTENTION
COMPULSORY:
EARTHING
ATTENTION
THE USAGE OF
MOVING EQUIPMENT
IS COMPULSORY
ATTENTION
COMPULSORY:
USE PROTECTIVE
GLOVES
ATTENTION
ONLY
QUALIFIED
PERSON
ATTENTION
FORBIDDEN !
CAUTION
DANGER
ATTENTION
ONLY
QUALIFIED
PERSON
• In all cases, the standards, regulations and country-specific regulations of the country of installa-
tion must be strictly observed during installation�
• Installation and maintenance of the device may only be performed by a qualified person�
A qualified person is any person who has significant technical experience in the field of heating and ventilation installation and / or has
a professional examination in the field, as well as has participated in the mandatory annual training organized by manufacturer� Call your
nearest reseller for information�
ATTENTION
COMPULSORY:
EARTHING
ATTENTION
ONLY
QUALIFIED
PERSON
CAUTION
DANGER
CAUTION
ELECTRIC
SUPPLY
• Depending on the design, install the electrical wiring system�
• Before starting the appliance, always make sure that the appliance and its electri-
cal components are properly earthed�
CAUTION
DANGER
ATTENTION
ONLY
QUALIFIED
PERSON
ATTENTION
COMPULSORY:
USE PROTECTIVE
GLOVES
• Use protective gloves when disassembling the equipment�
• Watch out for sharp corners!
• Always keep the fan clean!
CAUTION
DANGER
CAUTION
DANGEROUS
OPERATION
ATTENTION
FORBIDDEN !
• Before cleaning or maintenance operations that can be performed by the cus-
tomer (see chapter 8), after disconnecting the power supply, make sure that the
fan has stopped rotating automatically� (Do not stop the still running fan by hand
or other means!)
• The fan can reach 1000 rpm so don’t put anything in the way of the blades�
CAUTION
DANGER
CAUTION
ELECTRIC
SUPPLY
CAUTION
DISCONNECT
POWER LINE
• We recommend that you install a separate, easily accessible disconnect
switch near the machine to easily unplug the machine� Always unplug the
appliance before cleaning or servicing�
• Before opening the appliance, make sure that all its components have
been electrically disconnected from the mains� Take special care to make
sure that the fan is stationary and cannot start during the installation pro-
cess�
CHECK EARTHING !!
CAUTION
DANGER
• When used in the vicinity of persons with reduced mobility, the device must be placed at a suitable, inaccessible distance
from these persons�
• Improper installation can cause environmental or personal damage� The manufacturer is not responsible for damage
resulting from such faulty installation�
• Furthermore, the manufacturer cannot be held responsible for damage resulting from incorrect, improper use�
!

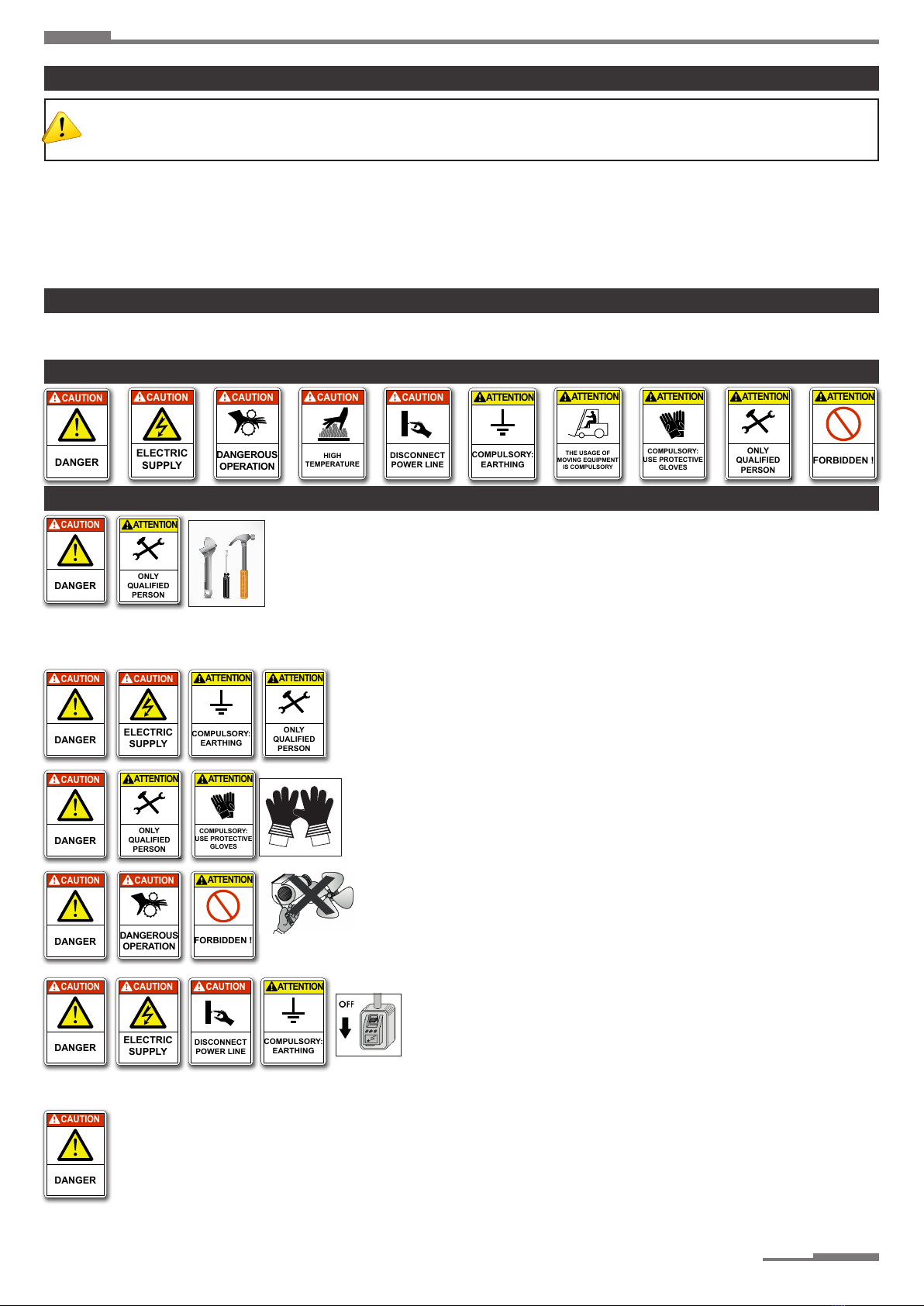

Safety signs
Standards and laws
Safe usage
Corrosive materials
ATTENTION
COMPULSORY:
EARTHING

LLV Air destratifier ventilator family Instructions for Installation and Servicing
6
ATTENTION
FORBIDDEN !
• Never use the appliance in connection with another appliance�
• Never leave tools or accessories inside or on top of the appliance�
• Do not place the device in a flammable environment�
ATTENTION
ONLY
QUALIFIED
PERSON
• In the event of a malfunction, do not attempt to service the device, call your distributor immediately�
• If you want to leave the unit turned off for an extended period of time, make sure that it cannot harm anything or anyone
under any circumstances�

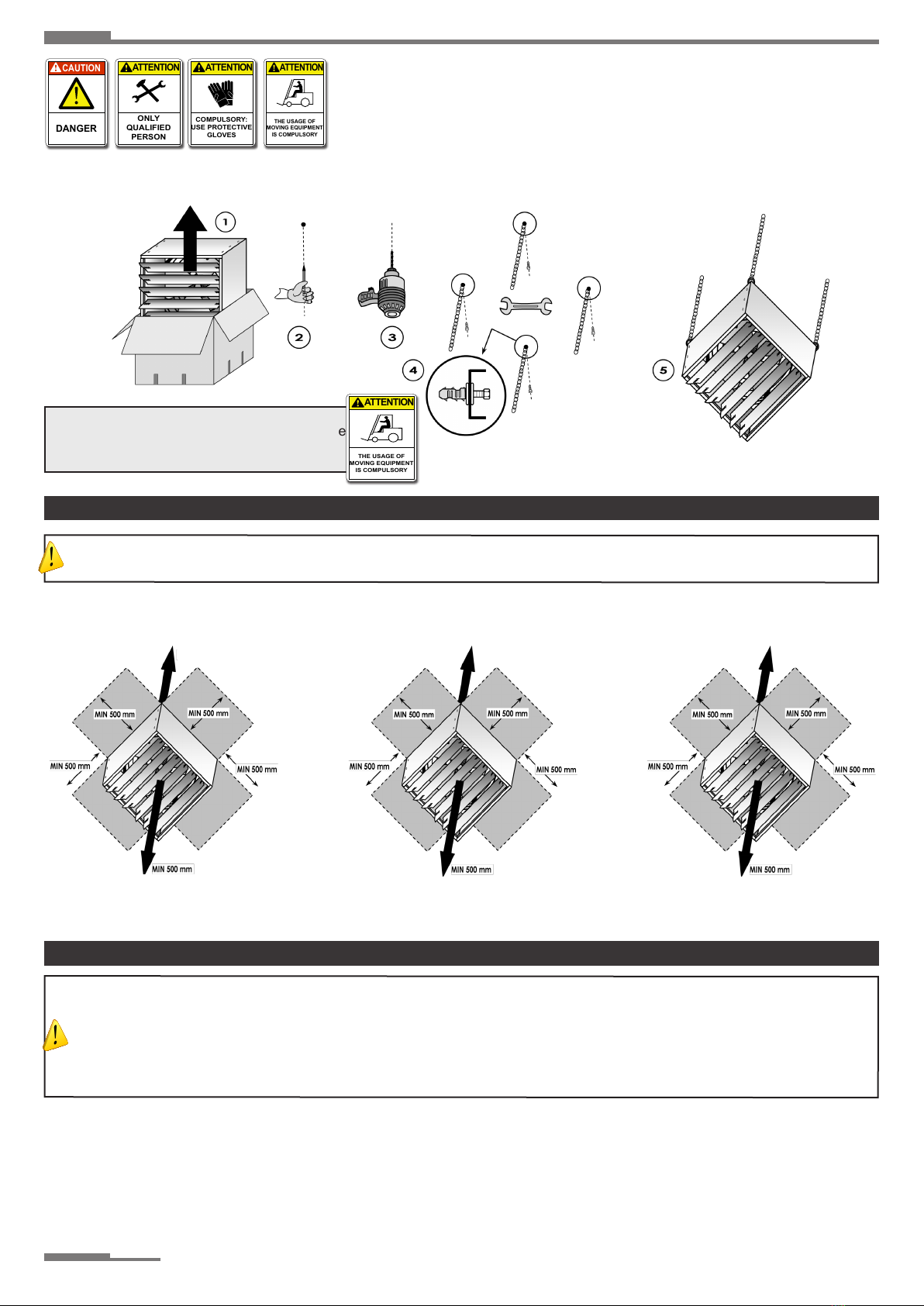

• The transport must be carried out as follows :
→Packages must be properly secured in the hold�
→Packages should be transported protected from the weather, preferably in a closed hold�
• The device is equipped with special transport packaging suitable for transport, which must be kept in good condition until the date of
delivery to the installation site�
• Check that the device contains all the parts and accessories included in the order�
• Check that the appliance is not damaged and that its type corresponds to the type ordered� All devices are shipped from the factory
after testing, so if you notice any damage, notify your carrier immediately�
Transporting, unpacking and packing the device is a process that must be carried out with special care to avoid possible damage� Do not
attempt to use the components of the device as a handle� When lifting, make sure that the center of gravity of the package is at the center
of the lifting fork of the lifting machine�
CAUTION
DANGER
ATTENTION
THE USAGE OF
MOVING EQUIPMENT
IS COMPULSORY
ATTENTION
FORBIDDEN !
ATTENTION
ONLY
QUALIFIED
PERSON
The device is delivered in a corrugated box, sometimes on a one-way pallet� The process of unpacking the device:
• remove the device and assembly materials from the paper boxes,
• inspect the device for damage during shipping�
• if the device is damaged, notify the dealer from whom you purchased the device immediately!
You will find the Installation and Maintenance Guide next to the machine, the Instructions Manual and the Letter of Warranty and the
Commissioning Protocol�
The identification label that is affixed to each device contains the following information:
• Manufacturer details,
• Product type, serial number,
• Technical data�
3.

LLV Air destratifier ventilator family Instructions for Installation and Servicing
7
The device works on the principle of air circulation, which blows hot air accumulated in the upper third of the room back into the living
zone, thus reducing heating losses due to air stratification�
The device has a control electronics that allows two control modes� In automatic mode, if the preset temperature (25 ° C at the factory)
reaches the air temperature at the unit, the fan will start and blow down the above warm air� In manual mode, the device can be started
at any time with the help of a switch, so the device can also be used for ventilation and air circulation�
The direction of the blow-out can be set within certain limits using the lamella on the device� It is recommended to use an air technic
specialist to determine the installation location of the device and to set the exact direction of the blow-out�
4.
5.

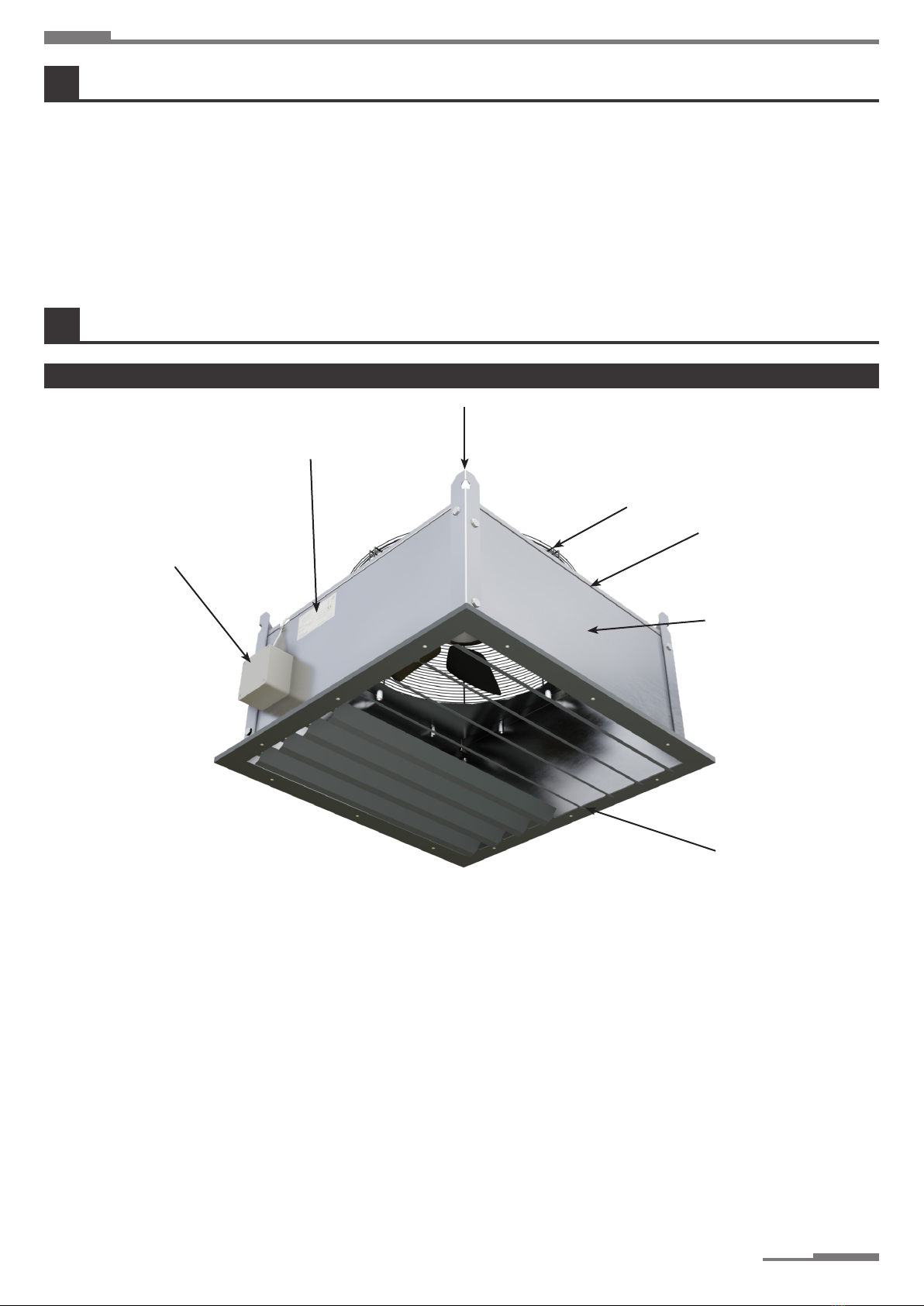

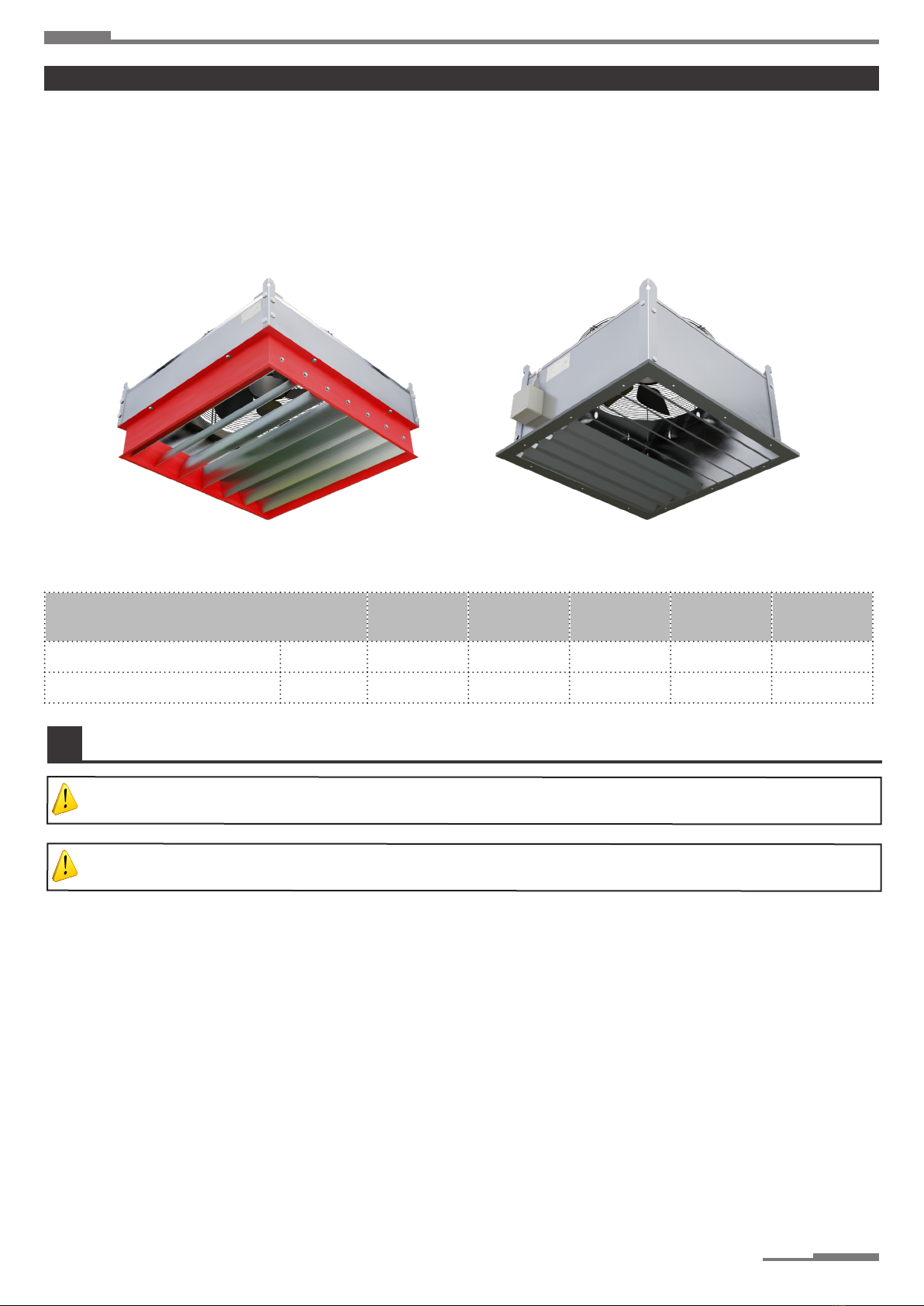

The main components of air destratifier
2. figure: The main components of air destratifier
Axial fan
Main cover made
of galvanized sheet
steel
Adjustable spoilers
ON / OFF thermostat for
switching to ceiling tempera-
ture for automatic control
Hooks
Identification label
Vibration damping seal

LLV Air destratifier ventilator family Instructions for Installation and Servicing
8
Technical data
LLV-400 LLV- 450LLV-500 LLV-650 LLV-800
Air transport m3/h 35 41 4620 6420 11435 10580
Noise level dB(A) 68 68 72 75 78
Work place S m2100 160 230310 450
Installation height H m 4–7 5–8 5–9 6–10 18–20
Ceiling distance
min�
Mm0,25 0,25 0,25 0,35 0,40
recommended
MmH/4 H/4 H/4 H/4 H/4
Revolutions per minute 1/min 1380 1350 1300 1360 906
Engine power consumption W 180 250 420 750 1036
Power consumption A 0,821,2 1,95 3,5 4,5
Electrical protection IP40 IP40 IP40 IP40 IP40
Net weight Kg 15,8 18,2 19,7 46,5 54
Electrical connection 230V-1Ph-50Hz
LLV- 6 50 / LLV- 8 00
LLV-400 / LLV-450 / LLV-500
3 figure: LLV-400 / LLV-450 / LLV-500 device dimensions
4 figure: LLV-650 / LLV-800 device dimensions
W
L
A
B
D
H
EC
F
Dimensions (mm) LLV-400 LLV-450 LLV-500 LLV-650 LLV-800
W600 663 663 780 930
L600 663 663 930 930
H~385 385 ~385 ~480 ~515
A 538 608 608 750 885
B 538 608 608 885 885
C 313 313 313 380 380
D 56 56 56 56 56
E 268 268 268 320 320
F 14x21 14x21 14x21 14x21 14x21
W
L
A
B
D
H
EC
F
W
A
W
A

LLV Air destratifier ventilator family Instructions for Installation and Servicing
9
Direction of airflow
6.
The device must always be installed inside the building!
!
• Check that the equipment and its technical parameters correspond to the design of your choice and its documentation�
• Always keep the packaging items out of the reach of children as they may cause injuries�
• Always wear protective clothing before starting the installation and use suitable tools for the installation to avoid possible injuries�
Before starting to install the unit, we recommend that you pre-install any optional components that follow the instructions in their
assembly instructions�
• Select the installation location� When selecting, make sure that the mounting points of the device are connected to fixed, vibra-
tion-free batteries and can support the weight of the device�
INSTALLATION MUST ALWAYS BE CARRIED OUT IN ACCORDANCE WITH LOCAL LEGISLATION!
!
Type LLV-400 LLV-450 LLV-500 LLV-650 LLV-800
Length of lamella mm 515 590 590 850 850
Pieces of lamella pcs� 2x4 2x4 2x4 5 7
Slats extended in 45 ° in two directions
For LLV 400-500 devices
Slats folded out in two directions at 30 °
For LLV 650-800
The casing and lamella of the LLV 400-500 are also made of galvanized sheet steel, the lamella are painted� The slats can be un-
screwed by hand, but their regular twisting can break the metal, so it is advisable to adjust the position of the slats well at first�
TheslatsarebentondifferentsidesontherightandleftsothattheaircanbeblownoutintheΛdirection,thismustbetakenintoac-
count when bending the slats�
The LLV 650-800 devices use aluminium lamella with a plum seed profile, which can be adjusted freely along their axis� It is advisable
to make the adjustment on the ground, before mounting, and to secure the position of the slats on both sides of the louvre frame by
tightening the M8 nuts so that the high-pressure air does not turn them over�

LLV Air destratifier ventilator family Instructions for Installation and Servicing
10
Electrical connection
• Check the laws / regulations for your installation location�
• Check that the network specifications correspond to those on the rating plate of the appliance�
• Operation of the device other than from the network specified above will void the warranty�
• Verify that the electrical system can provide the additional power required to operate the new unit safely in addition to the existing
equipment�
disconnected.
-
fied person.
DO NOT FORGET: Electrical or any other modification to the product will void the warranty.
!
• Mark the location of the 4 wall-plug on the floor�
• Make 4 holes for the wall-plugs�
• Secure the chains on which the device is suspended with 4 M8 tensioning screws
or M8 threaded shanks� The use of a chain (min� 10cm) is required to absorb vibra-
tions�
• The appliance must be installed in such a way that the openings cannot be
blocked by either the air inlet or the air outlet side�
CAUTION
DANGER
ATTENTION
ONLY
QUALIFIED
PERSON
ATTENTION
COMPULSORY:
USE PROTECTIVE
GLOVES
ATTENTION
THE USAGE OF
MOVING EQUIPMENT
IS COMPULSORY
Due to the weight of the device, always do the
lifting with a hoist�
ATTENTION
THE USAGE OF
MOVING EQUIPMENT
IS COMPULSORY
Installation distances
The device must be installed in such a way that it is accessible for both general and special service!
!
In the case of under-ceiling installation, there must always be adequate space for testing the equipment�
Min 350 mm Min 400 mm
LLV-400���500 LLV- 65 0 LLV- 80 0
Min 250 mm

LLV Air destratifier ventilator family Instructions for Installation and Servicing
11
CAUTION
DANGER
CAUTION
ELECTRIC
SUPPLY
ATTENTION
COMPULSORY:
EARTHING
• Safe operation of the device is only established if it has been connected in accordance with the relevant safety regulations and is
properly earthed�
• When making the connection, make sure that the earth cable is the longest so that it can be the last to break if the connection cable is
tensioned, thus ensuring that the appliance is properly earthed�
When selecting cables, take into account the applied current and the relevant local regulations, and that no voltage drop of more than
3% is permitted on the line�
• Use H05V-K or N07V-K insulated wire that can be used up to 300/500V� All wiring not in the control box must be routed through a pipe
or duct�
• Cables out of the pipe or duct must not be tensioned or twisted� They must be protected from moisture� The remaining wires can only
be used to connect the finishing sections� Make sure all wires are connected properly�
• Make the electrical connection according to the wiring diagram supplied with the device�
• The use of adapters, manifolds and extension cords is not permitted when connecting the main power cord�
• It is the responsibility of the installer to place the device as close as possible to the central power switch!!
• To prevent short circuits, the device must be connected to the mains by installing a multi-pole switch with a minimum opening of 3
mm� (check the current value on the rating plate on the appliance to select the correct switch)� A multi-pole switch is actually a “bi-
polar insulated switch”, meaning the switch is suitable for both voltage and 0-phase disconnection� This means that when the switch
is off, both phases are disconnected� The multi-pole switch or socket must be installed in an easily accessible place�
CHECK THE POTENTIAL EARTHING!
!
Connecting cable data
Electrical wiring
POWER CONSUMPTION: Use the data on the rating plate of the appliance.
!
Each control panel can only control one device.
-
pendently.
!
Connection of the controller
The electrical connection is located next to fuse 5A� Disconnect the plug and
connect the 230V incoming cables to the appropriate connection points�
The connection points are as follows:
PE: potential earthing
N: null
L: phase (230V)
LV: direct input to fan for ventilation (230V)
ONLY ONE CAN BE PHASE!
Optionally, a switch can be used to start the fan regardless of the temperature if
the controller receives a phase at the LV input instead of L� This can be useful,
for example, in summer or when it is necessary to ventilate the room regardless
of the temperature, you can start the fan with a switch and then switch it back
on for temperature-dependent control�
On the vertical auxiliary circuit has a blue potentiometer to control the tempera-
ture at which the fan turns on� It is set at 25 °C at the factory� The temperature
on the knob can be set between 0 and 100 °C�

LLV Air destratifier ventilator family Instructions for Installation and Servicing
12
• Disconnect the device from the mains via the multi-pole switch�
NEVER TUG OR TWIST THE ELECTRIC CABLE!
Never push, pass through, or secure the power cord with a nail or pushpin� A damaged cable can cause a short circuit or physical injury�
APPROPRIATE EXHAUST POSITION-
ING
The device must be positioned so that
the escaping air does not reach people
continuously�
IMPROPER USE CAN CAUSE DAMAGE
The device must not be used in animal
breeders or similar facilities� If necessary,
a special (INOX) design can be solved to
meet such needs�
DO NOT PLACE ANY OBJECTS IN
FRONT OF THE BLOWER
Never place any objects in the way of the
blowers, as this may result in physical
injury or damage to the unit�
Decommissioning
Improper use
DO NOT SIT ON THE DEVICE
DO NOT COVER THE APPLIANCE
WITH ANY OBJECT OR CURTAIN
THAT COULD PREVENT FREE AIR
FLOW.
ATTENTION: When operating the appli-
ance, do not place any objects or clothing
in front of the air outlet, as this may block
the air outlet and damage the appliance�
CLEANING THE APPLIANCE: Do not
spray water on the unit as it may cause
electric shock or damage to the unit� Do
not use hot water, scouring powders or
strong solvents for cleaning� Use a soft
cloth to clean the device�
• This device is made with modern technology, which ensures long-term efficient operation�
• It is important to establish a regular and specific inspection and maintenance program to maintain good condition at all times� The fol-
lowing maintenance program is designed to pay special attention to proper air quality and compliance with installation characteristics�
Service time is highly dependent on adherence to the above� The most aggressive air-side condition occurs when the concentrations
of industrial vapors, salt, chemical vapors, and rising dust in the air are particularly high�
7.

LLV Air destratifier ventilator family Instructions for Installation and Servicing
13
PLEASE CHECK THE FOLLOWING POINTS BEFORE INSTALLING THE EQUIPMENT:
• Mounting points for the device, on the ceiling, wall, etc�
• The accuracy of the connection and wiring points of the equipment �
• The available power supply�
• Fixing the mounting plates�
• Make sure that all standards, regulations and legislation for the installation of the devices have been complied with�
FOLLOW THE FOLLOWING STEPS TO COMPLETE THE INSTALLATION:
• Turn on the switch�
• Make sure that “TA” is set to the desired temperature with the under-ceiling control thermostat installed in the appliance
to perform the automatic ON / OFF switch� (“TA” = adjustable up to 0 ÷ 100 °C, default: 25 °C)
• Switch on the appliance�
• After installation or after a long shutdown, it is recommended to operate the device at maximum speed for a few hours�
CHECK DURING INSTALLATION:
• Current and airflow�
It is recommended that the user be informed of all information necessary for proper operation, in particular the importance of periodic
inspections, which must be carried out at least once a year by a qualified person�
Start up
ATTENTION! Installation of the device and the relevant tests may only be carried out by a qualified person.
!
Useful informations
•
a qualified person. Failure to do so will void the warranty and the manufacturer will not be responsible for the safe operation
of the equipment.
• Before starting the device for the first time, make sure that the installer has carried out the installation correctly�
• Avoid using unnecessary power when not in use�
In case of malfunction or unsatisfactory operation:
• Unplug the appliance�
• Do not attempt to service or repair this product yourself �
• Call a qualified service technician�
• Any type of service should only be performed by a service technician qualified by the manufacturer, using only original accessories�
• Failure to follow the above rules may endanger the safe operation of the device �
After installation or after a long shutdown, it is recommended to operate the device at maximum speed for a few hours�
8.
Starting and stopping the device
Fault or unsatisfactory operation
is performed by a qualified service technician according to the manufacturer’s instructions.
!
Operating
CONTROLLERS MAY HAVE DIFFERENT OPERATING FUNCTIONS!!
THEREFORE ALWAYS FOLLOW THE INSTRUCTIONS IN THE DESCRIPTION ACCOMPANYING THE REGULATOR.
!

LLV Air destratifier ventilator family Instructions for Installation and Servicing
14
Do not spray water on the unit as it may cause electric shock or damage to the unit� Do not use hot
water, scouring powders or strong solvents for cleaning� If possible, avoid operating the appliance
while cleaning the room�
ATTENTION! Turn off the power before cleaning.
!
• It is recommended to perform the following operations at the beginning of each cooling / heating season and at least once a month:
• Clean the outside of the machine with a damp cloth�
• FAN MOTOR GROUP (for all types): Both the motor and the fan operate with self-lubricating bearings that do not require additional
lubrication� Make sure the tile is clean� If possible, use compressed air to clean the fan to avoid damaging the blades�
To keep the equipment in good condition, ensure that the maintenance is carried out by a qualified person at least once a year�
• Electrical unit check: check all electrical units and wiring are correct�
• Check all fastening connections that may come loose due to vibration �
• Check the fan motor for dust or other deposits� Check that the fan is running without vibration or noise, and that the suction or dis-
charge flow is not obstructed to avoid overheating the motor winding�
• Check the fan housing for deposits or foreign matter�
NOTE: Regular maintenance ensures safe and economical operation!
User periodic maintenance
Annual review
You can request immediate technical assistance from your dealer or directly from the manufacturer, who will provide you with the contact
details of the service partner closest to you�
Before requesting technical assistance, make sure that you have the technical data and the manual:
• Device type
• Serial number
Installation Confirmation Statement�
• If special technical solutions require the replacement of original parts, always consult a qualified technician�
• ATTENTION! When replacing parts, always make sure that the appliance is always switched off and disconnected from the mains and
water supply�
9.
trained technician.
!
always need the device type and the component description.
!
Replacement parts
Cleaning the device

LLV Air destratifier ventilator family Instructions for Installation and Servicing
15
10
11.
-
!
Power supply (electric motor) 230V ± 15% / 1Ph /50Hz (Max 265V ; Min 195 V)
Power supply (control unit) 230V ± 15% / 1Ph /50Hz (Max 265V ; Min 195 V)
Temperature limits (ambient air) -10°C ÷ +50°C
Humidity Limits (Ambient Air) 10% ÷ 90% rH (condensate free)
Poor airflow • Obstructed airflow (intake / exhaust side): Remove the obstruction
• The fan rotates in the opposite direction: Check the wiring diagram and the connections
Excessive airflow • Install the unit higher
Low static pressure • The fan rotates in the opposite direction: Check the wiring diagram and the connections
High noise level
• Metallic elements are damaged: Check the condition of the metal elements and replace the damaged
elements
• Rotating parts are out of balance: Balance the fan blades
• The suspension of the device is too rigid, so it transmits the resonance� It is recommended to use a
longer chain�
Fan / motor not running
• Power failure: Check power supply and connections
• Make sure: The mains is switched on
• Make sure: Switches and controls are in the correct position
• Make sure: There is nothing that blocks the rotation of the fan blades

LLV Air destratifier ventilator family Instructions for Installation and Servicing
16
Keep this warranty card!
Tyype:
Serial number :
Date of purchase:
LIMITED WARRANTY *
The manufacturer warrants to the customer that the product and its components are free from defects
in material and workmanship� The manufacturer guarantees the device for 2 years from the date of
purchase, if it is operated in accordance with the regulations� This warranty applies to the first original
retail customer�
The warranty covers the cost of laboratory tests and parts required for proper operation� Shipping and
contingencies are also included in repair costs and do not include compensation costs�
Warranty repairs are only possible through an authorized dealer or service center�
The warranty does not cover damage resulting from improper use, damage, negligence, accident, lack
of maintenance, normal wear and tear, modification, modification, factors affecting operation, use due
to contaminated fuel, installation of unsuitable parts, repair by a non-service center or dealer�
Regular maintenance is the responsibility of the owner�
The manufacturer is not liable for any damage that may occur, either directly or as a result of improper
operation�
*We reserve the right to change this specification without notice. The warranty is applicable based on the
factors set forth above.
We make no further warranty.
Warranty service
If your device requires service, this service can be taken to the nearest authorized service center� This
service is included with the purchase agreement�
Repair service
Take the device back to the nearest authorized service facility� The cost of the non-warranty repair will
be invoiced to the customer at the specified price� Service centers are independent of each other and
may have other owners� We reserve the right to change this specification without notice�
Always have the device model and serial number available when you want to contact us�
For other information, please write to distributor�

LLV Air destratifier ventilator family Instructions for Installation and Servicing
17

PAKOLE TRADE Ltd.
H-8000 Székesfehérvár, Börgöndi út 8-10�
www�pakole�hu
mail@pakole�hu
Tel�: +36 22 316 484
www.pakole.com
This manual suits for next models
4
Table of contents
Popular Fan manuals by other brands

Hunter
Hunter Type 3 Models Owners and installation manual

Arbonia
Arbonia Sabiana SKYSTAR SK-ECM 32 manual

Monte Carlo Fan Company
Monte Carlo Fan Company 3CNHSM52 Series Owner's guide and installation manual

Fanimation
Fanimation Air Shadow FP810AM Specification sheet

Today's Design House
Today's Design House HUGGER SERIES Z442 installation instructions

NuTone
NuTone RDFU1 installation guide
