Palmgren 9680149 User manual
Operating Manual & Parts List 9680149
Read carefully and follow all safety rules and operating
instructions before first use of this product.
9646739.01-0221
18˝
Mill Drill
with dro and
power feed
2
Palmgren Operating Manual & Parts List 9680149
DESCRIPTION
Palmgren 18" Mill Drill w/ DRO and Power Feed,Model 9680149 is
for milling or drilling, widely used in different places.Fine exterior,
wide range of speed and easy to use.
Designed for industrial usage milling, drilling,reaming,steps and mill
plane with metal and other material.
• The highest speed range 5000 rpm;variable spindle speed;
• Spindle speed digital readout;
• Tapping function;
• Brush less DC motor;
• Chuck guard with safety switch;
• Feeding depth digital readout;
• Fine feeding;
• With two USB sockets,can supply power to lamp or iPad;
• Large size worktable 740 × 180mm;
• High grade aluminum hand wheel,anodic oxidation treatment of
the whole Aluminim Rod Surface;
• High grade scale ring, Surface anodic oxidation treatment.
• Small tools adsorption zone.
UNPACKING
WARNING: Be careful not to touch overhead power lines,piping,
lighting,etc.,if lifting equipment is used.Mill Drill weighs up to 170 Kg
lbs,proper tools,equipment and qualified personnel should be
employed in all phases of unpacking and installation.
Crates should be handled with care to avoid damage from dropping,
bumping,etc.Store and unpack crates with correct side up. After
uncrating Mill Drill, inspect carefully for any damage that may have
occurred during transit.Check for loose, missing or damaged parts.If
any damage or loss has occurred, claim must be filed with carrier
immediately. Check for completeness.Immediately report missing
parts to dealer.
CAUTION: Never use highly volatile solvents. Avoid getting cleaning
solution on paint as it may tend to deteriorate these finishes.Use soap
and water on painted components.
SPECIFICATIONS
Palmgren 18" Mill Drill w/ DRO and Power Feed, Model 9680149
Max drilling capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.10"
End mill capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1"
Face mill capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.50"
Throat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.50"
Max distance spindle to table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9"
Spindle taper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.40"
Spindle speed,low range . . . . . . . . . . . . . . . . . . . . . . . . . . . 100-1800 RPM
Spindle speed,high range: . . . . . . . . . . . . . . . . . . . . . . . . . 280-5000 RPM
Motor RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3600 RPM
Table size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30" x 7"
T-slot size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5"
Table longitudinal travel (X) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20"
Cross travel (Y) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.25"
Headstock travel (Z) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.85"
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115V
Amperage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8A
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.33 HP
Overall dimension (LxWxH) . . . . . . . . . . . . . . . . . 37.5" x 30.25" x 36.25"
Packing size (LxWxH) . . . . . . . . . . . . . . . . . . . . . . . . .43.25" x 36.25" x 39"
Weight (net/gross) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .324 lbs / 375 lbs
KNOW YOUR TOOL
Figure 1 - Know your tool.
1 Base
2 Y-axis hand wheel
3 Large size worktable
4 Fuselage (with protect
cover)
5 Power socket with fuse
6 Protective dust guard
assembly
7 Depth display
8 Fine feeding handle
9 Emergency stop switch
10 Knob with potentiometer
11 Spindle speed display
12 Tapping function button
13 Start button
14 Spindle box top cover
15 Spindle box
16 Tapping button (change to
F/R)
17 Spindle lifting lever
19 Fine feeding lock handle
20 Back mask
21 X-axis handle wheel
22 Saddle lock handle
23 Saddle
24 Worktable lock handle
25 DRO
26 Power feed
27 Up
28 Down
29 Z-feed motor
21
26
25
6
7
5
3
2
24
24
22
23
1
9
10
28
27
11 12
13
29 15
16
17
14
8
19
20
4
3
Palmgren Operating Manual & Parts List 9680149
SAFETY RULES
WARNING: For your own safety, read operating instructions manual
before operating tool.
PROPOSITION 65 WARNING: Some dust created by using power tools
contain chemicals known to the state of California to cause cancer, birth
defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry
products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies,depending on how often you
do this type of work.To reduce your exposure to these chemicals;
work in a well ventilated area and work with approved safety
equipment.Always wear OSHA/NIOSH approved,properly fitting
face mask or respirator when using such tools.
BE PREPARED FOR JOB
• Wear proper apparel.Do not wear loose clothing, gloves,neckties,
rings,bracelets or other jewelry which may get caught in moving
parts of machine.
• Wear protective hair covering to contain long hair.
• Wear safety shoes with non-slip soles.
• Wear safety glasses which comply with United States ANSI Z87.1.
Everyday glasses have only impact resistant lenses.They are NOT
safety glasses.
• Wear face mask or dust mask if cutting operation is dusty.
• Be alert and think clearly.Never operate power tools when tired,
intoxicated or when taking medications that cause drowsiness.
WORK AREA SHOULD BE READY FOR JOB
• Keep work area clean.Cluttered work areas and work benches
invite accidents.
• Do not use power tools in dangerous environments. Do not use
power tools in damp or wet locations. Do not expose power
tools to rain.
• Work area should be properly lighted.
• Proper electrical outlet should be available for tool.Three-prong
plug should be plugged directly into properly grounded,
three-prong receptacle.
• Extension cords should have a grounding prong, and the three
wires of the extension cord should be of the correct gauge.
• Keep visitors at a safe distance from work area.
• Keep children out of workplace.Make workshop childproof. Use
padlocks,master switches or remove switch keys to prevent any
unintentional use of power tools.
TOOL SHOULD BE MAINTAINED
• Always unplug tool prior to inspection.
• Read operating instructions manual for specific maintaining and
adjusting procedures.
• Keep tool lubricated.
• Use sharp cutters and keep the tool clean for safest operation.
• Remove adjusting tools.Form the habit of checking that
adjusting tools are removed before turning on the machine.
• Keep all parts in working order.Check to determine that the
guard or other parts will operate properly and perform their
intended function.
• Check for damaged parts. Check for alignment of moving parts,
binding,breakage,mounting and any other condition that may
affect a tool’s operation.
• Damaged parts should be properly repaired or replaced.Do not
perform makeshift repairs.(Use the parts list provided to order
replacement parts.)
CAUTION: Think safety! Safety is a combination of operator common
sense and alertness at all times when tool is being used.
OPERATOR
Common sense and caution are factors which cannot be built into
any product.these factors must be supplied by the operator. Please
remember:
• When using electric tools,machines or equipment,basic safety
precautions should always be followed to reduce the risk of fire,
electric shock, and personal injury.
• Keep work area clean.Cluttered areas invite injuries.
• Consider work area conditions.Do not use machines or power
tools in damp, wet, or poorly lit locations. Do not expose
equipment to rain,keep work area well lit.Do not use tools in the
presence of flame gases or liquids.
• Keep children away, all children should be kept away from the
work area.
• Guard against electric shock. Prevent body contact with
grounded surfaces such as pipes, radiators,ranges,and
refrigerator enclosures.
• Stay alert. Never operate if you are tired.
• Do not operate the product if under the influence of alcohol or
drugs.Read warning labels on prescriptions to determine if your
judgment or reflexes might be impaired.
• Do not wear loose clothing or jewelry as they can be caught in
moving parts.
• Wear restrictive hair covering to contain long hair.
• Use eye and ear protection.Always wear.
• Keep proper footing and balance at all times.
• Do not reach over or across running machines.
BEFORE OPERATIONS
• Be sure the switch is OFF when not in use and before plugging in.
• Do not attempt to use inappropriate attachments in an attempt
to exceed the tool’s capacity. Approved accessories are available
from the dealer or machine maker.
• Check for damaged parts,before using any tool,any part that
appears damaged should be carefully checked to determine that
it will operate properly and perform its intended function.
• Check for alignment and binding of all moving parts,broken
parts or mounting fixtures and any other condition that may
affect proper operation.Any part that is damaged should be
properly repaired or replaced by a qualified technician.
• Do not use the tool if any switch does not turn off and properly
OPERATION
• Never force the tool or attachment to do the work of a larger
industrial tool.It is designed to do the job better and more safely
at the rate for which it was intended.
• Do not carry the tool by its power cord.
• Always unplug the cord by the plug.Never yank the cord out of
the wall.
• Always turn off the machine before unplugging.
WARNING: If there is any question about a condition being safe or
unsafe, do not operate the tool!
4
Palmgren Operating Manual & Parts List 9680149
SAFETY RULES (CONTINUED)
GROUNDING INSTRUCTIONS
This machine has a three-prong plug, the third prong is the ground.
Plug this cord only into a three-prong receptacle.Do not attempt to
defeat the protection the ground wire provides by cutting off the
round prong.Cutting off the ground will result in a safety hazard and
void the warranty.
WARNING: Do not modify the plug in any way. if you have any doubt,
call a qualified electrician.
INSTALLATION
CAUTION: Do not attempt to use the machine until installation is
complete, and all preliminary checks have been made in accordance
with this manual.
MOUNTING THE MACHINE
The machine should be mounted on a strong, heavy workbench, of
sufficient height so that you do not need to bend your back to
perform normal operations.9680149 comes with a stand,but can
also be mounted to workbench.
Ensure the location is adequately lit and that you will not be working
in your own shadow.We strongly recommend that the machine
bolted firmly to strong workbench using the tapped holes used to
secure the feet to the machine.This is to provide added stability and
consequently, additional safety.
To do this,first drill four M12 clearance holes in a worktop, at the
dimensions shown in the diagram opposite, and with appropriate
length M10 bolts,or screws,with flat washers.(not supply, you need
prepare these by yourself).
OPERATION
Before starts to use this machine,operator should go through the
instructions carefully so as to acquaint with the construction of the
machines,the functions of the various controls and also the driving
systems.
Let me introduce the operator step to you:
1. Insert the power line insert the socket left of the fuselage,then
power on.
2. Loosen the emergency stop switch (B),then the spindle speed
display (D) bright and show“0000”, press the start button (A) then
clockwise rotation of the speed control button (C),can make the
spindle speed raise to the highest position.Under these
circumstances the mill only have forward direction. Under
tapping circumstances have forward and reverse direction.Press
the tapping function lock button (E), then is button will bright,
then you can press a green button to choose the spindle run to
forward or reverse.The green button total 3 pieces.,they on the
right of the spindle box in the lifting lever.You can see the word
of forward or reverse on the right of the display (D),it easy to
show the user the direction of the rotation of the spindle.
3. This mill has two spindle speed ranges.The low is 100-1800 rpm
and the high range is 280-5000 rpm.To switch between the
ranges,un plug the machine,open the cover, and switch the belt
between the two gear sets.
Figure 2 - Clearance holes in worktop diagram.
Figure 3 – Power plug socket locations.
Figure 4 – Main control buttons.
D
B
FC
A
E
G
A – Start
B – E-stop
C – Speed control dial
D - Display
E – Tapping mode/drill mode
F – Up button
G – down button
H – power indicator light
5
Palmgren Operating Manual & Parts List 9680149
OPERATION (CONTINUED)
4. If you want to stop the spindle you can counter-clockwise turn
the speed control knob (C) to the“0”position, or press the start
button (A) the spindle will stop running.
5. The machine can be quickly stopped when running,by pressing
the large red emergency stop button.The mill will stop
immediately.
NOTE: The emergency stop button (B) is for emergencies,and not
general use.Using too often will wear out the main PC board.
NOTE: The emergency stop button (B) is for emergencies,and not
general use.Using too often will wear out the main PC board.
SEVERAL CHARACTERISTIC FUNCTIONS
Figure 6 – Spindle belt and gearing.
Figure 7 - Spindle depth display.
Figure 5 – Spindle belt and gearing.
Figure 8 - Chuck guard with safety switch.
Figure 9 - Spindle fine feeding ( tighten the lock knob“A” then
turn the fine feeding knob “B”.
A
B
Figure 10 - Small tools adsorption zone.
Figure 11 - With two USB sockets, can supply power.
6
Palmgren Operating Manual & Parts List 9680149
OPERATION (CONTINUED)
INTRODUCTION OF HIGH AND LOW SPEED SHIFT
1. Loosen and remove the hand screws and gaskets on the top
cover of the box;
2. Pull the top cover of the box with the pull rod protector on the
top of the hand.Note:do not remove the two screws above the
front.
3. Use the inner six angle wrench to unlock the internal six angle
screws M5 of the 4 locking motor connecting plates,and pull the
motor connecting plate with the hand direction to the main axis,
and the belt loosens easily. Usually the factory state is at this high
speed position.
4. The synchronous gear belt for low-speed gear is removed from
the attachment package and mounted on the upper low-speed
gear;
5. Push the long bolt with hand to drive the motor to move to the
column side,the belt is tight,then lock 4 inner hexagonal screws
to fasten the motor connecting plate;
Figure 14 – Gear box cover removal.
Figure 15 – Spindle belt and gearing.
Figure 16 – Unlocking screw.
Figure 13 – Hand screw removed.
Figure 12 – Hand screw location.
Figure 17 – Removing belt.
Figure 18 – Shifting belt to upper low-speed gear.
Figure 19 – Shifting belt to upper low-speed gear.
OPERATION (CONTINUED)
6. Check the looseness of the synchronous belt by hand pressing,
after confirming ok, lock the fastening screw of the motor
connection plate again, and install the top cover of the box with
the gasket and nut to complete the belt replacement.
7. change the range from high speed to low speed or from low
speed to high speed in the same mode.
BRIEF INTRODUCTION OF CONVENTIONAL
MECHANICAL OPERATION
1. The clamping tool and work piece must stop the machine first;
2. Clean the inner hole of the spindle and the conical surface of the
tool rod, push the tool rod into the inner hole of the spindle,and
put in the pull rod to hang the tool rod;
3. The parts to be processed are placed on the surface of the
worktable.After pressing with the pressing plate or use vice
clamped,the parts are moved to the desired position vertically
and horizontally.
4. Loosen the column lock handle, shake the lift handle and move
the spindle box down;
5. Start the machine, select a good rotation speed, turn
counterclockwise to turn the lifting handle,and drilling of milling
can be done at this time;
6. When milling parts, we must lock the spindle box and spindle,at
the same time lock the longitudinal transverse plug iron
according to the need, so as not to change the machining size;
7. When replacing the drill chuck or milling chuck,open the top
shield loosely on the edge,loosen the screw thread of the pull
rod 2-3 teeth,then use a hammer to knock the taper handle away
from the main shaft, and finally loosen the handle with the hand
to replace the rod.
Figure 21 – Re-fastening the motor connection plate.
Figure 22 – Testing belt.
Figure 23 – Gear cover replaced.
Figure 20 – Testing belt.
Figure 24 – Milling table.
Figure 25 – Column lock handle and spindle lock location.
Figure 26 – Saddle lock and table locking locations.
7
Palmgren Operating Manual & Parts List 9680149
8
Palmgren Operating Manual & Parts List 9680149
OPERATION (CONTINUED)
MAINTENANCE
AFTER USING
After the completion of the work,the power supply should be cut off,
the machine tool and environment should be cleaned well,and
mechanical oil should be added to the exposed surface of the
machine to prevent the surface of the machine from rusting and
affecting the use and beauty of the machine.
MACHINE TOOL LUBRICATION
In order to ensure the long service life of the machine and the
effective operation of the machine tool,lubricating oil or lubricating
oil is regularly added to each moving joint and joint.
Where lubricating oil is needed is mainly the dovetail surface in three
directions of XYZ axis. Position as indicated by arrow
The main ones that need to be lubricated are XYZ's three axial thread
rods and rod nuts.
Figure 28 – Spindle removal.
Figure 27 – Spindle screw.
Figure 32 – Lubrication locations.
Figure 30 – Lubrication locations.
Figure 31 – Lubrication locations.
Figure 29 – Lubrication locations.
Figure 33 – Lubrication locations.
9
Palmgren Operating Manual & Parts List XXXXX
MAINTENANCE (CONTINUED)
OBLIQUE PLUG IRON ADJUSTMENT
This mill uses an oblique plug iron (angle degree is 1:100) between
the base and saddle,saddle and work table, head stock and fuselage.
Thie plug iron allows smooth high accuracy movement for each part.
After continued use,the oblique plug iron should be checked and
adjusted, to eliminate any gap error that occurs.Check for errors
every 3 months
To adjust use a phillips screwdriver and tighten slightly clockwise, as
shown below.
Figure 34 – Oblique plug iron location.
NOTES
10
Palmgren Operating Manual & Parts List 9680149
99

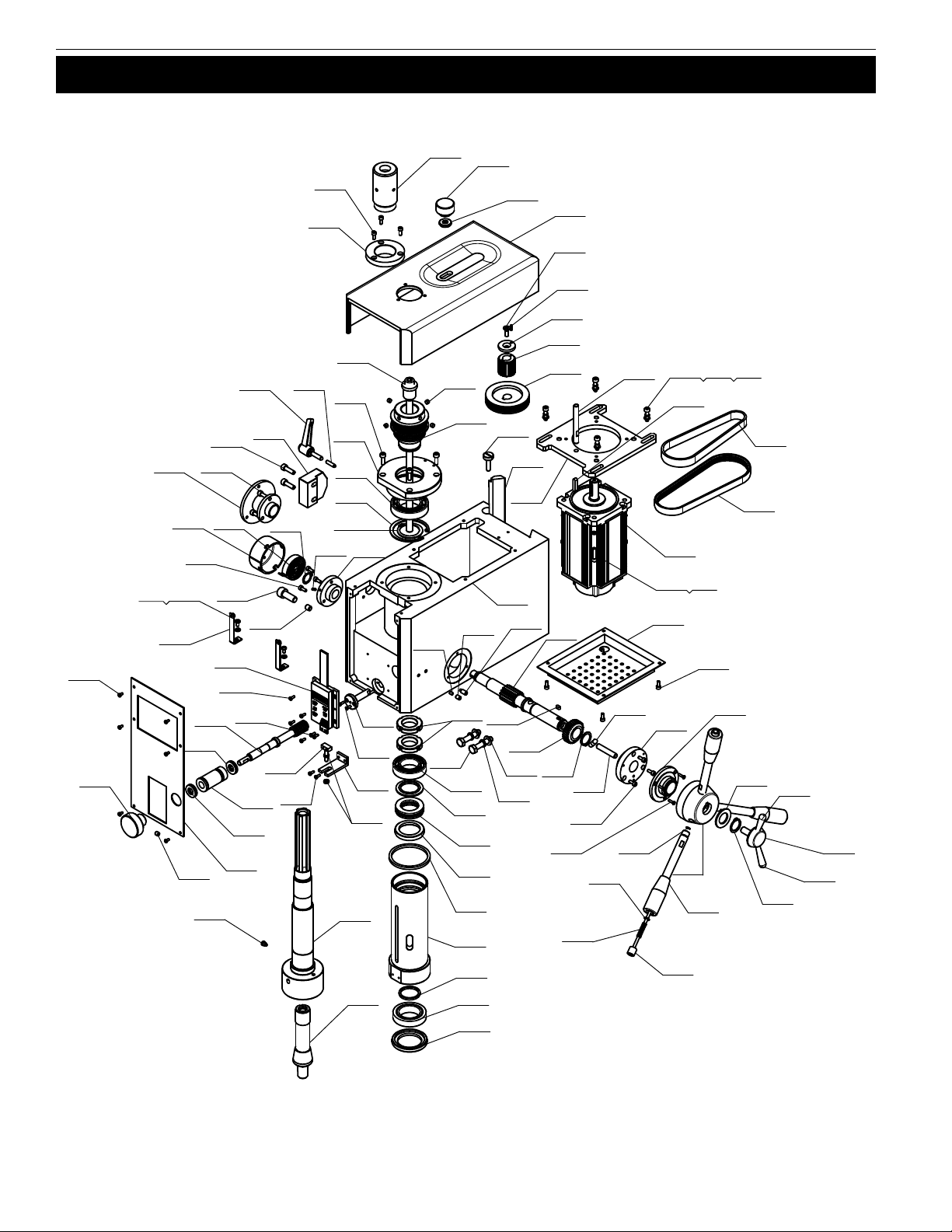

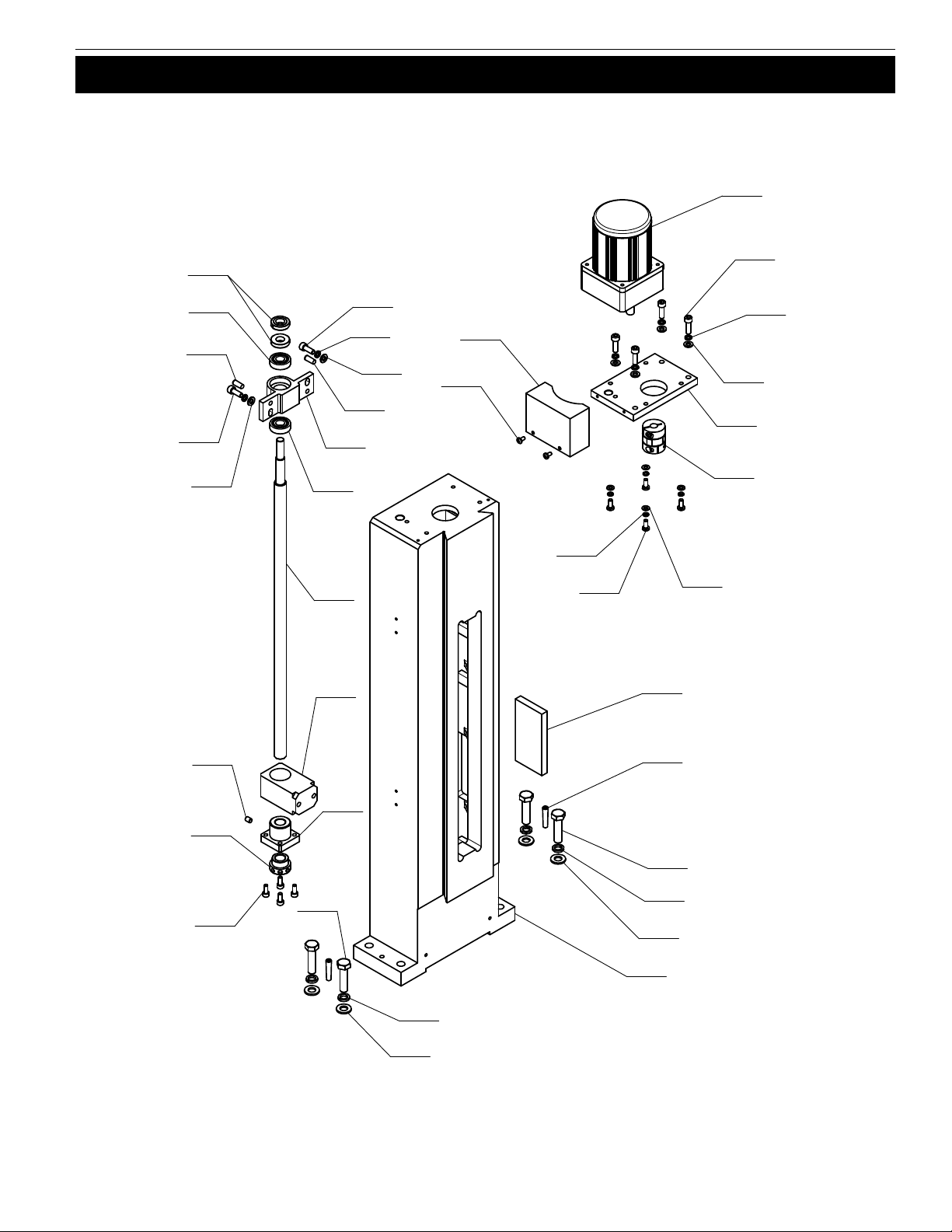

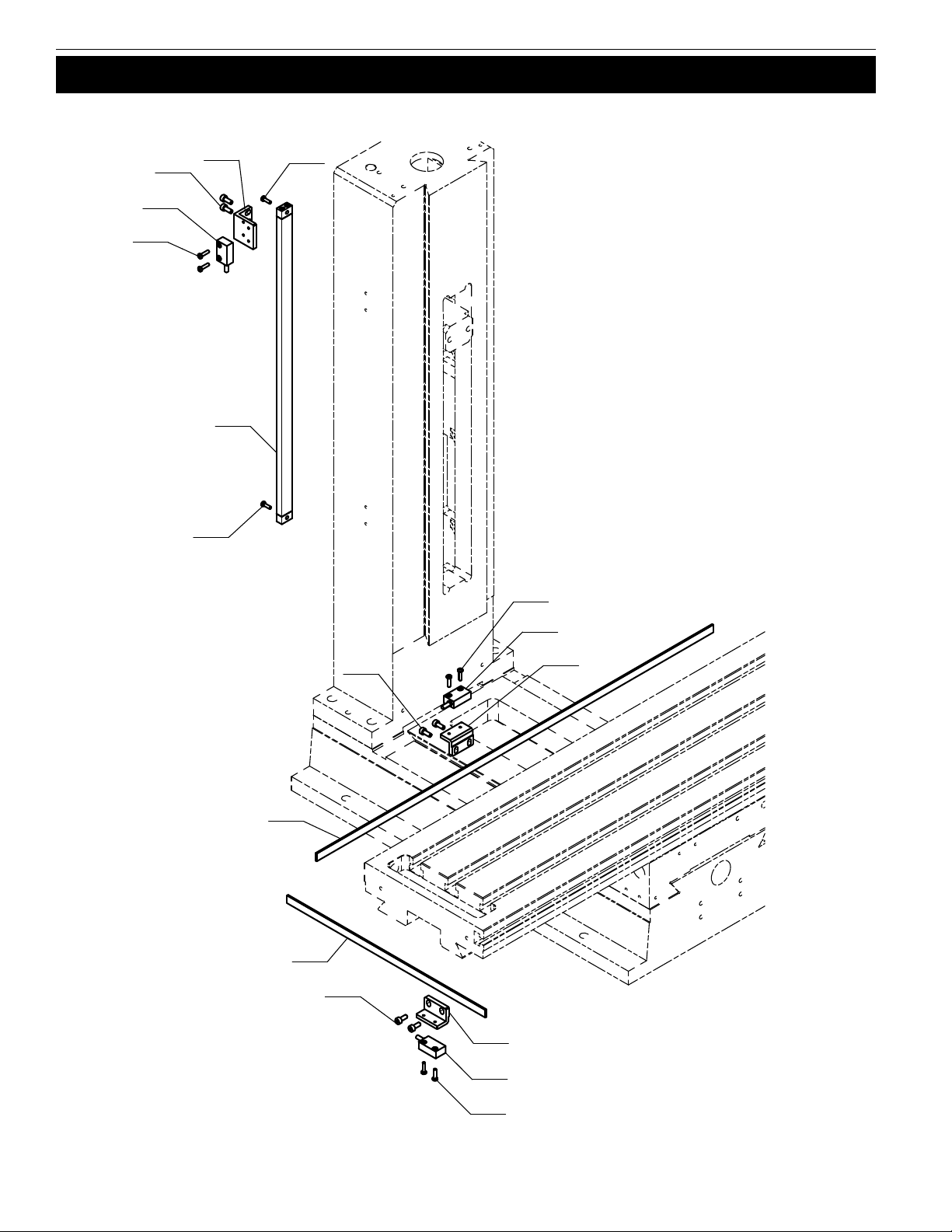

8977765499732 10 /.-,+ *92 /,)('&%(( $.#.,
"! 2 $# (#' ., ,-( ) 2 )(% 7
62 . &-#% "/2 - )##.
"!2 $# (#' ., ,-( +. 02 ".%# #' )(%
"/92 $%,% (#. )##. 62 )+ ,(#-& +(&- -%&
"/2 # )##. "/2 "#-,#4(#. )##.
92 *-%# , 2 *-%# ,
"/ 2 . )##. "/2 *&&4#- '-% )##.
"2 3%&.# ,.% 862 0 .%, ()& .-,+
*2 # $.#., "!92 $# (#' ., ') )-,+
*9732 #-& ,%-+.)# +(&- 02 &%#, --#
"!2 $# (#' ., (+&% . .%,
66666666666666666666666666666666666666666666666666 66666666666666666666666666666666666666666666666666

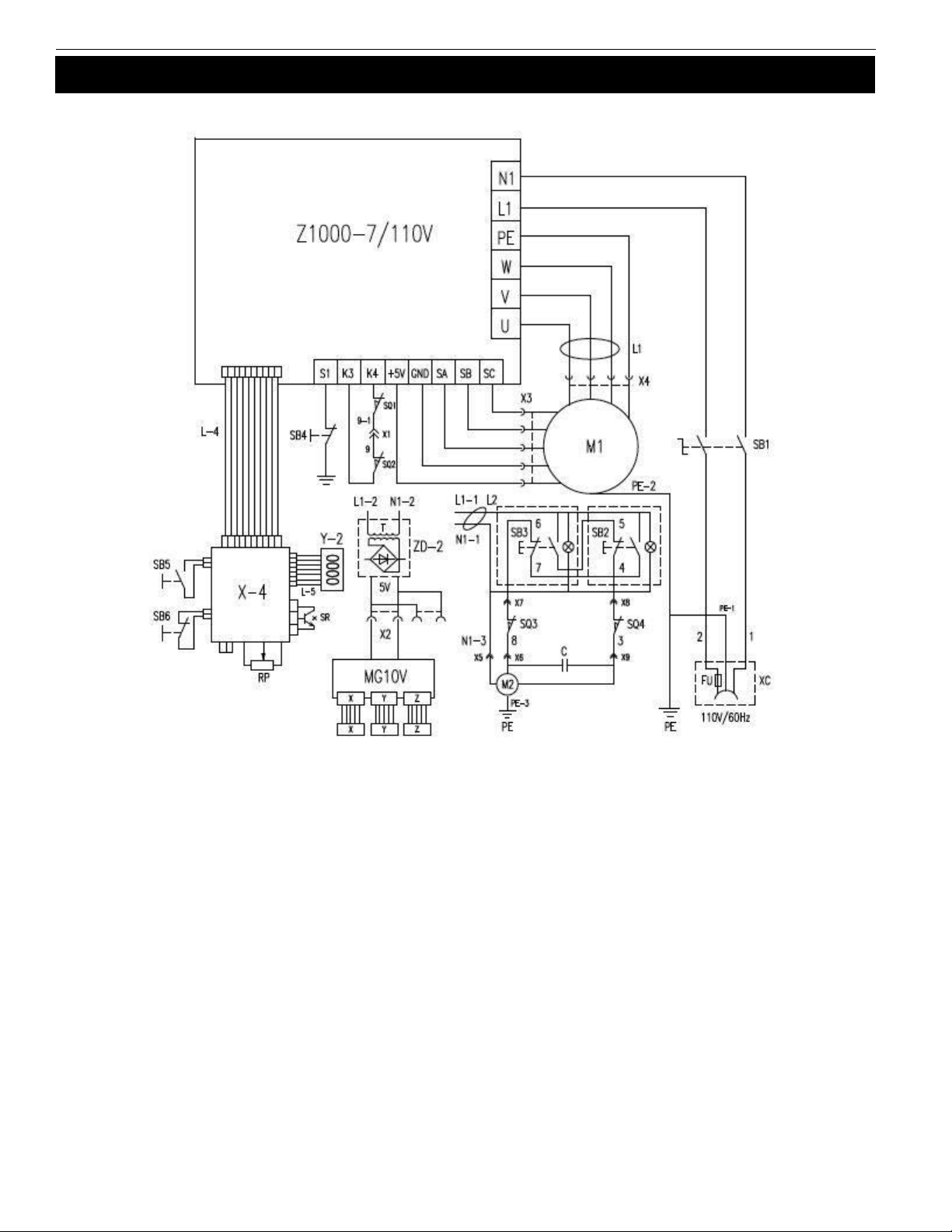

ELECTRICAL SCHEMATIC
Figure 35 - Electrical Schematic
TROUBLESHOOTING
11
Palmgren Operating Manual & Parts List 9680149
SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION
Motor cannot start
Fuse or circuit breaker disconnected
Motor overheating
The hand wheel of a transverse or
feed trawl is too loose
The machine makes constant noise
During operation,the machine stops
Finish surface difference
Difficult to move the end part on
the guide rail
T - type nut is difficult to fix
1. The power supply is not on.
2. Low voltage
3. Motor open circuit or loose connection.
4. The external input socket is broken.
5. May which switch is bad or connect line
loosen;
1. wire or plug short circuit
2. circuit board short circuit 3.power supply
fuse or circuit breaker incorrect.
1. Motor overload
2. Air circulation of motor is restricted
1. The adjusting screw is not in place.
2. Hand wheel loosened
3. Wire rod assembly old or not in place
1. The gear or bearing is out of order.
2. The motor is out of order.
1. Drilling and milling too deep
2. The wrong speed or feed speed was used
in the drilling and milling operation.
3. Milling cutter damage
4. Motor or motor carbon brush damaged
5. Gear damaged
1. Speed or feed speed error
2. Milling cutter broken or wrong selected
1. Drying of guideway
2. Z shaft hand wheel to tighten
3. Over compacted with debris on guide rail
1. T type nut defect or damaged
2. T-groove on the wrong working table
1. Turn on the emergency stop button
2. Check that the voltage of the power supply is
correct.
3. Check that all the connections of the motor are
loosened or disconnected.
4. Check and confirm the input socket is ok.
5. Check switches and the connect lines is tighten.
1. Check wires and plugs for damaged or missing
insulation and replace them with extension wires.
2. Check the voltage of the power supply is correct
3. Check that all connections of the motor are loose
or welded or insulated, and replace the correct
fuse or circuit breaker in time
1. Reduce the load of motor
2. Clean the motor and ensure smooth circulation
of air
1. Tighten the adjusting screw and lubricate the bed
2. Tighten the hand wheel knob
3. Tighten all loose knobs on the thread rod
assembly.
1. Replace damaged gear or bearing
2. Replace motor
1. Reduce drilling depth
2. Choose the right speed
3. Replacement milling cutter
4. Replacement of carbon brush or motor
5. Replacement gear
1. Change the milling cutter by adjusting the correct
speed or feed speed
2. Change the cutter
1. Lubricating oil
2. Adjusting screw
3. Cleaning guide
1. Replacement of type t nut
2. Replacement of table or well-used T slot
3
4
6
9
5
11
13
22
23
22
18
24
20
21
20
25
19
26
18
17
54
20
53
52
51
39 38 37
41
40
35
34
36
27
29
32
50
49
48
47
44
45
55
66 65 57
58
59
60
61
68 67
69
70
62
73
74
63
64
20
72
71
77
7675
78
80
79
79
81
90
86
79
85
81
84
83
82
15
12
43
42
30
31
14
8
7
10
16
87
88
89
46
28
93
92
33
39 38
97
94
75
95
96
1
2
98
56
91
12
Palmgren Operating Manual & Parts List 9680149
Figure 36 – Replacement Parts Illustration for Headstock with DRO
REPLACEMENT PARTS ILLUSTRATION 1D
13
Palmgren Operating Manual & Parts List 9680149
1
4
2
3
5
6
7
810
12
9
13
8
14
15
16
9
10
12
19
17
18
2
3
4
11
27
28
26
25
24
12
11
23
22
21
20
Figure 37 – Replacement Parts Illustration for Column with Z Axis Motor Auto Lift
REPLACEMENT PARTS ILLUSTRATION 2B
1
2
3
4
5
6
1
2
47
8
9
8
410
1
2
14
Palmgren Operating Manual & Parts List 9680149
Figure 38 – Replacement Parts Illustration for Magnetic Scales and Readers
REPLACEMENT PARTS ILLUSTRATION 3A
15
Palmgren Operating Manual & Parts List 9680149
1
50
2
4
3
18
19
20
6
17
5
7
9
8
10
11
10
12
5
25
13
26
25
14
16
15
24
23
22
21
39
39
27
31 28
29
30
31
29
29
33
35
34
31
31 36
4
3
49
43
44
45
16
15
46
25
26
47
25
42
41
39
48
40
5
38
29
33
35
37 32
Figure 39 – Replacement Parts Illustration for Worktable and Base
REPLACEMENT PARTS ILLUSTRATION 4A
41
38
6
6
33
34 27
32
28
30
31
29
28
27
23
2
24
12
25
12
26
16
12
17
18
19
9
20
15
3
4
7
6
2
1
5
48
9
9
8
9
10
14
13
12
11
SX3.518A00-1(MT3/R8)
48#
3#
12
35
36
37
40
42
45
46 44
17
47
22
39
21
49
49
1
1
2
250
50
43
16
Palmgren Operating Manual & Parts List 9680149
Figure 40 – Replacement Parts Illustration for Left Control Box with Z Axis Auto Lift Switches
REPLACEMENT PARTS ILLUSTRATION 5B
17
Palmgren Operating Manual & Parts List 9680149
2
1
3
4
5
7
8
9
10
11
12
14
6
13
13
Figure 41 – Replacement Parts Illustration for Power Feeder Clutch Assembly
REPLACEMENT PARTS ILLUSTRATION 6A
2
3
4
6
54
6
7
7
8
8
9
9
10
17
16
12
13
14
13
15
13
12 13
13
13
15
14
1
11
11
18
Palmgren Operating Manual & Parts List 9680149
Figure 42 – Replacement Parts Illustration for Power Feeder Limit Devices Assembly
REPLACEMENT PARTS ILLUSTRATION 6B
19
Palmgren Operating Manual & Parts List 9680149
1
2
2
3
2
2
2
4
5
5
18
16
17
19
17
16
20
20
15
14
12
21
6
7
7
10
8
5
22
9
23
9
11
13
13
9
1
Figure 43 – Replacement Parts Illustration for Dustproof and Chuck Guard Assembly
REPLACEMENT PARTS ILLUSTRATION 7A
20
Palmgren Operating Manual & Parts List 9680149
1D-1 JT6 taper shank 9646740.01 1
1D-2 R8 spindle 9646741.01 1
1D-3 Spindle under oil seal I 9646742.01 1
1D-4 Taper roller bearing 32907 9646743.01 1
1D-5 Up washer 9646744.01 1
1D-6 Spindle sleeve 9646745.01 1
1D-7 Sleeve limit washer 9646746.01 1
1D-8 Spindle under oil seal II 9646747.01 1
1D-9 Thrust ball bearing 8106 9646748.01 1
1D-10 Up washer II 9646749.01 1
1D-11 Deep groove ball bearing 80106 9646750.01 1
1D-12 Hexagon headed bolt M8*40 * 2
1D-13 Slotted round nut M27*1.5 * 2
1D-14 Press cake 9646751.01 1
1D-15 Spring washer 8 * 2
1D-16 Washer 8 * 2
1D-17 bevel wheel 9646752.01 1
1D-18 Check ring 20 9646753.01 2
1D-19 Locking small shaft 9646754.01 1
1D-20 Socket head cap screw M4*10 * 13
1D-21 Handle seat 9646755.01 1
1D-22 Small handle 9646756.01 2
1D-23 Locking lever 9646757.01 1
1D-24 Adjust washer 9646758.01 1
1D-25 Shaft right support flange 9646759.01 1
1D-26 Ball 8 9646760.01 3
1D-27 Flat key 4*8 * 1
1D-28 Down cover 9646761.01 1
1D-29 Gear shaft 9646762.01 1
1D-30 Slotted cylindrical end fastening screw M6*14 * 1
1D-31 Internal hexagonal flat end fastening screw M6*8 * 1
1D-32 Spindle box 9646763.01 1
1D-33 Brushless motor 9646764.01 1
1D-34 poly V-belt J*456*13 (5 slot) 9646765.01 1
1D-35 Timing belt 3m*396*15 9646766.01 1
1D-36 Flat key 5*25 * 1
1D-37 Washer 5 * 4
1D-38 Spring washer 5 * 8
1D-39 Socket head cap screw M5*20 * 8
1D-40 Double end stud 9646767.01 1
1D-41 Motor fixed plate 9646768.01 1
1D-42 Oblique plug iron 9646769.01 1
1D-43 Iron stopper screw 9646770.01 2
1D-44 Spindle synchronous belt wheel 9646771.01 1
1D-45 Magnet steel Φ6 9646772.01 4
1D-46 Motor synchronous belt wheel 9646773.01 1
1D-47 Motor synchronous belt wheel 9646774.01 1
1D-48 Washer * 1
1D-49 Round pin A3*10 * 1
1D-50 Cross recessed countersunk head screw H M6*16 9646775.01 1
1D-51 Box top cover 9646776.01 1
1D-52 Washer * 1
1D-53 Handle 9646777.01 1
1D-54 Dust cover on spindle II 9646778.01 1
1D-55 Dust cover on spindle I 9646779.01 1
1D-56 Lifting rod (R8) 9646780.01 1
1D-57 Socket head cap screw M5*16 * 4
1D-58 Bearing seat 9646781.01 1
1D-59 Deep groove ball bearing 80107 9646782.01 1
1D-60 Check ring 62 9646783.01 1
1D-61 Check ring 35 9646784.01 1
1D-62 Shaft tooth left support flange 9646785.01 1
1D-63 Spring round pin 3*8 * 1
1D-64 Check ring 16 9646786.01 1
1D-65 Longitudinal stopper locking rod 9646787.01 1
1D-66 Small handle assembly 9646788.01 1
1D-67 Fixed limit block 9646789.01 1
1D-68 Socket head cap screw M6*20 * 2
1D-69 Socket head cap screw M5*12 * 3
1D-70 Connect bracket 9646790.01 1
1D-71 Disc spring housing 9646791.01 1
1D-72 Disc spring 9646792.01 1
1D-73 Spindle sleeve locking shaft 9646793.01 1
1D-74 Socket head cap screw M10*25 * 1
1D-75 Washer 4 * 5
1D-76 Cross recessed head screw H M4*8 * 2
1D-77 Fixed mount 9646794.01 2
1D-78 Digital display module GD300-165 9646795.01 1
1D-79 Cross recessed head screw H M3*8 * 8
1D-80 worm shaft 9646796.01 1
1D-81 Thrust ball bearing 12*22*5 9646797.01 2
1D-82 Cross recessed head screw H M3*6 * 6
1D-83 Fine feeding hand wheel 9646798.01 1
1D-84 Internal hexagonal flat end fastening screw M6*6 9646799.01 1
1D-85 Worm eccentric sleeve 9646800.01 1
1D-86 Square screw of display ruler 9646801.01 1
1D-87 Register pin 9646802.01 1
1D-88 Cross recessed countersunk head screw H M3*10 * 2
1D-89 Display fixing bracket 9646803.01 1
1D-90 Hex nut M5 * 2
1D-91 Panel (use for fix display) 9646804.01 1
1D-92 Conductive ring assembly 9646805.01 1
1D-93 Cross recessed countersunk head screw H M3*12 * 3
1D-94 Operating handle assembly 9646806.01 3
1D-95 Compress spring 0.8*6*25 9646807.01 3
1D-96 Forward/reverse joystick assembly 9646808.01 3
1D-97 Check ring 3 9646809.01 3
1D-98 Shoulder cylinder key 9646810.01 1
2B-1 Fuselage 9646811.01 1
2B-2 Washer 10 * 4
2B-3 Spring washer 10 * 4
2B-4 Hexagon headed bolt M10*40 * 4
REPLACEMENT PARTS LIST FOR 18˝MILL DRILL W/ DRO & POWER FEED
Ref.
No. Description Part No. Qty.
Ref.
No. Description Part No. Qty.
(∆) Not shown.
(N/A) Not available as repair part.
(*) Standard hardware item, available locally.
Table of contents
Other Palmgren Drill manuals
