Palsonic PAL245FR User manual

PAL245FR
245 Litre Refrigerator

1
1) WARNING – Keep ventilation openings in the
appliance enclosure or in the built-in structure clear
of obstruction.
2) WARNING – Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
3) WARNING – Do not damage the refrigerant circuit.
4) WARNING – Do not use electrical appliances
inside the food storage compartments of the
appliance, unless they are of the type recommended
by the manufacturer;
5) The appliance has to be unplugged after use and
before carrying out user maintenance on the
appliance.
6) This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
7) Children should be supervised to ensure that they
do not play with the appliance.

Caution: risk of re
2
8) If the supply cord is damaged, it must be replaced
by the manufacturer, its service Provder or
similarly qualified persons in order to avoid
hazard.
9) Please disposed of the refrigerator according to
local regulations as it uses flammable blowing gas
and refrigerant.
Fridge, freezer or coolers that are using R600a refrigerant.

3

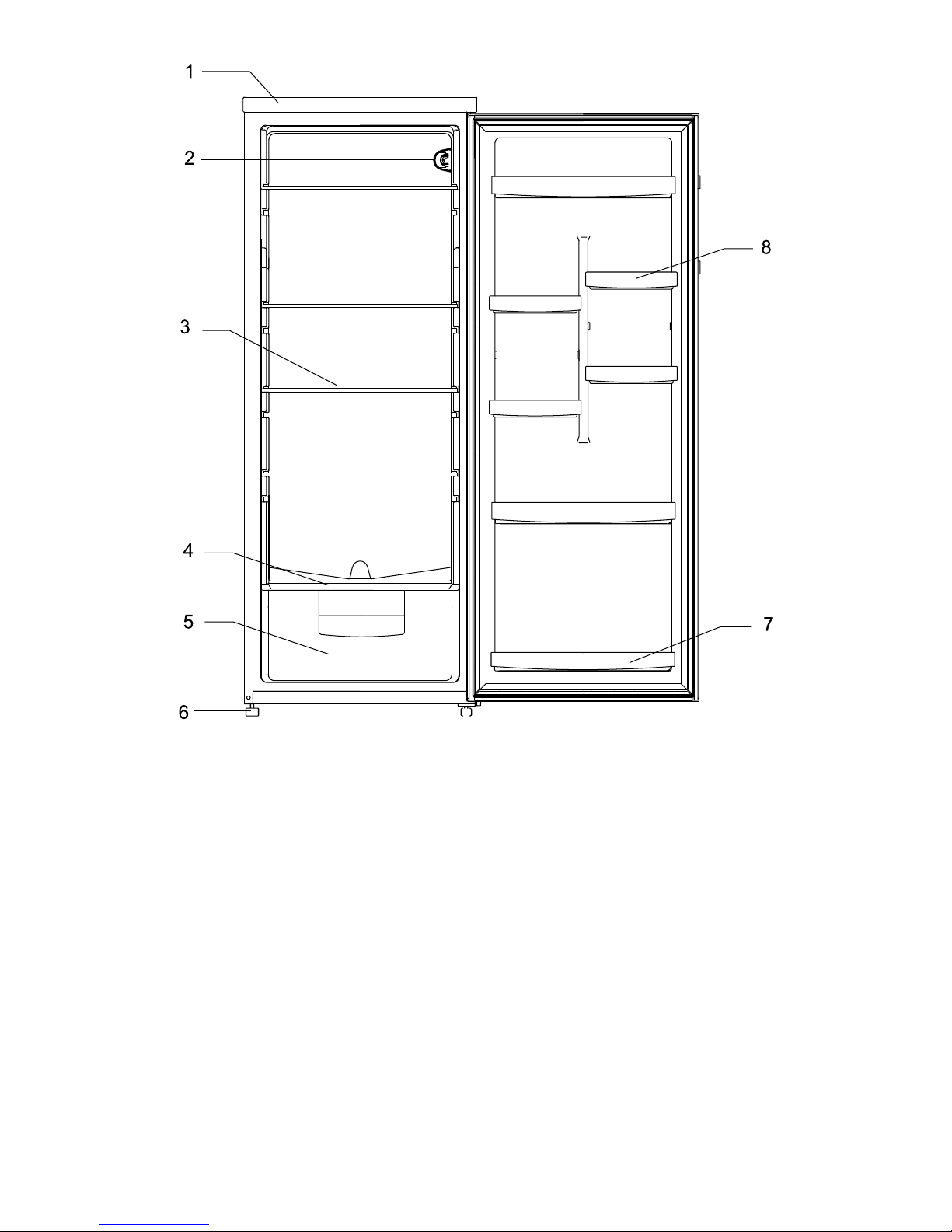

1. Top cover
2. Thermostat & light
3. Refrigerator shelf
4. Crisper cover
5. Crisper
6. Adjustable leg
7. bottle rack
8. door rack

4
Please read these operating i nstructions carefully
before you connect your new refrigerator as they
contain important information on its safe ty and
proper use, installation and c are. Please keep the
operating instructions in a safe place for future
reference. Please pass them on to possible new
owners of the appliance.
Technical Data
Model
Item
Input Power(W) 85W
Type of Preventing From
Electric Shock I
Refrigerant (g) R600a 25g
Total Storage Volume(L) 242
Rated Voltage(V) 220-240
Rated Frequency(Hz) 50
Climatic Class T
PAL245FR

5
Use of the Appliance
Before plugging in your refrigerator for the first
time, remove all packaging and the plastic screw
cover fitted on the machine before the handle
assembly. Clean the refrigerator with lukewarm
water and bicarbonate soda. Wipe it dry with a soft
cloth.
Instructions for Installation
1. Do not tilt the refrigerator more than 450from
the upright position during transit. Do not apply
force on any part such as the condenser and the
door to prevent the refrigerator from deforming
as this may affect its performance.
2. Ensure there is enough space around the
refrigerator for it to function properly.
3. Don’t install it in an area with high temperature
or humidity so as to avoid being damaged,
dampened or rusted.
Cautions for Safety
1. Before the refrigerator is plugged in, check the
electric voltage to be used is the same as the
rated voltage. The power plug should have an
independent socket as the adaptor may cause the
socket to overheat.
2.Don’t store inflammable materials such as either,
benzine, LP gas and glue etc in the refrigerator.
3. Don’t splash water on the refrigerator, it may
cause a malfunction or electric shock.

6
4. When gas leaks from its container, don’t pull the
plug out or in. It may arouse sparks and fire
calamities.
Instructions for Use
1.When operating the refrigerator for the first time,
run it without loading any food until it reaches
the desired temperature. Usually it takes 2 or 3
hours, then set the thermostatic dial at the
setting desired and put your food in the
refrigerator.
2. The temperature of the refrigerator can be
adjusted by turning the thermostatic dial. A
medium setting of the thermostatic dial is the
most suitable for general operation.
3. Defrost the refrigerator whenever the layer of
frost on the surface of the evaporator reaches
3 or 4 mm. When defrosting, remove all food
and the ice cube tray and set the thermostat to
the “OFF” position. Put the drip tray under the
evaporator to collect any melted water. After the
frost has melted, discard the water and dry up
the interior of the refrigerator. The
refrigerator can then be restarted by turning its
thermostat to the desired setting.

7
Cautions for Use
1. The more food that is put in or the longer the
door is opened, the more energy is
consumed, which can lead tomalfunction.
2. It is better not to place the objects which are too
heavy, sharp or corroded on the lid of the
refrigerator.
3. After turning the power off, be sure to wait at
least 10 minutes before switching it on again.
4.Open the door as least often as possible during a
power-cut.
5.When defrosting, never use any sharp or
metallic objects to remove the frost on the
surface of the evaporator as it will damage the
evaporator.
6.Don’t touch foods and containers in the freezing
compartment with wet hands to prevent an ice
burn.
Maintenance
1.While cleaning the refrigerator, pull out the
electric power plug, wipe carefully with a piece
of dry cloth. Abrasive cleaning powder,
alkali

8
cleansers, chemical cloths, thinners, alcohol,
acid petroleum products and hot water are not
suitable for cleaning the refrigerator as they may
damage the painted cover and plastics.
2. The door seal may get dirty quite easily, so
clean itfrequently.
3. If the refrigerator is out of use for a long time,
pull out the plug, clean and dry the fridge
compartment and then close the door tightly.
The following cases are not malfunctions
1. Aflowing water sound:
A flowing water sound will be heard under
normal operation.
2.Outside condensation:
Outside condensation is normal in conditions of
high humidity. It can be removed easily with a
dry cloth.
3.It takes some time for the temperature of the
refrigerator compartment to become cold after
the refrigerator begins to operate: If the
temperature of the two compartments are
higher whilst the refrigerator is operating, it
takes some time for the temperature of the two
compartments to become cold. If the
environmental temperature is higher, it takes a
long time for the compartments to become cold.
4.The surface of the compressor becomes hot:
The surface of the compressor may become hot
under normal operation. Don’t touch it with
your hands.

9
Methods of inspecting malfunction
If any case of a malfunction occurs, please
inspect and dispel it according to the methods
shown in the following table.
Case Inspection
Not
refrigerating
Is there no electric current?
Is the voltage normal or not?
Has the socket fused?
Has
the plug been put in
effectively?
NotCold
Enough
Is the thermostatic dial set to the
correct position?
Is there s
uitable clearance
surrounding the refrigerator?
Has the door been opened too
frequently or for too long?
Is the refrigerator directly exposed
to sunlight or placed near any
heating devices.
Is there too much food inside?
Is the food that has been put inside
too hot?
Food frozen
in the
refrigerator
compartment
Is the thermostatic dial set to the
correct position?
Has the food
been put in the
refrigerator too closely together?

10
Noises
Is the refriger
ator level on the
ground?
Has the refrigerator been struck by
another object?
Compressor
cannot stop
automatically
Are the foods stored too often at
one setting?
Are the doors opened too frequently
or for too long?

Palsonic Customer Service
Telephone (Australia) 1300 657 888
Palsonic Corporation Pty Ltd ABN 34 000 474 108
1 Joynton Avenue, Waterloo NSW 2017 Australia
Telephone [phone] Facsimile [phone]
www.palsonic.com.au
