92CM CORDLESS REMOTE COLOUR TELEVISION
MODEL: 9219SF
OWNER'S MANUAL
Type Tested
Electrical
Safety
AS/NZS 3250 Lic 4166
Standards Australia
APP No: N15901
HI-VISION STEREO TELEVISION

Congratulations on your purchase of this Hi-VisionPalsonic colour television receiver
We recommend that you thoroughly read this manual before use to fully enjoy the
many functions and excellent effects of this receiver.
Retain is manual in an easily accessible location for future reference.
* Screen displays and illustrations in this manual may differ from the actual ones for better
visibility
Contents
Main features .............................................................................................................
Notes for operation .................................................................................................... 2
Installation and appearance ..................................................................................... 3
Antenna connection ..................................................................................................................... 3
Speaker connection ...................................................................................................................... 4
Cautions for safety ....................................................................................................................... 2
Apperance .................................................................................................................................... 5
The remote controller .................................................................................................................. 6
Operation .................................................................................................................... 7
Switching on/off .......................................................................................................................... 7
Presetting channels ...................................................................................................................... 8
Function menu ............................................................................................................................. 11
Channel selection ........................................................................................................................ 11
External equipment connections ..............................................................................
12
Trouble shooting .......................................................................................................
13
Specifications ..............................................................................................................
14
Sound mode selection ..................................................................................................................
Picture and sound adjustment ......................................................................................................
Other functions ............................................................................................................................
18
20
21
Battery installation ....................................................................................................................... 3
1

.
.PAL/NTSC/SECAM Multi-System Hyperband
English/Chinese on-screen menu display
Surround sound and wide - field dynamic sound system
NICAM Digital Stereo/bilingual broadcasts receivable
German Stereo (IGR)/bilingual broadcasts receivable
Three groups of S-VIDEO/VIDEO/AUDIO input terminals and one group of
MONITOR output terminals
Auto/manual search
OFF timer and ON timer, Auto-Power-Off & blue background display
Advanced 6D picture improvement circuit
1. Digital Colour Transient Improver (CTI)
Enhance the tint and make the original picture brighter and fresher
2. 3H digital comb filter
To attain the complete separation of brightness and colour signals. To reduce colour
interface, blurry and dotted interruptions. To make the picture clearer.
3. Digital Luminance Transient Improver (LTI)
Adopts the digital delay line and achieves the outline correction. To make the picture
clearer and better definition.
4. Black level stretch circuit
To extend the dynamic scope of the picture.
5. Scan Velocity Modulation & white peak suppressed circuit
6. Dynamic Focus
To optimise the focus of electron beams in the CRT. To improve the picture sharpness
especially in the comers of the screen and achieve the perfectness of picture finally.
Main features
.
.
.
.
.
.
.
To enhance lines and borders-between bright and dark images. To improve the focus of the
picture white peak and white characteristics, to make the picture and letters brighter and
clearer.
1

NOTES FOR OPERATION
* Do not let the TV set be in standby condition for a long period of time. When it is not in use,
please turn off the power supply and remove the power plug. When it is to be left for a
prolonged period of time, it is recommended to disconnect the connection to the outdoor
aerial, to avoid thunder strike.
* Please follow cautions for safety in the TV set instructions, and all warnings and descriptions denoted
on the TV set.
Cautions For Safety
2
Note: This TV set can be operated on an AC power of 240V, 50Hz. You should not use power
supply of the other type.
When an unusual situation
occurs, turn off the power
switch at once and remove the
plug from the wall outlet.
Contact a qualified service
department in your local area.
Do not expose the TV set to
rain or excessive moisture, to
prevent tire disaster or
electric shock. Avoid using
the set in very warm or damp
places. Never use it in a
bathroom.
There exists High Voltage in
this TV set. Do not remove
the cover to avoid danger.
The TV set should be placed
on an adequate place without
exposing it to direct sunlight
and other sources of heat to
prevent the deformation of the
cabinet or damage to
components.
When the TV set is to be left
unattended, please turn off the
power switch and remove the
plug from the wall outlet.
In order to wipe dust off the
picture tube or off the cabinet,
you should remove the power
plug from the wall outlet first.
You can wipe lightly with a
piece of dry, clean, soft cloth.
Do not cover the Ventilating
holes in the cabinet. Keep a
space of more than 5 cm from
the walls to the TV set, to
guarantee the good ventilation.
When the power cord or the
plug is damaged, please
contact a qualified service
department to get service.

Installation and appearance
Antenna connection
To ensure a bright-coloured and clear picture, you should use an outdoor aerial or CATV
cable. If the signals are strong enough, you may use an indoor aerial.
Note:
When you connect the outdoor aerial cable to the aerial terminal on the TV set, please turn off
the power switch on the TV while connecting the antenna lead.
In thunder and lightning, weather, please disconnect the connection to the outdoor aerial to avoid
thunder/lightning strike.
Battery Installation:
1) Remove the back battery cover.
2) Insert two size AAA batteries according to
the polarity indication inside the remote
controller.
3
Effective range of the remote control
operation
1. When the remote controller is not used for
an extended period of time or the batteries
are worn out, please remove the batteries in
time to avoid battery leakage.
2. Avoid moisture and mechanical shock to the
remote controller.
Note: In case of using the
Twin-lead aerial feeder (300 )
for UHF/VHF aerial, use a 300-75
ohm adaptor (not supplied)
When using the coaxial cable (not
supplied) (75 ) for UHF/VHF
aerial, connect the plug into the
75 ohm aerial socket directly.

) terminals at the rear of the TV.
Red wires should be connected to the + red
terminals, while black wires to the - black
terminals
Speaker Connection
As the figure below shows, attach the left and the
right speaker to the sides of the set tightly, push
the speaker from their top to secure them.
Loosen the screws to remove the speaker
from the TV
2. Connect the speaker wires to the EXT SP (8
When connecting other speakers, you can loosen
the screws of both sides and remove the speaker
from the TV. Attention:
Unplug the power cord from the AC socket when
connecting the speakers.
If you connect larger speakers, they must he rated
at 8 ohm impedance with normal power handling
capacity of more than 15W.
Make sure that none of the speaker wire strands
stick out, making contact with the neighbouring
speaker terminals, to prevent a malfunction caused
by a short circuit of the speaker terminals.
Before moving the TV, remove the speakers down
from the TV.
4

Appearance
Front view
Back view
5
Note: Functions of , MENU, VIDEO, SYSTEM, VOLUME+/-, CHANNEL are
also provided to the remote controller.
SYSTEM
CHANNEL
CHANNEL
MENU
VIDEO
VOLUME -
VOLUME +

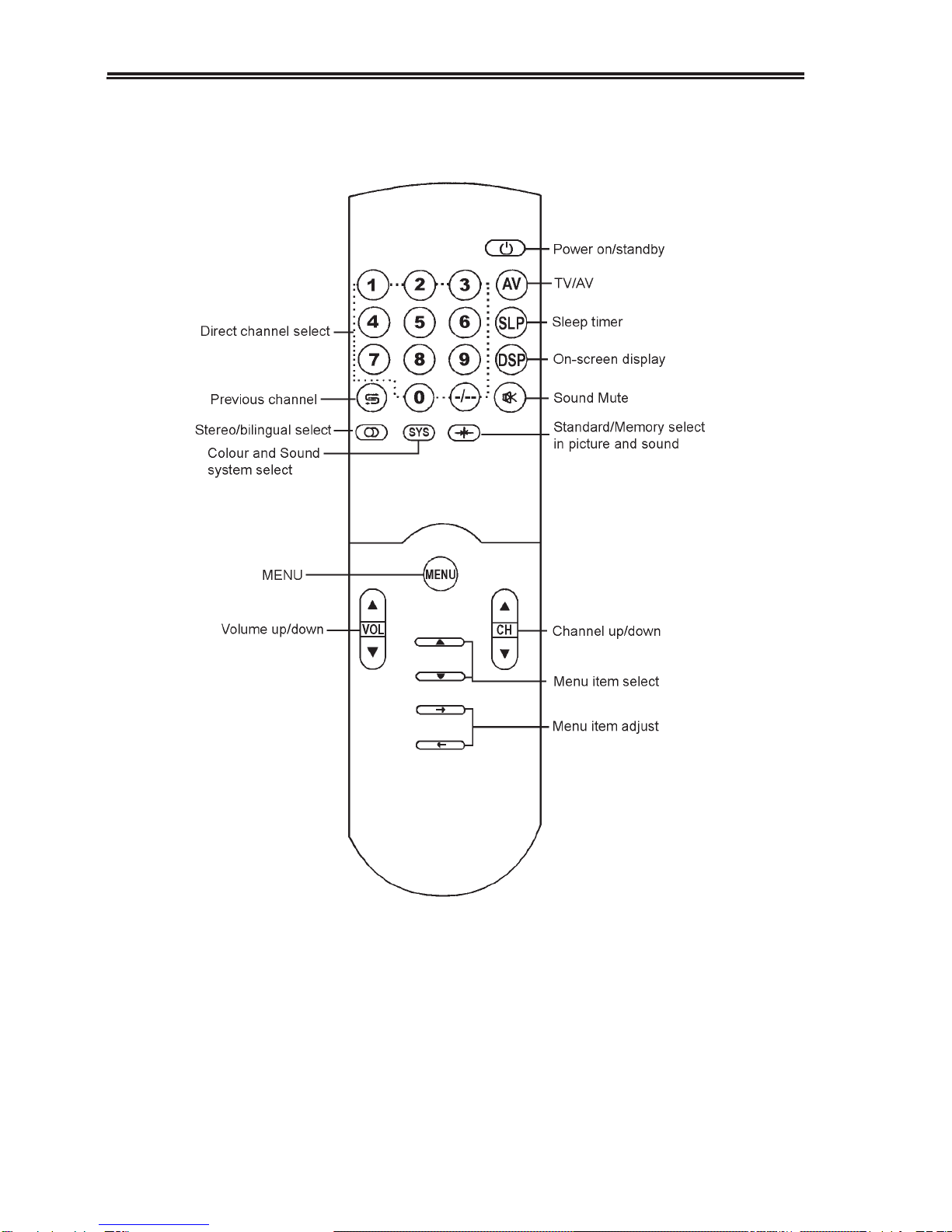

The remote controller
6

Operation
Switching on/off
Push the main power switch on, if the set is in Standby mode, the power indicator is red;
If there are pictures appearing on the screen, the indicator is yellow.
If no picture appears on the screen, push the power button on the remote controller to
turn the set on, the indicator turns to yellow.
Without using the remote controller, you can push any of the VOLUME + / - , CH
or VIDEO button to turn on the TV.
Note: If there are no input signals to the TV when the TV is on, a blue background will
appear on the screen. After 15 minutes if there are still no signals to the TV, it will
enter into standby mode automatically.
Push the main power switch to turn off the set.
If you want to turn off the TV temporarily, push the button on the remote controller to
switch the set to standby mode, the indicator turns to red.
Special indication:
Last-Mode-Memory: after turning off the power, the last TV mode picture and sound
setting mode and preset channels all are memorised. Therefore, the next time you turn on
the TV, the TV will work in the previous setting mode.
If you directly pressed the main power switch on the TV to turn it off, you must press the
main power switch to turn on the TV .
If you pressed the main power switch to turn off the TV when in standby mode, press the
main power switch and then operate from the remote controller to turn the TV on.
Auto-Power-off function: there are two kinds of Auto-Power- Off function:
If a vacant channel is tuned or TV broadcast for a day is finished, the TV will automatically
turn off after about 15 minutes.
OFF-timer function. However, if the OFF-timer is operating, it takes precedence, that
is, the function of Auto-Power-Off, if no signals received will be ineffective.
7
1.
2.
3.
4.
.
.
1.
2.

llllllllllllll
Presetting the channels
There are two ways to preset channels: to preset
channels automatically and to preset channels manually.
Below we will describe how to preset the channels
by making use of the menu.
1. To enter into menu
1.1 Press the MENU button to enter into the main
menu.
1.2 Press menu item select button or to select
1.3 Press the or button to enter into the sub-menu of
The MENU button refers to the MENU button on
the remote controller or on the TV set, the or
button refers to the or button on the
remote controller or CHANNEL on the TV
set, the or button refers to the or
button on the remote controller or the VOLUME
+ / - button on the TV set.
Press the menu item select button or to
select AUTO SEARCH (the caption on the screen
is red).
Press or button, the TV begins to search TV
channels automatically. All active channels will be
preset and stored into the memorizer automatically.
After presetting, the TV will return to the first
channel program.
Before auto-search begins, you had better press
"SYS" button to set the current sound system to
B/G and the color system to "AUTO" .
Press the MENU button to
display the main menu
AUTO SEARCH
12 VHFH
After presetting is finished
it returns to the first chan-
nel
1
MENU
8
Press the or button
to select SEARCH
MENU
SEARCH
Press the or button
to display the sub-menu
of SEARCH
SEARCH
MANUAL SEARCH
AUTO SEARCH
Press the button to
select AUTO SEARCH
Press the or button
it begins searching autom
atically
- - - - -

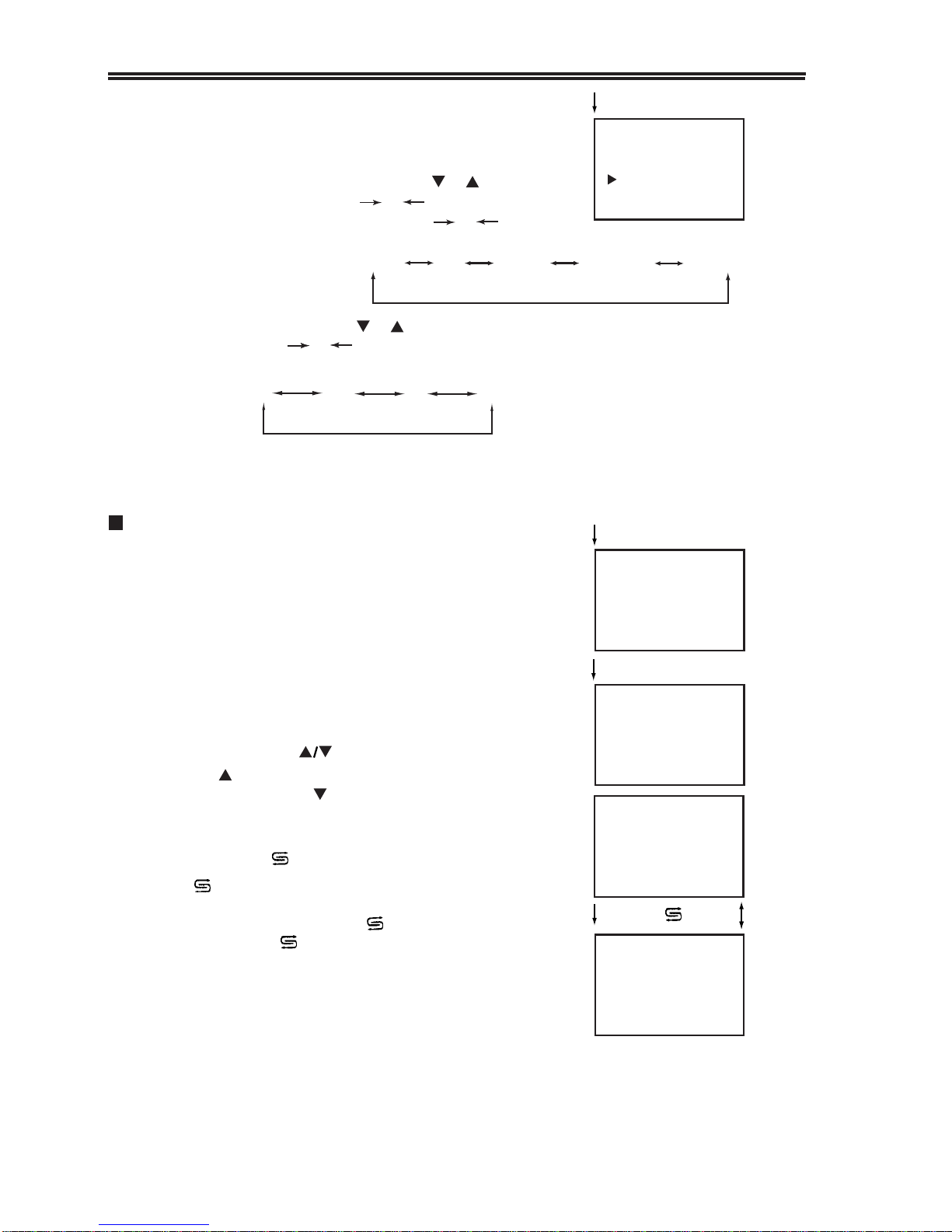

2. AUTO SEARCH
SEARCH
SEARCH
Note:
2.1
2.2
Note:

3. MANUAL SEARCH
If AUTO-SEARCH cannot preset the desired channels,
or you want to preset the desired channels one by
one with the preferred channel numbers - please make
use of MANUAL SEARCH.
Press the menu item select button or to select
MANUAL SEARCH (the caption on the screen are
red).
Press the or button to enter into the sub-menu
of MANUAL SEARCH.
Press the or button to choose POSITION.
(the caption on the screen are red) , press the or
button to select the needed program number (from
00 ~ 99.
Push the or button to select a channel number
within 0.7 of a second. Push and hold the or
button for more than 0.7 of a second to select a
decimal number.
Press the or button to select SEARCH, push
the button to search channels from current channel
to higher channel. Push the button to search
channels from current channel to lower channel.
When a channel is located, the searching stops, this
channel is then memorised with a present channel
number.
You can also make use of band selection to quicken
the searching process in your desired band. Pressing
the or button moves the band to the next step
in the sequence below.
SEARCH
MANUAL SEARCH
AUTO SEARCH
Press the or button
to display the menu of
MANUAL SEARCH
MANUAL SEARCH
MANUAL SEARCH
9
Press the button to
select the wanted channel
number
When a station is searched
the searching stops
Press the button
it begins searching
Press the or button
to select SEARCH
POSITION 22
Press the button
select SEARCH
SEARCH
POSITION 22
VHFL UHF
VHFH
Press the or button
to select MANUAL
SEARCH
SEARCH
3.1
3.2
3.3
Note:
3.4
Note:
SEARCH

When you want to store and memorise another
channel with another position, repeat steps 3.3, 3,4.
After presetting the channels, you can skip unwanted
program numbers to select your desired channels.
Repeat steps 3.1 to 3.3 to select the unwanted
program position of the unwanted channels .
Press the or button to select SKIP. Press the
of button to select SKIP ON.
After completion of the channel presetting, when you
press the CH button to select channel, the
unwanted channels will be skipped.
If you want to skip other unwanted channels, repeat
step 4.1 above to change the channel numbers.
If you want to restore the skipped program numbers,
do step 4. 1 to select these program numbers, then
press the or button to select SKIP OFF.
5. Manual Fine Tuning
When sound and picture's effect of a channel is poor
(for example: one or two CATV channel's sound and
picture are not standard) , you can correct by the use of
Manual Fine Tuning.
Repeat steps 3. 1 to 3.3 to select the channels you
want to manually fine tune.
Push the or button to select MFT, then press
or button, the channel begins to search until
the optimum picture and sound is achieved.
If some channel's colour or sound is abnormal, it
may be that the setting of the colour or the sound
system is wrong, please do the following step 6 to
set the colour and sound system.
After finishing the preset operation, press the
MENU button repeatedly until the "on - screen"
display disappears and exits from the main menu.
MANUAL SEARCH
MANUAL SEARCH
10
Press the button to
select SKIP
Press the or button
select SKIP
SKIP OFF
SKIP ON
POSITION 10
POSITION 14
Press the button to
select MFT
MFT
Press the button it
begins fine tuning in
direction.
Press the MENU button
repeatedly until on-screen
display menu disappears
3.5
4. Skip unwanted program numbers
4.1
llllllllllllll- - - - -
4.2
5.1
5.2
Note:
MFT

6. The setting of colour and sound system
Press the SYS button, the screen will display colour and
sound system.
If the displaying colour is abnormal, press the or button
to select COLOUR, then press the or button to select
the right colour system. Every time you press or button,
the colour system will change in the sequence on the right.
Press the SYS button
SYSTEM
COLOR AUTO
If the sound is abnormal, press the or button to select
SOUND, then press the or button to select the right
sound system. The sound system will change in the sequence
on the right:
Now you can watch the broadcasting TV program at the
preset channel.
You can select your desired TV program by one of the following
methods.
2. Making use of the CH button
Press the CH button, the channel number will increase
progressively. Press the CH button, the channel number will
decrease progressively.
10
AUTO PAL SECAM NTSC 4.43 NTSC 3.58
IM B/G
D/K
Making use of the direct select buttons 0 ~ 9 and - /- -
To select a one - digit channel, press - /- - button to display
" - " on the upper right corner of the screen, then directly
press a number button of 0 ~ 9. To select a two-digit channel,
press the - / - - button to display "- - " on the upper right
corner of the screen, then press the number buttons. The
channel range is 0 ~ 99.
11
Press the - / - - button
Press the 0 ~ 9 button
- -
3. Making use of the button
Press the button, it can switch back quickly to the previous
channel. For example, the channel you previously watched is
2, the present channel is 8, press the button, it will return
to channel 2, press the button it will return to channel 8.
2
8
Press the button
Channel selection
6.1
6.2
6.3
1.

FM mono sound
two digital sound channels
transmitting dual sound
two digital sound channels
transmitting dual sound
one FM sound channel
(The sound signal in FM
channel is different from the
one in NICAM channel. So
when the NICAM is trans-
mitting on the TV screen
only displays an indicator
in yellow, while the active
sound channel is FM).
Sound mode selection
If the broadcasting TV station is transmitting high quality two - channel digital sound
(NICAM) to be added to the already existing FM sound, or transmitting a second FM sound
with an identification signal to be added to the already existing first FM sound (IGR), in the
upper right corner of the screen will display an indication for several seconds which is listed
in the following table. You can press the " " button repeatedly to select sound source.
Sound transmitting mode
FM MONO
FM MONO
FM STEREO
two FM channels transmitting stereo sound
NICAM MONO
one digital sound channel
transmitting mono sound
NICAM STEREO
two digital sound channels
transmitting stereo sound
NICAM DUAL
FM MONO
On-screen display and sound source
digital stereo sound
If you experience loud noise in digital sound channel because of the weak signal,
please press the " " button to set the sound mode to "FM MONO" or "FORCE FM", thus to
select FM sound channel. In "FORCE FM” mode, the TV set no longer automatically searches
"NICAM: or "IGR" signals.
12
NICAM DUAL
NICAM STEREO
two digital sound channels
transmitting stereo sound
NICAM MONO
one digital sound channel
transmitting mono sound
Only one FM channel transmitting mono sound
FM DUAL
two FM channels transmitting dual language
one FM sound channel
(The sound signal in FM
channel is same as the
one in NICAM channel. So
when the NICAM is trans-
mitting, on the TV set auto-
matically switches to high
quality digital sound chan-
nel).
"FM MONO" "FORCE FM"
FM mono sound
FM mono sound
"STEREO" "FORCE FM"
first FM sound
FM stereo sound
"DUAL 1" "DUAL 2"
language 2
language 1
"STEREO" "FORCE FM"
FM mixed sound
digital stereo sound
"NICAM MONO" "FORCE FM"
FM mono sound
digital mono sound
"DUAL 1" "FORCE FM"
language1 digital "DUAL 2"
language2 digital language1 FM
(In yellow. Only for indication) "STEREO" "FM MONO"
FM mono sound
"STEREO"
(In yellow. Only for indication)"NICAM MONO" "FM MONO"
FM mono sound
"NICAM MONO"
FM mono sounddigital mono sound
(In yellow.
Only for indication)
"DUAL 1" "FM MONO"
language3
"DUAL"
language 2language1 language 3
"DUAL 2"
1
2
3
4
6
5
7
8
9

Press the | button, you can quickly select two
modes of picture and sound quality standard:
One is standard mode ( on the screen displays
(STANDARD);
The other is personal select mode (on the screen
displays "MEMORY").
1. Picture adjustment
Complete the following steps and you will adjust the
picture quality.
Press the MENU button, on the screen will dis-
play the main menu, press the or button to
select PICTURE, then press or button to
enter into the sub - menu of PICTURE
Press or the button to select the items you
want to adjust (the caption on the screen is red),
then press the or button to adjust the level of
picture control amount.
If the TV signals are too weak and you can not watch the program
normally, blue background will appear automatically to overcome
the picture. If you insist on watching the program, you can select
"BBK" item to shut off the blue background. We suggest you turn
"BKK" on in ordinary circumstances.
STANDARD
Press the MENU button
to display the main menu
Press the or button
to display the menu of
Press the or button to
select adjustment item
Press the or button to
adjust the level
Adjustment
item Pressing (Memory mode) Standard
Mode
COLOUR paler deeper 50
BRIGHT darker lighter 70
CONT (Contrast) weaker stronger 70
SHARP weaker stronger 20
TINT purplish bluish 0
BBK
(Blue background) ON (OFF) ON PICTURE MEMORY
COLOR 70
BRIGHT 50
PICTURE MEMORY
COLOR 70
BRIGHT 60
PICTURE MEMORY
COLOR 70
BRIGHT50
MENU
MEMORY
Press the | button
13
lllllllll
Picture and sound adjustment
If the signal being received is weaker, adjust SHARP to lower
level to reduce the noise.
If the signal being is stronger, adjust SHARP to higher level to
improve the picture quality.
1.1
1.2
lllllllll
llllll
lllllllll
llllllll
*
Note:
Only when the colour system is NTSC, there is
TINT item
*
*

2. Sound adjustment
Complete the following steps and you will adjust the
sound quality.
Press the MENU button to display the main
menu. Press the or button to select
SOUND , then press the or button to
enter into the sub - menu of SOUND.
Press the or button to select your required
sound adjustment item (the caption on the screen
is red), then press the or button to adjust
the sound quality.
You can select the sound quality according to the
programme content and personal preference.
Press the MENU button
and button
MENU
SOUND
Press the or button
to display the menu of
sound
14
Adjustment
item
BASS
TREBLE
BALANCE
SURROUND
SURROUND
Pressing (Memory mode)
weaker
weaker
decrease right
side sound
on/off
weaker
stronger
stronger
decrease left
side sound
on/off
stronger
Standard
mode
50
50
0
Off
50
SOUND MEMORY
BASS 50
TREBLE 50
Press the or button
to select adjustment mode
SOUND MEMORY
BASS 50
TREBLE 50
Press the or button
to adjust the level
SOUND MEMORY
BASS 50
TREBLE 70
Press the | button
mode changes between
STANDARD and MEMORY
SOUND STANDARD
BASS 50
TREBLE 50
BASS
Strong
weak
middle
TREBLE
Strong
weak
middle
on
off
off
Tone quality
suitable for listening
to music
suitable for listening
to news, language
standard
Note: During the process of picture and sound ad-
justment, every time you press the | button,
STANDARD/MEMORY is displayed
on the screen alternatively. When
picture and tone quality are adjusted to your
desired level, the mode is memory mode.
SURROUND
2.1
2.2
llllll
llllll
llllll
llllll
llllll
llllllll
llllll
llllll

3. SURROUND SOUND
Making use of surround sound, you can enjoy
the dynamic sound effect that is like being
in a music hall. To make use of surround
sound, complete steps 2.1, 2.2 to
select SURROUND ON, and press the
button to select SURROUND then press
the or button to adjust its effect. To
turn off surround sound, select
SURROUND OFF.
4. Adjusting the volume and muting the
sound.
You can press the VOL button to ad-
just the volume, and you can press the
button to mute the sound. Press the but-
ton again or VOL button or operate any
item of SOUND menu, the sound is restored
to normal.
15
SURROUND OFF
Press the or button to
to select SURROUND ON
SURROUND ON
Press button to
select SURROUND
SURROUND 50
Press the button to
increase SURROUND
SURROUND 70
VOLUME 50 MUTE 50
llllll
llllll

Press the or button to select ON TIME. Pressing
the or button set ONCE/EVERY ON TIME. Every
time you press the or button , it will change in the
sequence of OFF EVERY ONCE OFF EVERY
------. When the setting is ONCE or EVERY ON TIME,
press the or button to select time to turn on the set,
then press the or button to set the time to turn on
the TV. After the setting, press the or button to se-
lect POS., then press the, or button to select your
desired program number.
Press the or button to select OFF TIME. Pressing
the or button set ONCE/EVERY OFF TIME. Every
time you press the or button, it will change in the
sequence of OFF EVERY ONCE OFF EVERY
------. When the setting is ONCE or EVERY OFF
TIME, press the or button to select time to turn off
the set, then press the or button to set the time to
turn off the TV, at the preset time the TV will automatically
switch to standby mode. To cancel OFF TIME, set
OFF TIME OFF.
Other functions
1. ON Timer/OFF Timer
With the timer, you can set the TV to turn on/off automatically
at a preset time. In the menu of TIMER you can set: CLOCK,
ON TIME, OFF TIME.
1.1 OFF TIME
With the OFF timer, the TV will automatically switch to
standby mode at a preset time.
Press the MENU button to enter into the main menu, press
the or button to select TIMER, and press the or
button to enter into the sub - menu of TIMER
1.2 ON TIME
With the ON timer, the TV will automatically turn on to preset
channel at a preset time.
menu of TIMER
OFF TIME EVERY
16
TIMER
OFF TIME OFF
0:00
TIMER
10:00
1.2.1 Do Step 1.1.1 to enter into the sub-menu of TIMER
1.1.1
1.1.2
1.2.2
menu of TIMER
ON TIME EVERY
TIMER
ON TIME OFF
0:00
TIMER
6:00

Pressing the button set the TV into standby
mode. At the preset time the TV will automatically
turn on to preset channel. To cancel ON
TIME, set ON TIME OFF.
1.3 CLOCK
The built-in clock employs the 24-hour system.
Do step 1.1.1 to enter into the sub-menu of
TIMER.
Press the or button to select CLOCK.
Pressing the or button set the present
hour and minute.
To make use of ON TIME and OFF TIME,
set the clock firstly and check the correct
time.
1.4 SLEEP
To make use of SLEEP function, press the SLP
button every time, the letters displaying on the
screen will change in the sequence of OFF
120 min 110min ......10min OFF..... At the
preset time, the TV will automatically switch to
standby mode.
SLEEP 30min
2. Selecting the menu language
You can select the menu language: ENGLISH or
CHINESE( ).
Press the MENU button to enter into the main
menu, press the or button to select
LANGUAGE.
Press the or button to enter into the sub-menu.
Press the or button to select
ENGLISH or
Press the MENU button repeatedly until the set
exits from menu-display mode.
ENGLISH
TIMER
CLOCK 10:30
17
1.2.3.
1.3.1
1.3.2
Note:
2.1
2.2
2.3

External Equipment Connections
The following describes how to use and connect the TV with other equipment. Refer to the
owner's manual of the other equipment to be connected as well.
1. To Connect to AV input
You can video equipments such as a VTR and video camera to this TV and enjoy the
high quality picture and sound.
If your video equipment has an S-VIDEO output terminal, connect it to the S-VIDEO input
terminal (special S-VIDEO type) of the unit. If not, connect it to the VIDEO terminal
(photo type).
18
