IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303--6234
Telephone [phone]
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) DISPENSER
721210101
721210102
721210105
MODEL NO.
Manual Part No. 85318IPL
4-6-2001 Rev;1-21-02
ãIMI Cornelius Co., 2001-02
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) 1of8
Rev A

IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303--6234
Telephone [phone]
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) DISPENSER
FIGURE 1. GENERAL ASSEMBLY
12
456
7
8
9
10
11
12
25
27
29
13
21
23
24
30
14
15
16
17
18
19
20
26
3
31
32
34
33
35
36
37
38 39
40
41
42
43
44 45
46
47
48
50
51
52
53
54
55
Manual Part No. 85318IPL
4-6-2001 Rev; 1-21-02
ãIMI Cornelius Co., 2001-02 MILLENNIUM (MJ30-4, MJ32-4, MJ31-4)
2of8
Rev A

IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303--6234
Telephone [phone]
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) DISPENSER
Item
No. Part No. Name
1550222 Merchndsr Hsg
720200217 Merchndsr Asy 120V 60HZ
248377 Panel Clear Merchndsr
331314 Bulb Fluor
350001 Ballast Finger 120V 60HZ
60419006 Ballast 220V 50HZ
60420001 Starter 120V 60HZ
60419004 Ballast Finger
350164 Socket Starter
4187189000 Holder Bi-Pin Lamp
5231050 Reflector
231056 Cover Elec
45433 Holder Flourescent Lamp
350128 Cord Pwr
6231051 Wrap Elec Box
7261142 Lid
80706903 Screw 10-32 x 1/2”
9720200500 Cover Asy Vlv Hsg
10 720200400 Housing Valve
11 84353001 Switch Asy Push Button
12 550088 Cond Coil
13 230509 Shroud Fan
14 710160063 Handle Deck
15 186074001 Control Ice Bank
16 350017 Blade Fan 5-Blade
350095 Motor Fan 5W 120V 60HZ
350096 Motor Fan 5W 230V 50/60HZ
17 400323 Screw SM 8 PAPH 12
18 230040 Brkt Mtr Agit
19 230303 Heat Sink
20 350078 Motor Agit 15W 120V 50/60HZ
350079 Motor Agit 15W 230V 50HZ
21 350012 Blade Agitator
186610000 Pin Sprg
22 Not Used
23 400262 Cap Plug (Water Fill Hole)
24 260970 Kit Comp 1/3HP 120V 60HZ
260968 Kit Comp 1/3HP 230V 50HZ
260972 Kit Comp 1/3HP 240V 60HZ
350148 Relay 1/3HP 120V 60HZ
350151 Relay 1/3HP 230V 50HZ
350152 Relay 1/3HP, 220V 60HZ
350108 Overld 1/3HP 120V 60HZ
350106 Overld 1/3HP 230V 50HZ
350146 Overld 1/3HP, 220V 60HZ
720302001 Capac 240V 60HZ
550001 Accum Dryer
Item
No. Part No. Name
25 398034400 Pin Hitch
26 20223010 Washer Ft .489 I.D.
27 189723000 Grommet
28 350182 Switch Rocker
29 720202200 Transfrmr Asy 120V 60HZ
720202201 Transfrmr Asy 220V 50/60HZ
30 720201400 BoxElecAsy
31 720201403 Cover Elec Box
32 Not Used
33 350130 Cord Pwr
34 260061 Holder Bulb
230983 Holder C-Bulb
261356 Coil Evap
260006 Accum Drier Asy
230974 Brkt Plt Evap Coil
230973 Spacer
35 231047 Wrap Cabinet
36 350174 Clamp Cable
37 350131 Cord Pwr 96” Ext NEMA5-15P
350112 Cord Pwr 98 1/2” EUI-16P w/Recp
38 400501 Fitg Elbow .25-MPT x .5B Nylon
39 650094 Tube Vinyl .500 I.D. (Sold by the
Foot)
40 720200700 Panel Splash
41 720200300 Disp Asy
42 720200202 Cover Fnt Tubing Enclosure
43 7227615 Lock Swt and Keys
19578 Key Lock No. 2009
44 720200600 Cup Rest
45 720200100 Drip Tray Asy
46 113500000 Tube Vinyl .500 I.D. (Sold by the
Foot)
47 231049 Base Fnt Riser
48 231048 Wrap Riser Base
49 Not Used
50 261137 Coil Wtr Asy
51 400193 Nut 3/8-Flx x 5/16-Tube
52 311304000 Gasket3/8-MF
53 400135 Fitg 3/8-Barb x 3/8MF
261139 Manifold 4 Valve
400113 Fitg L 3/8-Barb x 1/4-MPT
400263 Plug Dead Head
650089 Tube Vinyl .375 I.D. (Sold by the
Foot)
54 48418 Screw 8-32 Shoulder
55 720200201 Switch Plate for 720200202
0734801 Rivet Pop for Switch Plate
Reinforced Drip Tray barb starts at serial No. 72A0004JM210
Manual Part No. 85318IPL
4-6-2001 Rev; 1-21-02
ãIMI Cornelius Co., 2001-02
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) 3of8
Rev A

IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303--6234
Telephone [phone]
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) DISPENSER
Item
No. Part No. Name
720200800 Platform Asy
1720200804 Tube Fitg Brkt Asy
2720200801 Base Platform
3720200802 Pump Support Brkt
448432 Pump and Brkt Asy
5720201600 Harn Asy Pumps to Plug
648195006 Clamp Hose
777040400 FitgL1/4-Barb
877050300 Fitg Val Dole 1/4-Barb Stght
989078 Tube Redline .375 I.D. (Sold by the
Foot)
10 309854000 Clamp .413 I.D.
11 111353000 Clamp .571 I.D.
12 0734801 Rivet Pop
13 0704001 Screw 8 x 3/8”
14 0733903 Bushing Snap
15 48456 Tube .250 I.D. (Sold by the Foot)
16 77040200 Fitg Splicer .265 I.D.
2
3
4
6
7
89
10
11
12
13
14
15
16
1
11
10

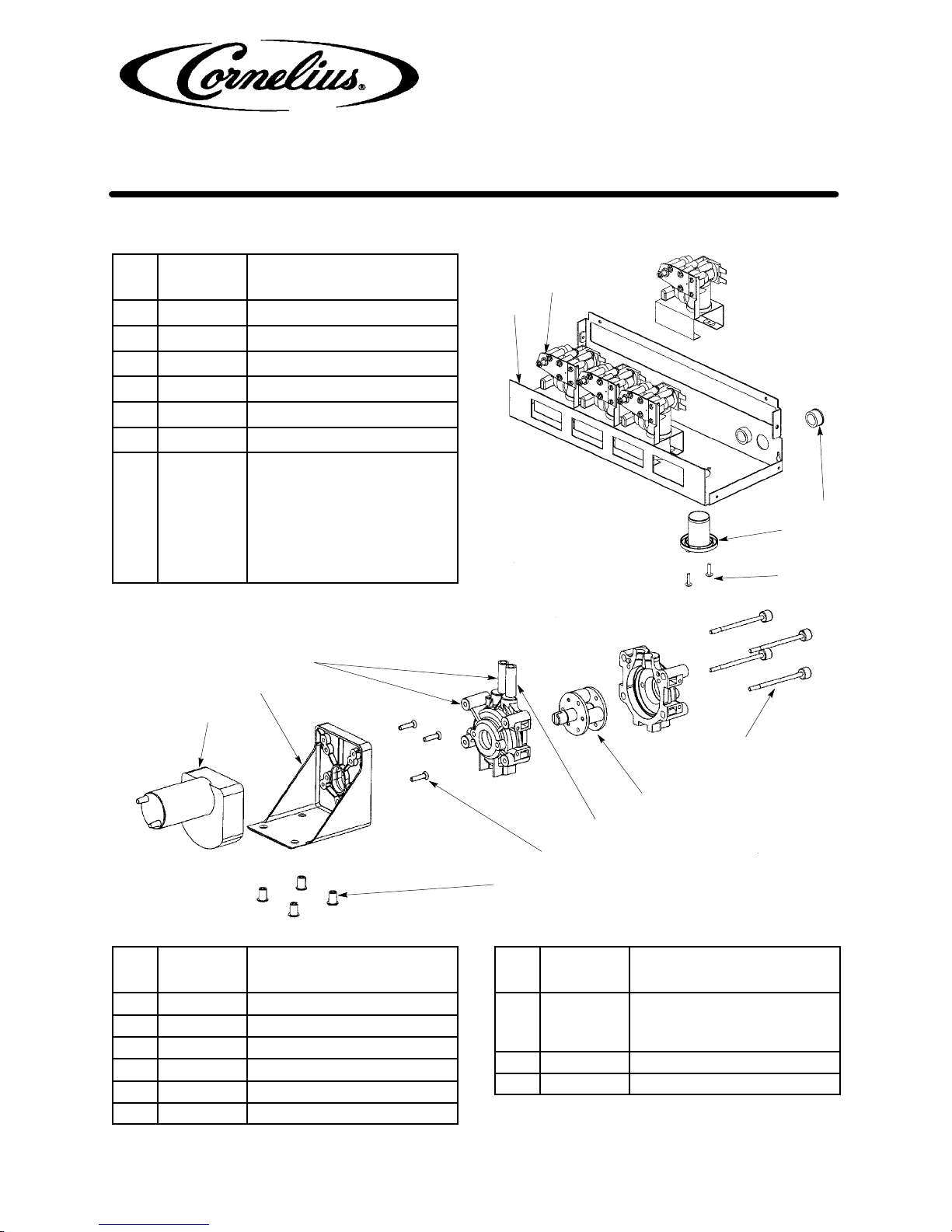

FIGURE 2. PLATFORM ASSEMBLY
Item
No. Part No. Name
48432 Pump and Brkt Asy
10704105 Screw No. 8-32 x 1/2”
245185 Pump and Motor Asy
345283 Bushing Rubber with Nut Insert
448420 Brkt Pump
1
2
3
4
FIGURE 3. PUMP AND BRACKET ASSEMBLY
Manual Part No. 85318IPL
4-6-2001 Rev; 1-21-02
ãIMI Cornelius Co., 2001-02 MILLENNIUM (MJ30-4, MJ32-4, MJ31-4)
4of8
Rev A

IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303--6234
Telephone [phone]
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) DISPENSER
Item
No. Part No. Name
720200300 Disp Asy
10704107 Screw No. 8-32 x 5/8” THMS
245027001 Bushing Valve Nozzle
30733901 Bushing Snap
448415 Valve Block Brkt Asy
5720200301 Valve Block Enclosure
6720202100 Harn Switch to Elec Box (Not
Shown)
31525037 O-Ring .739 I.D. (Not Shown)
45003001 Nozzle Mixing and O-Ring (Not
Shown)
45123 Mixer Static (Not Shown) 1
2
3
4
5
FIGURE 4. DISPENSING ASSEMBLY
1
2
3
4
5
6
7
8
FIGURE 5. PUMP MOTOR ASSEMBLY
Item
No. Part No. Name
45185 Pump Motor Asy
145016001 Motor Pump 28V 300RPM
245728001 Rotor Asy
345050 Block Asy Mtg Pump and Motor
445017001 Screw Thumb Pump
50702905 Screw No. 8 x 3/4” FHMS
Item
No. Part No. Name
67245037 Tube Norprene .250 I.D. (Sold by
the Foot)
45098 Kit Pump Tube Replacement
745727 Body Pump Asy
845283 Bushing Rubber w/Insert Nut
NOTE: HIGH RATIO (25 TO 1) PUMP KIT USE 48433
Manual Part No. 85318IPL
4-6-2001 Rev; 1-21-02
ãIMI Cornelius Co., 2001-02
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) 5of8
Rev A

IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303--6234
Telephone [phone]
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) DISPENSER
1
3
4
567 8
9
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
28
32
26
26
26
32
FIGURE 6. VALVE BLOCK ASSEMBLY
Item
No. Part No. Name
45045 Block Valve Asy
145177 Holder Poppet Seal
2Not Used
30720406 Nut No. 10-32
471815321 Ring Ret .242 I.D.
571860290 Armature
618070002 Gasket Rubber Valve Block
718367 Spring Armature
819695001 Guide Asy
931525021 O-Ring 1.114 I.D.
10 18071 Seat Armature
11 48258005 Spring Syrup
12 45192 Valve Body Mixing
13 45193 Valve Body Water
14 45029 Plate Coil Retainer
15 47011 Diaph
16 45180 Spring Actuator
Item
No. Part No. Name
17 45189 Poppet
18 Not Used
19 47048 Support Diaph
20 45195 Plate Fnt Valve Block
21 45186 Spring .360 O.D.
22 31525060 O-Ring .459 I.D.
23 48520001 Coil Asy
24 7245699 Flow Cntl Bonnet Asy
25 60280002 Piston Water Ceramic
26 07032001 Screw No. 8-18 x 7/16”
27 60281001 Sleeve Syrup Ceramic
28 16779003 Frame “C” Solenoid
29 Not Shown
30 49612 Port Valve Water
31 31525020 O-Ring .176 I.D.
32 71822081 Washer Holdown
Manual Part No. 85318IPL
4-6-2001 Rev; 1-21-02
ãIMI Cornelius Co., 2001-02 MILLENNIUM (MJ30-4, MJ32-4, MJ31-4)
6of8
Rev A

IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303--6234
Telephone [phone]
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) DISPENSER
Item
No. Part No. Name
720201400 BoxElecAsy
145238 Reg Voltage Asy
2720201401 Box Elec
3720201403 Cover Elec Box
40734801 Rivet Pop
50704001 Screw 8 x 3/8”
659328001 Fuse 6.25 Amp
77245059 Fuseholder
8720201701 HarnAsyPumpElecBox
9720201702 Harn Asy Speed Elec Box
10 720201703 Harn Asy PB Switch Elec Box
11 720201704 Harn Asy Power Elec Box
720202000 HarnAsyPumptoElecBox
0733909 Bushing Snap
1
2
3
4
5
6
7
9
11
5
8
10

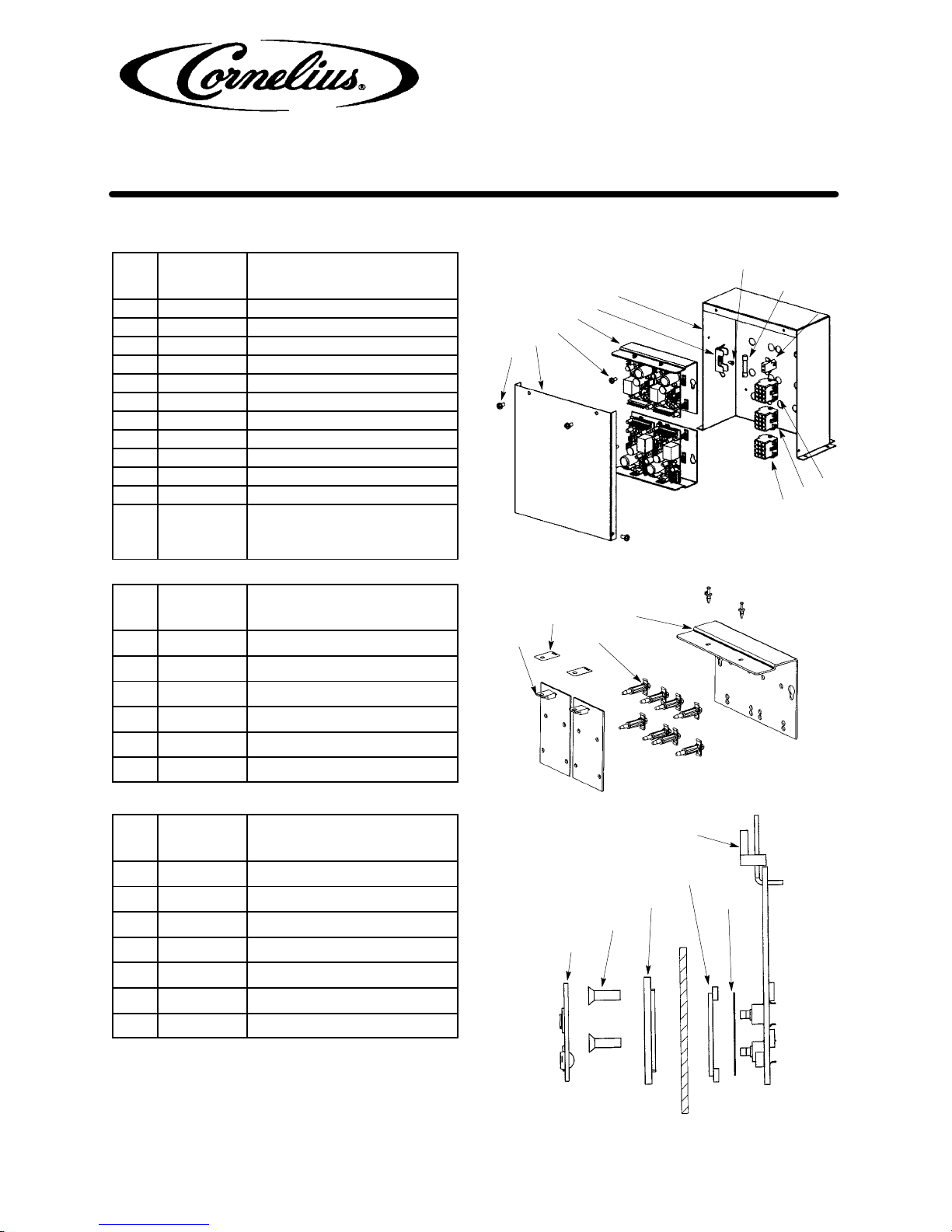

FIGURE 7. ELECTRICAL BOX ASSEMBLY
Item
No. Part No. Name
45238 Reg Voltage Asy
145162 Brkt Voltage Regulator
245056 Support P.C. Board
345012102 Kit Replace Voltage Regulator
445004 Kit Mounting Voltage Reg
545004001 Insulator Voltage Reg
1
23
5
FIGURE 8. VOLTAGE REGULATOR ASSEMBLY
Item
No. Part No. Name
7245761 Portion Cntl Board Asy
184346601 Switch Overlay
20712705 Screw 4-40 x 3/8”
384347003 Bezel Portion Cntl
484347004 Spacer Portion Cntrl
584346801 Spacer Rear Adh
67245760 Portion Cntl Board
1
2
3
4
5
6
FIGURE 9. PORTION CONTROL ASSEMBLY
Manual Part No. 85318IPL
4-6-2001 Rev; 1-21-02
ãIMI Cornelius Co., 2001-02
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) 7of8
Rev A

IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303--6234
Telephone [phone]
Facsimile 1-800-258-0255
www.cornelius.com
ILLUSTRATED PARTS LIST
MILLENNIUM (MJ30-4, MJ32-4, MJ31-4) DISPENSER
Recommended Spare Parts List (For 10 Dispensers)
Part No. Name Qty
45003 Nozzle Mixer O-Ring Asy 4
45123 Mixer Static (Inside Dispense Valve) 4
31525037 O-Ring .739 I.D. 4
45189 Poppet 4
45177 Holder Poppet 4
47011 Diaph with Hole Valve 4
45180 Spring Actuator 4
45186 Spring 4
45179 Support Diaph 4
18070002 Gasket Rubber Valve Block 4
71860290 Armature 4
18071 Seat Armature 4
18367 Spring Armature 4
71815321 Ring Ret 4
31525037 O-Ring .739 I.D. 4
31525021 O-Ring1.10 I.D. 4
48520001 Coil Asy 24V DC 2
60280002 Piston Water Ceramic 3
60281001 Sleeve Syrup Ceramic 3
31525060 O-Ring .459 I.D. 3
Part No. Name Qty
48258005 Spring Syrup 3
7245699 Flow Cntl Bonnet Asy 3
84353001 Switch Asy Push Button 4
45012102 Kit Replace Voltage Regulator 2
720202200 Transfrmr Asy 120V 60HZ 1
45432 Switch Rocker 2
59328001 Fuse 6.25 Amp 2
45016001 Motor Pump 28V 300RPM 1
45098 Kit Pump Tube Replacement
(Pre-Cut Tube with Clamps) 3
186074001 Control Ice Bank 1
350095 Motor Fan 5W 120V 60HZ 1
350078 Motor Agit 15W 120V 50/60HZ (with
Blades) 1
350148 Relay 120V 60HZ 1
350108 Overld Comp 120V 60HZ 1
31314 Bulb Fluor 1
350001 Ballast Finger 120V 60HZ 1
350164 Socket Starter 1
720200100 Drip Tray Asy 1
720200600 Cup Rest 1
Optional Accessories
Part No. Name
721900000 Kit Leg Standard (Set of 4 Legs and 2
Support Braces)
721900001 Kit LegNSU (Secures Unit for Use on Ships)
721900002 Kit Leg Adjustable
Part No. Name
48350007 Kit Bargun 2 Button Single
48350008 Kit Bargun 2 Button Dual
721910000 Kit Portion Control
Manual Part No. 85318IPL
4-6-2001 Rev; 1-21-02
ãIMI Cornelius Co., 2001-02 MILLENNIUM (MJ30-4, MJ32-4, MJ31-4)
8of8
Rev A
