SD Multi Camera
Operating Instructions
Model No. SV-AS10PP
Before use, please read these instructions
completely.
VQT0F01
SV-AS10_PP.book 1 ページ ２００３年７月１１日 金曜日 午後８時５７分

2
Contents
Preparation
Standard Accessories . . . . . . . . . . . . . . . . . . . . 4
Information for Your Safety . . . . . . . . . . . . . . . . . 6
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Insert the Battery . . . . . . . . . . . . . . . . . . . . . . . 10
Remove the Battery . . . . . . . . . . . . . . . . . . . . . 11
Charging the Battery . . . . . . . . . . . . . . . . . . . . 12
About Charging . . . . . . . . . . . . . . . . . . . . . . . . 13
Insert the Card . . . . . . . . . . . . . . . . . . . . . . . . . 14
Remove the Card . . . . . . . . . . . . . . . . . . . . . . . 15
About Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Basic Menu Operation . . . . . . . . . . . . . . . . . . . 17
About the Setup Menu . . . . . . . . . . . . . . . . . . . 18
Setting the Date/Time . . . . . . . . . . . . . . . . . . . 19
Basic (Recording)
Taking a Picture (Still Picture) . . . . . . . . . . . . . .20
Recording Still Picture with Audio . . . . . . . . . . .23
Taking Pictures in Burst Mode . . . . . . . . . . . . . .24
Recording Motion Images . . . . . . . . . . . . . . . . .25
Recording Voice . . . . . . . . . . . . . . . . . . . . . . . . .26
Basic (Play back)
Playing Back Still Pictures . . . . . . . . . . . . . . . . .27
Playing Back Still Picture with Audio . . . . . . . . .28
Playing Back Motion Images . . . . . . . . . . . . . . .29
Playing Back Voice . . . . . . . . . . . . . . . . . . . . . . .30
Playing Back Music . . . . . . . . . . . . . . . . . . . . . .31
Multi File Playback (Thumbnail display) . . . . . . .35
Deleting Files . . . . . . . . . . . . . . . . . . . . . . . . . . .36
SV-AS10_PP.book 2 ページ ２００３年７月１１日 金曜日 午後８時５７分

3
Advanced (Recording)
Setting Flash . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Changing the Quality and Size of Picture . . . . . 39
Taking Pictures with the Self Timer . . . . . . . . . 40
Setting the White Balance . . . . . . . . . . . . . . . . 41
Setting the White Balance (Set Mode) . . . . . . . 42
Setting the Application Menu . . . . . . . . . . . . . . 43
Advanced (Play back)
Using the Playback Zoom . . . . . . . . . . . . . . . . . 45
Marking the Picture as a “Favorite” . . . . . . . . . 46
Playing back Still Pictures on the Slide Show . 47
Setting the Still Pictures to be Printed
(DPOF print) . . . . . . . . . . . . . . . . . . . . . . . . . 48
Preventing Accidental Erasure of Files
(Lock setting) . . . . . . . . . . . . . . . . . . . . . . . . . 50
Adding Audio to the Still Picture
(After recording) . . . . . . . . . . . . . . . . . . . . . . 51
Resizing the Still Picture . . . . . . . . . . . . . . . . . . 52
Altering the Color of the Still Picture
(Color Creator) . . . . . . . . . . . . . . . . . . . . . . . 53
Connecting to PC . . . . . . . . . . . . . . . . . . . . . . . 54
Others
LCD Monitor Display . . . . . . . . . . . . . . . . . . . . 64
Menu Screen Display . . . . . . . . . . . . . . . . . . . . 65
Cautions for Use . . . . . . . . . . . . . . . . . . . . . . . 68
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . 76
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Limited Warranty (For U.S.A. Only) . . . . . . . . . 82
Customer Services Directory
(For U.S.A. Only) . . . . . . . . . . . . . . . . . . . . . . 84
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Spanish Quick Use Guide/
Guía rápida para el usuario en español . . . . . 86
SV-AS10_PP.book 3 ページ ２００３年７月１１日 金曜日 午後８時５７分

4
Standard Accessories
Before using your camera, check the
contents.
■SD Memory Card (8MB)
RP-SD008
■
Battery Pack
VSB0466
■.USB Cradle
VSK0643
■AC Adaptor
VSK0626
■Remote Controller
VYC0902
■Stereo Earphones
L0BAB0000173
■USB Cable
K1HA09BD0001
SV-AS10_PP.book 4 ページ ２００３年７月１１日 金曜日 午後８時５７分

5
■CD-ROM
VFF0206
■Neck Lanyard
VFC4012
■Carrying Case
VFC4013
■Cleaning Cloth
SV-AS10_PP.book 5 ページ ２００３年７月１１日 金曜日 午後８時５７分

6
Information for Your Safety
Dear Customer,
We would like to take this opportunity to
thank you for purchasing this Panasonic
SD Multi Camera. Please read these
Operating Instructions carefully and keep
them handy for future reference.
Carefully observe copyright laws.
Recording of pre-recorded tapes or
discs or other published or broadcast
material for purposes other than your
own private use may infringe
copyright laws. Even for the purpose
of private use, recording of certain
material may be restricted.
• Please note that the actual controls
and components, menu items, etc. of
your SD Multi Camera may look
somewhat different from those shown
in the illustrations in these Operating
Instructions.
•: SD Logo is a trademark.
• Other names, company names, and
product names printed in these
instructions are trademarks or
registered trademarks of the
companies concerned.
WARNING
TO REDUCE THE RISK OF FIRE
OR SHOCK HAZARD AND
ANNOYING INTERFERENCE, USE
ONLY THE RECOMMENDED
ACCESSORIES AND DO NOT
EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE. DO NOT
REMOVE THE COVER (OR BACK);
THERE ARE NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Notice:
This product has parts that contain a
small amount of mercury. It also
contains lead in some components.
Disposal of these materials may be
regulated in your community due to
environmental considerations. For
disposal or recycling information
please contact your local authorities,
or the Electronics Industries
Alliance: <http://www.eiae.org.>
A lithium ion/polymer
battery that is recyclable
powers the product you
have purchased. Please
call 1-800-8-BATTERY for
information on how to
recycle this battery.
RBRC
Li-ion
TM
SV-AS10_PP.book 6 ページ ２００３年７月１１日 金曜日 午後８時５７分

7
FCC Note: (U.S. only)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface
cables with ferrite core when connecting to computer or peripheral devices.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate this equipment.
Trade Name: Panasonic
Model No.: SV-AS10
Responsible party: Matsushita Electric Corporation of America One Panasonic Way, Secaucus, NJ 07094
Support Contact: Panasonic Consumer Electronics Company 1-800-272-7033
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This Class B digital apparatus
complies with Canadian ICES-003
SV-AS10
SV-AS10_PP.book 7 ページ ２００３年７月１１日 金曜日 午後８時５７分

8

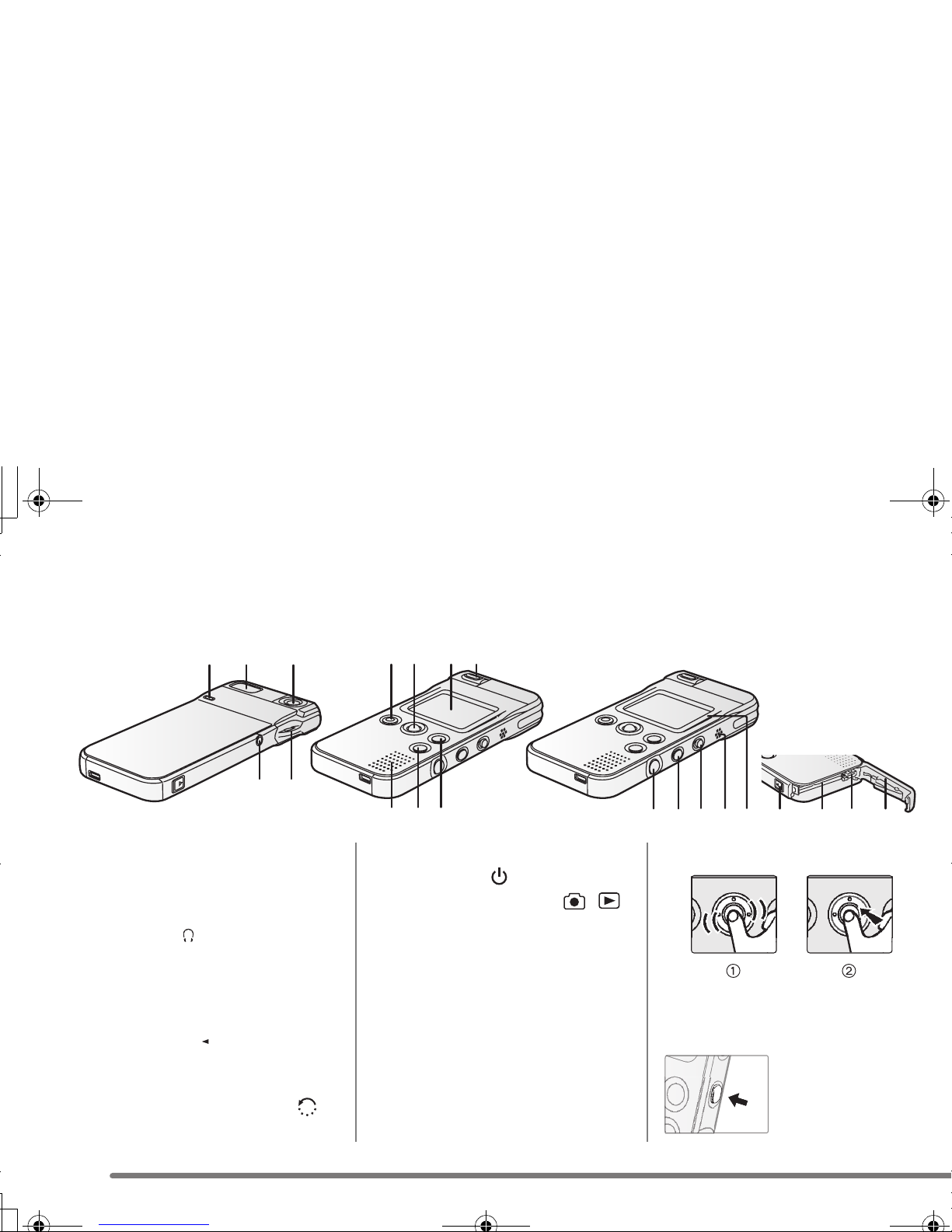

Components
■Body
1Self timer Lamp
2Flash
3Lens
4Terminal (Headphone/Remote
Controller) [ ]
5Strap Attachment
6Shutter Button [ ●]
7Jog Ball
8LCD Monitor
9Macro Switch [ ]
10 Speaker
11 Screen Reversal Button/HOLD
Button (when playing music) [ ]
12 MENU Button
13 Shutter Button [ ●]
14 Power Button [ ]
15 Record/Playback Switch [ / ]
16 Microphone
17 Power/Card Access Lamp
18 Lock Release Lever
19 Card/Battery Slot
20 Connector for Cradle
21 Card/Battery Door
■Operating Jog Ball
Roll the ball to select items. 1
Press to determine items. 2
■Operating Power Button
Hold for about 1
second to turn the
power on.
Hold for about 2
seconds to turn the
power off.
1110 12
8 96 7
13 14151617 2018 19 21
21 3
4 5
MACRO
SV-AS10_PP.book 8 ページ ２００３年７月１１日 金曜日 午後８時５７分

9
■USB Cradle
Use this to charge the battery installed in
this unit. When connecting an USB cable
(supplied) to a socket, you can playback
the pictures or voice and edit music on
your PC.
1Charge Lamp [CHG]
2Connector
3Release Button [RELEASE]
4USB Socket [USB]
5DC Input Socket [DC IN 4.8V]
■Remote Controller
You can play back pictures, sounds and
music, and control the volume of the
sound and music. You can also take
pictures by using this remote controller.
1Stereo Earphone Socket
2Volume Button [ーVOL ＋]
3Playback/Stop/Shutter Button
[1/■ ●]
4Fast-forward Button [9]
5Fast-rewind Button [:]
6Clip
7Hold Switch [HOLD]
8Equalizer Button [EQ]
■Stereo Earphones
When using earphones, be sure to
connect to the supplied remote controller.
You can also directly connect it to this
unit instead of the remote controller.
1Stereo Earphones
2Remote Controller
• If you use earphones other than the
ones supplied, use 3 m or less length
of earphones (including the remote
controller).
1
3
2
USB
DC IN 4.8V
CHG
RELEASE
RELEASE
45
2
7
8
6
1
3
4
5
VOL
EQ
HOLD
2
1
SV-AS10_PP.book 9 ページ ２００３年７月１１日 金曜日 午後８時５７分

10

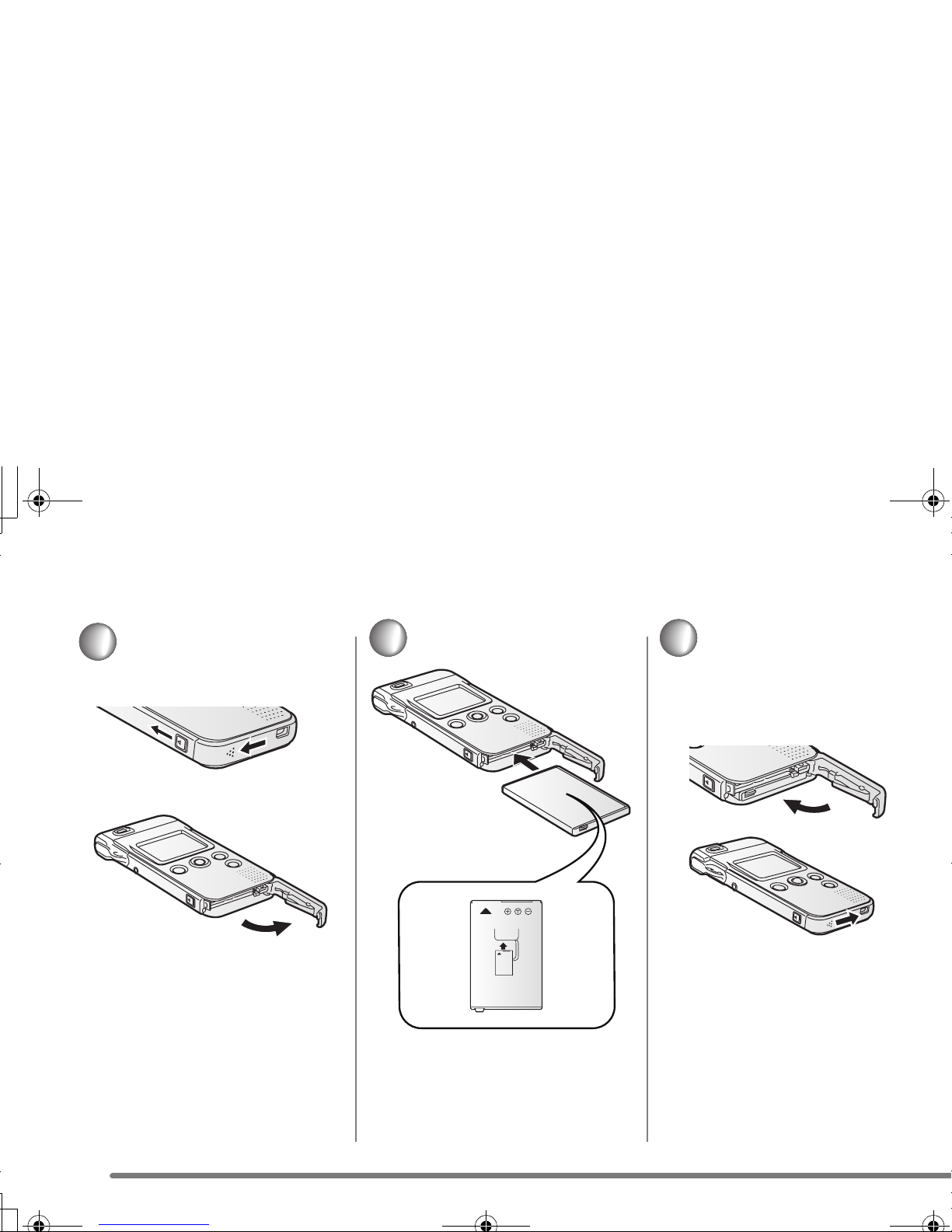

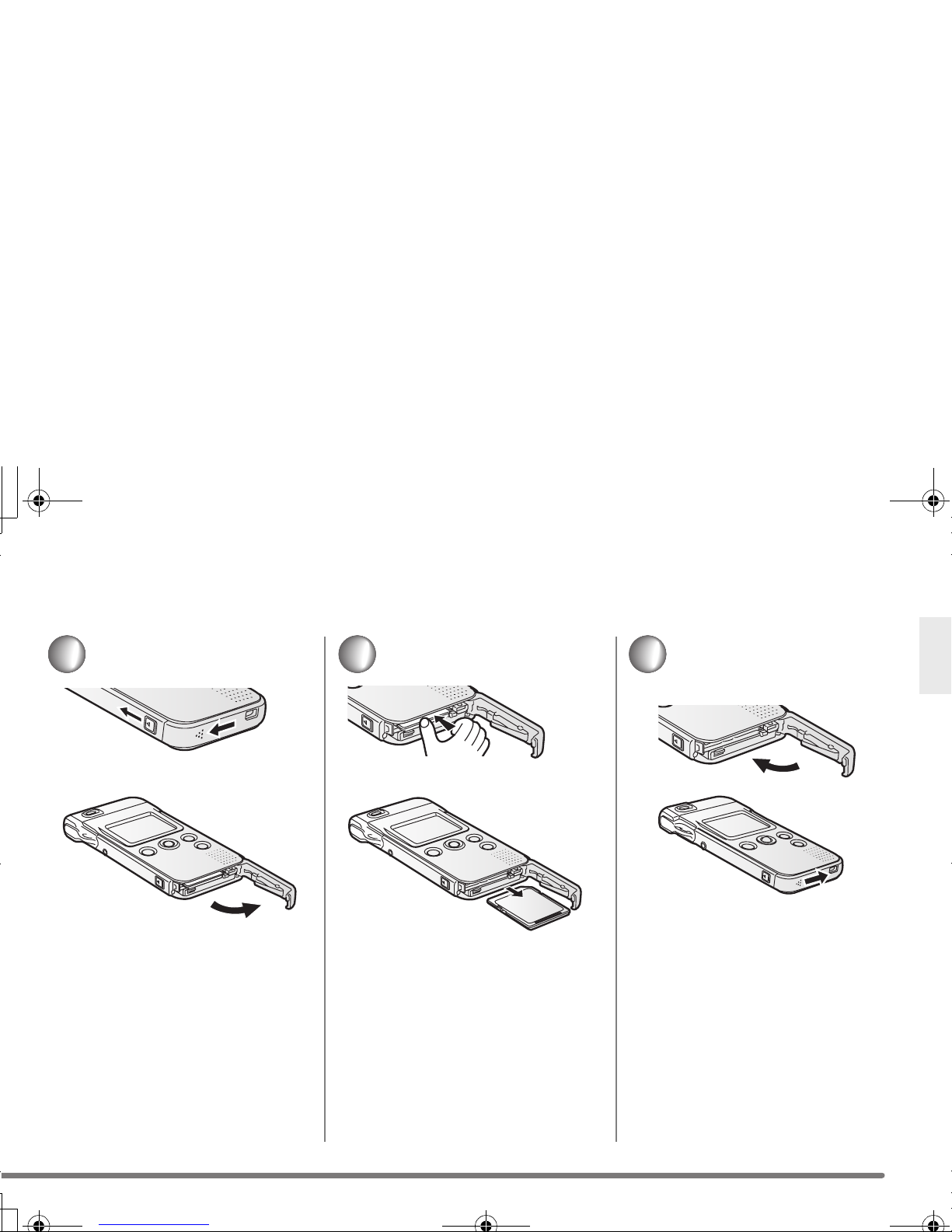

Insert the Battery
1
Slide the door while releasing the
lock. 1
Open the door. 2
2
Insert the battery all the way.
• Confirm the direction of the battery.
3
Close the door. 1
Lock the door while sliding it. 2
①
②
THIS SIDE
①
②
SV-AS10_PP.book 10 ページ ２００３年７月１１日 金曜日 午後８時５７分

11
Remove the Battery
Be sure to turn the power off when you remove the battery.
1
Slide the door while releasing the
lock. 1
Open the door. 2
2
Release the lock Ato remove the
battery.
• When you do not use the camera for a
long time, remove the battery.
• Never open the Card/Battery door
during the access. (P16) Otherwise,
the data on the card may be damaged.
• The supplied battery is only for this
camera. Do not use it for other
devices.
3
Close the door. 1
Lock the door while sliding it. 2
①
②
CAUTION
Danger of explosion if battery is
incorrectly replaced. Replace only
with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according
to the manufacturer’s instructions.
①
②
SV-AS10_PP.book 11 ページ ２００３年７月１１日 金曜日 午後８時５７分

12

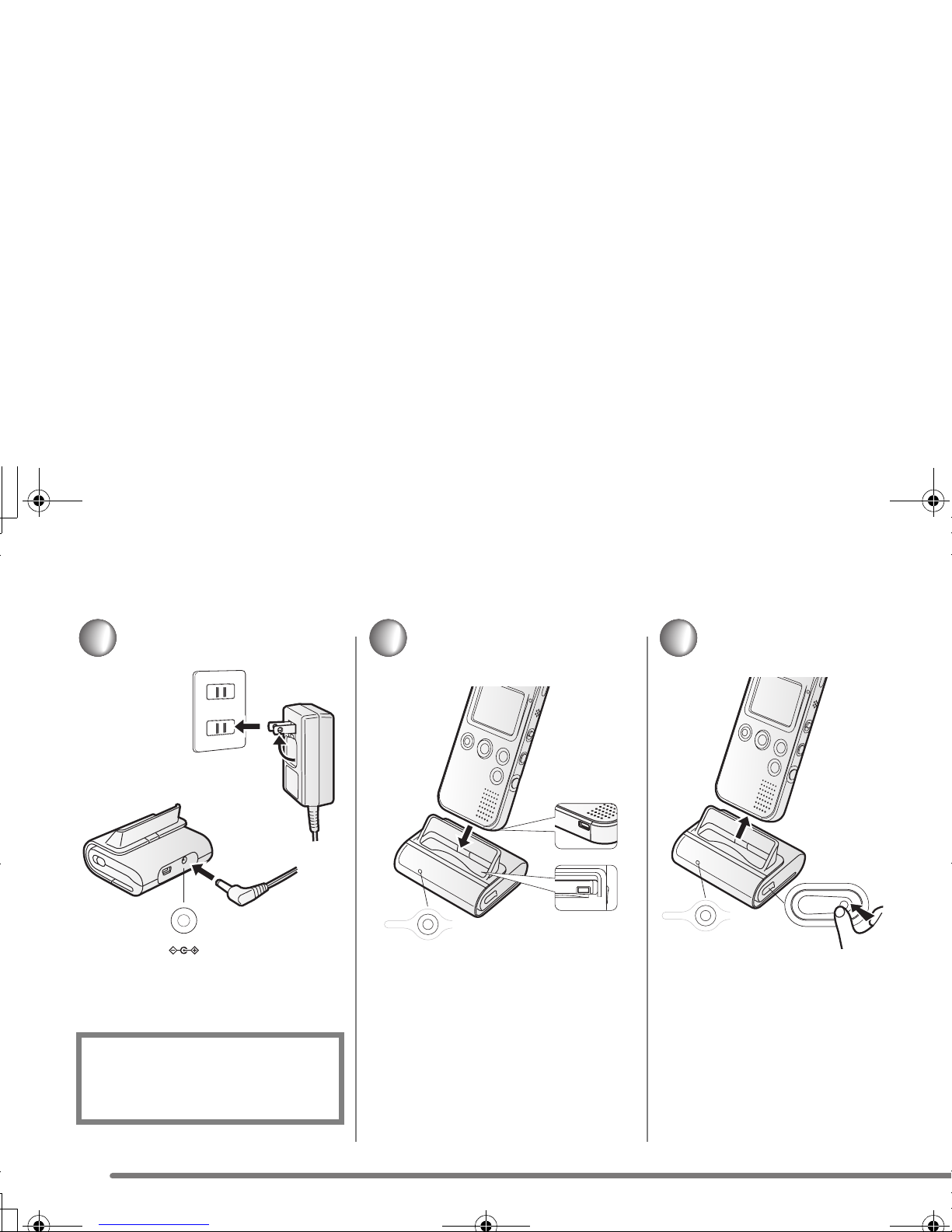

Charging the Battery
1
Connect the plug of AC adaptor to
the outlet and connect the DC plug
to the USB cradle.
2
Charge the battery.
• Align the connections.
• Do not insert this unit in a wrong
direction.
• The CHG lamp blinks in about 2
seconds after connecting this unit with
USB cradle.
• Be sure to turn the power off when
charging the battery.
3
When the CHG lamp turns off, the
battery is charged fully.
• It takes about xx minutes.
Remove this unit from the cradle
while pressing the RELEASE
button.
THE SOCKET OUTLET SHALL BE
INSTALLED NEAR THE
EQUIPMENT AND SHALL BE
EASILY ACCESSIBLE.
DC IN 4.8V
CHG CHG
RELEASE
RELEASE
SV-AS10_PP.book 12 ページ ２００３年７月１１日 金曜日 午後８時５７分

13
About Charging
• The battery is warmed during and after
charging, and after use. The camera is
also warmed during the operation,
however, it is not malfunction.
• Use the supplied cradle or AC adaptor
for this unit.
• Pull the plug out of the electrical outlet
after completing the charge.
• Do not disassemble or alter the cradle
or AC adaptor.
■Battery indicator
The remaining battery power is displayed
on the LCD monitor in use.
The indication is changed as follows
→→(blinking)
according to the consumption of the
battery.
When the indicator is shown as
(blinking), the battery will be
exausted in a few minutes. Charge the
battery.
■Charging time and available
recording time
(Recording condition)
• Temperature 85°F (25°C)/Humidity
60%
• Using the supplied battery and the SD
Memory Card
The times shown above may vary
depending on the condition.
■Charging environment and
charging error
• Charge the battery in a place with the
temperature 50 - 95°F (10 - 35°C).
(The battery should also be the same
temperature)
• The Power/Card Access Lamp blinks
while charging. (Blinks approx. every 2
seconds when charging is normal.)
When the Power/Card Access Lamp
blinks more quickly or slowly (or turns
off), some abnormality may have
occurred. The flashing speed suggests
the following states.
Blinking approx. every 0.5 seconds:
•The SD Multi Camera, battery or AC
adaptor may be defective. Contact
your nearest Panasonic dealer.
Blinking approx. every 6 seconds:
•The ambient temperature or that of
the battery itself is too high or too
low. Charging proceeds, but will take
a longer time.
Turning off:
Charging is completed.
•If the Power/Card Access Lamp
turns off when charging is not
completed, the AC Adaptor or the
battery is probably defective.
Contact your nearest Panasonic
dealer.
• For details, refer to P69.
Charging time Approx. XX min.
Continuous
recording time
(recordable
number)
Approx. XXX min.
(equal to XXX still
pictures)
Playback time Approx. XXX min.
SV-AS10_PP.book 13 ページ ２００３年７月１１日 金曜日 午後８時５７分

14

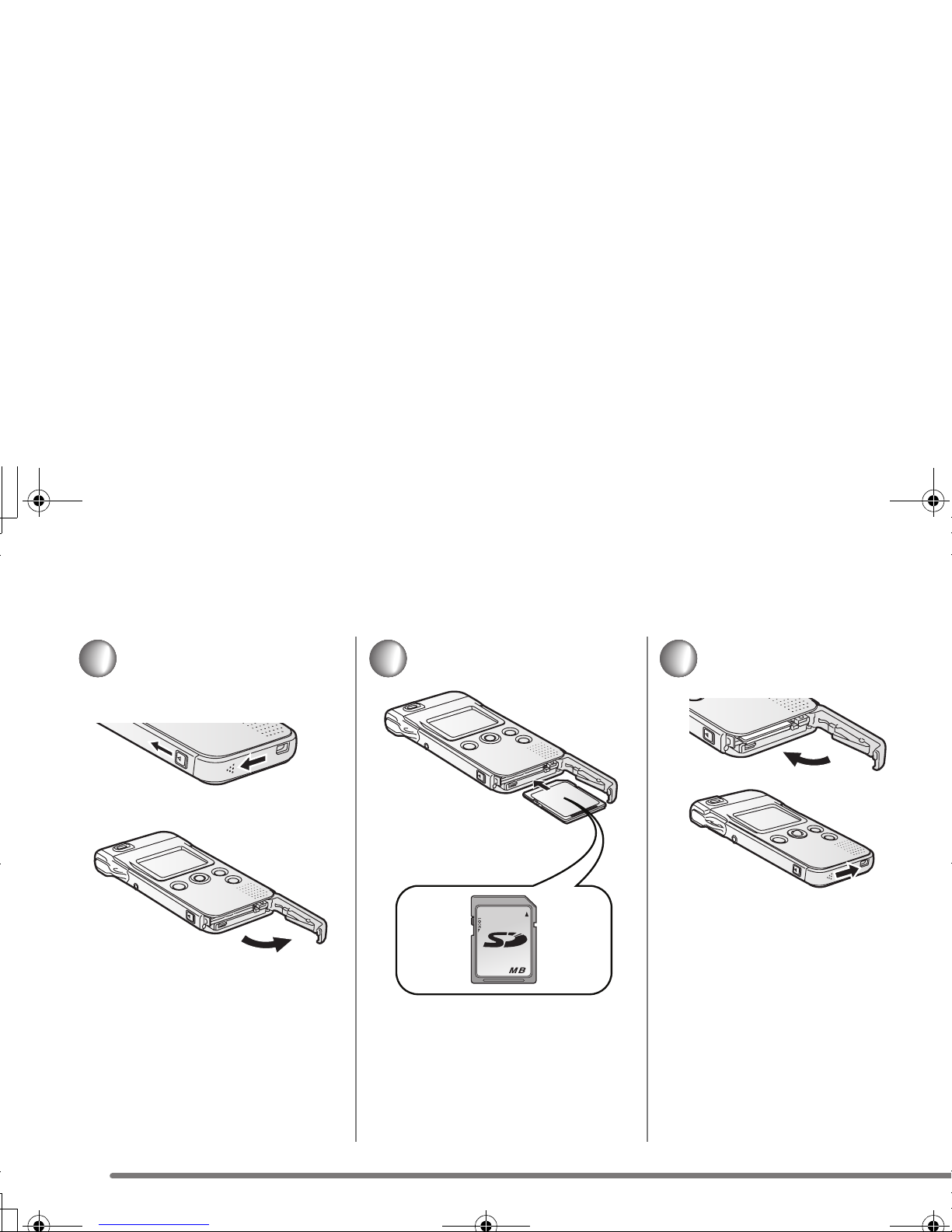

Insert the Card
Be sure to turn the power off when you insert the card.
1
Slide the door while releasing the
lock. 1
Open the door. 2
2
Insert the card all the way in until it
clicks.
• Check the direction of the card.
• Do not touch the connecting terminal
on the rear of the card.
3
Close the door. 1
Lock the door while sliding it. 2
• If you cannot close the Card/Battery
door completely, remove the card
once, then insert it again.
• Check the direction of the card if you
cannot insert it.
• We recommend using the cards made
by Panasonic. (Use genuine card only)
• If you do not insert the card all the way,
it may be broken.
①
②
64
①
②
SV-AS10_PP.book 14 ページ ２００３年７月１１日 金曜日 午後８時５７分

15
Remove the Card
Be sure to turn the power off when you remove the card.
1
Slide the door while releasing the
lock. 1
Open the door. 2
2
Press the card to release until it
clicks and pull out the card.
3
Close the door. 1
Lock the door while sliding it. 2
①
②
①
②
SV-AS10_PP.book 15 ページ ２００３年７月１１日 金曜日 午後８時５７分

16
About Cards
■Access to the card
When you access the card,
(recognition/recording/reading/deleting)
the Power/Card Access lamp blinks
quickly.
When the Power/Card Access lamp is
blinking, do not turn the power off or do
not remove the battery and the card.
Otherwise, the card or its contents may
be damaged, or the camera may not
work properly.
The data of the card can be damaged or
lost because of the electrical noise, static
or breakdown of the camera or the card.
Save your precious data to your PC.
(P54)
■SD Memory Card (supplied)
The SD Memory Card is asmall,
lightweight, removable external card. The
SD Memory Card is equipped with a
write-protect switch 1 that can inhibit
writing and formatting. (When the switch
is moved towards the LOCK side, it is not
possible to write or delete data on the
card and format it. When the switch is
unlocked, these functions become
available.)
8
SV-AS10_PP.book 16 ページ ２００３年７月１１日 金曜日 午後８時５７分

17

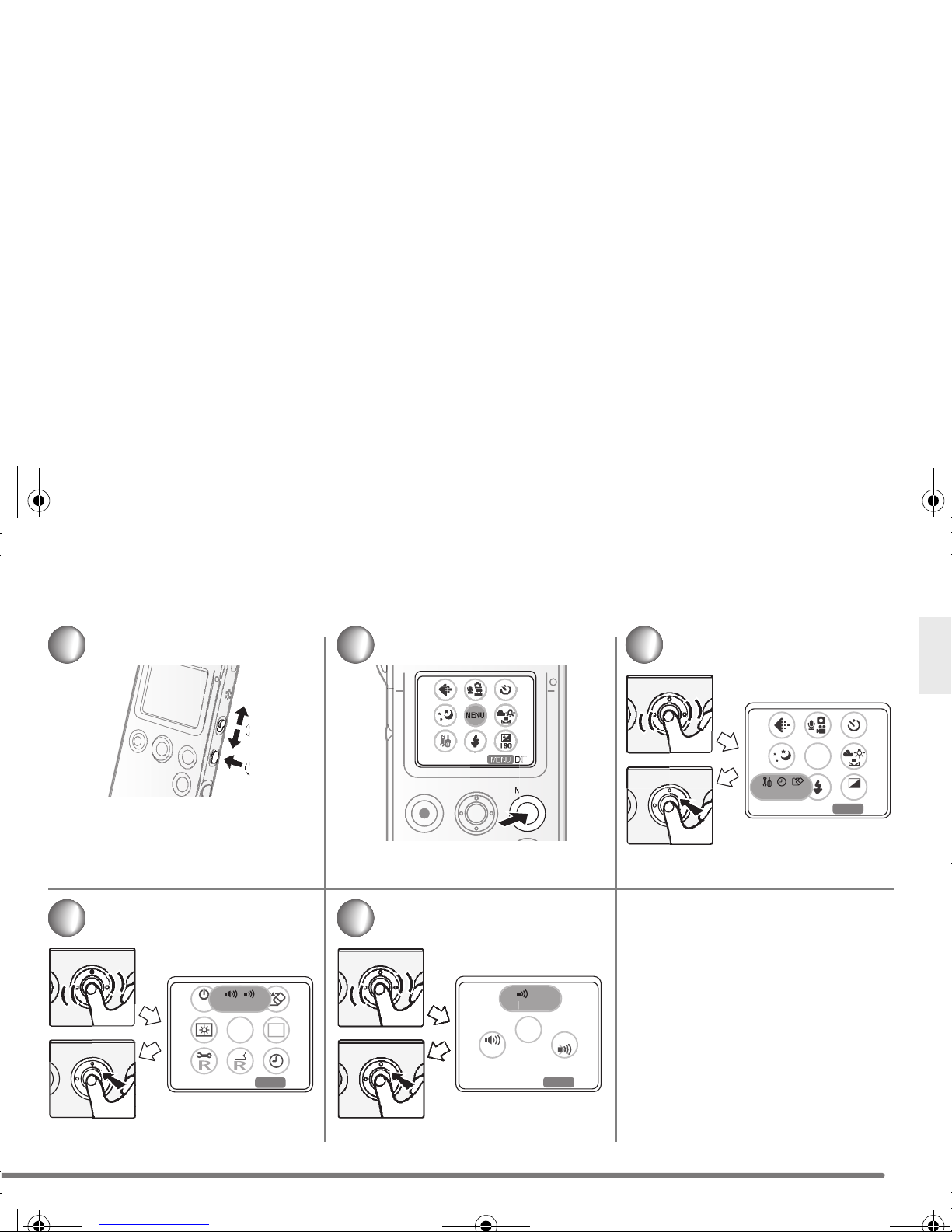

Basic Menu Operation
1
Press the Power Button for 1 second
to turn the power on. 1
Select the recording mode or
playback mode. 2
①
②
2
Press the MENU button to access
the menu.
M
EN
U
IT
3
Select the menu item as above.
MENU
E XIT
E XIT
MENUMENU
Setup
ISO
+‑
4
Select the desired item.
OFF
+
MENU
E XIT
E XIT
BACK
Volume
5
Press the Jog Ball to set.
MENU
E XIT
E XIT
ON
OFF
OFF
VOL
BACK
B
eep
ON
•To stop the operation, Press the
MENU button.
• If the Jog Ball is left without any
operation for about 30 seconds, the
unit exits the menu automatically.
SV-AS10_PP.book 17 ページ ２００３年７月１１日 金曜日 午後８時５７分

18
About the Setup Menu
Items Details of the setting
Volum e [ ] •Beep ON: The operational sound turns on.
•Beep OFF: The operational sound turns off.
•Main volume: Adjust the volume of the speaker.
Format card [ ] • You cannot recover all the data including the protected data once you format. Check the data
before formatting.
Icon display [ ] •ON: Display the icon on the LCD monitor.
A: Recording mode B: Playback mode
•OFF: Does not display the icon on the LCD monitor.
A: Recording mode B: Playback mode
Clock set [ ] • Change the date and display style. (P19)
Reset card NO [ ] • The number of the file to be recorded in the next time starts from 0001.
Reset settings [ ] • Reset to the initial setting of recording and setup menu. The clock setting does not change.
Display setup [ ] •Brightness: Adjust the brightness of the LCD monitor.
•Color: Adjust the saturation of the LCD monitor.
Auto power off [ ] •5 min: No operation for about 5 minutes leads to power off.
•Cancel: Not lead to power off until the battery is exhausted.
•This function does not work when connecting to PC, recording/playing back the motion
image, playing the slideshow or music, or recording/playing back the voice memo.
+
1600
19
A
2 00 3/9 /1
12:00 PM
100 ‑0001
1600
2 00 3/9 /1
12:00 PM
AB
AB
SV-AS10_PP.book 18 ページ ２００３年７月１１日 金曜日 午後８時５７分

19

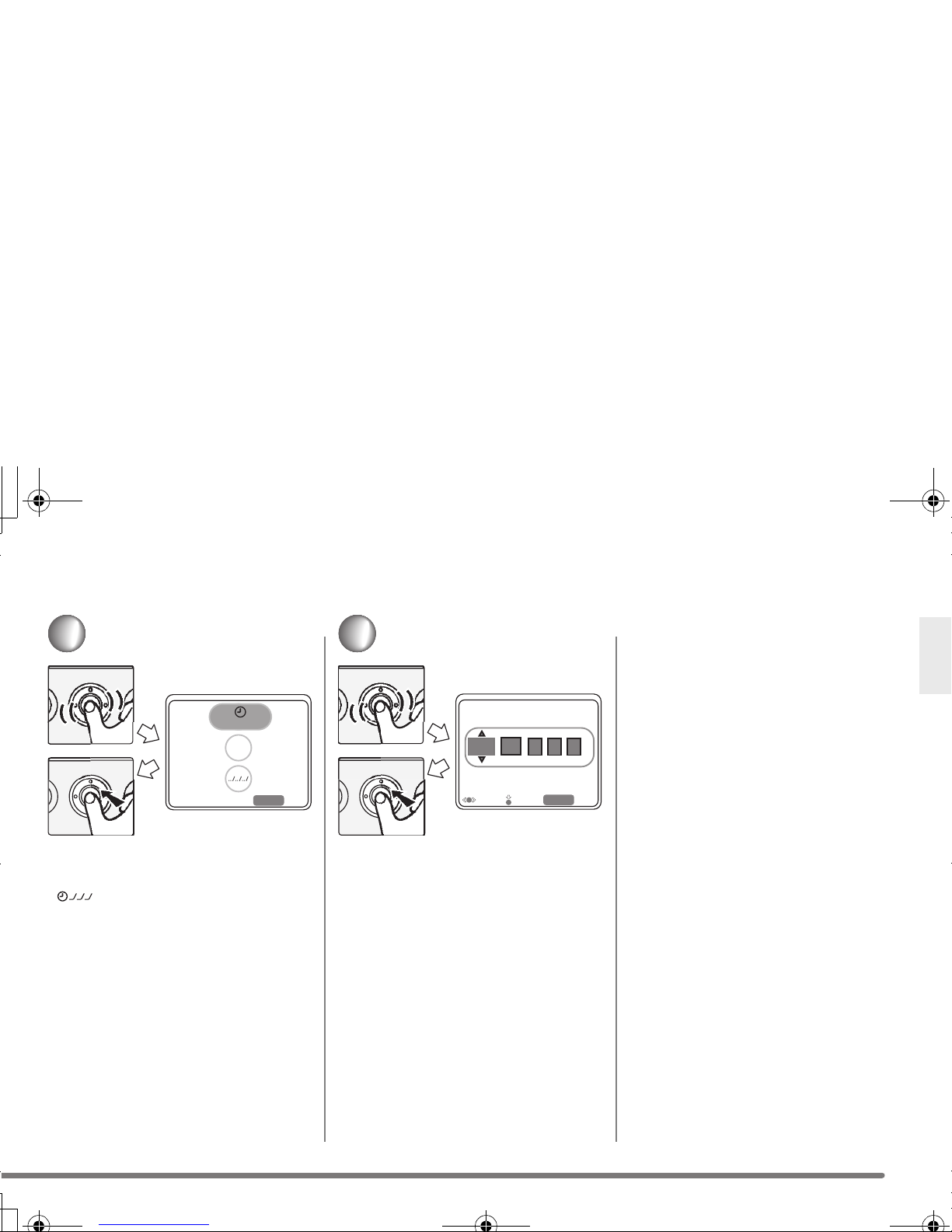

Setting the Date/Time
1
Access the menu. (P17)
Select Clock set from Clock set
[ ] on the Setup menu.
2
Set the year, month, day and time.
• Press the Jog ball right and left to
select year, month, day and time. Roll
it up and down to set the number.
• Press the MENU button to exit from
the menu.
■After purchase
The clock is not set when shipping. When
you turn the power on, the clock setting
screen appears. Adjust the time here.
• You can set the year from 2000 to
2099.
• When you select Style from Clock set
in step 1, you can choose the
indication style from the following.
(e.g. September 1st, 2003 PM12:00)
•[Y/M/D]:2003/9/1 12:00
•[D/M/Y]:1/9/2003 12:00
•[M/D/Y]:Sep/1/2003 12:00PM
• When the fully charged battery is
inserted in the camera for x hour or
more, the clock setting is stored in the
camera for about xx hours even after
the battery is removed.
However, the clock setting is cancelled
if more time has passed without the
battery inserted. In this case, please
set the date/time again.
/'07
':+6
':+6
$#%-
%NQEMUGV
/'07
':+6
':+6
'06'4
'06'4
5'.
5'.
    
 
2/
Text E.fm 19 ページ ２００３年７月１４日 月曜日 午前１０時５０分

20

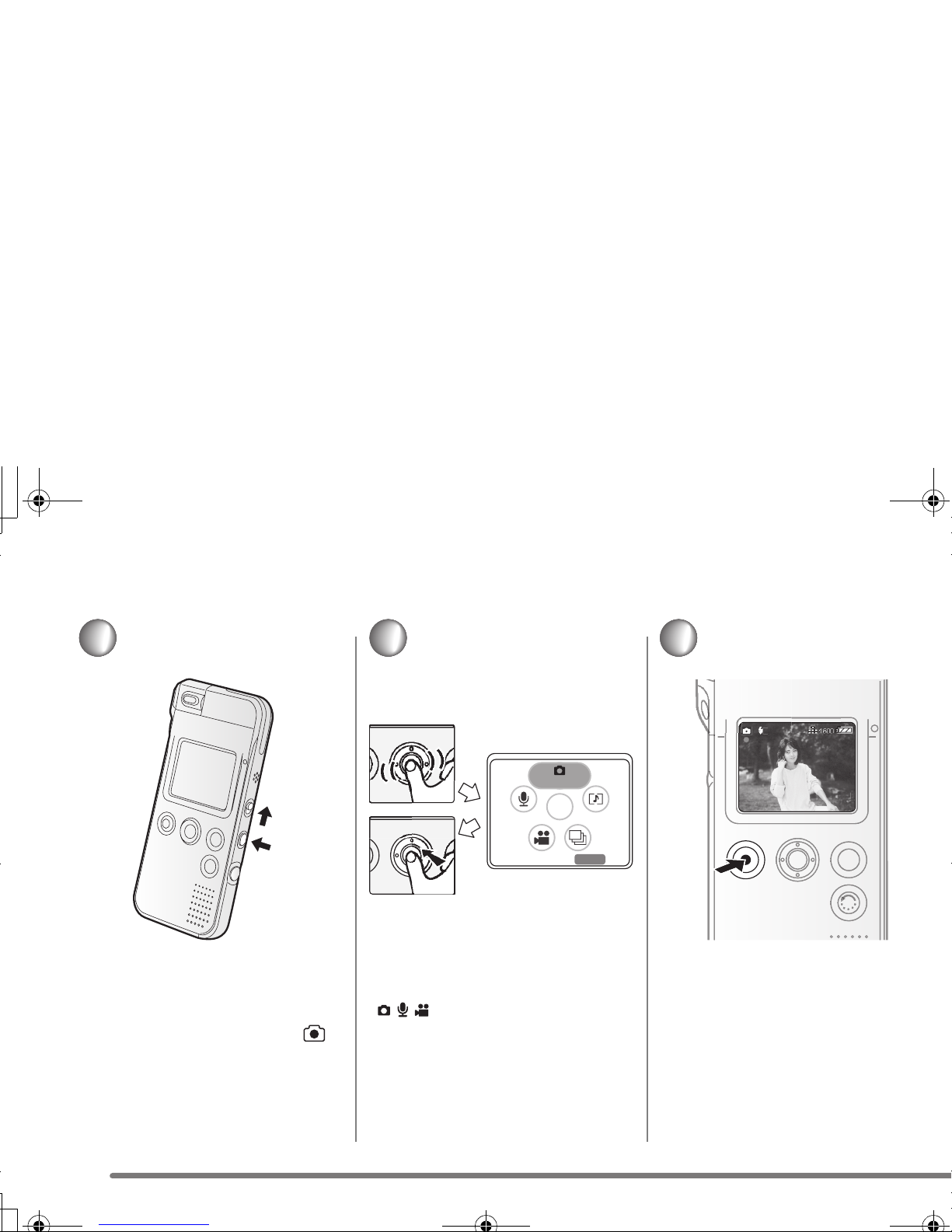

Taking a Picture (Still Picture)
1
Turn the power on. 1
• The power/card access lamp is lit in
red.
Switch to the recording mode [ ].
2
2
Access the menu. (P17)
Select Still picture from REC mode
[].
3
Press the shutter button to take a
picture.
ḧ
Ḩ
BACKBACK
MENU
E XIT
E XIT
Stillpicture


A
A




2/
SV-AS10_PP.book 20 ページ ２００３年７月１１日 金曜日 午後８時５７分
