Shooting in progressive mode
Selecting 1080/30P or 1080/24P in the REC
FORMAT option (Page 51) of the setting menu
SCENE FILE screen enables shooting in
progressive mode.
30P mode:
Shoot 30 frames a second in the progressive
mode.
For output and recording, the 30-frame-per-
second signal is converted to 60-field-per-second
interlace.
This mode gives you high quality images.
Ao Ae Bo Be CoCeDoDeEo Ee Fo Fe GoGeHoHe Io Ie Jo Je
A B C D E F G H I J
30 P
60 i
24P mode:
Shoot 24 frames a second in the progressive
mode.
The video signal will be recorded natively.
However, the external output signal is converted
to a 2:3 format, 60 fps interlaced signal.
A B C D E F G H
Ao Ae Bo Be Bo CeCoDe DoDe Eo Ee FoFe Fo G e G o H e H o H e
24 P
60 i
25P mode:
Shoots 25 frames a second in the progressive
mode.
For output and recording of video signal, the
25-frame-per-second image is converted to
50-field-per-second interlace signal.
This mode gives high quality images.
Ao Ae Bo Be CoCeDoDeEo Ee Fo Fe GoGeHoHe Io Ie Jo Je
A B C D E F G H I J
25 P
50 i
Note the following when shooting in
progressive mode.
Set the shutter speed to 1/50 (OFF) for best•
results.
There may be a slight delay to the start•
of recording when you use the 24P mode
because 4 frames are recorded at a time.

5
Shooting
Shooting techniques for different targets
Self-portrait shooting
Images in the LCD monitor when it is turned 180°
for self-portrait shooting may appear unusual.
You can make them appear better by reversing
left and right. Go to the setup menus, DISPLAY
SETUP screen, SELF SHOOT, and select
MIRROR. Shooting in mirror mode has no effect on
what you actually shoot and record.
Images played back by pressing the REC•
CHECK button cannot be inverted horizontally.
Operation status displays during self-portrait•
recording
No display: Cannot record (no card, etc.)
: Recording in progress, during transition
to the recording pause mode
: Recording paused (recording standby)
: Warning display
Only part of the screen display appears.•
When [ ] is displayed, turn the LCD monitor
back in the direction of normal recording, and
check what the message says.
To confirm screen display information on the•
viewfinder, turn the LCD monitor to the normal
shooting position.
Zebra pattern
Press the ZEBRA button in the CAM mode to show
the zebra pattern or marker on the viewfinder and
the LCD monitor so you can check the brightness
of the subject.
Parts that may be whited out through over
exposure are shown as a zebra pattern.
Very bright•
Reflecting parts•
POWER
FOCUS
..
BARS
EVF DTL CH1 SEL
INT(L)
ON
OFF
ON
OFF
INPUT1
AUDIO
MIC POWER +48V
INPUT1 INPUT2
INPUT2
INPUT1
INPUT2
CH2 SEL
WFM
COUNTER-RESET/TC SET
ZEBRA OIS
ZEBRA button
You can remove most overexposed parts by
adjusting the iris and shutter speed in the manual
mode to remove the areas with zebra patterns.
The display changes as follows each time you
press the ZEBRA button.
ZEBRA 1 → ZEBRA 2
 ↑   ↓
ZEBRA OFF ← MARKER ON
In the setup menus, DISPLAY SETUP screen,
ZEBRA DETECT1 and ZEBRA DETECT2, set the
brightness for the zebra patterns. (Page 59)
If the ZEBRA DETECT2 item is set to OFF,
ZEBRA2 will not be displayed even if the ZEBRA
button is pressed.
The zebra pattern you have set appears as a
percentage on the display for about 2 seconds.
The zebra pattern is displayed in the color bar
as well.

6
Marker
If you press the ZEBRA button while the zebra
pattern is being displayed, a marker appears in
the center of the display (if you have set the setup
menu, DISPLAY SETUP, MARKER to ON).
The brightness of the areas near the screen center
can be checked as a percentage (0% to 99%).
“99%↑”appearsifthepercentageisover99.
99%
Image level detection area
Image level
Marker
The normal display reappears if you press the
ZEBRA button again.
Checking and displaying shooting status
MENU
START/
STOP 2 PUSH-ENTER
MODE
POWER
DISP/
MODE C HK
USER 1
USER 2
FUNCTION
FOCUS
IRIS
GAIN
WHITEBAL
B
PUSH AUTO
MEGA
ON
OFF
O.I.S.
CAM
ON
CH1CH2
AUDIO LEVEL
.. OFF
PB
+–
AUDIO MON
EXEC
A
PRST
L
M
H
A
M
∞
DISP/MODE CHK button
Pressing the DISP/MODE CHK button during
recording or while recording is paused will remove
all displays from the screen except the operation
status display, frame display (such as area),
counter, marker, and safety zone display.
Pressing the DISP/MODE CHK button during
recording or while recording is paused will
remove all displays from the screen except for the
operation status, frame display erea etc., counter,
marker, and safety zone display. Press the button
again to return to the normal display. (Page 50)
This setting will be maintained even if the camera’s
power is turned off by moving the POWER switch to
the OFF position or if the operating mode is changed.
Pressing the DISP/MODE CHK button while the
thumbnail screen is displayed in PB mode will
display the properties of the selected clip.
(Clips can be selected by moving the cursor with
the Operation lever.)
Shooting techniques for different targets (continued)
PRE REC
Record video and audio from three seconds before
the time of the operation to begin recording.
Operation to start
recording
Operation to stop
recording
Actual recording
time
PRE REC time
(Time)
1Set the PREREC MODE item on the
RECORDING SETUP screen to ON.
PRE-REC will be displayed on the screen.
When the TCG item on the TC/UB SETUP•
screen has been set to REC RUN, the setting
will be automatically changed to FREE RUN.
2Press the START/STOP button.
Video and audio from approximately 3 seconds
previously will be recorded.
Recording of the previous 3 seconds of video•
and audio may not be possible if recording is
started immediately in the following cases.
Immediately after switching from PB modeā
to CAM mode
Immediately after turning power onā
Immediately after changing to PRERECā
MODE item
The thumbnail for clips recorded using the•
PREREC function will display the image from
when the START/STOP button was pressed.
Relay function
When the remaining space on an SD card is
insufficient during recording, recording can be
continued using the other SD card slot.
Select ON in the RELAY REC item on the settings
menu RECORDING SETUP screen.
When the remaining space on an SD card is•
insufficient during recording, recording will
automatically be continued using the SD card in
the other slot.
The relay function is not available when an SD•
card that cannot be recorded to is inserted in the
SD card slot.
The longest possible recording time with this•
camera is 12 hours. This cannot be extended
even if the relay function is used.

7
Shooting
Variable frame rate (VFR)
This camera can perform low speed (undercrank) and high speed (overcrank) recording without the need
for a frame rate converter (the camera must be set to 1080_24p or 1080_30p).
Camera
24P
24PN
: Valid frames
24P mode:
Shoots 24 frames a second in native mode. The images (shot at 24 frames a second) are recorded into 24
frames as the video signal.
When VFR is set, the INTERVAL REC function, relay recording function, and PRE REC function are•
automatically set to OFF, and TCG is automatically set to REC RUN.
The frame rate cannot be changed during recording.•
VFR shooting is only possible when shooting with REC FORMAT set to 1080_24p, 1080_30p or•
1080_25p. VFR shooting does not work in the 720p mode.
The recording frame rate can be set to any one from the 20 frame rates given in the following table.
There is a slight a difference between the displayed recording frame rate and the actual recording frame
rate. Please refer to the table below.
When SYSTEM FREQ is set to 59.94 Hz
Indicated
recording
frame rate
60 54 48 44 40 36 34 32 30 28 27 26 25 24 22 21 20 18 15 12
Actual
recording
frame rate
59.94 53.74 47.54 43.96 39.96 35.97 33.88 31.73 29.97 27.83 27.25 25.97 24.98 23.98 21.98 20.75 19.98 17.63 14.99 11.99
When SYSTEM FREQ is set to 50 Hz
Indicated
recording
frame rate
50 48 45 42 37 34 32 30 28 27 26 25 24 23 22 21 20 18 15 12
Actual
recording
frame rate
50.00 48.08 45.45 41.67 36.76 34.09 31.82 30.00 27.78 26.79 26.04 25.00 24.00 23.08 22.06 20.83 20.00 17.86 15.00 12.50

8
Shooting techniques for different targets (continued)
Native recording
1Select 1080/24P recording format from
the REC FORMAT option (page 51) on the
settings menu SCENE FILE screen.
2From the OPERATION TYPE option (page
51) on the settings menu SCENE FILE
screen, select FILM CAM, and set the
FRAME RATE (page 51) to an arbitrary
recording frame rate.
3Press the START/STOP button
Start native recording in VFR mode.
Although the audio is not recorded, the sound•
is output from the AUDIO OUT terminal, HDMI
terminal, and SDI OUT terminal during setup and
during recording.
During the VFR mode, the camera is set to•
manual focus mode.
Standard recording
1Select 1080/30P recording format from
the REC FORMAT option (page 51) on the
settings menu SCENE FILE screen.
2From the OPERATION TYPE option (page
51) on the settings menu SCENE FILE
screen, select FILM CAM, and set the
FRAME RATE (page 51) to an arbitrary
recording frame rate.
3Press the START/STOP button.
Start standard recording in VFR mode.
Although the audio is not recorded, the•
sound is output from the AUDIO OUT
terminal, HDMI terminal, and SDI OUT
terminal during setup and during recording.
During the VFR mode, the camera is set to•
manual focus mode.
2:2 pull down recording will be applied for a•
recording frame rate of 30P.

9
Shooting
Use of Variable Frame Rate (VFR)
Normal speed shooting for movie production
When producing videos for screening, a frame
rate of 24fps as used in film projection is standard
(x1). By using the settings below, playback with the
same quality as the film projection is possible. Film
like high quality video can be produced through
1080p progressive and CINELIKE Gamma.
Recording format
(REC FORMAT)
Recording frame rate
(FRAME RATE)
1080P/24P
(native recording) 24 fps*
Normal speed shooting for commercial/drama
production
When producing videos for display on television
screen such as HDTV/SDTV broadcast, a frame
rate of 30fps is standard (x1). By using the settings
below, playback with the same quality as broadcast
is possible. Commercials and music videos can be
recorded at film-like high quality, and at a frame
rate suitable for television broadcast.
Recording format
(REC FORMAT)
Recording frame rate
(FRAME RATE)
1080/30P
(2:2 Pull down) 30 fps*
1080/25P 25 fps*
Undercrank shooting
This is a quick motion effect that can be applied
to scenes showing the flow of clouds, people
standing in the middle of crowds, and kung fu, etc.
For example, a quick motion effect of x2 can be
gained if the VFR recording frame rate is set to
12fps when recording with the 24P recording
format that specifies the playback frame rate.
Recording format
(REC FORMAT)
Recording frame rate
(FRAME RATE)
1080/24P Less than 22fps*
1080/30P Less than 28fps*
1080/25P Less than 24fps*
Overcrank shooting
This is a slow motion effect that can be applied
to scenes such as car chases, action, climaxes,
etc. For example, a slow motion effect of 1/2 can
be gained if the VFR recording frame rate is set
to 60fps when recording with the 30P recording
format that specifies the playback frame rate.
1080P progressive movies produce smooth, high
quality slow motion.
Recording format
(REC FORMAT)
Recording frame rate
(FRAME RATE)
1080/24P Less than 25fps*
1080/30P Less than 32fps*
1080/25P Less than 26fps*
* The recording frame rate (FRAME RATE) can be
set to one of 20 values. (page 14)

10
Shooting techniques for different targets (continued)
Shooting using the FUNCTION knob
The following types of recording can be carried out
using the FUNCTION knob.
Area auto focus function•
Operates auto focus within an area frame
selected using the FUNCTION knob.
Area auto iris function•
Automatically adjusts the iris value within an area
frame selected using the FUNCTION knob. This
function cannot be set when the FACE DETECT
function has been set.
Area luminance display•
Displays an averaged luminance level within an
area frame selected using the FUNCTION knob.
1Select the function from the FUNCTION
KNOB option (page 53) on the settings
menu SW MODE screen.
FOCUS: Area focus function and area focus
bar function (during MENU setting)
IRIS: Area iris function and area iris meter
function (during MENU setting)
YGET: Area luminance display
FOCUS/IRIS:
Simultaneous operation of the area
focus function and area iris function,
simultaneous operation of the area
focus bar function/area iris meter
function (during MENU setting)
FOCUS/YGET:
Simultaneous operation of area
focus function and area luminance
display, simultaneous operation
of area focus bar function (during
MENU setting)
2Press the FUNCTION knob.
A white frame is displayed.•
There is no change in the operation of the•
camera other than the display of the frame.
3Press the FUNCTION knob again.
The white frame turns yellow.•
When the frame is yellow, the FUNCTION•
knob function set via the MENU operates in
the area inside the frame.
Pressing the FUNCTION knob once more•
returns the yellow frame to the white frame.
Switching AUTO/MANUAL for FOCUS/IRIS•
is normally carried out in the same way.
The central luminance function does not•
operate when the area luminance display is
operating.
If the FUNCTION knob is held down for more•
than 2 seconds, the frame disappears and
the area function is switched off.
4Move the FUNCTION knob up and down,
and right and left.
The white frame changes position. Move the•
frame to the area you wish to select.
The area function does not operate during face•
detection.
The area function exits when the power switch•
is set to OFF or when the camera is switched
to playback mode.
Auto focus and auto iris may not be available•
depending on lens used.
The area luminance, FOCUS BAR, and IRIS•
METER functions are available regardless of
the lens used.

11
Shooting
Optical Image Stabilizer
Use the Optical Image Stabilizer (OIS) to reduce
the effects of camera shake when shooting by
hand.
Press the OIS button to turn the function on and
off. appears on the viewfinder and the LCD
monitor when this function is on. Turn the function
off when using a tripod for more natural images.
POWER
FOCUS
..
BARS
EVF DTL CH1 SEL
INT(L)
ON
OFF
ON
OFF
INPUT1
AUDIO
MIC POWER +48V
INPUT1 INPUT2
INPUT2
INPUT1
INPUT2
CH2 SEL
WFM
COUNTER-RESET/TC SET
ZEBRA OIS
For lenses that have an OIS button, only the lens•
button is active and the button on the camera is
deactivated. Also, some lenses do not have an
OIS function.
This function will not be as effective when the•
vibration is severe or when tracking a moving
subject.
Adding effects to images
Press the USER button you have allocated to the
BLACKFADE or WHITEFADE feature to add fading
effects to your images. The button’s function is
forcibly canceled during playback or REC CHECK
and also when thumbnails are displayed.
BLACKFADE:
Press the button to fade out to black. Audio also
fades out. Fade-in starts after fade-out, when
the button is released.
WHITEFADE:
Press the button to fade out to white. Audio also
fades out. Fade-in starts after fade-out, when
the button is released.
Using the USER buttons
You can allocate one of thirteen features to each of
the three USER buttons.
Use these buttons to change shooting settings
quickly or add effects to the images you are
shooting.
The following features are allocated to the buttons
at the time of shipping.
USER1: FA
USER2: ATW LOCK
USER3: REC CHECK
For details, see the setup menus, SW MODE
screen, USER1 SW to USER3 SW. (Page 55)
If you press a USER button to which one of the
functions has been assigned, and then turn OFF
the power or change the mode during operation of
the USER button function, the effect added to the
image will not be retained.
Backlight compensation
Press the USER button you have allocated to the
BACKLIGHT feature when shooting subjects lit
from the back.
BACK appears on the screen.
Backlight compensation adjusts the iris so the
subject doesn’t come out dark.
Press the same USER button to turn the feature
off. (In the manual iris mode, the iris status is
retained at the corresponding point even when
backlight compensation is canceled.)
The backlight compensation function does not•
operate with lenses in which AUTO IRIS is not
functioning.
Color bars
Press the BARS button in the CAM mode to output
a color bar screen to a television or monitor so you
can adjust them. Press the button again to turn the
feature off.
While the color bar is displayed, a test tone of•
1 kHz will be output from the headphone terminal
or the AUDIO OUT terminal. There will be no
speaker output.
The color bar can be recorded by pressing the•
START/STOP button.
The color bar display is canceled when the power•
is turned off.

12
Shooting techniques for different targets (continued)
Wave form monitor function
An image wave form can be displayed on the LCD
monitor by pressing the WFM button while in CAM
mode.
Press the button again to return to the normal
display.
Switching the wave form display, vector display,•
and wave/vector display is possible from the
WFM item (page 55) in the SW MODE screen of
the settings menu.
Wave forms will not be displayed in the•
viewfinder.
Wave forms cannot be recorded.•
While wave forms are displayed, use the•
viewfinder as well because a part of the recording
screen and screen display will be hidden by wave
forms.
Adjusting the volume while shooting
MENU
START/
STOP 2 PUSH-ENTER
MODE
POWER
DISP/
MODE C HK
USER 1
USER 2
FUNCTION
FOCUS
IRIS
GAIN
WHITEBAL
B
PUSH AUTO
MEGA
ON
OFF
O.I.S.
CAM
ON
CH1CH2
AUDIO LEVEL
.. OFF
PB
+–
AUDIO MON
EXEC
A
PRST
L
M
H
A
M
∞
Adjusting the volume
AUDIO MON/ADV
If you are monitoring the sound through
headphones while shooting, you can adjust the
volume with the AUDIO MON/ADV buttons.
To adjust the recording level. (Page 18)•
Volume adjustments will be memorized if the•
power is turned off by moving the POWER switch
to the OFF position.

13
Shooting
Shot mark function
The marks attached to the thumbnails of clips
are called shot marks. On the thumbnail screen
monitor you can select only those clips with a
shot mark and display them or play them back.
During recording, when you press the USER
button to which the SHOT MARK function has
been allocated, MARK ON appears in the LCD
monitor or the viewfinder, and a shot mark is set
for the thumbnail of the clip being recorded. If you
press the button again, the shot mark is released.
You can also set or release the shot marks by
performing the thumbnail operations for clips.
(Page 31)
However, note that you cannot set or release shot
marks during playback.
INVALID appears when you cannot set or release•
shot marks.
Index recording
This function allows you to add an index at a
certain point of a clip during the recording or
playback.
Press the USER button allocated to the INDEX
function during recording to record an index signal
at this point of the clip. (Pages 11, 55)
Indexes may also be added during playback, and it
is also possible to select only clips with indexes for
display or playback. (Pages 34, 35)
Up to 100 indexes can be recorded for one•
clip.
When the number of indexes exceeds 100,•
INVALID is displayed, and no further indexes
can be added even when the steps for adding
indexes are taken.
When repeatedly adding indexes, leave a gap•
of at least one second between adding one
index and the next. If indexes are added with
a gap of less than one second between them,
only the first operation will be valid.
LAST CLIP function
The most recently recorded clip can be deleted at
the touch of a button by allocating the LAST CLIP
function to any of the USER 1 - 3 buttons.
Press the USER button allocated for the LAST
CLIP function to display YES/NO on the screen.
Select YES to delete the most recently recorded
clip.
Select NO not to delete the clip.•
If the camera has been switched to PB mode or•
the recording format has been changed since
recording was completed, clips cannot be deleted
even if the button is pressed. Clips also cannot
be deleted if the power has been switched off
and back on again.
Clips cannot be deleted even if the button is•
pressed if the memory card has been removed
and reinserted since recording was completed.
CAPTURE function
If the CAPTURE feature is assigned to any of the
USER 1 – 3 buttons, still images can be shot.
The number of recorded pixels and quality of•
the still images cannot be changed.
This function does not operate when a movie•
is being recorded, or when the PRE REC
mode is in use.
The SD memory card used for recording is the•
same as that used for video recording.

14

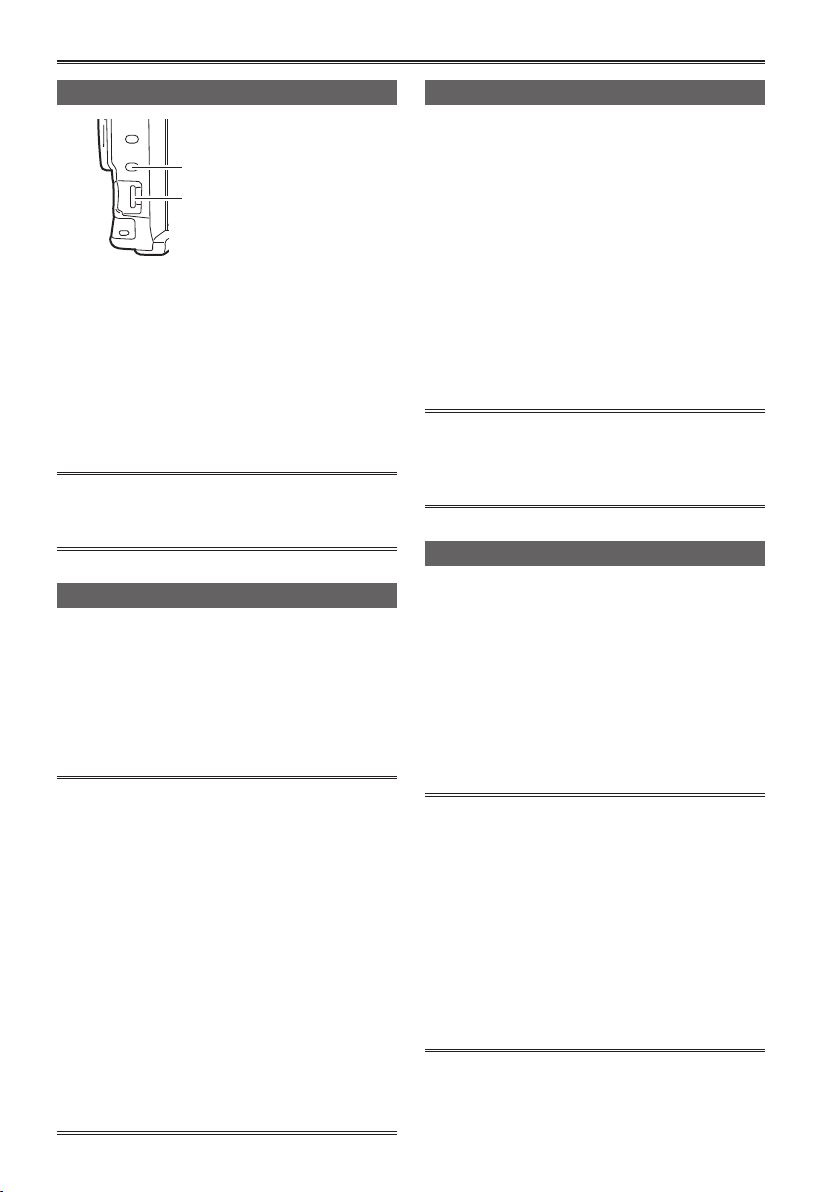

Using the SHUTR/F.RATE dial
DIAL SELECT button
SHUTR/F.RATE dial
Press the DIAL SELECT button.
The role of the SHUTR/F.RATE dial changes in•
the following order.
SHUTTER→SYNCROSCAN→FRAMERATE
→DIALLOCK→SHUTTER→
SYNCRO SCAN can be selected when the•
SHUTTER is set to SYNCRO SCAN. FRAME
RATE can be selected in the FILM CAM mode
when the REC FORMAT is 1080/24P, 30P, and
25P.
To prevent incorrect operation, it is
recommended that you selecting DIAL LOCK
using the DIAL SELECT button after setting.
Setting the SHUTTER
1Select the SHUTTER function with the DIAL
SELECT button.
2Press the SHUTR/F.RATE dial.
The shutter will turn ON/OFF.•
The shutter speed is changed in the order•
shown on the following page by turning the
SHUTR/F.RATE dial when the shutter is ON.
Remember that the faster the shutter speed,•
the lower the sensitivity.
Focusing on the subject would take longer if•
the shutter speed is reduced. It is therefore
recommended that the unit be secured to a
tripod, etc. during shooting.
Under the lighting of electric discharge tubes•
such as fluorescent lamps, horizontal bands
may appear on the screen. Adjusting the
shutter speed may improve this condition.
A subject that quickly crosses the camera may•
appear distorted when shot. This is caused due
to the signal reading system of the imaging
element (MOS sensor), and is not a defect.
At slow shutter speeds (1/2 to 1/15), white,•
red, green, or blue dots may appear on the
screen. However, this is not a defect.
Setting the SYNCRO SCAN
1Select SYNCRO SCAN from the SHUTTER
settings.
2Select the SYNCRO SCAN function with the
DIAL SELECT button.
3Turn the SHUTR/F.RATE dial.
The SYNCRO SCAN shutter speed can be•
set.
The speed of change increases when turning•
the SHUTR/F.RATE while holding it down.
SYNCRO SCAN can also be set from the•
SYNCRO SCAN item in the SCENE FILE
screen of MENU settings.
Setting format differs depending on the MENU-
SCENE FILE-OPERATION TYPE.
FILM CAM: angle display (180.0d etc.)
VIDEO CAM: speed display (1/48.0 etc.)
FRAME RATE setting
1Select the FRAME RATE function with the
DIAL SELECT button.
2Press the SHUTR/F.RATE dial.
The camera is in VFR mode.
The FRAME RATE can be set by turning the•
SHUTR/F.RATE dial.
FRAME RATE can also be set from the•
FRAME RATE item in the SCENE FILE
screen of MENU settings.
Before using the FRAME_RATE function, it•
is necessary for the MENU-SCENE FILE-
OPERATION TYPE to be set to FILM CAM,
and the MENU-SCENE FILE-REC FORMAT
to be set to PH1080/24P or PH1080/30P (or
PH1080/25P).
The FRAME RATE function cannot be set•
when SDI 24PsF is set to ON in the AV IN/
OUT SETUP screen of MENU settings.
When the FRAME RATE function is set to•
ON, the camera is automatically set to manual
focus.
Adjusting the shutter speed

15
Shooting
When SYSTEM FREQ = 59.94Hz /OPERATION TYPE = FILM CAM
1080/60i, 720/60P
Normal (OFF) 1/60
SYNCRO SCAN 1/100 1/120
1/2000 1/1000 1/500 1/250
1080/30P, 720/30P
Normal (OFF) 1/50
SYNCRO SCAN 1/30 1/60 1/120
1/2000 1/1000 1/500 1/250
1080/24P, 720/24P
Normal (OFF) 1/50
SYNCRO SCAN 1/24 1/120
1/2000 1/1000 1/500 1/250
1/60
SYSTEM FREQ = 50Hz /OPERATION TYPE = FILM CAM
1080/50i, 720/50P
Normal (OFF) 1/50
SYNCRO SCAN 1/60 1/120
1/2000 1/1000 1/500 1/250
1080/25P, 720/25P
Normal (OFF) 1/50
SYNCRO SCAN 1/25 1/120
1/2000 1/1000 1/500 1/250
1/60
SYSTEM FREQ = 59.94Hz /OPERATION TYPE = VIDEO CAM
1080/60i, 720/60P
Normal (OFF) 1/60
SYNCRO SCAN 1/30
1/2000 1/1000 1/500 1/250 1/120 1/100
1/2 1/4 1/8 1/15
1080/30P, 720/30P
Normal (OFF) 1/50
SYNCRO SCAN 1/30
1/2000 1/1000 1/500 1/250 1/120 1/60
1/2 1/4 1/8 1/15
1080/24P, 720/24P
Normal (OFF) 1/50
SYNCRO SCAN 1/24
1/2000 1/1000 1/500 1/250 1/120 1/60
1/2 1/3 1/6 1/12
SYSTEM FREQ = 50Hz /OPERATION TYPE = VIDEO CAM
1080/50i, 1080/25P, 720/50P, 720/25P
Normal (OFF) 1/50
SYNCRO SCAN 1/25
1/2000 1/1000 1/500 1/250 1/120 1/60
1/2 1/3 1/6 1/12

16
Synchro scan
The syncro scan shutter speed used when
shooting screens such as a TV screen or computer
monitor is set using the SHUTR/F RATE dial (page
14) or the SYNCRO SCAN option on the settings
menu SCENE FILE screen. (page 51)
Adjust the shutter speed to match the frequency•
of the television or computer monitor to minimize
the horizontal noise that appears when shooting
such subjects.
By switching to progressive mode you can also•
shoot PAL system television screens.
If the set value of the SYNCRO SCAN item of•
settings menu is displayed in gray, it cannot
be used with the current recording format. This
function will only operate for preset values for
each recording format, as listed below.
60i/60P mode: 1/60
30P mode: 1/30
You can change the progressive mode in the
setup menu with REC FORMAT in the SCENE
FILE screen. (Page 51)
Adjusting the shutter speed (continued)

17
Shooting
During shooting, you can record up to two
channels of sound. You can also switch the input
sound to be recorded on each of the channels to
the built-in microphones, external microphones or
audio equipment connected to camera.
POWER
FOCUS
..
BARS
EVF DTL CH1 SEL
INT(L)
ON
OFF
ON
OFF
INPUT1
AUDIO
MIC POWER +48V
INPUT1 INPUT2
INPUT2
INPUT1
INPUT2
CH2 SEL
WFM
COUNTER-RESET/TC SET
ZEBRA OIS
CH1 SELECT switch
CH2 SELECT switch
INPUT 1/2
(MIC POWER +48V)
switches
INPUT 1 switch INPUT 2 switch
INPUT 1 terminal INPUT 2 terminal
Switching Audio Input
Using the built-in microphone
1Switch the CH1 SELECT switch to INT (L).
Audio from the built-in microphone Lch is•
recorded to audio channel 1.
2Switch the CH2 SELECT switch to INT (R).
Audio from the built-in microphone Rch is•
recorded to audio channel 2.
Using an external microphone and
audio equipment
1Connect an external microphone or audio
equipment to the INPUT 1/2 (XLR 3-pin)
terminals. (Page 41)
2Use the INPUT 1/2 switches to switch the
audio input.
LINE: (audio equipment is connected)
Input level is 0 dBu.
MIC: (an external microphone is connected)
Input level is -50 dBu.
You can change the input level to -60 dBu
in the setup menus, RECORDING SETUP
screen MIC GAIN1 and MIC GAIN2. (Page 56)
Be aware that sensitivity will be higher if
you choose -60 dBu so you will record more
noise.
3When using the phantom microphone
(which requires + 48V power supply),
set the INPUT 1/2 (MIC POWER +48V)
switches to ON.
ON: (When using the phantom microphone)
+48V power supply to INPUT 1/2 terminals.
OFF: (When a phantom microphone is not
connected)
No power supply for INPUT 1/2 terminals.
The battery will discharge faster if you use a•
phantom microphone.
Set to OFF if you connect equipment not•
compatible with +48V. You can damage such
equipment if you leave the setting at ON.
When using the AG-MC200G (optional), set•
the MIC GAIN item to -50 dBu.

18
Adjusting the recording level
AUDIO control knobs
Use the AUDIO control knobs to adjust the
recording level of the built-in microphone or of
audio signals input through the INPUT 1/2 (XLR
3-pin) terminals.
To adjust the volume of the sound for monitoring.
(Page 12)
To adjust the recording level of the audio signals,
turn the AUDIO control knobs while referring to
the audio level meter at the bottom left of the
viewfinder and LCD monitor, regardless of the MIC
ALC option setting (Page 56) on the RECORDING
SETUP screen of the setting menu.
Check the recording volume level prior to•
shooting.
The recording level of this camera is set•
approximately 8 dB higher than Panasonic
broadcasting camera recorders (AJ series
products).
Switching Audio Input (continued)
4
Use the CH1 SELECT switch to select the
input signal to be recorded to audio channel 1.
INT (L):
Audio from the built-in microphone Lch is
recorded to audio channel 1.
INPUT 1:
Audio from a device connected to INPUT 1
terminal is recorded to channel 1.
INPUT 2:
Audio from a device connected to INPUT 2
terminal is recorded to channel 1.
5
Use the CH2 SELECT switch to select the
input signal to be recorded to audio channel 2.
INT (R):
Audio from the built-in microphone Rch is
recorded to audio channel 2.
INPUT 2:
Audio from a device connected to INPUT 2
terminal is recorded to channel 2.
When inputting the microphone signal to•
channels 1 and 2, connect the microphone to
INPUT 2 and switch both CH1 SELECT and
CH2 SELECT to INPUT 2.

19
Shooting
Using scene files
The settings according to the variety of shooting
circumstances are stored SCENE FILE MENU.
They are selected via the SCENE SELECT on the
settings menu SCENE FILE screen.
When the camera-recorder is shipped from the
factory, the following files are stored.
F1:
File suitable for normal shooting.
F2: FLUO.
File suitable for shooting under fluorescent
lights, ie. indoors.
F3: SPARK
File suitable for shooting with fuller variations
of resolution, coloring and contrast.
F4: B-STR
File for broadening the contrast of dark parts,
such as when shooting sunsets.
F5: CINE V
File suitable for shooting movie-like scenes
where the contrast is to be emphasized. (The
recording format remains unchanged even
when the scene file is changed. It must be set
using the REC FORMAT item on the SCENE
FILE screen. (Page 51))
F6: CINE D
File suitable for shooting movie-like
scenes where the dynamic range is to be
emphasized. (The recording format remains
unchanged even when the scene file is
changed. It must be set using the REC
FORMAT item on the SCENE FILE screen.
(Page 51))
Changing scene file settings
The setting value of the scene file can be changed.
Also you can save the changed scene file to each
position of the SCENE FILE dial.
Example: Change the name of the scene file.
1Set the POWER switch to ON.
2Select the scene file to be changed in the
SCENE FILE MENU.
3In the setup menus, select the SCENE FILE
screen.
For menu operation (Page 44 of Vol.1)•
Operations may also be performed•
using buttons on the remote control that
correspond to those on the camera. For
details, see “Description of parts (Remote
control)”.(Page23ofVol.1)
4Tilt the Operation lever in the directions
and select the NAME EDIT item.
5Push the Operation lever (or tilt in the
direction), tilt in the direction to select
YES, and push the Operation lever again.

20
6Set a 6-character filename with the
Operation lever when the following screen
is displayed.
Set the same as user information. (Page 27)
Characters that can be set•
Space, A to Z, 0 to 9, : ; < = > ? @ [ ] ^_-./
If the RESET/TC SET button is pressed
when the filename has been set, the
characters are cleared.
7After you finish setting the filename, push
the Operation lever.
8Select YES on the confirmation screen.
Selecting YES will close the NAME EDIT•
screen and confirm all changes.
Once confirmed, all changed names and•
values will be saved even if the power is
switched off or the scene dial is moved.
Using scene files (continued)
