Panasonic Palmcorder IQ PV-A216 User manual

Panasonic
Palmcorder IQ“
Camcorder
Operating Instructions
J = L E
n
FT
ur OM e
AM M z
E y L] l
k
Solos iater Hd ceret, cuarta ox djual us pruckaet, pluan vend. Lean rca aclaro beares.
apañish Quick Use Guide iz included.
Guia para rapida consulta en español esta inclurda. yate

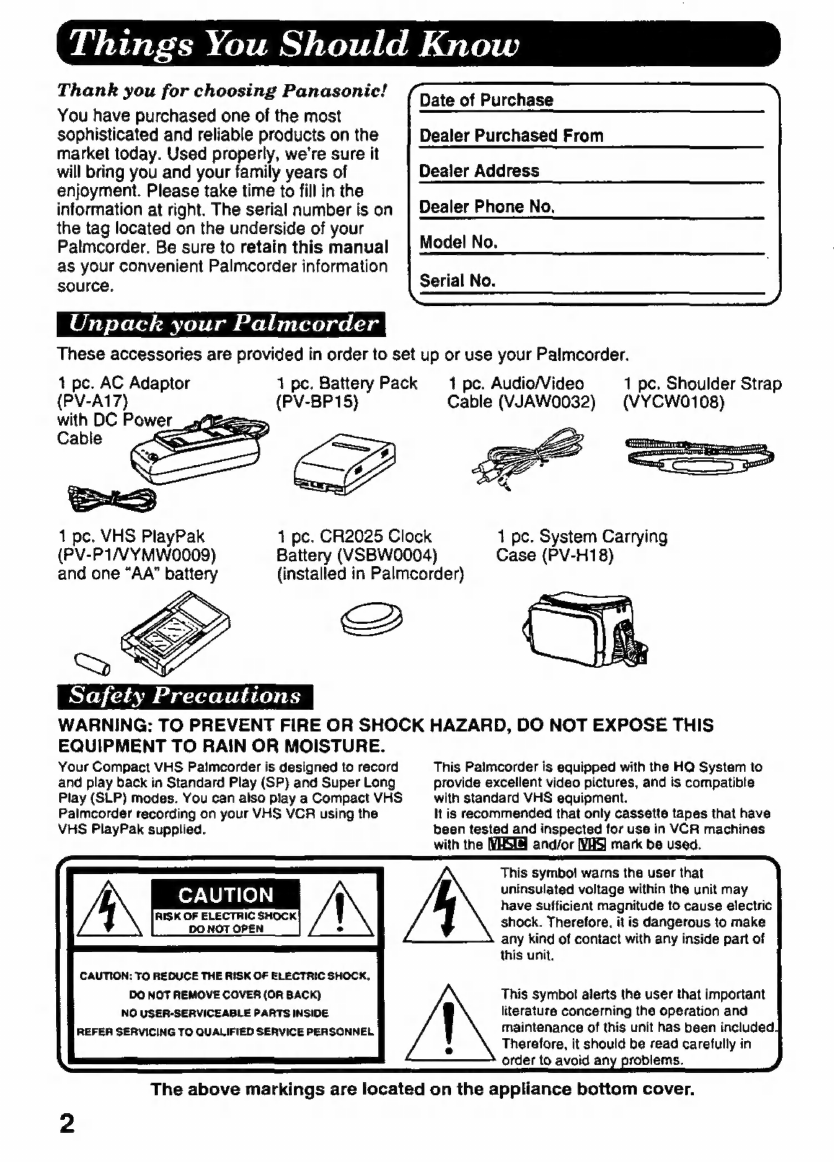

Things You Should Know
Thank you for choosing Panasonic!
You have purchased one of the most
sophisticated and reliable products on the Dealer Purchased From
market today. Used properly, we're sure it
will bring you and your family years of Dealer Address
enjoyment. Please take time to fill in the
information at right. The serial number is on | Dealer Phone No.
the tag located on the underside of your
Palmcorder. Be sure to retain this manual | Model No.
as your convenient Palmcorder information .
source.
Serial
No.
Unpack your Palmcorder
These accessories are provided in order to set up or use your Palmcorder.
1 pc. AC Adaptor 1 pc. Battery Pack 1 pc. Audio/Video 1 pc. Shoulder Strap
(PV-A17) (PV-BP15) Cable (VJAW0032) (VYCW0108)
with DC Power AEE
Cable =
Date of Purchase
1 pc. VHS PlayPak 1 pc. CR2025 Clock 1 pc. System Carrying
(PV-P1/VYMWO009) Battery (VSBW0004) Case (PV-H18)
and one “AA” battery (installed in Palmcorder)
Safety Precautions
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
Your Compact VHS Palmcorder is designed to record This Paimcorder is equipped with the HQ System to
and play back in Standard Play (SP) and Super Long provide excellent video pictures, and is compatible
Play (SLP) modes. You can also play a Compact VHS with standard VHS equipment.
Palmcorder recording on your VHS VCR using the It is recommended that only cassette tapes that have
VHS PlayPak supplied. been tested and inspected for use in VCR machines
with the and/or WHS) mark be used.
This symbol warns the user that
uninsulated voltage within the unit may
CASU have sufficient magnitude to cause electric
shock. Therefore, it is dangerous to make
any kind of contact with any inside part of
this unit.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK) This symbol alerts the user that important
NO USER-SERVICEABLE PARTS INSIDE literature concerning the operation and
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL maintenance of this unit has been included
Therefore, it should be read carefully in
order to avoid any problems.
The above markings are located on the appliance bottom cover.

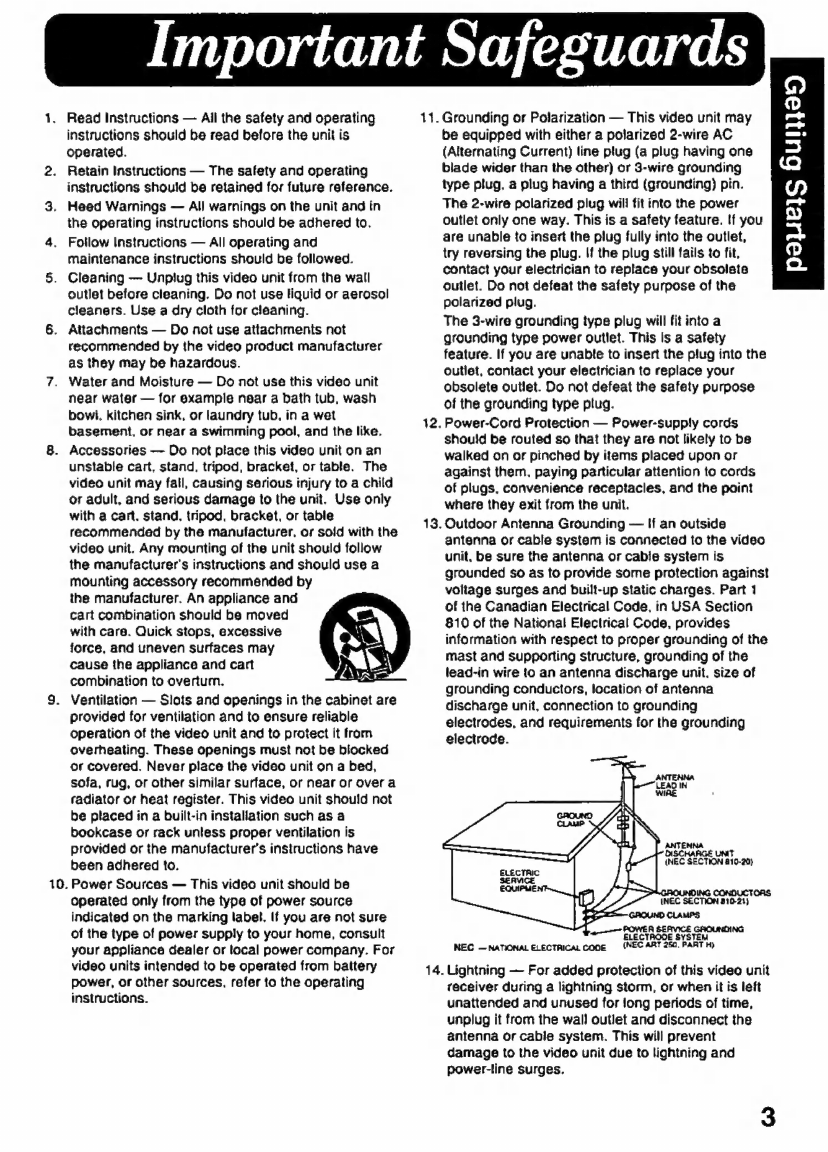

Important Safeguards
10.
. Read Instructions — All the safety and operating
instructions should be read before the unit is
operated.
Retain Instructions — The safety and operating
instructions should be retained for future reference.
Heed Warnings — All warnings on the unit and in
the operating instructions should be adhered to.
Follow Instructions — All operating and
maintenance instructions should be followed.
Cleaning — Unplug this video unit from the wall
outlet before cleaning. Do not use liquid or aerosol
cleaners. Use a dry cloth for cleaning.
. Attachments — Do not use attachments not
recommended by the video product manufacturer
as they may be hazardous.
Water and Moisture — Do not use this video unit
near water — for example near a bath tub, wash
bowl, kitchen sink, or laundry tub, in a wet
basement. or near a swimming pool, and the like.
Accessories — Do not place this video unit on an
unstable cart, stand. tripod, bracket, or table. The
video unit may fall, causing serious injury to a child
or adult, and serious damage to the unit. Use only
with a cart. stand. tripod, bracket, or table
recommended by the manufacturer, or sold with the
video unit. Any mounting of the unit should follow
the manufacturer's instructions and should use a
mounting accessory recommended by
the manufacturer. An appliance and
cart combination should be moved
with care. Quick stops, excessive
force, and uneven surfaces may
cause the appliance and cart
combination to overtum.
Ventilation — Slots and openings in the cabinet are
provided for ventilation and to ensure reliable
operation of the video unit and to protect it from
overheating. These openings must not be blocked
or covered. Never place the video unit on a bed,
sofa, rug, or other similar surface, or near or over a
radiator or heat register. This video unit should not
be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is
provided or the manufacturer's instructions have
been adhered to.
Power Sources — This video unit should be
operated only from the type of power source
indicated on the marking label. If you are not sure
of the type of power supply to your home, consult
your appliance dealer or local power company. For
video units intended to be operated from battery
power, or other sources, refer to the operating
instructions.
11. Grounding or Polarization — This video unit may
1 2.
be equipped with either a polarized 2-wire AC
(Alternating Current) line plug (a plug having one
blade wider than the other) or 3-wire grounding
type plug, a plug having a third (grounding) pin.
The 2-wire polarized plug will fit into the power
outlet only one way. This is a safety feature. If you
are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug still fails to fit,
contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the
polarized plug.
The 3-wire grounding type plug will fit into a
grounding type power outlet. This is a safety
feature. If you are unable to insert the plug into the
outlet, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose
of the grounding type plug.
Power-Cord Protection — Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them. paying particular attention to cords
of plugs, convenience receptacles, and the point
where they exit from the unit.
13. Outdoor Antenna Grounding — If an outside
1
A^
antenna or cable system is connected to the video
unit, be sure the antenna or cable system is
grounded so as to provide some protection against
voltage surges and built-up static charges. Part 1
of the Canadian Electrical Code, in USA Section
810 of the National Electrical Code, provides
information with respect to proper grounding of the
mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna
discharge unit, connection to grounding
electrodes, and requirements for the grounding
electrode.
ROUNDING CONDUCTORS
(NEC SECTION 810-21)
‘GROUND CLAMPS
GROUNDING POWER SERVICE
ELECTRODE SYSTE!
(NEC ART 250, PART H)
NEC — NATIONAL ELECTRICAL CODE
. Lightning — For added protection of this video unit
receiver during a lightning storm, or when it is left
unattended and unused for jong periods of time,
unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent
damage to the video unit due to lightning and
power-line surges.

15. Power Lines — An outside antenna system should
not be located in the vicinity of overhead power
lines or other electric light or power circuits, or
where it can fall into such power lines or circuits.
When installing an outside antenna system,
extreme care should be taken to keep from
touching such power lines or circuits as contact
with them might be fatal.
16. Overloading — Do not overload wall outlets and
extension cords as this can result in a risk of fire or
electric shock.
17. Objects and Liquids — Never push objects of any
kind into this video unit through openings as they
may touch dangerous voltage points or short out
parts that could result in a fire or electric shock.
Never spill liquid of any kind onto the video unit.
18. Servicing — Do not attempt to service this video
unit yourself as opening or removing covers may
expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
19. Damage Requiring Service — Unplug this video
unit from the wall outlet and reter servicing to
qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is
damaged.
20.
2
Important Safeguards
-i
b. If any liquid has been spilled onto, or objects
have fallen into the video unit.
c. If the video unit has been exposed to rain or
water.
d. if the video unit does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions, as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the video unit to its normal operation.
e. If the video unit has been dropped or the cabinet
has been damaged.
f. When the video unit exhibits a distinct change in
performance — this indicates a need for service.
Replacement Parts — When replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer or
have the same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
. Safety Check— Upon completion of any service or
repairs to this video unit, ask the service technician
to perform safety checks to determine that the
video unit is in safe operating order.
Precautions
USE & LOCATION
* TO AVOID SHOCK HAZARD ... Your Camcorder and power supply should not be exposed to rain or moisture.
Do not connect the power supply or operate your Camcorder if it gets wet. Your Camcorder has been designed
for
outdoor
use,
however
it
is
not
designed
to
sustain
direct
exposure
to
water,
rain,
sleet,
snow,
sand,
dust,
or
a
direct splashing from a pool or even a cup of coffee. This action could permanently damage the internal parts ot
your Camcorder. Do not attempt to disassembie this unit. There are no user serviceable parts inside. Unplug
your Camcorder from the power supply before cleaning.
+ DO NOT AIM YOUR CAMCORDER AT THE SUN OR OTHER BRIGHT OBJECTS
+ DO NOT LEAVE THE PALMCORDER WITH THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY
CAUSE DAMAGE TO THE INTERNAL PARTS OF THE EVF
* DO NOT EXPOSE YOUR CAMCORDER TO EXTENDED HIGH TEMPERATURE ... Such as, in direct sunlight,
inside a closed car, next to a heater, etc... This action could permanently damage the internal parts of your
Camcorder.
»
AVOID
SUDDEN
CHANGES
IN
TEMPERATURE
...
If
the
unit
is
suddenly
moved
from
a
cold
place
to
a
warm
place, moisture may form on the tape and inside the unit.
* DO NOT LEAVE YOUR CAMCORDER OR THE POWER SUPPLY TURNED ON WHEN NOT IN USE.
»
STORAGE
OF
YOUR
CAMCORDER
...
Store
and
handle
your
Camcorder
in
a
manner
that
will
not
subject
it
to
unnecessary
movement
(avoid
shaking
and
striking).
Your
Camcorder
contains
a
sensitive
pick-up
device
which
could be damaged by improper handling or storage.
CARE
+
TO
CLEAN
YOUR
CAMCORDER
...
Do
not
use
strong
or
abrasive
detergents
when
cleaning
your
Camcorder
body.
¢ TO PROTECT THE LENS ... Do not touch the surface of the lens with your hand. Use a commercial camcorder
lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating.
»
TO
PROTECT
THE
FINISH
OF
YOUR
CAMCORDER
...
Before
handling
your
Camcorder,
make
Sure
your
hands
and
face
are
free
from
any
chemical
products,
such
as
suntan
lotion,
as
it
may
damage
the
finish.
4

Table of Contents
Getting Started
Things You Should KNOW «tectis e naekur ta eet E hae ORSEL co centesnsanestastanevesia xa du OR x TREE EMESNS 2
Important Safeguards edicere Take su Eae Ted rV eV Ces soa ea E su dan ER Four ai 3,4
A «o cic aper AR A cu Pus 2a tue I AE EE de Viae p enc E Une e Staa ed 4
Quick Operation Guide NE —— á 6
Supplying Power
ee the Battery Pack crasas aida
Use the Battery Pack
Battery Refresh Feature ....ooooonocconucacoconononnorcnoonooronaroso
Battery Care... scisiscsncsvantsacaesersenccias
AC Adaptor ..........................
Car Battery Cord (Optional) ..
Cassette Information
Setting the Clock
C)
D
=:
5
lo:
o»
=>
Q)
=
M
o
Setina Time ZOMG: SS 11
Set the Daylight Saving Time a ouais rar aa ae
Sel he Date O A 13
Replace the Battery- A ieaoo andets v areno as REGN Eve dae Sud quar Ur NT PR éd as oi p

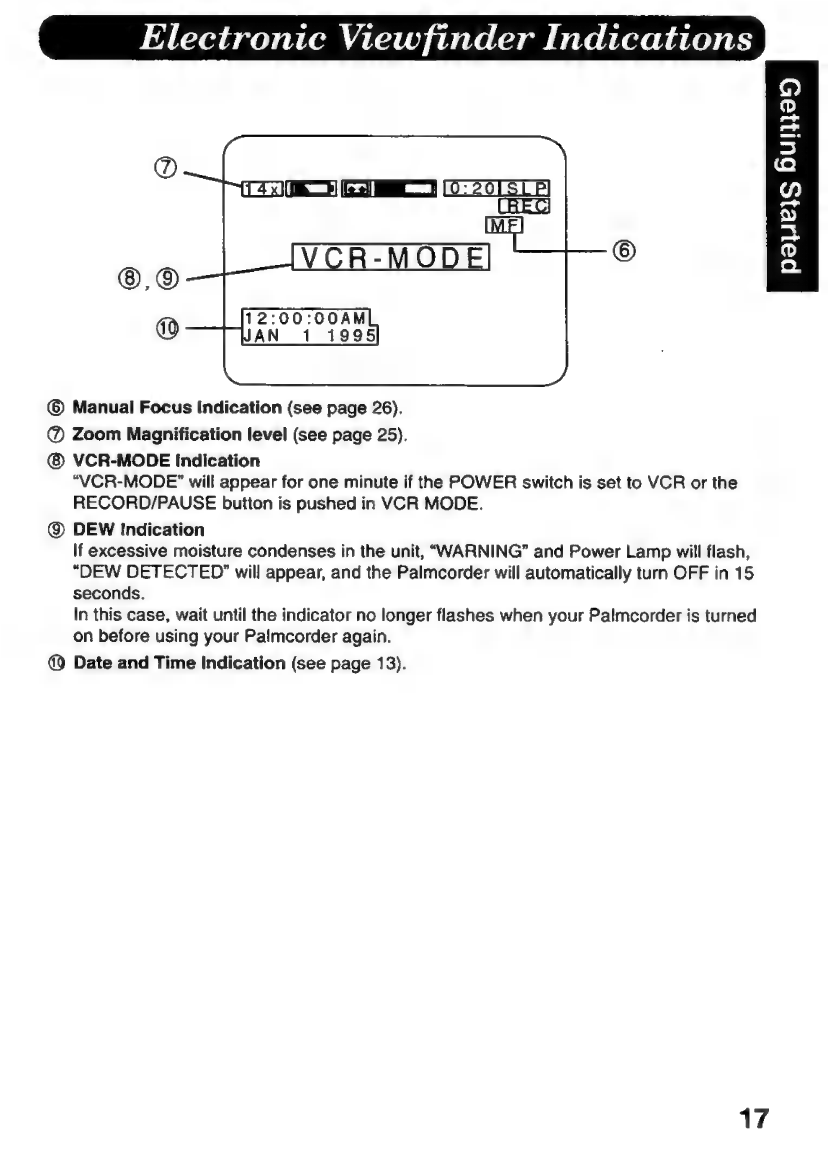

Electronic Viewfinder Indications ..............ccoonocccononnconanconaccconanonnrnnnnnaccccccnonannnnnnns 15, 16, 17
Attaching the Shoulder Strap ua ai o read
Basic Operation
amera Recording
aepvtotoon
18
Simple Recording aid 19
SIand-Dy A A A O 20
Stand-by Release ......- uos etremeen eos ctm gri enras crc vadia serr retini drop dense postée tue OU É QE nU naue 20
Easy Edit SINO Dy. dia ea
Manual Easy Editing oio ia lina cia eeir pil 21
Playback your Recor nes
Flavbacicusing the EVE int O cla
Playback using the PlayPak naci eii ZO
Plavback-or View ona EV id 24
Special Features
Four-Speed Power ZOOITI isis feiss cosi ai iia din eiii 25
Auto High Speed Shutter ..........ooooccconocononacacnccconanonannncccnacarnanrnc cnn onanaca nac sa saos ano cononeccra cana 25
FOCUS a M C PEIUS 26
Copying your Tapes (dubbing) ............. cc ccceccecseecessssensnssenseecceceeeeeeceeeeeeesceseseseeeesnnsnanaaaes 27
For Your Information
Paimcorder Accessory System ini ia 28
Notes Regarding Operations anda 29
O T RI Ne Dr exa E Cas aet IRAN e
Before Requesting Service .................seee sese erre nne nennen nnn tnan nn 30, 31
ls ¿e A etose wissietu ika nisres siR iius Saatat r Kist SS soas aarin 32, 33
ynom Gaityirg MN T T E E E E I LUE iani
ap. dU D PCT ———— o —
Spanish Quick Use Guide/Guía Para Uso Rápido .........................sssss 35, Back Cover

Quick Operation Guide

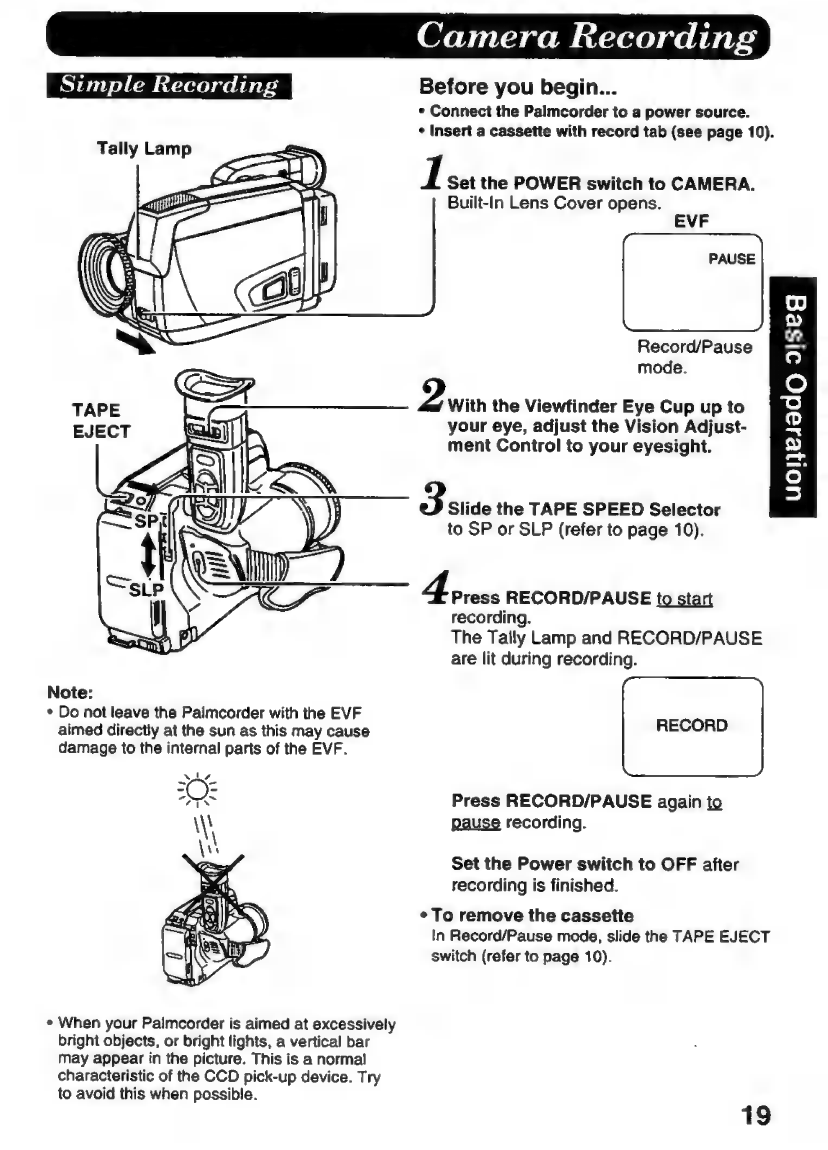

Camera Recording
Charge the Battery Pack fully before operation (see page 7).
1 Attach the Battery (see page 7).
Make sure Battery is charged before
use (see page 7).
Slide the TAPE EJECT switch to open
the door.
Insert a cassette (see page 10).
, E here to close the door.
5 Set the POWER switch to CAMERA.
Built-In Lens Cover opens and POWER
Lamp lights.
ÔO siae the TAPE SPEED Selector for
SP or SLP (see page 10).
d viti the Eye Cup up to your eye,
adjust the Vision Adjustment Control
to your eyesight.
Ser RECORD/PAUSE to start
recording.
Press RECORD/PAUSE again to pause
recording (see page 19).
Viewfinder)
1 Set the POWER switch to VCR.
2 Press REWIND/SEARCH to rewind the
tape.
3 Press PLAY to start playback.
Toss STOP to stop playback.

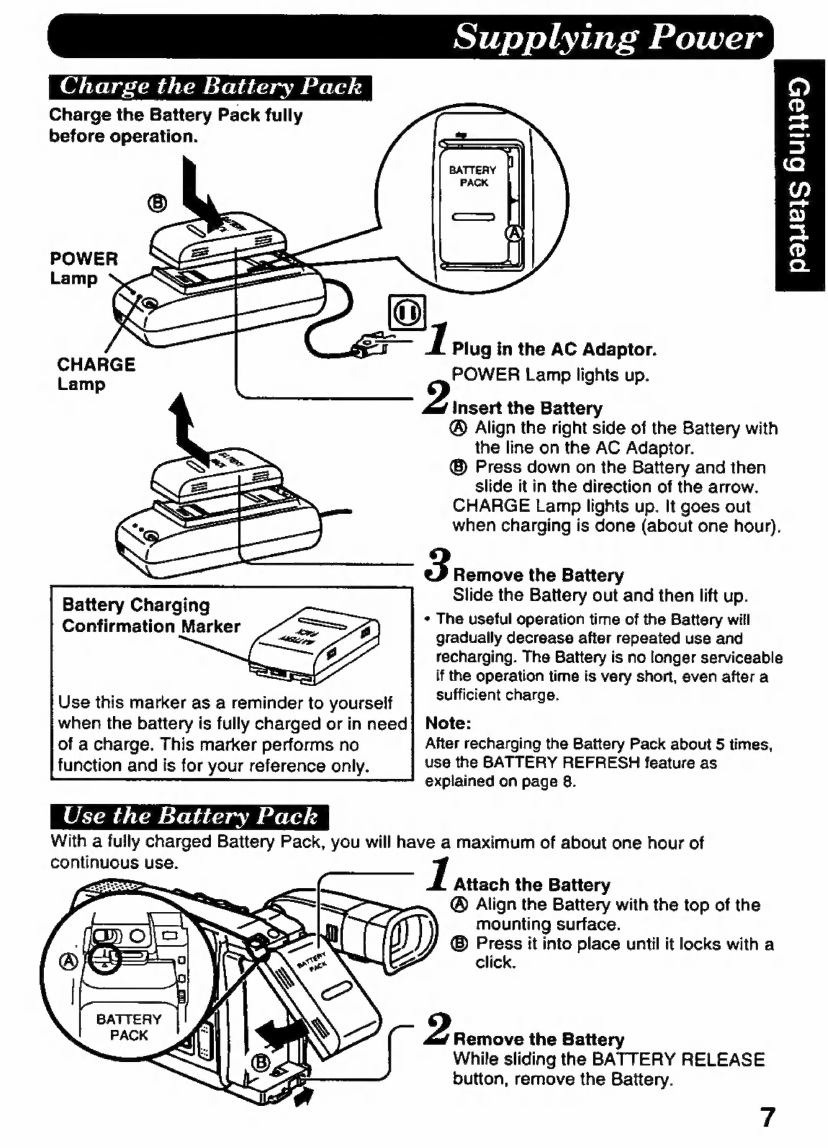

Supplying Power
Charge the Battery Pack
Charge the Battery Pack fully
before operation.
e)
D
=
=|
T
UL
+
y
=i
D
o.
Plug in the AC Adaptor.
CHARGE
POWER
Lamp
lights
up.
Lamp
insert the Battery
(& Align the right side of the Battery with
the line on the AC Adaptor.
(B Press down on the Battery and then
slide it in the direction of the arrow.
CHARGE Lamp lights up. It goes out
when charging is done (about one hour).
3 Remove the Battery
Slide the Battery out and then lift up.
* The useful operation time of the Battery will
gradually decrease after repeated use and
recharging. The Battery is no longer serviceable
if the operation time is very short, even after a
sufficient charge.
Note:
After recharging the Battery Pack about 5 times,
use the BATTERY REFRESH feature as
explained on page 8.
Battery Charging
Confirmation Marker
Use this marker as a reminder to yourself
when the battery is fully charged or in need
of a charge. This marker performs no
function and is for your reference only.
Use the Battery Pack
With a fully charged Battery Pack, you will have a maximum of about one hour of
continuous use.
1 Attach the Battery
(& Align the Battery with the top of the
mounting surface.
(B Press it into place until it locks with a
click.
While sliding the BATTERY RELEASE
button, remove the Battery.
7

Supplying Power
Battery Refresh Feature
This feature completely discharges the Battery before recharging begins.
To maintain your battery's operating capacity, use the refresh feature after about every five charges.
CHARGE Lamp
ONLY FOR U.S.A.
ATTENTION:
1 Plug in AC Adaptor.
2 Place the Battery into the
AC Adaptor.
3 Press the BATTERY REFRESH
button.
The CHARGE Lamp will flash when
discharging begins and stop flashing
when fully discharged. POWER Lamp
will stay lit when fully charged.
Remove the Battery
« Should you accidentally press the BATTERY
REFRESH button, remove Battery and then
re-insert it to begin charging.
* It takes about five hours when both Battery
Refresh and charging are performed.
The product that you have purchased is powered by a rechargeable battery. The battery
is recyclable. At the end of its useful life, under various state and local laws, it may be
illegal
to
dispose
of
this
battery
into
the
municipal
waste
stream.
Check
with
your
local
solid
waste
officials
for
details
in
your
area
for
recycling
options
or
proper
disposal.
Battery Care
Caution:
* Charge only with specified charger.
* The Battery can be charged within a tempera-
ture range of 32° F (0° C) and 104° F (40? C).
* The Battery may be warm after charging or
just after use. This is normal.
* Do not use an insufficlently charged or worn
out Battery.
Safety precautions:
* Do not get the Battery near, or dispose of in
fire.
* Do not directly connect (short circuit) the
positive (+) and negative (-) terminals.
* Never attempt to disassemble or reassemble
the Battery.
8
To avoid damage to the Battery:
* Do not drop or jar the Battery.
* Use the Battery with specified units only.
+ if the Battery is used in extremely high
temperatures, a safety device will automati-
cally prevent operation.
To insure longer battery life:
* While not in use, remove Battery from the
Palmcorder and AC Adaptor and store in a
cool, dark, dry place.
* Keep the Battery terminals clean.

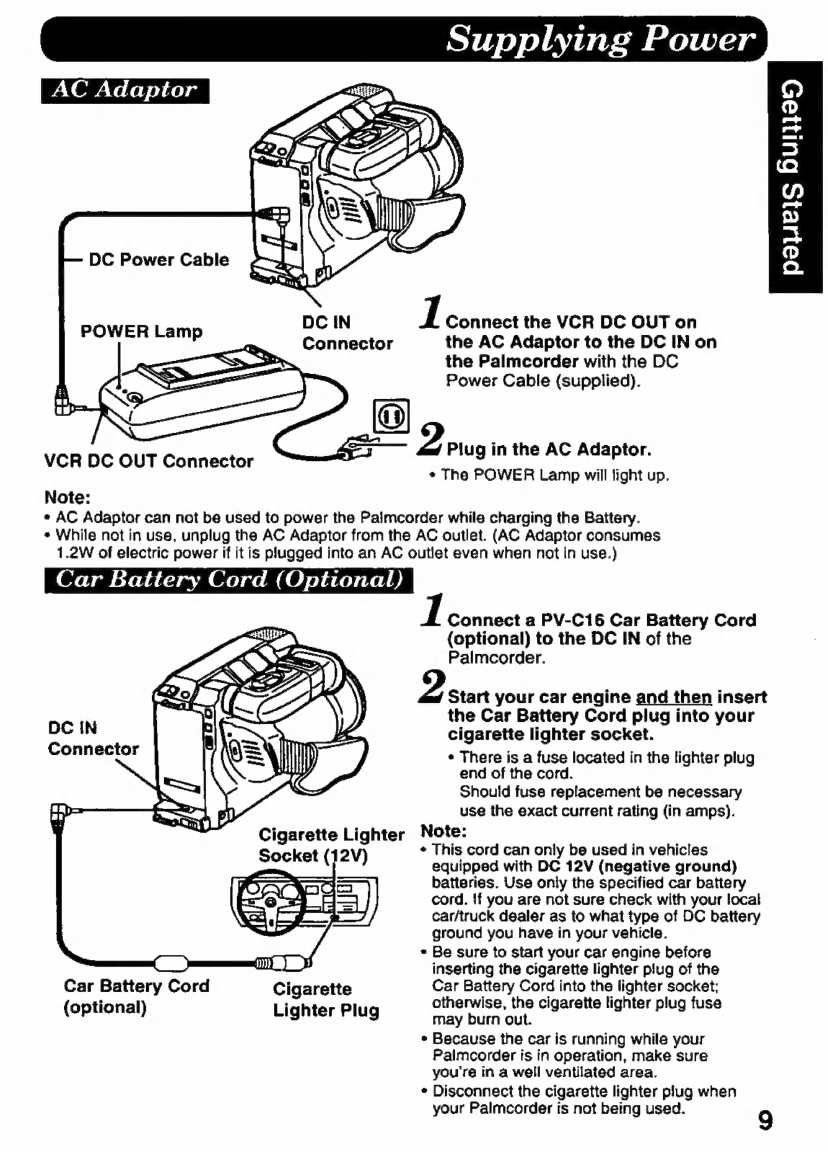

Supplying Power
AC Adaptor
DC Power Cable
C
D
m
5
ue
o
omn
fb
as
D
Q
DC IN 1 Connect the VCR DC OUT on
Connector the AC Adaptor to the DC IN on
the Palmcorder with the DC
Power Cable (supplied).
2 Plug in the AC Adaptor.
* Tho POWER Lamp will fight up.
POWER Lamp
VCR DC OUT Connector
Note:
* AC Adaptor can not be used to power the Palmcorder while charging the Battery.
* While not in use, unplug the AC Adaptor from the AC outlet. (AC Adaptor consumes
1.2W of electric power if it is plugged into an AC outlet even when not in use.)
Car Battery Cord (Optional)
Connect a PV-C16 Car Battery Cord
(optional) to the DC IN of the
Palmcorder.
2 Start your car engine and then insert
the Car Battery Cord plug into your
cigarette lighter socket.
* There is a fuse located in the lighter plug
end of the cord.
Should fuse replacement be necessary
use the exact current rating (in amps).
Cigarette Lighter ind A T Peer
¢ This cord can only be used in vehicles
Socket (12V) equipped with DC 12V (negative ground)
batteries. Use only the specified car battery
cord. tf you are not sure check with your local
car/truck dealer as to what type of DC battery
ground you have in your vehicle.
* Be sure to start your car engine before
inserting the cigarette lighter plug of the
Car Battery Cord Cigarette Bra Battery d into E veg abire
i : otherwise, the cigarette lighter plug fuse
(optional) Lighter Plug ay burn out. 9 grec pug
* Because the car is running while your
Palmcorder is in operation, make sure
you're in a well ventilated area.
* Disconnect the cigarette lighter plug when
your Palmcorder is not being used. 9
DC IN
Connector
La

Cassette Information
Cassette Insertion/Removal
I Turn the Tape Wheel in the direction
of the arrow until there is no slack.
2 Attach the Battery (see page 7).
3 Slide the TAPE EJECT switch
to open the door.
A. us the cassette vertically
with its window side facing
out.
5 Press here to close the door.
To remove the cassette, Slide the TAPE EJECT switch.
Record/Playback
Time
TAPE
SPEED
Selector
Use tapes with the [VHSIA mark in this unit.
Tape Speed Selector Cassette type Vof 7
SLP (Super Long Play) | 1 hour 1 hour 2 hours
30 minutes
* SP provides the best picture.
* SLP has slightly more picture noise during playback.
Erase Protection Tab
Cassettes have a record tab to ensure that recordings are not accidentally erased.
1 To prevent accidental erasure
Break off the tab with a screwdriver.
(Or, slide tab open.)
To record again
Cover the hole with adhesive tape.
(Or, slide tab closed.)

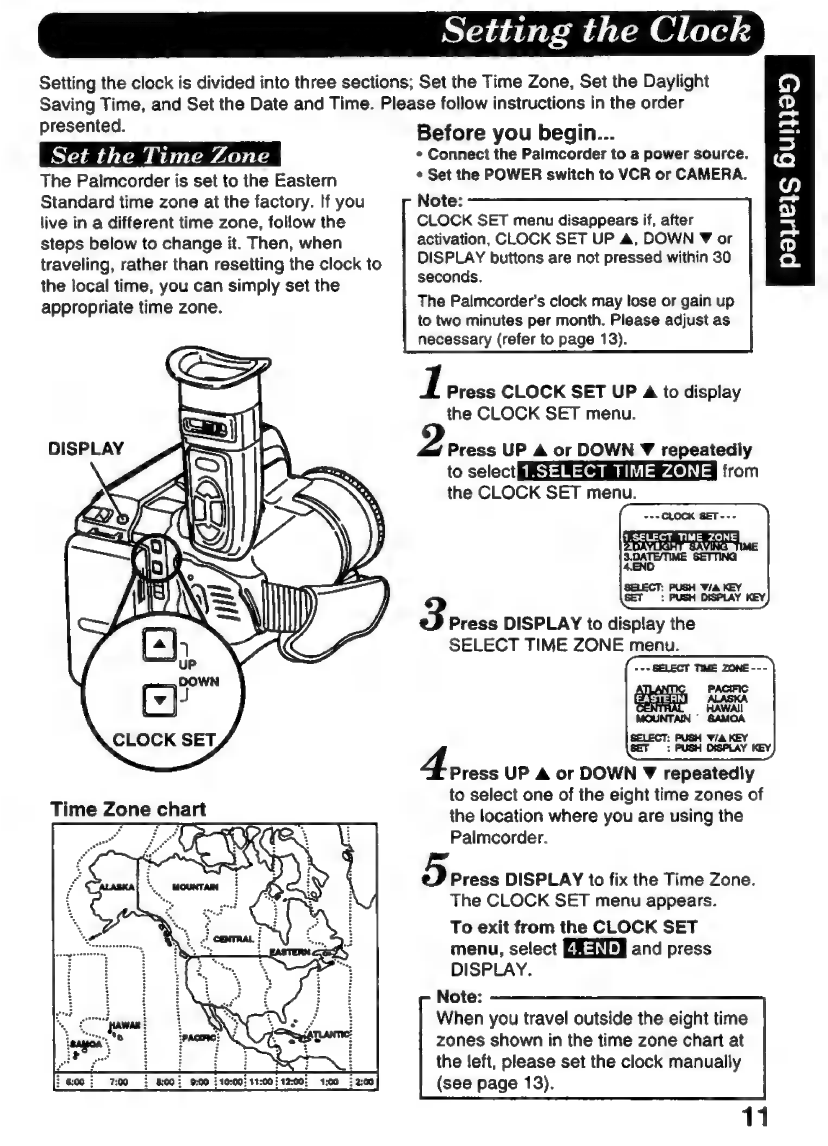

Setting the Clock
Setting the clock is divided into three sections; Set the Time Zone, Set the Daylight
Saving Time, and Set the Date and Time. Please follow instructions in the order
presented.
Set the Time Zone
The Palmcorder is set to the Eastern
Standard time zone at the factory. If you
live in a different time zone, follow the
steps below to change it. Then, when
traveling, rather than resetting the clock to
the local time, you can simply set the
appropriate time zone.
Before you begin...
e Connect the Palmcorder to a power source.
* Set the POWER switch to VCR or CAMERA.
Note:
CLOCK SET menu disappears if, after
activation, CLOCK SET UP A, DOWN ¥ or
DISPLAY buttons are not pressed within 30
seconds.
paye]s Bunje5
The Palmcorder's clock may lose or gain up
to two minutes per month. Please adjust as
necessary (refer to page 13).
1 Press CLOCK SET UP A to display
the CLOCK SET menu.
Press UP A or DOWN Y repeatedly
to select Bid Nen Bi 13948 :13 from
the CLOCK SET menu.
Press DISPLAY to display the
SELECT TIME ZONE menu.
RAWAIL
MOUNTAIN `” SAMOA
Press UP A or DOWN Y repeatedly
to select one of the eight time zones of
the location where you are using the
Palmcorder.
5 Press DISPLAY to fix the Time Zone.
The CLOCK SET menu appears.
To exit from the CLOCK SET
menu, select EEE and press
DISPLAY.
Note:
When you travel outside the eight time
zones shown in the time zone chart at
the left, please set the clock manually
(see page 13).
11

Setting the Clock
EUPRIUUPTUEKSETUTTEUUTR Before you begin...
The clock will automatically adjust to
daylight saving time.
PEW eset BELLE ES AR AU TOF
If you do not want the clock to
automatically adjust to daylight saving
time, please select [+*]]3 by following
steps 1-5 below.
CLOCK SET
Spring:
First Sunday in April (DAYLIGHT SAVING
TIME: AUTO) Automatically adds one hour
and adjusts the clock.
1:00 a.m. 2:00 a.m.
Normal Time
Daylight Saving
Time
Autumn:
Last Sunday in October (DAYLIGHT SAVING
TIME: AUTO) Automatically turns back one
hour and adjusts the clock.
Daylight
Saving
|
00
2.m.
2:00
a.m.
Time
Normal Tíme
>
3:00 a.m. 4:00 a.m.
$e————e——
1:00 a.m. 2:00 a.m.
* Connect the Palmcorder to a power source.
* Set the POWER switch to VCR or CAMERA.
Note:
CLOCK SET menu disappears if, after
activation, CLOCK SET UP A, DOWN ¥ or
DISPLAY buttons are not pressed within 30
seconds.
Daylight saving time feature wili not function
if time zone is set to Hawaii or Samoa.
1 Press CLOCK SET UP A to display
the CLOCK SET menu.
Press UP A or DOWN Y repeatedly
to select PAN VIMOS
from the CLOCK SET menu.
---CLOCK SET ---
SELECT TI FONE
-DAYUGHT SAVING TIME
S.DATE/TIME SETTING
4.END
SELECT: PUSH V/A KEY
SET : PUSH DISPLAY
E Press DISPLAY to display the
DAYLIGHT SAVING TIME menu.
P; NR UP A or DOWN Y to select
AUTO or OFF.
5 Press DISPLAY to fix the
DAYLIGHT SAVING TIME setting.
The CLOCK SET menu appears.
To exit from the CLOCK SET
menu, select EZ and press
DISPLAY.

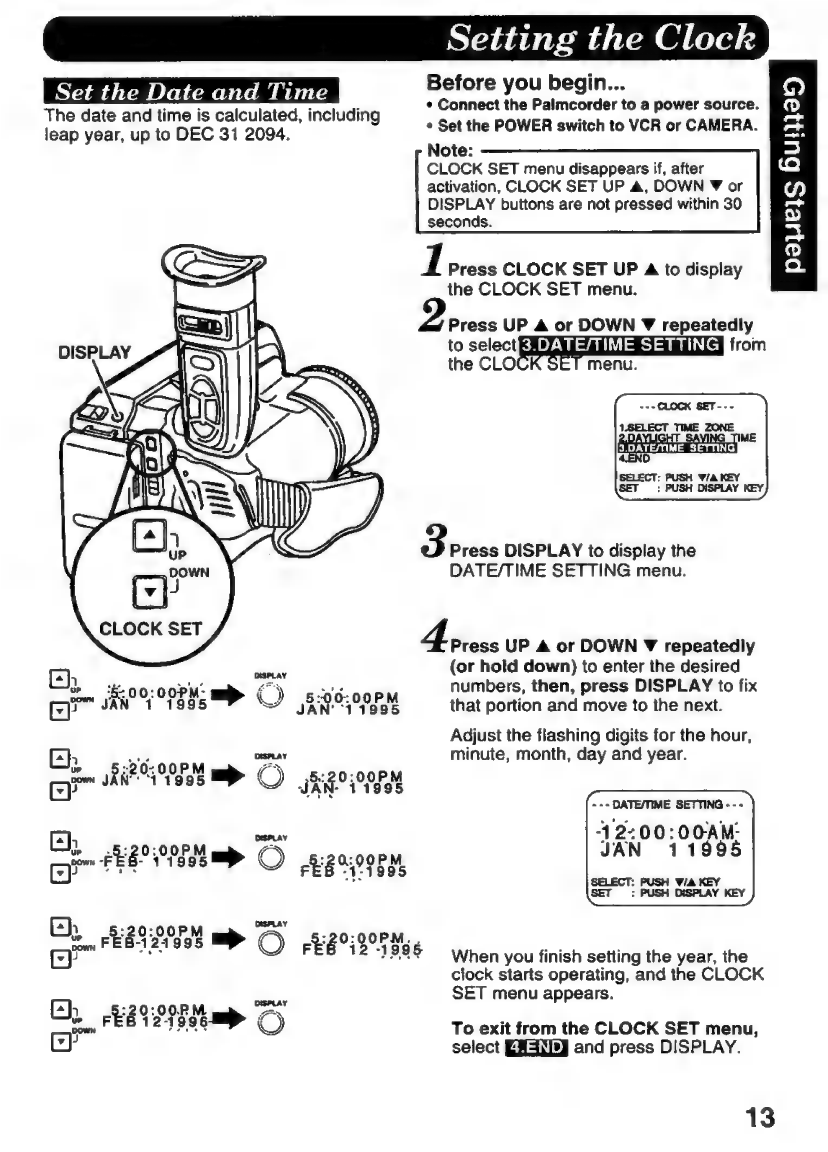

Setting the Clock
Set the Date and Time
The date and time is calculated, including
leap year, up to DEC 31 2094.
CLOCK SET
Before you begin...
* Connect the Palmcorder to a power source.
* Set the POWER switch to VCR or CAMERA.
Note:
CLOCK SET menu disappears if, after
activation, CLOCK SET UP A, DOWN ¥ or
DISPLAY buttons are not pressed within 30
seconds.
1 Press CLOCK SET UP A to display
the CLOCK SET menu.
Press UP A or DOWN Y repeatedly
from
to select
the CLO menu.
3 Press DISPLAY to display the
DATE/TIME SETTING menu.
A press UP A or DOWN Y repeatedly
(or hold down) to enter the desired
E)
xm
pd
l
w
00:00PM-
£75
A
ac
numbers,
then,
press
DISPLAY
to
fix
er"
JW
1
1995
C)
)539.0;00PM
that
portion
and
move
to
the
next.
Adjust
the
flashing
digits
for
the
hour,
Eh
T
DISPLAY
minute,
month,
day
and
year.
ue
2
0:
€
x
,
EP"
Rie
Pees
Q
CARET
---
DATE/TIME
SETTING
-
-
-
Eh
DESPLAY
-1 2-
00:00AM-
>
-5:20;00PM
JAN
11995
DOWN
~
-
M
P
EY
FES
1199
C)
FEB
121995
io
ie
dos
SET
:
PUSH
DISPLAY
KEY
4
5
DISPLAY
Ch
VESTIUM
MOTA
mn
EF
LE
When
you
finish
setting
the
year,
the
clock
starts
operating,
and
the
CLOCK
g
se
SET
menu
appears.
>
0:00PM
p"
e
FES
121998
C)
To
exit
from
the
CLOCK
SET
menu,
E)
select
ASX
and
press
DISPLAY.
13
C)
o
=
5
a
UD
+
t0
ms
D
Q

Setting the Clock
Replace the Battery
The date and time operates on a miniature
battery preinstalled in the underside of your
Palmcorder.
Underside View
om
m
Replace battery with Panasonic PART NO.
VSBW0004 (CR2025) only. Use of another
battery may present a risk of fire or explosion.
Caution-battery may explode if mistreated.
Dispose of used battery promptly. Keep away
from children. Do not recharge, disassemble or
dispose of in fire.
14
I While pinching the stopper tabs,
puil the tray out of the Battery
Compartment.
2 Remove the Battery by bending the
locking tab outward.
3 Place the new Battery into the Battery
tray with the ® mark facing down until it
snaps into place.
* Do not reverse the polarity.
AE ics the Battery tray so that the
small triangle marks meet.
Note:
« Make sure your Palmcorder is off when
replacing the Battery.
* Keep the Battery out of the reach of children
since swallowing it may be harmful.
* When the Battery is installed improperly, is
discharged, or missing, “CLOCK BATTERY"
appears in the EVF.
* Battery life is approximately 5 years.

Electronic Viewfinder Indications
Tape/Battery Remaining
The tape remaining and battery charge level can be displayed during recording.
1 Set the POWER
switch to CAMERA.
payeys uag
2 Press DISPLAY repeatedly
to select the desired display.
EVF Indications
Battery Charge Tape (Initial screen) First
Remaining: Remaining: wmGmmO se Press / cmo er
-Ba]- (No tape)
FULL > Go Se FULL
> hg MERE a 11008
m
3
=
—
Fourth
t
Second
EMPTY.L———K
F-
s
press
: sp
* lt will take severa! seconds for the tape x BS
remaining indicator to operate after the E]
tape starts moving. bow
Record the Date and Time ih
I Set the POWER 2 Press DISPLAY
switch to once to change the
CAMERA. When SED to date
placed in Record only. Press once
mode, the time and or twice more to
date
will
be
remove
the
date/
recorded
on
the
time
display.
tape.
Note:
| Only the Date and/or Time are recorded on the Tape. |
Display-Off Mode
This feature allows you to rernove all
Electronic Viewfinder Indications.
Before inserting a tape, press DISPLAY and STOP
together for more than one second to remove the
indications except time and date”.
To disptay the Electronic Viewfinder Indications again, Mi ^1 1996
turn the Palmcorder Power off and then on again.
* To remove the time and date, see "Record the Date and
Time" above.
15

Electronic Viewfinder Indications
© © Q
12:00:00AM
JAN 1 1995
@ Battery Remaining Indication (see page 15)
== When a battery recharge is necessary, "WARNING" will begin to flash
in the EVF and "LOW BATTERY’ will appear as the Power Lamp will also
flash. The Palmcorder will automatically turn OFF in 15 seconds.
© Tape Remaining Indication
* If the Patmcorder is in camera mode with no cassette tape inserted or the
record
tab
is
missing,
“68”
will
flash
for
one
minute
and
"CHECK
TAPE”
will
appear for 5 seconds, and recording will not start.
* While recording, as the tape reaches to the end, "TAPE END" will appear for
5 seconds as a warning.
($9 10-Second Reminder
An elapsed time indicator appears for one second every 10 seconds that
recording continues.
This is a reminder of how long you have been shooting a particular scene and
can help keep your recordings fresh and interesting.
0:00 0:10 0:20 ..... 59:50
(return to 0:00 and continue)
» The 10-Second Reminder will be reset whenever you press Record/Pause.
(à) TAPE SPEED Indication (see page 10)
Indicates the tape speed (SP or SLP).
($) Operating Mode Indications
REC (record)
(RECORD
will
first
appear
in
large
characters
for
one
second
and
then
small
characters.)
PAUSE
(PAUSE
will
first
appear
in
large
characters
for
one
second
and
then
small
characters.)
FF (fast forward)
PLAY
REW (rewind)
16

Electronic Viewfinder Indications
payejs Dunes
12:00:00AM
AN 1 1995
© Manual Focus Indication (see page 26).
() Zoom Magnification level (see page 25).
(8) VCR-MODE Indication
^/CR-MODE" will appear for one minute if the POWER switch is set to VCR or the
RECORD/PAUSE button is pushed in VCR MODE.
(9 DEW Indication
If excessive moisture condenses in the unit, “WARNING” and Power Lamp will flash,
"DEW DETECTED" will appear, and the Palmcorder will automatically turn OFF in 15
seconds.
In this case, wait until the indicator no longer flashes when your Palmcorder is turned
on before using your Palmcorder again.
(9 Date and Time Indication (see page 13).
17

Attaching the Shoulder Strap
Make sure the Battery Pack is not attached.
I Unthread the strap from the buckle.
2 Thread the strap ends through the
Strap Attachment Rings.
3 Then thread the ends of the strap
through the buckle.
* Make sure the strap is not twisted.
S
.;
FOTIA AAA CIAA
ff
min. 1 inch
Adjust the Length
1 Pull a loop of the strap loose
from the buckle.
Adjust the length of the strap to the size of
your hand as illustrated at left.
18

Camera Recording
Before you begin...
* Connect the Palmcorder to a power source.
* Insert a cassette with record tab (see page 10).
Simple Recording
1 Set the POWER switch to CAMERA.
Built-In Lens Cover opens.
EVF
PAUSE
Record/Pause
mode.
2 With the Viewfinder Eye Cup up to
your eye, adjust the Vision Adjust-
ment Control to your eyesight.
U
c
un:
o
O
o
O
med
e
ct
O
-
3 Slide the TAPE SPEED Selector
to SP or SLP (refer to page 10).
Ah oss RECORD/PAUSE to start
recording.
The Taily Lamp and RECORD/PAUSE
are lit during recording.
Note:
* Do not leave the Palmcorder with the EVF
aimed directiy at the sun as this may cause RECORD
damage to the internal parts of the EVF.
Press RECORD/PAUSE again to
pause recording.
Set the Power switch to OFF after
recording is finished.
* To remove the cassette
In Record/Pause mode, slide the TAPE EJECT
switch (refer to page 10).
* When your Palmcorder is aimed at excessively
bright objects, or bright lights, a vertical bar
may appear in the picture. This is a normal
characteristic of the CCD pick-up device. Try
to avoid this when possible.
19

Camera Recording |
Stand-by Mode
Whenever the Palmcorder has been in Record/Pause mode for 5 minutes, it will auto-
matically go into Stand-by mode to conserve power. To resume recording, it is necessary
to turn the Palmcorder POWER switch to OFF and then to CAMERA. Or, you may use
the following feature to avoid having to turn the Palmcorder off and on again.
Stand-by Release
This feature allows you to resume record-
ing from Stand-by mode by simply pressing
the RECORD/PAUSE button.
ed
20
Before you begin...
* Connect the Palmcorder to a power source.
* Insert a cassette with record tab (see page 10).
I While pressing the UP A button, set
the POWER switch to CAMERA.
2 Press UP A more than 2 seconds to
display the STAND-BY RELEASE
selection screen.
STAND-BY RELEASE
BY AECORD/PAUSE KEY
ACTIVE
SELECT: PUSH Y/A KEY
SET : PUSH DISPLAY
os UP A or DOWN Y as
necessary to select RAMA.
4 PER DISPLAY to set your selection
and exit this screen.
* You may now turn the Palmcorder
back on after it has gone into Stand-
by mode by pressing the RECORD/
PAUSE button.
Note:
If was selected in step 3
above, you must set the POWER switch to
OFF and then to CAMERA to resume
recording from Stand-by mode.
