1 Safety Precautions
1.1. General Guidelines
1. IMPORTANT SAFETY NOTICE
There are special components used in this equipment
which are important for safety. These parts are marked by
in the Schematic Diagrams, Circuit Board Layout,
Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with
manufacturer’s specified parts to prevent shock, fire, or
other hazards. Do not modify the original design without
permission of manufacturer.
2.An Isolation Transformer should always be used during the
servicing of AC Adaptor whose chassis is not isolated from
the AC power line. Use a transformer of adequate power
rating as this protects the technician from accidents
resulting in personal injury from electrical shocks. It will also
protect AC Adaptor from being damaged by accidental
shorting that may occur during servicing.
3.When servicing, observe the original lead dress. If a short
circuit is found, replace all parts which have been
overheated or damaged by the short circuit.
4.After servicing, see to it that all the protective devices such
as insulation barriers, insulation papers shields are properly
installed.
5.After servicing, make the following leakage current checks
to prevent the customer from being exposed to shock
hazards.
3
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

2 Warning
2.1. Prevention of Electro Static Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage
caused by electro static discharge (ESD).
1.Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2.After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3.Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4.Use only an antistatic solder removal device. Some solder removal devices not classified as "antistatic (ESD protected)" can
generate electrical charge sufficient to damage ES devices.
5.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6.Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable
conductive material).
7.Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
CAUTION :
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8.Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).
2.2. How to Recycle the Lithium Battery
4
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

2.3. How to Replace the Lithium Battery
The lithium battery (CGR-F/202AW) is not supplied as a service part and must be replaced as part of the Bottom P.C.B. (Refer to
“Disassembly and Assembly Instructions.")
NOTE:
This Lithium battery is a critical component. (Type No.: CGR-F/202AW Manufactured by Panasonic.) (Not supplied)
It must never be subjected to excessive heat or discharge.
It must therefore only be fitted in equipment designed specifically for its use.
Replacement batteries must be of the same type and manufacture.
They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed.
Do not attempt to re-charge the old battery or re-use it for any other purpose.
It should be disposed of in waste products destined for burial rather than incineration.
5
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

3 Service Navigation
3.1. Introduction
This service manual contains technical information which will allow service personnel´s to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with original service
manual.
Note 1:
AC Adaptor used on these movie camera is PV-DAC14D. However, DE-974FB is supplied as a replacement part for PV-
DAC14D. This AC Adaptor is supplied only as a unit.
3.2. About Lead Free Solder (PbF)
6
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

4 Specifications
7
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

5 Service Mode
5.1. Error Display
"PUSH THE RESET SWITCH" is displayed automatically on the EVF or the LCD Monitor when an undesirable condition has
occurred.
Fig. 1
Note:
When "PUSH THE RESET SWITCH" is displayed repeatedly, service is required. Check the Error Code which is listed in the
Service Menu.
5.2. Service Menu
When abnormal detection contents are confirmed, do the following operation. Automatic diagnosis code will bedisplayed. (Service
Menu)
To enter the Service Menu
Push the [DELETE], [JOYSTICK CONTROL LEFT] and [RECORDING START/STOP] simultaneously for 3 seconds (with no
SD Card inserted).
Note:
If a Disc or SD Card is inserted, the above operation will not work.
Fig. 2-1
8
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

Note:
Only perform items 1, 3, and 4 in the Service Menu.
To select the Item
1.Set to Service Menu.
2.Press [JOYSTICK CONTROL UP/DOWN] to select item [1], [3], or [4].
3.Press [JOYSTICK CONTROL RIGHT] to display [YES/NO] screen.
4.Press [JOYSTICK CONTROL UP/DOWN] to select [YES].
5.Press [JOYSTICK CONTROL CENTER] to end.
Fig. 2-2
To exit the Service Menu
Unplug the AC Cord.
9
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

6 Service Fixture & Tools
6.1. Service Fixture and Tools
10
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

6.2. Service Position
Optical pickup
CAUTION: VISIBLE LASER RADIATION DO NOT
STARE INTO THE BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS CLASS 2M
Laser light striking the eye may cause your eyesight
to be lost: For safety, be sure to remove any power
supply (AC adaptor/charger, battery, etc.) from the
DVD video camera/recorder before starting work.
Caution
<CSA requirement>
6.2.1. Extension Cables for Service Position
Using the following Extension Cables, place the unit as shown for check and service.
Note :
1.The LCD open/close Switch is for changing between LCD Display or EVF Display. When turning on EVF Display, close the LCD
Shaft or place some paper or tape, etc. on LCD open/close Switch so that LCD open/close Switch stays ON.
2.To eject the DVD manually, slide the Lock lever on the Disc Cover Lock Unit for a short time or slide the EJECT switch.
3.Use a grounded ESD wrist strap while disassembling the Lens portion.
4.Connect the F.P.C.s to the connectors, verifying the direction of F.P.C.s.
The Main P.C.B. or a chip part will be damaged if the 60 Pin Extension Cable (LSUA0061) is misconnected.
5.Use extreme care when plugging in or unplugging connectors.
11
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

Fig. 3
12
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

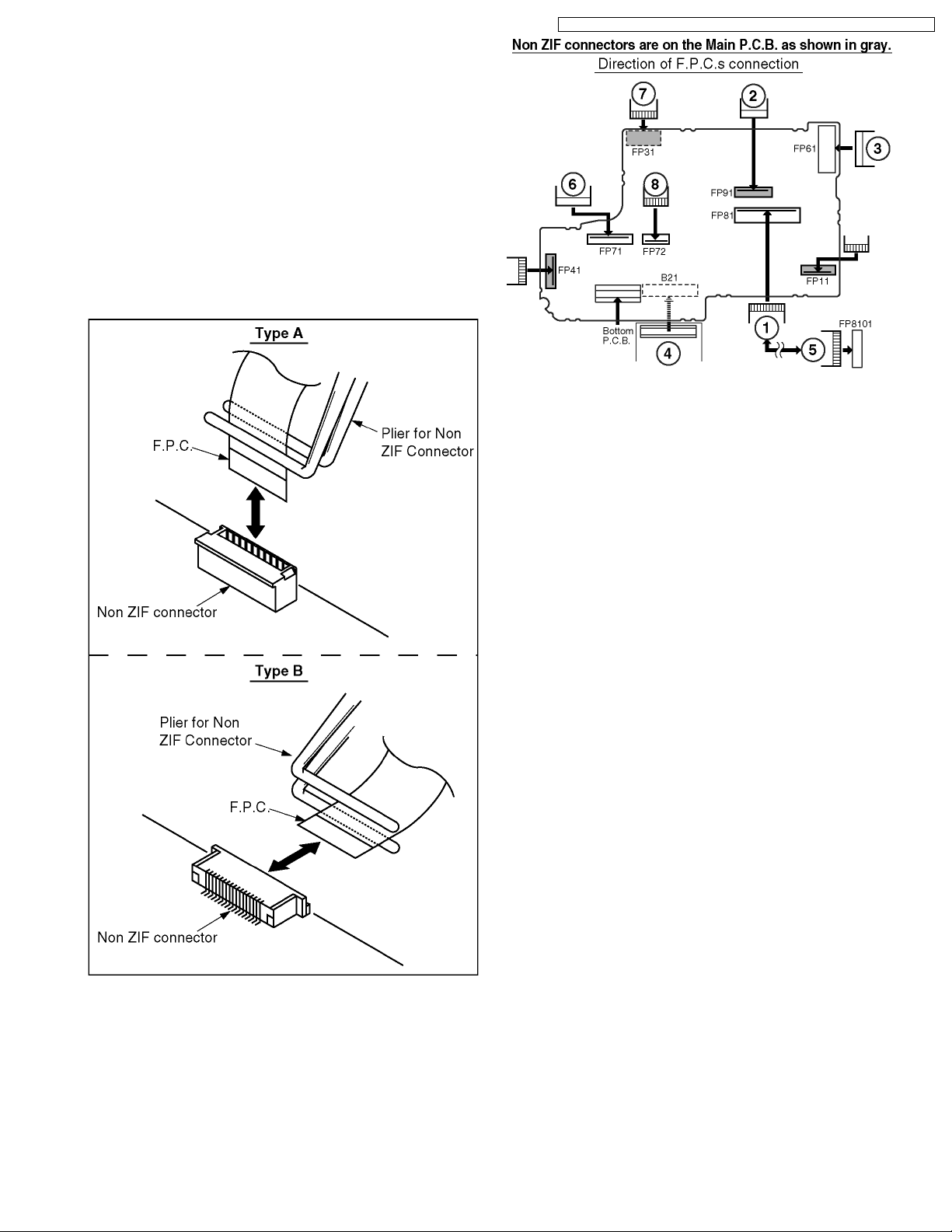

6.3. Removal/Installation of F.P.C.
From Non ZIF (Zero Insertion
Force) Connector
Removal/Installation of F.P.C. from the Non ZIF (Zero
Insertion Force) connector:
1.The Non ZIF connectors and the ZIF connectors are used
on the unit. And there are 2 types (Type A, Type B) of Non
ZIF connectors.
2.To remove the F.P.C. from the Non ZIF connector, use the
Plier for Non ZIF Connector (LSVQ0028) to pull out the
F.P.C. as shown. The same Plier for Non ZIF Connector
(LSVQ0028) should also be used to install the F.P.C. to the
Non ZIF Connector.
Fig. 4-1
3.Connect the F.P.C.s to the Non ZIF connectors, verifying
the direction of F.P.C as shown.
Fig. 4-2
13
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

6.4. Method for Ejecting the DVD
Tray Manually
Optical pickup
CAUTION: VISIBLE LASER RADIATION DO NOT
STARE INTO THE BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS CLASS 2M
Laser light striking the eye may cause your eyesight
to be lost: For safety, be sure to remove any power
supply (AC adaptor/charger, battery, etc.) from the
DVD video camera/recorder before starting work.
Caution
<CSA requirement>
Perform the following procedures;
1.Remove the Disc Eject Cover by removing the screw.
2.Slide the Lock Lever with a screwdriver, etc., to open the
Disc Cover.
3.Remove the Disc from the Tray.
Fig. 5
6.5. EEPROM Data
CAUTION:
Be sure to save the EEPROM data using PC-EVR
Adjustment Program before service and adjustment in
order to make sure to avoid an accidental data loss, etc.
using PC-EVR Adjustment Program by first.
14
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

6.6. Special Note
All integrated circuits and many other semiconductor devices
are electrostatically sensitive and therefore require the special
handlings techniques described under the
"ELECTROSTATICALLY SENSITIVE (ES) DEVICES" section
of this service manual.
6.7. Model No. Identification Mark
Use Marks shown in the chart below to distinguish the different
models included in this Service Manual.
15
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

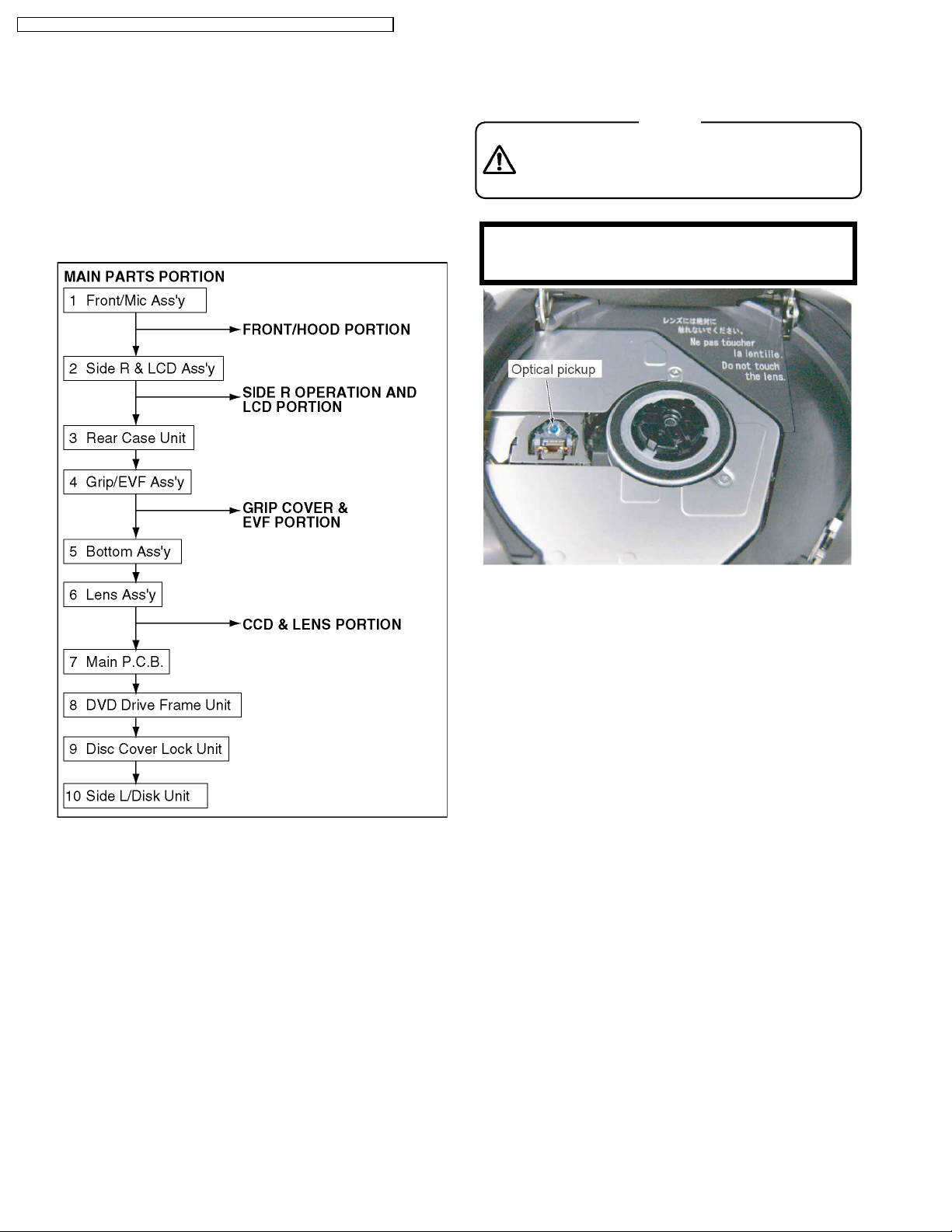

7.1.1. DISASSEMBLY FLOWCHART
This flow chart indicates the disassembly steps of the
cabinet parts and the P.C.Boards in order to gain access to
item (s) to be serviced. When reassembling, perform the
step (s) in the reverse order. Bend, route and dress the
wires as they were originally.
Note :
1.When removing the cabinet, work with care so as not to
break the Locking Tabs.
2.Place a cloth or some other soft material under the P.C.
Boards or Unit to prevent damage.
3.When reinstalling, ensure that the connectors are
connected and electrical components have not been
damaged.
4.Do not supply power to the unit during disassembly and
reassembly.
Optical pickup
CAUTION: VISIBLE LASER RADIATION DO NOT
STARE INTO THE BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS CLASS 2M
Laser light striking the eye may cause your eyesight
to be lost: For safety, be sure to remove any power
supply (AC adaptor/charger, battery, etc.) from the
DVD video camera/recorder before starting work.
Caution
<CSA requirement>
7 Disassembly and Assembly Instructions
7.1. Cabinet Section
16
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

7.1.2. Disassembly Method
STEP
No. Ref. No. PART REMOVE
Section
No.
NOTE
1
Front/Mic Ass'y
A B C D E F
1
9
7
3
4
10
8
(518), (537),
2(519), 2(533),
FP6501, Hand
Strap
(456), FP31,
FP71, FP72
3(519), FP61,
B21
2(537) 8
8
Disc Cover Lock
Unit
3
Grip/EVF Ass'y
MAIN PARTS PORTION
DVD Drive Frame
Unit
6
7
4
Rear Case Unit
6 - Lens Ass'y
-----
2(540), (28)
4(537), (6),
Connector
-
Side L Operation
Unit
How to read chart shown above:
A: Order of Procedure steps.
When reassembling, perform steps(s) in reverse order.
B: Ref No.
C: Part to be removed or installed.
D: Section No.
E: Identification of part to be removed, unhooked, unlocked,
released, unplugged, unclamped, or unsoldered.
3(404)=3Screws(404),2(L-1)=2LookingTabs(L-1)
F: Refer to "Notes in chart."
1
2
3
27
1
-
-
-
2
Side R &
LCD Ass'y
22(518), 4(519),
(537), FP81,
2(L-1), (Shoe)
2(519), (537),
FP91
1
1
1
(537), (16)
(519), FP11
Main P.C.B.
1
1
1
1
3(519), B51 5
5 - Bottom Ass'y
1
1
E10
17
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

A
B
C
D
E
F
G
H
123456

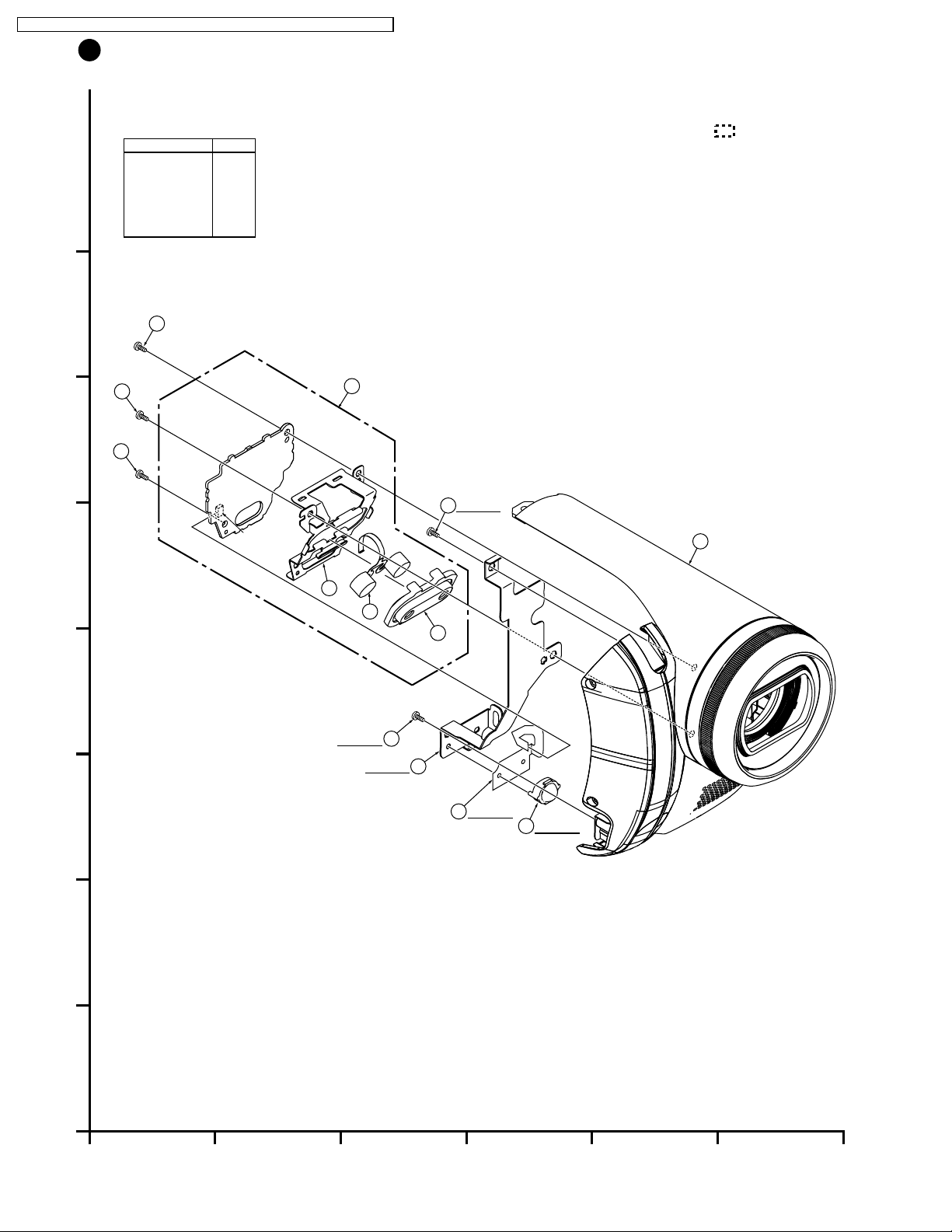

1MAIN PARTS SECTION
Note:
1. Parts with no Ref. No. in "EXPLODED VIEW" are not supplied.
And some Ref. No. will be skipped. Be sure to make your
orders of replacement parts according to the parts list.
2. The parts indicated by the dotted line are for Ass'y only
and are not supplied.
3. Disregard Ref. No. suffixes when ordering parts. They are used to
describe parts in "Disassembly and Assembly Instructions" section.
IMPORTANT SAFTY NOTICE:
COMPONENTS IDENTIFIED BY THE SIGN HAVE
SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
WHEN REPLACING ANY OFTHESE COMPONENTS,
USE ONLY THE SPECIFIED PARTS.
Side R & LCD Ass'y
Grip / EVF Ass'y
7
E30
519
706
519
11
28
537
537
456
519
540
540
519
519
519
8
2
10
1
3
16
537
519
519
519
519
27
519
519
519
537
519
6
537 537
519
Front / Mic Ass'y
Bottom Ass'y
Lens Ass'y
533
533
537 519
537
518
518
E10
B
A
A
B
-
2518
- 2
- 2
- 1
- 2
- 1
- 4
- 4
- 7
- 7
- 7
- 8
- 8
- 8
- 6
- 8
- 8
- 1
- 5
- 1
- 8
- 1
- 1
- 3
- 2
- 2
519
- 2
537
- 3
- 8
537
- 8
- 5
- 5
- 4
(L-1)
FP61
FP11 FP91
FP81
Connector
FP31
(L-1)
FP71
FP72 B51
B21
FP6501
(A,B)
COMPARISON CHART
OF MODELS & MARKS
MODEL MARK
VDR-D210P
VDR-D210PC
VDR-D220P
VDR-D220PC
VDR-D230P
VDR-D230PC
A
B
C
D
E
F
18
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

STEP
No. Ref. No. PART REMOVE NOTE
A B C D E F
4
51
52
-----
-----
9
Front/Hood Unit
Section
No.
How to read chart shown above:
A: Order of Procedure steps.
When reassembling, perform steps(s) in reverse order.
B: Ref No.
C: Part to be removed or installed.
D: Section No.
E: Identification of part to be removed, unhooked, unlocked,
released, unplugged, unclamped, or unsoldered.
F: Refer to "Notes in chart."
2
2
9
Front P.C.B.
1
E20
3(537), FP6502
2
9
(For models with Light)
LED Light Lens
3
2
53
2(537), (54) 9
(For models with Light)
LED Light F.P.C.
2
2
FRONT/HOOD PORTION
3(404)=3Screws(404),2(L-1)=2LookingTabs(L-1)
19
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC

A
B
C
D
E
F
G
H
123456
2FRONT HOOD AND FRONT P.C.B. SECTION
Note:
1. Parts with no Ref. No. in "EXPLODED VIEW" are not supplied.
And some Ref. No. will be skipped. Be sure to make your
orders of replacement parts according to the parts list.
2. The parts indicated by the dotted line are for Ass'y only
and are not supplied.
3. Disregard Ref. No. suffixes when ordering parts. They are used to
describe parts in "Disassembly and Assembly Instructions" section.
702
705
701
E20
537
537
537
537
537
51
54
53 52
FP6502
(C,D,E,F)
(C,D,E,F)
(C,D,E,F)
(C,D,E,F)
(C,D,E,F)
COMPARISON CHART
OF MODELS & MARKS
MODEL MARK
VDR-D210P
VDR-D210PC
VDR-D220P
VDR-D220PC
VDR-D230P
VDR-D230PC
A
B
C
D
E
F
20
VDR-D210P / VDR-D220P / VDR-D230P / VDR-D210PC / VDR-D220PC / VDR-D230PC
