Panasonic CQDF202U - AUTO RADIO/CD DECK User manual

Panasonic.
Removable Full Front CD Player/Receiver
Lecteur
CD/Récepteur
avec
Panneau
Avant
Amovible
Reproductor
de
CD/Receptor
y
Frente
Completo
Desmontabte
CQ-DF202U
Operating Instructions
Manuel
d’
instructions
DIGITAL AUDIO
e Please read these instructions caretfully before using this product and save this manual for tuture use
e
Prière
de
lire
ces
Instructions
attentivement
avant
d'utiliser
le
produit
et
garter
té
manual
pour
|'ulilisation
altérisare.
6 Leu con atencion estas insirucciones antes de utitizar el producto y guarde este manual pare paderdo consultar an él futuro

Safety Information
‘| Radio Frequency Interference Statement (Part 15 of the FCC Rules): |
Applies only in U.S.A.
| This equipment has been tested and found to comply with the limits for a Class B digital, pursuant to Part
15 of the FCC Rules.
© These limits are designed to provide reasonable protection against harmful interference in an automobile
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to consult the dealer or an experience radio technician for help.
FCC Warning:
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate
this device.
This device complies with Part 15 of the FCC Rules:
Operation is subject to the following two conditions:
(1} This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired op-
eration.
* For Canada:
This Class B digital apparatus complies with Canadian ICES-003.
CAUTION:
THIS PRODUCT IS A CLASS I LASER PROD-
UCT.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING*TO QUALIFIED
PERSONNEL.
Laser products:
Wave length: 780 nm
Laser power: No hazardous radiation is emitted
with safety protection.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
ONLY THE INCLUDED COMPONENTS.
Label indication and location
Panasonic
Modal Ne... CO- e
EENE
Manutactured by Dalian Matsushita
Communication
Nº De Série
This device complies with Pan 15 of tha
FCC Rules. Operation is subject to the
condilion that this device does noi cause
harmtul interterence.
Find the model number and serial number on either
the back or bottom of the unit. Please record them
in the space below and retain this booklet as a per-
manent record of your purchase to help with identi-
fication in case of theft.
MODEL NUMBER
SERIAL NUMBER
DATE PURCHASED
CQ-DF202U
. FROM

Consignes de sécurité
ATTENTION :
CET APPAREIL EST UN PRODUIT LASER DE LA
CLASSE I.
L'UTILISATION DE COMMANDES OU REGLAGES OU
L'EXÉCUTION D'OPÉRATIONS AUTRES QUE CELLES
QUI SONT INDIQUÉES DANS CE DOCUMENT PEUVENT
RÉSULTER EN UNE EXPOSITION À UN RAYONNEMENT
DANGEREUX.
N'OUVREZ PAS LES COUVERCLES ET N'ESSAYEZ PAS
D'EFFECTUER VOUS-MÊME DES REPARATIONS.
ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR
TOUTE RÉPARATION.
Produits laser:
Longueur d'onde: 780 nm
Puissance du laser: Aucune radiation dangereuse
n'est émise avec la protection de
sécurité.
MISE EN GARDE: A
POUR RÉDUIRE LES RISQUES D'INCENDIE OU D'ÉLEC-
TROCUTION, N'EXPOSEZ PAS CET APPAREIL À LA
PLUIE OU À L'HUMIDITÉ.
AFIN DE PRÉVENIR TOUT RISQUE D'INCENDIE OU
D'INTERFÉRENCES, UTILISER UNIQUEMENT LES
COMPOSANTS FOURNIS.
xDéclaration d'interférence de fréquences radio |
(Partie 15 des Règlements FCC):
Cet appareil numérique de Classe B est conforme au |
rêgiement ICES-003 canadien.
Il est recommandé de noter, dans l’espace prévu ci-
dessous, les numéros de modèle et de série inscrits soit
à l'arrière soit sous le fond de l'appareil, et de conserver
ce manuel comme mémorandum de l'achat afin de per-
mettre l'identification de l'appareil en cas de vol.
NUMÉRO DE MODÈLE Ca-DF202U
NUMÉRO DE SÉRIE
DATE DE L'ACHAT
VENDEUR
Informacion para su seguridad
PRECAUCION: |
ESTE ES UN PRODUCTO LASER DE LA CLASE I.
LA UTILIZACIÓN DE CONTROLES, EL HACER AJUSTES
O EL SEGUIR PROCEDIMIENTOS DISTINTOS DE LOS
ESPECIFICADOS EN ESTE MANUAL PODRÍA CAUSAR
UNA EXPOSICIÓN PELIGROSA A LA RADIACIÓN.
NO ABRA LAS CUBIERTAS NI HAGA REPARACIONES
USTED MISMO. SOLICITE LOS TRABAJOS DE SERVICIO
AL PERSONAL CALIFICADO.
Productos láser:
Longitud de onda: 780 nm
Potencia láser: Con protección de seguridad no se
emite radiación peligrosa.
ADVERTENCIA:
PARA REDUCIR EL RIESGO DE INCENDIOS O SACU-
DIDAS ELÉCTRICAS, NO EXPONGA ESTE PRODUCTO
A LA LLUVIA NI A LA HUMEDAD.
PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDI-
DAS ELÉCTRICAS, Y PARA EVITAR LAS
INTERFERENCIAS MOLESTAS, UTILICE
SOLAMENTE LOS COMPONENTES INCLUIDOS.
Busque el número del modelo y el número de serie ya
sea en la parte trasera o en el fondo de la unidad. Sírvase
anotar dichos números en el espacio siguiente, y man-
tenga este librete como una anotación permanente de su
compra para ayudar en la identificación en el caso de
robo.
NÚMERO DEL MODELO CQ-DF202U
NÚMERO DE SERIE
FACHA DE COMPRA
NOMBRE DE LA TIENDA
om |

be proud to be a member of our family.
O Use this Product Safely
When Driving
Keep the volume level low enough to be aware of
road and traffic conditions.
When Washing Your Car
Do not expose the product, including the speakers
and CDs, to water or excessive moisture. This
could cause electrical shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high
temperatures inside your car. Give the interior a
chance to cool down before switching the unit on.
Use the Proper Power Supply
This product is designed to operate with a 12 DC,
negative ground battery system (the normal system
in a North American car).
O Components
e Power connector (1)
e Operating instructions
(1)
e Warranty card, etc.
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this prod-
uct will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical
engineering, manufactured with carefully selected components and assembled by people who take pride in
their work. Once you discover the quality, reliability, and value we have built into this product, you too will
e Remote control unit
Disc Mechanism
Do not insert coins or any small objects. Keep
screwdrivers and other metallic objects away from
the disc mechanism and disc.
Use Authorized Servicenters
Do not attempt to disassemble or adjust this preci-
sion product. Please refer to the Servicenter list in-
cluded with this product for service assistance.
For Installation
The product should be installed in a horizontal po-
sition with the front end up at a convenient angle,
but not more than 30°.
e Lithium battery
(1) (CR2025) (1)
e Installation hardware
(screws, cords, etc.)
(= page 22)
e The numbers in parentheses indicate the accessory quantities.
NOTICE:
O Language for Manuals of Products Using LCD
This
product
has
a
fluorescent
lamp
that
contains
a
small
amount
of
mercury.
It
also
contains
lead
in
some
components.
Disposal
of
these
materials
may
be
regulated
in
your
community
due
to
environmental
con-
siderations.
For
disposal
or
recycling
information
please
contact
your
local
authorities,
or
the
Electronics
Industries
Alliance:
<http://www.eiae.org.>
Ea

Panasonic est heureuse de vous compter parmi les utilisateurs de ses appareils électroniques. Nous pouvons vous as-
surer que cet appareil vous procurera de longues heures d'agrément. Notre réputation est fondée sur une ingénierie
électronique et mécanique de haute précision, laquelle préside à la fabrication d'appareils ne comportant que des com-
posants de choix assemblés par un personnel soucieux de la bonne réputation acquise par la qualité de son travail.
Après avoir découvert la qualité, la valeur et la fiabilité de cet appareil, vous aussi serez fier d'être un client Panasonic.
O Précautions à prendre
Au volant Mécanisme de disque
Réglez le volume à un niveau qui ne risque pas de mas- N'insérez pas de pièces de monnaie ou de petits objets.
quer les bruits ambiants. Gardez les tournevis et autres objets métalliques à l'écart
. du mécanisme de disque et du disque.
Lavage de la voiture ,
Afin de prévenir tout risque de court-circuit ou d'in- Réparation
cendie, n'exposez pas l'équipement, y compris les haut- Ne tentez pas de démonter ou d'ajuster l'appareil vous-
parleurs et les disques, à l’eau ou à une humidité même. Veuillez vous référer à la liste des centres de ser-
excessive. vice fournie avec cet appareil pour contacter le service
: ‘ A d'assistance.
Voiture stationnée
L'habitacle d'une voiture immobile exposée au soleil Installation
toutes vitres fermées devient rapidement très chaud. L'apppareil doit être installé en position horizontale avec
Laisser rafraîchir l'intérieur du véhicule avant d'utiliser son extrémité avant inclinée vers le haut à un angle com-
l'appareil. mode, mais ne dépassant pas 30°.
Source d'alimentation
Cet appareil est conçu pour fonctionner sur un système
d'alimentation avec batterie de 12 V cc. à masse
négative (système standard sur les voitures de construc-
tion nord-américaine).
O Éléments constitutifs
o Lecteur CD/récepteur (1) © Connecteur d'alimenta- © Télécommande (1) © Pile au lithium (CR2025)
tion (1) 1
o Quincaillerie pour l'instal-
lation (vis, cordons, etc.)
(= page 42)
HAATILENINEME ra
Eee
o Manuel d'instructions (1) © Carte de garantie, etc.
o Les chiffres entre parenthèses indiquent la quantité d'accessoires.

FASES ID

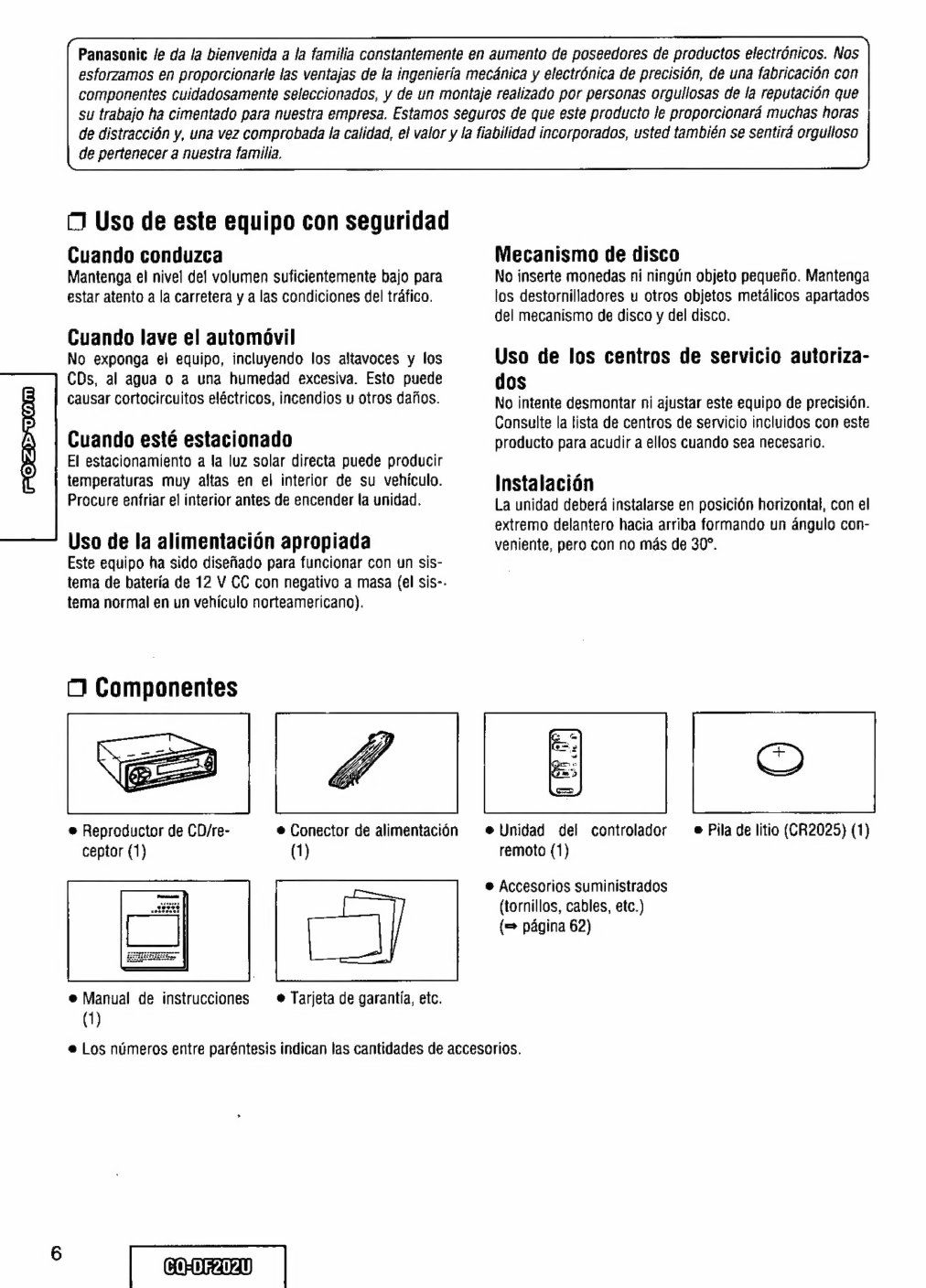

Panasonic /e da la bienvenida a la familia constantemente en aumento de poseedores de productos electrónicos. Nos
esforzamos en proporcionarle las ventajas de la ingeniería mecánica y electrónica de precisión, de una fabricación con
componentes cuidadosamente seleccionados, y de un montaje realizado por personas orgullosas de la reputación que
su trabajo ha cimentado para nuestra empresa. Estamos seguros de que este producto le proporcionará muchas horas
de distracción y, una vez comprobada la calidad, el valor y la fiabilidad incorporados, usted también se sentirá orgulloso
de pertenecer a nuestra familia.
© Uso de este equipo con seguridad
Cuando conduzca
Mantenga el nivel del volumen suficientemente bajo para
estar atento a la carretera y a las condiciones del tráfico.
Cuando lave el automóvil
No exponga el equipo, incluyendo los altavoces y los
CDs, al agua o a una humedad excesiva. Esto puede
causar cortocircuitos eléctricos, incendios u otros daños.
Cuando esté estacionado
El estacionamiento a la luz solar directa puede producir
temperaturas muy altas en el interior de su vehículo.
Procure enfriar el interior antes de encender la unidad.
Uso de la alimentación apropiada
Este equipo ha sido diseñado para funcionar con un sis-
tema de batería de 12 V CC con negativo a masa (el sis--
tema normal en un vehículo norteamericano).
O Componentes
e Reproductor de CD/re-
ceptor (1) (1)
ERREURS
e Manual de instrucciones
(1)
e Tarjeta de garantía, etc.
e Conector de alimentación e Unidad del controlador
Mecanismo de disco
No inserte monedas ni ningún objeto pequeño. Mantenga
los destornilladores u otros objetos metálicos apartados
del mecanismo de disco y del disco.
Uso de los centros de servicio autoriza-
dos
No intente desmontar ni ajustar este equipo de precisión.
Consulte la tista de centros de servicio incluidos con este
producto para acudir a ellos cuando sea necesario.
Instalación
La unidad deberá instalarse en posición horizontal, con el
extremo delantero hacia arriba formando un ángulo con-
veniente, pero con no más de 30°.
©
e Pila de litio (CR2025) (1)
remoto (1)
e Accesorios suministrados
(tornillos, cables, etc.)
(= página 62)
e Los números entre paréntesis indican las cantidades de accesorios.

Contents
Safety Information. SE A O Page 2
Radio Frequency Interference Statement (Part 15 of the FCC Rules): .... 2
Use this Product Safely da os Etats 4
COMPOSER a sess ele me tam 4
Language for Manuals of Products Using LCD Brita del pila ae A US 4
O Power and Sound Controls.................................. 10
Power, volume, loudness, mute, level meter, display change, audio mode
(Bass/Treble/Balance/Fader)
g Clock BASICS ess a fes US E GPS aa 11
Initial time, time reset
O Radio Basics aaa a PE E sm Run 12
Radio mode, band, manual tuning, seek tuning, mono/local selection,
preset station setting, preset station calling, display change
© CD Player Basies en sus ren ENS AE a dinar 14
Disc insert and playback, stop and disc eject, listening to a CD, CD player
mode, display change, track selection, track search, direct track selection,
random play, scan play, repeat play
O Remote Control Unit Preparation ............................ 16
Battery installation, battery notes, control reference guide
O Troubleshooting.......................................... 17
Preliminary steps, if you suspect something wrong, troubleshooting tips,
error display messages
O Maintenance. ........................................,... 21
Care of the unit, notes on CD/CD media (CD-R, CD-RW), notes on CD-
Rs/RWs
O Installation Guide. ............................ de 22
Step-by-step procedures, remove the unit
© Anti-Theft System.................... ene at Te 27
Place the removable face plate into case, install removable face plate,
security indicator
O Electrical Connections ..................................... 28
Caution, wiring diagram
EA O 29

Table des matières
Consignes de SEGUE paga kad rate nant néant ete Page 3
Précautions à prendre. ........................,..................... 5
Eléments COURS tr A wa eek. Ca Geen 5
O Commandes d'alimentation et de Son .........,..................... 30
Alimentation, volume, compensateur physiologique, coupure du son,
décibelmétre, changement d'affichage, mode audio
(Graves/Aigus/Balance/Equilibreur)
O Fonctionnement de base de l'horloge ............... AER Da 31 |
Temps initial, remise à l’heure ” E) 800 O
O Fonctionnement de base de la radio ................................ 32
Mode radio, bande, syntonisation manuelle, sélection mono/local, réglage de O O
station mémoriaée, appel de station présyntonisée, changement d'affichage
O Fonctionnement de base du lecteur CD.............................. 34
Insertion de disque et lecture, arrêt et éjection de disque, écoute d’un CD, LD
changement d'affichage, sélection de plage, recherche de plage, sélection directe Soe
de plage, lecture aléatoire, lecture par balayage, lecture en reprise TV
O Préparation de la télécommande. .................................. 36
Instaltation de la pile, remarques sur la pile, guide des commandes
O En cas de difficulté .............................................. 37
Étapes préliminaires, lorsqu'on soupçonne que quelque chose est défectueux,
guide de dépannage, messages d'erreur affichés
a A A ne tien 41
Entretien de l'appareil, remarques relatives aux CD et supports de type CD (CD-R,
CD-RW), remarques relatives aux CD-R/RW
O Guide d'installation ............................................. 42
Marche
à
suivre,
pour
retirer
l'appareil
2
O Système antivol 0 ses snes rta e 47
Mettre la plaque de façade amovible dans l’étui, installer la plaque de façade
amovible, voyant du système de sécurité
O Branchements électriques ...............,....................... . 48
Précaution, schéma de câblage
O Données techniques... nes rr Pa DA et 49
EE

g
Indice
Información para su seguridad................................... Pagina 3
Uso de este equipo con seguridad ....................,.,............... 6
COMPONENTES sus e Bt tee E A e O SA eae e ates Dente ace. 6
© Controles de alimentación y sonido................................. 50
a
O
O
O
Alimentación, volumen, sonoridad, silenciamiento, medidor de nivel, cambio de
pantalla, modo audio (Bajos/Agudos/Balance/Desvanecedor)
Reloj: Conceptos generales ..............................,........ 51
Hora inicial, reajuste de hora
Radio: Conceptos generales....................................... 52
Modo de la radio, banda, sintonización manual, sintonización de búsqueda,
selección mono/local, ajuste de emisora predeterminada, llamada a emisoras
presintonizadas, cambio de pantalla
Reproductor de CD: Conceptos generales ............................ 54
Inserción y reproducción de disco, parada y explusión de disco, para escuchar un
CD, modo de reproducción de CD, cambio de pantalla, selección de pista, búsqueda
de pista, selección directa de pista, reproducción aleatoria, reproducción por
exploración, repetición de reproducción
Preparación del controlador remoto .............................. 2 56
Sustitución de la pila, notas sobre la pila, guía de referencia de control
Solución de problemas: cocoa rr ls 57
Pasos preliminares, si cree que hay algo que no funciona bien, consejos para
localizar y solucionar averías, mansajes de visualización de error
Mantenimiento: eni cece shies a AS 61
Cuidado del aparato, notas sobre soportes CD/CD (CD-R, CD-RW), notas sobre
discos CD-R/RW
Guía de Instalación... 22:21:51. eps pcs NES cu Ve 62
Procedimientos paso a paso, para extraer el aparato
Sistema antirrgbo............................................... 67
Coloque la placa frontal removible en la caja, instale la placa frontal removible,
indicador de seguridad
Conexiones eléctricas. . ...................................,,,.... 68
Precauciôn, diagrama del cableado
e 12 sia a SD ne aw Reha yas 69
E
O
Gu Lá Co
©
Y |) oy Y)
COR 02)
pat
Q
IRAN
o D
PORN

o 20-020
Power and Sound Controls
Power
Turn the key in the ignition until the accessory in-
dicator lights.
Power on: Press [SOURCE] (PWR).
Power off: Press [SOURCE] (PWR) again and
hold.
Note: |
e When the power is switched on for the first
time, a demonstration message appears on the
display.
To cancel this display, press [DISP] (display).
Volume
[A VOL]: Up
[Y VOL]: Down
Press and hold for rapid adjustment.
Volume level (0 to 40)
Loudness (only tor main unit)
Press [LOUD] to enhance bass and treble
tones at low or medium volume.
Press [LOUD] again to cancel.
Mute
Press [MUTE] to mute the sound completely.
Press [MUTE] again to cancel.
| comam |
Level Meter (onty tor main unit)
When the power is on, the level of sound sources,
such as radio and CD, is displayed.
Press [LEVL] (level) to change the level meter dis-
play.
(Default)
| Pattern 1 |} + [ Pattern 3 |
y
4
[Pattern off] ———— [ Patten 4
Display Change
Press [DISP] (CLOCK) to switch to the clock dis-
play.
When the power is off:
Clock display
No display
Anti-volume-blast circuit:
When the power is switched off and on again,
the volume slowly rises to the previous level.
The anti-volume-blast circuit will not work when
the volume level is set lower than position 20 on
the display.

Audio Mode
(Bass/Treble/Balance/Fader)
a Press [SEL] to select the audio mode.
> >
oe
[< TUNE], [> TUNE] (Hours, minutes)
Poo La
(2) Press [A VOL] or [V VOL] to change each
level.
Bass:
WAS? SdH
Adjustable range: — 12 dB to +12 dB
(by 3 dB step)
Treble:
VRE= JAH
Adjustable range: — 12 dB to +12 dB
Balance: (re dB Step)
R {right speaker) or L (left speaker)
DRE ENT
Adjustable range: Balance center
1 to 15 (by 1 dB step)
Fader:
F (front speaker) or R {rear speaker)
Adjustable range: Fader center
1 to 15 (by 1 dB step)
Note:
o If no operation takes place for more than 5 seconds
in audio mode (2 seconds in volume mode), the dis-
play returns to the regular mode.
Clock Basics
The 12-hour system is used for the ciock.
: Initial Time
: (©) Press [DISP] (CLOCK).
Fp
BGS
Y
|
(Clock
display.)
[DISP] (CLOCK)
9 10
À A Gees es eof foe fm
==
Hours
(2) Press and hold [DISP) (CLOCK) for more than
2 seconds.
| (Hours blink.)
Minutes
(4) Press [DISP] (CLOCK).
(Minutes blink.)
(5) Press [< TUNE] or [> TUNE].
Msg (Minutes set.)
(6) Press [DISP] (CLOCK).
(End)
Note:
o Press and hold [< TUNE] or [> TUNE] for more
than 2 seconds to change numbers rapidly.
Time Reset
Press and hold [DISP] (CLOCK) for more than
2 seconds to activate the time setting mode to
reset the time.
Then, repeat steps @) to ©.
| com | 1
O Orom

12
Radio Mode ERR
Press [SOURCE] to change to -
the radio mode. | ==> | CD player
t (When a CD is inserted.)
Band
Press [BAND] to change the band. Cr)» [BR]
2
m [FE ]
FM stereo indicator
R
1 HONLE
4 19 E E
ENS ffs sms. + |
== e»)
Manual Tuning
[> TUNE]: Higher frequency
[< TUNE]: Lower frequency
Seek Tuning
Press and hold ... |
[> TUNE]: Higher frequency
[< TUNE]: Lower frequency
Tuning will automatically stop when
the signals of the next broadcast
station are received. EM broadcast:
| MONO off/
Mono/Local Selection LOCAL off
MONO: Noise is significantly decreased when weak (Default)
signals are received from an FM broadcast MONO on/
station. LOCAL off
LOCAL: Only strong signals of stations are searched MONO on/
in seek tuning, while at the LOCAL OFF set- LOCAL on
ting, relatively weak signals are also
searched. MONO off/
FM broadcast: LOCAL on
Press and hold [MUTE] (MONO/LOC) for more than AM broadcast:
2 seconds to change the mode.
Release when at the desired point. aa
AM broadcast: [ > (Default)
Press and hold [MUTE] (MONO/LOC) for more than
SEI LOCAL on
2 seconds to switch LOCAL mode on and off.
| CO-DE202U |

Preset Station Setting Display Change
Up to 6 stations each can be saved in the FM, Press [DISP] (CLOCK) to switch to the clock dis-
FM2, FM3 and AM preset station memories. play.
Note:
o
7
o New stations are overwritten on existing saved | E: a le RY? IS
stations after following this procedure. Broadcast station Clock display
1) Band
Press [BAND] to select a desired band.
(> page 12)
Preset number
ERED ae cop
Preset buttons [1] to (6)
2) Auto Preset Memory (APM)
Press and hold [BAND] (APM: auto preset
memory) for more than 2 seconds.
oThe 6 strongest available stations will be
automatically saved in the memory under
preset buttons [1] to [6].
o Once set, the preset stations are sequential-
ly scanned for 5 seconds each.
Manual Preset Memory
@ Use manual or seek tuning to find a sta-
tion. (> page 12)
@ Press and hold one of the preset buttons
[1] to [6] until the display blinks once.
Preset Station Calling
Press the corresponding preset button [1] to [6] to
tune in a preset station.
Caution:
o To ensure safety, never attempt to preset sta-
tions while you are driving.
D MEM

a Dre
14
CD Player Basics
Disc Insert and Playback
nd insert a disc when the indicator lights. |
D Open the front panel
Press [OPEN] to open the front panel.
(Eject) Label side
Disc insert
Playback will start automatically after the play-
er recognized the loaded disc as an ordinary
music CD. (When a CD-R or CD-RW which
has CD-DA formatted data as the same as an
ordinary music CD is loaded, this player rec-
ognizes it as an ordinary music CD.)
Close the front panel manually.
Stop and Disc Eject
@ Press [OPEN] on the front panel.
O) Press [4] (eject) to stop CD play and eject the disc.
Listening to a CD
CD Player Mode (when a CD is in the player)
Press [SOURCE] to change to the CD play mode.
Playback will start automatically.
Source
[ Radio ]=p[. CD player
(When a CD is inserted.) <CD player display> no
Track number Track playing time
scies 5e
e Do not insert a disc when the indicator lights.
e Lights when the disc is loaded.
Display Change
Press [DISP] (CLOCK) to switch to the clock display.
Be Bale ES
Track number/ Clock display
Track playing time
E

Caution:
© Only 5” (12 cm) CD, CD-DA data recorded CD-R and CD-RW discs are available for this unit.
© This unit does not support CD text display.
© This unit does not support MP3 disc playback.
© Refer to page 21 about notes on CD-R/RWs.
o This unit is not designed for any 3” (8 cm) disc.
o İf you insert an 3” (8 cm) disc and can not eject it, turn ACC of your car off once and turn it on again, then
press [A] (eject).
o Do not use irregular shaped discs.
© Do not use discs that have a seal or label attached.
o Do not insert foreign matter into the disc slot. -
Track Selection Direct Track Selection
(> TRACK]: Advance to the next track. o Press a track number button from [1] to [6].
[<1<TRACK]: Back to beginning of the cur- The corresponding track starts playing.
rent track. © Press and hold a track number button from [7] to
Back to previous track. (Press [12) ((1] to [6]) for more than 1 second.
twice.) The corresponding track starts playing.
Track Search
Press and hold ...
{>t TRACK]: Fast forward
[<< TRACK]: Fast backward
Release to resume the regular play.
Random play
Scan
play
Repeat
play
fess
==
8)
D
=
O)
Edo as / CERO 1. — NE
“=
o Press and hold [REP] (RANDOM) for
more than 2 seconds.
Random play All the tracks are played in random order.
o Press and hold [REP] (RANDOM) again
to cancel.
o Press [BAND] (SCAN).
The first 10 seconds of each track on the
Scan play disc are played in sequence.
o Press [BAND] (SCAN) again to cancel. Blinks.
o Press [REP].
Repeat
pla
The
current
track
is
repeated.
P
p'ay
o
Press
[REP]
again
to
cancel.
E
e
ee
T
Lights.

Y 20-032
16
Remote
Control
Unit
Preparation
Battery
Installation
Lithium
battery
@
Remove
the
battery
holder.
(included)
Pull
the
battery
holder
by
the
position
B
while
push-
ing
position
A
in
the
direction
indicated
by
the
arrow.
@ Install the battery on the battery holder.
As shown in the figure on the right, fit the battery into
the battery holder with the “+” side facing up while
pressing on position A.
© Insert the battery holder.
Push the battery holder back into its original position.
Back side
Position B
Battery
Notes
Battery
holder
Position
A
Remove and dispose of an old battery immediately.
Battery Information:
o Battery type: Panasonic lithium battery (CR2025) (included)
o Battery life: Approximately 6 months with normal use (at room temperature)
Caution:
©
Improper
use
of
batteries
may
cause
overheating,
an
explosion
or
ignition,
resulting
in
injury
or
a
fire.
Battery leakage may damage the unit.
o
Do
not
disassemble
or
short
the
battery.
Do
not
throw
a
battery
into
a
fire.
o
Keep
batteries
away
from
children
to
avoid
the
risk
of
accidents.
o
Be
careful
to
observe
proper
local
disposal
rules
when
you
dispose
of
batteries.
Control Reference Guide
Buttons
of
the
remote
control
function
in
the
same
way
as
the
controls
on
the
main
unit
of
the
reference
page.
Point the remote contro! unit at the main unit’s sensor (REMOTE).
As
(
E)
NZ
ED
m
Power
button
(PWR)
m)
=
Mute
button
(MUTE)
(=
page
10)
|
o
|
7
(page
10)
Mode
(source)
button
(MODE)
y
oe
:
(= pages 12, 14)
Volume control buttons (VOL, A Y)
(= page 10)
(5) BAND/DISCIURD
Q ES >
EE.
at
js
Band button (BAND)
(= page 12)
Note:
© Disc up button (DISC UP)
cannot be used in this
model.
| eue |
Tune/track selection and search buttons
(TUNE/TRACK, << DD/< >)
(= pages 12, 15)

Troubleshooting
Preliminary Steps Caution:
Check and take steps as described in the tables below. o Do not use the unit if it malfunctions or
is something wrong.
if You Suspect Something Wrong o Do not use the unit in abnormal condi-
Immediately switch the power off. tion, for example, without sound, or with
Disconnect the power connector and check that there is nei- smoke or foul small, which can sauna g
ther smoke nor heat from the unit before asking for repairs. nition or electric shock. Immediately
Never try to repair the unit yourself because it is dangerous to | StoP using it and call the store where
do
so.
you
purchased
it.
Troubleshooting Tips
O Common
(Toute) CauseStep i)
a Car's engine switch is not on. |
Turn your car's ignition switch to ACC or ON.
|
| Cables are not correctly connected.
| Connect cables correctly.
| Battery cable is not correctly connected.
| Connect the battery cable to the terminal that is always active.
No power. | > Accessory cable is not correctly connected.
| Connect the accessory cable to your car's ACC source.
| Grounding wire is not correctly connected.
Connect the grounding wire to a metal part of the car.
|
f
Fuse is burnt out.
Call the store where you purchased the unit, or your nearest
Servicenter {see the attached sheet) and ask for fuse replacement.
er E Mute is set to ON.
| | Set it to OFF. |
Cables are not correctly connected.
Connect cables correctly.
Condensation (dew).
Wait for a while before use.
|
Noise.
i
q
A
mobile
phone
is
used
near
the
unit.
oder
2.
ey
Keep
the
mobile
phone
away
from
the
unit.
ee
| Audio sound is uai
Demonstration mode is ON.
but the display shows |
demonstration message. |
e |
>Press [DISP] (display) to cancel demonstration mode.
60;DFE202U
17

E Troubleshooting (Continued)
O Radio
Comes)
Station is too far, or signals are too weak.
Select other stations of higher signal level.
The motor antenna relay control lead is not connected correctly.
{f there is a motor antenna in the car, connect the motor antenna
Much noise in FM stereo
and monaural broad-
relay control lead to the motor antenna lead that is installed in the
car correctly.
casts.
The radio antenna is not extended enough.
=Fully extend the radio antenna.
Preset station is reset. Battery cable is not correctly connected. |
Connect the battery cable to the terminal that is always active.
O CD
(sis TT TO)
Disc is upside down.
Place disc in the correct direction with the label side up.
e Disc is dirty.
e Disc has scratches.
Clean disc, referring to the section on “Notes on CD/CD Media (CD-
R, CD-RW)”.
Disc is in the CD com-
partment but no sound is
made, or disc is ejected
automatically. A disc that has data other than CD-DA type is loaded.
=Discs that have CD-DA type data should be used.
The unit may not be successfully play back a CD-R/RW that was
made by the combination of writing software, a CD recorder (CD-R/
RW drive) and a disc if they are incompatible one another. Refer to
instructions for the concerned devices for details.
e Disc is dirty.
e Disc has scratches.
Clean disc, referring to the section on “Notes on CD/CD Media (CD-
Sound skips, bad sound R, CD-RW)”.
quality. (e.g. caused by
noise) The unit may not be successfully play back a CD-R/RW that was
made by the combination of writing software, a CD recorder (CD-R/
RW drive) and a disc if they are incompatible one another. Refer to
instructions for the concerned devices for details.

O CD (Continued)
Sound skips due to vi-
bration. Instable mounting.
=Mount the unit securely with the mounting parts, referring to the
section on installation.
o Disc is defective.
o Mechanical trouble.
Disc is not ejected. Press [OPEN] to open the panel and press [4] (eject). If normal op-
eration is not restored, call the store where you purchased the unit
or the nearest Servicenter to ask for repairs.
The first track of a mix mode disc was reproduced. (Mix mode is a for-
Time is counted but no mat in which data except music is recorded on the first track and music
sound comes out. data is recorded on other than the first track in a session.)
Play back music data recorded on other than the first track.
O Sound Setting
i left Left and right balance, or front and rear balance is off on one side.
No sound from left, = Adjust balance/fader setting as appropriate.
right, front or rear
speakers. Cables are not correctly connected.
Connect the cables correctly.
Left and right sounds
are reversed in stereo
listening,
The right speaker wire is connected to the left speaker and the left
speaker wire to the right speaker.
Connect the speaker wires to the correct ones.
19

3 290-9020
Troubleshooting (Continued)
O Remote Control Unit
(Trouble O) [o Cause)
Rs DD, 15 polarities are reversed.
insert the battery ae DD, 15
Wrong the battery used.
Buttons are invalid er, Check the battery.
operation. Battery has run down.
: =Replace the battery.
+
Remote control unit is in the wrong direction.
| Direct the remote control unit at sensor (REMOTE) on the front
E panel.
Error Display Messages
O CD
_ Display | | D Cause/Step |
e Disc is dirty, or is upside down.
e A disc that has data other than CD-DA type is loaded.
Check disc.
Disc has scratches.
Check disc.
No operation by some cause.
=f normal operation is not restored, call the store where you pur-
chased the unit or the nearest Servicenter to ask for repairs.
Maintenance
Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry, a soft cloth for
routine exterior cleaning. Never use benzine, thinner or other solvents.
Product Servicing
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest au-
thorized Panasonic Servicenter. The product should be serviced only by a qualified technician.
Replace the Fuse
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or con-
necting the product directly without a fuse, could cause fire or damage to the stereo unit.
if the replacement fuse fails, contact your nearest Panasonic Servicenter for service.
oo
