Panasonic KX-TCD410AXM User manual

ORDER NO. KM40308175C3
Telephone Equipment
KX-TCD410AXM / KX-A141AXM / KX-A142AXM
Digital Cordless Phone
Metalic Grey Version
(for Asia, Middle Near East and Other areas)
SPECIFICATIONS
1
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

2003 Panasonic Communications Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
1. ABOUT LEAD FREE SOLDER (PbF: Pb free)
Note:
In the information below, Pb, the symbol for lead in the periodic table of elements, will refer to
standard solder or solder that contains lead.
We will use PbF solder when discussing the lead free solder used in our manufacturing process
which is made from Tin (Sn), Silver (Ag), and Copper (Cu).
This model, and others like it, manufactured using lead free solder will have PbF stamped on the PCB.
For service and repair work we suggest using the same type of solder although, with some
precautions, standard Pb solder can also be used.
Caution
- PbF solder has a melting point that is 50°F ~70°F (30°C ~ 40°C) higher
than Pb solder. Please use a soldering iron with temperature control
2
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

and adjust it to 700°F ± 20°F (370°C ± 10°C). In case of using high
temperature soldering iron, please be careful not to heat too long.
- PbF solder will tend to splash if it is heated much higher than its
melting point, approximately 1100°F (600°C).
- If you must use Pb solder on a PCB manufactured using PbF solder,
remove as much of the original PbF solder as possible and be sure
that any remaining is melted prior to applying the Pb solder.
- When applying PbF solder to double layered boards, please check the
component side for excess which may flow onto the opposite side
(See the figure below).
1.1. Suggested PbF Solder
There are several types of PbF solder available commercially. While this product is manufactured
using Tin, Silver, and Copper
(Sn+Ag+Cu), you can also use Tin and Copper (Sn+Cu) or Tin, Zinc, and Bismuth (Sn+Zn+Bi). Please
check the manufac
turer’s specific instructions for the melting points of their products and any precautions for using
their product with other
materials.
The following lead free (PbF) solder wire sizes are recommended for service of this product: 0.3mm,
0.6mm and 1.0mm.
1.2. How to recognize that Pb Free solder is used
1.2.1. Base Unit PCB
(Component View)
3
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

(Flow Solder Side View)
Note:
The location of the “PbF“ marks is subject to change without notice.
1.2.2. Handset PCB
(Component View)
(Flow Solder Side View)
Note:
The location of the “PbF“ marks is subject to change without notice.
1.2.3. Charger Unit PCB
Note:
The location of the “PbF“ marks is subject to change without notice.
2. FOR SERVICE TECHNICIANS
ICs and LSIs are vulnerable to static electricity.
When repairing, the following precautions will help prevent recurring malfunctions.
1. Cover the plastic parts boxes with aluminum foil.
2. Ground the soldering irons.
3. Use a conductive mat on the worktable.
4. Do not touch IC or LSI pins with bare fingers.
3. CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommendenced by the manufacturer.
Dispose of used batteries according to the manufacture’s Instructions.
4. BATTERY
4.1. Battery Installation
Please ensure the batteries are inserted as shown. part should be inserted first.
Close the cover as indicated by the arrow.
- When you replace the batteries, part should be removed first.
4
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

4.2. Battery Charge
At the time of shipment, the batteries are not charged. To charge, place the handset on the base unit.
Please charge the batteries for about 7 hours before initial use. During charging, the battery icon is as
shown below.
The handset which power is off will be turned on automatically when it is placed on the base unit.
In normal use, the handset and the base unit should be powered on at all times.
Note for Service:
The battery strength may not be indicated correctly if the battery is disconnected and connected
again, even after it is fully charged.
In that case, by recharging the battery as mentioned above, you will get a correct indication of the
battery strength.
4.3. Battery Life
- Battery life is dependent on use and conditions but in general when
using fully charged Ni-MH batteries (700 mAh):
Talk time: 10hrs approx.
Standby time: 120hrs approx.
5
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

- When using Ni-Cd batteries (250 mAh):
Talk time: 4hrs approx.
Standby time: 40hrs approx.
(Times indicated are for peak performance)
- The batteries reach peak performance after several full charge/
discharge cycles.
- The batteries cannot be overcharged unless they are repeatedly
removed and replaced.
- If battery life is shortened then please check that battery and charge
terminals are clean.
- For maximum battery life, it is recommended that the handset is not
recharged until battery icon flashes .

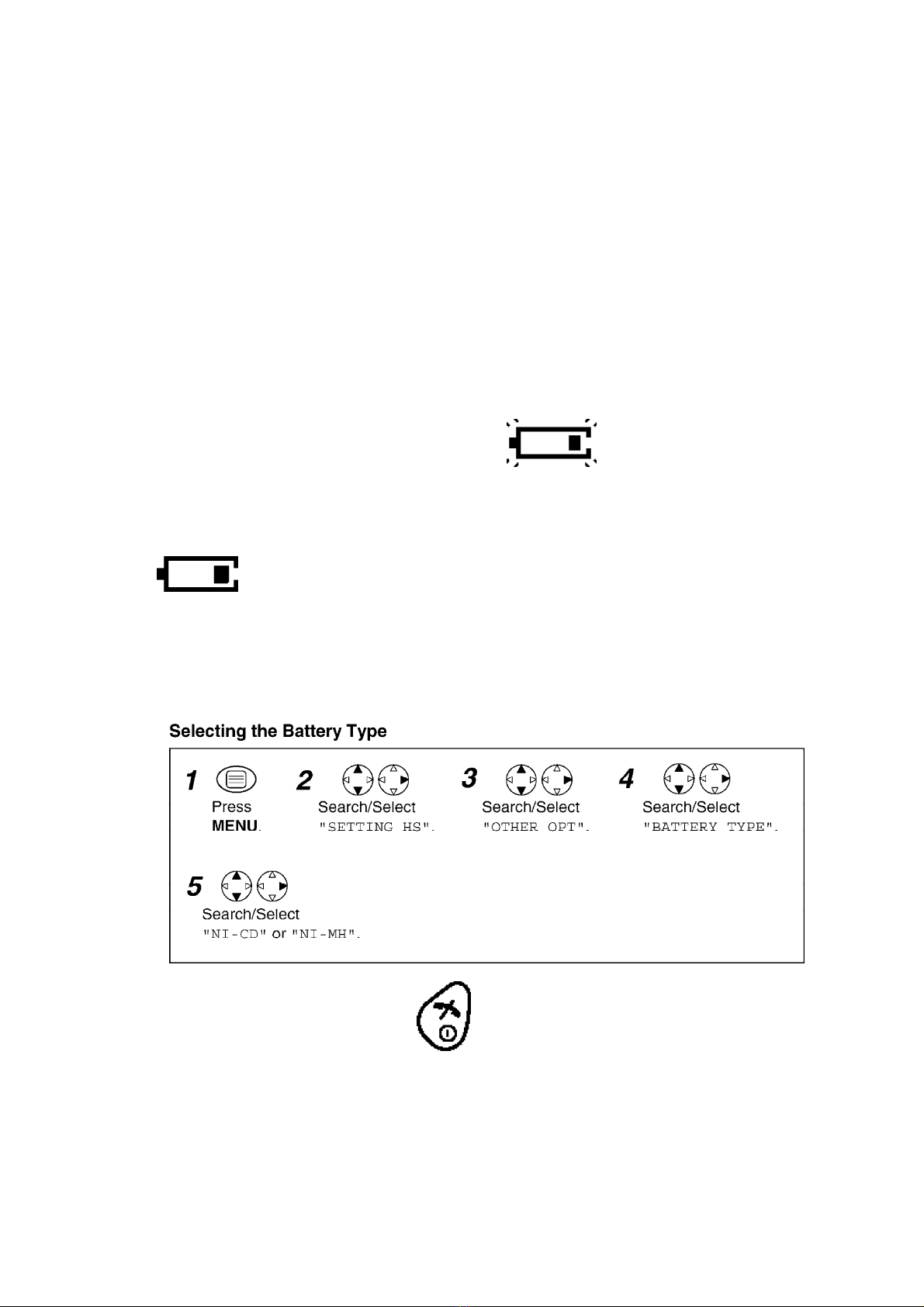

4.4. Replacing the Batteries
If the icon flashes after a few telephone calls even when the handset batteries have been
fully charged, 2 batteries must be replaced.
Charge new batteries for approximately 7 hours before initial use.
(The telephone line cord must not be connected to the telephone socket at this time).
When replacing the batteries, ensure that the correct battery type is selected.
- To exit the operation, press any time.
- Do not use non-rechargeable batteries. If non-rechargeable batteries
are fitted and start charging, it may cause the leakage of the battery
electrolyte.
Please use only Panasonic HHR-4EPT(Ni-MH) or P-4NPT(Ni-Cd) batteries.
6
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

Note for Service:
When Ni-Cd batteries are fitted with the setting in
, icon might disappear and stop charging even if the handset is
on the cradle for avoiding overcharge.
5. LOCATION OF CONTROLS
5.1. Base Unit
5.2. Handset
7
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

6. SETTINGS
6.1. Connection
6.1.1. Base Unit
Plug in the AC adaptor and the telephone line cord in order 1, 2, 3, 4.
8
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

The AC adaptor must remain connected at all times (It is normal for the adaptor to feel warm during
use).
- Never install telephone wiring during a lightning storm.
- The telephone will not work during a power failure. We therefore
recommend you use a standard telephone and T Adaptor to connect
this Digital Cordless Phone to the line. Your Panasonic Sales Shop can
offer you more information about connection possibilities.
6.1.2. Charger Unit
The AC adaptor must remain connected at all times (It is normal for the adaptor to feel warm during
use).
6.2. Symbols Used in This Service Manual
9
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

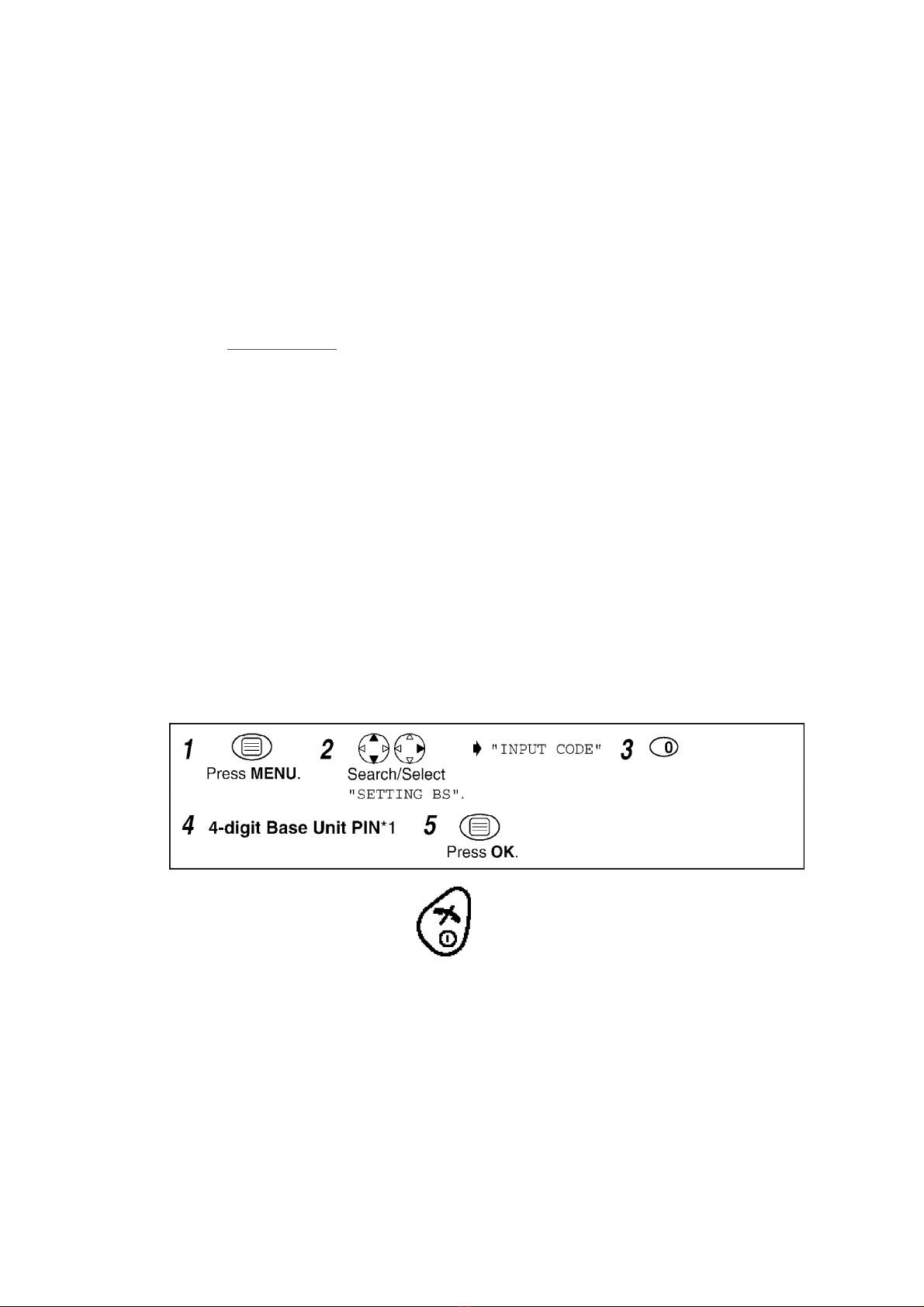

6.3. PIN Code
6.3.1. Base Unit
- To exit the operation, press any time.
For Service Hint:
* : If the current 4-digit PIN is forgotten, press and you
will be able to enter new PIN.
As for the case that Base Unit and Handset are not linked with, refer to Reset Base Unit PIN to Default
(0000) -When There is NO Handset Registered- ()

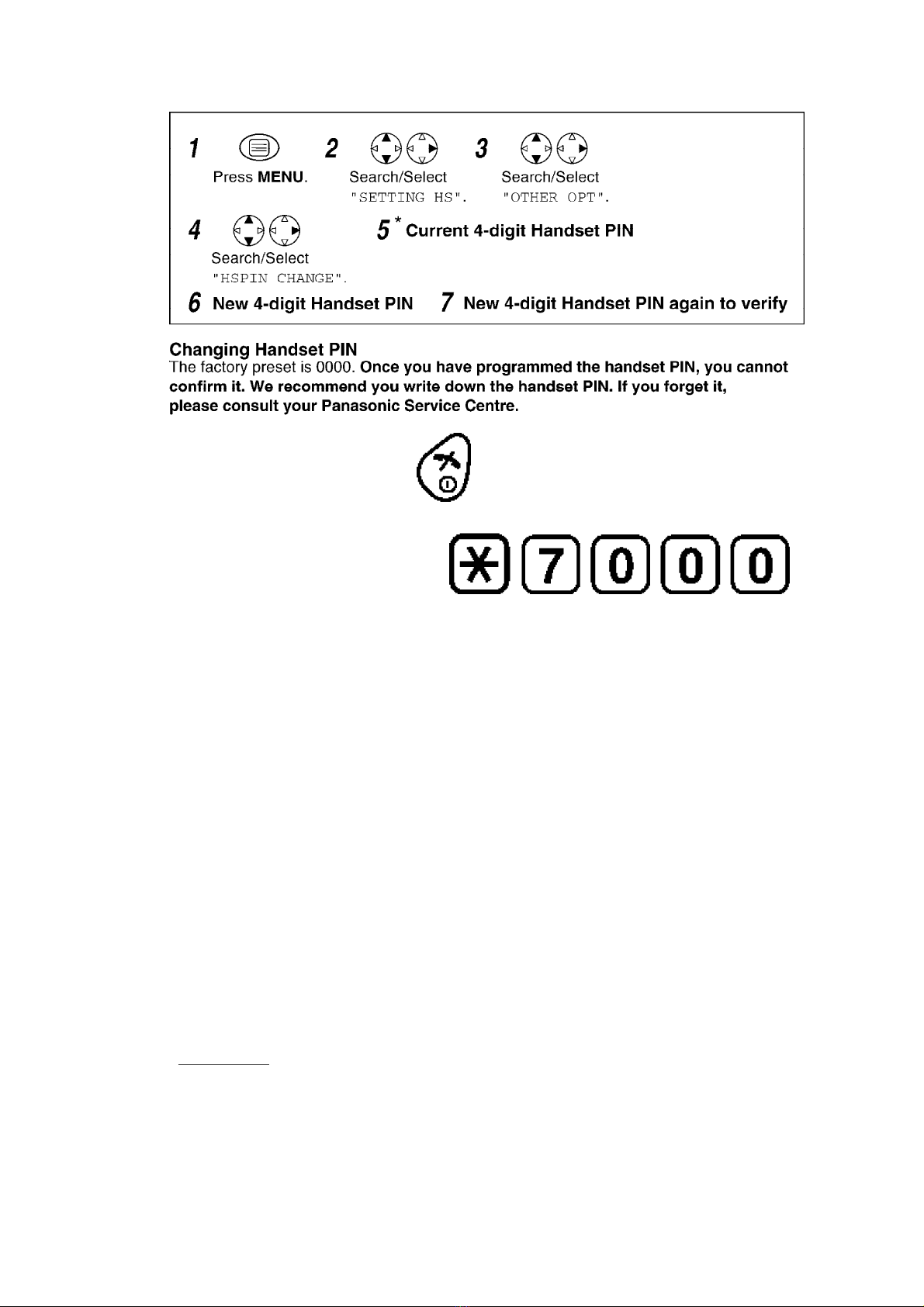

6.3.2. Handset
10
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

- To exit the operation, press any time.
For Service Hint:
* : If the current 4-digit PIN is forgotten, press and you
will be able to enter new PIN.
6.3.3. Reset Base Unit PIN to Default (0000) -When There is NO Handset Registered-
6.3.3.1. Symptom
There is no way to reset base PIN when there is no handset registered to the base.
6.3.3.2. Thinkable Situation
- Customer may ask to reset base PIN because they forget it.
- Customer may bring only a base unit for repair and there is no handset
registered to the base (Need to register another handset to the base to
confirm if the unit works properly after repair).
- When original handset has broken and customer purchased a new one,
if customer forget base PIN, customer cannot register the new handset
and may ask to reset the PIN.
6.3.3.3. Remedy
<Preparation>
Refer to JIGs and PC ().
<Connection>
1. Solder a pin or lead wire to GND, SDA, and SCLK on base PCB.
11
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

2. Plug in AC adaptor to the base.
3. Turn on the power to the JIG (9V).
4. Then connect the cable to each pins using clip.
As for the connection between JIG and PCB, see below photos.
<PC setting and how to reset base PIN to default (0000)>
1. Refer to PC Setting ().
2. Next, execute <initbspin.bat> by typing "initbspin". The PC display will
be shown as below.
3. After that, turn off DC power supply (9V) to the jig, unplug AC adaptor,
and remove pins on PCB.
Then close the cabinet. The base pin returns to the default (0000) and
you can register a handset to the base using the base PIN (0000).
6.4. Reset
6.4.1. Base Unit
If the base unit is reset, the Caller ID list will clear.
- To exit the operation, press any time.
- *1: The factory preset is 0000.
Base Unit Initial Settings
12
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

Function Initial Setting Remarks (selectable options
Ringer Mode All Handsets All Handsets/Specific Handset
N
Number of Rings 3Up to 6 rings
Flash/Earth Flash Flash/Earth
Flash Timing 600 msec 100 msec/ 300 msec/ 600 msec
Pause Timing 3 seconds 3 seconds/5 seconds
Call Restricted Handsets All Clear Each Handset can be set
indivisually.
Call Restriction Numbers All Clear Up to 10 numbers (up to 8 digit
s
4-Digit Base Unit PIN 0000 -
Dialling Mode Tone Tone/Pulse
6.4.2. Handset
You can reset all of the handset settings to their initial settings.
- To exit the operation, press any time.
- *1: The factory preset is 0000.
Handset Initial Settings
13
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

Function Initial Setting Remarks (selectable options
Time Alarm Mode OFF OFF/ON
Alarm Time Clear OFF/Once/Daily
Handset Ringer Volume 6
Handset External Ringer Pattern 120 patterns
Handset Internal Ringer Pattern 120 patterns
Handset Paging Tone Pattern 120 patterns
Handset Alarm Tone Pattern 120 patterns
Key Tone ON ON/OFF
Call Waiting Tone ON ON/OFF
Range Warning Alarm OFF OFF/ON
Battery Low Alarm ON ON/OFF
Standby Mode Display Clock Clock/OFF/Base No./Handset N
o
Talk Mode Display Talk Time Talk Time/Phone No.
Display Language English 10 languages
Call BAR OFF OFF/ON
Direct Call Mode OFF OFF/ON
Direct Call Number Clear Up to 24 digits
4-Digit Handset PIN 0000 -
Auto Talk OFF OFF/ON
Base Unit Access Automatic Base Unit Access Auto/Specific Base Unit No.
Redial Memory All Clear -
Handset Receiver Volume Medium Low/Medium/High

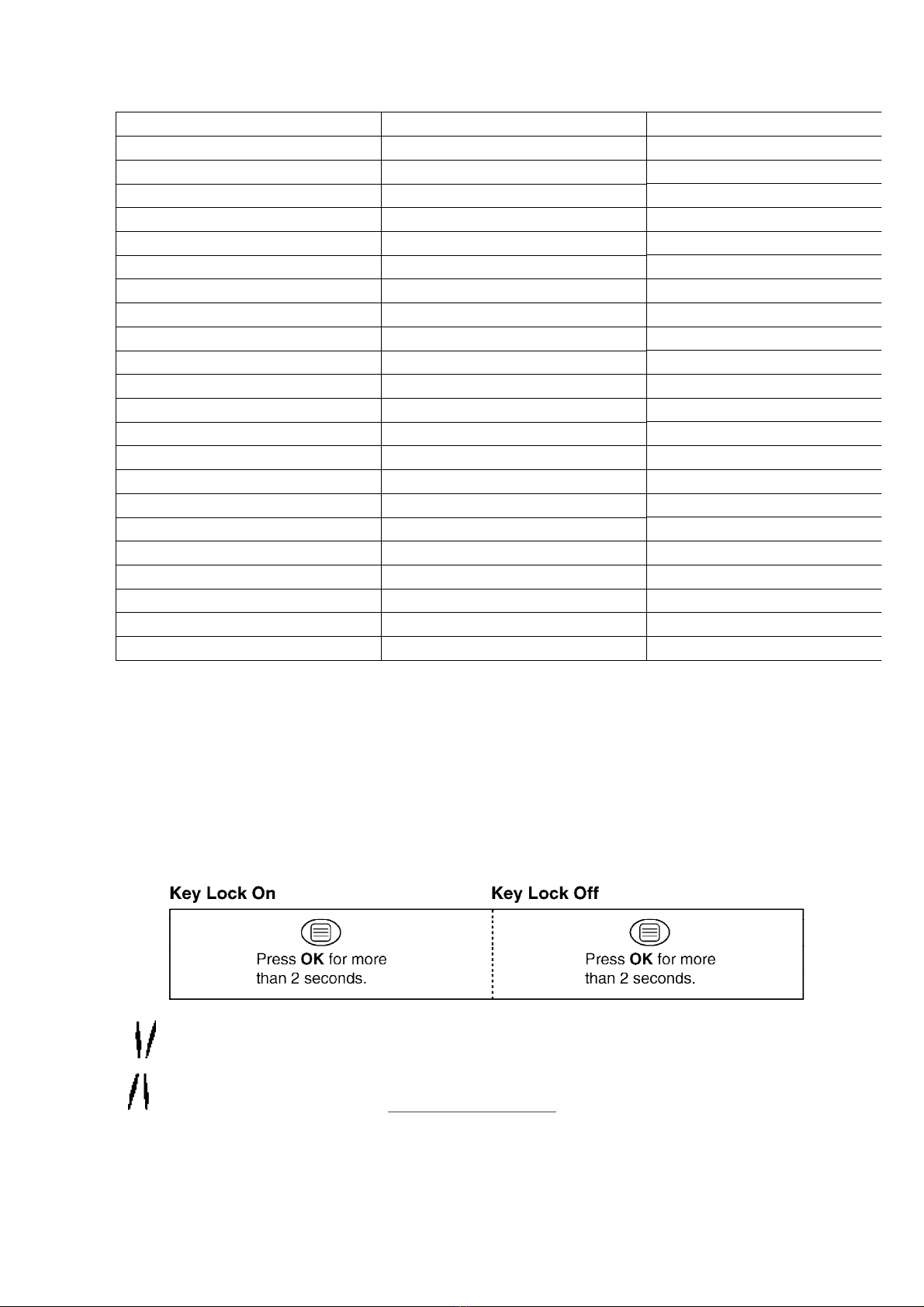

6.5. Key Lock
You can lock the handset dialling buttons. You cannot make any dialling if key lock is on. Only
incoming calls are accepted while the key lock is on. The key lock is cancelled if the handset is turned
off.
When the key lock is on, emergency calls cannot be made until key lock is cancelled.
- is displayed (Refer to Handset Display ()) and all dialling buttons are
locked.
14
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

6.6. Recall Feature
RECALL is used to access special telephone services. Contact your Network provider for details. If
your unit is connected to a PBX, pressing RECALL allows you to access some features of your host
PBX such as transferring an extension call.
6.7. Dialling Pause for PBX line/long distance service users
A dialling pause is used when a pause in the dialling of the phone number is necessary using a PBX
or accessing a long distance service.
For example, when 9 (line access number) is dialled followed by a pause to access an outside line
through a PBX:
- Entering a pause prevents misdialling when you redial or dial a stored
number.
- Pressing PAUSE once creates one pause. To extend the pause
requirement time, press PAUSE accordingly.
*1 is displayed (Refer to Handset Display ()) on the LCD.
6.8. Call Restriction
You can restrict selected handset(s) from dialling selected phone numbers. You can assign up to 10
call restriction numbers (up to 8 digits). If you dial a restricted number, the call does not connect and
restricted number flashes.
15
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

- To exit the operation, press any time.
- *1: The factory preset is 0000.
- *2: The selected handset number flashes.
6.9. Cancelling Call Restricted Handset(s)
- To exit the operation, press any time.
- *1: The factory preset is 0000.
- *2: The selected handset(s) will stop flashing.

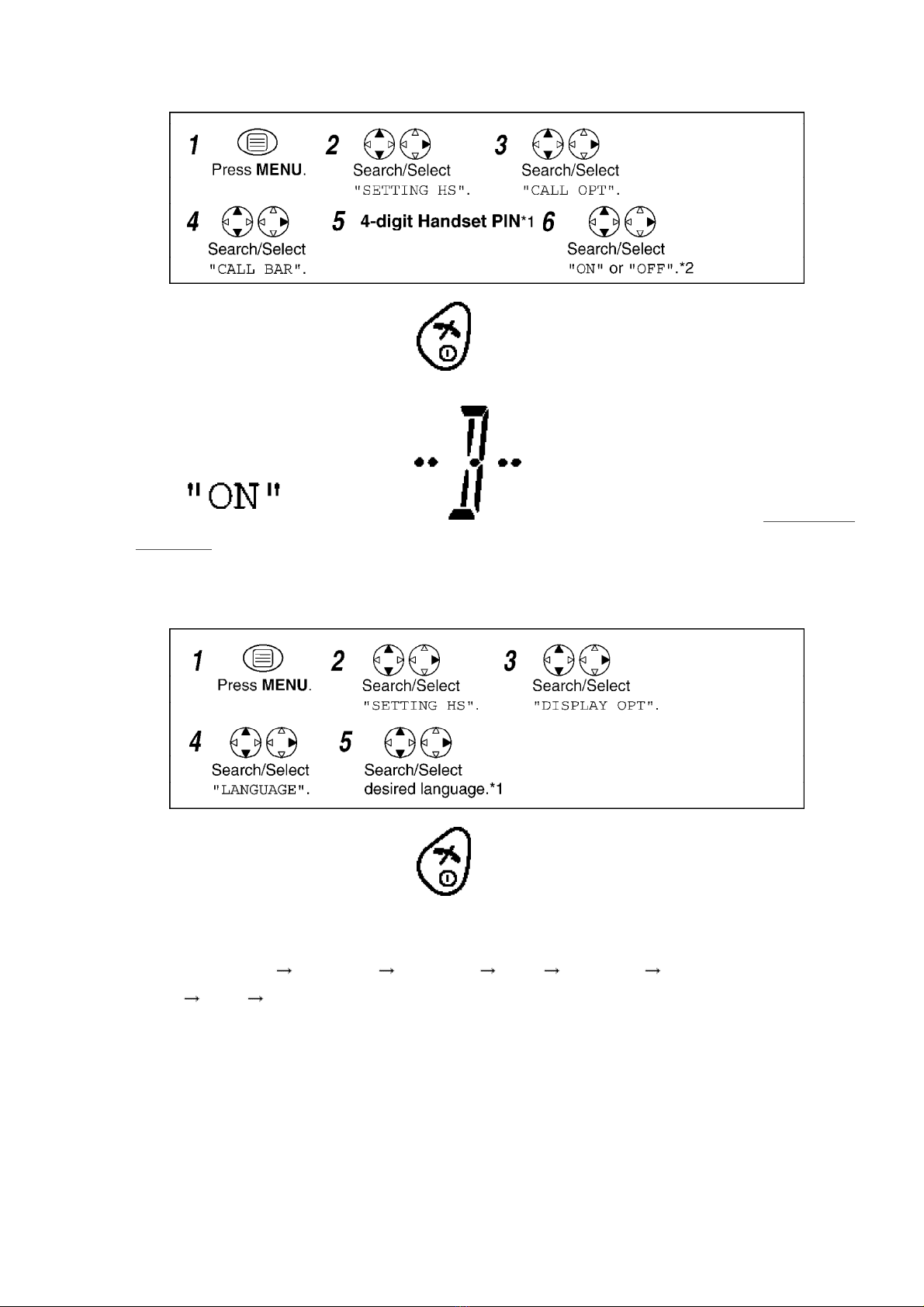

6.10. Call BAR On/Off (Call Prohibition On/Off)
You cannot make any dialling if Call BAR is on.
When Call BAR is on, emergency calls cannot be made until Call BAR is cancelled.
16
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

- To exit the operation, press any time.
- *1: The factory preset is 0000.
- *2: If is selected, is dispalayed (Refer to Handset
Display ()).
6.11. Selecting the Display Language
- To exit the operation, press any time.
- *1 You can select one of 10 languages. If you set a language you cannot
read, reset the handset to its initial settings.
Press MENU DOWN RIGHT UP RIGHT 4-digit Handset
PIN UP OK
All handset setting will be reset to their initial settings, however, the
Phonebook data will be saved.
6.12. Selecting Dialling Mode (Tone/Pulse)
You can change the dialling mode to tone or pulse depending upon your network service. If you have
17
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

a touch tone service, select tone. If you have rotary or pulse service, select pulse.
- To exit the operation, press any time.
- *1 The factory preset is 0000.
6.13. Summary of Programmable Functions
You can select and execute the following functions by pressing direct command as follows without
programming.
These operations need to be done with the Handset near the base unit.
Press . Press or until the arrow points to
, then press .
is displayed.*1
18
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

*1 If any key is not pressed over 60 seconds, the display will return to “Setting Base”.
*2 Refer to PIN Code () for more details.
7. DISPLAY
7.1. Handset Display
For Service Hint:
icon will be displayed if the unit took a signal from Telephone Company as a Voice
Message signal.
In that case, press the right button of the Navigator Key for a while.
7.2. Before Requesting Help (Troubleshooting)
If you experience any problems with the normal use of your apparatus, you should unplug it from the
telephone outlet and connect a known working telephone in its place.
If the known working telephone still has problems, then please contact the customer service
department of your Network provider.
If it operates correctly, then the problem is likely to be a fault in your apparatus.
In this case, contact your supplier for advice. Your Network provider may charge you if they attend a
service call that is not due to apparatus supplied by them.
Turn the power OFF then ON (Handset) / Disconnect then connect the AC adaptor (Base Unit).
19
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland

Cross Reference:
Power On/Off ()
Call BAR On/Off (Call Prohibition On/Off) ()
Key Lock ()
Call Restriction ()
8. OPERATIONS
8.1. Power On/Off
20
www.freeservicemanuals.info
11/8/2014
Digitized in Heiloo, Holland
