Panasonic Lumix DMC-ZS20 Installation and service instructions

Basic Owner's Manual
Digital Camera
DMC=ZS20
DMC-ZS19
Before connecting, operating or adjusting this product,
please read the instructions completely,
5",; PTM
More detailed instructions on the operation of
this camera are contained in "Owner's Manual
for advanced features (PDF format)" in the
supplied disc. Install it on your PC to read it.
F-_ VQT4B72
MO112KZO

DearCustomer,
ThankyouforchoosingPanasonic!
Youhavepurchasedoneofthemostsophisticated and reliable products
on the market today. Used properly, we're sure it will bring you and your
family years of enjoyment. Please take time to fill in the information below.
The serial number is on the tag located on the underside of your camera.
Be sure to retain this manual as your convenient camera information
source.
Date of Purchase Dealer Phone No.
I Dealer Purchased From Model No.
._DealerAddress Serial No.
Please note that the actual controls and components, menu items, etc.
of your Digital Camera may look somewhat different from those shown in
the illustrations in this Owner's Manual.
Carefully observe copyright laws.
• Recording of pre-recorded tapes or discs or other published or broadcast material
for purposes other than your own private use may infringe copyright laws. Even
for the purpose of private use, recording of certain material may be restricted.
i _ Alithium ion battery that is recyclable powers
the product you have purchased. Please call
1-800-8-BATTERY for information on how to recycle
this battery.
2VQT4B72 (ENG)

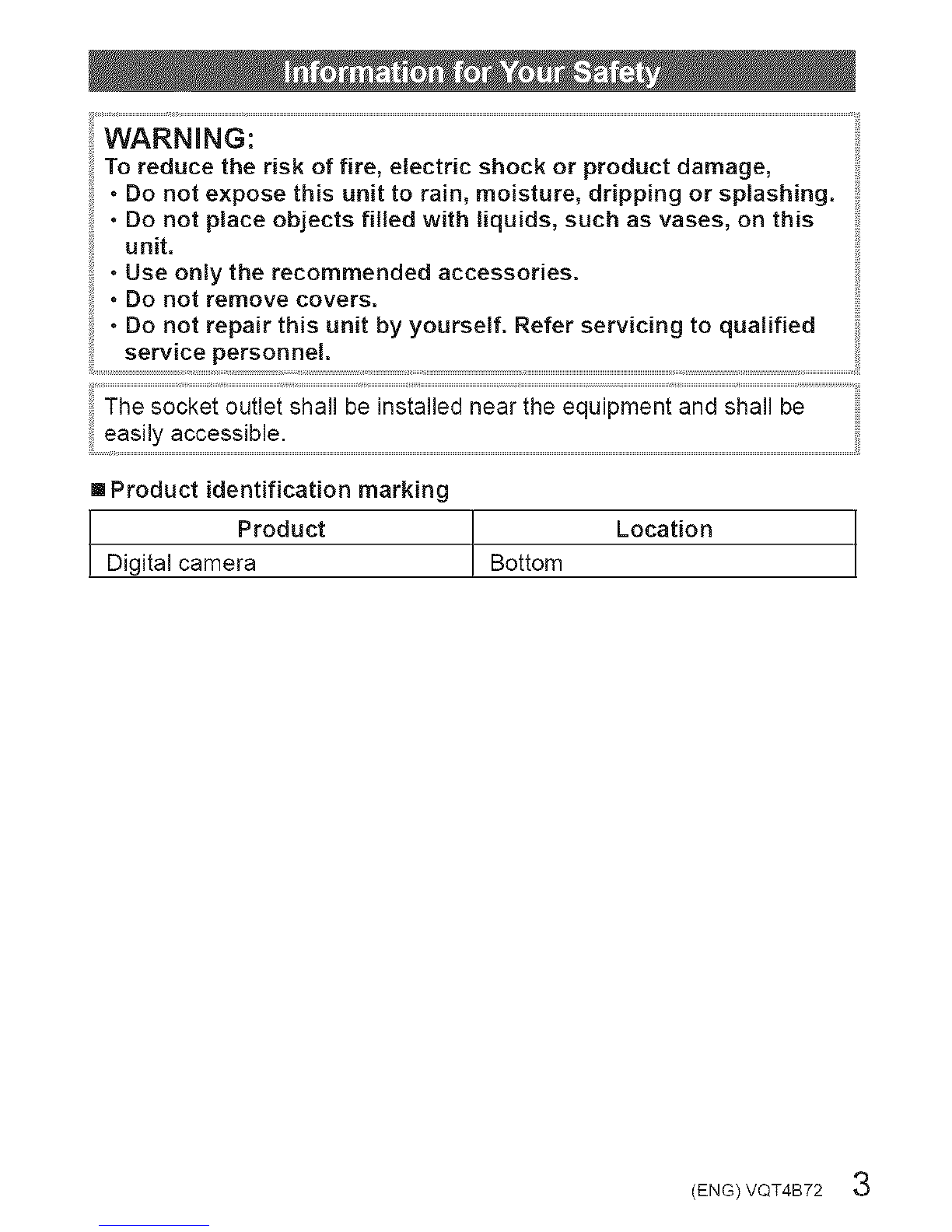

WARNING:
To reduce the risk of fire, electric shock or product damage,
• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this
unit.
•Use only the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified
service personnel.
The socket outlet shall be installed near the equipment and shall be
easily accessible.
[] Product identification marking
Product
Digital camera Bottom
Location
(ENG) VQT4B72 3

FCC Note:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
. Reorient or relocate the receivingantenna.
. Increasethe separation between theequipment and receiver.
. Connect the equipment into an outlet ona circuit different from that to which
the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, follow the attached
installation instructions and use only shielded interface
cables with ferrite core when connecting to computer or
peripheral devices.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
this equipment.
Declaration of Conformity
Trade Name: Panasonic
Model No.: DMC-ZS20 /DMC-ZS19
Responsible Party: Panasonic Corporation of
North America
One Panasonic Way,
Secaucus, NJ 07094
Support Contact: Panasonic Consumer
Marketing Company of
North America
1-800-211-PANA (7262)
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
_Pa.asonJc
DMC-ZS20
_Pa.asonic
DMC-ZS19
]
]
4VQT4B72 (ENG)

[] About the battery pack
CAUTION
Battery pack (Lithium ion battery pack)
• Use thespecified unit to rechargethe battery pack.
• Donot use the battery pack with equipment other thanthe specified unit.
• Donot get dirt,sand, liquids,or other foreign matteron theterminals.
• Donot touch the ptugterminals (+ and-) with metal objects.
• Donot disassemble, remodel, heator throw into fire.
If any electrolyte should come into contact with your hands or clothes,
wash it off thoroughly with water.
If any electrolyte should come into contact with your eyes, never rub
the eyes. Rinse eyes thoroughly with water, and then consult a doctor.
CAUTION
• Danger of explosion if battery is incorrectly replaced. Replace only
with the type recommended by the manufacturer.
• When disposing the batteries, please contact your local authorities or
dealer and ask for the correct method of disposal.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a
long period of time with doors and windows closed.
| Risk of fire_ssemble, heat above
60 °C (140 °F) or incinerate. ,I
(ENG) VQT4B72 5

[] About the AC adaptor (supplied)
CAUTION!
To reduce the risk of fire, electric shock or product damage,
• Do not install or place this unit in a bookcase, built-in cabinet or in
another confined space. Ensure this unit is well ventilated,
AC adaptor
This AC adaptor operates on AC between 110V and 240V.
But
• In the U.S.A. and Canada, the AC adaptor must be connected to a
120V AC power supply only.
• When connecting to an AC supply outside of the U.S.A. or Canada,
use a plug adaptor to suit the AC outlet configuration.
6 VQT4B72 (ENG)

[] Cautions for Use
• Do not use any other USB connection cables except the supplied one.
• Always use a genuine Panasonic HDMI mini cabte
(RP-CDHM15, RP-CDHM30: optional).
Part numbers: RP-CDHM15 (1.5 m) (4.9 feet), RP-CDHM30 (3.0 m) (9.8 feet)
• Always use a genuine Panasonic AV cable (DMW-AVCI: optional).
Keep this unit as far away as possible from electromagnetic equipment (such
as microwave ovens, TVs, video games etc.).
• If you use this unit on top of or near a TV, the pictures and/or sound on this unit
may be disrupted by electromagnetic wave radiation.
• Do not use this unit near cell phones because doing so may result in noise
adversely affecting the pictures and/or sound.
• Recorded data may be damaged, or pictures may be distorted, by strong
magnetic fields created by speakers or large motors.
• Electromagnetic wave radiation generated by microprocessors may adversely
affect this unit, disturbing the pictures and/or sound.
• If this unit is adversely affected by electromagnetic equipment and stops
functioning properly, turn this unit off and remove the battery or disconnect AC
adaptor (supplied). Then reinsert the battery or reconnect AC adaptor and turn
this unit on.
Do not use this unit near radio transmitters or high-voltage lines.
• If you record near radio transmitters or high-voltage lines, the recorded pictures
and/or sound may be adversely affected.
For information about the software used for this product, press [MENU/SET] and
se ect [Setup] to d sp ay [Vers on D sp. before press ng [MENU/SET aga n.
This product is licensed under the AVC patent portfolio license for the personal
and non-commercial use of a consumer to (i) encode video in compliance with
the AVC Standard ("AVC Video") and/or (ii) decode AVC Video that was encoded
by a consumer engaged in a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC Video. No license is
granted or shall be implied for any other use. Additional information may be
obtained from MPEG LA, LLC.
See http://www.mpeg a.com.
(ENG)VQT4B72 7

Information for Your Safety ....... 3
Before use ................................... 9
Standard accessories .............. 10
Names and Functions of
Main Parts ................................. 11
Touch operations ...................... 12
inserting and removing the
card (optional)/the battery ....... 13
Charging the battery ................ 14
Setting the clock ....................... 15
Setting the menu ...................... 17
Taking pictures ......................... 18
Taking motion pictures ............ 19
Viewing your pictures
[Normal Play] ............................ 20
Deleting pictures ...................... 20
GPS and map functions
.................................... 21
Reading the Owner's Manual
(PDF format) .............................. 25
Installing supplied software ....26
Specifications ........................... 27
Digital Camera Accessory
System ....................................... 30
Digital Camera Accessory
Order Form ................................ 31
Limited Warranty
(ONLY FOR U.S.A. AND
PUERTO RICO) ......................... 32
_#When operation or other information is more or less the same between models,
DMC-ZS20 is used as examples for the instructions provided in this manual.
_#The operations, procedures, or functions that differ among models are indicated
separately, together with the relevant model number.
(Example)
8 VQT4B72 (ENG)

Before use
[] Camera handling
@Keep the camera away from excessive vibration, force, or pressure.
@The camera is not dust resistant, splash resistant, or waterproof.
Avoid using the camera in places with excessive dust or sand, or
where water can come into contact with the camera.
[] Condensation (When the lens or the LCD monitor is fogged up)
@Condensation may occur when the camera is exposed to sudden
changes of temperature or humidity. Avoid these conditions, which
may make the lens or LCD monitor dirty, cause mold, or damage the
camera.
@If condensation does occur, turn off the camera and wait about two
hours before using it. Once the camera adjusts to the surrounding
temperature, the fogging will clear naturally.
(ENG) VQT4B72 9

Standard accessories 1
Check that all the accessories are supplied before using the camera. Part
numbers are as of January 2012.
[] Battery pack
DMW-BCG10PP
• Charge the battery [] DVD
VFF0974
before use.
Battery pack is indicated as
battery pack or battery in the
text.
[] AC adaptor
VSK0768
[] Hand strap
VFC4297
• Software:
Use it to install the software
on your PC.
• Map data
• Owner's Manual for
advanced features
DVD is indicated as disc in
[] USB connection
cable
K1HY08YY0025
the text.
[] CD-ROM
VFF0999
• Software:
Use it to install the software
on your PC.
• Owner's Manual for
advanced features
CD-ROM is indicated as disc
in the text.
• SD Memory Card, SDHC Memory Card and SDXC Memory Card are
indicated as card in the text.
• Memory cards are optional. You can record or play back pictures on the
built-in memory when you are not using a card.
• For information about optional accessories, refer to the "Digital Camera
Accessory System".
• If any accessories are lost, customers should contact Panasonic's parts
department at 1 800 833-9626 for further information about obtaining
replacement parts.
• Please dispose of all packaging appropriately.
• Keep small parts in a safe place out of the reach of children.
• The illustrations and screens in this manual may differ from the actual
product.
10 VQT4B72 (ENG)

Names and Functions of Main Pa_s
Camera ON/OFF switch
Shutter button
Mode dial
Assist Lamp
barrel
Zoom lever
GPS status
[EXPOSURE] button
[MAP] button--
LCD monitor
Cursor buttons
[DISP,] button
[Q,MENU]/[_ /_] (DeletelCancel
button
void dropping the camera.
Built-in GPS antenna
Microphone
Speaker picture button
socket
OUT/DIGITAL]
socket
'MENU/SET] button
Charging lamp
Tripod receptacle
• Ensure that the tripod is stable.
Card/Battery door
lever
(ENG) VQT4B72 11

Touch operations 1
This camera's touch screen senses pressure that is applied to the screen.
Touch
To "touch" isto press the touch screen and then pull
the finger back again.
Touching is used to select icons or pictures, among other
actions.
.Touch an icon near its center. If multiple icons are touched
simultaneously, the camera may not operate normally.
Drag
To "drag" is to touch and slide your finger across the
touch screen surface.
Dragging (sliding your finger across the screen) is used
to scroll the pictures or change the range of the pictures
displayed.
®If the type of sheet made to protect LCD screens that are available in
the market is to be used, observe the precautions that are contained
with the sheet. (Some types of protective sheets may impair the
screen's appearance and ease of operation.)
®If the camera is used with aprotective sheet available on the market
attached to its screen or if the screen is not very responsive, touch the
screen with a little more pressure.
®if your hand is pressed against the touch screen when holding the
camera, the touch screen will not work properly.
®Do not press on the LCD monitor with hard pointed tips, such as bail
point pens.
€,Do not press the touch screen with your fingernails.
®Clean the LCD monitor with a soft, dry cloth if there are fingerprints or
other kinds of dirt on it.
12 VQT4B72 (ENG)

_nseAing and removing the card (optiona})/
the battery
To charge the battery, insert it into the camera.
Set the camera ON/OFF switch
to OFF and slide the release
lever (@) to [OPEN] before
opening the card/battery door [OPEN] [LOCK]
_ Insert the battery and card,
making sure that their
orientation is correct
• Battery: Insert all the way firmly until a
locking sound is heard, and check
that it is locked by lever ((_)),
• Card: Insert all the way firmly until it
clicks.
_ Close the card/battery door
Slide the release lever to the [LOCK]
position.
o not touch the
terminals on the
back of the card.
IITo remove
• To remove battery:
Move lever in direction of arrow. •To remove card:
Push the card until it clicks,
then pull the card out.
®Always use genuine Panasonic batteries (DMW-BCG10PP).
®if you use other batteries, we cannot guarantee the quality of this
product.
®,Keep the Memory Card out of reach of children to prevent swallowing.
®We recommend using a Panasonic Memory card.
(ENG)VQT4B72 13

Charging the batterj
•The battery is not charged when the camera is shipped. Charge
the battery before use.
• Charge the battery with the AC adaptor (supplied) indoors (10 °C
to 30 °C (50 °F to 86 °F)).
• Always use the dedicated AC adaptor (supplied), USB connection
cable (supplied), and battery.
•To charge the battery, insert it into the camera.
• Make sure that the camera is turned off.
_ onnect the AC adaptor (_)) (supplied) and the
camera using the USB connection cable ((_)
(supplied), and plug the AC adaptor (_)) (supplied)
into the electrical outlet
©
To the electrical outlet
_Do not use any other USB connection cables except the supplied one.
Doing so may cause malfunction of the camera.
_Do not use any other AC adaptors except the supplied one.
Charging lamp (_) 1
n: Charging in progress
ff: Charging stops
mAhout batteries that you can use with this unit
The batterythat can be used with this unit is DMW-BCG10PP.
14 VQT4B72 (ENG)

Setting the clock
The clock is not set when the camera is shipped.
Set REC/PLAY switch to !1_ before turning the camera on.
_Turn camera on (_)
the
_ Press [MENU/SET] (®)
Press _ _ to select the items
(year, month, day, hour, minute,
display order or time display
format), and press A T to set
_Press [MENU/SET] to set
_ Confirm the setting and press [MENU/SET]
•To return to the previous screen, press [_ /2:_].
Go to step _.
The clock setting procedure is completed with step _.
_ Press 4 to select [Yes] and press [MENU/SET]
if automatically correcting time of day using the
GPS function
•To manually set date and time _select [No].
•When you select automatic time adjustment using the GPS
function, [GPS Setting] is set to [ON].
/ENG/Va_4B7215

the c_ock
When [Please set the home area] is displayed,
press [MENU/SET]
_ ress 4 I_ to set your home area
and press [MENU/SET]
The current time and home area are set.
Can_e_ S_l_ct _Se_
inTo change the time setting
Select [Clock Set] from [Rec] or [Setup] menu, perform _ and _.
16 VQT4B72 (ENG)

Setting the menu
Refer to the following procedures to operate the menus.
Example: Setting [AF Mode] from [] to 'A; in the [Program AE] Mode
_Press [MENU/SET] to display the menu @
Use cursor button to select [Rec] and
press [MENU/SET].
• The menu type can also be selected by
touch operations.
_ ress A • to select [AF Mode]
and then press [MENU/SET]
• Depending on the item, its setting may not
appear or it may be displayed in a different
way.
_ ress A _' to select :A: and then
press [MENU/SET] to set
Press [_ _] several times to
close the menu
(ENG)VQT4B72 17

Taking pictures
Turn the camera on (_))
_ lide the REC/PLAY switch ((_)
to 0
Set to the desired recording mode
(©)
Shutter button
==Recording mode
Take pictures with automatic settings,
pThe subjects are recorded using your own settings.
AThe shutter speed is automatically determined by the aperture value you
set,
The aperture value is automatically determined by the shutter speed you
S set,
M The exposure is adjusted by the aperture value and the shutter speed
that are manually adjusted,
C1 Use this mode to take pictures with previously registered setting.
C2
Record 3D still pictures,
SCN Take pictures according to the scene.
Take pictures while confirming the picture effect.
a picture
Press halfway Press fully
(press lightly and focus) (press the button
all the way to record)
18 VQT4B72 (ENG)

Taking motion pictures
Recording mode: __[_]_ ,_;__
You can record motion pictures with audio (stereo). Zoom can also be
used during recording.
_ lide the REC/PLAY switch (_))
to 0
_ ress the motion picture button ((_)
to start recording
Press the motion picture button ((_)
again to end recording
Remaining recording time (approx.)
Elapsed recording time
®We recommend you use a battery with sufficient battery power when
recording motion pictures.
®Immediately release the motion picture button after pressing it all the
way.
®You can continuously record a motion picture in [MP4] for up to
29 minutes 59 seconds or approx. 4 GB. in this case, you can
continuously record a motion picture in [FHD] for up to approx.
27 minutes 12 seconds.
®If [Rec Quality] of [AVCHD] motion pictures is set to [GPH]
[PSH], [GFS] or [FSH], you can continuously record a motion
picture for up to 29 minutes 59 seconds.
®If the surrounding temperature is high, or a motion picture is
recorded continuously, _ is displayed and recording may be
stopped halfway through to protect the camera. (Only when [Rec
Quality] is set to [GPH] , [PSH], [GFS] or [FSH])
®You can record a motion picture to the built-in memory only in [MP4]
using the [VGA] setting.
(ENG)VQT4B72 19

Viewing your pictures ENorma_P_ay_
_ lide the REC/PLAY switch (_)
to [_
Drag your finger
across the screen,
and select the
picture to be played
back
_To play back a motion picture, touch D or press A after selecting a
picture.
_You can print pictures by connecting a camera to your computer or
printer, or by giving an SD card to a shop assistant at a photo shop.
Demeting pictures
Deleted pictures cannot be recovered,
_ ress [_ /_] (_:))to delete the
displayed picture
_ ress 4 to select [Yes] and then
press [IVlENU/SET] ((_)
20 VQT4B72 (ENG)
