Panasonic SC-VKX60 User manual

GC GS
Operating Instructions
DVD Stereo System
Model No. SC-VKX60
Panasonic Corporation
Web Site: http://panasonic.net
Ar
RQTX1215-G
L1010CH0
Pe
En
Dear Customer
Thank you for purchasing this system.
For optimum performance and safety, read these instructions
fully before you connect, operate or adjust this system.
Keep this manual for future reference.
Your system and the illustrations can look differently.
Region code
This system plays DVD-Video that has the region code “2” or
“ALL”:
Example:
235
2
Supplied accessories
Check and identify the supplied accessories.
1 x AC mains lead
For Saudi Arabia and Kuwait
For others
1 x Video cable
1 x Remote control
(N2QAYB000568)
1 x FM indoor antenna
1 x AM loop antenna
2 x Remote control batteries
VKX60_GC_1En.indd 1VKX60_GC_1En.indd 1 10/6/2010 5:18:52 PM10/6/2010 5:18:52 PM

ESSENTIAL TO READ
2
2
ENGLISH
ENGLISH
RQTX1215
Do the procedures with the remote control. You can also use the
buttons on the main unit if they are the same.
System SC-VKX60
Main unit SA-VKX60
Speakers SB-AKX70
For Saudi Arabia and Kuwait
CAUTION!
Set the voltage selector to the AC voltage in your area (Z7,
“Making the connections”). If not, the system can be damaged
or cannot operate correctly.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,
• DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED
WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.
• USE ONLY THE RECOMMENDED ACCESSORIES.
• DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
Back of product
- If you see this symbol -
Information on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the
correct method of disposal.
The socket outlet shall be installed near the equipment and easily
accessible.
The mains plug of the power supply cord shall remain readily
operable.
To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from AC receptacle.
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile
telephone.
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
Windows Media and the Windows logo are trademarks or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
This product is protected by certain intellectual property rights of
Microsoft Corporation and third parties. Use or distribution of such
technology outside of this product is prohibited without a license
from Microsoft or an authorized Microsoft subsidiary and third
parties.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
Inside of product
VKX60_GC_1En.indd 2VKX60_GC_1En.indd 2 10/6/2010 5:18:54 PM10/6/2010 5:18:54 PM

ESSENTIAL TO READ
3
3
ENGLISH
ENGLISH
RQTX1215
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight,
high temperatures, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components, thereby
shortening the unit’s service life.
Place it at least 15 cm away from wall surfaces to avoid distortion and
unwanted acoustical effects.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit
and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other places where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged.
Poor connection and lead damage can cause fire or electric shock.
Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC mains
lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric
shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric
shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the unit from the
power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted,
indicators fail to light, smoke appears, or any other problem that is
not covered in these instructions occurs, disconnect the AC mains
lead and contact your dealer or an authorised service centre.
Electric shock or damage to the unit can occur if the unit is repaired,
disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power source
if it is not to be used for a long time.
Manufactured under license under U.S. Patent #’s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS and the Symbol are
registered trademarks, & DTS 2.0+ Digital Out and the DTS logos
are trademarks of DTS, Inc. Product includes software. © DTS,
Inc. All Rights Reserved.
DivX®, DivX Certified®and associated logos are trademarks of
DivX, Inc. and are used under license.
This product is licensed under the MPEG-4 Visual patent portfolio
license for the personal and non-commercial use of a consumer
for (i) encoding video in compliance with the MPEG-4 Visual
Standard (“MPEG-4 Video”) and/or (ii) decoding MPEG-4 Video
that was encoded by a consumer engaged in a personal and
non-commercial activity and/or was obtained from a video provider
licensed by MPEG LA to provide MPEG-4 Video. No license is
granted or shall be implied for any other use. Additional information
including that relating to promotional, internal and commercial uses
and licensing may be obtained from MPEG LA, LLC. See
http://www.mpegla.com.
U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and
5,583,936.
This product incorporates copyright protection technology that is
protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
Note on AC mains lead
For Saudi Arabia and Kuwait
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differs according to the type of AC mains plug
(figures A and B). Confirm the AC mains plug fitted and follow the
instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A Figure B
2. Replace the fuse and close or attach the fuse cover.
Figure A Figure B
Fuse cover
Fuse
(5 ampere)
Fuse
(5 ampere)
VKX60_GC_1En.indd 3VKX60_GC_1En.indd 3 10/6/2010 5:18:54 PM10/6/2010 5:18:54 PM

4
RQTX1215
4
ENGLISHENGLISHENGLISHENGLISH
Table of contents
ESSENTIAL TO READ
Note on AC mains lead .............................................................................................. 3
Safety precautions ..................................................................................................... 3
GETTING STARTED
Preparing the remote control .................................................................................... 5
Placement of speakers............................................................................................... 5
Making the connections............................................................................................. 6
Overview of controls.................................................................................................. 8
EASY SETUP............................................................................................................. 10
Setting the clock....................................................................................................... 10
Smart control ............................................................................................................ 10
DISC OPERATIONS
Playing discs............................................................................................................. 11
Using the navigation menus.................................................................................... 12
Using on-screen menus........................................................................................... 12
OTHER OPERATIONS
USB – Play and record............................................................................................. 14
Cassette tape – Play and record ............................................................................. 16
FM/AM radio.............................................................................................................. 16
Using the timer ......................................................................................................... 17
Using sound effects ................................................................................................. 17
Using microphones.................................................................................................. 18
Using external equipment........................................................................................ 19
Changing system settings....................................................................................... 20
Changing the main unit and remote control mode ............................................... 21
REFERENCES
Playable discs........................................................................................................... 22
About DivX ................................................................................................................ 23
Language code list................................................................................................... 23
Troubleshooting guide............................................................................................. 24
Maintenance.............................................................................................................. 26
Specifications ........................................................................................................... 27
VKX60_GC_1En.indd 4VKX60_GC_1En.indd 4 10/6/2010 5:18:54 PM10/6/2010 5:18:54 PM

GETTING STARTED
5
5
ENGLISHENGLISH
RQTX1215
Placement of speakers
The right and left speakers are the same.
Use only the supplied speakers.
The combination of the main unit and speakers give the best sound.
You can cause damage to the system and decrease the sound
quality if you use other speakers.
Note:
• Keep your speakers more than 10 mm from the main unit for
ventilation.
• Put the speakers on a flat safe surface.
• When you play at high levels for a long period, it can cause
damage to the system and decrease the life of the system.
• Decrease the volume in these conditions to prevent damage:
– When you play distorted sound.
– When you adjust the sound quality.
Irregular colour on your TV
The setup condition of the speakers can cause unwanted effects to
the picture of the TV.
If this occurs, switch off the TV for 30 minutes.
If the demagnetising of the TV does not correct the problem, increase
the distance between the speakers and the TV.
CAUTION!
• Use the speakers only with the recommended system. If not,
you can cause damage to the amplifier and speakers and
can cause a fire. Consult an approved service personnel if
damage occurs or if there is a sudden apparent change in
performance.
• Do the procedures included in these instructions when you
attach the speakers.
Preparing the remote control
Use alkaline or manganese batteries.
Install the batteries so that the poles (+ and –) align with those in the
remote control.
Point the remote control at the signal sensor of the remote control
(Z9), away from obstacles, at a maximum range of 7 m directly in
front of the main unit.
CAUTION!
• Do not mix used and new batteries.
• Do not use different types of batteries at the same time.
• Do not break open or short-circuit the batteries.
• Do not charge the alkaline or manganese batteries.
• Do not use the batteries if the cover has peeled off.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in an automobile exposed to direct
sunlight for a long period of time with doors and windows closed.
• Mishandling of batteries can cause electrolyte leakage, which can
cause a fire.
• Remove the batteries if you do not use the remote control for a long
period of time. Keep in a cool, dark area.
CAUTION!
Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
VKX60_GC_1En.indd 5VKX60_GC_1En.indd 5 10/6/2010 5:18:54 PM10/6/2010 5:18:54 PM

GETTING STARTED
6
6
ENGLISH
ENGLISH
RQTX1215
Making the connections
Connect the AC mains lead only after all the other connections have been made.
Conserving power
The system consumes approximately 0.3 W when it is in standby mode. Disconnect the power supply if you do not use the system.
Some settings will be lost after you disconnect the system. You have to set them again.
Connect the FM indoor antenna
Put the antenna where reception is best.
Adhesive tape
Refer to “Using the
auxiliary input” (Z19) for
more information on AUX
connection.
Refer to “Using the digital output”
(Z19) for more information on
COAXIAL connection.
Connect the TV
VIDEO OUT terminal
COMPONENT VIDEO OUT terminals
Use these terminals for interlace or progressive output.
To enjoy progressive video
1. Connect to a progressive output compatible TV.
2. Set “VIDEO OUT (I/P)” to “PROGRESSIVE”
(Z20, “VIDEO” menu).
Do not make the video connections through the VCR
The video cannot show correctly because of copy-guard
protection.
TV
(not included)
Video cable
(included)
TV
(not included)
Component video cables
(not included)
Connect the speakers
VKX60_GC_1En.indd 6VKX60_GC_1En.indd 6 10/6/2010 5:18:55 PM10/6/2010 5:18:55 PM

GETTING STARTED
7
7
ENGLISH
ENGLISH
RQTX1215
Connect the AC mains lead
Use the included AC mains lead with this system
only.
Do not use an AC mains lead from other
equipment.
For Saudi Arabia and Kuwait
Set the voltage
Use a flat-head screwdriver to set the
voltage selector to the AC voltage in
your area.
AC mains lead
To household
mains socket
Connect the AM loop antenna
Click!
VKX60_GC_1En.indd 7VKX60_GC_1En.indd 7 10/6/2010 5:18:55 PM10/6/2010 5:18:55 PM

GETTING STARTED
8
8
ENGLISH
ENGLISH
RQTX1215

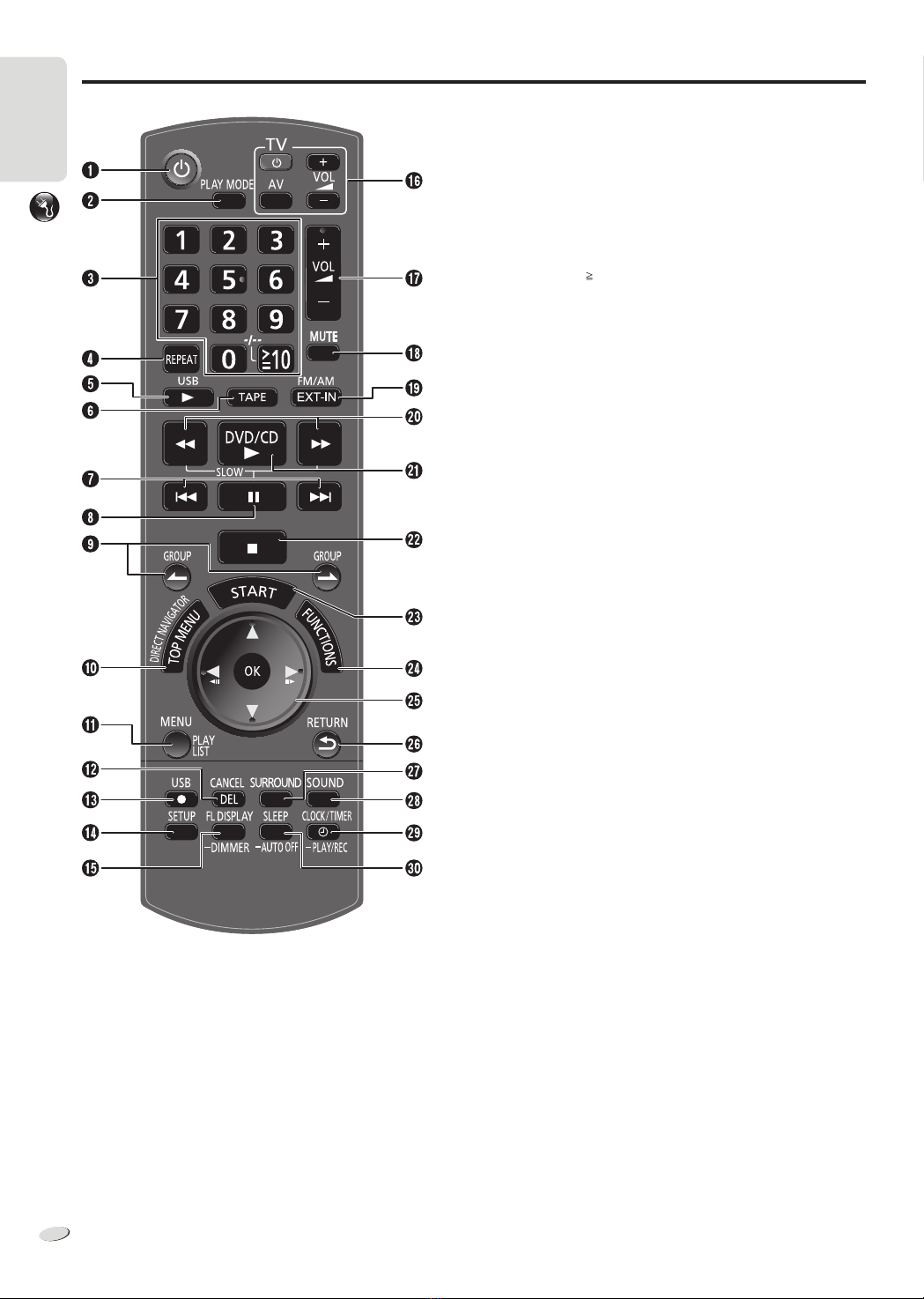

Overview of controls
A Standby/on switch [`], [1](Z10, 26)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
B Program playback, random playback (Z11)
Select “MONO” for FM radio station (Z16)
C Numeric buttons
To set a 2-digit number
Example: 16: [ 10] →[1] →[6]
D Repeat playback (Z11)
E Playback contents from a USB mass storage device (Z14)
F Select cassette tape source (Z16)
G Skip track or content (Z11)
Select preset radio stations (Z16)
H Pause playback (Z11)
I Skip group or folder (Z11)
J Show the disc top menu (Z12)
Show the program list (Z12)
K Show the menu (Z12, 14)
Select frequency mode (Z16)
Show the playlist (Z12)
L Cancel an item (Z11)
Delete an item (Z15)
M Record contents to a USB mass storage device (Z14)
N Change the system settings (Z10, 20)
Select track divide mode for USB recording (Z15)
O View the information shown on the display panel (Z11)
Decrease the brightness of the display panel
Press and hold the button to use this function.
To cancel, press and hold the button again.
P Operate a Panasonic TV (applicable to some models only)
Point the remote control to a Panasonic TV:
[`]: Switch on or switch off the TV
[AV]: Change the video input mode of the TV
[+/ –, VOL]: Adjust the volume of the TV
Q Adjust the volume of the system
R Mute the sound of the system
Press the button again to cancel. “MUTE” is also cancelled
when you adjust the volume or when you switch off the system.
S Select FM or AM radio station (Z16)
Select music port or AUX source (Z19)
T Playback in slow motion, search track or content (Z11)
Tune the radio station (Z16)
U Playback contents from a disc (Z11)
V Stop playback (Z11, 14)
W Show the START menu (Z10)
VKX60_GC_1En.indd 8VKX60_GC_1En.indd 8 10/6/2010 5:18:55 PM10/6/2010 5:18:55 PM

GETTING STARTED
9
9
ENGLISH
ENGLISH
RQTX1215
X Show the on-screen menu (Z12)
Select “BP 1” or “BP 2” for AM radio station
(Z16)
Y View frame-by-frame (Z11)
Select or confirm item
Z Go back to the previous screen
a Set the surround sound effect (Z17)
b Select the sound mode (Z17)
c Set the clock and timer (Z10, 17)
Start or cancel the play timer or record timer
(Z17)
d Set the sleep timer (Z17)
Set the auto off function (Z17)
e Cassette tape deck
f Operate cassette tape playback and recording
(Z16)
g Display panel
h Set “D.Bass” function (Z18)
i USB recording indicator
j USB port ( )
k Music port (Z19)
l Headphones jack ( )
Connect headphones (not included) to the
headphones jack.
Plug type: Ø 3.5 mm stereo
• Avoid listening for prolonged periods of time to
prevent hearing damage.
• Excessive sound pressure from earphones
and headphones can cause hearing loss.
• Listening at full volume for long periods may
damage the user’s ears. Be sure to use the
supplied or recommended headphones or
earphones.
m Signal sensor of remote control
n Adjust “SUPER WOOFER” level (Z18)
o Set “MANUAL EQ” function (Z18)
p Skip track or content (Z11)
Search track or content (Z11)
Tune the radio station (Z16)
q Skip and play CD-DA track or MP3 and WMA
content (Z11)
r Open or close the disc tray (Z11)
s Adjust the volume of the microphone
t Microphone jacks (Z18)
u Disc tray
FM/AM
DVD/CD
4
MIC VOL
MIC 1
MIC 2
MIN MAX
MUSIC PORT
VKX60_GC_1En.indd 9VKX60_GC_1En.indd 9 10/6/2010 5:18:56 PM10/6/2010 5:18:56 PM

GETTING STARTED
10
10
ENGLISHENGLISH
RQTX1215
EASY SETUP
The EASY SETUP screen assists you in making basic settings.
Preparation
Switch on your TV and change its video input mode
(example: change to “AV1” if you use “AV1” for the connection).
1 Press [`] to switch on the system.
If the EASY SETUP screen appears, skip steps 2 to 6.
2 Press [4, DVD/CD].
3 Press [SETUP] to show the SETUP menu.
4 Press [R/T] to select “OTHERS” and press [OK].
SET
MAIN
DISC
VIDEO
AUDIO
DISPLAY
OTHERS
EXIT : SETUP
RETURN
5 Press [R/T] to select “EASY SETUP” and press [OK].
6 Press [OK] to select “SET”.
7 Press [R/T] to select “YES” and press [OK].
8 Follow the messages and make the settings with
[R/T/Y/U] and press [OK].
(Zbelow, “EASY SETUP settings”)
9 Press [OK] to finish EASY SETUP.
10 Press [SETUP] to close the screen.
EASY SETUP settings
Language Select the language for the on-screen
messages.
TV aspect Select the aspect ratio that suits your TV.
PCM output Select the maximum sampling frequency of
PCM digital output.
Note:
Settings in the EASY SETUP can also be changed in the system
settings (Z20).
Menu
Smart control
You can select the source or access menus by using the START
menu.
1 Press [START] to show the START menu.
2 Press [R/T] to select “Input Selection”and press [OK].
Press [START] to close the screen.
Example:
OK
TAPE
Input Selection
DVD/CD
FM RADIO
AM RADIO
AUX
USB
MUSIC PORT
TAPE
RETURN
3 Press [R/T] to select the source and press [OK].
When “DVD/CD” or “USB”is the selected source
1 Press [START].
Example:
Input Selection
OK
DVD/CD
Playback Disc
RETURN
TOP MENU (DVD)
MENU (DVD)
2 Press [OK] to select “Playback Disc”.
“Playback USB” for “USB” source.
The smart control panel shows on the screen. You can operate
playback easily with these controls.
Setting the clock
This is a 24-hour clock.
1 Press [CLOCK/TIMER] to select “CLOCK”.
2 Within 7 seconds, press [2] or [6] to set the time.
3 Press [CLOCK/TIMER] to confirm.
• Press [CLOCK/TIMER] to show the clock for a few seconds.
• Reset the clock regularly to maintain accuracy.
VKX60_GC_1En.indd 10VKX60_GC_1En.indd 10 10/6/2010 5:18:56 PM10/6/2010 5:18:56 PM

DISC OPERATIONS
11
11
ENGLISHENGLISH
RQTX1215
Playing discs
(Z22, “Playable discs”)
Basic playback
Preparation
To view the picture, switch on your TV and change its video input
mode (example: change to “AV1” if you use “AV1” for the connection).
1 Press [x, OPEN/CLOSE] on the main unit to open the disc
tray.
Put in a disc with the label facing up.
Press [x, OPEN/CLOSE] again to close the disc tray.
2 Press [4, DVD/CD] to start playback.
Stop playback Press [8] during playback. “RESUME STOP”
shows on the screen.
Press [4, DVD/CD] to continue playback.
Press [8] again to stop the disc fully.
Pause playback Press [9] during playback.
Press [4, DVD/CD] to continue playback.
Skip group or
folder
Press [ , GROUP] or [ , GROUP].
Skip track or
content
Press [2] or [6] (main unit: [2/3] or
[5/6]).
Turn [TRACK/CONTENT] on the main unit.
Search
(during playback)
Slow-motion
(during pause)
Press [3] or [5].
Or
Press and hold [2/3] or [5/6] on
the main unit.
• Up to 5 speeds.
• Press [4, DVD/CD] to continue normal
playback.
View
frame-by-frame
(during pause) Press [e] or [E] to go to previous or next
frame.
Press [E] to go to next frame.
View information
Press [FL DISPLAY] to show available
information on the display panel.
Note:
Depending on the type of disc, some operations are restricted.
Repeat playback
This works only when the elapsed play time can be shown. It also
works with all JPEG contents.
During playback
Press [REPEAT] to select the item to play again.
Example:
TITLE →CHAP.
OFF
To cancel, select “ OFF”.
Note:
Depending on the type of disc and playback mode, the display shows
different items.
Program and random playback
While stopped
Press [PLAY MODE] to select the playback mode.
Program Random
Note:
• Select “DATA” in “DVD-VR/DATA” (Z21, “OTHERS”
menu) to play WMA, MP3, JPEG, MPEG4 or DivX contents.
• If “PLAYBACK MENU” screen appears, select “AUDIO/PICTURE”
or “VIDEO” (Z12, “Using playback menu”).
• For a disc with WMA, MP3 and JPEG contents, select music or
picture contents.
WMA, MP3: Select “MUSIC PROGRAM” or “MUSIC RANDOM”.
JPEG: Select “PICTURE PROGRAM” or “PICTURE RANDOM”.
• Some items cannot be played even if you have
programmed them.
Program playback (maximum 30 items)
1 Press [R/T] to select an item and press [OK].
Example:
DVD-V PROGRAM
SELECT TITLE TITLE CHAPTER
TITLE 1
TITLE 2
TITLE 3
TITLE 4
TITLE 5
TITLE 6
TITLE 7
1
2
3
4
5
6
7
8
• Do this step again to program other items.
• To go back to the previous menu, press [ , RETURN].
2 Press [4, DVD/CD] to start playback.
To select all the items
Press [R/T] to select “ALL” and press [OK].
To clear the selected program
1. Press [U] and then press [R/T] to select the program.
2. Press [CANCEL].
To clear the whole program
Press [U] to select “CLEAR ALL” and press [OK].
Note:
The whole program is also cleared when:
– You open the disc tray.
– You switch off the system.
– You select another source.
Random playback
1 Press [R/T] to select a group or title.
2 Press [OK] to put “*” on your selection.
Example:
DVD-V RANDOM
SELECT TITLE
TITLE 1
TITLE 2
TITLE 3
TITLE 4
TITLE 5
TITLE 6
TITLE 7
To cancel a selection, press [OK] again.
3 Press [4, DVD/CD] to start playback.
Close program and
random screens
VKX60_GC_1En.indd 11VKX60_GC_1En.indd 11 10/6/2010 5:18:56 PM10/6/2010 5:18:56 PM

DISC OPERATIONS
12
12
ENGLISH
ENGLISH
RQTX1215
Using the navigation menus
Playing data discs
Select “DATA” in “DVD-VR/DATA” (Z21, “OTHERS” menu)
to play WMA, MP3, JPEG, MPEG4 or DivX contents.
Using playback menu
“PLAYBACK MENU” shows when the disc contains video
(MPEG4/DivX) and other formats (WMA/MP3/JPEG).
1 Press [R/T] to select “AUDIO/PICTURE” or “VIDEO” and
press [OK].
OK
PLAYBACK MENU
AUDIO/PICTURE
VIDEO
RETURN
2 Press [4, DVD/CD] to start playback.
Playing from the selected item
While the “DATA-DISC” screen is shown
Group (Folder)
DATA-DISC
ROOT
Perfume
Underwater
Fantasy planet
Starpersons1
Content (File)
: WMA/MP3
: JPEG
: MPEG4/DivX
1 Press [R/T] to select an item.
Press [Y/U] to skip page by page.
2 Press [OK] to start playback.
Playback starts from the item you select to the last item in the
group.
• To close the screen, press [MENU].
Selecting picture in thumbnail menu
While the display shows a picture
1 Press [TOP MENU].
2 Press [R/T/Y/U] to select a picture and press [OK].
Press [6] or [2] to skip page by page.
To select a picture in other groups
1. Press [R] to select the group name.
2. Press [◄/►] to select the group and press [OK].
Jpeg(JPEG) G 2/ 4:C 3/ 9
• To close the screen, press [MENU].
WMA/MP3/JPEG
MPEG4/DivX
Group and
content number
Group name
Playing DVD-R/-RW (DVD-VR) discs
• Display shows the title only if a title is given during recording.
• You cannot edit programs, playlists and disc titles.
Playing the programs
While stopped
1 Press [DIRECT NAVIGATOR].
2 Press [R/T] to select the program and press [OK].
Press [Y/U] to skip page by page.
PG DATE LENGTH TITLE
10:16:02
10/11 LIVE CONCERT
02:15
20:38:25
12/05 AUTO ACTION
311605
04/03 CINEMA
01:30
• To close the screen, press [DIRECT NAVIGATOR].
Playing the playlist
This works only when the disc contains a playlist.
While stopped
1 Press [PLAYLIST].
2 Press [R/T] to select the playlist and press [OK].
Press [Y/U] to skip page by page.
PL DATE LENGTH TITLE
10:00:10
11/11 CITY PENGUIN
00:01
20:01:20
12/01 FOOTBALL
31:10:04
01/02 SPECIAL
01:20
• To close the screen, press [PLAYLIST].
Using on-screen menus
1 Press [FUNCTIONS] to show the on-screen menu.
Menu 1 (Disc/Play) →Menu 2 (Video)
Exit ←Menu 4 (Karaoke) ←Menu 3 (Audio)
T
1
C1 1:ENG 3/2.1ch
1 :ENG
OFF
TITLE SEARCH
2 Press [R/T/Y/U] to select an item and press [OK].
Example: Menu 1 (Disc/Play)
T
1
C1 1:ENG 3/2.1ch
1 :ENG
OFF
CHAPTER SEARCH
3 Press [R/T] to make the settings and press [OK].
• To close the screen, press [ , RETURN].
Item name
Current item
Current setting
VKX60_GC_1En.indd 12VKX60_GC_1En.indd 12 10/6/2010 5:18:57 PM10/6/2010 5:18:57 PM

DISC OPERATIONS
13
13
ENGLISH
ENGLISH
RQTX1215
ROTATION
Rotate a picture (during pause)
0 ↔90 ↔180 ↔270
Menu 2 (Video)
PICTURE MODE
NORMAL: Normal images.
CINEMA1: Mellows images and enhances details in dark scenes.
CINEMA2: Sharpens images and enhances details in dark scenes.
DYNAMIC: Enhances the contrast for powerful images.
ANIMATION: Suitable for animation.
ZOOM
Select zoom sizes
NORMAL, AUTO ( ), x2, x4
(during pause)
TRANSFER MODE
If you have set “VIDEO OUT (I/P)” to “PROGRESSIVE” (Z20,
“VIDEO” menu), set the method of conversion for progressive output
accordingly:
When playing PAL discs
AUTO: Converts the film and video automatically.
VIDEO: Select when the content is distorted in the “AUTO” mode.
FILM: Select when the edges of the film content
are jagged or rough in the “AUTO” mode.
But, if the video content is distorted
(as illustrated on the right), then select
“AUTO”.
When playing NTSC discs
AUTO1: Converts the film and video automatically.
AUTO2: Select to automatically sense the differences in the frame
rates of the film content and converts it accordingly.
VIDEO: Select when the video content is distorted in the “AUTO1” or
“AUTO2” mode.
SOURCE SELECT
AUTO: Converts the DivX content automatically.
INTERLACE: Select if the DivX content was encoded in interlace
format.
PROGRESSIVE: Select if the DivX content was encoded in
progressive format.
Menu 3 (Audio)
DIALOGUE ENHANCER
Make the dialogue in films easier to hear
(Dolby Digital, DTS, 3-channel or higher, with the dialogue
recorded in the centre channel)
(Dolby Digital, 3-channel or higher, with the dialogue recorded
in the centre channel)
ON ↔OFF
RE-MASTER
Select the sound quality
OFF →1 →2 →3
Menu 4 (Karaoke)
KARAOKE MODE
(Z18, “Enjoying Karaoke”)
ON ↔OFF
• “PLAY SPEED” (Zleft) does not work in Karaoke mode.
The type of disc and the disc format can cause some items
to not show or work.
Menu 1 (Disc/Play)
TRACK SEARCH, TITLE SEARCH, CONTENT SEARCH,
CHAPTER SEARCH, PG SEARCH (program search),
PL SEARCH (playlist search)
Start playback from a specified item
This function does not work when you play a disc with the
playback control (PBC) function.
Example: : T2 C5
To select numbers for data disc
Example: 12: [ 10] →[1] →[2] →[OK]
AUDIO
(with multiple soundtrack)
Select audio soundtrack
Select “L”, “R”, “L+R” or “L R”
Signal type/data
LPCM/PPCM/GD/DTS/MP3/MPEG:
Signal type kHz (sampling frequency)/bit/ch (number of channels)
Example: 3/ 2 .1ch
.1: Low frequency effect
(not shown if there is no signal)
0: No surround
1: Mono surround
2: Stereo surround (left/right)
1: Centre
2: Front left + Front right
3: Front left + Front right + Centre
It can be a while before playback starts if you change the
audio of a DivX disc.
PLAY SPEED
Change play speed
– from “x0.6” to “x1.4” (in 0.1-unit step)
• Press [4, DVD/CD] to continue normal playback.
• After you change the speed:
– Audio output will switch to 2-channel stereo.
– Sampling frequency of 96 kHz is converted to 48 kHz.
REPEAT MODE
(Z11, “Repeat playback”)
A-B Repeat: Repeat a specified section
Except (still picture part)
(SVCD only)
Press [OK] at the start and end points.
• To cancel, select “OFF”.
SUBTITLE
(with multiple subtitles) (SVCD only)
Select subtitle language
• For +R/+RW disc, a number display will replace the subtitles that
cannot be shown.
(with subtitle on or off information)
ON ↔OFF
ANGLE
(with multiple angles)
Select a video angle
DATE DISPLAY
Show the date of a picture
ON ↔OFF
VKX60_GC_1En.indd 13VKX60_GC_1En.indd 13 10/6/2010 5:18:57 PM10/6/2010 5:18:57 PM

OTHER OPERATIONS
14
14
ENGLISH
ENGLISH
RQTX1215
USB – Play and record
You can connect and play contents from your USB mass storage
device.
Preparation
Before you connect a USB mass storage device to the system, make
sure you do a backup of the data.
Do not use a USB extension cable. The unit cannot recognise USB
mass storage devices connected through a cable.
Basic playback
1 Decrease the volume and connect the USB mass storage
device to the USB port.
FM/AM
DVD/CD
4
MIC VOL
MIC 1
MIN MAX
MUSIC PORT
2 Press [4, USB] to start playback.
3 Press [MENU] to show the USB menu.
4 Press [R/T] to select an item and press [OK].
Refer to “Playing discs” (Z11 to 13) for other operations.
Compatible devices
• USB mass storage devices that support bulk-only transfer.
• USB mass storage devices that support USB 2.0 full speed.
Supported format
File format File extension
Still pictures JPEG 1.JPG
.JPEG
.jpg
.jpeg
Audio MP3
WMA
.MP3
.WMA
.mp3
.wma
Video MPEG4 2.ASF .asf
1Some files cannot be played due to how the files were made.
2For Panasonic D-Snap/DIGA
Note:
Maximum number of groups (folders) 255
Maximum number of contents (files) 4000
Maximum characters in group or content name 28
• CBI (Control/Bulk/Interrupt) transfer is not supported.
• NTFS file system is not supported (only FAT 12/16/32 file system is
supported).
• Depending on the sector size, some contents can fail to work.
USB mass
storage device
(not included)
Recording
Panasonic cannot be held responsible on the action of consumer
to record copyrighted contents which can cause copyright
infringement.
1 Select the source you want to record.
Disc:
1. Put in the disc.
2. Press [4, DVD/CD] and then press [8] two times.
Record specified tracks (Z11, “Program playback”).
Tape:
1. Press [TAPE].
2. Put in the cassette tape.
3. Press [4, PLAY] to start playback.
Radio:
Tune in to the radio station (Z16).
Music port or AUX:
Connect and play the equipment (Z19).
Microphone:
Connect the microphone (Z18).
2 Press [7, USB] (main unit: [7, USB REC]) to start recording.
The USB recording indicator blinks.
The name of the group that keeps the recording is shown.
3 Press [8] to stop recording.
“WRITING” is shown.
The recorded audio contents are kept in a group named “REC_DATA”
in the USB mass storage device.
USB
ROOT/REC_DATA
AUX001
DISC001
FM001
FM002
REC_DAT2
AUX003
OK
RETURN
Note:
• All recordings are in .mp3 format.
• A new group is added or made each time you do a recording.
• You cannot do recording or delete contents when you are in
"RESUME STOP" mode.
• You cannot do recording when you are using random playback
mode.
• Repeat playback mode is off during recording.
• Microphone input cannot be recorded during CD-DA to USB
recording.
• Do not disconnect the USB mass storage device or the AC mains
lead during recording.
Subgroup that
keeps MP3
contents recording
from data discs
(Z15)
VKX60_GC_1En.indd 14VKX60_GC_1En.indd 14 10/6/2010 5:18:58 PM10/6/2010 5:18:58 PM

OTHER OPERATIONS
15
15
ENGLISH
ENGLISH
RQTX1215
Dividing a recording track
When recording from tape, radio, music port or AUX source, you can
divide tracks with:
• AUTO 5M: A track is automatically divided at 5-minute intervals.
• MANUAL: Press [OK] during recording to add a track mark. If
you do not add a track mark manually, a track mark is added
automatically at 60-minute intervals.
1 Select the source you want to record.
2 Press [SETUP].
“TRDIVIDE” is shown.
3 Press [R/T] to select “AUTO 5M” or “MANUAL”.
4 Press [OK] to add a track mark during recording.
Add a track mark at the end of each track during cassette tape
recording.
Skip unwanted noise by making a new track.
Note:
When you press [OK] while you record in the AUTO 5M mode, the
5-minute count will be reset.
Recording MP3 contents
You can record MP3 contents from a data disc.
1 Put in the disc.
2 Press [4, DVD/CD] and then press [8] two times.
3 Press [R/T] to select the group and press [OK].
Do this step again if there are subgroups.
4 Press [7, USB] to start recording.
Recording starts from the first content.
DATA-DISC
. ./Audio/mp3
Hakkushon
LevelUp
Mata Sazae
Sazae***
Hakkushon
Stop recording Press [8].
Recording stops at the last fully recorded
content in the group.
Example: If you stop recording during the
fourth content, only the first three
contents are recorded. “NO FILE
RECORDED” is shown if no
content is recorded.
Delete a
recorded
content
(Zright, “Deleting the contents”)
Note:
• Some contents can use a longer time to record.
• Some MP3 contents cannot be recorded because of the condition
of the disc.
Recording progress in percentage
of all contents in the group
Content currently
being recorded
Deleting the contents
1 Press [4, USB] and then press [8] two times.
2 Press [R/T] to select the group.
Press [OK] and then press [R/T] to select a content.
3 Press [DEL].
AUX002
Is it OK to delete?
Yes No
4 Press [Y/U] to select “Yes” or “No” and press [OK].
Select “Yes” to delete a content. “DELETING” blinks on the
display panel.
Note:
• “USB WRITE PROTECTED” is shown if the USB mass storage
device is locked.
• You cannot delete groups that have subgroups or unsupported
contents.
VKX60_GC_1En.indd 15VKX60_GC_1En.indd 15 10/6/2010 5:18:59 PM10/6/2010 5:18:59 PM

OTHER OPERATIONS
16
16
ENGLISH
ENGLISH
RQTX1215
FM/AM radio
Manual tuning
1 Press [FM/AM/EXT-IN] (main unit: [FM/AM]) to select “FM”
or “AM”.
2 Press [5] or [3] (main unit: [5/6] or [2/3]) to
select the frequency of the required station.
To tune automatically, press and hold the button until the
frequency starts changing quickly.
“ST” is shown when a stereo FM broadcast is being received.
If there is too much noise
When “FM” is selected
Press [PLAY MODE] to select “MONO”.
• To cancel, press [PLAY MODE] again.
• “MONO” is also cancelled when you change the frequency.
When “AM” is selected
Press [FUNCTIONS] to select “BP 1” or “BP 2”.
Memory preset
30 FM and 15 AM stations can be preset.
Preparation
Press [FM/AM/EXT-IN] (main unit: [FM/AM]) to select “FM” or “AM”.
Automatic presetting
1 Press [MENU] to select “LOWEST” or “CURRENT”
frequency.
2 Press and hold [OK] to start presetting. Release the button
when “FM AUTO” or “AM AUTO” is shown.
To cancel, press [OK].
Manual presetting
1 Press [5] or [3] (main unit: [5/6] or [2/3]) to
tune in to the station and press [OK].
2 Press the numeric buttons to select a preset number.
The new station replaces any station that occupies the same
preset number.
3 Do steps 1 and 2 again to preset more stations.
Selecting a preset station
Press the numeric buttons, [2] or [6] to select the preset
station.
AM allocation setting (by main unit only)
This system can receive AM broadcasts allocated in 10 kHz steps.
1 Press [FM/AM] to select “FM”.
2 Press and hold [FM/AM].
After a few seconds, the display panel shows the current minimum
radio frequency. Release the button when the minimum frequency
changes.
• To go back to the initial setting, do the above steps again.
• After you change the setting, preset frequencies are erased.
Cassette tape – Play and record
Preparation
Press [TAPE].
Note:
Use normal position cassette tapes.
You can use high position and metal position cassette tapes, but the
system cannot identify the properties of these cassette tapes to be
played, recorded or erased accordingly.
Basic playback
1 Press [8/x, STOP/EJECT] and put in the cassette tape.
Put in with the side to be played facing up and the exposed tape
facing you. Close the cassette tape deck manually.
2 Press [4, PLAY] to start playback.
Stop playback Press [8/x, STOP/EJECT].
Pause playback Press [9, PAUSE].
Press again to continue playback.
Fast-forward or
rewind
Press [5, FF/CUE] or [3, REW/REV].
Note:
If you select other source during playback of the cassette tape, the
playback will not stop.
Recording
Preparation
Wind the leader tape so recording can begin immediately.
1 Press [8/x, STOP/EJECT] and put in the cassette tape.
2 Select the source you want to record.
Disc:
1. Put in the disc.
2. Press [4, DVD/CD].
Record specified tracks (Z11, “Program playback”).
Radio:
Tune in to the radio station (Zright).
USB:
1. Connect the USB mass storage device (Z14).
2. Press [4, USB].
Music port or AUX:
Connect and play the equipment (Z19).
Microphone:
Connect the microphone (Z18).
3 Press [7, REC] to start recording.
Stop recording Press [8/x, STOP/EJECT].
Pause recording Press [9, PAUSE].
Press again to continue recording.
Erase recording 1. Press [8/x, STOP/EJECT] and put in
the cassette tape.
2. Press [7, REC] to start recording.
Note:
Changes to volume and sound quality have no effect on recording.
Erasure prevention
The illustration shows how to remove the tabs to prevent recording.
To record on the cassette tape again, put adhesive tape across the
hole as shown.
Adhesive
tape
To record again
Tab for
Side B
Tab for
Side A
Side A
To prevent recording
VKX60_GC_1En.indd 16VKX60_GC_1En.indd 16 10/6/2010 5:18:59 PM10/6/2010 5:18:59 PM

OTHER OPERATIONS
17
17
ENGLISH
ENGLISH
RQTX1215
Using the timer
Using the play timer or record timer
You can set the timer to come on at a certain time to:
– Wake you up (play timer).
– Record from the radio, music port or AUX (record timer).
The play timer and record timer cannot be used together.
Preparation
Switch on the system and set the clock (Z10).
Play timer Prepare the music source you want to listen to
(disc, USB mass storage device, radio, music
port or AUX) and set the volume.
Record timer Connect the USB mass storage device (Z14).
Tune in to the radio station (Z16) or select the
music source from music port or AUX (Z19).
1 Press [CLOCK/TIMER] to select the timer.
CLOCK →#PLAY →#REC
Original display
#PLAY : To set the play timer
#REC : To set the record timer
2 Within 7 seconds, press [6] or [2] to set the start time.
3 Press [CLOCK/TIMER] to confirm.
4 Do steps 2 and 3 again to set the end time.
To start the timer
5 Press and hold [#, –PLAY/REC] to start the timer.
#PLAY #REC
No display (off)
6 Press [`] to switch off the system.
The system must be switched off for the timer to operate.
Change the
settings
Do steps 1 through 4 and 6 again (Zabove).
Change the
source or
volume
1. Press and hold [#, –PLAY/REC] to remove
the timer indicator on the display panel.
2. Change the source or volume.
3. Do steps 5 and 6.
Check the
settings
Press [CLOCK/TIMER] to select “#PLAY” or
“#REC”.
Cancel Press and hold [#, –PLAY/REC] to remove the
timer indicator on the display panel.
Note:
• The play timer starts at a low volume and increases gradually to the
preset level.
• The record timer starts 30 seconds before the set time with the
volume muted.
• The timer comes on at the set time every day if the timer is on.
• If you switch off the system and switch on again while a timer is in
operation, the timer will not stop at the end time.
Using the sleep timer
The sleep timer switches off the system after the set time.
Press [SLEEP] to select the setting (in minutes).
SLEEP 30 →SLEEP 60 →SLEEP 90
SLEEPOFF ←SLEEP120
To cancel the sleep timer
Select “SLEEPOFF”.
“SLP” indicator goes off.
To show the remaining time
Press [SLEEP].
Note:
• The play timer and sleep timer or the record timer and sleep timer
can be used together.
• The sleep timer always comes first. Be sure not to set an overlap
of timers.
Using the auto off function
When you are in disc, USB or tape source, the auto off function
switches off the system if you do not use the system for 10 minutes.
While in disc, USB or tape source
Press and hold [–AUTO OFF].
“A.OFF” indicator is shown.
To cancel the auto off function
Press and hold [–AUTO OFF] again.
“A.OFF” indicator goes off.
Using sound effects
• These sound effects are possibly not available or can have no
effect to some sources.
• The sound quality can decrease when these sound effects are used
with some sources. If this occurs, switch off the sound effects.
Surround sound effect
Press [SURROUND].
STANDARD →STEREO →A. SRND
Note:
• This function does not work or has less effect with some discs.
• Select “STEREO” if you experience sound distortion.
• Do not use in combination with surround effects of other equipment.
Changing the sound quality
Preset EQ
1 Press [SOUND] to select “EQ”.
2 Press [Y/U].
HEAVY Adds punch to rock.
CLEAR Clarifies higher frequencies.
SOFT For background music.
EQ-OFF Cancels all sound effects.
VKX60_GC_1En.indd 17VKX60_GC_1En.indd 17 10/6/2010 5:18:59 PM10/6/2010 5:18:59 PM

OTHER OPERATIONS
18
18
ENGLISH
ENGLISH
RQTX1215
Using microphones
Preparation
Decrease the volume of the system to its minimum before you
connect or disconnect a microphone.
1 Connect a microphone (not included) to the microphone
jack.
Plug type : Ø 6.3 mm monaural
2 Turn [MIC VOL, MIN/MAX] on the main unit to adjust the
volume of the microphone.
If you want to use the microphone with background music.
3 Play the music source and adjust the volume of the system.
Note:
• If a strange noise (howling) is emitted, move the microphone away
from the speakers, or decrease the volume of the microphone.
• When you do not use the microphone, disconnect it from the
microphone jack, and decrease the volume of the microphone level
to “MIN”.
• Surround sound effect (Z17) is disabled when you connect a
microphone.
Manual EQ
Create your own sound quality effects.
1 Press [SOUND] to select “M.EQ”.
2 Press [Y/U].
BASS Adjust low-pitch sound.
MID Adjust middle-pitch sound.
TREBLE Adjust high-pitch sound.
3 Press [6] or [2] to adjust the level (–4 to +4).
By main unit only
1 Press [MANUAL EQ] to select “BASS”, “MID” or “TREBLE”.
2 Press [5/6] or [2/3] to adjust the level (–4 to +4).
D.Bass
You can enhance low-pitch sound so that heavy bass sound can be
heard clearly, even if the acoustics of your room are not optimal. The
system automatically selects the best setting according to the type of
playback source.
1 Press [SOUND] to select “D.BASS”.
2 Press [Y/U] to select “D.BASS ON” or “D.BASS OFF”.
By main unit only
Press [D.BASS] to select “D.BASS ON” or “D.BASS OFF”.
Super woofer
1 Press [SOUND] to select “SW LVL”.
2 Press [Y/U] to select the level.
SW1 →SW2 →SW3
By main unit only
Press [SUPER WOOFER] to select the level.
Echo effect
1 Press [SOUND] to select “ECHO”.
2 Press [Y/U] to select the level.
ECHO 1 →ECHO 2 →ECHO 3 →ECHO 4
ECHO OFF
Note:
You can adjust echo effect only when a microphone is connected.
Enjoying Karaoke
1 Select the music source.
“DVD/CD” or “USB”.
2 Press [FUNCTIONS] to show the Karaoke menu (Z12).
Set “KARAOKE MODE”to “ON”.
3 Press [R/T/Y/U] to select an item and press [OK].
4 Press [R/T] to make the setting and press [OK].
Karaoke mode switches off when you switch off this system, open the
disc tray or select another source.
The type of disc and the disc format can cause some items to
not show or work.
KEY CONTROL
Except
Change the key of a song
6 (lowest) to 6 (highest)
OFF: Normal
VOCAL CANCEL
Except
Reduce the vocal level (when using stereo source not formatted for
Karaoke)
ON: Reduces vocal level
OFF: Cancel
• This function can fail to work depending on the type of song.
AUDIO CHANGE
Change the audio mode (when using Karaoke formatted source)
Solo disc
OFF: Vocals off
ON: Vocals on
Duet disc
OFF: Vocals off
V1+V2: Vocal 1 and 2
V1: Vocal 1
V2: Vocal 2
L R: Left channel sound is heard from the left speaker and right
channel sound is heard from the right speaker (accompaniment
and vocals).
L: Only left channel sound (accompaniment only).
R: Only right channel sound (vocals only).
L+R: Left and right channel sounds are mixed and heard from both
speakers.
“L” and “R” are reversed on some discs.
VKX60_GC_1En.indd 18VKX60_GC_1En.indd 18 10/6/2010 5:18:59 PM10/6/2010 5:18:59 PM

OTHER OPERATIONS
19
19
ENGLISH
ENGLISH
RQTX1215
Using external equipment
Note:
Components and cables are sold separately.
Before connection
• Disconnect the AC mains lead.
• Switch off all equipment and read the appropriate operating
instructions.
Using the music port
You can play music from a portable audio equipment.
Preparation
Switch off the equalizer (if any) of the portable audio equipment to
prevent sound distortion.
Decrease the volume of the system and the portable audio
equipment before you connect or disconnect the portable equipment.
MIC VOL
MIC 1
MIC 2
MIN MAX
MUSIC PORT
1 Connect the portable audio equipment.
Plug type: Ø 3.5 mm stereo
2 Press [FM/AM/EXT-IN] (main unit: [EXT-IN]) to select
“MUSIC PORT”.
FM →AM →MUSIC PORT →AUX
3 Play the portable audio equipment.
Using the auxiliary input
You can connect a VCR, DVD player etc. and listen to the audio
through this system.
1 Press [FM/AM/EXT-IN] (main unit: [EXT-IN]) to select “AUX”.
2 Play the external equipment.
Note:
• If you want to connect equipment other than those described
above, refer to the audio dealer.
• Sound distortion can occur when you use an adaptor.
Portable audio equipment
(not included)
Audio cable
(not included)
VCR
(not included)
Audio cable
(not included)
Rear panel of
this main unit
Using the digital output
Enjoy a powerful movie theatre and hall-like sound (available with
multiple channel audio found on DVD-Video) when you connect to an
amplifier and speakers.
VOLUME
Select the digital audio output setting (Z21, “AUDIO” menu)
according to the type of audio that the equipment can output.
Speaker (example)
Connect three or more speakers for
surround sound.
Amplifier
(not included)
Coaxial digital cable
(not included)
Do not bend the cable.
Rear panel of
this main unit
VKX60_GC_1En.indd 19VKX60_GC_1En.indd 19 10/6/2010 5:18:59 PM10/6/2010 5:18:59 PM

OTHER OPERATIONS
20
20
ENGLISH
ENGLISH
RQTX1215
Changing system settings
EASY SETUP allows successive settings of the items in the shaded area.
“DISC” menu
CURRENT SETTINGS Show the current setting of the items in this menu.
AUDIO
Change the audio language.
ENGLISH FRENCH SPANISH GERMAN RUSSIAN
HUNGARIAN CZECH POLISH ORIGINAL 1OTHER ---- 2
SUBTITLE
Change the subtitle language.
AUTO 3ENGLISH FRENCH SPANISH GERMAN
RUSSIAN HUNGARIAN CZECH POLISH OTHER ---- 2
MENUS
Change the language for disc menus.
ENGLISH FRENCH SPANISH GERMAN RUSSIAN
HUNGARIAN CZECH POLISH OTHER ---- 2
RATINGS
Set a ratings level to limit DVD-Video
playback.
Setting ratings
0 LOCK ALL: To prevent playback of discs without ratings levels.
1 to 7: To prevent playback of DVD-Video with the same ratings recorded on them.
8 NO LIMIT
When you set the ratings level, a password screen is shown.
Follow the on-screen instructions.
Do not forget your password.
A message screen is shown if a DVD-Video with higher ratings level is played.
Follow the on-screen instructions.
PASSWORD
Change the password for “RATINGS”
(Zabove).
1. Select “CHANGE” and press [OK].
2. Input the current password with the numeric buttons, then press [OK].
3. Input the new password with the numeric buttons, then press [OK].
If “VERIFY” is shown, make sure that the new password is correct and input it again.
1The original language designated on the disc is selected.
2Input the applicable code from the “Language code list” (Z23).
3If the language selection for “AUDIO” is not available for the disc played, the subtitles in that language will be shown (if available on the disc).
“VIDEO” menu
CURRENT SETTINGS Show the current setting of the items in this menu.
TV ASPECT
Change the setting to suit your TV and
preference.
16:9: Widescreen TV (16:9)
4:3PAN&SCAN: Regular aspect TV (4:3)
The sides of the widescreen picture are cut off so it fills the screen (unless
prohibited by the disc).
4:3LETTERBOX: Regular aspect TV (4:3)
Widescreen picture is shown in the letterbox style.
TIME DELAY
When connected with an AV amplifier
and Plasma TV, adjust if the audio is
out of sync with the video.
0 ms 20 ms 40 ms
60 ms 80 ms 100 ms
NTSC DISC OUT
Change PAL60 or NTSC output when
you play NTSC discs.
NTSC: Output signals from NTSC discs remains as NTSC.
PAL60: NTSC discs can be viewed on PAL TV.
STILL MODE
Specify the type of picture shown
when in pause mode.
AUTO
FIELD: The picture is not blurred, but the picture quality is lowered.
FRAME: Overall quality is high, but the picture is blurred.
VIDEO OUT (I/P)
Select “PROGRESSIVE” only if
connecting to a progressive output
compatible TV.
INTERLACE
PROGRESSIVE
When you select “PROGRESSIVE”, a message screen will appear.
For progressive output, press [R] and then press [OK].
To cancel, press [ , RETURN].
1 Press [4, DVD/CD].
2 Press [SETUP] to show the SETUP menu.
3 Press [R/T] to select the menu and press [OK].
To go back to the previous menu, press [ , RETURN].
4 Press [R/T] to select an item and press [OK].
5 Press [R/T] to make the setting and press [OK].
6 Press [SETUP] to close the screen.
• The settings stay intact even if you put the system on standby
mode.
• Underlined items are the factory settings in the menu.
VKX60_GC_1En.indd 20VKX60_GC_1En.indd 20 10/6/2010 5:19:00 PM10/6/2010 5:19:00 PM
