Panasonic FY-E15DZ1 Technical manual

FY-E15DZ1 FY-E25DZ1 FY-E35DZ1 FY-E50DZ1
FY-E15DZ1L FY-E25DZ1L FY-E35DZ1L FY-E50DZ1L
Operation Instruction
(Containing the Installation Instruction)
Energy Recovery Ventilator
CONTENTS:
Installation Instruction:
Accessories:
Model label……………………....…1 piece
Operation Instruction……..........….1 books
(Please be sure to give them to customer)
Thanks for purchasing PanasonicĘEnergy Recovery Ventilatorę.
ƽPlease read this instruction carefully to understand how to use this product correctly before
installation and construction, especially Ęsafety precautionsę(page 2~4)、(page 8~9)make
sure to use safely. After you’ve read it, keep it well so that you can easily find it if necessary.
ƽPlease be sure to give this instruction to end user.
Model No.
Operation Instruction
SAFETY PRECAUTIONS...................2~4
86,1*&21',7,21&$87,216
FEATURES.............................................5
USING CAUTIONS.................................5
PART NAME AND USING METHOD..5~6
HANDLING METHODS ON ABNORMAL
OPERATION...........................................6
MAINTENANCE METHODS...............7~8
SAFETY PRECAUTIONS..................9~10
INSTALLATION CAUTIONS..................11
PART NAME AND DIMENSIONS..12~15
,167$//$7,21',$*5$0&216758&7,21
METHODS......................................16~19
TRIAL OPERATION...............................19
SPECIFICATION.................... Back cover

SAFETY PRECAUTIONS <must be complied>
WARNING:
CAUTION:
this mark means the contentĘconsider the situation may cause the death
or serious injuryę.
this mark means the contentĘconsider the situation may cause the injury
or the loss of propertyę.
In order to prevent the damage to using personnel and other personnel and avoid the loss of property, please be
sure to comply with the following cautions.
ƵThe following marks are used to distinguish the damage from damage degree caused by ignoring the mark or
operating by wrong methods.
ƵThe following marks represent the content expected to be complied with (The following mark is an example of
mark indication).
The marks represent the content(prohibition).
The marks represent the mandatory content (must be complied).
WARNING
Prohibition
It can’t be used for ventilation in locations
with open-burning appliances (heater).
It must be adopted with professional
ventilation if using the gas or petroleum
heating stove in room.
Prohibition
Prohibition
Please cut off the breaker in the switch
box before maintenance.
It may cause electric
shock and injury.
It’s forbidden
to get wet
It may cause short circuit or electric
shock (motor, switch and other
electric parts).
Don’t wash the unit by water.
Prohibition
Don’t turn on/off the switch when
combustible gas leaks.
The sparks of switch may cause the
gas explosion.
Wet hands
prohibition
Don’t turn on/off the switch by wet
hands.
It may cause electric shock.
Please entrust the sale shop or
specialized company to conduct the
maintenance except the filter
maintenance.
It may cause the fire, electric shock and
injury.
Don’t insert fingers or sticks into the
unit or air inlet, air outlet.
The appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person who is responsible for their
safety. Children should be supervised
to ensure that they do not play with the
appliance. It may cause the electric
shock or injury.
It may cause the injury because of high
speed rotation inside the unit.
It’s forbidden to conduct self
–transformation, disassemble and
repair. Otherwise，it may cause fire,
electric shock and injury.If the product
is needed to maintain, disassemble and
repair,please contact the sale shop or
repair shop where you purchased.
Operation Instruction

Please get the contact with the agent
where you purchased.
It may cause the unexpected accident.
If the appliance is not used for a long
time, in order to prevent it from
dropping, it should be removed.
Otherwise,it may cause the dropping.
If the power supply cord appears worn,
in order to avoid the danger, changing
work need to be done by authorized
personnel.
CAUTION
Confirm if the unit is installed firmly. It
may cause injury when dropping.
The appliance must be stopped
immediately, waiting for repair when
abnormal operation occurs (such as
noise, vibration, burnt smell).
Please entrust the professional staff to
conduct electric, duct and equipment
installation. It may cause unexpected
accident when improper installation
occurs.
It may cause the bad effect to animal
and plant.
Plant and animal cannot be placed in
the blowing air outlet.
It may cause the injury.
Please wear the gloves when cleaning
the filter.
Dropping may cause injury.
Because it’s aerial work, please fix the
ladder when conducting the maintenance.
It may cause the fire.
Don’t use the unit near the combustible
spray.
Please don’t place the vessel with water
on the unit.It will wet inside of unit when
the water leaks, which may cause the
damage of electric insulation and
electric shock.
Dust accumulation will get the
unit heated, which may cause
the fire.
When the appliance is not used for a
long time, you should cut off the
breaker for safety.
Firmly fix the parts. Dropping will cause
the injury.
It may cause the injury due to the
blowing out or sucking in.
Don’t place the obstacles near the air
inlet and return air grill.
It may cause the insufficient burning of
burning appliance.
Don’t place the burning appliance in
location where the unit blows directly.
Conduct the routine cleaning to filter.
The dirt and dust attached to the heat
exchange core will lower its performance,
and meanwhile when they go into room,
they will enter into eyes.
In maintenance (disassembling the
maintenance cover), please pay
attention to the dropping of dirt and dust
and insects. It may enter into eyes.
Please fully confirm the usage for
special purposes.
It may damage the filter
when the dirt and dust
come into room, it will
enter into eyes.
Don’t clean the filter by the volatile oil
or metallic brush.
The internal accumulated water will wet
the goods in room．
Please contact the sale shop or repair shop.
Don’t incline it when disassembling
the unit.
Owing to lots of dirt and dust attached in
the filter, it may cause the lack of oxygen
in room.
The appliance is forbidden to operate
without filter.
Operation Instruction
Prohibition
Prohibition
Prohibition
Prohibition
Prohibition
Prohibition
Prohibition
thinner
gasoline
Volatile oil
metallic brush
The appliance is not used under the
special condition such as preservation
of foods, animals, plants, precision
instruments,and artwork. Otherwise, it
may cause quality degradation.

SAFETY PRECAUTIONS <must be complied>
Don’t use it in the following locations.
Don’t install the unit in locations such as machinery or chemical plants where it will be exposed to
noxious gases containing acids, alkali, organic solvents, paint fumes, etc., to gases containing
corrosive ingredients, or where dust or oil mist will be produced.
(gas poisioning, corrosion and degradation accured in unit may cause the fire.)
86,1*&21',7,21&$87,21
Using condition
Outdoor air condition
Temperature range -10ć～40ć，relative humidity 85% or less（to the
slim type added cold proof area BOX, lowest temperature range -20ć）
Indoor air condition
Temperature range -10ć～40ć，relative humidity 85% or less.
Installation requirements: same as the indoor air conditions.
Indoor air here means air in air-conditioned living rooms. The appliance
usage in refrigerators or other places where temperature can fluctuate
greatly is prohibited even if a temperature range is acceptable.
Absolute humidity
dry-bulb temperature(ć)
Be careful of frost and dew
The Energy Recovery Ventilator manufactured by our company is conducted the condensation without the
water dropping test in the following conditions based on JIS B 8628:2003,if using condition is rougher than
the following sheet, it may cause the frost or dew.
JIS B 8628:2003Energy Recovery Ventilator AppendixF (specification)condensation test method
Relative humidity is calculated according to JIS B 8628:2003.
Energy Recovery Ventilator is intended to exchange outdoor air and indoor air. When the outdoor air comes in,
maybe bring the insects from outdoor pipe hood to internal unit. As insect occurrence is affected by natural
environment, it’s recommended to use the pipe hood with fly net when using the unit under the environment of
many insects such as near the street light.
Avoiding the coming of insects
Classification
Indoor condition Outdoor condition
Operation
status
Measured
time
(h)
6 hours
6 hours
6 hours
operate
operate
Stop
*relative
humidity(reference)%
wet-bulb
temperature
dry-bulb
temperature
*relative
humidity(reference)%
wet-bulb
temperature
dry-bulb
temperature
Cooling in
summer
Heating in
winter
Heating in
winter
As shown in the right figure, it’s supposed that a high temperature absorbing air condition A and a low
temperature absorbing air condition B are plotted on the air line figure, then a high temperature air A is
heat-exchanged by the unit and Point C represent the trend of saturation curve .In this case, it will cause the
dew or frost inside the unit. To avoid this, you are required to heat a low temperature air B up to B' so as to
get C' below the saturation curve before using the unit.
Locations exposed to high
temperature or direct flame.
Avoid installing the ERV in locations
which reach temperature of 40ćor
above. Usage under high temperature
conditions may cause distortion of the
filter or heat exchange core or motor
burn-out.
Locations with high humidity.
Do not install in high humidity
locations such as bathrooms. Dew
occurred in unit may cause electric
shock, short circuit, other electric
accident and produce the dewing
water drops.
Locations with large amounts
of cooking fumes.
The unit doesn’t work if the filter or
heat exchange core become
clogged with oil which may cause
fire.
Operation Instruction
indoor air inlet
cooking fumes

Ć
)<('=/
Ćfilter is different
owing to model
difference
)<('=
FEATURES
Thanks to efficient recovery of the thermal energy lost during ventilation (fresh air
load), you can save an air-conditioning fee.
Thanks to a greatly reduction of fresh air load, part of the thermal energy is recovered
so that the air-conditioning can become mini-type properly.
When cooling, reduce the outdoor air humidity to make the incoming air humidity
close to the indoor humidity;
When heating,raise the outdoor air humidity to make the incoming air humidity close
to the indoor humidity.
Indoor temperature fluctuation is small when ventilating. As the simultaneous
performance of exhaust air and supplyair, it can be ventilated in high density space.
The air duct and heat exchange core has the effect of sound isolation. It prevents the
outdoor noise from coming in, reversely it also works so as to keep a nice office and
store environment.
1. Energy saving ventilation
2. Facility saving
3. Humidity function
4. Comfortable ventilation
5. Sound isolation
USING CAUTIONS
It must operate with filter.
If not using the filter, heat exchange
core is clogged with dirt and dust,
performance will be lowered and
even the unit doesn’t work.
Turn on /off the switch correctly.
If repeatedly turning on or off the
switch not only cause the wrong
operation but affects the relay
inside and damage it.
It’s forbidden to use theĘnormal
ventilationęfor the dew will be
produced in unit and indoor air inlet
if operating the modeĘnormal
ventilationęwhen the room is
heated in winter.
Part name and using methods(model label adhesive location).
Operation Instruction
winter
Normal ventilation
Part Name
indoor filter
side maintenance
cover heat exchange
core
switch box
switch box model heat
exchange core
model label
indoor filter
indoor filter
indoor filter
outdoor filter
down maintenance cover
down maintenance cover
(left type)
side maintenance
cover
outdoor filter
filter is different owing
to model difference
outdoor filter
down maintenance cover
down maintenance cover
indoor filter
(right type)
The amount of indoor filter is different
owing to model difference.
2 left type is symmetric to right type.
Model Quantity
Other model

PART NAME AND USING METHODS (model label adhesive location).
Using methods:
Please use the switch installed
on the wall (separately sold).
Off
Low high
On
Normal
ventilation
Heat
exchange
Caution
Please use the modeĘheat exchangeęWhen stopping.
In winter, please use the modeĘheat exchangeę.
In winter, when the room is heated and operation in the
modeĘnormal ventilationę,condensation produced on the
surface of the unit, which will make the ceiling dirty or cause
the short circuit or electric leakage.
ƽ
ƽ
ƽ
Heat exchange:to get the temperature and humidity close to indoor,it heat-exchanges the outdoor and indoor
air and then bring the outdoor air to indoor.
Normal ventilation: when the indoor air is polluted, it will increase the exhaust air amount.
ĆCaution: with the exhaust air amount increasing,the negative pressure will be produced in room,the outdoor
air comes into the room from the gaps of door,window and etc.so if you don’t wish the outdoor air to come into
the room, don’t use the mode.
HANDLING METHODS ON ABNORMAL OPERATION
If treated as fault:
Please check as the following list, if abnormal operation occurs, you should turn off the switch, cut off the breaker,
and get the contact with sale shop or repair shop.
Situation Solution
The unit doesn’t work when
turning on the switch.
Without air blowing
Is the breaker in the modeĘoffę?
Is there a power failure?
Is the filter clogged with dust (please conduct the maintenance according
to the maintenance methods for each model)
The condition is not improved or changed after checking the above-mentioned solution, please get the contact with
sale shop where purchasing.
Operation Instruction

indoor filter
outdoor filter
Ćfilter is different
owing to model difference


$
side maintenance cover
when assembling
when disassembling
butterfly bolt fixed screws heat exchange core
█ Maintenance methods for main unit
█ Side maintenance for filter
If using the ERV for a long time, filter will be clogged by dirt and dust which reduces the air volume and
ventilation effect, get the noise louder .Please do the routine cleaning as per the dirty degree.
Rough using condition(large amount of dust location) will cause the reduction of air volume and filter
efficiency, to keep the unit perform well, please raise the times of cleaning or replacing the filter properly. If
using condition continues to get worse, in order to prevent the polluted air from coming into the room,please
adjust to the low mode for reducing the air volume or stop the unit.
In maintenance, please cut off the breaker before disassembling the maintenance cover.
Please conduct the cleaning after fixing the ladder and wearing the gloves.
Please pay attention to the dropping of parts and dirt such as filters or screws, dust and insects.
1. Opening methods of side maintenance cover
Remove the screws fixed in maintenance cover by
screwdriver.
Support the maintenance cover by hand and rotate the two
butterfly bolts by 90°,remove the maintenance cover
toward the arrow A.
2. Cleaning methods for indoor filter
1) Remove the indoor filter horizontally (Circle ķ).
2)As to model E50DZ1, E50DZ1L please horizontally
remove the first heat exchange core, and then horizontally
remove the second indoor filter.
3) Please clean the dirt and dust attached to indoor filter by
vacuum cleaner, using life for indoor filter is a whole
period.
4) Please conduct indoor filter installation by the reverse
order of disassembling steps.
3. Cleaning methods for outdoor filter
1) Please horizontally remove the outdoor filter (Circle ĸ).
2) As to model E50DZ1, E50DZ1L please horizontally
remove the first heat exchange core, and then horizontally
remove the second indoor filter.
3)Please clean the dirt and dust attached to outdoor filter
by vacuum cleaner.Don’t wash the filter by water.
4) Note:
Outdoor filter cleaning: once a month, using life is about 12
months.
5) Please pay attention to the following caution during the
outdoor filter installation, operate by the reverse order of
disassembling steps.
Please refer to the installation direction in outdoor filter,
align the label and conduct the installation.
Please firmly fix the screw when installing the maintenance
cover, in order to avoid the production of gap between the
maintenance cover and main unit.
ƽ
ƽ
ƽ
ƽ
ƽ
Operation Instruction
MAINTENANCE METHODS

main unit
$
%
outdoor filter
butterfly bolt butterfly bolt
down maintenance cover





indoor filter outdoor filter
Ć
8
1. Cleaning methods for Indoor filter
1) Remove the two screws fixed in the indoor filter and the indoor down
maintenance cover toward the arrow A.
2) Please remove the indoor filter toward oblique below location (Circle ķ).
3) As to model E50DZ1, E50DZ1L, slide and remove the second filter
toward oblique below direction (Circle ĸ) .
4) Clean the dirt and dust clogged in indoor filter by vacuum cleaner,
using life for indoor filter is a whole period.
5) Please conduct indoor filter installation by the reverse order of
disassembling steps.
2. Cleaning methods for outdoor filter
1)Remove the two screws fixed in the outdoor down maintenance cover
for outdoor filter toward the arrow B.(note:outdoor filter and down
maintenance cover is a whole)
2) Horizontally remove the outdoor filter (Circle ĺ).
3)As to model E50DZ1, E50DZ1L, slide and remove the second filter
toward oblique below direction (Circle Ĺ).
4) Please clean the dirt and dust attached to outdoor filter by vacuum
cleaner.
Don’t wash them by water.
5) Note:
Outdoor filter cleaning:once a month, using life is about 12months.
6) Please pay attention to the following caution during the outdoor filter
installation, operate by the reverse order of disassembling steps.
Please refer to the installation direction in outdoor filter, align the label
and conduct the installation.
Please firmly fix the screw when installing the maintenance cover, in
order to avoid the production of gaps between the maintenance cover
and main unit.
█ Down maintenance for filter
(*when setting the down maintenance cover,meanwhile you must reserve the side
maintenance cover in advance.)
Operation Instruction
MAINTENANCE METHODS
indoor filter
down maintenance cover
filter is different owing to
model difference
basic series

SAFETY PRECAUTIONS <must be complied>
In order to prevent the damage to using personnel and other personnel and avoid the loss of property, please be
sure to comply with the following precautions.
ƵThe following marks are used to distinguish the damage from damage degree caused by ignoring the mark or
operating by wrong methods.
WARNING:
CAUTION:
this mark means the contentĘconsider the situation may cause the death or
serious injuryę.
this mark means the contentĘconsider the situation may cause the injury or
the loss of propertyę.
ƵThe following marks represent the content expected to be complied with (The following mark is an example of
mark indication)
The marks represent theĘdraw your attentionęcontent.
The marks represent the contentĘprohibitionę.
The marks represent the mandatory contentĘmust be compliedę
WARNING
Strictly conduct the installation
according to the installation instruction.
Improper installation may cause the
electric shock or fire.
Don’t conduct the self-transformation.
It may cause the fire,electric shock and
injury.
When metallic air duct go through metal
mesh used for mortar, wire braid, or
wood material adhesive to the metal
plate, don’t get it in touch with them.
It may cause the fire if electric leaks.
Please entrust the sale shop or
professional staff where you
purchased to conduct the installation.
Any exhaust air can’t be sucked into
outdoor air inlet such as combustible air.
It may cause the serious accident owing
to lack of oxygen.
Outdoor air inlet cannot be installed in
location where exhaust air may back-blow
It may pollute the indoor air and affect
our health.
Don’t use the power besides the
alternate current 220V/ 50Hz.
It may cause the fire and electric shock.
It may cause the electric
shock and injury.
Please cut off the breaker in
maintenance, inspection and no
use for a long time.
Ground connection construction
Please conduct the ground connection in the following
methods.
If employing other methods, it may cause the insufficient
ground connection.
Don’t connect the ground connection with gas pipeline,
water pipeline, lightening rod and phone landline. Wrong
ground connection may cause electric shock.
When connecting lead wire to the
ground terminal of outlet.
When using the ground bar.
Fault or electric leakage may cause the electric shock.
When you install it by yourself, it may
cause the fire, electric shock and injury.
Installation Instruction
Prohibition
ground
connection
ERV
ERV
ground wire(diameter of copper wire is
1.6mm or above.)
ground
terminal
plug
(outside the
bathroom)
ground bar
(separately buy)
above
ground wire(diameter of copper wire is
1.6mm or above.)
(select the location
with humidity)

CAUTION
Prohibition
Please don’t set the indoor air inlet in
location with high temperature or high
humidity.
Dropping
may cause
the injury.
Please install it on the ceiling that is
enough strong to keep the unit,
otherwise the ceiling should be
reinforced.
Besides, please install the uniti by the
specified methods
Please don’t install it in the large
humidity place such as bathroom.
It may cause the electric shock and
abnormal operation.
Please install the inside of insulated
space (the space is insulated from
outdoor air).
Please install the outdoor air duct
inclined to outdoor.
Please install the main unit in location
where dust and dirt can’t come in.
Don’t install the main unit and indoor
air inlet in location with excessive
cooking fumes such as kitchen.
It may cause the fire.
It must use the specified part during
the installation (include the
accessories)
Please install the anti-bird net or
similar thing in air duct.
Please remove the abnormities such
as bird net, otherwise it may cause the
lack of oxygen in room.
Please conduct according to the
Electrical equipment technology
benchmark and indoor lead wire
regulation.
Wrong wire connection will cause the
electric leakage, electric shock and fire.
Please don’t insert the fingers and
sticks into the rotation part during the
operation.
It may cause the injury.
Owing to the different installation
position for special purpose circuit
breaker, sometimes it’s required to
install the anti-creeping circuit breaker.
It may cause the electric leakage if not
installing the anti-creeping circuit
breaker.
To avoid the dew, the outdoor air duct
extends to indoor air duct.
Improper installation will cause the
water leakage in room, result in
damaging the indoor property.
Firmly fix the parts.
Dropping may cause the injury.
Don’t install the main unit and indoor
air inlet in location with high
temperature or directly exposed to
heat source.
It may heat or cause the fire.
Prohibition Prohibition
Contact
prohibition
It may cause the unit dropping, fire
and electric shock If not using the
specified parts.
Large amount of dirt and dust clogged in
filter will cause the lack of oxygen in
room.
Improper installation will cause the water
seepage in room, result in wetting the
goods.
If installing it outside the insulated space
(the space exposed to the outdoor air)
the internal unit will be dew in winter, it
may cause the electric shock or water
dropping.
It may cause the damage inside the unit,
which can result in abnormal operation,
electric shock and fire.
Installation Instruction
prohibited to use
in location with water

INSTALLATION PRECAUTIONS <must be complied>
CAUTION
Please avoid the following duct installation.
It may cause the unexpected accident.
(1) excessive bending (2) multi-times bending (3) reduction the diameter of connecting duct
Prohibition Prohibition Prohibition
Prohibition
Prohibition
Please don’t install the unit in location
where indoor temperature is below the
outdoor temperature.
It may cause the electric shock or
abnormal operation.
Do not install in high humidity locations
such as bathrooms.
Use the specified cord connected the
power supply cord and connect wire,
terminal in connection is fixed firmly and
not affected by cord forces.
Please take care of it during moving the unit.
Improper hanging and moving may cause
the dropping, result in injury.
Please don’t face it to the air outlet by
eyes (especially when operating)
The dirt may fly into your eyes.
Please use the professional
ventilation when the room is
heated by gas or oil heating
furnace.
Prohibition
Prohibition
Don’t use it in location with opening
–burning equipment (heater).
Prohibition
Prohibition
Don’t insert fingers or sticks into the unit
or air inlet, air outlet.
It may cause the injury because of high
speed rotation inside the unit.
Prohibition
Don’t install in location where may be
exposed to the combustible gas leakage.
In case of gas get together around the
unit, it may cause the fire.
Firmly fix the power supply cord and
connect wire, close the cover,and don’t
make the cover tilted.
If the cover is not closed firmly, dust and
dirt come in, it may heat the terminal in
connection, result in fire or electric shock.
Prohibition
Don’t twist the unit or conduct the
overload force to unit in construction.
Dropping may cause the injury.
Please install the ventilation equipment
on the ceiling with excessive humidity or
high temperature.
It may cause the fire or electric shock.
Please fully confirm the usage for special
purposes.
If the product is used for special purposes
such as preservation of food, animals, plants,
precision instruments and artwork, it may
cause the quality declination.
Please wear the gloves and other
protective tools in construction to avoid
the injury.
Don’t install the unit in locations such as
machinery, chemical and research plant
where it will be exposed to noxious gases
containing acids, alkali, organic solvents,
paint fumes, etc., to gases containing
corrosive ingredients.
It may cause the gas poison, corrosive
damage and deterioration inside the unit,
Result in fire.
Please pay attention to the rotation of
impeller caused by backward air in air duct.
Although the power is cut off, it may get
involved to the rotation part, result in injury.
Dewing occurred in unit may cause electric
shock, short circuit, other electric accident
and dewing water drops.
Installation Instruction

FY-E15DZ1
FY-E25DZ1
Installation Instruction

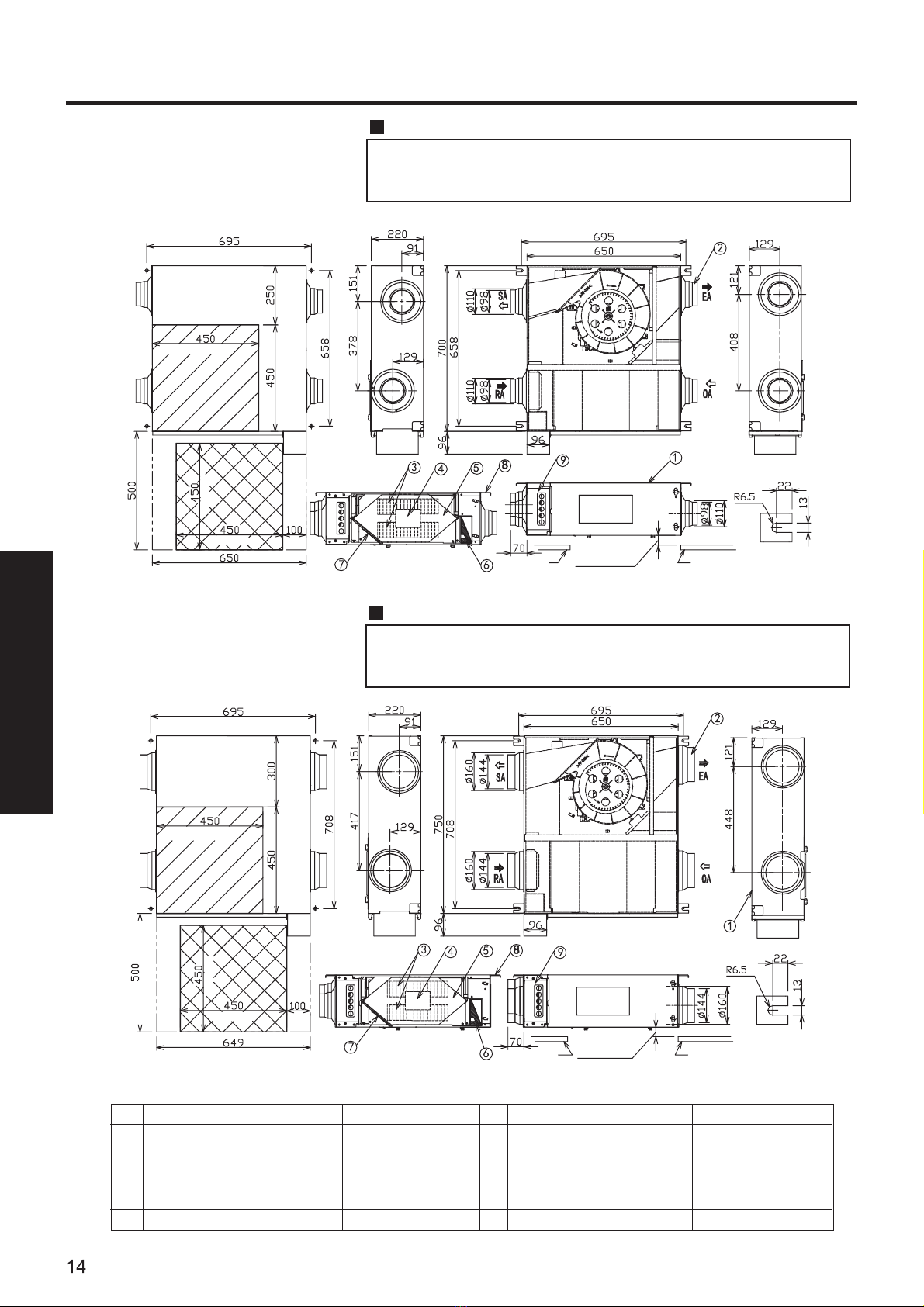

Cautions for maintenance cover UNIT: mm
1. Do routine cleaning to heat exchange core and filter, maintenance cover must be set.
2. It’s allowed to only set the side maintenance cover.
3. Please reserve the side maintenance cover in advance if setting the down maintenance cover.
* it won’t conduct the maintenance without the side maintenance cover.
(Exhaust
Air) (Supply Air)
(Room Air)
(Outside
Air)
Ceiling
Ceiling
Dimension of filter
maintenance cover
Dimension of filter
maintenance cover
Suspension point dimension
Suspension point dimension
Dimension of
maintenance cover
Dimension of
maintenance cover
The area within double point chain line is
reserved for maintenance, it’s prohibited
to place other devices.
Internal structure after opening
the maintenance cover
25mm above
Ceiling suspension
parts
Cautions for maintenance cover UNIT: mm
1. Do routine cleaning to heat exchange core and filter, maintenance cover must be set.
2. It’s allowed to only set the side maintenance cover.
3. Please reserve the side maintenance cover in advance if setting the down maintenance cover.
* it won’t conduct the maintenance without the side maintenance cover.
(Exhaust
Air)
(Outside
Air)
(Supply Air)
(Room Air)
Dimension of filter
maintenance cover
Suspension point dimension
Suspension point dimension
Dimension of filter
maintenance cover
Dimension of
maintenance cover
Dimension of
maintenance cover
The area within double point chain line is
reserved for maintenance, it’s prohibited
to place other devices.
Internal structure after opening
the maintenance cover
Ceiling
Ceiling 25mm above
Ceiling suspension
parts
No.
1
2
3
4
5
Part name
Frame
Adapter
Impeller
Fan motor
Heat exchange core
Material
Galvanized steel sheet
ABS
PP
Special paper+resin
Quantity
1
4
2
1
1
No.
6
7
8
9
Part name
Outdoor filter
Indoor filter
Ceiling suspension part
Switch box
Material
Nonwoven fabric
Galvanized steel sheet
Galvanized steel sheet
Quantity
1
1
4
1
PART NAME AND DIMENSIONS

FY-E35DZ1
FY-E50DZ1
Installation Instruction
Cautions for maintenance cover UNIT: mm
1. Do routine cleaning to heat exchange core and filter, maintenance cover must be set.
2. It’s allowed to only set the side maintenance cover.
3. Please reserve the side maintenance cover in advance if setting the down maintenance cover.
* it won’t conduct the maintenance without the side maintenance cover.
Cautions for maintenance cover UNIT: mm
1. Do routine cleaning to heat exchange core and filter, maintenance cover must be set.
2. It’s allowed to only set the side maintenance cover.
3. Please reserve the side maintenance cover in advance if setting the down maintenance cover.
* it won’t conduct the maintenance without the side maintenance cover.
(Exhaust
Air)
(Outside
Air)
(Supply
Air)
(Room
Air)
Dimension of filter
maintenance cover
Suspension point dimension
Suspension point dimension
Dimension of filter
maintenance cover
Dimension of
maintenance cover
Dimension of
maintenance cover
The area within double point chain line is
reserved for maintenance, it’s prohibited
to place other devices.
Internal structure after opening
the maintenance cover
Ceiling
Ceiling 25mm above
Ceiling suspension
parts
(Exhaust
Air)
(Outside
Air)
(Supply Air)
(Room Air)
Dimension of filter
maintenance cover
Suspension point dimension
Suspension point dimension
Dimension of filter
maintenance cover
Dimension of
maintenance cover
Dimension of
maintenance cover
The area within double point chain line is
reserved for maintenance, it’s prohibited
to place other devices.
Internal structure after opening
the maintenance cover
Ceiling
Ceiling 25mm above
Ceiling suspension
parts
Part name
Frame
Adapter
Impeller
Fan motor
Heat exchange core
Material
Galvanized steel sheet
ABS
PP
Special paper+resin
Quantity
1
4
2
1
1(2)
No.
6
7
8
9
No.
1
2
3
4
5
Part name
Outdoor filter
Indoor filter
Ceiling suspension part
Switch box
Quantity
1(2)
1
4
1(2)
Material
Nonwoven fabric
Galvanized steel sheet
Galvanized steel sheet
PART NAME AND DIMENSIONS

FY-E15DZ1L
FY-E25DZ1L
Installation Instruction
Cautions for maintenance cover UNIT: mm
1. Do routine cleaning to heat exchange core and filter, maintenance cover must be set.
2. It’s allowed to only set the side maintenance cover.
3. Please reserve the side maintenance cover in advance if setting the down maintenance cover.
* it won’t conduct the maintenance without the side maintenance cover.
Cautions for maintenance cover UNIT: mm
1. Do routine cleaning to heat exchange core and filter, maintenance cover must be set.
2. It’s allowed to only set the side maintenance cover.
3. Please reserve the side maintenance cover in advance if setting the down maintenance cover.
* it won’t conduct the maintenance without the side maintenance cover.
(Exhaust
Air)
(Outside
Air)
(Supply Air)
(Room Air)
(Exhaust
Air)
(Outside
Air)
(Supply Air)
(Room Air)
Suspension point dimension
The area within double point chain line is
reserved for maintenance, it’s prohibited
to place other devices.
Internal structure after opening
the maintenance cover
CeilingCeiling 25mm above Ceiling suspension
parts
The area within double point chain line is
reserved for maintenance, it’s prohibited
to place other devices.
Internal structure after opening
the maintenance cover
Ceiling
Ceiling 25mm above
Ceiling suspension
parts
Dimension of filter
maintenance cover
Dimension of filterD
maintenance cover
Suspension point dimension
Dimension of
maintenance cover
Dimension of
maintenance cover
Suspension point dimension
Dimension of filter
maintenance cover
Dimension of filter
maintenance cover
Suspension point dimension
Dimension of
maintenance cover
Dimension of
maintenance cover
No.
1
2
3
4
5
Part name
Frame
Adapter
Impeller
Fan motor
Heat exchange core
Material
Galvanized steel sheet
ABS
PP
Special paper+resin
Quantity
1
4
2
1
1
No.
6
7
8
9
Part name
Outdoor filter
Indoor filter
Ceiling suspension part
Switch box
Material
Nonwoven fabric
Galvanized steel sheet
Galvanized steel sheet
Quantity
1
1
4
1
PART NAME AND DIMENSIONS

FY-E35DZ1L
FY-E50DZ1L
Installation Instruction
Cautions for maintenance cover UNIT: mm
1. Do routine cleaning to heat exchange core and filter, maintenance cover must be set.
2. It’s allowed to only set the side maintenance cover.
3. Please reserve the side maintenance cover in advance if setting the down maintenance cover.
* it won’t conduct the maintenance without the side maintenance cover.
Cautions for maintenance cover UNIT: mm
1. Do routine cleaning to heat exchange core and filter, maintenance cover must be set.
2. It’s allowed to only set the side maintenance cover.
3. Please reserve the side maintenance cover in advance if setting the down maintenance cover.
* it won’t conduct the maintenance without the side maintenance cover.
(Exhaust
Air)
(Outside
Air)
(Supply Air)
(Room Air)
The area within double point chain line is
reserved for maintenance, it’s prohibited
to place other devices.
Internal structure after opening
the maintenance cover
Ceiling
Ceiling 25mm above Ceiling suspension
parts
Suspension point dimension
Dimension of filter
maintenance cover
Dimension of filter
maintenance cover
Suspension point dimension
Dimension of
maintenance cover
Dimension of
maintenance cover
(Exhaust
Air)
(Outside
Air)
(Supply
Air)
(Room
Air)
The area within double point chain line is
reserved for maintenance, it’s prohibited
to place other devices.
Internal structure after opening
the maintenance cover
Ceiling
Ceiling 25mm above
Ceiling suspension
parts
Suspension point dimension
Dimension of filter
maintenance cover
Dimension of filter
maintenance cover
Suspension point dimension
Dimension of
maintenance cover
Dimension of
maintenance cover
Part name
Frame
Adapter
Impeller
Fan motor
Heat exchange core
Material
Galvanized steel sheet
ABS
PP
Special paper+resin
Quantity
1
4
2
1
1(2)
No.
6
7
8
9
No.
1
2
3
4
5
Part name
Outdoor filter
Indoor filter
Ceiling suspension part
Switch box
Quantity
1(2)
1
4
1(2)
Material
Nonwoven fabric
Galvanized steel sheet
Galvanized steel sheet
PART NAME AND DIMENSIONS

)<-('=series )<-('=/series
FY-E15DZ1 FY-E15DZ1L FY-E25DZ1 FY-E25DZ1L
FY-E50DZ1 FY-E50DZ1L
,167$//$7,21',$*5$0&216758&7,210(7+2'
pipe hood
outside air
exhaust air
ceiling suspension bolt room air duct
outside air
exhaust air
pipe hood
ceiling suspension bolt
room air duct
(room air) (room air)
(supply air) (supply air)
&RQVWUXFWLRQPHWKRG
,QVWDOODWLRQRIPDLQXQLWDQGDLUGXFW
Install 4 ceiling suspension bolts(separately buy:M10)
Please align the suspension angle of main unit with ceiling suspension bolts.
dimension of suspension point
dimension of suspension point
dimension of suspension point
dimension of suspension point
dimension of suspension point
dimension of suspension point
dimension of suspension point
dimension of suspension point
dimension of suspension point dimension of suspension point
dimension of suspension point
dimension of suspension point
FY-E35DZ1 FY-E35DZ1L
dimension of suspension point
dimension of suspension point
dimension of suspension point
dimension of suspension point
,QVWDOODWLRQ,QVWUXFWLRQ

Install the ceiling suspension part to its bolts.
Please correctly install the direction of outside air
duct.
Never fail to install the direction of unit (ensure the
ceiling suspension is above)
Fix the screws and washers (separately buy).
Install the unit horizontally.
Please adjust the length of ceiling suspension bolt
to ensure the distance between the downside of unit
and ceiling is over 25mm, the distance between the
upside of unit and the mounting face of ceiling
suspension bolts is over 20mm.
Seal the junction of an adaptor and a duct by
adhesive tape or seal tape (separately buy) to
prevent any air leakage.
Please don’t touch the fan motor by hand during the
air duct construction.
Install the ducts (2) connected with outside shall
incline to outside. (gradient: 1/100~1/50).
Conduct the insulation to outside of two ducts
connected with outdoor
(suggested material :glass wool ,thickness 25mm)
above 20mm
above 20mm
Nut
Washer
Ceiling suspension part
gradient
adhesive tape
insulation material
(adaptor and aluminum tape is
requested to insulate.)
outside air duct, exhaust air duct
17
Installation Instruction

Connection with power(Connection before ceiling construction)
Wire connection diagram
Precaution during the wire connection:
ƽThe dashed line as shown in the figure must be conducted on spot by construction personnel.
ƽPlease use the switch, its contact point sepate distance is above 3mm.
ƽPlease use the switch,its rate current is above 10A.
ƽIt’s recommended to use the wire for connecting power supply cord and switch,its rate voltage is 300V/500V
as stipulation of 60227IEC53 (soft wire).
At this time, please use the three-core wire containing green/yellow wire for power supply cord; besides, use the
two-core wire for connecting SW1, SW2 and switch inside the unit;use the two-core wire for Aircon
operation(please omit the connection if it’s not used the Aircon operation);use the four-core wire for connecting
other terminal parts and switch, the nominal cross-section area for above-mentioned wire is 2.5mm2.When it’s used
the remote control for switch,the wire connected with switch,its cross-section area is 1.5mm2.
ƽPlease use the torsion below the 1.2N to firmly connect the lead wire and terminal parts,no loosen of
connection.Please note the power supply cord in connection is not adhesive with solder.
ƽAir volume can be adjusted to two modes of high+low and strong+low.
Factory setting is mode of high +low. Please adjust it as customer required if necessary.
ƽWhen adjusting the air volume from high to strong, please separate the connector of the red line and the blue
line, and link the connector of red wire and white wire (shown as chain dotted line).
ƽSeveral units operate, the total current for all equipment must be less than the half rate current of switch.
ƽGround connection is required.
ƽAfter completing the wire connection, please fix the cover of switch box by the screws.
ƽWhen the power supply cord is damaged, in order to avoid the danger, please entrust the authorized personnel
to conduct the changing work, and get the contact with the sale shop and repair shop where you purchased.
wirig diagrams of lefe tyfe and right
type are symmetrical.
18
Installation Instruction

ground
terminal
terminal
block
0 Nut
power supply cord(remain 50cm)
wire plug
ぎ䇗㘨ࡼ
$
$
亢䯔
ᔎḷ
ᔅḷ
݅䗮
ᓔ
݇
6:
6:
⬉
⑤
1
䳊㒓
☿㒓


/


$
$
6:
6:
1
䳊㒓
/
☿㒓
ぎ䇗㘨ࡼ
ᓔ
݇
⬉
⑤
亢䯔
ᔎḷ
ᔅḷ
݅䗮
01XW
ground terminal
terminal
block wire plug
ĆĆ
ĆPower cord of L type
ĆGround wire
ĆPower cord of R type
Ćplease pay attention to the length of
ground wire for left type and right type.
R type
FY-E**DZ1
L type
FY-E**DZ1L
With Aircon
Without Aircon
FailureAvailable operation
Button ①Button ②Button ③
— Button ①Button ②Button ③Normal
ventilation Heat
exchange
ķ
ĸ
Ĺ
Off On
/RZ high
ƽ
ƽ
ƽ
Under the situation of Aircon operation
Model label
R type
Remove the cover of switch box.
Remove the three screws fixed in the cover of switch box.
L type
The screws
fixed in the
switch box
Wire connection
Peel off the skin of power supply
cord by 40mm, and peel off the
skin of each core wire by 10mm.
The power supply cord goes through the wire plug, as
required in figure, fix the wire connecting power supply cord
and switch in the terminal block,and fix the ground wire in the
ground terminal.
Connection proportion of Lead wire is not forced by strength,
fixing the wire connecting the power supply cord and switch.
In maintenance, in order to avoid pulling the switch box into
the unit, please keep enough space for the wire connecting
the power supply cord and ground wire. To prevent it from
touching the ceiling, please fix it by ceiling suspension bolts.
ĆR type
White
On /Off
High/low
Damper
close/open
Switch
Air volutre
Heat exchange
/Normal ventilation
White
Blue
ĆL type
Fix the cover of switch box
After completing the wire connection, fix the cover of switch
box by screws. (dust and moisture may cause the electric
leakage or fire.)
Strong high
Trial operation
After completion, never fail to check the ground wire connection and wiring and conduct the trial operation.
Check the display of switch and airflow condition with power on after confirmig the wiring connection, power
and voltage.
Ventilation/stop
Confirm the air volume is changed as the power on/off
Heat exchange (see the damper closed by opening side maintenance opening )
Normal ventilation (see the damper open by opening side maintenance opening)
Abnormal operation occurs, cut off the special purpose circuit breaker and confirm the wire connection again.
Fix the cover of switch box after conducting the trial operation.
Please stick the model label to the switch or around.
Model label is placed in the plastic bag, don’t forget to attach it.
power supply cord(remain 50cm)
connector
19
Installation Instruction

)
Ϳ
((W)
30
39
%
45
27
%
FY-E50DZ1
FY-E50DZ1L
FY-E15DZ1
FY-E15DZ1L
FY-E25DZ1
FY-E25DZ1L
FY-E35DZ1
FY-E35DZ1L
（m³/h）（Pa）(dB(A))
Model Notch
Input
power
Static
pressure
Heat
exchange efficiency
Cooling Heating Cooling Heating
Enthapy
exchange efficiency
Noise Weight
Normal
ventilation
air volume
85
79
45
125
113
81
225
209
150
315
288
210
SH
H
L
SH
H
L
SH
H
L
SH
H
L
150
150
100
250
250
150
350
350
250
500
500
360
100
55
0
115
95
0
150
85
0
120
85
0
63
63
68
58
58
65
54
54
54
53
53
58
78
78
80
75
75
79
75
75
75
78
78
78
66
66
72
60
60
70
60
60
63
60
60
66
73
73
75
67
67
76
70
70
70
70
70
69
28
28
22
32
32
25
36
36
30
37
37
31
Explanation:
The values shown as instruction are measured in the condition of total pressure when ERV operates.
The input power indicated in name plate is the maximum value at the static pressure of 0 Pa.
Noise value is measured at the position 1.5m away from the down side of the unit based on standard JIS B 8628:2003
(measured in the complete anechoic room), the value is affected by the echo during the actual installation, more than the
indicated value.
In the case of other condition is unchanged, noise value is up for 1.5dB(A) measured in the half anechoic room.
Installation Instruction
SPECIFICATION
Installation Instruction
* The above parameters are subject to change with a prior notice.
E50DZ1853 B0315-0
2015
IP Code: IPX2
IPX2
:
Insulation Class: B or E
B or E
