Reference Manual
Personal Computer
Model No. CF-19 Series
We recommend that this Reference Manual be printed.
Descriptions
• For common procedures and screens for Windows 7 and
Windows XP, this Reference Manual uses the procedures
and screens of Windows 7.
• Some menus may differ for Windows XP.
• Windows XP does not require clicking operation to of
the notification area.

2
Introduction
This manual explains using the Windows 7 or Windows XP default setting.
zindicates “Genuine Windows®7 Professional”
zindicates “Genuine Microsoft®Windows®XP Professional” or “Genuine Microsoft®Windows®XP Tablet
PC Edition”
zindicates “Genuine Microsoft®Windows®XP Professional”
zindicates “Genuine Microsoft®Windows®XP Tablet PC Edition”
In these instructions, the names are referred as follows.
z“Genuine Windows®7 Professional 32-bit Service Pack 1” and “Genuine Windows®7 Professional 64-bit Service Pack 1”
as “Windows” or “Windows 7”
z“Genuine Microsoft®Windows®XP Professional” or “Genuine Microsoft®Windows®XP Tablet PC Edition” as “Windows”
or “Windows XP”
You can update to the latest patches and service packs for Windows with the following menus.
Click (Start)*1 - [All Programs] - [Windows Update].
Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required, contact your tech-
nical support office.
*1 Windows XP: [start]
Sound and video
zSound (e.g. MP3, WMA) and video (e.g. MPG, WMV) recorded in PC Cards and SD Memory Cards may be interrupted
during playback. If this happens, copy them to the hard disk drive and play back.
z Depending on the processing status on Windows, sound may be interrupted at Windows startup. You can mute the sound at startup.
ARight-click the desktop and click [Personalize] - [Sounds].
BRemove the check mark from [Play Windows Startup sound], and click [OK].
Windows Update
Regarding Windows 7

3
Introduction
You can select the Classic view of Control Panel or the Classic Start menu. You can also change the way a user logs on or off.
This manual explains using the Windows XP default setting (not Classic view or Classic Start menu etc.).
zIf the message “Your computer might be at risk” is displayed
Select (red icon) on the notification area and make the appropriate settings. The Windows Security Center regularly gives
you notice so that you can make the optimum settings. This is not an error message and you can use the computer.
However, making appropriate measures is recommended to reduce the risk of virus and other attacks.
Regarding Windows XP

4
Key Combinations
NOTE
zDo not repeatedly press the keys in quick succession.
zDo not use the key combinations together with touch pad (external mouse), touchscreen (only for model with touch-
screen), dual touch (only for model with dual touch), tablet buttons, or other key operations.
zDo not use the key combinations before you log on to Windows. Wait until the hard disk drive indicator turns off.
On the Setup Utility screen, you can use the key combinations of
Fn + F1 , Fn + F2 and Fn + F3 .
zThe key combinations may not work with some applications.
zThe pop-up icon appears after logging on to Windows. It may not appear in some application conditions.
Key Function Pop-up icon
Fn + F1
*1
Fn + F2
*1
LCD brightness
(
Fn + F1 = down / Fn + F2 = up)
Fn + F3 Display mode switching (Îpage 61)
When an external display (a projector etc.) is connected, you can change the dis-
play mode.
APress
Fn + F3 .
BClick the display mode. (Computer only/Duplicate/Extend/Projector only)
The change you made may not be effective until
Enter is pressed.
You can also change the operating mode by pressing +
P .
Internal LCD Simultaneous display External display
CAUTION
zDo not press any keys until the display has finished switching.
zDo not use this function:
• When playing motion video such as DVD or MPEG.
• When an extended monitor is not connected.
• When showing a game screen such as pinball.
• When using the extended desktop.

5

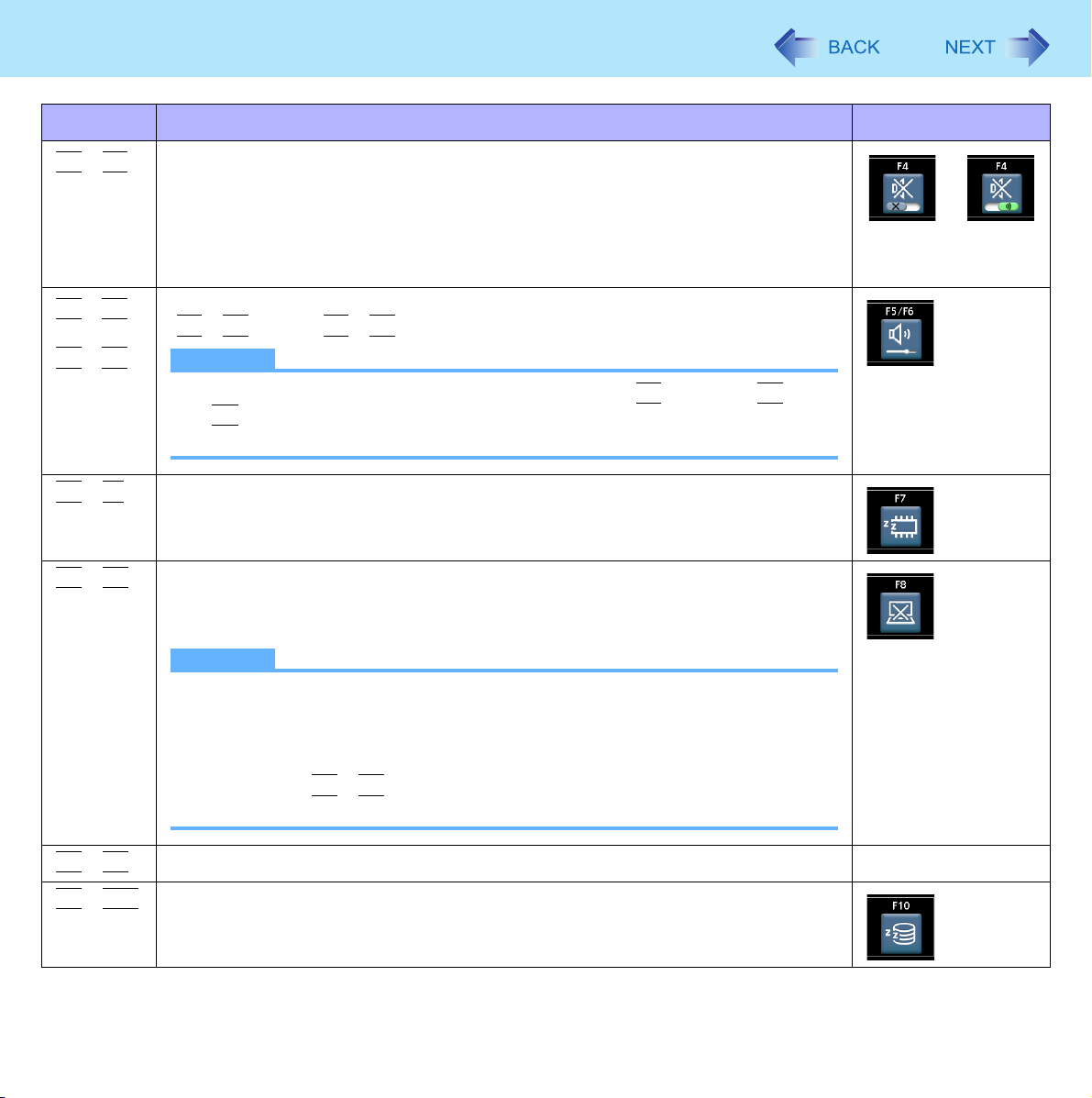

Key Combinations
*1 These key combinations are disabled when [Concealed Mode] is enabled.
Fn + F4
*1 Speaker on/off
OFF
(MUTE)
ON
Fn + F5
*1
Fn + F6
*1
Volume
(
Fn + F5 = down / Fn + F6 = up)
NOTE
zWhen fine-tuning the sound volume, press and hold
Fn , and press F5 or
F6 intermittently.
zThis does not work on beeps or speakers connected to the USB port.
Fn + F7
Activate sleep*2 (Îpage 33)
Fn + F8 Concealed Mode on/off
You can select on/off of LCD Backlight, LED, Sound*3, Wireless Radio and Backlit
Keyboard.
NOTE
zYou have to set [Concealed Mode] to [Enabled] in Setup Utility.
(Îpage 106)
zYou can set the devices turned off in [Concealed Mode] with Setup Utility
(Îpage 106).
zIf you press
Fn + F8 in succession, the Concealed Mode may not be
switched. More than 4 minutes interval is necessary to switch on/off.
Fn + F9 Remaining battery charge (Îpage 43)
Fn + F10 Activate hibernation (Îpage 33)
Key Function Pop-up icon

6
Key Combinations
*2 Windows XP: standby
*3 Even if [Sound] is set to [OFF] on the [Concealed Mode Configuration] menu, or icon on the notification area and [Volume] in
[SoundMAX] display do not show mute state.
However, audio from the speaker is not heard.
You can make 2 settings:
•Fn key lock
When you press
Fn , the key is locked (pressed-down) until you press another key. Use this when pressing difficult key
combinations.
• Pop-up icon on/off
1Start up the Hotkey Settings.
Click (Start)*4 - [All Programs] - [Panasonic] - [Hotkey Settings].
2Make the settings.
[Use Fn key lock]
zWhen using an
Fn key combination
APress
Fn once. (Locked)
BPress another key. (Lock released)
zWhen using successive
Fn key combinations
APress
Fn twice. (Locked)
BPress another key.
Fn key remains locked until you press
Fn again.
[Notification]
[Make sounds when Fn key is pressed]*5
[Show status on screen]: Displays the Fn key status when on the notification area is clicked.
•:
Fn is locked.
•:
Fn is not locked.
[Disable popup]
The pop-up icon will not be displayed.
[Display status bar while Fn Key is held down]
[Status bar position]: If you select [TOP], the status bar will be displayed near upside of the computer.
If you select [Bottom], the status bar will be displayed near downside of the computer.
Hotkey Settings

7
Key Combinations
3Click [OK].
NOTE
zYou can have different settings for each user.
*4 Windows XP: [start]
*5 If the speaker is muted or [Sound] is turned off in [Concealed Mode Configuration], beeps do not sound.

8
Tablet Buttons
NOTE
The Tablet buttons work when the Windows screen is displayed.
The Tablet buttons may not work immediately after Windows is started up or the Windows logon screen (or the Wel-
come screen) is displayed.
If you set password input for resuming from screensaver, the Input Panel, Enter and Rotation buttons do not work on
screensaver.

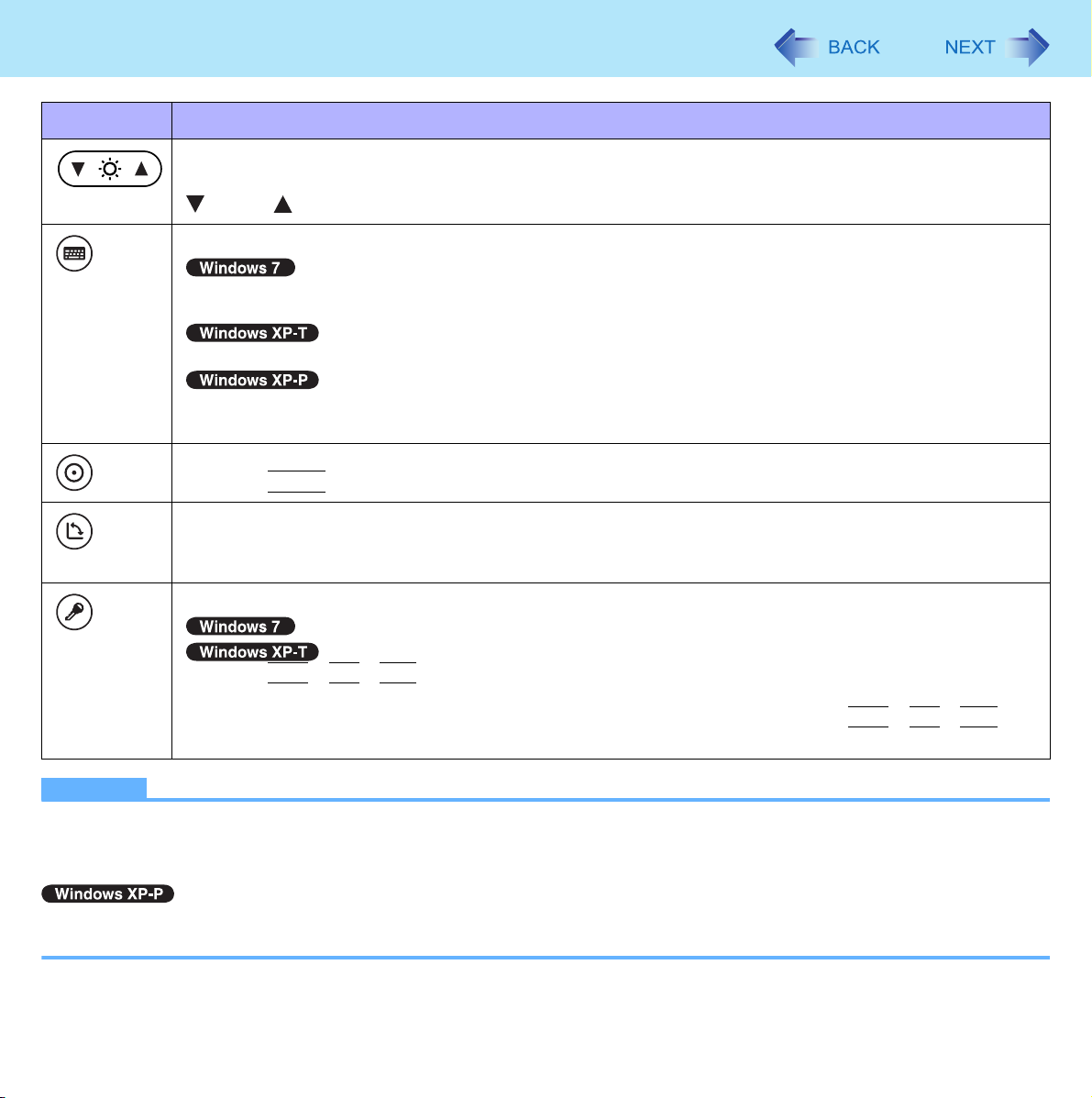

Button Function
LCD Brightness
You can also adjust the LCD brightness in Dashboard for Panasonic PC. (page 23)
: down / : up
Input Panel
Tablet PC Input Panel on/off
If you press and hold this button, Dashboard for Panasonic PC will start (page 22).
Tablet PC Input Panel on/off
Software keyboard on/off (page 19)
This button does not work on the Welcome screen.
Enter
Works as
Enter .
Rotation
Rotates the display. (page 29)
Do not press the button again until the display rotation is completed.
Security
Works as
Ctrl + Alt + Del .
Locks the computer.
On the Windows logon screen and the Welcome screen, this button work as
Ctrl + Alt + Del .
This button does not work on screensaver.

9
Tablet Buttons
NOTE
zYou can have different settings for each user.
zOn the Windows logon screen and Welcome screen, the tablet buttons are enabled and work in default irrespective of
the settings you made.
To change the tablet button functions
You can change the functions of the Input Panel ( )/Enter ( )/Rotation ( ) buttons.
1Open the setting screen.
Click (start) - [Control Panel] - [Hardware and Sound] - [Set tablet buttons to perform certain tasks].
Click [start] - [All Programs] - [Panasonic] - [Tablet Buttons Settings].
Click [start] - [Control Panel] - [Printers and Other Hardware] - [Tablet and Pen Settings] - [Tablet Buttons].
2Click the tablet button and click [Change].
3
Select the function in [Press] and [Press and hold].
zYou cannot select Fn for [Press a key or key combination].
zClick [Browse] to select the application if you select [Start a program].
Select the function in [Action].
zYou cannot select Fn for [Press a key or key combination].
zClick [Browse] to select the application if you select [Launch an application].
4Click [OK].
5Click [OK].
Setting the Tablet Buttons

10
Tablet Buttons
To disable the tablet buttons
You can disable the Security ( )/Input Panel ( )/Enter ( )/Rotation ( ) buttons.
1Click [start] - [All Programs] - [Panasonic] - [Tablet Buttons Settings].
2Remove the check mark from [Enable Security, Input Panel, Enter, Rotation Button.]
3Click [OK].

11
Touchscreen
<Only for model with touchscreen>
You can use the touchscreen function to perform the same operation as the touch pad and mouse. Touch the screen surface
with the stylus (included).
For further information, click (Start) - [Control Panel] - [Hardware and Sound] - [Pen and Touch] - [Flicks] - [Practice using
flicks].
zTo right-click
ATouch and hold with the stylus, or touch and select the right button of “touch pointer”.
AClick on the notification area.
changes to .
BClick the object you want to right-click.
returns to .
NOTE
zThe touchscreen function does not work in the Setup Utility.
zYou need to make the following setting for each user.
AClick [start] - [All Programs] - [Fujitsu Touch Panel (USB)] - [Touch Panel Configuration].
BSelect the settings, and then click [OK].
• Do not add a check mark to [Delete Cursor] since the display may be distorted.
zIf you add a check mark for [Use] in [Hold [Ctrl] key down + Touch the screen] of [Touch Panel Configuration], touching
the screen may always be recognized as a right-click. To return to the normal operation, press
Ctrl on the keyboard.
zThe touchscreen function does not work in the Setup Utility, in the full screen of [Command Prompt].
Operate the touchscreen with your finger or with an approved stylus
When using the touchscreen function, use only your finger or an approved stylus on the surface.
Operating the touchscreen with an object other than your fingertip or the stylus (a fingernail or metal object, or other hard
or sharp objects that may leave a mark) may scar or stain the surface, causing the touchscreen to malfunction.
Do not apply too much pressure when operating the touchscreen
Only a light touch is required to operate the touchscreen. Applying too much pressure may damage the surface.
Operation of the touchscreen

12
Touchscreen
When the touchscreen becomes dirty, wipe it with an approved soft cloth
The touchscreen is specially treated to prevent dirt from adhering to the surface, so dirt can be removed easily using a dry
cloth (use only the approved soft cloth). If the dirt does not come off easily, breathe on the surface and try again.
Do not apply water or solvents to the soft cloth.
Suggestions About Cleaning the LCD Surface
To improve the outdoor visibility of the display, a low reflection coating has been added. In order to avoid scratches and
peeling of this coating, an approved soft cloth has been included to wipe the LCD surface of the computer. Before using
the computer, be sure to read the instructions provided below.
<How to use the soft cloth>
• Use the soft cloth when it is dry. Do not apply water or solvents to the soft cloth.
• First, lightly wipe foreign particles and dust adhering to the LCD display on one side of the soft cloth. Do not use force,
since the LCD surface may be damaged with the foreign particles or dust.
Next, wipe off fingerprint, etc., with the other side of the soft cloth.
After wiping off foreign particles and dust, wash the soft cloth (refer to the following) to remove the foreign particles and
dust from the soft cloth.
• When the soft cloth becomes dirty, wash it with neutral detergent. Do not use bleach or a fabric conditioner (softener), or
carry out sterilization by boiling.
• If the LCD gets wet, wipe the surface lightly with the soft cloth.
• While wiping the LCD display, the computer must be turned off.
Clean the touchscreen while the computer is powered off
Cleaning the screen while the power is on may cause the computer to malfunction. Also, dirt on the touchscreen is easier
to see when the computer is powered off, and so is easier to clean.
Wash the soft cloth when it becomes dirty
When the soft cloth becomes dirty, wash it with mild detergent. Do not use bleach or fabric conditioner (softener), or try to
sterilize the cloth by boiling.
If the soft cloth is dirty, it may be ineffective in cleaning the touchscreen, and in fact may cause dirt to adhere to the touch-
screen.
Maintaining the performance of the touchscreen
• Be sure to wipe the LCD display to remove fingerprints, etc., with the soft cloth.
• Do not wipe areas other than the LCD display with the soft cloth.

13
Touchscreen
Check the following to prevent the surface of the touchscreen from being scratched
zAre you using your finger or a stylus to operate the touchscreen?
zIs the surface clean?
zIs the soft cloth clean?
zAre you using the stylus with the tip extended?
zIs the tip of the stylus clean?
zIs your finger clean?
Do not touch the screen outside of the LCD display area
The touchscreen input area is defined by the LCD display screen. Touching the screen outside of the display area may
result malfunctions or damage to the touchscreen.
Do not apply excessive force to the touchscreen
Do not lift the computer while holding the LCD screen, or allow the screen to be twisted. Do not place any objects on the
LCD screen. Any of the above may cause the touchscreen glass to break, or may damage the LCD screen.
Operation response may be slower in low temperature environments
The touchscreen may respond to operations more slowly when using the computer in temperatures less than 5°C, but this
is not a malfunction. Response time will return to normal when the computer is returned to room temperature.
If the cursor jumps to a location other than where the screen was touched, or if
the LCD resolution changes, recalibrate the touchscreen
Perform the procedure of “Touchscreen Calibration” (below).
A standard user needs to perform the calibration as an administrator before performing the calibration for each user.
Things to keep in mind when using the touchscreen
Touchscreen Calibration

14
Touchscreen
Calibration by an administrator
NOTE
zAt first, log on to Windows as an administrator, and perform this calibration.
1Run [Tablet PC Settings].
Click (Start) - [Control Panel] - [Hardware and Sound] - [Tablet PC Settings].
2Click [Calibrate].
3Using the stylus, touch each of the “+” target marks one by one.
Calibration by a standard user
NOTE
zPerform the following calibration for each user.
1Run [Tablet PC Settings].
Click (Start) - [Control Panel] - [Hardware and Sound] - [Tablet PC Settings].
2Click [Calibrate].
3Using the stylus, touch each of the “+” target marks one by one, and then click [OK].
zPerform the calibration for the orientation to be used.
1Run [Touch Screen Calibration Utility].
Click [start] - [All programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen Calibration Utility].
2Using the stylus, touch each of the “+” target marks one by one until it blinks, and then
press Enter .
3Press Enter .
NOTE
zPerform the touchscreen calibration for each user.

15
Dual Touch
<Only for model with dual touch>
You can use the digitizer function to perform the same operation as the touch pad and mouse by touching the screen surface
with the digitizer pen (included). And you can use the touchscreen function to perform the same operation as the touch pad
and mouse by touching the screen with your finger etc.
For further information, perform the following procedure.
Click (Start) - [Control Panel] - [Hardware and Sound] - [Pen and Touch] - [Flicks] - [Practice using flicks].
Click [start] - [All Programs] - [Get Going with Tablet PC].
When touching with the digitizer pen, the touchscreen function is disabled.
To right-click
zTouch and hold the object.
<Only when using the digitizer pen>
zPress and hold the button (A) of the digitizer pen (included), and then tap the object.
NOTE
zThe dual touch function does not work in the Setup Utility.
Do not apply too much pressure when operating the dual touch
Only a light touch is required to operate the dual touch. Applying too much pressure may damage the surface.
Operation of the dual touch

16
Dual Touch
When the screen becomes dirty, wipe it with an approved soft cloth
The screen is specially treated to prevent dirt from adhering to the surface, so dirt can be removed easily using a dry cloth
(use only the approved soft cloth). If the dirt does not come off easily, breathe on the surface and try again.
Do not apply water or solvents to the soft cloth.
Wash the soft cloth when it becomes dirty
When the soft cloth becomes dirty, wash it with mild detergent. Do not use bleach or fabric conditioner (softener), or try to
sterilize the cloth by boiling.
If the soft cloth is dirty, it may be ineffective in cleaning the screen, and in fact may cause dirt to adhere to the screen.
Suggestions About Cleaning the LCD Surface
To improve the outdoor visibility of the display, a low reflection coating has been added. In order to avoid scratches and
peeling of this coating, an approved soft cloth has been included to wipe the LCD surface of the computer. Before using
the computer, be sure to read the instructions provided below.
<How to use the soft cloth>
• Use the soft cloth when it is dry. Do not apply water or solvents to the soft cloth.
• First, lightly wipe foreign particles and dust adhering to the LCD display on one side of the soft cloth. Do not use force,
since the LCD surface may be damaged with the foreign particles or dust.
Next, wipe off fingerprint, etc., with the other side of the soft cloth.
After wiping off foreign particles and dust, wash the soft cloth (refer to the following) to remove the foreign particles and
dust from the soft cloth.
• When the soft cloth becomes dirty, wash it with neutral detergent. Do not use bleach or a fabric conditioner (softener), or
carry out sterilization by boiling.
• If the LCD gets wet, wipe the surface lightly with the soft cloth.
• While wiping the LCD display, the computer must be turned off.
Check the following to prevent the surface of the screen from being scratched
zIs the surface clean?
zIs the soft cloth clean?
zIs the tip of the digitizer pen clean?
Maintaining the performance of the dual touch
• Be sure to wipe the LCD display to remove fingerprints, etc., with the soft cloth.
• Do not wipe areas other than the LCD display with the soft cloth.

17
Dual Touch
Do not apply excessive force to the screen
Do not lift the computer while holding the LCD screen, or allow the screen to be twisted. Do not place any objects on the
LCD screen. Any of the above may cause the screen glass to break, or may damage the LCD screen.
If the cursor jumps to a location other than where the screen was touched, or if
the LCD resolution changes, recalibrate the touchscreen
Perform the procedure of “Dual Touch Calibration” (below).
NOTE
Perform these calibration for each user.
If you cannot touch the desired position, perform Digitizer Calibration again and restart the computer.
Digitizer Calibration
1Run [Calibration Utility].
Click (Start)*1 - [All Programs] - [Panasonic] - [Calibration Utility].
2Select [Pen input (Digitizer)].
To calibrate more accurate, add a check mark for [Advanced calibration].
3Using your finger, touch each of the “+” target marks one by one.
Perform the calibration for the orientation to be used.
Things to keep in mind when using the dual touch
Dual Touch Calibration

18
Dual Touch
Touchscreen Calibration
A standard user needs to perform the calibration as an administrator before performing the calibration for each user.
Calibration by an administrator
NOTE
At first, log on to Windows as an administrator, and perform this calibration.
Return the rotated display to [Landscape] before the touchscreen calibration.
1Run [Calibration Utility].
Click (Start)*1 - [All Programs] - [Panasonic] - [Calibration Utility].
2Select [Touch input].
To calibrate more accurate, add a check mark for [Advanced calibration].
3Using the digitizer pen, touch each of the “+” target marks one by one.
Calibration by a standard user
NOTE
Perform the following calibration for each user.
1Run [Calibration Utility].
Click (Start)*1 - [All Programs] - [Panasonic] - [Calibration Utility].
2Select [Touch input].
To calibrate more accurate, add a check mark for [Advanced calibration].
3Using the digitizer pen, touch each of the “+” target marks one by one.
Perform the calibration for the orientation to be used.
*1 Windows XP: [start]

19
Software Keyboard
You can touch the screen keyboard using the stylus (included) to perform the same operation as the internal keyboard.
1Press the Input Panel button (A).
zAlternatively you can click [start] - [All Programs] - [Panasonic] - [Software
Keyboard].
2Touch the software keyboard using the stylus.
zTo use shortcut key
Example:
Ctrl + C
Press
Ctrl (turns blue) and then press C .
zTo select the keyboard language, use the language bar (e.g. ) on the notifica-
tion area. If the keyboard language does not change, click the title bar of the soft-
ware keyboard and then click on the application.
zPress the Input Panel button again to close the software keyboard.
A. Software keyboard menu (Îpage 20)
B. Moves the software keyboard to a corner of the screen.
C. One tap : Works as shortcut key.
Two taps : Works as the key.
D. Works as a right-click. (Same function as the key)
NOTE
zTo use key combination (
Ctrl + C etc.), use either of the internal keyboard or the software keyboard alone.
zYou cannot use
Ctrl + Alt + Del on the software keyboard after logging on.
zYou cannot use the
Fn key combination on the Windows logon screen and the Welcome screen.
zThe software keyboard may not work during shutdown of Windows.
zYou cannot use the software keyboard when the [Command Prompt] screen is set to “Full Screen”.
zYou can set a different language to each application (⇒Windows help), and the keyboard layout switches according
to the application.
zDepending on the language, some keys are displayed in orange. You can use them to input characters such as ë and
ö.
Starting the Software Keyboard

20
Software Keyboard

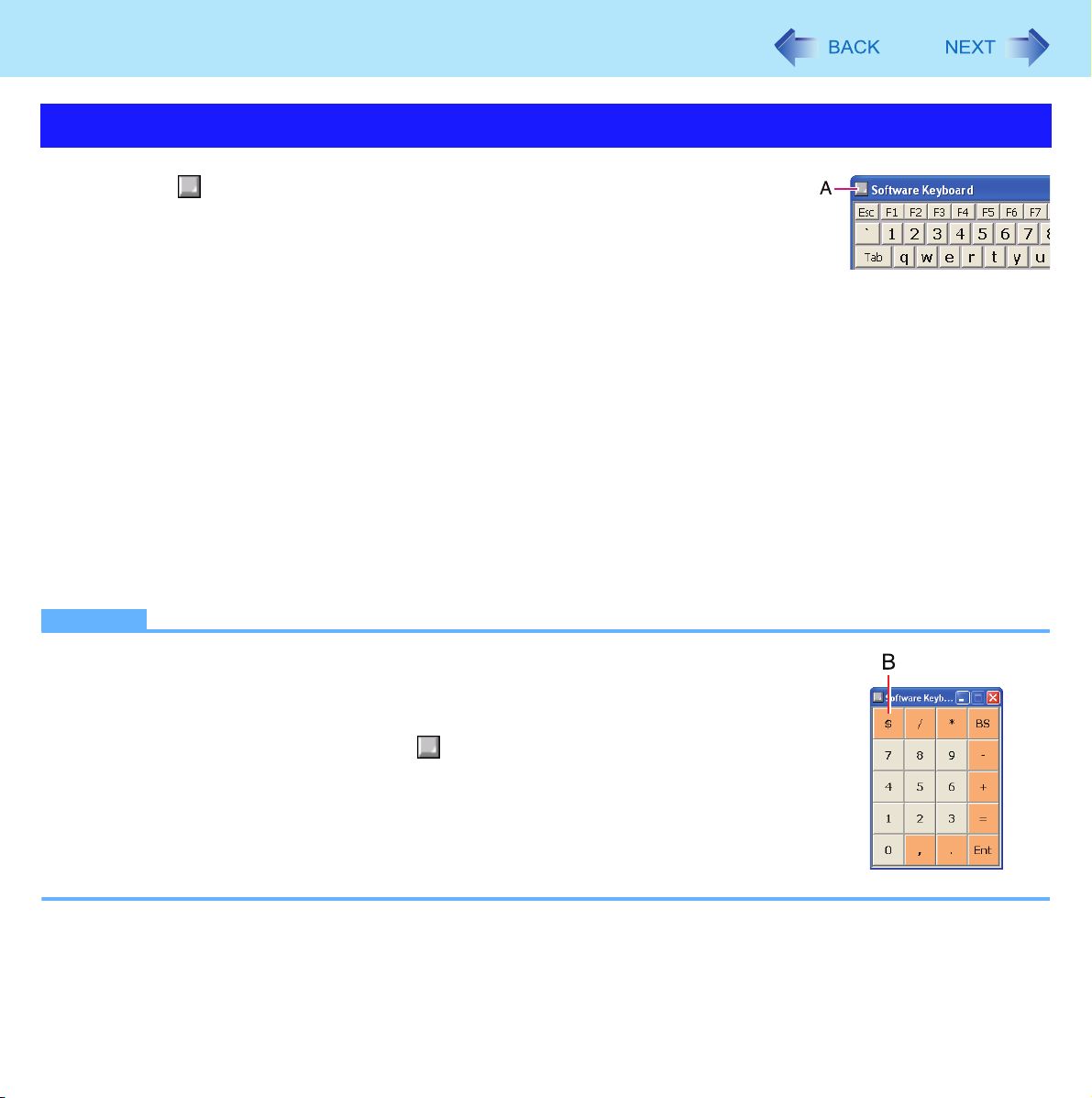

1Click (A).
2Add a check mark to the function you want to use.
z[Auto Move]
The software keyboard moves automatically to avoid overlapping the selected window.
z[Auto Restore]
The software keyboard minimized on the notification area will be restored when you change the input mode. This
may not work on some applications.
z[Always On Top]
The software keyboard always appears on the top.
z[Transparent]
The software keyboard appears semi-transparent.
z[Big Size]/[Medium Size]/[Small Size]
Select the size of the software keyboard.
z[Ten key (Big)]/[Ten key (Medium)]/[Ten key (Small)]
Select the size of the numeric keypad.
NOTE
zYou can change the currency symbol (B) of the numeric keypad.
Click [start] - [Control Panel] - [Date, Time, Language and Regional Options] - [Regional
and Language Options] - [Regional Options] - [Customize] - [Currency] - [Currency
symbol].
zAfter changing the currency symbol, click (A), and then change the size of the numeric
keypad so that the selected currency symbol is shown.
Software Keyboard Menu
