Panasonic Viera TC-L32C22X User manual

TM
Quick Start Guide
See page 7-14
Operating Instructions
32”/37” Class 720p LCD HDTV
(31.5/37.0 inches measured diagonally)
TQB2AC0004
Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set and retain them for future
reference. The images shown in this manual are for illustrative purposes only.
Model No.
TC-L32C22X
TC-L37C22X
English
tcL3237c22xeng0004-1.indb12010/02/0515:27:11

2
HDMI, the HDMI logo and High-
Definition Multimedia Interface are
trademarks or registered trademarks
of HDMI Licensing LLC in the United
States and other countries.
VIERA Link™ is a trademark of
Panasonic Corporation. SDHC Logo is a trademark of
SD-3C, LLC.
HDAVI Control™ is a trademark of
Panasonic Corporation.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Experience an amazing level of
multimedia excitement
Enjoy rich multimedia
Amplifier
Home theater system
VCR
DVD recorder/
Blu-ray Disc recorder DVD player/
Blu-ray Disc player
tcL3237c22xeng0004-1.indb22010/02/0515:27:11

3
Viewing Advanced FAQs, etc.
Quick Start
Guide

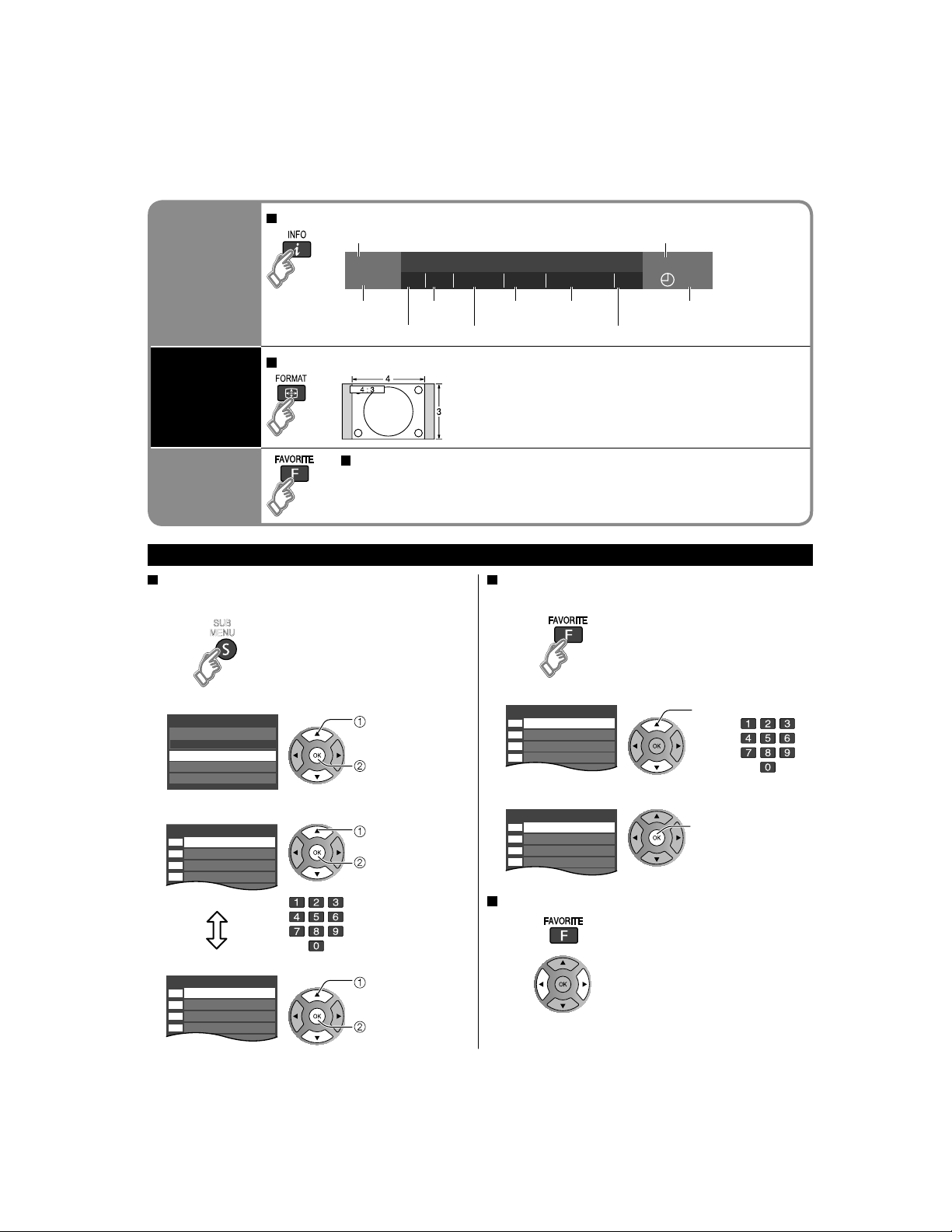

Watching TV················································· 15

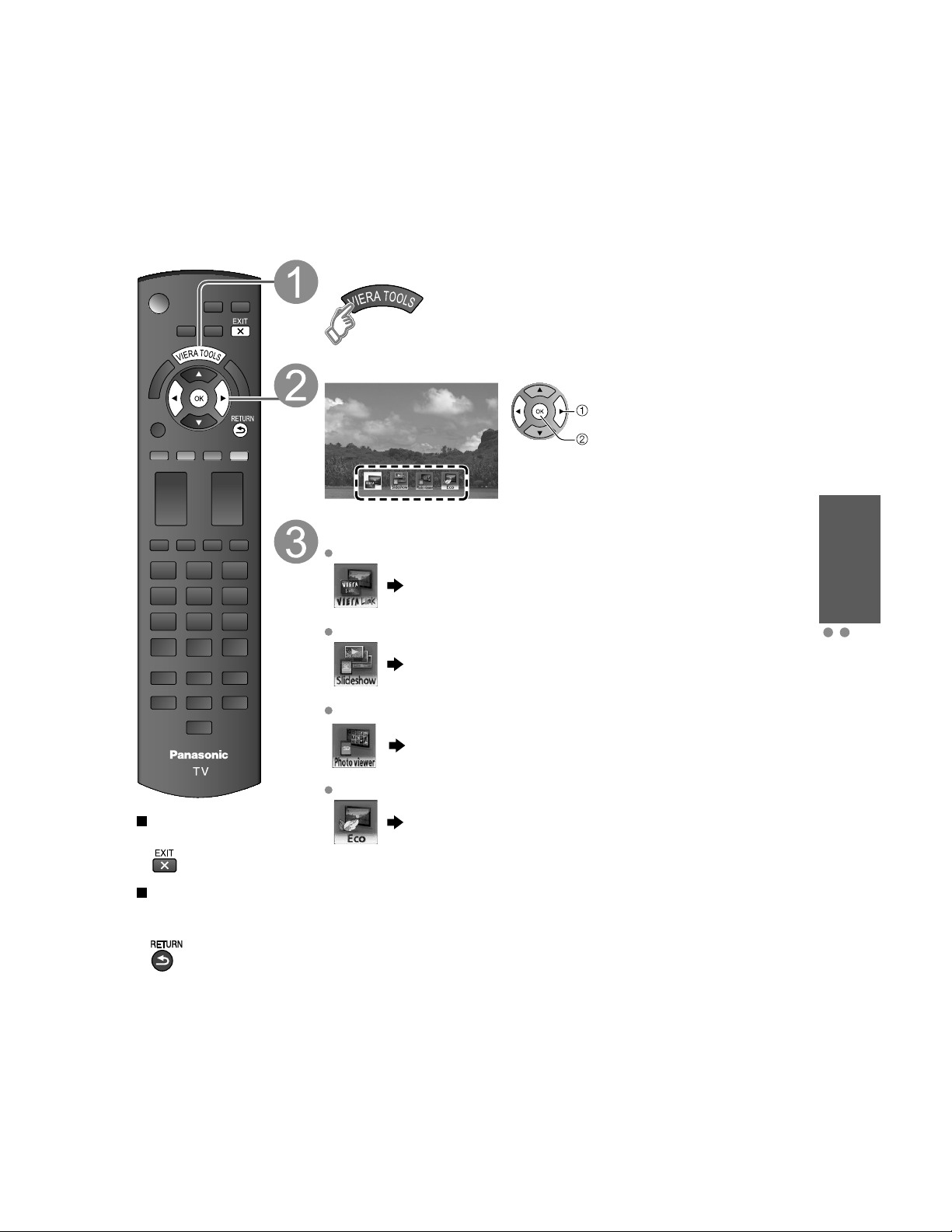

Using VIERA TOOLS ··································· 17
Viewing with VIERA IMAGE VIEWER··········18
Watching Videos and DVDs························· 20
Displaying PC Screen on TV························22
How to Use Menu Functions
(picture, sound quality, etc.) ························· 23
VIERA LinkTM “HDAVI ControlTM” ·················· 26
Lock ····························································· 32
Editing and Setting Channels·······················34
Closed Caption ············································ 36
Input Labels ················································· 37
Using Timer ·················································· 38

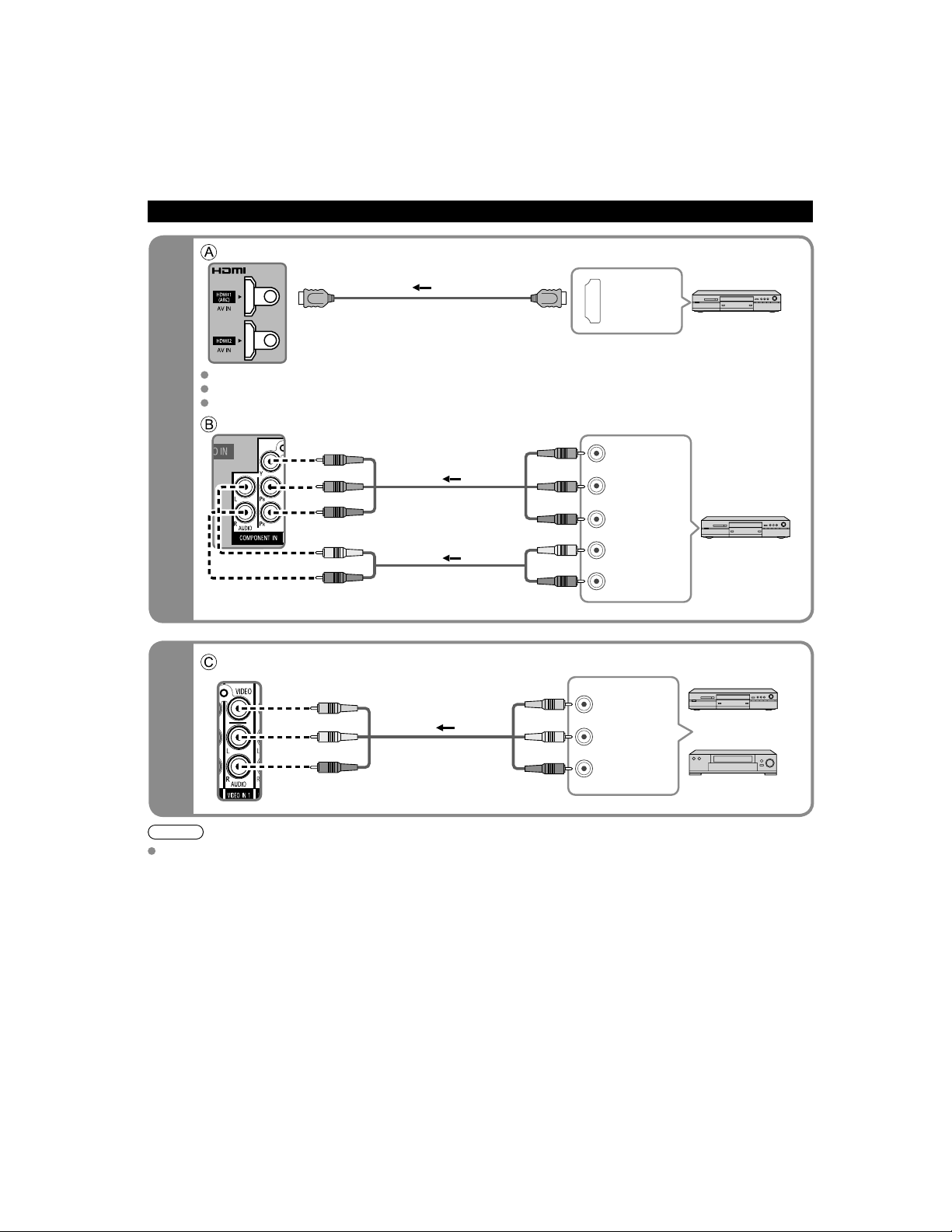

Recommended AV Connections ·················· 39
Ratings List for Lock ····································40
Technical Information ··································· 41
Care and Cleaning ······································· 45
FAQ······························································ 46
Specifications ··············································· 48
Enjoy your TV!
Basic Features
Advanced Features
FAQs, etc.
Safety Precautions ········································· 4
Please read before using the unit
Accessories/Optional Accessory ···················· 7

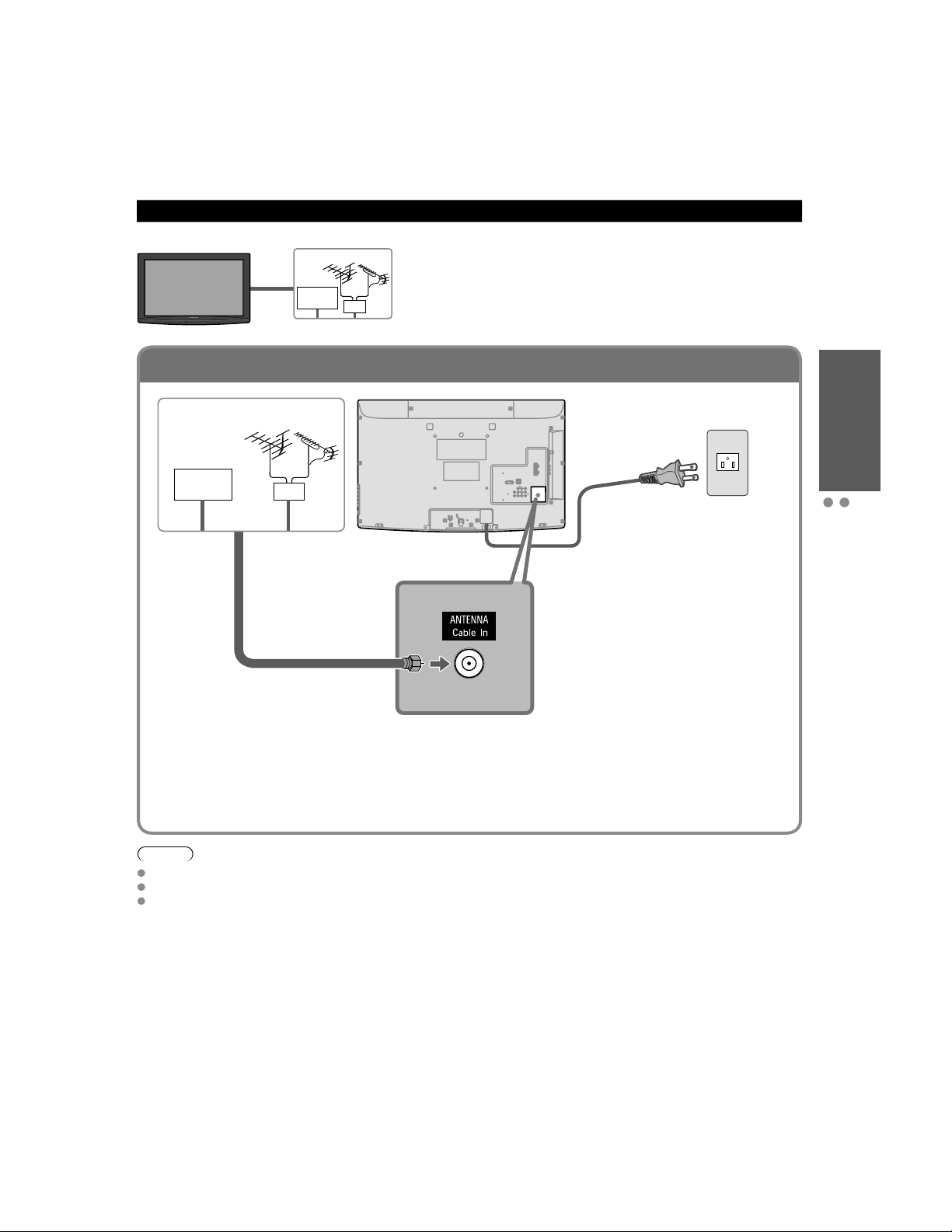

Basic Connection ··········································· 9
Identifying Controls ······································ 11

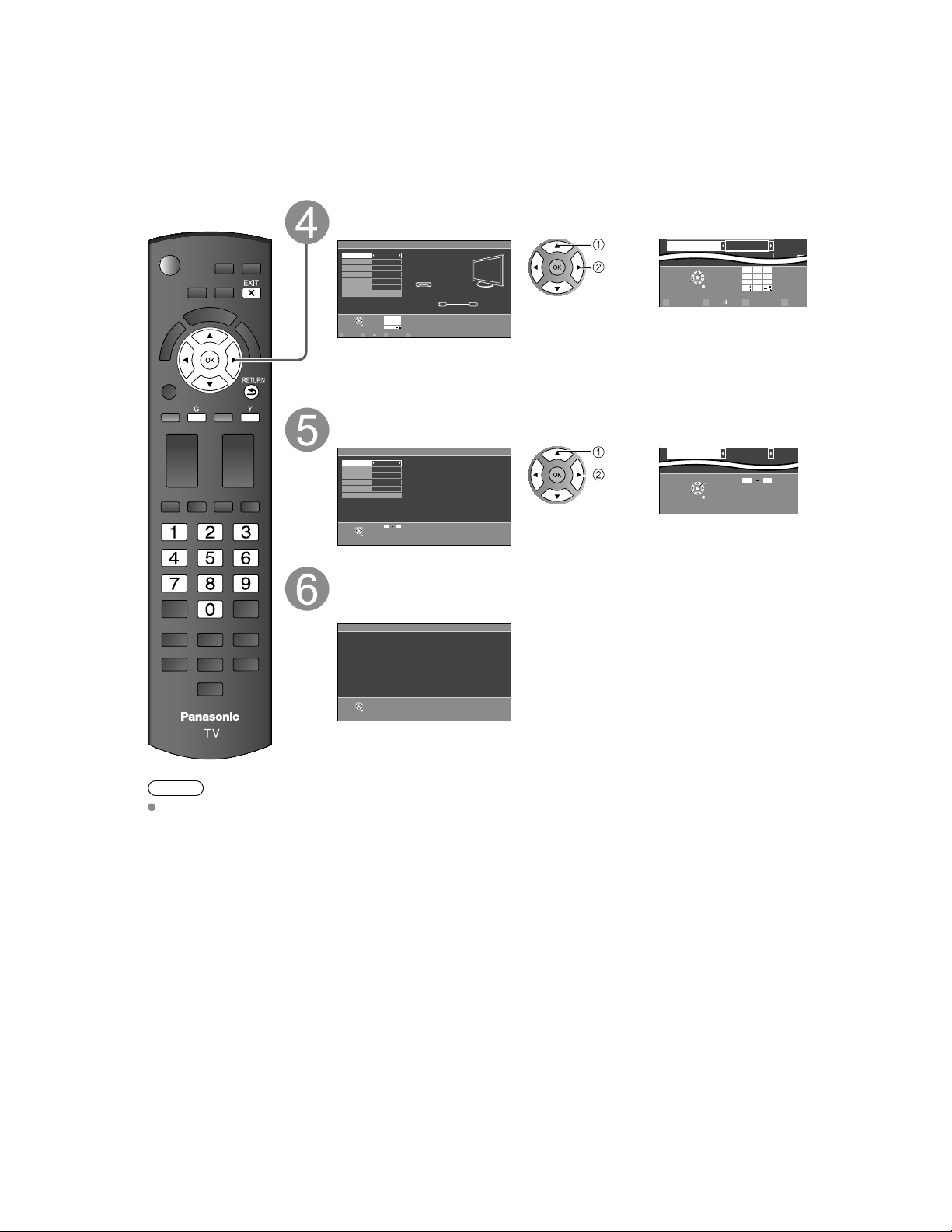

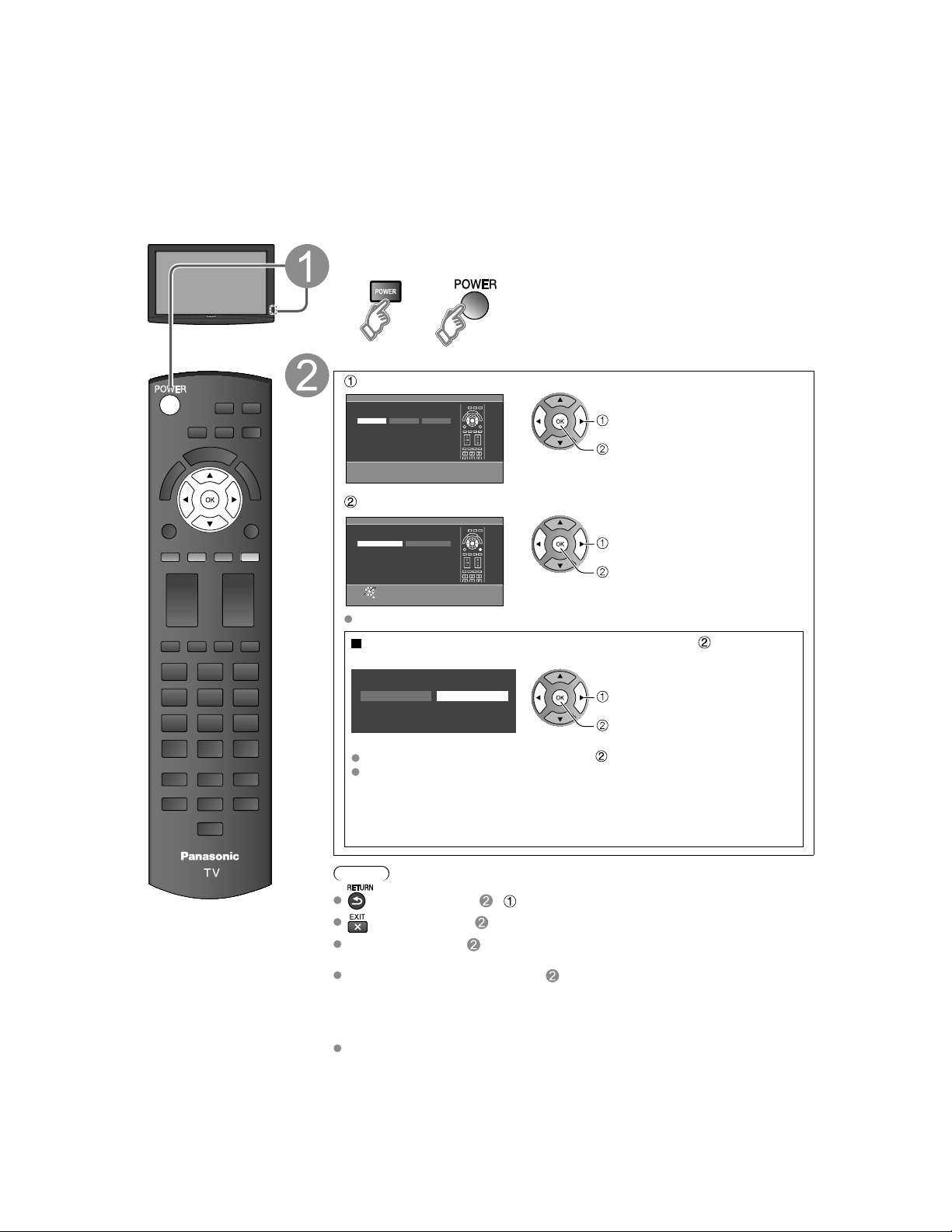

First Time Setup ··········································· 12
Quick Start Guide
Contents
SD memory card
Personal computer
Camcorder
Set Top Box
tcL3237c22xeng0004-1.indb32010/02/0515:27:12

4
ANTENNA
LEAD-IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
ELECTRIC
SERVICE
EQUIPMENT
GROUND CLAMP
EXAMPLE OF ANTENNA
GROUNDING AS PER
(NEC) NATIONAL
ELECTRICAL
CODE
Safety Precautions
Note to CATV System Installer
This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as
close to the point of cable entry as practical.
Secure Ventilation
Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD
TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space
from these openings. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface.
This LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11) Only use attachments / accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied
to your home consult your television dealer or local power
company.
16) Follow all warnings and instructions marked on the LCD TV.
17) Never push objects of any kind into this LCD TV through cabinet
slots as they may touch dangerous voltage points or short out
parts that could result in a fire or electric shock. Never spill liquid
of any kind on the LCD TV.
18) If an outside antenna is connected to the television equipment,
be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges.
In the U.S. Section 810-21 of the National Electrical Code
provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with arrowhead
within a triangle is intended to tell the
user that parts inside the product are a
risk of electric shock to persons.
The exclamation point within a
triangle is intended to tell the
user that important operating and
servicing instructions are in the
papers with the appliance.
tcL3237c22xeng0004-1.indb42010/02/0515:27:14

5
19) An outside antenna system should not be located in the vicinity of overhead power lines, other electric light, power circuits,
or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as contact with them might be fatal.
20) Unplug this LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the LCD TV.
c. If the LCD TV has been exposed to rain or water.
d. If the LCD TV does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to restore the
LCD TV to normal operation.
e. If the LCD TV has been dropped or the cabinet has been damaged.
f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.
21)
When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that
have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING.
DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET
(INCLUDING ON SHELVES ABOVE, ETC.).
23) WARNING: SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL
PARTS AWAY FROM YOUNG CHILDREN.
DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS
AND PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN,
CREATING THE POTENTIAL RISK OF SUFFOCATION.
24) CAUTION: The Power switch on this unit will not completely shut off all power from AC outlet. Since the power cord serves
as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power.
Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from AC outlet
in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when
left unused for a long period of time (for example, when on vacation).
25) CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
26) CAUTION: USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.
27) CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME
OR EQUIVALENT TYPE.
28) CAUTION: This LCD TV is for use only with the following optional accessory. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Panasonic Corporation)
• Wall-hanging bracket: TY-WK3L2RW
Always be sure to ask a qualified technician to carry out set-up.
tcL3237c22xeng0004-1.indb52010/02/0515:27:14

6
This product incorporates the following software:
(1) software developed independently by or for Panasonic Corporation,
(2) software owned by a third party and licensed to Panasonic Corporation,
(3) software licensed under the GNU General Public License, Version 2 (GPL v2),
(4) software licensed under the GNU LESSER General Public License (LGPL) and/or,
(5) open source software other than software licensed under the GPL and/or LGPL
For the software categorized as (3) or (4), please refer to the terms and conditions of GPL v2 and LGPL, as the case may be at
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html In addition, software categorized as (3) or (4) is copyrighted by several
individuals and/or entities. Please refer to the copyright notice of those individuals at
http://www.am-linux.jp/dl/DTV10UT/.
GPL/LGPL SOFTWARE IS DISTRIBUTED IN THE HOPE THAT IT WILL BE USEFUL, BUT WITHOUT ANY WARRANTY,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
For at least three (3) years from delivery of products, Panasonic will give to anyone who contacts us at the address provided
below, for a charge of no more than our cost of physically performing source code distribution, a complete machine-readable
copy of the corresponding source code covered under GPL v2/LGPL.
Contact Information
[email protected]
Source code is also freely available to you and any other member of the public via our website below.
http://www.am-linux.jp/dl/DTV10UT/
tcL3237c22xeng0004-1.indb62010/02/0515:27:14

7
Quick Start
Guide Accessories/Optional Accessory

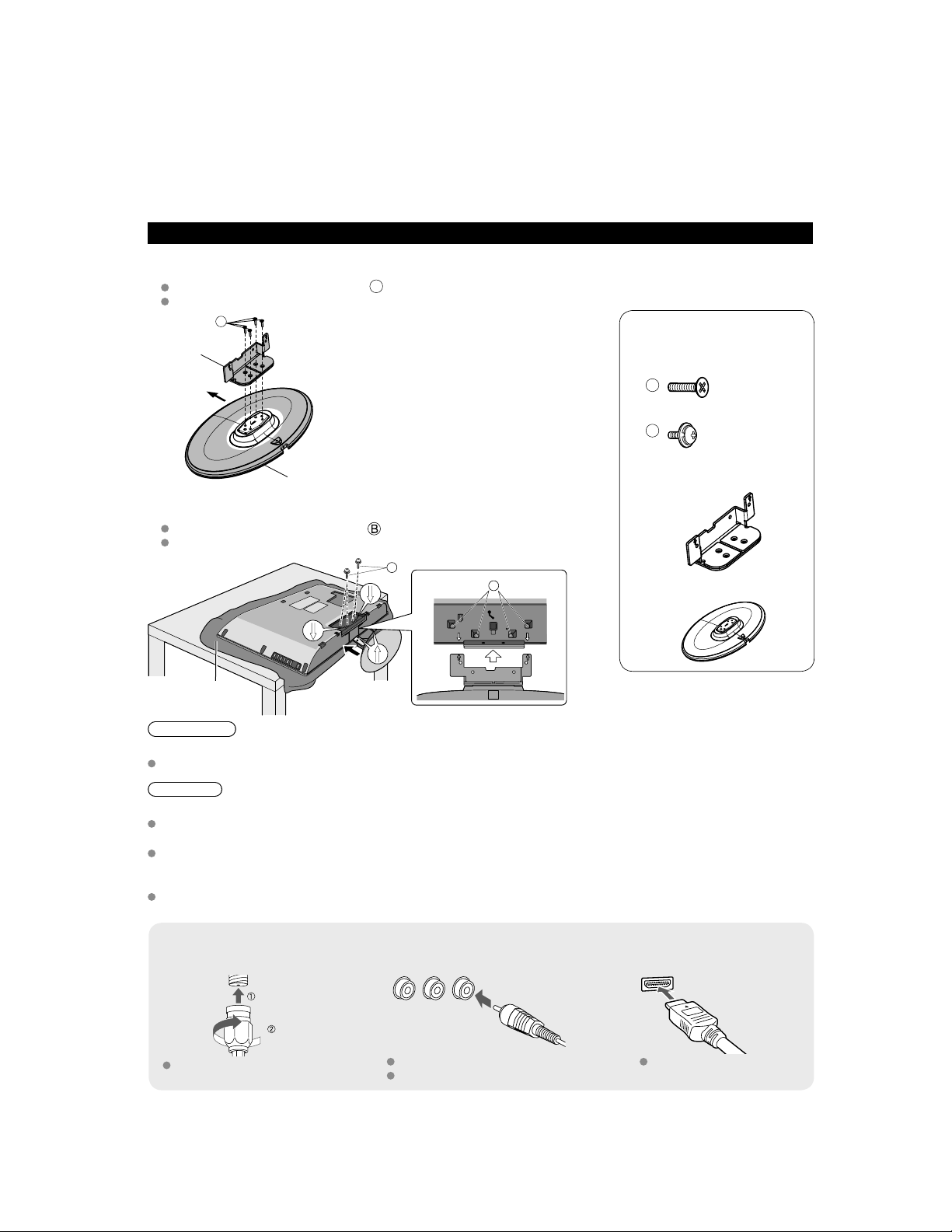

How to assemble (p. 8)
Accessories/Optional Accessory
Optional Accessory
Wall-hanging bracket
TY-WK3L2RW
WARNING
Please contact your nearest Panasonic dealer to purchase the recommended
wall-hanging bracket. For additional details, please refer to the wall-hanging
bracket installation manual.
Back of the TV
Holes for wall-hanging bracket
installation
Screw for fixing the TV onto the
wall-hanging bracket
(not supplied with the TV)
Depth of screw:
Minimum:0.39” (10.0 mm)
Maximum:0.47” (12.0 mm)
(View from the side)
7.9 ”
(200 mm)
7.9 ”
(200 mm)
Customers assumes liability if mounting the unit themselves or if a Panasonic bracket is not used. Any damage resulting
from not having a professional installer mount your unit will void your warranty.
Always be sure to ask a qualified technician to perform any necessary set-up. Incorrect fitting may cause equipment to
fall, resulting in injury and product damage.
Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) which typically give off
high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall
before hanging bracket.
When using an angled-type wall hanging bracket, please ensure that there is sufficient space for the connecting cables
so that they do not to press against the wall when the TV is tilted forward.
For safety reasons, remove units no longer being used from their wall-mounted locations.
Accessories
Check you have all the items shown.
Accessories
Remote Control
Transmitter
N2QAYB000485
Batteries for the
Remote Control
Transmitter (2)
AA Battery
Operating Instructions
Quick setup guide
(For viewing programming)
Warranty Card (Mexico)
Pedestal
TBL3AX0005 or TBL3AX0010 (TC-L32C22X)
TBL2AX0029 (TC-L37C22X)
Installing the remote’s batteries
Open
Hook
Note the correct polarity
(+ or -).
Close
Caution
Incorrect installation may cause
battery leakage and corrosion,
resulting in damage to the remote
control.
•
Do not mix old and new batteries.
•
Do not mix different battery types (such
as alkaline and manganese batteries).
•
Do not use rechargeable (Ni-Cd)
batteries.
Do not burn or break batteries.
M6
tcL3237c22xeng0004-1.indb72010/02/0515:27:14

8
Accessories
Assembly screws
(4 of each)
A
M4 × 16
B
M4 × 12
Bracket (1)
Base (1)
WARNING
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any other TV and displays.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic
Dealer immediately.
During set-up, make sure that all screws are securely tightened.
If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong
enough to support the TV, and it might fall over and become damaged, and personal injury may result.
Reference of connection
Antenna terminal Pin terminals HDMI terminal
greenbluered
green
Firmly tighten by hand. Match colors of plugs and terminals.
Insert firmly.
Insert firmly.
Attaching the pedestal to TV
Accessories/Optional Accessory
(Continued)
Assembling the pedestal
Fix securely with assembly screws A. (Total 4 screws)
Tighten screws firmly.
A
Bracket
Front
Base
Set-up
Fix securely with assembly screws . (Total 4 screws)
Tighten screws firmly.
B
B
Foam mat or thick
soft cloth
tcL3237c22xeng0004-1.indb82010/02/0515:27:15

9
Quick Start
Guide Basic Connection (Antenna + TV)
Accessories/Optional Accessory
To connect the antenna terminal
Basic Connection
Note
Not all cables and external equipment shown in this book are supplied with the TV.
For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.
ATSC is not available except in U.S.A., Canada, and/or Mexico.
Example Connecting Antenna (To watch TV)
Cable TV
VHF/UHF Antenna
TV VHF/UHF Antenna
• NTSC (National Television System Committee):
Conventional broadcasting
• ATSC (Advanced Television Systems Committee):
Digital TV Standards include digital high-definition television (HDTV),
standard-definition television (SDTV), data broadcasting, multi-
channel surround-sound audio and interactive television.
Cable
• You need to subscribe to a cable TV service to enjoy viewing their programming.
• You can enjoy high-definition programming by subscribing to a high-definition cable service.
The connection for high-definition can be done with the use of HDMI or Component Video cable. (p. 10)
• To view high-definition programming select the correct video input. (p. 20)
Power Cord
(Connect after all the
other connections.)
Back of the TV
Cable TV
AC 110-127 V
60 Hz
VHF/
UHF A ntenna
or
tcL3237c22xeng0004-1.indb92010/02/0515:27:16

10
High-Definition
Standard-Definition
Note
For more details on the external equipment’s connections, please refer to the operating manual for the equipment.
To use HDMI terminals
HDMI
AV OUT
e.g. Blu-ray Disc
player
AV Equipment
Connecting to the HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound.
The HDMI connection is required for a 1080p signal.
For “VIERA LinkTM connections”, please refer to p. 27.
To use COMPONENT terminals
L
R
Y
PB
PR
COMPONENT
VIDEO OUT
AUDIO
OUT
white
red
green
blue
red
whit
e
re d
gre en
blu e
re d
white
red
green
blue
red
e.g. Blu-ray Disc
player
AV Equipment
AV cable connections
Basic Connection (Continued)
To use COMPOSITE terminals
L
R
COMPOSITE
OUT
yellow
white
red
y ellow
wh ite
red
yellow
white
red
or
e.g. DVD Recorder
AV Equipment
e.g. VCR
tcL3237c22xeng0004-1.indb102010/02/0515:27:17

11
Quick Start
Guide Identifying Controls
Basic Connection (AV cable connections)
Identifying Controls
C.A.T.S (Contrast Automatic Tracking System)
Power indicator
(on: red, off: no light)
Note
The TV consumes a small amount of electric energy even when turned off.
Do not place any objects between the TV remote control sensor and remote control.
TV controls/indicators
Changes the input mode
Chooses menu and submenu entries.
Volume up/down
Selects channels in sequence
Front of the TV
POWER button
Menu navigations
Remote control
Switches TV On or Off (Standby)
Changes the input mode (p. 20)
Displays Main Menu (p. 23)
Displays Sub Menu (p. 15, 25)
Colored buttons
(used for various functions)
(for example, p. 14, 18, 31)
Volume up/down
Sound mute On/Off
Changes aspect ratio (p. 16, 41)
Switches to previously viewed channel
or input modes
External equipment operations
(p. 31)
Closed Caption On/Off (p. 15)
Selects Audio Mode for TV viewing (p. 15)
Exits from menu screen
VIERA Link menu (p. 30-31)
Display VIERA TOOLS (p. 17)
Viewing from SD Card (p. 18-19)
Selects/OK/Change
Returns to previous menu
Channel up/down
Displays or removes the channel
banner (p. 16)
Operates the Favorite channel list
function (p. 16)
Numeric keypad to select any channel
(p. 15) or press to enter alphanumeric
input in menus
(p. 14, 20, 22, 30, 32, 34, 37, 38)
Use for digital channels. (p. 15)
Remote control sensor
within about 23 feet
(7 meters) in front of the
TV set
tcL3237c22xeng0004-1.indb112010/02/0515:27:17

12
or
Turn the TV On with the POWER button
or
(TV) (Remote)
Configure your viewing mode
Select your language
Language / Idioma / Langue
English Español Français select
OK
Select your viewing mode (Be sure to select “Home use”)
Set viewing mode Step 2 of 6
Please select your viewing environment.
Select “Home Use” when using this TV in your
home.
Home Use Store Demonstration
OK
RETURN
Select
select
OK
Please confirm your selection (Home Use) before pressing OK button.
If you select “Store Demonstration” by mistake in ,
confirmation screen will be displayed.
No
You are selecting the store demonstration mode.
If you select “Yes”, the picture mode will regularly reset
to “Vivid” and a Picture Refresh message will be displayed on the
screen.
Yes select
OK
Select “No” and return to previous screen .
If you select “Yes”, Screen enters the store demonstration mode.
To display the “Set viewing mode” screen again as shown above and select
“Home Use”, do one of the following:
• Press and hold down the side POWER button for at least five seconds.
• Unplug power cord for 30 seconds and plug it again.
Note
is not available on - .
is not available on .
When you have used to turn the TV off, the next time you turn the TV on the
“Language” settings will be displayed.
If you use any other step other than to turn the TV off, or if you used the EXIT
button to quit before completing the settings, the next time you turn the TV on “First
time setup” will not be automatically displayed.
• The settings up to that point are saved.
• You can reset the settings using “First time setup”. (p. 25)
To change the setting (Language, ANT/Cable setup, Input labels, Clock) later, go to
the Menu screen (p. 25)
First Time Setup
First time setup screen is displayed only when the TV is turned on for the first time after the power cord is
inserted into a wall outlet and when “Auto power on” (p. 25) is set to “No”.
tcL3237c22xeng0004-1.indb122010/02/0515:27:18

13
Quick Start
Guide First Time Setup
Press to return to
the previous screen
Auto channel setup (ANT/Cable setup)
Select the connected Antenna in terminal
ANT/Cable setup Step 3 of 6
Cable Antenna Not used
ANTENNA
Cable In
ANTENNA
Cable In
Select “Not used” when viewing TV via
Satellite receiver or Cable box. Note: Select
“Cable” when viewing via Cable DTA Box.
OK
RETURN
Select
select
OK
Not used: Go to
(Label inputs)
Select “Not used” when no wire is connected to the “Antenna/Cable” terminal.
Typical when a Cable/Satellite box is connected to a TV input.
Prevents accidental tuning to an unavailable signal.
Select “Start”
Auto program Step 4 of 6
Start scanning for channels via the TV’s
built-in tuner. Select “Skip” when viewing TV
channels via Satellite receiver or Cable box.
Start Skip
OK
RETURN
Select
select
OK
Skip: Go to
(Label inputs)
Start scanning the channels
(Available channels are automatically set.)
Auto program
Progress
Number of analog channels
Number of digital channels
Press RETURN to quit
8%
10
0
RETURN
Complete the Auto program setup
Completion message is displayed when the Auto program scan is successfully
completed.
Auto program
Auto program completed.
Press OK to continue.
Number of analog channels
Number of digital channels
10
0
OK
RETURN
OK
If there is no available
channel, return to -
(ANT/ Cable setup).
“Not used” will be selected.
Operation of the EXIT button during “First time setup”
Press the button once to display confirmation screen. Press again to close
confirmation screen.
[EXIT confirmation screen]
Are you sure you want to exit the First Time Setup?
To repeat the First Time Setup, select
“First time setup” in the Setup Menu.
Yes No
Yes Exit “First time setup”
No Return to the original screen.
tcL3237c22xeng0004-1.indb132010/02/0515:27:19

14
First Time Setup (Continued)
Note
About broadcasting
systems
Analog (NTSC):
Conventional
broadcasting
Digital (ATSC):
New
programming
that allows
you to view
more channels
featuring
high-quality video
and sound
Select the Input labels (Label inputs)
Select NEXT then press OK to go to next step.
Label inputs Step 5 of 6
Press RIGHT to select a label for each input.
Example: DVD, Blu-ray, etc. or “Not used”.
Press OK to customize the label.
Edit
Blu-ray, DVD ...
HDMI HDMI
RETURN
Change
Select
Component
Video 1
Video 2
PC
Next
HDMI 1
HDMI 2
ABC Deleteabc
R G B Y
1@.
4
GHI
7
PQRS
2
ABC
5
JKL
8
TUV
3
DEF
6
MNO
9
WXYZ
0- ,
LAST
select
set or
OK
RETURN
Select
ABC Deleteabc
R G B Y
1@.
4
GHI
7
PQRS
2
ABC
5
JKL
8
TUV
3
DEF
6
MNO
9
WXYZ
0- ,
LAST
Blu-r
Video 2
NEXT
GA
GA
Follow the instructions on
screen to complete the
following operations.
Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME THTR/GAME/COMPUTER/
VCR/CABLE/SATELLITE/DVR/CAMERA/MONITOR/AUX/RECEIVER/MEDIA
CTR/MEDIA EXT/OTHER
Adjust the Clock (Set clock)
Select NEXT then press OK to go to next step.
Step 6 of 6
Edit
RETURN
Change
Select 0 9
Set clock
--
--
--
--
--
Day
Hour
Minute
Next
Year
Month
Current year.
select
set
OK
RETURN
Select
0 9
10
Minute
Next
10
or
Follow the instructions on
screen to complete the
following operations.
Complete the First time setup
Completion message is displayed when you successfully completed the First
time setup.
OK
RETURN
Setup is complete. Enjoy your
Panasonic VIERA TV.
Press OK to exit.
tcL3237c22xeng0004-1.indb142010/02/0515:27:20

15
Quick Start
Guide Viewing Watching TV
First Time Setup
Watching TV
Basic connection (p. 9-10)
To watch TV and other functions
Turn power on
(TV)
or
(Remote) Note
If the mode is not TV, press and
select TV. (p. 20)
Select a channel number
up
down
or
(Remote) To directly enter the digital
channel number
When tuning to a digital channel,
press the button to enter the
minor number in a compound
channel number.
example: CH15-1:
(TV)
Note
Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal
reception between cable TV and antenna. (p. 13, 35)
The channel number and volume level remain the same even after the TV is turned
off.
Listen
with SAP
(Secondary
Audio
Program)
Select Audio mode for watching TV
Digital mode
Press SAP to select next audio track (if available) when receiving a digital
channel.
Audio track 1 of 2
(English)
Analog mode
Press SAP to select the desired audio mode.
• Each press of SAP will change the audio mode. (Stereo/SAP/Mono)
Closed
caption
Switches the Closed caption mode On or Off
Closed caption Off Closed caption On muteClosed caption On
Display the
SUB MENU
Press SUB MENU to show the sub menu screen (p. 25)
This menu consists of shortcuts to convenient functions.
SUB
MENU
All
Setup SUB MENU
Edit CH caption
Signal meter
Set favorite
Channel surf mode
Other Useful Functions (Operate after )
tcL3237c22xeng0004-1.indb152010/02/0515:27:21

16
Watching TV (Continued)
Information
recall
Displays or removes the channel banner
15-2 12:30 PM
30
THE NEWS
CC SAP
TV-G 1080i Standard 4:3
ABC-HD
Channel
Station
identifier
SAP
indication
Signal
resolution
Rating level
mode
Sleep timer
remaining time
Aspect ratio
Closed caption
Clock
Change
aspect
ratio
Press FORMAT to cycle through the aspect modes (p. 41)
• 480i, 480p: FULL/JUST/4:3/ZOOM
• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM
Call up
a favorite
channel
FAVORITE
Channel numbers registered in Favorite are displayed on the favorite tune screen.
Select the desired broadcast station with the cursor or use number buttons. (see
below)
Set the Favorite Feature
1Display the SUB MENU.
SUB
MENU
2Select “Set favorite”
All
Setup SUB MENU
Edit CH caption
Signal meter
Set favorite
Channel surf mode
select
OK
3Set the displayed channel
Set favorite 1/3
26-1
1
2
3
4
5
select the list
number
save the displayed
channel
select the list number
(to save the channel
without pressing OK)
or
Delete a favorite channel
Set favorite 1/3
26-1
1
2
3
4
5
select
delete
(while holding down)
Favorite Feature
Use the Favorite Feature
1Display “Favorite channels”
2Select the channel
Favorite channels 1/3
26-1
1
2
3
4
5
select
or
3Set Favorite channel
Favorite channels 1/3
26-1
1
2
3
4
5
OK
To change the page
Press repeatedly to change between
pages(1/3, 2/3, 3/3 or exit)
Changes the page forward/backward
tcL3237c22xeng0004-1.indb162010/02/0515:27:22

17
Viewing Using VIERA TOOLS
Watching TV
Using VIERA TOOLS
VIERA TOOLS is the easy way to access frequently-used menu items. They are displayed as shortcut icons
on the TV screen.
Unlike a conventional menu, you can enjoy using, playing or setting a function quickly.
Press to exit from
a menu screen
Press to return
to the previous
screen
Display VIERA TOOLS
Select the item
VIERA Link
select
next
Set each item
VIERA Link
VIERA Link (p.30-31)
Slideshow
Slideshow (p. 18-19)
Photo viewer
Photo viewer (p. 18-19)
Eco mode
ECO/energy saving (p. 25)
tcL3237c22xeng0004-1.indb172010/02/0515:27:23

18
Viewing with VIERA IMAGE VIEWER
The VIERA Image Viewer is a function that lets you easily view still images on a VIERA television by simply inserting an
SD card into the VIERA SD card slot.
(Media other than SD Cards will not work.)
Press to exit from
a menu screen
Press to return to
the previous screen
Insert the SD card
* This setting will be skipped next time unless you select “Set later”.
Set “Image viewer settings” and select “Play image viewer now”
“Image viewer settings” will be displayed automatically each time an SD card is
inserted for the first time.
Set later
Image viewer settings
Image viewer auto play
Play image viewer now
select
change
set
Slideshow: A Slideshow will start
automatically next time.
Thumbnail: The Photo viewer menu will be
displayed automatically next time.
Set later: “Image viewer settings” menu
will be displayed repeatedly.
Off: The data can be played manually.
Manual operation (“Image viewer auto play” is “Off”)
Display “Photo viewer” Start the Slideshow
select
next
Slideshow
Select the data to be viewed
Slideshow Folders
R Y
Sort by month
G
Sort by date
B
OK
Select
RETURN
Name
Pana0001
Date
03/04/2010
Size
1029×1200
Photo viewer
All photos
Total 238
Pana0001 Pana0002 Pana0003 Pana0004
Pana0005 Pana0006 Pana0007 Pana0008
Pana0009 Pana0010 Pana0011 Pana0012
select
view
Thumbnail view
To launch Slideshow
Selected picture information is displayed.
Total number of images.
Note
Depending on the JPEG format, “Information” contents may not be displayed
correctly. Refer to p. 42 (Data format for SD card browsing) for details.
View
Next
Rotate
Prev.
RETURN
Play
Accessing
Displays one at a time
To display/hide the Navigation area
Return to the Thumbnail view
Accessing
Next
Prev.
Rotate
RETURN
Accessing
Pause
Next
Prev.
RETURN
Play
Navigation area Present status
(While reading the data)
Single photo view Slideshow
Rotate 90 degrees (counter-clockwise)
To next photo
Rotate 90 degrees (clockwise)
To previous photo
Photo viewer
tcL3237c22xeng0004-1.indb182010/02/0515:27:24

19
Viewing Viewing with VIERA IMAGE VIEWER
SD Card
Insert the card Remove the card Compliant card type (maximum
capacity): SDHC Card (32 GB),
microSDHC Card (16 GB), SD Card
(2 GB), miniSD Card (2 GB), microSD
Card (2 GB) (requiring microSDHC Card/
miniSD Card/microSD Card adapter)
If a microSDHC Card, miniSD Card
or microSD Card is used, insert /
remove it together with the adapter.
For cautions and details on SD
Cards (p. 42)
Gently insert the SD Card label
surface facing front.
Label surface
Push until a
click is heard
Cutout
Press in lightly
on SD Card,
then release.
Sort
To sort by Folder, month or date
In
Select the sort type
Slideshow Folders
R Y
Sort by month
G
Sort by date
B
OK
Select
RETURN
Name
Pana0001
Date
03/04/2010
Size
1029×1200
Photo viewer
All photos
Total 238
Pana0001 Pana0002 Pana0003 Pana0004
Pana0005 Pana0006 Pana0007 Pana0008
Pana0009 Pana0010 Pana0011 Pana0012
Folders (ascending order of numeric/alphabetical)
Sort by month (ascending order of the month)
Sort by date (ascending order of the date )
Select the directory.
Accessing
Slideshow
R YG B
OK
Select
RETURN
09/23/2009
28 photos
09/28/2009
58 photos
10/10/2009
3 photos
11/20/2009
8 photos
12/25/2009
24 photos
01/01/2010
10 photos
02/15/2010
16 photos
03/04/2010
32 photos
Date
09/23/2009
Number of photos
28 photos
Photo viewer
All photos
Sort by date
15
Accessing
Slideshow
R YG B
OK
Select
RETURN
Name
Pana0001
Date
09/23/2009
Size
1029×1200
Photo viewer
All photos
09/23/2009
Total 28
Pana0001 Pana0002 Pana0003 Pana0004
Pana0011 Pana0012 Pana0013 Pana0014
Pana0055 Pana0056 Pana0057 Pana0058
select
OK Return to
previous
screen
settings
In or Adjust the picture/Audio
Display “Photo settings”
example :Picture menu
Picture menu/Audio menu (p. 24)
0
20
Vivid
Picture 1/2
Picture mode
Contrast
Back light
Reset to defaults
select
adjust
Select the item Set the Soundtrack
Off
Photo settings
Audio
Slideshow settings
Soundtrack
select
change
next
Off
Soundtrack
change
Select the music from 5 types.
(Off/Music 1/Music 2/Music 3/Music 4/Music 5)
Slideshow settings
Fast
Off
Off
Sepia
Slideshow settings
Display interval
Repeat playback
Transition effect
Photo effect
select
adjust
Note
To stop in mid-cycle Press
Display interval
You can set how many seconds each image is displayed in the Slideshow
mode. (Short/Fast/Normal/Slow/Very slow)
Repeat playback Turn the slideshow Repeat function on or off (Off/On).
Transition effect
Select the transition effect (Off /Wipe !/Wipe "/Wipe #/Wipe $/Comb "!
/Comb #$/Dissolve/Checker wipe/Random/Array/Collage)
Photo effect Select the conversion effect (Off/Sepia/Gray scale)
tcL3237c22xeng0004-1.indb192010/02/0515:27:28

20
Watching Videos and DVDs
If you have applicable equipment connected to the TV, you can watch videos and DVDs on the TV screen.
Input Select
You can select the external equipment to access.
To return to TV
With the connected equipment turned On
Display the Input select menu
Select the input mode
Input select
TV
1
4
2
3
5
6
7
Component
HDMI 1
HDMI 2
Video 1
PC
Video 2
AUX
DVD
(example)
or
select
enter
Press the corresponding NUMBER
button on the remote control to
select the input of your choice.
Select the input of your choice,
then press OK.
During the selection, if no action
is taken for several seconds, the
“Input select” menu disappears.
HDMI 1
DVD
Terminal
(example)
Label
The terminal and label of the
connected equipment are
displayed.
To label each of the inputs,
please refer to p. 37.
Note
The input label will be displayed on the “Input select” screen if the Input label is set
on p. 37.
For more details on “Input labels”, refer to p. 37.
Operate the connected equipment using the remote
control supplied with the equipment
Note
For details, see the manual for the connected equipment.
tcL3237c22xeng0004-1.indb202010/02/0515:27:37
