Panasonic LCD-201904 Quick start guide

Panasonic Corporation 2020
Unauthorized copying and distribution is
a violation of law.
c
1
Lineup and Function
Order No. ITD1904901GE
Ver. 3.0
Model No. LCD-201904
OLED-201907
LCD-202007
OLED-202007
2019/2020 - LCD TV / OLED TV

Revision History
Version Issued/Revised
date
Revised content
Ver. 1.0 15th. Apr. 2019 First version
Ver. 2.0 24th. Jul. 2019 Add models (P.5-10) : “Line up and comparison”
Add page (P19,20)) : “Upward Speaker for GZ2000”,
“Support External Sub Woofer Connection”
Correction of applied TV series name (P.21) :
“Caution : Sound problem when connecting with some DIGA Player/Recorder”
Ver. 3.0 3rd. Jul. 2020 Add 2020 models (HX/HZ series) : P.5 - 8, 14, 18, 22, 23
2

3
INDEXINDEX
1.Lineup and Function Comparison
2.Function
HDR Multi Support
Filmmaker Mode/ Dolby Vision IQ /Netflix Calibrated Mode
Works with Google Assistant / Alexa
my Home Screen 5.0 , 4.0
Dolby Atmos
360°Soundscape
eARC
Support External Sub Woofer Connection
Bluetooth Audio Link
Support ALLM (Auto Low Latency Mode) of HDMI2.1
Power LED Indicator Setting

1. Lineup and Function Comparison
4

Model Name
(TX- )
GX700*
(LCD)
GX800 - 930*
except 75 inch
(LCD)
HX800 - 88#/
HX90#
(LCD)
75GX920/940*
(LCD)
GZ950/1000/1500/2000*
(OLED)
HX940*
(LCD)
HZ980/1000/1500/2000*
(OLED)
Main SoC MT5812 MT5813Q MT5813Q MT5813P MT5813P
HDR HLG,HDR10,
HDR10+
HLG,HDR10,
HDR10+,
Dolby Vision
HLG,HDR10,
HDR10+,
Dolby Vision
HLG,HDR10,
HDR10+,
Dolby Vision
HLG,HDR10,
HDR10+,
Dolby Vision
Filmmaker mode/
Dolby Vision IQ /
Netflix Calibrated mode
N N N N Y(HZ####)
N(HX940)
Dolby Atmos N Y Y Y Y
360°Soundscape N N N Y(only GZ2000) Y (HZ2000=Pro, HZ1500)
N (HZ980/1000, HX940)
my Home Screen Y Y (4.0) Y (5.0) Y (4.0) Y (5.0)
Multi Window N Y Y Y Y
IP Home Control
(Control4/Crestron)
N Y Y Y Y
Media Player Y Y (2.0) Y (2.0) Y (2.0) Y (2.0)
Power LED Indicator N Y Y Y Y
Works with Google
Assistant / Alexa (*1)
N Y (except -R) Y (except -R) Y (except -R) Y (except -R)
DLNA Home Network Y (Client) Y (Server/Client) Y (Server/Client) Y (Server/Client) Y (Server/Client)
Swipe & Share N Y Y Y Y
TV Anywhere (*2) N Y (except -R) Y Y (except -R) Y
In-House TV Streaming
( SAT>IP )
N Y (Client)
(except -B)
Y (Client)
(except -B)
Y (Server/Client)
(except -B)
Y (Client)
(except -B)
USB-HDD recording Y (except -R) Y (except -R) Y (except -R) Y (except -R) Y (except -R)
Mirroring Y Y Y Y Y
5
Lineup and Comparison of the Functions (Europe/CIS) -1
The detail lineup and specification are different in each countries.

The detail lineup and specification are different in each countries.
Model Name
(TX- )
GX700*
(LCD)
GX800 - 930*
except 75 inch
(LCD)
HX800 - 88#/
HX90#
(LCD)
75GX920/940*
(LCD)
GZ950/1000/1500/2000*
(OLED)
HX940*
(LCD)
HZ980/1000/1500/2000*
(OLED)
Main SoC MT5812# MT5813Q MT5813Q MT5813P MT5813P
Bluetooth
(Audio Link /
Keyboard/Mouse)
N /N Y / Y Y / Y Y /Y Y /Y
Headphones /
switchable to Subwoofer
Y / N Y / N Y / N Y / Y Y / Y
Analog Audio out N N N N N
Digital Audio Output
(Optical)
Y Y Y Y Y
HDMI,
eARC /
Auto low latency mode
3
N / N
3
N / Y
3
N / Y
4
N / Y
4
Y / Y(HZ####),
N / Y(HX940)
HDAVI control N Y Y Y Y
USB2.0 /3.0 1+1 GX9** : 2+1
GX8** : 1+1
HX9** : 2+1
HX8** : 1+1
2+1 2+1
Common Interface 1 1 2 (only HX904)
1
2 (except -B)
1 (-B)
2 (except -B)
1 (-B)
Component video input Y Y Y Y Y (HZ2000, HX940)
N (HZ980/1000/1500)
6
Lineup and Comparison of the Functions (Europe/CIS) -2
*1) Supported language :
Google Assistant = English,
Amazon Alexa(#) = English (UK, US, AU, IN, CA), German (DE), Spanish (ES,MX) Italy (IT) French (FR,CA).
#) Availability may depend on your Amazon account.
*2) Due to network conditions or certain broadcaster restrictions, this function may not be available.

Model Name
(TH- )
GX600*,
GX630T, GX640Z
(LCD)
GX700/740/800*,
GX750W/D
(LCD)
HX700*
HX750W
(LCD)
*:will update in
next ver.
GX880*,
GX850A/Z, GX900W
(LCD)
GZ1000/1500/2000*
(OLED)
HX900/950* (LCD)
HZ1000/1500* (OLED)
*:will update in next ver.
Main SoC MT5812# MT5813Q MT5813Q MT5813P MT5813P
HDR HLG, HDR10,
HDR10+
(except –W)
HLG,HDR10,
HDR10+,
Dolby Vision
HLG,HDR10,
HDR10+,
Dolby Vision
HLG,HDR10,
HDR10+,
Dolby Vision
HLG,HDR10,
HDR10+,
Dolby Vision
Filmmaker mode/
Dolby Vision IQ /
Netflix Calibrated mode
N N N N Y(HZ####)
N(HX900/950)
Dolby Atmos N Y Y Y Y
360°Soundscape N N N Y(only GZ2000) Y (HZ1500,HX950)
N (HZ1000,HX900)
my Home Screen Y (3.0) (except –W) Y (4.0) Y (5.0) Y (4.0) Y (5.0)
Multi Window N Y (except -D/-W) Y (except -W) Y (except -D/-W) Y (except -W)
IP Home Control (Control4) N Y (only –A/Z) Y (only -U/Z) Y (only –A/U/Z) Y (only -U/Z)
Media Player Y Y (2.0) Y (2.0) Y (2.0) Y (2.0)
Power LED Indicator N Y Y Y Y
Works with Google
Assistant / Alexa (*1)
N Y Y Y Y
DLNA Home Network Y (Client)
(Except -W)
Y (Server/Client) Y (Server/Client) Y (Server/Client) Y (Server/Client)
Swipe & Share N Y Y Y Y
TV Anytime (*2) N Y : only below
countries(*2)
Y (except –W) Y : only below
countries(*2)
Y (except –W)
USB-HDD recording Y (Except -W/-D/-L) Y (Except -D/-L) Y (Except -D/-L) Y (Except -D/-L) Y (Except -D/-L)
Mirroring Y Y Y Y Y
7
Lineup and Comparison of the Functions (Oceania/Asia/Middle East/Africa) -1
The detail lineup and specification are different in each countries.

Model Name
(TH- )
GX600*,
GX630T, GX640Z
(LCD)
GX700/740/800*,
GX750W/D
(LCD)
HX700*
HX750W
(LCD)
*:will update in next
ver.
GX880*,
GX850A/Z, GX900W
(LCD)
GZ1000/1500/2000*
(OLED)
HX900/950* (LCD)
HZ1000/1500* (OLED)
*:will update in next ver.
Main SoC MT5812# MT5813Q MT5813Q MT5813P MT5813P
Bluetooth
(Audio Link /
Keyboard/Mouse)
N / N (GX600*)
Y / N(GX600D/GX630T)
Y / Y Y / Y Y / Y Y / Y
Headphones /
switchable to
Subwoofer
Y / N Y / N Y / Y Y / Y Y / Y
Analog Audio out N N N N N
Digital Audio out
(Optical)
Y Y Y Y Y
HDMI,
eARC /
Auto low latency mode
3
N / N
3
N / Y
3
N / Y
4
N / Y
4
Y / Y(HZ####),
N / Y(HX900/950)
HDAVI control (Viera
Link)
N Y Y Y Y
USB2.0 /3.0 1+1 2+1 2+1 2+1 2+1
Component video input Y Y Y Y Y (49/75HX900/950)
N (HZ1000/1500,
55/65HX900/950)
The detail lineup and specification are different in each countries.
8
Lineup and Comparison of the Functions (Oceania/Asia/Middle East/Africa) -2
*1) Supported language :
Google Assistant = English,
Amazon Alexa(#) = English (UK, US, AU, IN, CA), German (DE), Spanish (ES,MX) Italy (IT) French (FR,CA).
#) Availability may depend on your Amazon account.
*2) Supported countries : Australia/New Zealand/Singapore/Hong Kong/Thailand/Vietnam/Malaysia/Indonesia/Myanmar
Due to network conditions or certain broadcaster restrictions, this function may not be available.

Model Name
(TC- )
GX500*
(LCD)
GX700*
(LCD)
GX800*
(LCD)
75GX880*
(LCD)
GZ1000/2000*
(OLED)
*:will update in next
ver.
Main SoC ODM MT5812# MT5813Q MT5813P
HDR HDR10 HLG, HDR10,
HDR10+
HLG, HDR10,
HDR10+,
Dolby Vision
HLG, HDR10,
HDR10+,
Dolby Vision
Filmmaker mode/
Dolby Vision IQ /
Netflix Calibrated mode
N N N N
Dolby Atmos N N Y Y
360°Soundscape N N N Y(only GZ2000)
my Home Screen N Y (3.0) Y (4.0) Y (4.0)
Multi Window N N N Y (only –B/W)
IP Home Control
(Control4)
N N Y (only -C) Y (only -C)
Media Player Y Y Y (2.0) Y (2.0)
Power LED Indicator N N Y Y
Works with Google
Assistant / Alexa (*1)
N N Y Y
DLNA Home Network N Y (Client) Y (Server/Client) Y (Server/Client)
Swipe & Share N N Y Y
USB-HDD recording N N N Y (only –B/W)
Mirroring Y Y Y Y
9
Lineup and Comparison of the Functions (North/Central/South America) -1
The detail lineup and specification are different in each countries.

Model Name
(TC- )
GX500*
(LCD)
GX700*
(LCD)
GX800*
(LCD)
75GX880*
(LCD)
GZ1000/2000*
(OLED)
*:will update in next
ver.
Main SoC ODM MT5812# MT5813Q MT5813P
Bluetooth
(Audio Link /
Keyboard/Mouse)
N /N Y / N Y /Y Y / Y
Headphones /
switchable to Subwoofer
N / N N / N N / N Y / Y (only GZ####C)
N / N (other)
Analog Audio out Y N N N
Digital Audio Output
(Optical)
Y Y Y Y
HDMI,
eARC /
Auto low latency mode
3
N / N
3
N / N
3
N / Y
4
N / Y
HDAVI control (Viera Link) N N Y Y
USB2.0 /3.0 1+0 1+1 2+1 2+1
Component video input Y Y Y Y
The detail lineup and specification are different in each countries.
10
Lineup and Comparison of the Functions (North/Central/South America) -2
*1) Supported language :
Google Assistant = English,
Amazon Alexa(#) = English (UK, US, AU, IN, CA), German (DE), Spanish (ES,MX) Italy (IT) French (FR,CA).
#) Availability may depend on your Amazon account.

Frame
Rate
Video
Format Bit
TX/TC-**GX7##
TH-**GX6##
all FX/FZ series
TX/TC-**GX8##,GX9##
TH-**GX7##,GX8##
All GZ/HX/HZ series
HDMI
1 / 2
HDMI
3 / (4)
HDMI
1 / 2
HDMI
3 / (4)
HDMI
1.4
24p
25p
30p
4:2:2 12bit Y Y Y Y
4:4:4 8bit Y Y Y Y
4:4:4 10bit Y NY Y
4:4:4 12bit Y NY Y
HDMI
2.0
50p
60p
4:2:0 8bit Y (*) Y (*) Y (*) Y (*)
4:2:0 10bit Y NY Y
4:2:0 12bit Y NY Y
4:2:2 12bit Y NY Y
4:4:4 8bit Y NY Y
Y = support HDCP2.2 and HDR
Y(*) = Mostly connected devices might not output HDR signal because signal bandwidth is not enough for HDR with this format
N = support only HDCP1.4
To watch high-definition 4K more accurately or HDR content,
connect the 4K compatible equipment to HDMI1 or 2 terminal with TX/TC-**HX7## and TH-**HX6##.
Reference : 4K Signal Compatibility (HDR)
11

2. Function
12

HDR Multi Support
Standard
Hybrid Log Gamma
(HLG)
Perceptual Quantizer (PQ)
HDR10 HDR10+ Dolby Vision
ITU-R BT2100 SMPTEST 2084 SMPTEST 2094-40
(tentative) SMPTE ST 2084
Simple Explanation For Broadcasting Most Popular Will be more
popular
Advanced but limited
devices and services
are available.
Main Standardizing
Organization
BBC(UK),
NHK(JP)
BDA
(Blu-ray Disk
Association)
Samsung,
20th Century FOX,
Panasonic
Dolby
Requirement
Specification
Application
Broadcasting Y - - -
Streaming - Y Y Y
UHD BD -Y
(Mandatory) Y Y
Remarks
-Unique picture mode
is displayed when the
signal is input.
UHD Premium
Premium UHD
Experience
UHD Alliance
-Hollywood Studios
-Content Distributers
-Hardware Manufacturer
-Quality certification
(not standard)
-Requirement on
display spec:
LCD 1000 nit
OLED 450 nit.
<Quality Certification>
< Standard >
13
HDR(High Dynamic Range) Multi Support
Compatible Only DX900 and
65/55EZ*/FZ*/GZ*/HZ*
compatible
Compatible Compatible
Panasonic TVs support multiple HDR formats, support the Dolby Vision newly.
Compatible

Expand Hollywood to Your Home Picture Quality to Well-lit Living Rooms
Intelligent Sensing
Bright lit Room
Intelligent Sensing
Dark Room
Bright lit Room
Dark Room
Conventional Conventional
Because only Panasonic supports Dolby Vision IQ and Filmmaker Mode with Intelligent Sensing,
only Panasonic can automatically optimize your TV for viewing in bright living rooms for all formats
: Dolby Vision, HDR10+, HDR10, HLG, and SDR.
New Picture Mode Function
Filmmaker Mode Reproduces film content precisely as it was intended by the filmmaker.
Dolby Vision IQ Bringing Dolby Vision and advanced ambient Light Sense together to
perfect the picture settings even in changing light.
By reproducing Master Monitor picture quality used by Netflix filmmakers in post production, images
are true to the creators intentions.
Netflix Calibrated Mode
New Picture Mode Function
Netflix Calibrated Mode Netflix Calibrated Mode means your TV gets the best from their shows,
delivering them to your home as their makers intended.
14
Filmmaker Mode/ Dolby Vision IQ /Netflix Calibrated Mode (HZ series)OLED

Panasonic TVs give you hands-free operation from an Amazon Alexa or Google Assistant enabled device.
A variety of operations, such as turning the power on or off and changing the channel or sound volume,
can be carried out by voice without having to use the remote control. It's easy to operate the TV with voice
commands when you're busy cooking or getting ready to leave the house.
Easy TV Operation Without a Remote Control
*The Google Assistant is not available in certain languages and countries. Requires Internet connection.
Availability of services varies by country and language. Subscriptions for services may be required.
*Google is a trademark of Google LLC
*Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.
< Setup > Please refer to Set up in
https://av.jpn.support.panasonic.com/support/global/cs/tv/faq/vc/index.html
Works with Google Assistant / Alexa-1
15

Amazon Alexa
Smart Home
Skill
Power On / Off
Control Volume
Change Channel
Change Input Source
Control Playback for DVR or
streaming content
(Pause, Resume, Stop, Play,
Next/Previous, Rewind/Fast )
Google Assistant
Smart Home
app
Power On / Off (*)
Control Volume
Change Channel
Change Input Source
Control Playback for DVR or
streaming content
(Pause, Resume, Stop, Next/Previous)
Launch Apps
Record Programs
(only start recording)
Change Settings
(Picture, Sound mode)
Turn On/Off subtitle
Turn On/Off Audio Description
*Please refer to https://av.jpn.support.panasonic.com/support/global/cs/tv/faq/vc/index.html for details.
< Supported control list >
Amazon Alexa* : English (UK, US, AU, IN, CA), German (DE), Spanish (ES,MX) Italy (IT) French (FR,CA).
*Availability may depend on your Amazon account.
Google Assistant : English only.
< Supported languages >
Works with Google Assistant / Alexa-2
16
(*) ‘Power-on’ functions cannot be
supported in Brazil for the power
consumption limitation.

If replacing A board, “ the customer (*)“ need to re-register the TV and setup.
(*)Because the Panasonic ID information is needed.
1. Unregister the old product information (need the Panasonic ID information)
access to "https://www.tvpa.panasonic.com/ , login and follow the prompts of delete
2. Need to setup from start again,
refer to Set up item in
https://av.jpn.support.panasonic.com/support/global/cs/tv/faq/vc/index.html
< Caution for A board repair >
Works with Google Assistant / Alexa-3
(reference) Panasonic ID
Panasonic ID support page
https://csapl.pcpf.panasonic.com/?Lang=en
*Language can be changed at bottom of this page.
If you forgot the Password, You can reset the password in this page.
If you would like to change or delete the Panasonic ID,
please refer the FAQ of above page ( FAQ – Change or Delete )
( https://csapl.pcpf.panasonic.com/Faq/Faq001?Lang=en )
17

Intuitive operation of the simple home screen enables hassle-free viewing.
The content thumbnails are shown
by horizontal operation
1: Netflix
2: prime video
3: YouTube
4: Apps Deck
5: Devices Deck
6: Live TV Deck

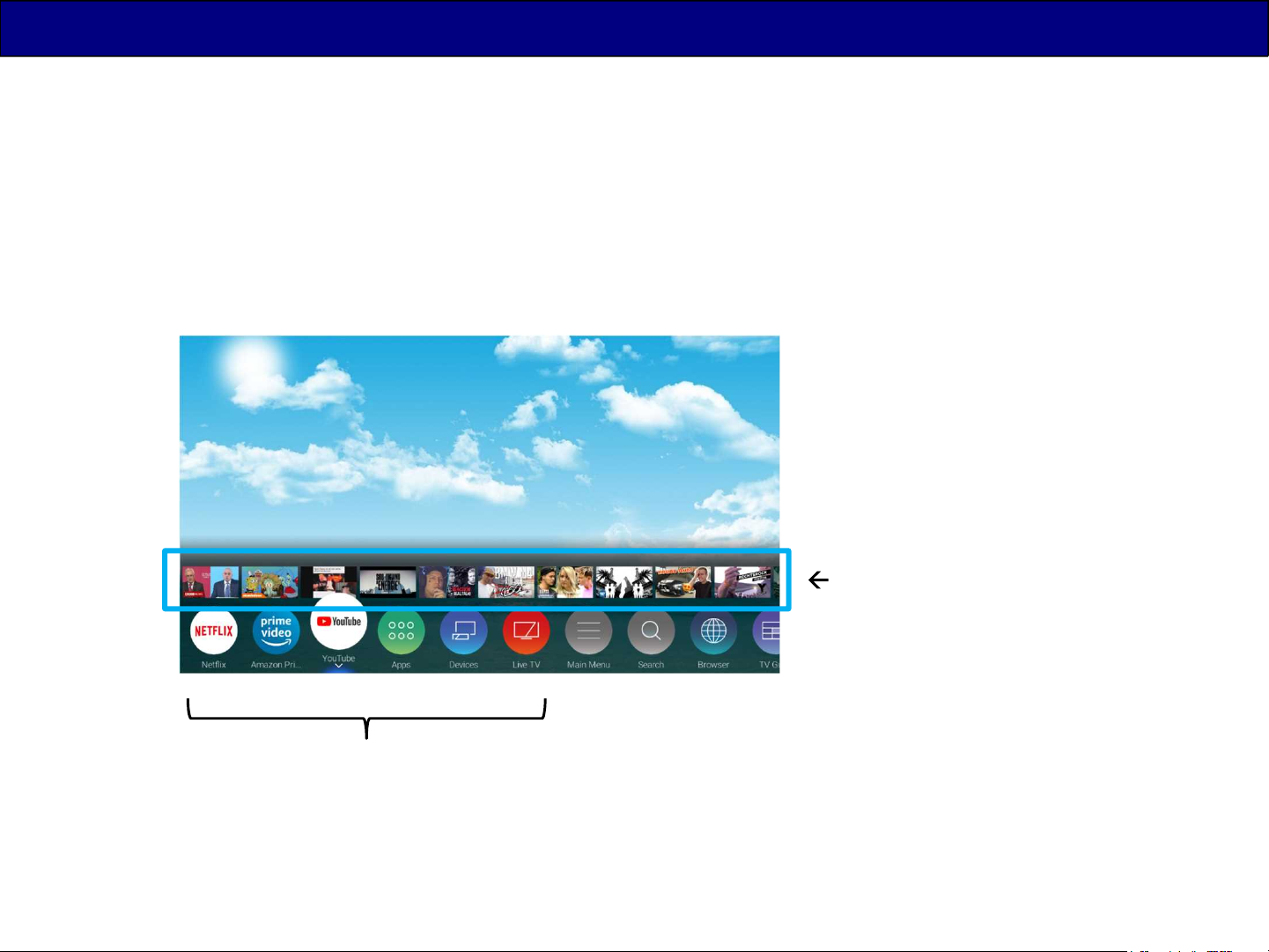

my Home Screen 5.0 (HX/HZ series)
You can pin the Apps
onto the home screen.
*Availability of apps is depending on the area/country.*Availability of apps is depending on the area/country.
The new version of My Home Screen 5.0 displays thumbnails of suggested content
when you select VOD applications, including Netflix and YouTube. This makes it even
easier to get to your favorite content.
Remove all tabs
except HOME tab
from 4.0
18

Home
①
②
③
④
⑥
①
②
③
④
⑤
⑥
Search
Live TV
NETFLIX
Search for content using
a keyword.
Change the design for
viewing without obstructions.
You can also change the
up/down order from "Tab Setting"
under the "Setting" item.
Display recommended
NETFLIX videos
Setting
my Home Screen 4.0 (GX/GZ series)
Home
( Live TV, Apps, Devices )
Up key Down key
Up key Down key
Up key Down key
Up key Down key
Locator
19
⑤YouTube
Display recommended
YouTube videos
Up key Down key
*Availability of apps is depending on the area/country.*Availability of apps is depending on the area/country.
Use the up/down keys of the remote
control to see a list of the TV
programs you often view, YouTube,
NETFLIX and other content.
Add Netflix, Prime Video, and
YouTube to the home screen.

Upward-firing Speakers for the GZ2000
SOUND FUNCTION
L
R
L
R
Virtual surround adjusts volume,
timing, and signal frequency to realize
a horizontal surrounding soundstage
The special processing realize a spherical
soundstage which also includes vertical
positioning of sound sources
L
L
R
R
Vertical
Horizontal
Vertical
Horizontal

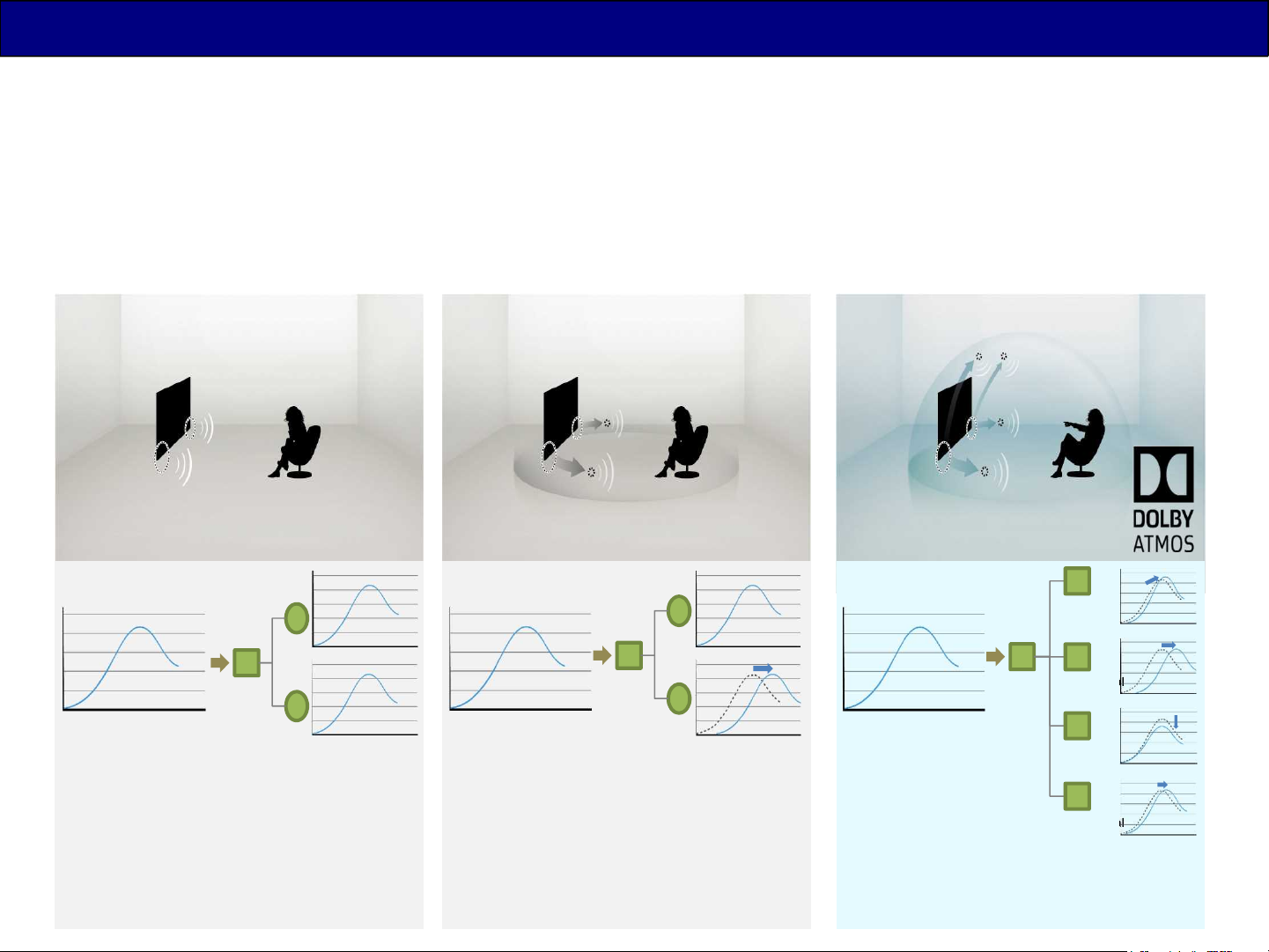

STEREO VIRTUAL SURROUND DOLBY ATMOS
What’s Dolby Atmos?
Dolby Atmos
We can have an immersive cinematic experience with Dolby Atmos content.
The sound expression in not only horizontal but height direction is available.
In addition, the normal stereo sound can be also converted to virtual 3D sound.
20
