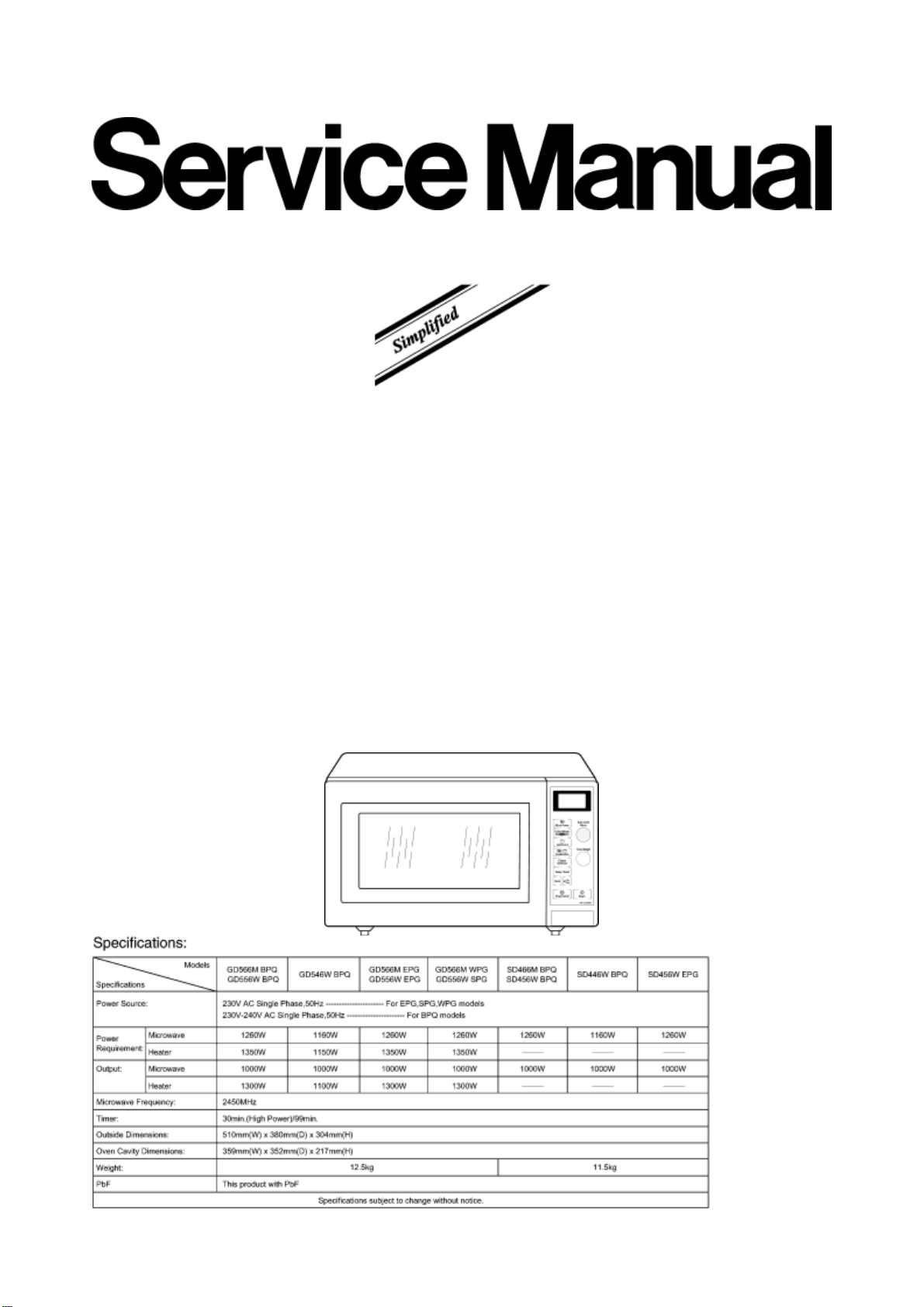

Panasonic NN-GD566M User manual

ORDERNO.PHAMOS0603017A2
MicrowaveOven
NN-GD566M
NN-GD556W
NN-GD546W
NN-SD466M
NN-SD456W
NN-SD446W

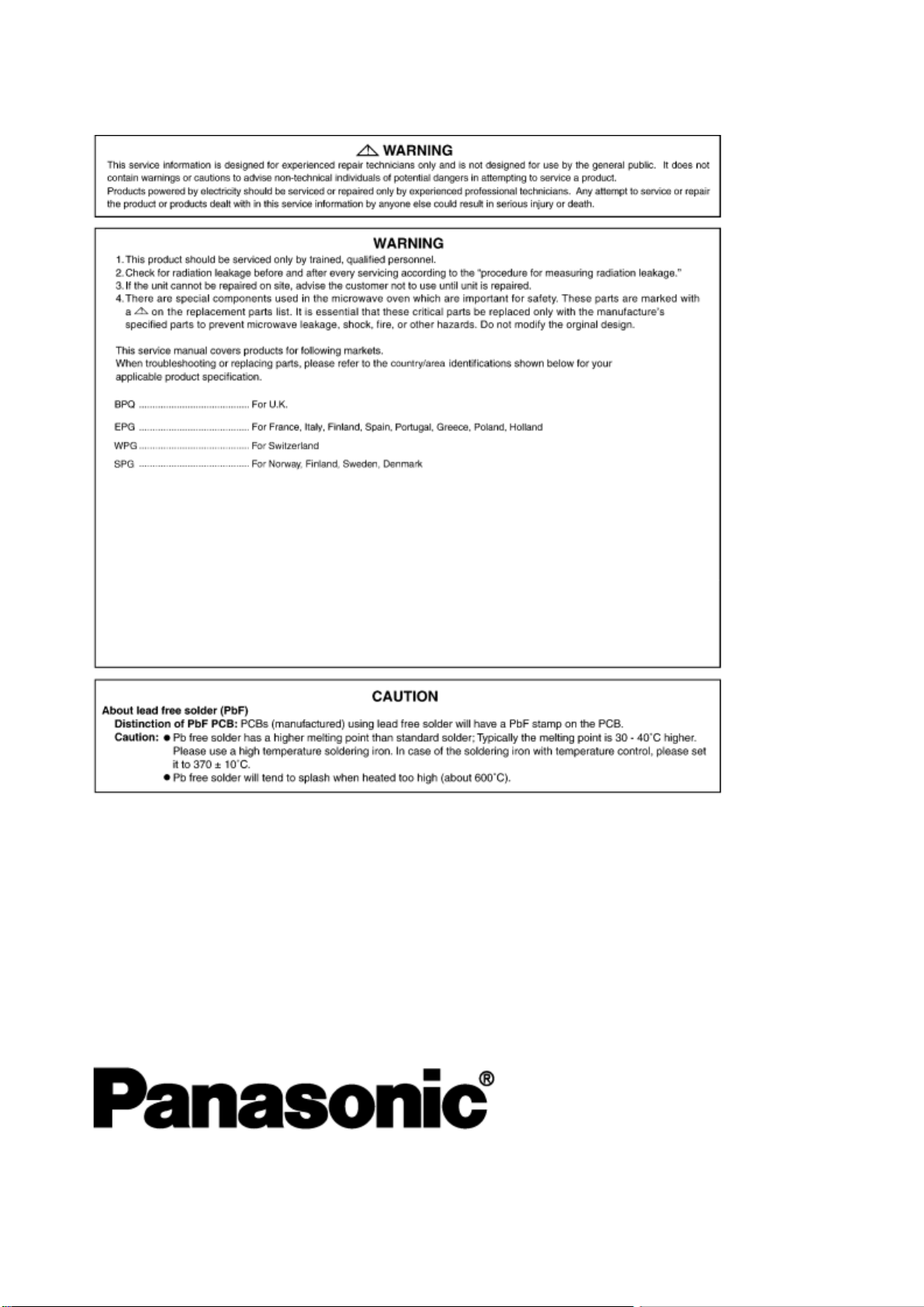

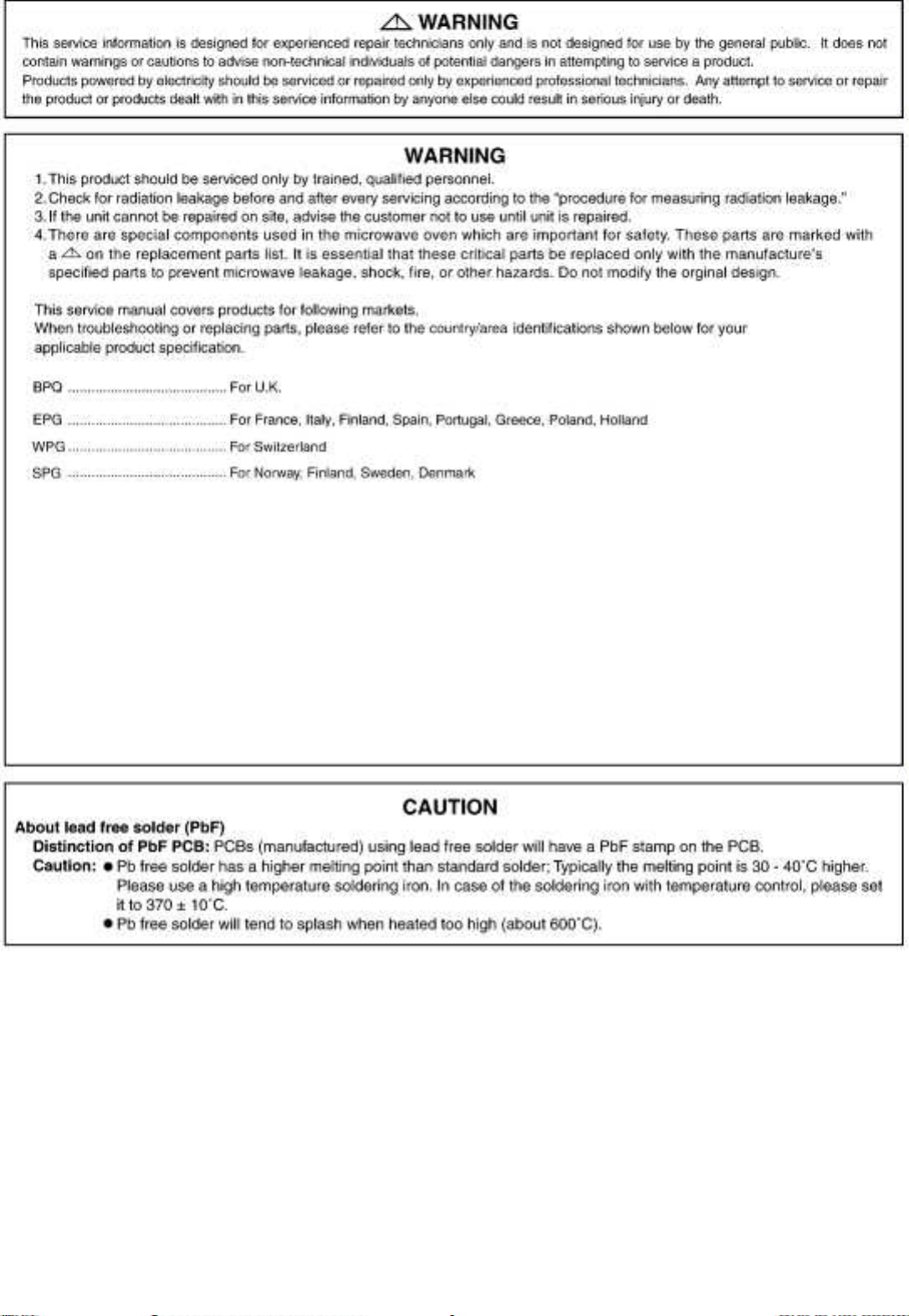

BPQ(U.K.)
EPG(France, Italy,Finland,Spain,Portugal, Greece,Poland,Holland)
WPG(Switzerland)
SPG(Norway,Finland, Sweden, Denmark)
Pleasefileandusethis specifiedmanual togetherwiththeservicemanualfor ModelNN-V653WF(ORDER NO.
SIMMC0303012C2).
Page
1
of
13

©2006Panasonic HomeAppliancesMicrowaveOven(Shanghai) Co., Ltd.
All rights reserved.Unauthorizedcopyinganddistributionis aviolationof law.
Page
2
of
13

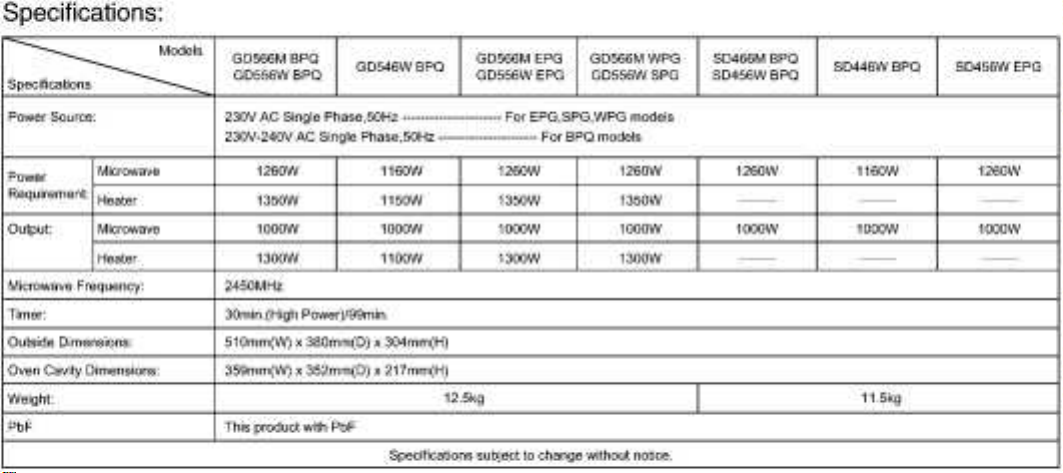

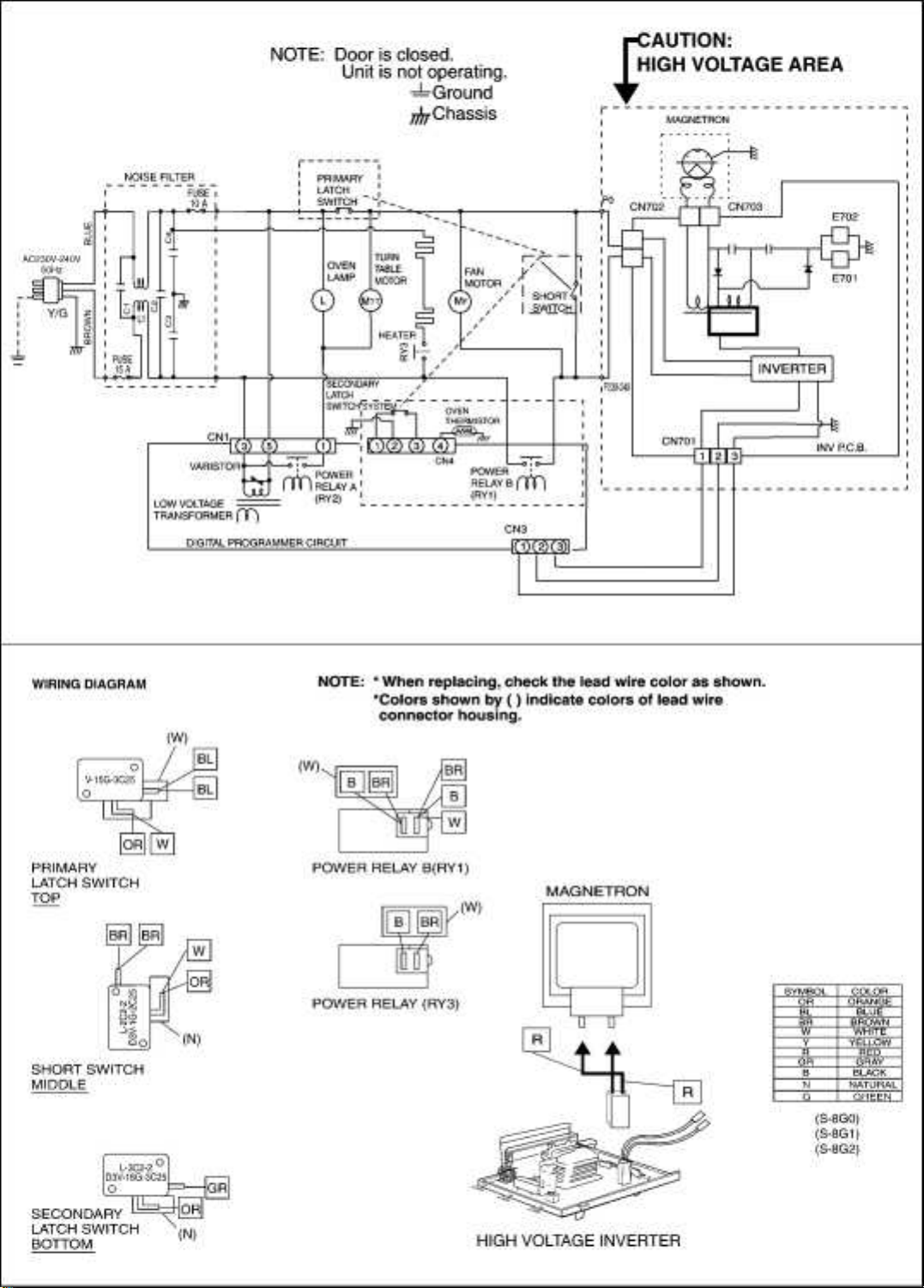

1SCHEMATIC DIAGRAM (FOR
GRILL MODELS)

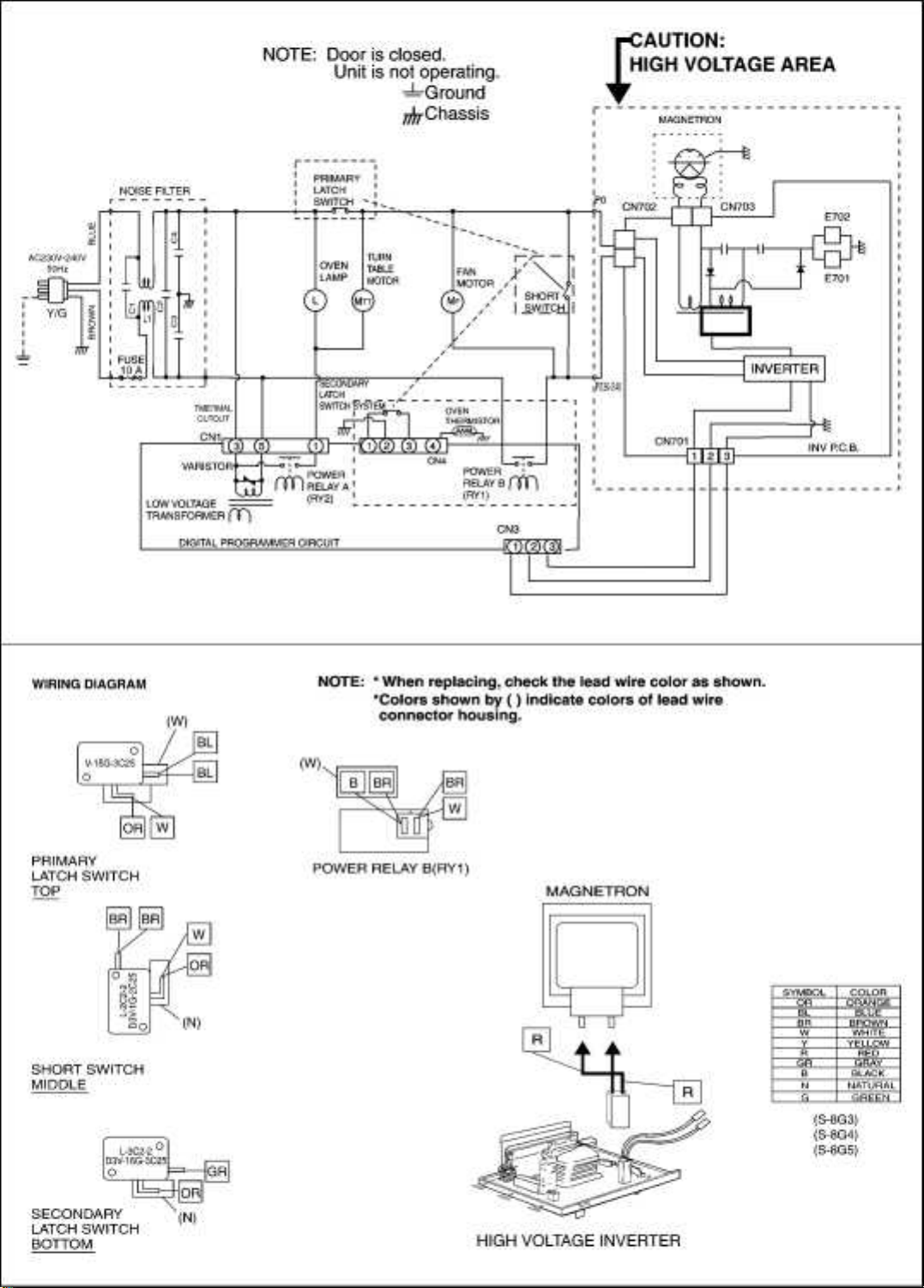

2SCHEMATIC DIAGRAM (FOR
SOLOMODELS)
3CAUTIONSTOBEOBSERVED
WHEN TROUBLESHOOTING
Page
3
of
13

Unlikemanyother appliances, themicrowaveovenisahighvoltage, highcurrentdevice.It isfreefromdanger in
ordinary use,thoughextremecareshouldbetakenduringrepair.
Caution
Servicemen shouldremovetheirwatches wheneverworkingclosetoorreplacingthemagnetron.
3.1Checkthegrounding
Donotoperateon atwowireextensioncord.The microwaveovenisdesignedtobegroundedwhen used. It is
imperative, therefore,toensuretheapplianceis properlygroundedbeforebeginning repairwork.
3.2Inverter warnings
DANGER,HIGH VOLTAGE AND HIGHTEMPERATURE(HOT/LIVE) OFTHEINVERTERPOWER SUPPLY (U)
TheHighVoltageInverterPowerSupply handles very high voltageandcurrentfor themagnetrontube.Thoughitis
freefromdanger inordinary use,extremecareshouldbetaken duringrepair.
Thealuminum heatsink is alsoenergizedwithhighvoltage(HOT),donot touchwhentheAC input terminals are
energized. Thepower deviceCollector is directly connectedtothealuminumheatsink.
Thealuminum heatsink may beHOTduetoheat energy, therefore, extremecareshouldbetakenduringservicing.
H.V.Inverter warning
WARNING FOR INVERTER POWER SUPPLY (U) GROUNDING
Check theHighVoltage InverterPowerSupplycircuitgrounding.Thehighvoltageinverter powersupply circuitboard
must haveaproper chassisground. Theinverter groundingbracketmustbeconnectedtothechassis.Ifthe inverter
boardis notgroundedit willexposetheusertovery highvoltages andcauseextremeDANGER! Besurethat the
invertercircuit is properlygroundedviatheinvertergroundingbracket.
Groundingoftheinvertercircuitboard
WARNING! DISCHARGE THE HIGHVOLATGE CAPACITORS
Forabout30seconds after the oven is turned off, anelectricchargeremains inthehighvoltagecapacitors inthe
Inverter Power Supply circuit board.
When replacingorchecking parts,removethepowerplugfromtheoutletandshorttheinverter output terminal of the
magnetronfilamentterminalstothechassis groundwithaninsulatedhandlescrewdriver todischarge.Pleasebesure
Page
4
of
13

totouchthe chassis groundsidefirst andthenshort totheoutputterminals.
Dischargingthehighvoltage capacitors
WARNING
Thereis highvoltagepresent withhighcurrentcapabilities inthecircuits oftheprimary andsecondary windings,choke
coilandheat sinkoftheinverter.Itis extremely dangerous towork on ornear thesecircuits withtheovenenergized. DO
NOTmeasurethevoltageinthehighvoltagecircuit including thefilamentvoltageofthemagnetron.
WARNING
Nevertouchanycircuit wiringwithyourhandor withaninsulatedtool duringoperation.
3.3Partreplacement.
When any part or component is tobereplaced, always ensurethatthe powercordis removed from thewall outlet.
3.4Whenthe10Afuseisblown duetothe
operation oftheshortswitch:
WARNING
When the10A 250V fuseis blownduetotheoperationoftheinterlock monitor switch, replaceall ofthe components
(primary latchswitch, shortswitchandpower relayB (RY1)).
1. This is mandatory. Refer to“adjustments andmeasurements”forthelocation oftheseswitches.
2. When replacingthefuse,confirm that it has the appropriateratingforthesemodels.
3. When replacingfaulty switches,besurethemounting tabsarenotbent, brokenor deficientintheir ability tohold
theswitches.
3.5Avoidinsertingnails,wireetc.through any
holesintheunitduringoperation.
Neverinsert awire,nailorany other metal objectthroughthelampholes on thecavity or any holesorgaps,because
suchobjects may work asanantennaand causemicrowaveleakage.
3.6Confirmafterrepair
1. After repair orreplacementofparts,makesurethat thescrewsoftheoven, etc. areneither loosenor missing.
Microwavemightleakifscrewsarenotproperly tightened.
2. Makesurethatall electrical connections aretightbeforeinserting theplugintothewalloutlet.
3. Check for microwaveenergy leakage. (Refer toprocedurefor measuringmicrowaveenergy leakage).
CAUTIONMICROWAVE RADIATION
USE CAUTIONNOTTO BECOME EXPOSEDTORADIATION FROM THE MICROWAVE MAGNETRON OROTHER
PARTSCONDUCTING MICROWAVE ENERGY.
Page
5
of
13

IMPORTANTNOTICE
Thefollowingcomponents havepotentials above2000Vwhilethe applianceis operated.
lMagnetron
lHighvoltage transformer (Locatedoninverter(U))
lHighvoltage diodes (Located oninverter (U))
lHighvoltage capacitors (Locatedoninverter(U))
Pay specialattentiontotheseareas.
When theapplianceis operatedwiththedoorhinges ormagnetroninstalledincorrectly, themicrowaveleakagecan
exceedmorethan5mW/cm 2 .Afterrepair or exchange,itis very importanttocheck ifthemagnetron andthe door
hingesarecorrectly installed.
3.7Sharp edges
Caution
Pleaseusecautionwhenunpacking,installingor movingtheunit, assomeexposededges may besharptothetouch
andcauseinjury if nothandledwithcare.
4MEASUREMENTS AND
ADJUSTMENTS

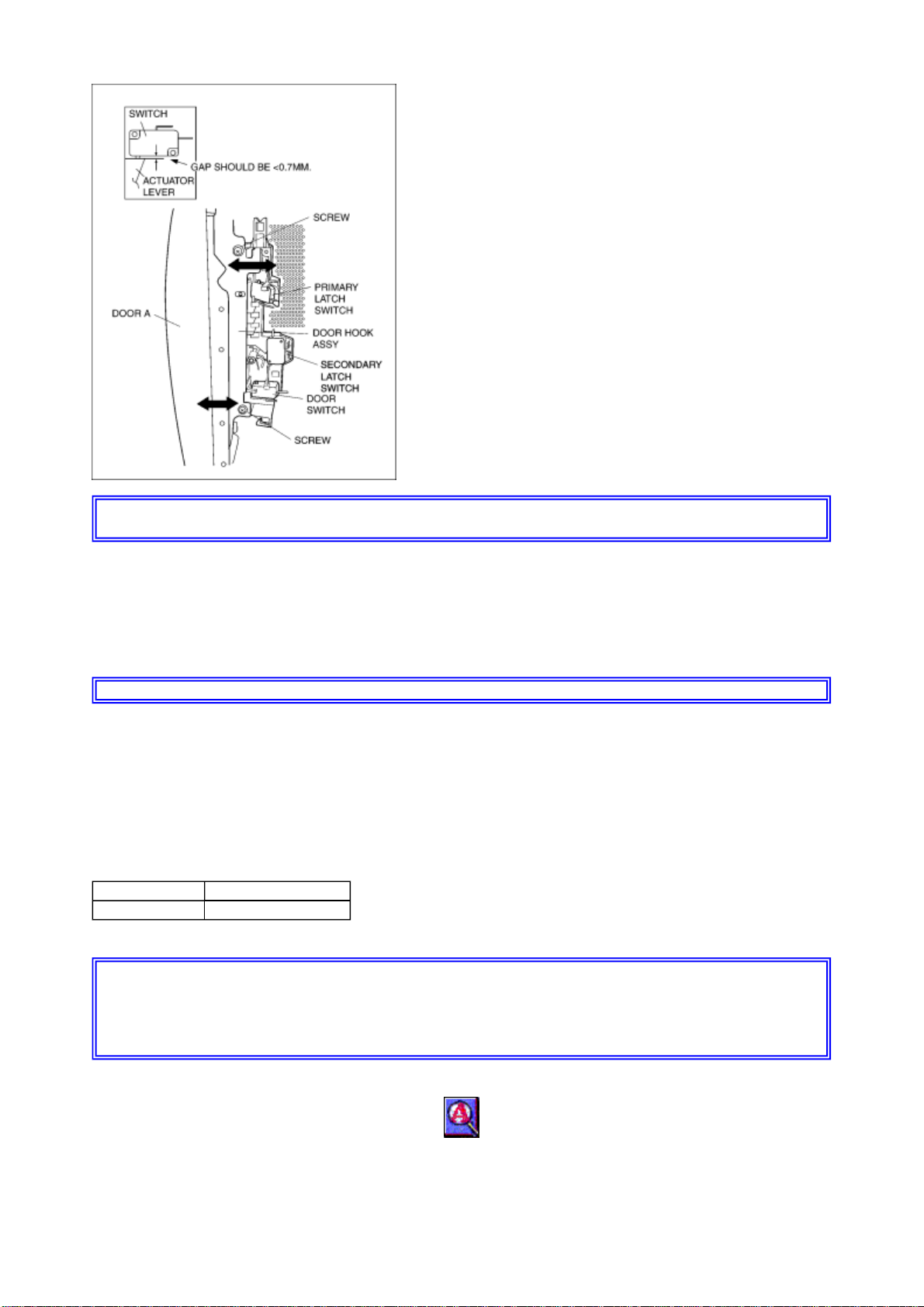

4.1Adjustmentofprimarylatch switch,
secondarylatchswitchand shortswitch.
1. MountthePrimary latchswitch,theSecondary latchswitchand theshort switchtothedoor hook assembly as
showninILL.
NOTE:
NospecificindividualadjustmentsduringinstallationofthePrimarylatchswitch,Secondarylatchswitch
orShortswitchtothedoorhookarerequired.
2. When mountingthedoor hook assembly totheovenassembly, adjust thedoor hook assembly by movingitinthe
direction ofthe arrows intheillustrationsothattheovendoorwillnot haveany play init. Check forplay inthedoor
by pullingthe door assembly.Makesurethat thelatchkeys movesmoothly after adjustmentis completed.
Completelytightenthescrews holdingthedoor hook assembly totheovenassembly.
3. Reconnect theshort switchandcheck thecontinuity ofthe monitor circuit andall latchswitchesagainby following
thecomponent testprocedures.
Page
6
of
13

4.2Measurementofmicrowaveoutput
Theoutputpower ofthemagnetroncanbedeterminedby performingIEC standardtest procedures. However,due to
thecomplexity of IECtestprocedures, it isrecommendedtotestthemagnetronusingthesimplemethodoutlined
below.
Necessary Equipment:
*1 literbeaker *Glass thermometer
*Wristwatchor stopwatch
NOTE:
Checkthelinevoltageunderload.Lowvoltagewilllowerthemagnetronoutput. Takethetemperaturereadings
andheatingtime asaccuratelyaspossible.
1. Fill thebeakerwithexactlyoneliter oftapwater.Stir thewaterusingthethermometer andrecordthewater’s
temperature. (recordedasT1).
2. Placethebeaker onthecenterofglass tray.
SettheovenforHighpower andheatit for exactly oneminute.
3. Stirthewater againandreadthetemperatureof thewater.(recordedas T2).
4. Thenormal temperatureriseatHighpower level for eachmodel, is as shownintable.
5EXPLODED VIEW AND PARTS
LIST
TABLE (1L
-
1min.test)
RATED OUTPUT
TEMPERATURE RISE
1000W Min.8.6°C
Page
7
of
13

6PARTS LIST
NOTE:
1. When ordering replacementpart(s),pleaseusepart number(s) showninthispart list.
Donotusedescriptionofthepart.
2. Important safety notice:
Components identifiedby mark havespecial characteristics importantfor safety.
When replacingany of thesecomponents, useonlymanufacture’s specifiedparts.
NOTE:
Pleaseorder allparts fromMELUK inU.K.
Ref.
No.Part No. Part Name& Description
Pcs/Set
Remarks
1F00064080BP CAUTIONLABEL1BPQ
1F00069000EP CAUTIONLABEL1EPG,WPG,SPG
3F04905R80SEP ENERGY LABEL1GD566MEPG
3F04905R80HEP ENERGY LABEL1GD556WEPG
3F04906A00HEP ENERGY LABEL1SD456WEPG
6F10015Q00APG BASE 1
7F10084T00AP RUBBERFOOT4
8F110D6W70SXP CABINETBODY 1GD566M
8F110D6W70HXP CABINETBODY 1GD556W,GD546W
8F110D6W80SXP CABINETBODY 1SD466M
8F110D6W80HXP CABINETBODY 1SD456W,SD446W
9 F200A5R60BP OVEN1GD566M,GD556W
9 F200A8G20BP OVEN1GD546W
9 F200A5Q70BP OVEN1SD466M,SD456W
9 F200A6D60SXP OVEN1SD446W
10F20555Q00BP COVER 1
11F21315G10XN PULLYSHAFT1
12F290D5Q00AP ROLLERRING(U) 1
13 F30205Q00AP DOORHOOK 1
14F31365Q00AP HOOK LEVERA1
15F400A5U00XN FANMOTOR 1
16F40085G10XN FANBLADE 1
17F40255Q00AP AIRGUIDE A 1
18F40425Q00APG AIRGUIDE F1
19F612E5G10XNINCANDESCENT
LAMP (U) 1
21F41445Q00AP UPPER ORIFICE 1
22F42095Q00AP LOWERORIFICE 1
26 J61415G10XNMICROSWITCH1V-15G-3C25(PRIMARY LATCHSWITCH)
27 J61414T00AP MICROSWITCH1D3V-16G-3C25(SECONDARY LATCH SWITCH)
28 F61785U30XNMICROSWITCH1D3V-1G-2C25(SHORTSWITCH)
29 2M236-M42JMAGNETRON1
31 A62304210BP FUSE 1BPQ,EPG
31 F62306V60BP FUSE 1WPG,SPG
32 A6331-1T50 FUSE 1GD566M,GD556W,GD546W(15A)
33F607X8B00BP NOISE FILTER(U) 1GD566M,GD556W,GD546W
33 F607X8A00BP NOISE FILTER(U) 1SD466M,SD456W,SD446W
34F63265U30XNTURNTABLE MOTOR 1
Page
8
of
13

6.1H.V.Inverter main parts list
7DOOR ASSEMBLY
35 F900C5G50BP AC CORD W/PLUG 1SD466M BPQ,SD456WBPQ,SD446WBPQ
35 F900C5G10TNAC CORD W/PLUG 1SD456WEPG
35 F900C8G00BP AC CORD W/PLUG 1GD566MBPQ,GD556WBPQ,GD546WBPQ
35 F900C5R00EP AC CORD W/PLUG 1GD566MEPG,GD556WEPG/SPG
35 F900C5R80WP AC CORD W/PLUG 1GD566MWPG
36F606Y4V00BP H.V.INVERTER(U) 1
37F65855R00BPINVERTER BRACKET1
41XTWFA4+12TSCREW4FOR MAGNETRON
44XTWFA4+12DSCREW4FOR CABINETBODY
45XTCAFA4+12AFS SCREW1GD566M,GD466M(FOR CABINETBODY SIDE)
45
XTCAFA4+12AFW
SCREW1
GD556W,GD546W,SD456W,SD446W(FOR CABINET
BODYSIDE)
51F630G5R20BP HEATER (AU) 2GD566MBPQ,GD556WBPQ (650W,120V)
51 F630G5R20GP HEATER (AU) 2
GD566MEPG/WPG,GD556WEPG/SPG (650W,120V)
51 F630G5R00BP HEATER (AU) 2GD546WBPQ (550W,120V)
52F64605R00BPHEATER MOUNTING
PLATE 2GD566M,GD556W,GD546W
55F40245R00BPGEXHAUSTGUIDEA1GD566M,GD556W,GD546W
56F01505R00BPNO TOUCHING LABEL 1GD566MBPQ,GD556WBPQ,GD546WBPQ
57F01505R00EPNO TOUCHING LABEL 1GD566MEPG/WPG,GD556WEPG/SPG
58F02395G50BP AC CORD CAUTION
LABEL1BPQ
59F62865Q00BP HEATSHIELD1GD566M,GD556W,GD546W
60F11404J60XN STOPPER 2
61F03348G00BP MENU LABEL1GD566MBPQ,GD556WBPQ
61 F03348G00EP MENU LABEL1GD566MEPG,GD556WEPG
61 F03348G00WP MENU LABEL1GD566MWPG,GD556WSPG
61 F03348G20BP MENU LABEL1GD546WBPQ
61 F03348G40BP MENU LABEL1SD466M BPQ,SD456WBPQ
61 F03348G40EP MENU LABEL1SD456WEPG
61 F03348G50BP MENU LABEL1SD446WBPQ
62F22175R00APGINSULATIONPLATE1GD566M,GD556W,GD546W
63F20345Q00CP REINFORCE
BRACKET1
Ref. No. Part No.
Part Name& Description
Pcs/Set
Remarks
Q701 A691EM300GP IGBT1
Q702 IGBT1
C701
ECWF5184N300
FILM CAPACITOR 1
C702ECQE2505T869 FILM CAPACITOR 1
C703
ECWF2395N632
FILM CAPACITOR 1
DB701B0FBBS000001RECTIFIER BRIDGE 1
L701F5020M300GP CHOKE COIL1
R702D0CM352JA002 SAND BAR RESISTOR1
T701 A609AM300GP TRANSFORMER 1
(INCLUDING D701,D702,C706,C707)
D701,D702
B0FBAZ000001DIODE 2
C706
ECWH30562U03
FILM CAPACITOR 1
C707
ECWH30432U04
FILM CAPACITOR 1
Page
9
of
13

8WIRING MATERIALS
9ESCUTCHEON BASE ASSEMBLY
Ref. No.
Part No.
Part Name& Description
Pcs/Set
Remarks
D1F30185Q00AP DOORKEY A 1
D2
F30015Q00SBP
DOORA1GD566M,SD466M
D2
F30015Q00HBP
DOORA1GD556W,GD546W,SD456W,SD446W
D3 F301P5R00AP DOORE (U) 1GD566M,GD556W,GD546W
D3 F302K5Q00AP DOORE (U) 1SD466M,SD456W,SD446W
D4F30215G10XN DOORKEY SPRING 1
D5 F30855Q00AP DOORC1
D6F31454T00AP DOORSCREEN A 1SD466M,SD456W,SD446W
D7F31468G00BP DOORSCREEN B 1
GD566MBPQ,GD556WBPQ,GD546WBPQ
D7F31468G00EP DOORSCREEN B 1GD566MEPG/WPG,GD556WEPG/SPG
D7F31468G40BP DOORSCREEN B 1SD466M BPQ,SD456WBPQ,SD446WBPQ
D7F31465Q00EP DOORSCREEN B 1SD456WEPG
Ref. No.
Part No. Part Name& Description
Pcs/Set
Remarks
W1
F030A8G00BP
LEAD WIREHARNESS 1GD566M,GD556W,GD546W
W1
F030A8G30BP
LEAD WIREHARNESS 1SD466M,SD456W,SD446W
W2
F030E5Q00AP
H.V.LEAD WIRE 1
W3
F03535Q00AP
LEAD WIREHARNESS U
1
EXCEPTWPG & SPG (INCLUDINGTHERMISTOR)
Ref. No.
Part No. Part Name& Description
Pcs/Set
Remarks
E1F603L8G00BP D.P.CIRCUIT(AU) 1GD566MBPQ,GD556WBPQ
E1F603L8G00EP D.P.CIRCUIT(AU) 1GD566MEPG,GD556WEPG
E1F603L8G10SP D.P.CIRCUIT(AU) 1GD566MWPG,GD556WSPG
E1F603L8G20BP D.P.CIRCUIT(AU) 1GD546WBPQ
E1F603L8G40BP D.P.CIRCUIT(AU) 1SD466M BPQ,SD456WBPQ
E1F603L8G40EP D.P.CIRCUIT(AU) 1SD456WEPG
E1F603L8G50BP D.P.CIRCUIT(AU) 1SD446WBPQ
E3F603Y8G00EP D.P.CIRCUIT(DU) 1GD566M,GD556W,GD546W
E3F603Y8G40EP D.P.CIRCUIT(DU) 1SD466M,SD456W,SD446W
E4
F630Y8G00SBP
MEMBRANE SWITCH(U) 1GD566MBPQ
E4
F630Y8G00SEP
MEMBRANE SWITCH(U) 1GD566MEPG/WPG
E4
F630Y8G10HBP
MEMBRANE SWITCH(U) 1GD556WBPQ
E4
F630Y8G10HEP
MEMBRANE SWITCH(U) 1GD556WEPG/SPG
E4
F630Y8G20HBP
MEMBRANE SWITCH(U) 1GD546WBPQ
E4
F630Y8G30SBP
MEMBRANE SWITCH(U) 1SD466M BPQ
E4
F630Y8G40HBP
MEMBRANE SWITCH(U) 1SD456WBPQ
E4
F630Y8G40HEP
MEMBRANE SWITCH(U) 1SD456WEPG
E4
F630Y8G50HBP
MEMBRANE SWITCH(U) 1SD446WBPQ
Page
10
of
13

10PACKING AND ACCESORIES
E5F80348G00SBP ESCUTCHEONBASE 1GD566M,SD466M
E5F80348G00HBP ESCUTCHEONBASE 1
GD556W,GD546W,SD456W,SD446W
E6F80725Q00SAP
DOOROPENING BUTTON
1GD566M,SD466M
E6F80725Q00HAP
DOOROPENING BUTTON
1
GD556W,GD546W,SD456W,SD446W
E7F80375K00AP COOK BUTTONSPRING1
E8F82565Q00AP DOOROPENING LEVEL1
E9
F803G8G00SBP
POP-UP DIAL(U) 2GD566M,SD466M
E9
F803G8G00HBP
POP-UP DIAL(U) 2
GD556W,GD546W,SD456W,SD446W
E10F66168G00BP FLATCABLE 1
E11F80188G00BP BACKSTOP2
E12F00078G00SBP NAME PLATE 1GD566MBPQ
E12 F00078G00SEP NAME PLATE 1GD566MEPG
E12
F00078G00SWP
NAME PLATE 1GD566MWPG
E12 F00078G10HBP NAME PLATE 1GD556WBPQ
E12 F00078G10HEP NAME PLATE 1GD556WEPG
E12 F00078G10HSP NAME PLATE 1GD556WSPG
E12 F00078G20HBP NAME PLATE 1GD546WBPQ
E12 F00078G30SBP NAME PLATE 1SD466M BPQ
E12 F00078G40HBP NAME PLATE 1SD456WBPQ
E12 F00078G40HEP NAME PLATE 1SD456WEPG
E12 F00078G50HBP NAME PLATE 1SD446WBPQ
Ref. No.
Part No.
Part Name& Description
Pcs/Set
Remarks
P1F00038G00BP
INSTRUCTION MANUAL
1
GD566MBPQ,GD556WBPQ,GD546WBPQ
P1F00038G00EP
INSTRUCTION MANUAL
1GD566MEPG,GD556WEPG
P1F00038G00WP
INSTRUCTION MANUAL
1GD566MWPG
P1F00038G10SP
INSTRUCTION MANUAL
1GD556WSPG
P1F00038G30BP
INSTRUCTION MANUAL
1SD466M BPQ,SD456WBPQ,SD446WBPQ
P1F00038G40SP
INSTRUCTION MANUAL
1SD456WEPG
P2
F01028G00SBP
PACKING CASE,PAPER
1GD566MBPQ
P2
F01028G00SEP
PACKING CASE,PAPER
1GD566MEPG/WPG
P2
F01028G10HBP
PACKING CASE,PAPER
1GD556WBPQ
P2
F01028G10HEP
PACKING CASE,PAPER
1GD556WEPG,GD556WSPG
P2
F01028G20HBP
PACKING CASE,PAPER
1GD546WBPQ
P2
F01028G30SBP
PACKING CASE,PAPER
1SD466M BPQ
P2
F01028G40HBP
PACKING CASE,PAPER
1SD456WBPQ
P2
F01028G40HEP
PACKING CASE,PAPER
1SD456WEPG
P2
F01028G50HBP
PACKING CASE,PAPER
1SD446WBPQ
P3F01045Q00AP UPPER FILLER 1
P4F01055Q00AP LOWERFILLER1
P5F01068100XN P.E.BAG 1
P6F01078100XN DOORSHEET1
P7F06015Q00AP COOKING TRAY 1
P8F01924T00AP SHEET1GD566M,SD466M
P9F01085R00BPRACK PACKING 1GD566M,GD556W,GD546W
P11F10855R00BPPIZZAPANHANDLE 1GD566M,GD556W,GD546W
P12F060V5R00BP OVENRACK 1
GD566MBPQ,GD556WBPQ,GD546WBPQ
P12 F060V5U00XN OVENRACK 1GD566MEPG/WPG,GD556WEPG/SPG
P13F46065R00BPPIZZAPAN1GD566M,GD556W,GD546W
P14F000B5Q50EP COOKING GUIDE 1EPG
Page
11
of
13

11DIGITALPROGRAMMER
CIRCUIT
SCHEMATIC DIAGRAM
12DIGITALPROGRAMMER
CIRCUIT
PARTSLIST
P15F01135R00APPIZZAPANFOAM 1GD566M,GD556W,GD546W
Ref. No. Part No. Part Name&
Description
Pcs/Set
Remarks
BZ310 L0DDEA000014 BUZZER12.0KHz
C80-C83,C221F1H1H103A220 CHIP CAPACITOR50.01µF/50V
C12,C222,C340,C440 F1H1E104A030CHIP CAPACITOR40.1µF/25V
C223,C224 F1H1A105A019CHIP CAPACITOR21µF/10V
C40-C44,C47,C48,C330,C331F1H1H102A219 CHIP CAPACITOR91000PF/50V
C343F1H1H1010005CHIP CAPACITOR1100PF/50V
C10
AECETK1V561B
ALCHEM
CAPACITOR1560µF/35V
C13
AECETS1C220B
ALCHEM
CAPACITOR122µF/16V
CN1K1KA03AA0115 CONNECTOR 1
CN3F03526P40AG INVERTER
HARNESS (U) 1
CN4K1KA04AA0086 CONNECTOR 14Pin
CN5K1MN19B00043 CONNECTOR 119 Pin
CN6K1MN19A00024 CONNECTOR 119 Pin
CN7
K1MN07BA0072
CONNECTOR 1
CN8,CN9F03547B40AP LEAD WIRE 3Pin
CN10F03546Z20AP LEAD WIRE(U) 1
CN11K1KA03AA0086 CONNECTOR 1
CX320EFOEC8004A4CERAMIC
RESONATOR18.0MHz
DISP110L5AAAFD00021 LCD1
DISP1HOLDERF66175E40XNLCDHOLDER 1
F67525E40XNDIFFUSIONSHEET1
D10-D13B0EAKT000025 DIODE 4
D40,D220-D223,D226,D227B0AACK000004 DIODE 7
D224,D228 B0AACK000004 DIODE 2(GD566M,GD556W,GD546W)
D25D4EAY511A036 VARSITOR 1
D26,D27D4EAY112A036 VARSITOR 2
D180-D189B3ACB0000065 CHIP-LED 10
Page
12
of
13

03/06
S-8G0,S-8G1
S-8G2,S-8G3
S-8G4,S-8G5
iPress0363
PrintedinChina
IC1MN101C54CGX L.S.I. 1BPQ
IC1MN101C54CGY L.S.I. 1EPG,SPG,WPG
Q226 UNR211100L CHIP DIGI-
TRANSISTOR 1
Q181,Q220,Q2252SD0601A0LCHIP TRANSISTOR 3
Q222 2SD0601A0LCHIP TRANSISTOR 1(GD566M,GD556W,GD546W)
Q223,Q224UNR221M00LCHIP TRANSISTOR 2
Q182 UNR221M00LCHIP TRANSISTOR 1(GD566M,GD556W,GD546W)
Q227 2SB709A0LCHIP TRANSISTOR 1
Q10,Q180B1BAAJ000003TRANSISTOR 2
RE80,RE81EVEJ1HF2224B
REVOLVING
ENCODER2
R181,R320 D0GB220JA072 CHIP RESISTOR 222 ,1/10W,5%
R182,R183 D0GB101JA069 CHIP RESISTOR 2100 ,1/10W,5%
R80,R81,R84,R85D0GB102JA071 CHIP RESISTOR 41K,1/10W,5%
R220,R222,R223,R231D0GB222JA072 CHIP RESISTOR 42.2K,1/10W,5%
R226D0GB222JA072 CHIP RESISTOR 12.2K,1/10W,5%
(GD566M,GD556W,GD546W)
R310D0GB332JA072 CHIP RESISTOR 13.3K,1/10W,5%
R440D0GB512JA072 CHIP RESISTOR 15.1K,1/10W,5%
R82,R83,R86,R87,R224,R230D0GB103JA072 CHIP RESISTOR 610K,1/10W,5%
R330D0GB333JA070 CHIP RESISTOR 133K,1/10W,5%
R232D0GB363JA072 CHIP RESISTOR 136K,1/10W,5%
R13,R221,R228,R233,R342,R343
D0GB104JA068 CHIP RESISTOR 6100K,1/10W,5%
R227D0GB104JA068 CHIP RESISTOR 1100K,1/10W,5%
(GD566M,GD556W,GD546W)
R225,R331,R441D0GB471JA069 CHIP RESISTOR 3470 ,1/10W,5%
R360D0GB472JA072 CHIP RESISTOR 14.7K,1/10W,5%
R10,R11,R211D0AE102JA155
CARBON RESISTOR
31K,1/4W,5%
R12,R180D0AE103JA155
CARBON RESISTOR
210K,1/4W,5%
R290D0AE104JA155
CARBON RESISTOR
1100K,1/4W,5%
RY1
AEBGJQC25F18
POWER RELAY 1
RY3
AEBGJQC25F18
POWER RELAY 1GD566M,GD556W,GD546W
RY2K6B1AZA00011 POWER RELAY 1
T10
G4C3AAH00008
LOWVOLTAGE
TRANSFORMER 1
ZD10B0BA5R600016 ZENER DIODE 1
Page
13
of
13
