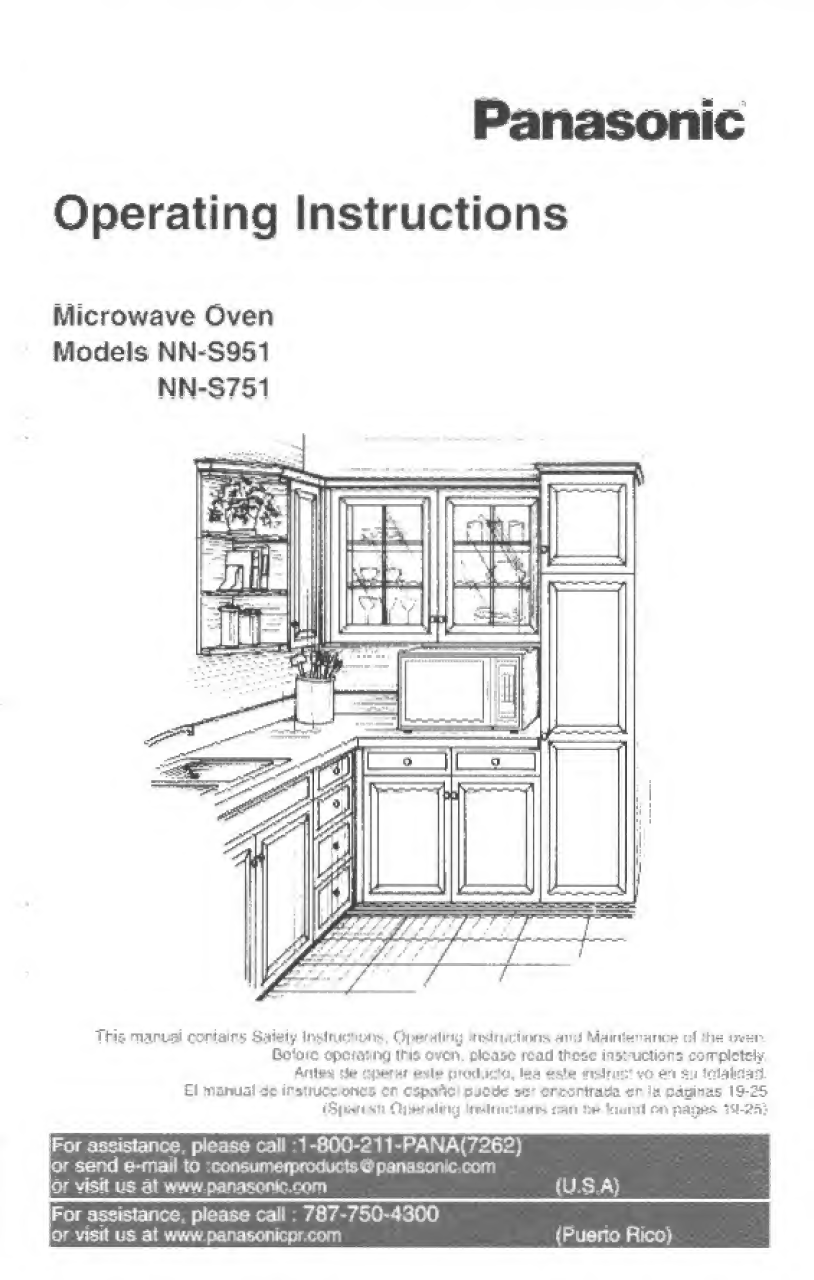

Panasonic NN-S751 User manual

Panasonic
operating Instructions
Microwave Oven
Models NN^S951
NN-S751
(d.S=A)
(Pueno Rico)
T<-!5 corfairij S^ieiy intis ^iisJ MrtiTilHnHnc:++rrvi^i-;.
Oo'aic (Ns own. spfOtisc read l^^c^ae last-iJcDkjri c-jirpletelt
Afi(flifc 0» (fta fisififf:' VO toiafedsd-
El Tnstnjal de irs^iuoc.oncs cr cs^^ dJCdc sc' orcGriratSa cr (a odt^^as (9-25
iSihHn tiM irrKlnii:i>iai>^ i^art kim^d on
iFtsr as^st^ce. please cair;1-800-211-PANA(7262)
lor send e-mail to :c)ori$*«ner|Xtxi(j<%^pena^ic com
visit tjS at wwf.pan3«or!tc.oon>
IFqi assfetance. please call. 787-750'4300
lor visfl us at www.p6rtafiQfiicpf.com

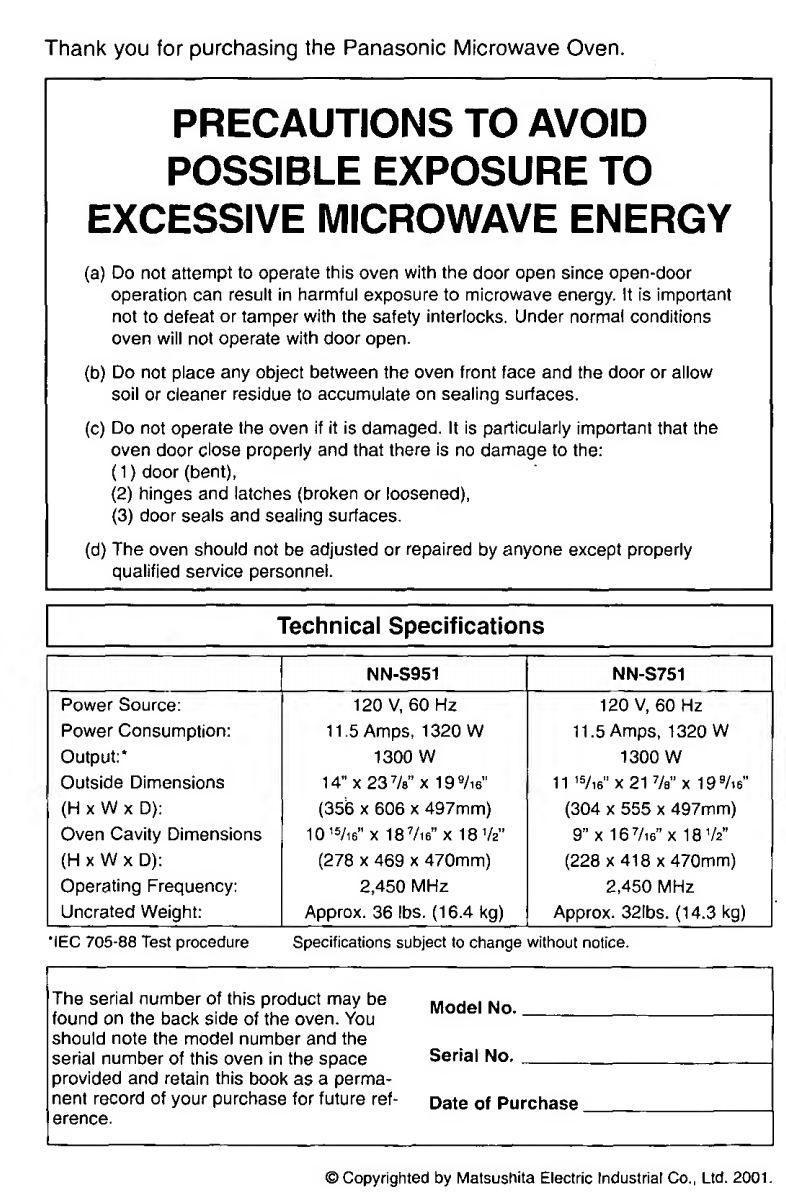

Thank you for purchasing the Panasonic Microwave Oven.
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door
operation can result in harmful exposure to microwave energy. It is important
not to defeat or tamper with the safety interlocks. Under normal conditions
oven will not operate with door open.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the
oven door close properly and that there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
Technical Specifications
NN-S951 NN-S751
Power Source:
Power Consumption:
Output:*
Outside Dimensions
(H X W X D):
Oven Cavity Dimensions
(H X W X D):
Operating Frequency:
Uncrated Weight:
120 V, 60 Hz
11.5 Amps, 1320 W
1300 W
14’’x23Wx 199 / 1 6 ”
(356 X 606 X 497mm)
10'5/i8”x leVis’x ISVa”
(278 x 469 X 470mm)
2,450 MHz
Approx. 36 lbs. (16.4 kg)
120 V, 60 Hz
11.5 Amps, 1320 W
1300 W
11 'Vi6”x 2 1 Wx 19 ® /i 6 ’
(304 X 555 X 497mm)
9” X 16 ^ / 1 6 ” X 18 V 2 ”
(228 X 418 X 470mm)
2,450 MHz
Approx. 32ibs. (14.3 kg)
*IEC 705-88 Test procedure Specifications subject to change without notice.
The serial number of this product may be
found on the back side of the oven. You
Model No.
should note the model number and the
serial number of this oven in the space
provided and retain this book as a perma¬
nent record of your purchase for future ref¬
Serial No.
Date of Purchase
erence.
©Copyrighted by Matsushita Electric Industrial Co., Ltd. 2001.

CONTENTS
Before Operating
Precautions.Inside Front Cover
Important Safety Instructions.2
Installation and Grounding Instructions.3
Safety Precautions.4
Cookware and Utensil Guide.:.5

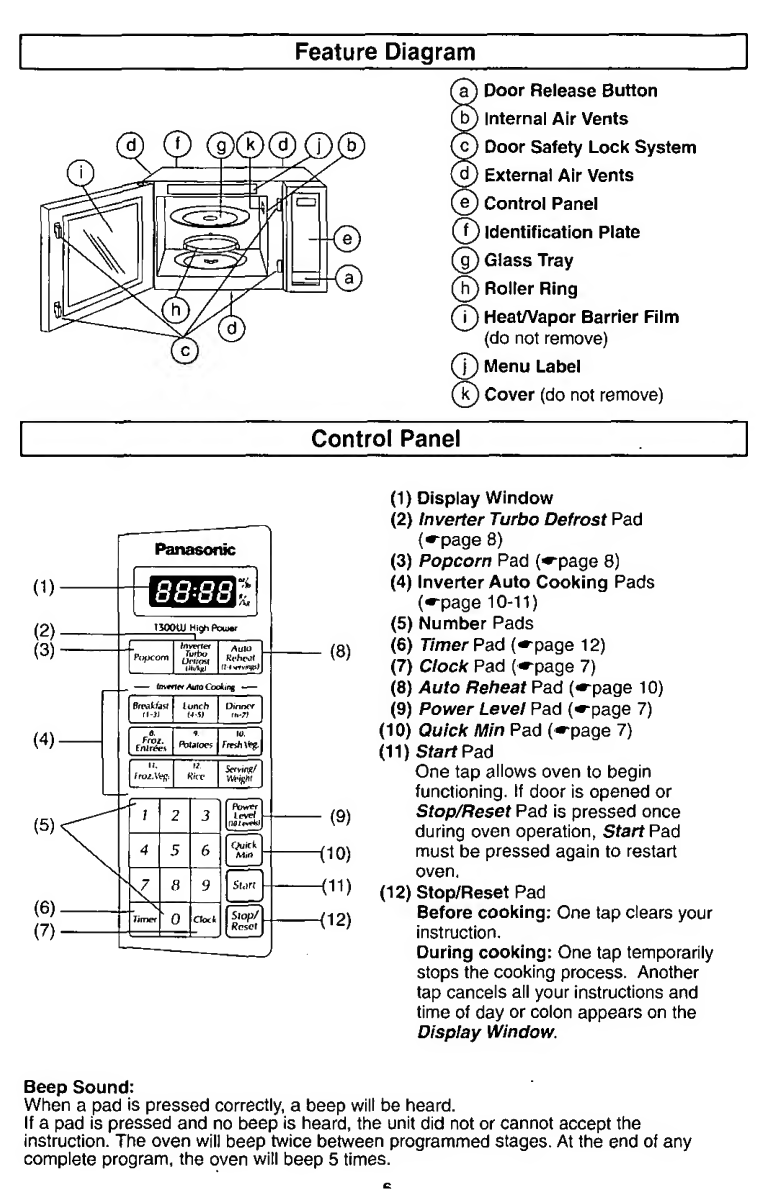

Feature Diagram.6
Controi Panel.6
Operation
Clock Setting.7
Quick Min Function.7
To Reheat using Power & Time Setting.7
Auto Reheat.10
To Defrost using Power & Time Setting.7
InverterTurbo Defrost.8 - 9
To Cook using Power & Time Setting...7

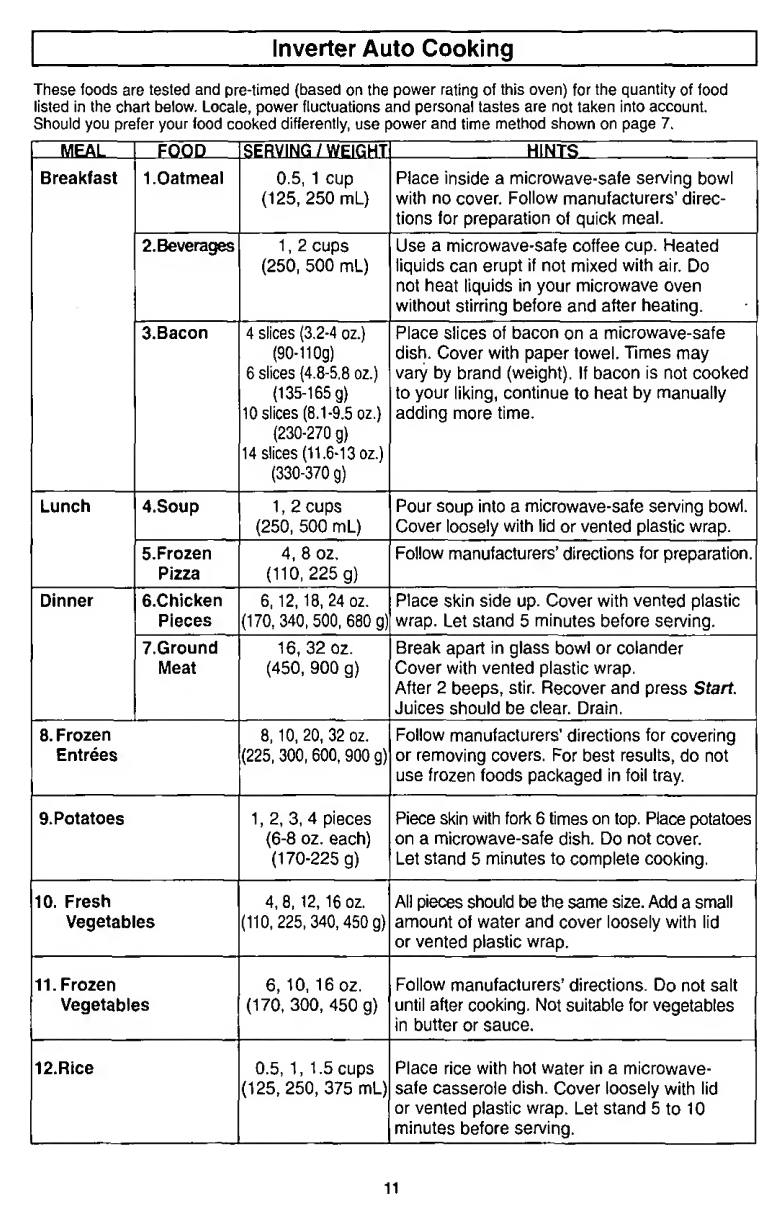

Inverter Auto Cooking. 1 0 - 1 1

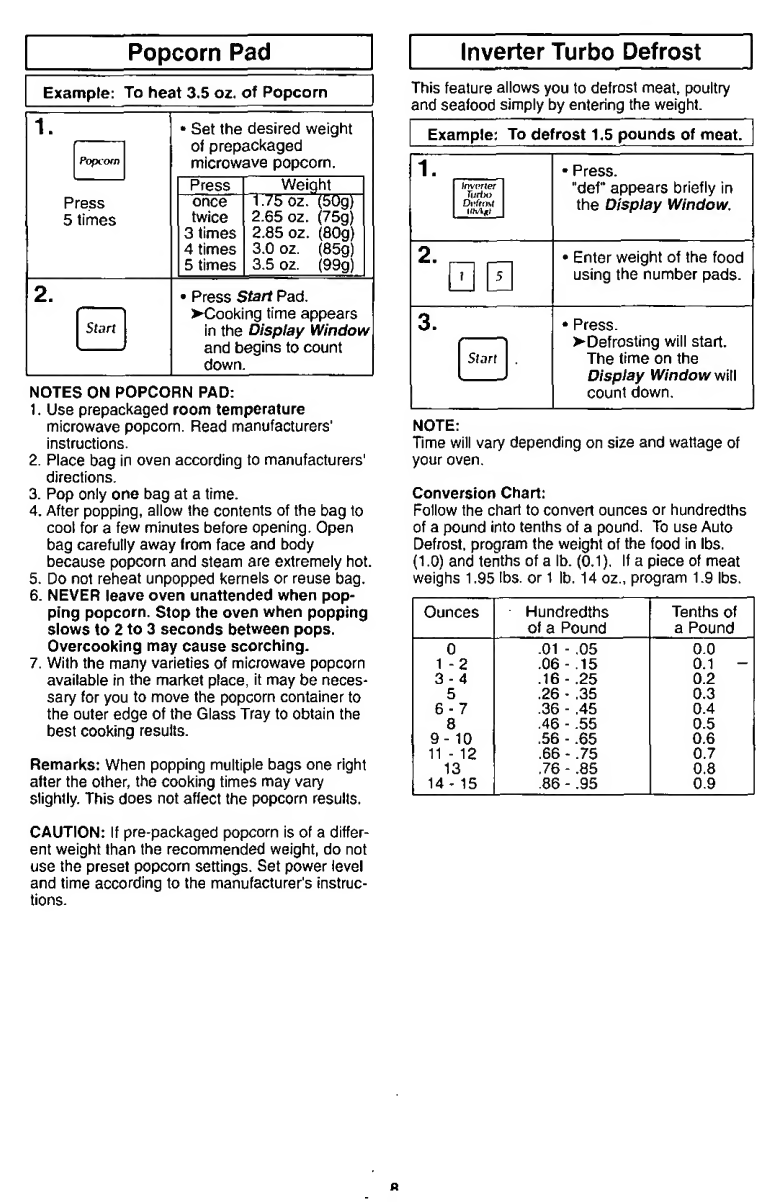

Popcorn Function.8
Timer Setting (Kitchen Timer / Stand time / Delay start).12

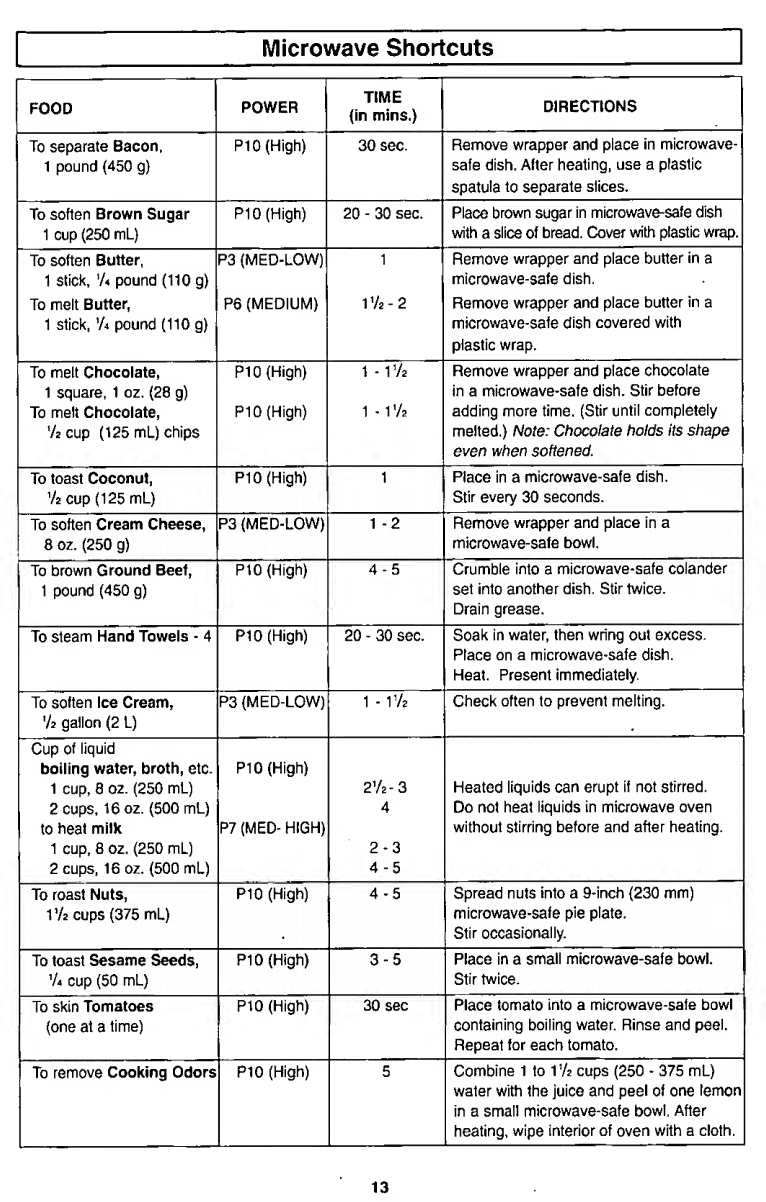

Microwave Shortcuts.13

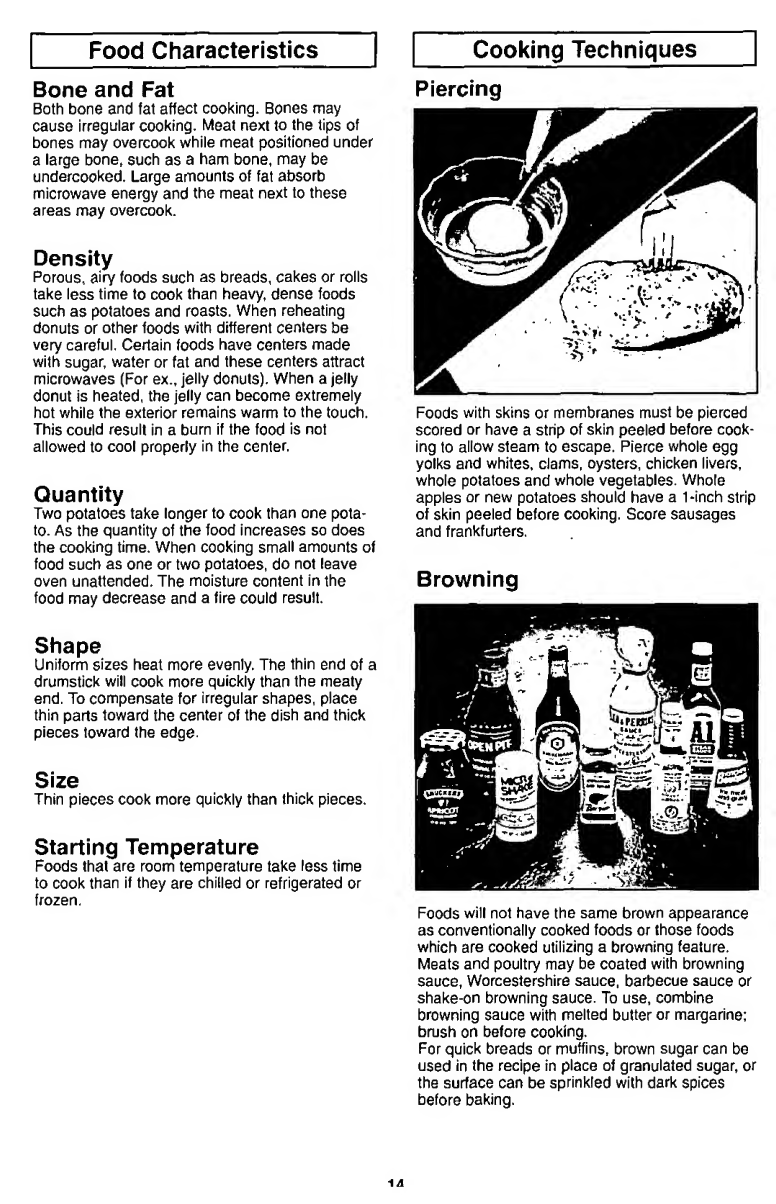

Food Characteristics.14

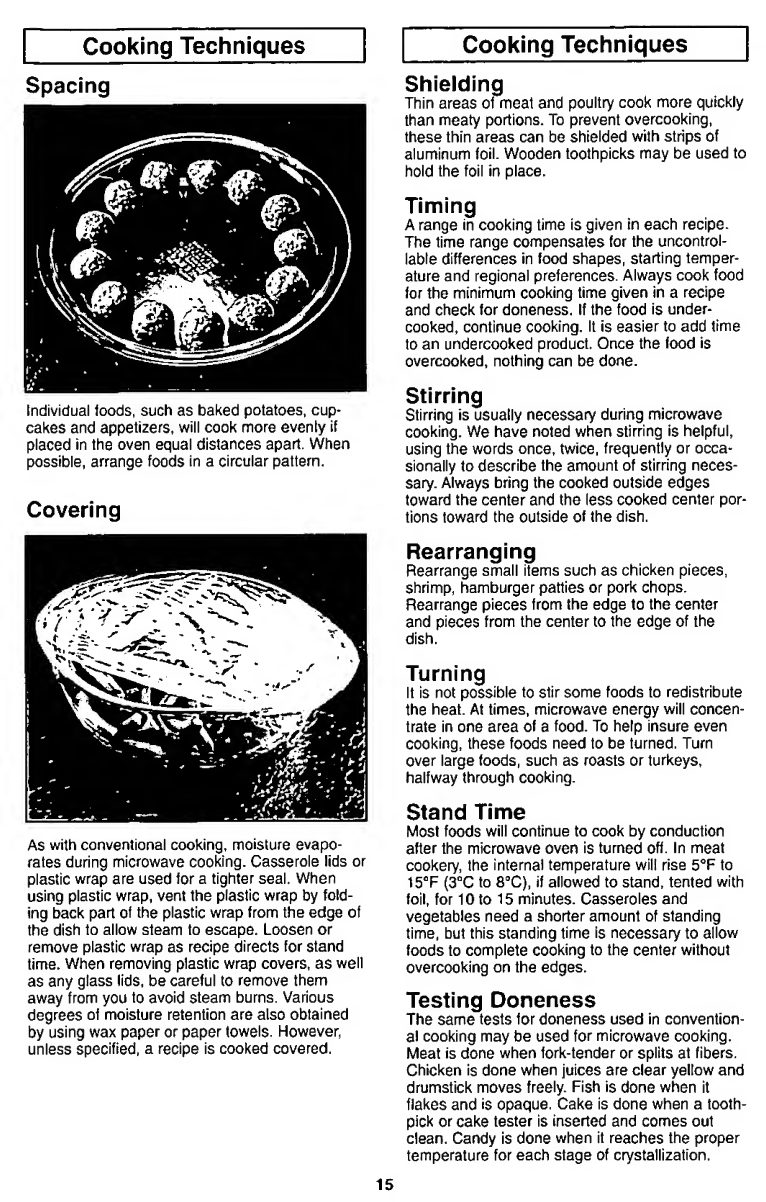

Cooking Techniques.14-15
Quick Guide to Operation..Back Cover
Maintenance
Technical Specifications.Inside Front Cover

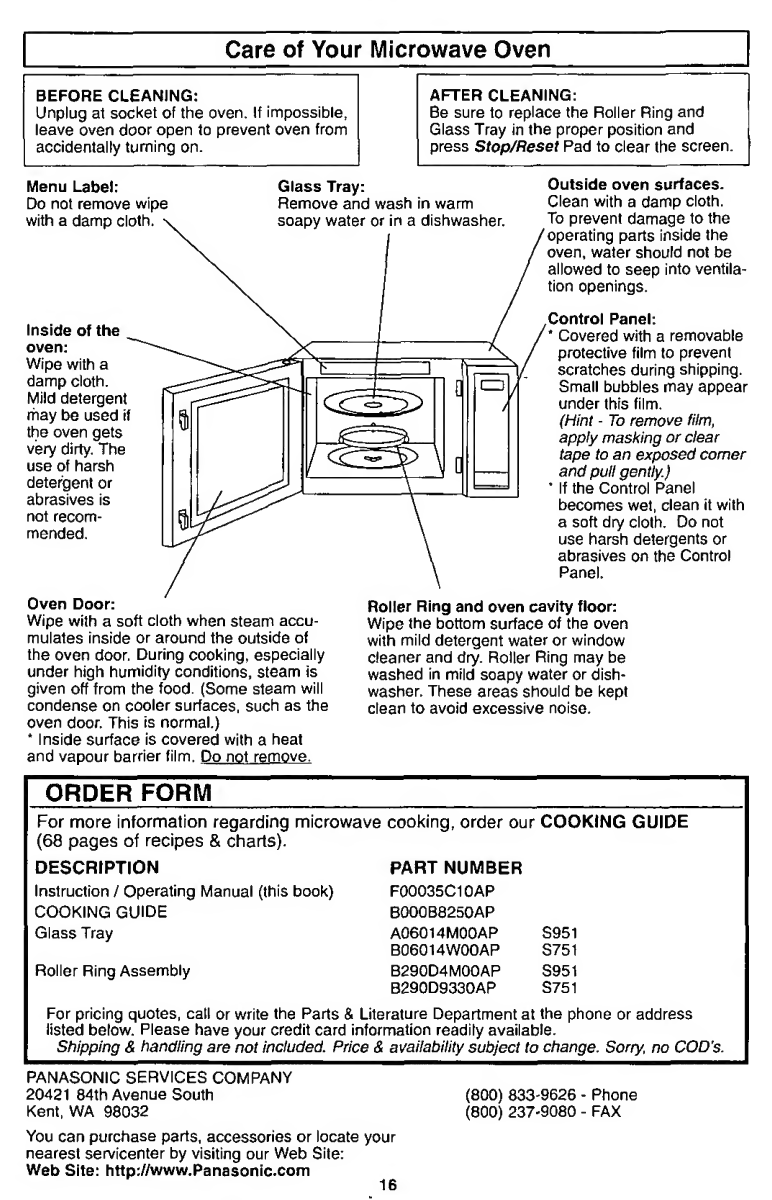

Care of Your Microwave Oven.:.16
To order Accessories, Books, etc.16
Before Requesting Service.17

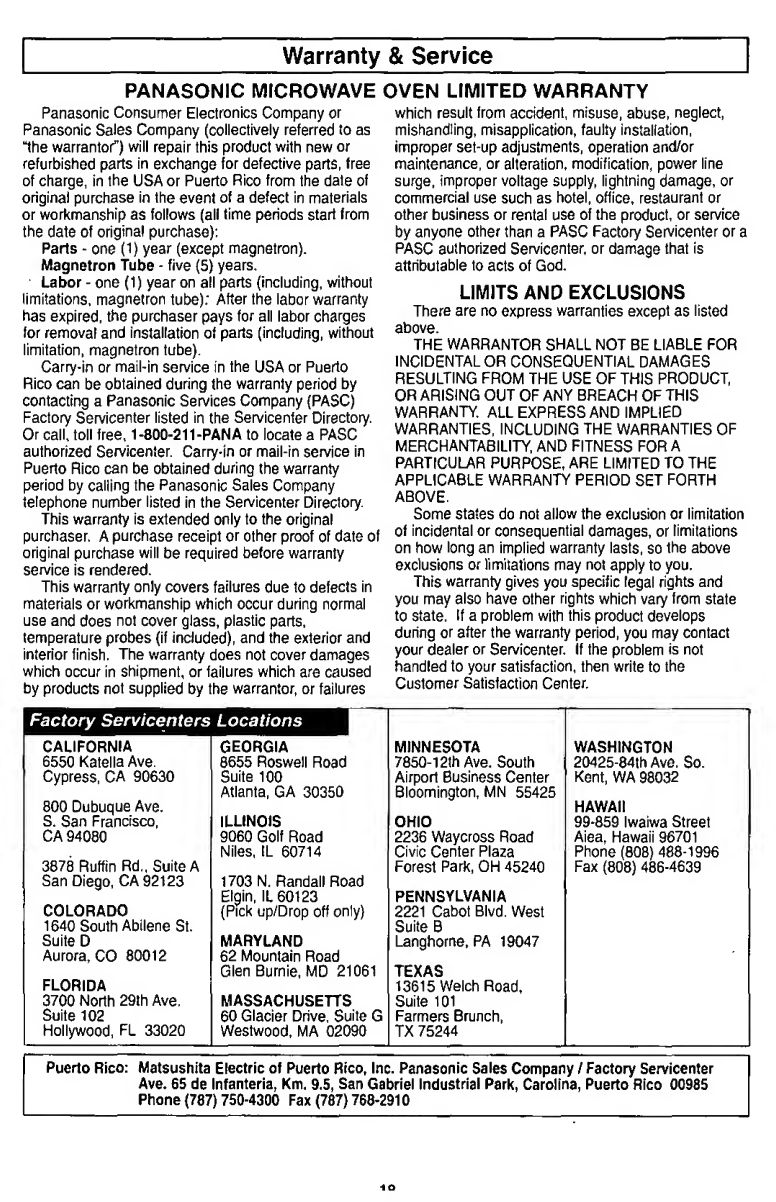

Warranty & Service.18
Manual de instrucciones (Spanish Operating Instructions)
Precauciones. 1 9
Instrucciones de Seguridad.19 - 20
Instrucciones para Conexion a Tierra.20
Instrucciones de Instalacion.21
Sugerencias Utiles.22
Panel de Control.23
Sugerencias.23
Gr^fico de coccidn automatica.24
Guia Rapida de Operacidn.25
1

IMPORTANT SAFETY INSTRUCTIONS
Your microwave oven is a cooking device and you should use as much care as you use with a
stove or any other cooking device. When using this electric appliance, basic safety precau¬
tions should be followed, including the following:
WARNING—To reduce the risk of burns, elec¬
tric shock, fire, injury to persons, or exposure
to excessive microwave energy:
1. Read all instructions before using the
appliance.
2 . Read and follow the specific “PRECAU¬
TIONS TO AVOID POSSIBLE EXPO¬
SURE TO EXCESSIVE MICROWAVE
ENERGY,” found on the inside front cover.
3. This appliance must be grounded. Connect
only to properly grounded outlet. See
“GROUNDING INSTRUCTIONS” found
on page 3.
4. Install or locate this appliance only in
accordance with the installation instruc¬
tions found on page 3.
5. Do not cover or block any openings on this
appliance.
6 . Do not store or use this appliance out¬
doors.
Do not use this product near water—^for
example, near a kitchen sink, in a wet
basement, or near a swimming pool, and
the like.
7. Use this appliance only for Its intended use as
described in this manual. DO NOT use corro¬
sive chemicals, vap 9 rs, or non-food products
in this appliance. This type of oven is specifi¬
cally designed to heat or cook. It is not
designed for industrial or laboratory use. The
use of corrosive chemicals in heating or clean¬
ing will damage the appliance and may result
in radiation leaks.
8. When cleaning surfaces of door and oven
that come together on closing the door,
use only mild, non-abrasive soaps or
detergents applied with a sponge or soft
cloth.
9. Do not allow children to use this appliance,
unless closely supervised by an adult.
10 . Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly, or if it has been damaged or
dropped.
11. Do not immerse cord or plug In water.
12 . Keep cord away from heated surfaces.
13. Do not let cord hang over edge of a table or
counter.
14. This appliance should be serviced only by
qualified service personnel. Contact the
nearest authorized servicenter for examina¬
tion, repair or adjustment.
15. Some products such as whole eggs, nar¬
row neck bottles and sealed containers—
for example, closed glass jars—may
explode and should not be heated in this oven.
16. T o reduce the risk of fire in the oven cavity:
(a) Do not overcook food. Carefully attend
appliance if paper, plastic, or other com¬
bustible materials are placed inside the
oven to facilitate cooking.
(b) Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
(c) If materials inside the oven shouid
ignite, keep oven door closed, turn
oven off, and disconnect the power
cord, or shut off power at the fuse or
circuit breaker panel.
(d) Do not use the cavity for storage purpos¬
es. Do not leave paper products, cooking
utensils, or food in the cavity when not in
use.
General Use
1. DO NOT tamper with or
make any adjustments or
repairs to door. Control
Panel housing, safety
interlock switches or any
other part of the oven. DO
NOT remove outer panel
from oven. Repairs
should only be done by a qualified service per¬
son,
2. DO NOT operate the oven
empty. The microwave
energy will reflect continu¬
ously throughout the oven
causing overheating, if
food or water is not pre¬
sent to absorb energy. This could damage the
oven and result in the risk of a fire.
3. DO NOT dry clothes, newspapers or other mate¬
rials in oven, or use newspapers or paper bags
for cooking. Fire could result.
4. DO NOT use recycled paper products unless the
paper product is labeled as safe for microwave
oven use. Recycled paper products may contain
impurities which may cause sparks, and result in
fires when used.
5. DO NOT hit or strike Control Panel. Damage to
controls may occur. Fire could result.
6. POT HOLDERS should always be used when
removing items from the oven. Heat is trans¬
ferred from the HOT food to the cooking contain¬
er and from the cooking container to the Glass
Tray. The Glass Tray can be very HOT after
removing the cooking container from the oven.
7. DO NOT store flammable materials next to, on top
of. or in the oven. These could be fire hazards.
SAVE THESE INSTRUCTIONS
For proper use of your oven read remaining safety cautions and operating instructions.

Installation and Groundinq Instructions
Exanfiine Your Oven
Unpack oven, remove all packing material and
examine the oven for any damage such as dents,
broken door latches or cracks in the door. Notify
dealer immediately if oven is damaged. DO NOT
install if oven is damaged.
Placement of Oven
1. Oven must be placed on a flat, stable surface.
For proper operation, the oven must have suffi¬
cient air flow. Allow 3-inches (7.6 cm) of space
on both sides of the oven and 1-inch (2.5 cm)
of space on top of oven.
a. DO NOT block air vents.
If they are blocked during operation, the
oven may be overheated and damaged.
When using any cloth over the oven, the air
intake and exhaust should not be blocked.
Also should allow space on back and both
sides of oven properly.
b. DO NOT place oven near a hot, damp sur¬
face such as a gas or electric range, or
dishwasher.
c. DO NOT operate oven when room humidity
is too high.
2. This oven was manufactured for household
use only.
Grounding Instructions
This appliance must be grounded. In the event
of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape
wire for the electric current. This appliance is
equipped with a cord having a grounding wire with
a grounding plug. The plug must be plugged Into
an outlet that is properly installed and grounded.
WARNING— I m p r o per use of the grounding
plug can result in a risk of electric shock.
Consult a qualified electrician or service person if
the grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded, (f it is necessary
to use an extension cord, use only a three wire
extension cord that has a three blade grounding
plug, and a three slot receptacle that will accept
the plug on the appliance. The marked rating of
the extension cord should be equal to or greater
than the electrical rating of the appliance.
Power Supply
1. A short power-supply cord is provided to
reduce the risks resulting from becoming entan¬
gled in or tripping over a longer cord.
2. Longer cord sets or extension cords are avail¬
able and may be used if care is exercised in
their use.
3. If a long cord or extension cord is used, (1) the
marked electrical rating of the cord set or
extension cord should be at least as great as
the electrical rating of the appliance, (2) the
extension cord must be a grounding-type 3-wire
cord, and (3) the longer cord should be
arranged so that it wilt not drape over the
counter top or tabletop where it can be pulled
on by children or tripped over accidentally.
Wiring Requirements
1. The oven must be on a SEPARATE CIRCUIT.
No other appliance should share the circuit with
the microwave oven. If it does, the branch cir¬
cuit fuse may blow, the circuit breaker may trip,
or the food may cook slower than the times
recommended In this manual.
2. The VOLTAGE used must be the same as
specified on this microwave oven (120 V, 60
Hz). Using a higher voltage is dangerous and
may result in a fire or other incident causing
oven damage. Using a lower voltage will cause
slow cooking. Panasonic is NOT responsible
for damage resulting from the use of the oven
with other than the specified voltage.
3. The oven must be plugged into at least a 20
AMP, 120 VOLT, 60 Hz GROUNDED OUTLET.
Where a standard two-prong outlet is encoun¬
tered, it is the personal responsibility and oblig¬
ation of the consumer to have _ H
it replaced with a properly
grounded three-prong out- ^
let.
TV / Radio Interference
1. Operation of the microwave oven may cause
interference to your radio, TV or similar equip¬
ment.
2. When there is interference, it may be reduced
or eliminated by taking the following measures:
a. Clean door and sealing surfaces of the oven.
(See Care of Your Microwave Oven)
b. Place the radio, TV, etc. away from the
microwave oven as far as possible.
c. Use a properly installed antenna to obtain
stronger signal reception.
Glass Tray
1. DO NOT operate the oven without Roller Ring
and Glass Tray in place.
2. DO NOT operate the oven without the Glass
Tray fully engaged on the drive hub. Improper
cooking or damage to the oven could result.
Verify that the Glass Tray is properly engaged
and rotating by observing its rotation when you
press Start.
3. Only use the Glass Tray specifically designed
for this oven. Do not substitute any other glass
tray.
4. If the Glass Tray is hot, allow to cool before
cleaning or placing in water.
5. DO NOT cook directly on the Glass Tray.
Always place food in a microwave-safe dish, or
on a rack set in a microwave-safe dish.
6. If food or utensil on Glass Tray touches oven
walls, causing the tray to stop moving, the tray
will automatically rotate In the opposite direc¬
tion. This is normal.
7. Glass Tray can turn in either direction.
Roller Ring
1. Roller Ring and oven floor should be cleaned
frequently to prevent excessive noise.
2. Roller Ring must always be used for cooking
along with Glass Tray.
3. Always replace Roller Ring and Glass Tray in
their proper positions.

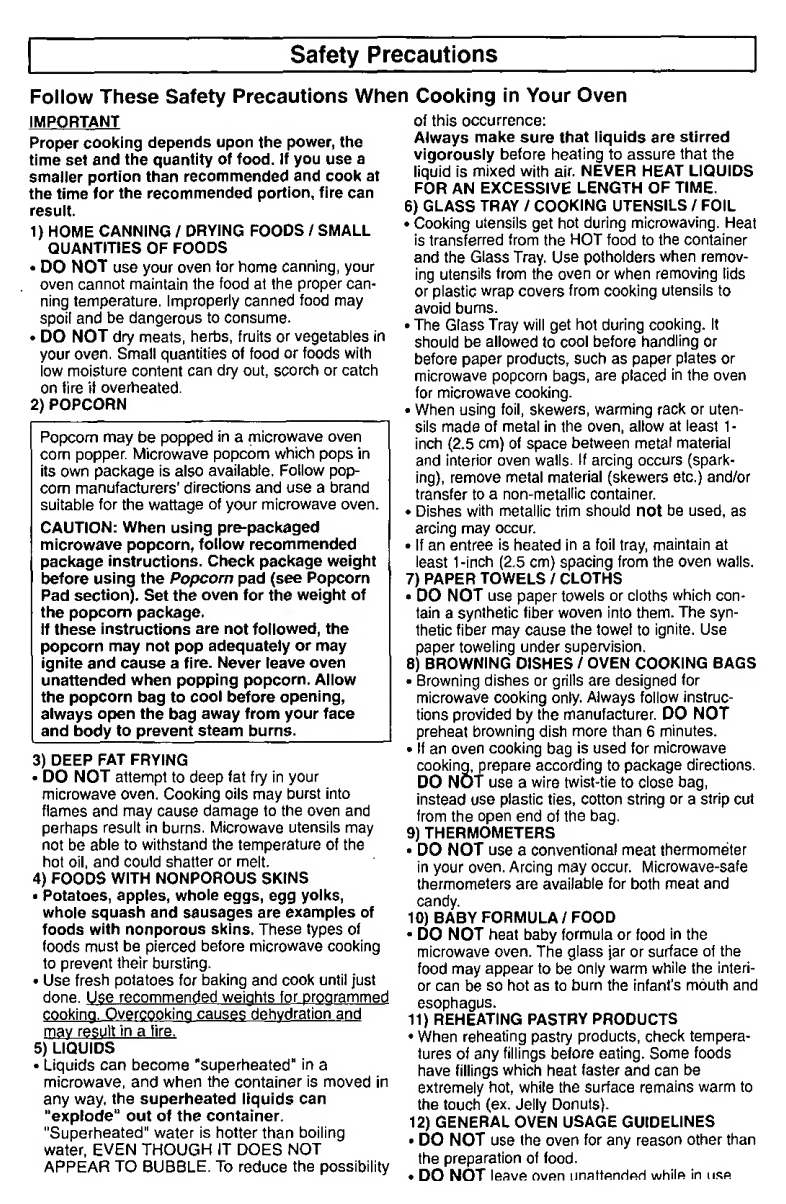

Safety Precautions
Follow These Safety Precautions When Cooking in Your Oven
IMPORTANT
Proper cooking depends upon the power, the
time set and the quantity of food. If you use a
smaller portion than recommended and cook at
the time for the recommended portion, fire can
resuit.
1) HOME CANNiNG / DRYiNG FOODS / SMALL
QUANTITIES OF FOODS
• DO NOT use your oven tor home canning, your
oven cannot maintain the food at the proper can¬
ning temperature. Improperly canned food may
spoil and be dangerous to consume.
♦ DO NOT dry meats, herbs, fruits or vegetables in
your oven. Small quantities of food or foods with
low moisture content can dry out, scorch or catch
on tire it overheated.
2) POPCORN
Popcorn may be popped in a microwave oven
com popper. Microwave popcorn which pops in
its own package is also available. Follow pop¬
corn manufacturers’ directions and use a brand
suitable for the wattage of your microwave oven.
CAUTION: When using pre-packaged
microwave popcorn, follow recommended
package instructions. Check package weight
before using the Popcorn pad (see Popcorn
Pad section). Set the oven for the weight of
the popcorn package,
if these instructions are not followed, the
popcorn may not pop adequately or may
ignite and cause a fire. Never leave oven
unattended when popping popcorn. Allow
the popcorn bag to cool before opening,
always open the bag away from your face
and body to prevent steam burns. _
3) DEEP FAT FRYING
• DO NOT attempt to deep fat fry in your
microwave oven. Cooking oils may burst into
flames and may cause damage to the oven and
perhaps result in burns. Microwave utensils may
not be able to withstand the temperature of the
hot oil, and could shatter or melt.
4) FOODS WITH NONPOROUS SKINS
• Potatoes, apples, whole eggs, egg yolks,
whole squash and sausages are examples of
foods with nonporous skins. These types of
foods must be pierced before microwave cooking
to prevent their bursting.
• Use fresh potatoes for baking and cook until just
done. Use recommended weights for programmed
cooking. Overcooking causes dehydration and
may result in a fire.
5) LIQUIDS
• Liquids can become "superheated” in a
microwave, and when the container is moved in
any way, the superheated liquids can
"explode” out of the container.
"Superheated" water is hotter than boiling
water, EVEN THOUGH IT DOES NOT
APPEAR TO BUBBLE. To reduce the possibility
of this occurrence:
Always make sure that liquids are stirred
vigorously before heating to assure that the
liquid is mixed with air. NEVER HEAT LIQUIDS
FOR AN EXCESSIVE LENGTH OF TIME.
6) GLASS TRAY / COOKING UTENSILS / FOIL
• Cooking utensils get hot during microwaving. Heat
is transferred from the HOT food to the container
and the Glass Tray. Use potholders when remov¬
ing utensils from the oven or when removing lids
or plastic wrap covers from cooking utensils to
avoid bums.
• The Glass Tray will get hot during cooking. It
should be allowed to cool before handling or
before paper products, such as paper plates or
microwave popcorn bags, are placed in the oven
for microwave cooking.
• When using foil, skewers, warming rack or uten¬
sils made of metal in the oven, allow at least 1-
inch (2.5 cm) of space between metal material
and interior oven walls, if arcing occurs (spark¬
ing), remove metal material (skewers etc.) and/or
transfer to a non-metaliic container.
• Dishes with metallic trim should not be used, as
arcing may occur.
• If an entree is heated in a foil tray, maintain at
least 1-inch (2.5 cm) spacing from the oven walls.
7) PAPER TOWELS / CLOTHS
• DO NOT use paper towels or cloths which con¬
tain a synthetic fiber woven into them. The syn¬
thetic fiber may cause the towel to ignite. Use
paper toweling under supervision.
8) BROWNING DISHES / OVEN COOKING BAGS
• Browning dishes or grills are designed tor
microwave cooking only. Always follow instruc¬
tions provided by the manufacturer. DO NOT
preheat browning dish more than 6 minutes.
• If an oven cooking bag is used for microwave
cooking, prepare according to package directions.
DO NOT use a wire twist-tie to close bag,
instead use plastic ties, cotton string or a strip cut
from the open end of the bag.
9) THERMOMETERS
• DO NOT use a conventional meat thermometer
in your oven. Arcing may occur. Microwave-safe
thermometers are available for both meat and
candy.
10) BABY FORMULA / FOOD
• DO NOT heat baby formula or food in the
microwave oven. The glass jar or surface of the
food may appear to be only warm while the interi¬
or can be so hot as to burn the infant’s mouth and
esophagus.
11) REHEATING PASTRY PRODUCTS
• When reheating pastry products, check tempera¬
tures of any fillings before eating. Some foods
have fillings which heat faster and can be
extremely hot, while the surface remains warm to
the touch (ex. Jelly Donuts).
12) GENERAL OVEN USAGE GUIDELINES
• DO NOT use the oven for any reason other than
the preparation of food.
• DO NOT leave oven iinattendeH while in use

Cookware and Utensil Guide
ITEM
COMMENTS
Yes for
Shielding
only
Small strips of foil can be molded around thin parts of
meat or poultry to prevent overcooking. Arcing can occur
if foil is too close to oven wall or if too much foil is used.
Browning Dish
Yes
Browning dishes are designed for microwave cooking
only. Check browning dish information for instructions
and heating chart. Do not preheat for more than 6 minutes.
Brown paper bags
No
May cause a fire in the oven.
Dinnenware
Labeled
“Microwave-Safe"
Other Dinnerware
Yes
?
Check manufacturers' use and care directions for use in
microwave heatincL Some dinnerware may state on the
back of the dish, ‘'Oven-Microwave Safe".
Use CONTAINER TEST below.
Disposable polyester
Paperboard Dishes
Yes
Some frozen foods are packaged in these dishes. Can be
purchased in grocery stores.
Fast Food Carton
with Metal Handle
No
Metal handle may cause arcing.
Frozen Dinner Tray
Metal
Microwave-safe
Yes
Yes
Frozen dinners may be heated in foil tray, if tray is less than
Y4-in.(2 cm) high. Place foil tray in center of oven. Leave at
least 1-In. (2.5 cm) space between foil tray and oven walls.
Heat only 1 foil tray in the oven at a time. For containers
more than Y4-inch (2 cm) deep,remove food and place in a
similar size microwave-safe container.
Glass Jars
Yes,
use caution
Remove lid. Heat food untiljust warm, not HOT. Most glass
jars are not heat resistant. Do not use for cooking.
Yes
Ideal for microwave cooking and browning.
(See CONTAINER TEST below)
Metal Bakeware
No
Not recommended for use in microwave ovens.
Metal Twist-Ties
No
May cause arcing which could cause a fire in the oven.
Oven Cooking Bag Yes
Paper Plates & Cups
..
Paper Towels & Napkins Yes
Use to warm rolls and sandwiches by microwave.
Parchment Paper
Yes
Use as a cover to prevent spattering. Safe for use in
microwave, microwave/convection and conventional ovens.
Plastic
Microwave-Safe
Cookware
Reheat & Storage
Melamine
Yes
Yes,
use caution
No
Should be labeled, "Suitable for Microwave Heating." Check
manufacuters’ directions for recommended uses.
Some microwave-safe plastic dishes are not suitable for
cooking foods with high fat or sugar content. The heat from
hot food may cause the plastic to warp.
This material absorbs microwave energy. Dishes get HOT!
Plastic Foam Cups
Yes,
use caution
Plastic foam will melt if foods reach a high temperature. Use
to bring foods to a low serving temperature.
Plastic Wrap
Yes
Use to cover food during cooking to retain moisture and
prevent spattering. Should be labeled “Suitable for
Microwave Heating". Check package directions.
Straw, Wicker, Wood Yes
Use only for short term reheating and to bring
food to a low serving temperature.
Thermometers
Microwave-safe, only
Conventional
Yes
No
Use only microwave-safe meat and candy thermometers.
Not suitable for use in microwave oven, will cause sparks
and get hot.
Wax paper
Yes
Use as a cover to prevent spattering and to retain moisture.
CONTAINER TEST
TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a 1 ♦ cup glass measure with water
and place it in the microwave oven along with the container to be tested; heat one (1) minute at P10
(HIGH). If the container is microwave oven-safe (transparent to microwave energy), the container should
remain comfortably cool and the water should be hot. If the container is hot, it has absorbed some
microwave energy and should NOT be used. This test cannot be used for plastic containers.
5

Feature Diagram
Door Release Button
@ Internal Air Vents
Door Safety Lock System
(2) E xternal Air Vents
(J) Control Panel
(T) Identification Plate
Glass Tray
(K) Roller Ring
(J^ Heat/Vapor Barrier Film
(do not remove)
(J) Menu Label
(k) Cover (do not remove)
Control Panel
(1) Display Window
(2) Inverter Turbo Defrost Pad
(•‘page 8)
(3) Popcorn Pad (•‘page 8)
(4) Inverter Auto Cooking Pads
(•‘page 10-11)
(5) Number Pads
(6) T/mer Pad (•^page 12)
(7) Clock Pad (•‘page 7)
(8) Auto Reheat Pad (•‘page 10)
(9) Power Level Pad (•‘page 7)
(10) Quick Min Pad (•‘page 7)
(11) Sfa/t Pad
One tap allows oven to begin
functioning. If door is opened or
Stop/Reset Pad Is pressed once
during oven operation, Start Pad
must be pressed again to restart
oven.
(12) Stop/Reset Pad
Before cooking: One tap clears your
Instruction,
During cooking: One tap temporarily
stops the cooking process. Another
tap cancels all your instructions and
time of day or colon appears on the
Display Window.
Beep Sound:
When a pad is pressed correctly, a beep will be heard.
If a pad is pressed and no beep is heard, the unit did not or cannot accept the
instruction. The oven will beep twice between programmed stages. At the end of any
complete program, the oven will beep 5 times.

Clock Setting
The oven will operate without setting the clock.
Example: To set 11:25 a.m. or p.m.
1. • Press once.
► C olon flashes.
2.
□□ 0 0
• Enter time of day using the
number pads.
► Time appears on the
Display Window,
colon continues flashing.
3.
• Press.
► Colon stops flashing;
time of day is entered.
NOTES:
1.To reset the clock, repeat steps 1- 3.
2 The clock will retain the time of day as long
as the oven is plugged in and electricity is
supplied.
S.CIock is a 12 hour display,
4.0ven will not operate while colon is flashing.
Quick Min Function
This feature allows you to set and/or add cook¬
ing times easily in multiples of one minute.
To Set Cooking Time:
1.
Quick
Min
• Set cooking time
(up to 10) Power Level
is P10.
2.
Start
• Press Sfart Pad.
► C ooking begins and
Display Window
counts down.
At the end of cooking, 5
beeps sound and colon
or time of day appears.
NOTE:
1 .You can use other power levels, select desired
power level before setting cooking time.
2. A fter setting the time by Quick Min Pad, you
cannot use Number Pads, and vice versa.
3. P r ess Quick Min Pad to add more time during
cooking. To verify the additional cooking time,
check the Display Window.
Power & Time Setting
How do t program Power and Time?
Example: To cook at P 6 (MEDIUM)
Power for 1 minute 30 seconds
1.
Pre5
Power
Level
nOLeveta
IS 5 ti mes.
• Select Power Level.
(according to the chart
below)
000
• Set Cooking Time using
number pads.
3.
• Press.
► Cooking will start. The
time on the Display
Window will count
down.
Press
Power Level
once
PIO(HIGH)
twice P9
3 times
P8
4 limes
P 7 (MEDIUM-HIGH)
5 times
P 6 (MEDIUM)
6 times P5
7 times
P4
8 times
P 3 (MEDIUM-LOW)/DEFROST
9 times P2
10 times
P 1 (LOW)
NOTES:
1 .For more than one stage cooking, repeat steps
1 and 2 tor each stage of cooking before
pressing Start Pad. Maximum number of
stages for cooking is 5 stages.
2. W hen selecting P10 (HIGH) power for the first
stage, you may begin at step 2.
3. T WO beeps will sound between each stage of
programming. Five beeps will sound at the end
of the eniire sequence.
4. W hen selecting P10 (HIGH) power, the
maximum programmable time is 30 minutes.
For other power levels, the maximum time is
99 minutes and 99 seconds.
5. F or reheating, use P10 (HIGH) for liquids,
P7 (MEDIUM-HIGH) for most foods and
P6 (MEDIUM) for dense foods.
e.For defrosting, use P3 (MEDIUM-LOW).
7

Inverter Turbo Defrost
Popcorn Pad
Example: To heat 3,5 oz, of Popcorn
1 .
Popcorn
• Set the desired weight
of prepackaged
microwave popcorn.
Press
Weight
Press
5 times
once
twice
3 times
4 times
5 times
"1.75 oz (50g)
2.65 oz. (75g)
2.85 oz. (80g)
3,0 oz. (85g)
3,5 oz. (99g)
2 .
j Start
• Press Start Pad,
► Cooking time appears
in the Dispiay Window
and begins to count
down.
NOTES ON POPCORN PAD:
1. Use prepackaged room temperature
microwave popcorn. Read manufacturers'
instructions.
2. Place bag in oven according to manufacturers'
directions.
3. Pop only one bag at a time.
4. After popping, allow the contents of the bag to
cool for a few minutes before opening. Open
bag carefully away from face and body
because popcorn and steam are extremely hot.
5. Do not reheat unpopped kernels or reuse bag.
6. NEVER leave oven unattended when pop¬
ping popcorn. Stop the oven when popping
slows to 2 to 3 seconds between pops.
Overcooking may cause scorching.
7. With the many varieties of microwave popcorn
available in the market place, it may be neces¬
sary for you to move the popcorn container to
the outer edge of the Glass Tray to obtain the
best cooking results.
Remarks: When popping multiple bags one right
after the other, the cooking times may vary
slightly. This does not affect the popcorn results.
This feature allows you to defrost meat, poultry
and seafood simply by entering the weight.
Example: To defrost 1,5 pounds of meat.
1.
invt?fler
Turtx)
• Press.
"def appears briefly in
the Dispiay Window.
• Enter weight of the food
using the number pads.
3.
Start
* Press.
► D efrosting will start.
The time on the
Dispiay Window will
count down.
NOTE:
Time will vary depending on size and wattage of
your oven.
Conversion Chart:
Follow the chart to convert ounces or hundredths
of a pound into tenths of a pound. To use Auto
Defrost, program the weight of the food in lbs.
(1.0) and tenths of a lb. (0,1), If a piece of meat
weighs 1.95 lbs. or 1 lb. 14 oz., program 1.9 lbs.
Ounces Hundredths
of a Pound
Tenths of
a Pound
0 .01 - .05 0.0
1 -2 .06 - .15
0.1 -
3 - 4
.16 - .25
0.2
5 .26 • .35 0,3
6 - 7 .36 - .45
0.4
8 .46 - .55 0.5
9- 10 .56 - .65
0.6
11 - 12
.66 - .75
0.7
13 .76 - .85 0.8
14-15 I .86 - ,95 0.9
CAUTION: If pre-packaged popcorn is of a differ¬
ent weight than the recommended weight, do not
use the preset popcorn settings. Set power level
and time according to the manufacturer's instruc¬
tions.
p

Defrosting Tips & Techniques
Before Freezing:
1. Freeze meats, poultry and fish in packages with only 1 or 2 layers of food. Place wax paper between
layers.
2. Package in heavy’duty plastic wraps, bags (labeled Tor Freezer”) or freezer paper.
3. Remove as much air as possible, i,e. create a vacuum.
4. Seal securely, date and label.
To Defrost:
1. Remove wrapper. This helps moisture to evaporate. Juices from food can get hot and cook the food.
2. Set food on microwave safe roasting rack in an appropriately sized dish,
3. Place roasts fat-side down. Place whole poultry breast-side down.
4. Drain liquids during defrosting.
5. Turn over (invert) items during defrosting.
6. Shield edges and ends if needed. (See Cooking Techniques).
7. Select power and minimum time so that items will be under-defrosted.
After Defrosting:
1. Large items may be icy in the center. Defrosting will complete during STANDING TIME.
2. Let stand, covered with plastic wrap, in the refrigerator for time shown in the chart below.
3. See chart below for standing time and rinsing directions,
4. Items which have been layered should be rinsed separately or have a longer stand time.
FOOD
DEFROST
TIME at P3
(minTIb.)
DURING DEFROSTING
AFTER DEFROSTING
Stand Time Rinse
Fish and Seafood
[up to 3 lbs. (1.4 kg)]
Crabmeat
6
1
Break apart/Rearrange
5 min.
YES
Fish Steaks
4 to 6
Turn over
Fish Fillets
4 to 6
Turn over/Rearrange/Shield ends
Sea Scallops
4 to 6
Break apart/Remove defrosted pieces
Whole fish
4 to 6
Turn over
Meat
Ground Meat
4 to 5
Turn over/Remove defrosted portion/
Shield edges 10 min.
NO
Roasts
[2'M lbs. (1.1-1.8 kg)!
4 to 8
Turn over/Shield ends and
defrosted surface
30 min. in refrig.
Chops/Steak 6 to 8
Turn over/Rearrange/Shield ends and
defrosted surface
5 min.
Ribs/T-bone
6 to 8
Turn over/Rearrange/Shield ends and
defrosted surface
Stew Meat
Break apart/Rearrange/
Remove defrosted pieces
Liver (thin sliced)
4 to 6
Drain liquid/Turn over/
Separate pieces
Bacon (sliced) 4 Turn over
Poultry
Chicken, Whole
(up to 3 lbs. (1.4 kg)]!
4 to 6
Turn over/Shield
Cutlets 4 to 6 Break apart/Turn over/
Remove defrosted Pieces
Pieces
410 6
Break apart/Turn over/Shield
10 min.
Cornish Hens 6 to 8 Turn over/Shield
Turkey Breast
(5-6 lbs. (2.3-2.7 kg)l
6
Turn over/Shield
20 min. in refrig.

Auto Reheat
This feature allows you to reheat 1 to 4 serv¬
ings of precooked room temperature and refrig¬
erator temperature foods without setting power
and time.
Example: To reheat 2 cups of soup
1.
—
• Press until the
desired number of
servings appears in
the Display Window.
Ki’htwr
0
Press twice.
2.
Start
* Press.
>Cooking time
^pears in the
Display Window
and begins to
count down.
Press Auto Reheat
pad to indicate
number or servings
Average
Serving
Size
Time
once
twice
three times
four times
4-6 OZ.
8 oz.
12 oz.
16 oz.
will vary
depending
on size and
wattage of oven
NOTES: For best results, follow these recom¬
mendations:
1 .All foods must be previously cooked,
2. F ood s should always be covered loosely with
plastic wrap, wax paper or casserole lid.
3. A I I foods should have a covered stand time of 3
to 5 minutes.
4. DO NOT reheat bread and pastry products
using Auto Reheat Use manual power and
time instead.
5. DO NOT reheat beverages.
e.Times are based on an approximate serving
size of 4 oz.
7.A plate of food is normally 3-4 servings.
Inverter Auto Cooking
Example: To cook a 10 oz. Frozen Entree.
1.
«.
Froz.
Entries
• Press
2.
p
Serving/
ress twi ce.
• Press.
>Verify Serving/Weight
in the Display
Window.
3.
♦ Press.
^Cooking time
^pears in the
Display Window
and begins
to count down.
Child Safety Lock
This feature prevents the electronic operation of
the oven until cancelled. It does not lock the door
1.
S/arr
• Press
>”Child’' appears
in the Display
Window.
Press three times.
2.
Stop/
Reset
• Press.
► ’ ’Child” disappears-
and colon or time of
day appears. Press three times.
NOTES:
1. ’ ’Child” continutes to be displayed until Child
Lock is cancelled.
2. K e ypads may be pressed but the microwave
will not start.
10

Inverter Auto Cooking
These foods are tested and pre-timed (based on the power rating of this oven) for the quantity of food
listed in the chart below. Locale, power fluctuations and personal tastes are not taken into account.
Should you prefer your food cooked differently, use power and time method shown on page 7,
FOOD
Breakfast 1.Oatmeal
0.5, 1 cup
(125,250 mL)
Place inside a microwave-safe serving bowl
with no cover. Follow manufacturers’ direc¬
tions for preparation of quick meal.
2. Beverages
1,2 cups
(250, 500 mL)
Use a microwave-safe coffee cup. Heated
liquids can erupt if not mixed with air. Do
not heat liquids in your microwave oven
without stirring before and after heating.
S.Bacon
4 slices (3.2-4 oz.)
(90-11 Og)
6 slices (4.8-5.8 oz.)
(135-165 g)
10 slices (8.1-9,5 oz.)
(230-270 g)
14 slices (11.6-13 oz.)
(330-370 g)
Place slices of bacon on a microwave-safe
dish. Cover with paper towel. Times may
vary by brand (weight). If bacon is not cooked
to your liking, continue to heat by manually
adding more time.
Lunch
4.Soup
1,2 cups
(250, 500 mL)
Pour soup into a microwave-safe serving bowl.
Cover loosely with lid or vented plastic wrap.
S.Frozen
Pizza
4, 8 OZ.
(110, 225 g)
Follow manufacturers’ directions for preparation.
Dinner O.Chicken
Pieces
6,12,18, 24 oz.
(170,340,500, 680 g)
Place skin side up. Cover with vented plastic
wrap. Let stand 5 minutes before serving.
7.Ground
Meat
16, 32 oz.
(450, 900 g)
Break apart in glass bowl or colander
Cover with vented plastic wrap.
After 2 beeps, stir. Recover and press Start.
Juices should be clear. Drain.
8. Frozen
Entrees
8. 10, 20,32 oz.
(225, 300, 600, 900 g)'
Follow manufacturers’ directions for covering
or removing covers. For best results, do not
use frozen foods packaged in foil tray.
9. Potatoes
1, 2, 3, 4 pieces
(6-8 oz. each)
(170-225 g)
Piece skin with fork 6 times on top. Place potatoes
on a microwave-safe dish. Do not cover.
Let stand 5 minutes to complete cooking.
10. Fresh
Vegetables
4,8,12.16 oz.
(110,225,340,450 g)
All pieces should be the same size. Add a small
amount of water and cover loosely with lid
or vented plastic wrap.
11. Frozen
Vegetables
6 , 1 0 , 16 oz.
(170, 300, 450 g)
Follow manufacturers’ directions. Do not salt
until after cooking. Not suitable for vegetables
in butter or sauce.
12.Rlce
0.5,1, 1.5 cups
(125, 250, 375 mL)
1 _
Place rice with hot water in a microwave-
safe casserole dish. Cover loosely with lid
or vented plastic wrap. Let stand 5 to 10
minutes before serving.
11

Timer Setting
This feature allows you to program a Standing
Time after cooking is completed and to program
the oven as a kitchen timer and/or to program a
delay start.
To Use as a Kitchen Timer:
Example: To count 5 minutes
1.
Tifnor
• Press.
000
• Set desired amount of
time using number pads,
(up to 99 minutes and
99 seconds).
3. _
Start
• Press.
>Time will count down
without oven
operating.
To Set Stand Time:
Example: To stand for 5 mrns. after cook¬
ing (3 mins, at MEDIUM Power)
1.
c
E
Powc
Liivei
'JOlpvpi
time
♦
0
‘S
0
• Enter the desired cook¬
ing program (see page
7 for directions).
2.
JinH'f
• Press once.
000
* Set desired amount of
Stand Time using num¬
ber pads, (up to 99 min¬
utes and 99 seconds)
4.
c
Stnn
• Press.
► C ooking will start.
After cooking, stand
time will count down
without oven operat¬
ing.
To Set Delay Start:
Example: To start cooking 5 minutes later.
(3 mins, at MEDIUM Power).
1.
Tf/wr
• Press once.
2.
♦ Enter desired amount of
delayed time using
number pads.
(up to 99 minutes and
99 seconds)
000
5
Power
Level
Ok-ve/s
time,
T
>
* Enter the desired cook¬
ing program (see page
7 for directions).
□ 0 0
' ■ (
5iar^
• Press,
► D e layed time will
countdown. Then
cooking will start.
NOTES:
1. When each stage finishes, a two beep signal
sounds. At the end ot the program, the oven will
beep five times.
2. If oven door is opened during Stand Time or
Kitchen Timer, the time on the Display Window
will continue to count down.
3. Stand time and Delay time cannot be pro¬
grammed before any Auto Control Function.
This is to prevent the starting temperature of
food from rising before defrosting or cooking
begins. A change in starting temperature could
cause inaccurate results.

Microwave Shortcuts
FOOD
POWER
TIME
(in mins.)
DIRECTIONS
To separate Bacon,
1 pound (450 g)
P10(High) 30 sec.
Remove wrapper and place in microwave-
safe dish. After heating, use a plastic
spatula to separate slices.
To soften Brown Sugar
1 cup (250 mL)
PI 0 (High)
20 - 30 sec.
Place brown sugar in microwave-safe dish
with a slice of bread. Cover with plastic wrap.
To soften Butter,
1 stick, 'A pound (110 g)
To melt Butter,
1 stick, ’A pound (110 g)
P3 (MED-LOW)
P6 (MEDIUM)
1
1Vj-2
Remove wrapper and place butter in a
microwave-safe dish.
Remove wrapper and place butter in a
microwave-safe dish covered with
plastic wrap.
To melt Chocolate,
1 square, 1 oz. (28 g)
To melt Chocolate,
V 2 cup (125 mL) chips
PI 0 (High)
PI 0 (High)
1 -i’/s
1 • \'h
Remove wrapper and place chocolate
in a microwave-safe dish. Stir before
adding more time. (Stir until completely
melted.) Note: Chocolate holds its shape
even when softened.
To toast Coconut,
V 2 cup (125 mL)
PI 0 (High)
1
Place in a microwave-safe dish.
Stir every 30 seconds.
To soften Cream Cheese,
8 oz. (250 g)
P3 (MED-LOW)
1 -2
Remove wrapper and place in a
microwave-safe bowl.
To brown Ground Beet,
1 pound (450 g)
P10 (High)
4-5
Crumble into a microwave-safe colander
set into another dish. Stir twice.
Drain grease.
To steam Hand Towels • 4
P10(High) 20 - 30 sec.
Soak in water, then wring out excess.
Place on a microwave-safe dish.
Heat, Present immediately.
To soften Ice Cream,
V 2 gallon (2 L)
P3 (MED-LOW)
1 - \'k
Check often to prevent melting.
Cup of liquid
boiling water, broth, etc.
1 cup, 8 oz. (250 mL)
2 cups, 16 oz. (500 mL)
to heat milk
1 cup, 8 oz. (250 mL)
2 cups, 16 oz, (500 mL)
PI 0 (High)
P7 (MED- HIGH)
2 V 2-3
4
2-3
4-5
Heated liquids can erupt if not stirred.
Do not heat liquids in microwave oven
without stirring before and after heating.
To roast Nuts,
1V 2 cups (375 mL)
PIO (High)
4-5
Spread nuts Into a 9-inch (230 mm)
microwave-safe pie plate.
Stir occasionally.
To toast Sesame Seeds,
V 4 cup (50 mL)
PI 0 (High) 3-5
Place in a small microwave-safe bowl.
Stir twice.
To skin Tomatoes
(one at a time)
P10(High)
30 sec
Place tomato into a microwave-safe bowl
containing boiling water. Rinse and peel.
Repeat for each tomato.
To remove Cooking Odors
PIO (High)
5
Combine 1 to IV 2 cups (250 - 375 mL)
water with the juice and peel of one lemon
in a small microwave-safe bowl. After
heating, wipe interior of oven with a cloth.
13

Bone and Fat
Both bone and fat affect cooking. Bones may
cause irregular cooking. Meat next to the tips of
bones may overcook while meat positioned under
a large bone» such as a ham bone, may be
undercooked. Large amounts of fat absorb
microwave energy and the meat next to these
areas may overcook.
Density
Porous, airy foods such as breads, cakes or rolls
take less time to cook than heavy, dense foods
such as potatoes and roasts. When reheating
donuts or other foods with different centers be
very careful. Certain foods have centers made
with sugar, water or fat and these centers attract
microwaves (For ex., jelly donuts). When a jelly
donut is heated, the jelly can become extremely
hot while the exterior remains warm to the touch.
This could result in a burn if the food is not
allowed to cool properly in the center.
Quantity
Two potatoes take longer to cook than one pota¬
to. As the quantity of the food increases so does
the cooking time. When cooking small amounts of
food such as one or two potatoes, do not leave
oven unattended. The moisture content in the
food may decrease and a fire could result.
Shape
Uniform sizes heat more evenly. The thin end of a
drumstick will cook more quickly than the meaty
end. To compensate for irregular shapes, place
thin parts toward the center of the dish and thick
pieces toward the edge.
Size
Thin pieces cook more quickly than thick pieces.
Starting Temperature
Foods that are room temperature take less time
to cook than if they are chilled or refrigerated or
frozen.
Piercing
Foods with skins or membranes must be pierced
scored or have a strip of skin peeled before cook¬
ing to allow steam to escape. Pierce whole egg
yolks and whites, clams, oysters, chicken livers,
whole potatoes and whole vegetables. Whole
apples or new potatoes should have a 1-inch strip
of skin peeled before cooking. Score sausages
and frankfurters.
Browning
Foods will not have the same brown appearance
as conventionally cooked foods or those foods
which are cooked utilizing a browning feature.
Meats and poultry may be coated with browning
sauce, Worcestershire sauce, barbecue sauce or
shake-on browning sauce. To use, combine
browning sauce with melted butter or margarine;
brush on before cooking.
For quick breads or muffins, brown sugar can be
used in the recipe in place of granulated sugar, or
the surface can be sprinkled with dark spices
before baking.
14

Cooking Techniques
Cooking Techniques
Spacing
Individual foods, such as baked potatoes, cup¬
cakes and appetizers, will cook more evenly if
placed in the oven equal distances apart. When
possible, arrange foods in a circular pattern.
Covering
As with conventional cooking, moisture evapo¬
rates during microwave cooking. Casserole lids or
plastic wrap are used for a tighter seal. When
using plastic wrap, vent the plastic wrap by fold¬
ing back part of the plastic wrap from the edge of
the dish to allow steam to escape. Loosen or
remove plastic wrap as recipe directs for stand
time. When removing plastic wrap covers, as well
as any glass lids, be careful to remove them
away from you to avoid steam burns. Various
degrees of moisture retention are also obtained
by using wax paper or paper towels. However,
unless specified, a recipe is cooked covered.
Shielding
Thin areas of meat and poultry cook more quickly
than meaty portions. To prevent overcooking,
these thin areas can be shielded with strips of
aluminum foil. Wooden toothpicks may be used to
hold the foil in place.
Timing
A range in cooking time is given In each recipe.
The time range compensates for the uncontrol¬
lable differences in food shapes, starting temper¬
ature and regional preferences. Always cook food
for the minimum cooking time given in a recipe
and check for doneness. If the food is under¬
cooked, continue cooking. It is easier to add time
to an undercooked product. Once the food is
overcooked, nothing can be done.
Stirring
Stirring is usually necessary during microwave
cooking. We have noted when stirring is helpful,
using the words once, twice, frequently or occa¬
sionally to describe the amount of stirring neces¬
sary. Always bring the cooked outside edges
toward the center and the less cooked center por¬
tions toward the outside of the dish.
Rearranging
Rearrange small items such as chicken pieces,
shrimp, hamburger patties or pork chops.
Rearrange pieces from the edge to the center
and pieces from the center to the edge of the
dish.
Turning
It is not possible to stir some foods to redistribute
the heat. At times, microwave energy will concen¬
trate in one area of a food. To help insure even
cooking, these foods need to be turned. Turn
over large foods, such as roasts or turkeys,
halfway through cooking.
stand Time
Most foods will continue to cook by conduction
after the microwave oven is turned off. In meat
cookery, the interna) temperature will rise to
15®F (3“C to S^C), if allowed to stand, tented with
foil, for 10 to 15 minutes. Casseroles and
vegetables need a shorter amount of standing
time, but this standing time is necessary to allow
foods to complete cooking to the center without
overcooking on the edges.
Testing Doneness
The same tests for doneness used in convention¬
al cooking may be used for microwave cooking.
Meat is done when fork-tender or splits at fibers.
Chicken is done when juices are clear yellow and
drumstick moves freely. Fish is done when it
flakes and is opaque. Cake is done when a tooth¬
pick or cake tester is Inserted and comes out
clean. Candy is done when it reaches the proper
temperature for each stage of crystallization.
15

Care of Your Microwave Oven
BEFORE CLEANING:
Unplug at socket of the oven. If impossible,
leave oven door open to prevent oven from
accidentally turning on.
AFTER CLEANING:
Be sure to replace the Roller Ring and
Glass Tray in the proper position and
press Stop/Reset Pad to clear the screen.
Menu Label:
Do not remove wipe
with a damp cloth, n
Inside of the ^
oven:
Wipe with a
damp cloth.
Mild detergent
fhay be used if
the oven gets
very dirty. The
use of harsh
detergent or
abrasives is
not recom¬
mended.
Oven Door:
Wipe with a soft cloth when steam accu¬
mulates inside or around the outside of
the oven door. During cooking, especially
under high humidity conditions, steam is
given off from the food. (Some steam will
condense on cooler surfaces, such as the
oven door. This is normal.)
* Inside surface is covered with a heat
and vapour barrier film. Do not remove.
Glass Tray:
Remove and wash in warm
soapy water or in a dishwasher.
Outside oven surfaces.
Clean with a damp cloth.
To prevent damage to the
operating parts inside the
oven, water should not be
allowed to seep into ventila¬
tion openings.
Control Panel:
* Covered with a removable
protective film to prevent
scratches during shipping.
Small bubbles may appear
under this film.
(Hint - To remove film,
apply masking or clear
tape to an exposed comer
and pull gently.)
* If the Control Panel
becomes wet, clean it with
a soft dry cloth. Do not
use harsh detergents or
abrasives on the Control
Panel.
Roller Ring and oven cavity floor:
Wipe the bottom surface of the oven
with mild detergent water or window
cleaner and dry. Roller Ring may be
washed in mild soapy water or dish¬
washer. These areas should be kept
clean to avoid excessive noise.
ORDER FORM
For more information regarding microwave cooking, order our COOKING GUIDE
(68 pages of recipes & charts).
DESCRIPTION PART NUMBER
Instruction / Operating Manual (this book) F00035C10AP
COOKING GUIDE BOOOB8250AP
Glass Tray AO6O14M0OAP S951
B06O14WOOAP S751
Roller Ring Assembly B290D4M00AP S951
B290D9330AP
For pricing quotes, call or write the Parts & Literature Department at the phone or address
listed below. Please have your credit card information readily available.
Shipping & handling are not included. Price & availability subject to change. Sorry, no COD’s.
PANASONIC SERVICES COMPANY
20421 84th Avenue South
Kent, WA 98032
You can purchase parts, accessories or locate your
nearest servicenter by visiting our Web Site:
Web Site: http://www.Panasonic.com
[phone] • Phone
[phone] - FAX
16

Before Requesting Service
these things are normal: ^
The oven causes
interference with
my TV.
Some radio and TV interference might occur when you cook with the
microwave oven. This interference is similar to the interference caused
by small appliances such as mixers, vacuums, blow dryers, etc. It
does not indicate a problem with your oven.
Steam accumulates
on the oven door and
warm air comes from
the oven vents.
During cooking, steam and warm air are given off from the food. Most
of the steam and warm air are removed from the oven by the air which
circulates in the oven cavity. However, some steam will condense on
cooler surfaces such as the oven door. This is normal.
1 accidentally ran my
microwave oven
without any food in it.
V
Running the oven empty for a short time will not damage the oven.
However, we do not recommend operating the microwave oven
without any food in it.
/
Oven will not start
cooking.
[ The door is not closed completely.
Close the oven door securely.
Start Pad was not pressed after
^ programming.
Press Sfa/t Pad.
Another program is already
entered into the oven.
Press Stop/Reset Pad to
cancel the previous program
and enter new program.
The program is not correct. Program again according to the
Operating Instructions.
)
Stop/Reset Pad has been pressed
accidentally.
Program oven again.
The Glass Tray is not positioned
property on the Roller Ring or there
is food under the Roller Ring.
Take out Glass Tray and Roller
Ring. Wipe with a damp cloth and
reset Roller Ring and Glass Tray
properly.
When the oven is
operating, there is
noise coming from
the Glass Tray.
The Roller Ring and oven bottom
are dirty.
Clean these parts according to
Care of Your Microwave Oven.
The word “Child”
appears in the
Display Window,
The CHILD LOCK was activated
by pressing Start pad 3 times.
Deactivate LOCK by pressing
Stop/Reset pad 3 times.
17

Warranty & Service
PANASONIC MICROWAVE OVEN LIMITED WARRANTY
Panasonic Consumer Electronics Company or
Panasonic Sales Company (collectively referred to as
“the warrantor^) will repair this product with new or
refurbished parts in exchange for defective parts, free
of charge, in the USA or Puerto Rico from the date of
original purchase in the event of a defect in materials
or workmanship as follows (all time periods start from
the date of original purchase):
Parts ‘ one (1) year (except magnetron).
Magnetron Tube - five (5) years,
■ Labor - one (1) year on all parts (including, without
limitations, magnetron tube); After the labor warranty
has expired, the purchaser pays for all labor charges
for removal and installation of parts (including, without
limitation, magnetron tube).
Carry-in or mail-in service in the USA or Puerto
Rico can be obtained during the warranty period by
contacting a Panasonic Services Company (PASC)
Factory Sen/icenter listed in the Servicenter Directory.
Or call toll free. 1-800-211-PANA to locate a PASC
authorized Servicenter. Carry-In or mail-rn service in
Puerto Rico can be obtained during the warranty
period by calling the Panasonic Sales Company
telephone number listed in the Servicenter Directory.
This warranty is extended only to the original
purchaser. A purchase receipt or other proof of date of
original purchase will be required before warranty
service is rendered.
This warranty only covers failures due to defects in
materials or workmanship which occur during normal
use and does not cover glass, plastic parts,
temperature probes (if included), and the exterior and
interior finish. The warranty does not cover damages
which occur in shipment, or failures which are caused
by products not supplied by the warrantor, or failures
which result from accident, misuse, abuse, neglect,
mishandling, misapplication, faulty installatjon,
improper set-up adjustments, operation and/or
maintenance, or alteration, modification, power line
surge, improper voltage supply, lightning damage, or
commercial use such as hotel, office, restaurant or
other business or rental use of the product, or service
by anyone other than a PASC Factory Servicenter or a
PASC authorized Servicenter, or damage that is
attributable to acts of God.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed
above.
THE WARRANTOR SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT,
OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY. ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTIES OF
MERCHANTABILITY, AND FITNESS FORA
PARTICULAR PURPOSE, ARE LIMITED TO THE
APPLICABLE WARRANTY PERIOD SET FORTH
ABOVE.
Some slates do not allow the exclusion or limitation
of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you.
This warranty gives you specific legal rights and
you may also have other rights which vary from state
to state. If a problem with this product develops
during or after the warranty period, you may contact
your dealer or Servicenter. If the problem is not
handled to your satisfaction, then write to the
Customer Satisfaction Center.
CALIFORNIA
6550 Katella Ave.
Cypress, CA 90630
800 Dubuque Ave.
S. San Francisco,
CA 94080
3878 Ruffin Rd,. Suite A
San Diego, CA 92123
COLORADO
1640 South Abilene St.
Suite D
Aurora, CO 80012
FLORIDA
3700 North 29th Ave.
Suite 102
Hollywood, FL 33020
GEORGIA
8655 Roswell Road
Suite 100
Atlanta, GA 30350
ILLINOIS
9060 Golf Road
Niles, IL 60714
1703 N. Randall Road
Elgin. IL 60123
(Pick up/Drop off only)
MARYLAND
62 Mountain Road
Glen Burnie, MD 21061
MASSACHUSETTS
60 Glacier Drive, Suite G
Westwood, MA 02090
MINNESOTA
7850-12th Ave. South
Airport Business Center
Bloomington, MN 55425
OHIO
2236 Waycross Road
Civic Center Plaza
Forest Park, OH 45240
PENNSYLVANIA
2221 Cabot Blvd. West
Suite 0
Langhorne, PA 19047
TEXAS
13615 Welch Road,
Suite 101
Farmers Brunch,
TX 75244
WASHINGTON
20425-84th Ave. So.
Kent, WA 98032
HAWAII
99-859 Iwaiwa Street
Aiea, Hawaii 96701
Phone [phone]
Fax [phone]
Puerto Rico: Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company f Factory Servicenter
Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone [phone] Fax [phone]
