Microwave Oven
NN-SD986S / NN-H965WFB
APH(USA)
Please file and use this specified manual together with the service
manual for Model NN-T695 (ORDER NO. PHAMOS0501001C1).
SPECIFICATIONS
1

2006 Panasonic Home Appliances Microwave Oven (Shanghai) Co.,
Ltd. / All rights reserved. Unauthorized copying and distribution is a
violation of law.
2

3

4

5

1. SCHEMATIC DIAGRAM
2. MEASUREMENTS AND ADJUSTMENTS
6

2.1. Adjustment of primary latch switch, secondary latch switch and short
switch.

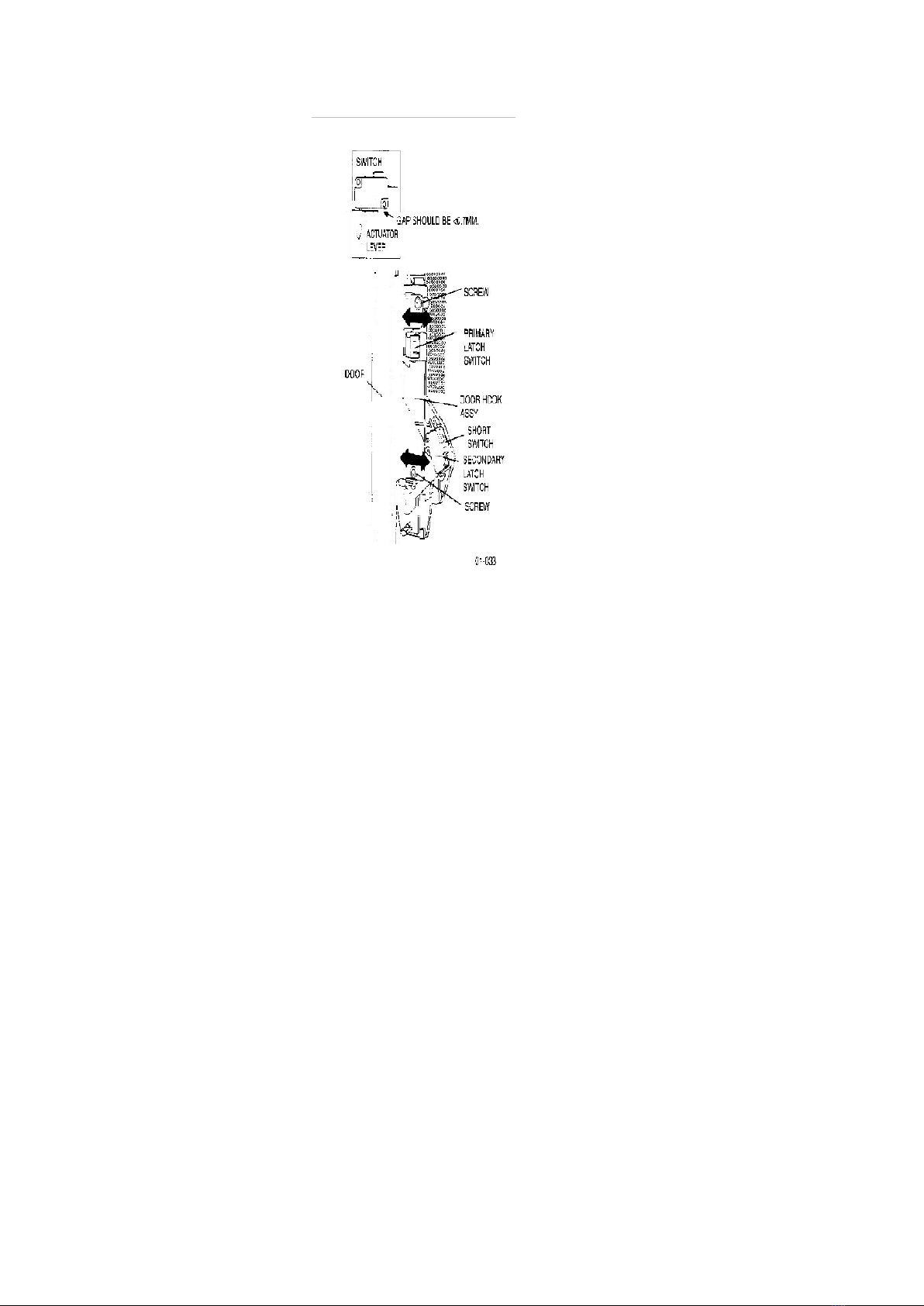

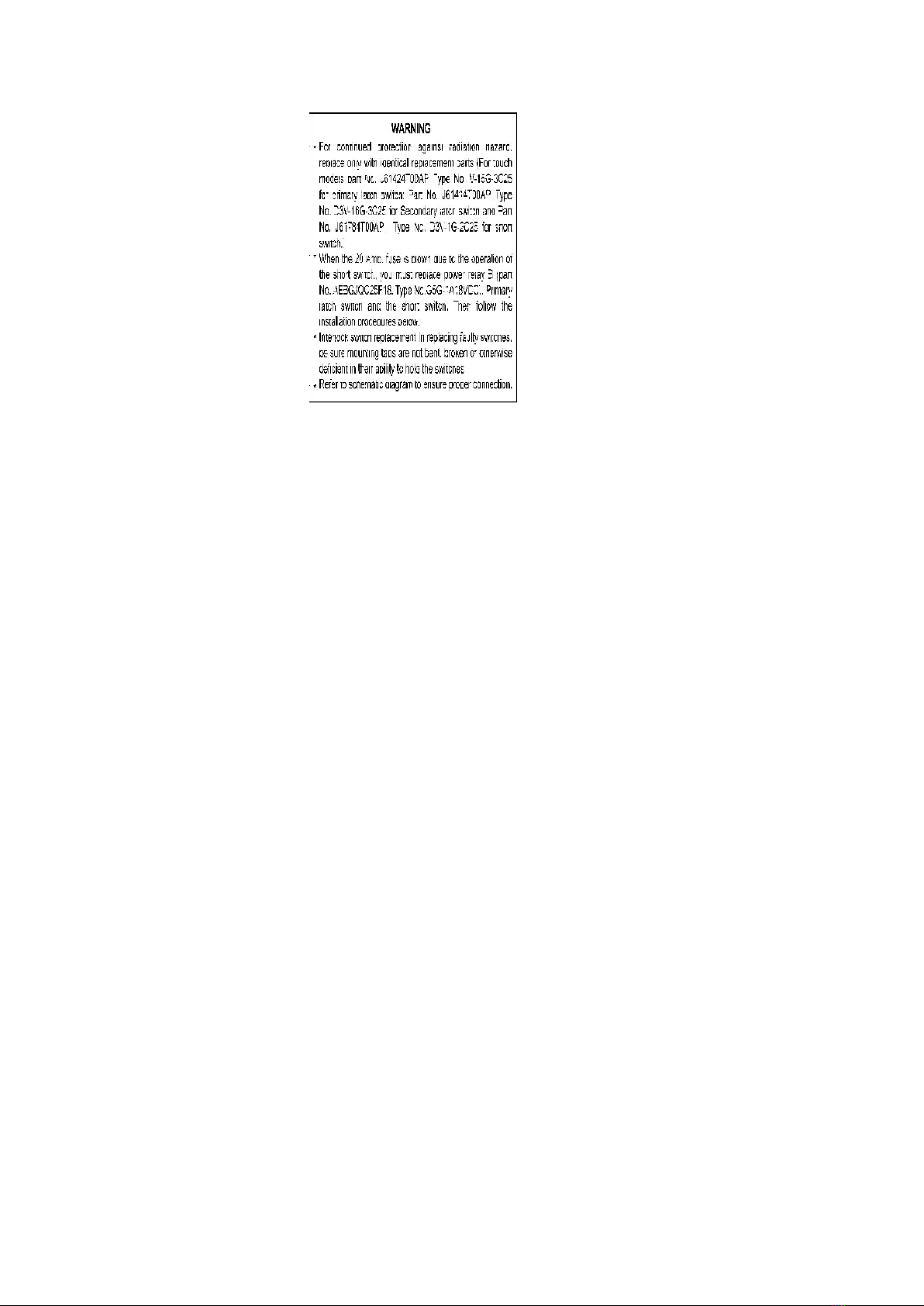

1. Mount the Primary latch switch, the Secondary latch switch and the
short switch to the door hook assembly as shown in ILL.
NOTE:
No specific individual adjustments during installation of the Primary
latch switch, Secondary latch switch or Short switch to the door hook
are required.
2. When mounting the door hook assembly to the oven assembly, adjust
the door hook assembly by moving it in the direction of the arrows in
the illustration so that the oven door will not have any play in it. Check
for play in the door by pulling the door assembly. Make sure that the
latch keys move smoothly after adjustment is completed. Completely
tighten the screws holding the door hook assembly to the oven
assembly.
3. Reconnect the short switch and check the continuity of the monitor
circuit and all latch switches again by following the component test
procedures.
7

2.2. Measurement of microwave output
The output power of the magnetron can be determined by performing IEC standard test procedures.
However,due to the complexity of IEC test procedures, it is recommended to test the magnetron using
the simple method outlined below.
Necessary Equipment:
*1 liter beaker *Glass thermometer / *Wrist watch or stopwatch
NOTE:
Check the line voltage under load.Low voltage will lower the magnetron
output. Take the temperature readings and heating time as accurately as
possible.
1. Fill the beaker with exactly one liter of tap water.Stir the water using
the thermometer and record the water’s temperature. (recorded as T1).
2. Place the beaker on the center of glass tray. / Set the oven for High
power and heat it for exactly one minute.
3. Stir the water again and read the temperature of the water. (recorded as
T2).
4. The normal temperature rise at High power level for each model is as
shown in table.
TABLE (1L-1min.test)
8

RATED OUTPUT TEMPERATURE RISE
1200W Min. 18.5°F(10.3°C)
1300W Min. 19.8°F(11.1°C)
3. PROCEDURE FOR MEASURING MICROWAVE
ENERGY LEAKAGE
NOTE:
The U.S. Government standard is 5 mW/cm2 while in the customer’s
home. 2mW/cm2 stated here is our own voluntary standard. (1mW/cm2
for Canada)
3.1. Equipment
- Electromagnatic radiation monitor
- Glass thermometer 212°F or 100°C
- 600cc glass beaker
3.2. Procedure for measuring radiation leakage
Note before measuring.
- Do not exceed meter full scale deflection. Leakage monitor should
initially be set to the highest scale.
- To prevent false readings the test probe should be held by the grip
portion of the handle only and moved along the shaded area in Figure
no faster than 1 inch/sec (2.5cm/sec).
- Leakage with the outer panel removed ...... less than 5mW/cm2.
- Leakage for a fully assembled oven with door normally closed ...... less
than 2mW/cm 2 (1mW/cm 2 for Canada).
- Leakage for a fully assembled oven [Before the latch switch (primary) is
interrupted] while pulling the door ...... less than 2mW/cm 2.
1. Pour 275 ± 15cc (9ozss± 1/2oz) of 20°C ± 5°C (68° ± 9°F) water in a
beaker which is graduated to 600cc, and place in the center of the oven.
2. Set the radiation monitor to 2450MHz and use it following the
manufacturer's recommended test procedure to assure correct results.
3. When measuring the leakage, always use the 2 inch (5cm) spacer
9

supplied with the probe.
4. Tap the start pad or set the timer and with the magnetron oscillating,
measure the leakage by holding the probe perpendicular to the surface
being measured.
3.2.1. Measurement with the outer panel removed.
Whenever you replace the magnetron, measure for radiation leakage before the outer panel is installed
and after all necessary components are replaced or adjusted. Special care should be taken in
measuring around the magnetron.
3.2.2. Measurements with a fully assembled oven.
After all components, including outer panel are fully assembled, measure for radiation leakage around
the door periphery, the door viewing window, the exhaust opening, control panel and air inlet openings.
3.3. Record keeping and notification after measurement
- After any adjustment or repair to a microwave oven, a leakage reading
must be taken. Record this leakage reading on the repair ticket even if it
is zero.
A copy of this repair ticket and the microwave leakage reading should
be kept by repair facility.
- Should the radiation leakage be more than 2 mW/cm2 (1mW/cm for
Canada) after determining that all parts are in good condition,
functioning properly, and genuine replacement parts as listed in this
manual have been used, immediately notify PASC, PSC or PCI.
3.4. At least once a year, have the radiation monitor checked for
calibration by its manufacturer.
4. SIMPLE WAY OF H.V. INVERTER/MAGNETRON
10

TROUBLESHOOTING
Purpose:
Simple way (3/23 seconds rule) of identifying whether it’s Magnetron, Inverter, or others.
Set-up:
The unit under question is connected through the Ammeter as shown below.
Procedure:
Follow the matrix table below to identify the problem source.
Note:
Do not replace both Inverter board and Magnetron simultaneously and
automatically without going through this procedure.
Power will: Ammeter reading is: To do: Remedy:
Shut off in 23
seconds after
“Start”.
1. Between 0.5A and 1.0A. Check and repair open
magnetron circuit
Open magnetron wiring
between Inverter and
magnetron terminal.
2. Between 1.0A and 2.0A. Check continuity of D702 in
Inverter PCB.
1. D702 shorted Replace H.V.Inverter
(F606Y6G00CP)
2. D702 is OK Replace magnetron
Shut off in 3
seconds after
“Start”
1. Less than 0.5A Check open circuit: Latch
Switch, DPC, Power Relay and
CN701
Replace defective
component(s), or correct
switch, cables and
connectors.
5. H.V.INVERTER BOARD MAIN PARTS LIST
(F606Y6G00CP)
11

Ref. No. Part No. Part Name & Description Pcs/Set Remarks
C707 ECWH30822JUA CAPACITOR 1 8200PF,3000VDC
C706 ECWH30562JUA CAPACITOR 1 5600PF,3000VDC
D701,D702 B0FBAZ000001 DIODE SI 2
DB701 B0FBBS000001 BRIDGE DIODE 1 20A,600V
L701 F50206G00AP CHOKE COIL 1
Q701 B1JAGV000008 TRANSISTOR SI 1 900V
T701 A609A6G00CP H.V. TRANSFORMER 1
C701 ECWF5324N310 CAPACITOR 1
C702 ECWF2455N614 CAPACITOR 1
D709 ERZV10D621CS VARISTOR 1

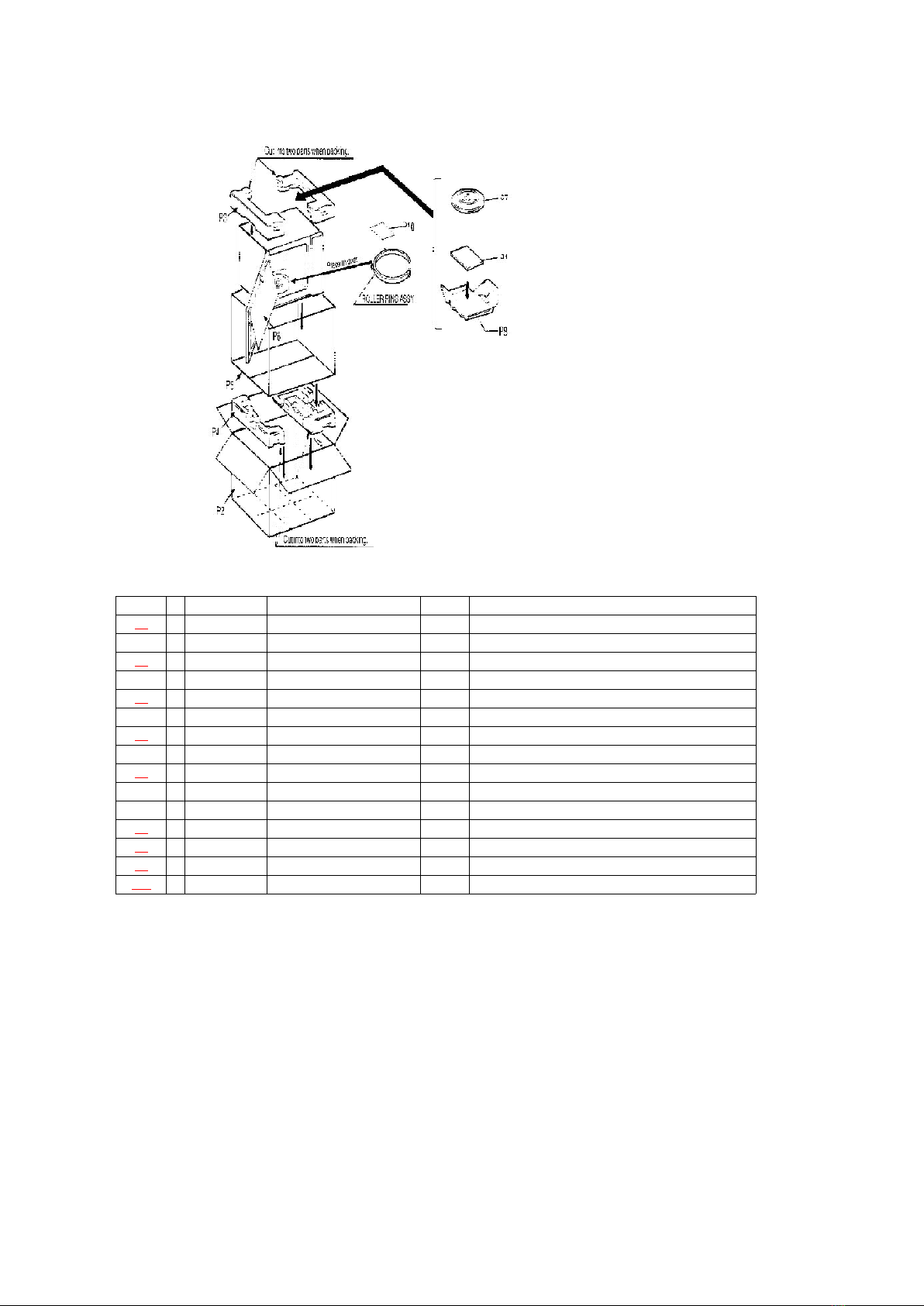

6. EXPLODED VIEW AND PARTS LIST

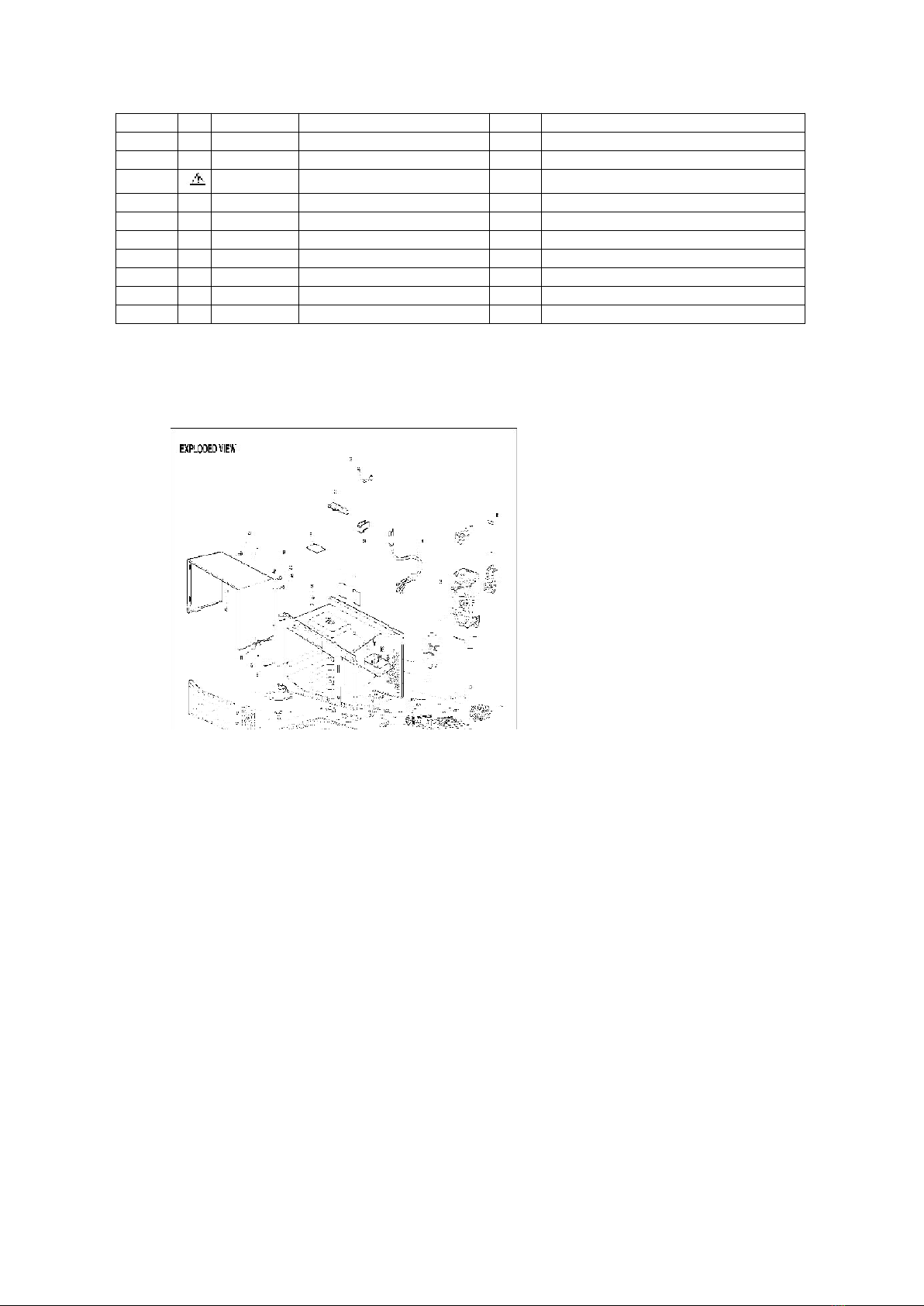

6.1. EXPLODED VIEW
6.2. PARTS LIST
NOTE:
1. When ordering replacement part(s), please use part number(s) shown
in this part list.
Do not use description of the part.
2. Important safety notice:
Components identified by mark have special characteristics
important for safety.
When replacing any of these components, use only manufacture’s
12

specified parts.
NOTE:
“A” parts are supplied by CSD (Japan)
“F” parts are supplied by PHAMOS (China)
13

Ref. No. Part No. Part Name & Description Pcs/Set Remarks
1F00064W70AP CAUTION LABEL 1 SD986S APH
1 F00069660AP CAUTION LABEL 1 H965WFB APH
2F00077B00HAP NAME PLATE 1 H965WFB APH
3F00338F00AP FUSE LABEL 1
4F10016P40AP BASE 1
5F10084T00AP RUBBER FOOT 4
6F110D5W10SAP CABINET BODY 1 SD986S APH
6 F110D5W20HAP CABINET BODY 1 H965WFB APH
7 F200A8D00AP OVEN 1
8F20555K00AP COVER 1
9F21315Y00AP PULLY SHAFT 1
10 F2177-F80 WASHER 1
11 F290D9330AP ROLLER RING (U) 1
12 F3020-1200 DOOR HOOK 1
14 F3136-1200 HOOK LEVER A 1
15 F31374650AP HOOK LEVER B 1
16 F31384650AP HOOK LEVER C 1
17 F400A5Y00AP FAN MOTOR 1 AC120V,SINGLE PHASE,60Hz
18 F40084T00AP FAN BLADE 1
19 F40254W00AP AIR GUIDE A 1
20 F40264T60APG AIR GUIDE B 1
21 F41445W00AP ORIFICE 1
22 F64508660AP SENSOR COVER B 1
24 F65434W00AP SENSOR COVER C 1
25 A607S4M00AP STEAM SENSOR 1
26 F612E5Y30AP INCANDESCENT LAMP (U) 1
27 J61415G10XN MICRO SWITCH 1 (PRIMARY LATCH SWITCH) (V-15G-3C25)
28 J61414T00AP MICRO SWITCH 1 (SECONDARY LATCH SWITCH) (D3V-16G-3C25)
29 F61456N60AP THERMAL CUTOUT 1 150°C/-20°C
31 F61785U30XN MICRO SWITCH 1 (SHORT SWITCH) (D3V-1G-2C25)
32 F606Y6G00CP H.V.INVERTER (U) 1
33 F65856K50AP INVERTER BRACKET 1
34 2M261-M32KLY MAGNETRON 1
35 F62308F00AP FUSE 1 20A
37 F692Y8A00AP NOISE FILTER 1
38 F63265G60AP TURNTABLE MOTOR 1
39 F900C4T60CP AC CORD W/PLUG 1 SD986S APH
39 F900C4T00AP AC CORD W/PLUG 1 H965WFB APH
40 F66626G10AP GROUNDING PLATE 1
41 XTWFA4+12T SCREW 4 FOR MAGNETRON
42 F90804W00AP CANOE CLIP 1 FOR COVER
43 XTTANE4T12A0 SCREW 5 FOR CABINET BODY
44 XTTFA4+6BN SCREW 2 FOR CABINET BODY SIDE
47 F03347B60AP MENU LABEL 1 SD986S APH
47 F03347D60AP MENU LABEL 1 H965WFB APH
48 F82574U00AP DOOR OPENING BRACKET 1 SD986S APH
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
48 F82575W00AP DOOR OPENING BRACKET 1 H965WFB APH
49 F04467D00AP FUNCTION LABEL 1 SD986S APH
51 F11406G00AP LEVER STOPPER 1 H965WFB APH

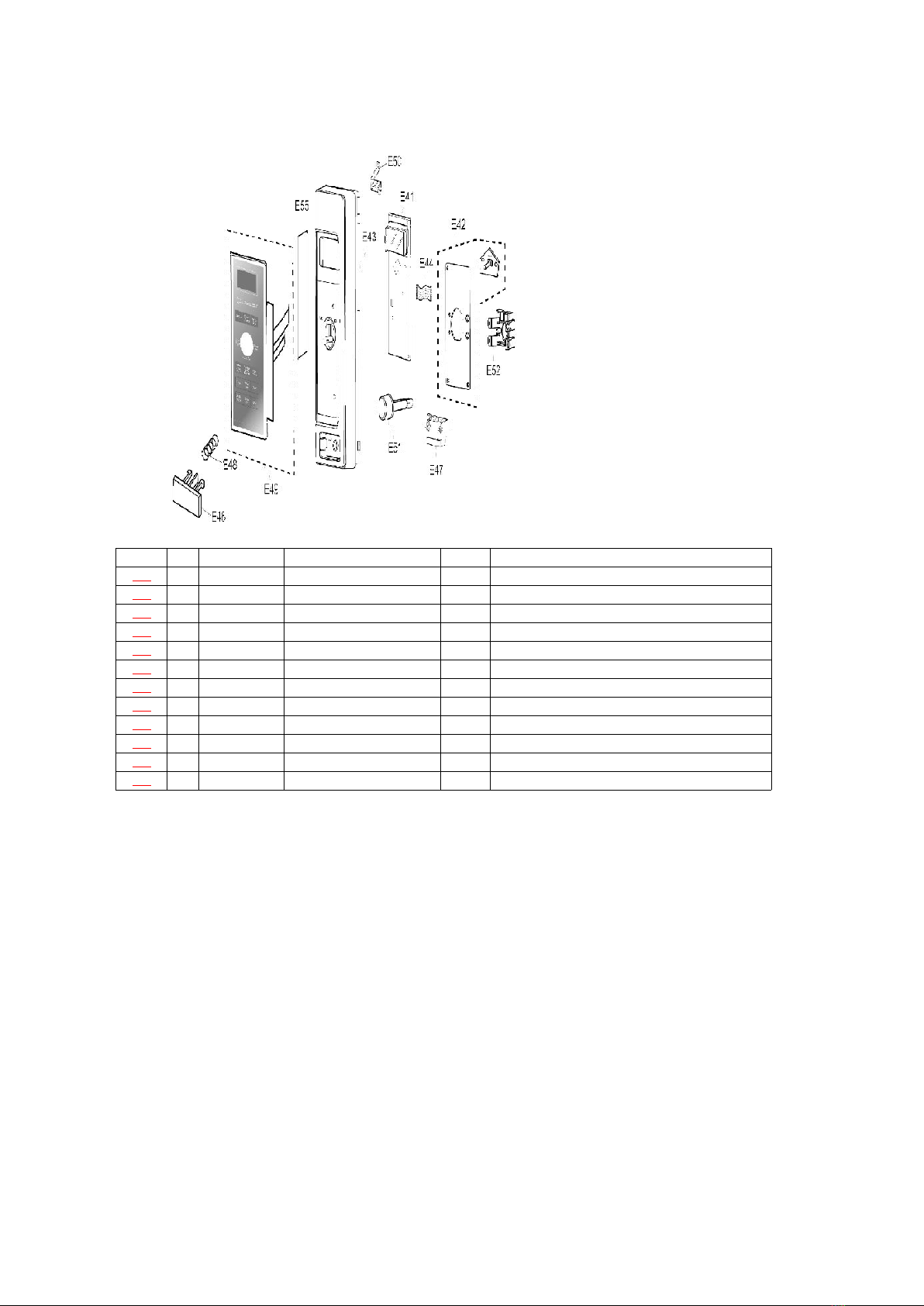

6.3. ESCUTCHEON BASE ASSEMBLY
14

6.3.1. NN-SD986S APH
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E41 F603L7A10AP D.P.CIRCUIT (AU) 1 SD986S APH
E42 F603Y7A10AP D.P.CIRCUIT (DU) 1 SD986S APH
E43 F800L8D10SAP ESCUTCHEON BASE (U) 1 SD986S APH
E44 F66167D00AP FLAT CABLE 1 SD986S APH
E46 F80724M60SCP DOOR OPENING BUTTON 1 SD986S APH
E47 F82564M60AP DOOR OPENING LEVER 1 SD986S APH
E48 F80375K00AP COOK BUTTON SPRING 1
E49 F630Y7A10SAP MEMBRANE SWITCH (U) 1 SD986S APH
E50 F90095X00AP GROUNDING PANEL 1 SD986S APH
E51 F803G7D00BAP POP-UP DIAL (U) 1 SD986S APH
E52 F80187D00BAP BACKSTOP 1 SD986S APH
E55 F00078D10SAP NAME PLATE 1 SD986S APH
6.3.2. NN-H965WFB APH
15

Ref. No. Part No. Part Name & Description Pcs/Set Remarks
E81 F603L7B00AP D.P.CIRCUIT (AU) 1 H965WFB APH
E82 F603Y5W00AP D.P.CIRCUIT (DU) 1 H965WFB APH
E83 F80347B00HAP ESCUTCHEON BASE 1 H965WFB APH
E84 F66164W20AP FLAT CABLE 1 H965WFB APH
E85 F82987D60KAP BUTTON 1 H965WFB APH
E86 F80726G40HAP DOOR OPENING BUTTON 1 H965WFB APH
E87 F82565W00AP DOOR OPENING LEVER 1 H965WFB APH
E88 F80375K00AP COOK BUTTON SPRING 1
E89 F630Y7B00HAP MEMBRANE SWITCH (U) 1 H965WFB APH
6.4. PACKING AND ACCESSORIES
16

Ref. No. Part No. Part Name & Description Pcs/Set Remarks
P1 F00037D00AP INSTRUCTION MANUAL 1 SD986S APH
P1 F00037C50AP INSTRUCTION MANUAL 1 H965WFB APH
P2 F01028D10SAP PACKING CASE,PAPER 1 SD986S APH
P2 F01027B00HAP PACKING CASE,PAPER 1 H965WFB APH
P3 F01044W00AP UPPER FILLER 1 SD986S APH
P3 F01045J00AP UPPER FILLER 1 H965WFB APH
P4 F01054W00AP LOWER FILLER 1 SD986S APH
P4 F01055J00AP LOWER FILLER 1 H965WFB APH
P5 F01067C50AP P.E.BAG 1 SD986S APH
P5 F01064W00AP P.E.BAG 1 H965WFB APH
P6 F01074U00AP DOOR SHEET 1
P7 A06014M00AP COOKING TRAY 1
P8 F01084M00AP TRAY PACKING 1
P10 F00065G40AP CAUTION LABEL 1
6.5. DOOR ASSEMBLY
17

Ref. No. Part No. Part Name & Description Pcs/Set Remarks
D1 F3018-1200 DOOR KEY A 1
D2 F301A8D10SAP DOOR A (U) 1 SD986S APH
D2 F30016G40HAP DOOR A 1 H965WFB APH
D3 F302K4U00AP DOOR E (U) 1
D4 F30215G10XN DOOR KEY SPRING 1
D5 F30854U00AP DOOR C 1
D6 F31454U00AP DOOR SCREEN A 1
D7 F31467B00HAP DOOR SCREEN B 1 H965WFB APH
D8 F02459660AP DHHS LABEL 1 SD986S APH
6.6. WIRING MATERIALS
18

Ref. No. Part No. Part Name & Description Pcs/Set Remarks
W1 F030A7B70AP LEAD WIRE HARNESS 1 APH
W2 F030E6G30AP H.V.LEAD WIRE 1
W3 F03537B70AP LEAD WIRE HARNESS(U) 1 (INCLUDING THERMISTOR)
7. DIGITAL PROGRAMMER CIRCUIT
7.1. NN-SD986S APH
19

7.2. NN-H965WFB APH
20
