Panasonic TH-58PY850M User manual

© 2008 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
ORDER NO. ITD0808085CE
Plasma TV
Model No. TH-58PY850M
TH-58PY850MR
TH-58PY850MS
TH-58PZ850A
GPF11DA Chassis

2
1 Safety Precautions
1.1. General Guidelines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
1.2. Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground
such as a water pipe, as shown in Figure 1.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUGH CURRENT) expressed as voltage U1and U2, does not exceed the following values:
For a. c.: U1= 35 V (peak) and U2= 0.35 V (peak);
For d. c.: U1= 1.0 V,
Note:
The limit value of U2= 0.35 V (peak) for a. c. and U1= 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0
mA d. c.
The limit value U1= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be
repaired and rechecked before it is returned to the customer.
Figure 1

3
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec-
trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi-
num foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara-
ble conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush-
ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient
to damage an ES device).

4
2.2. About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb sol-
der. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)

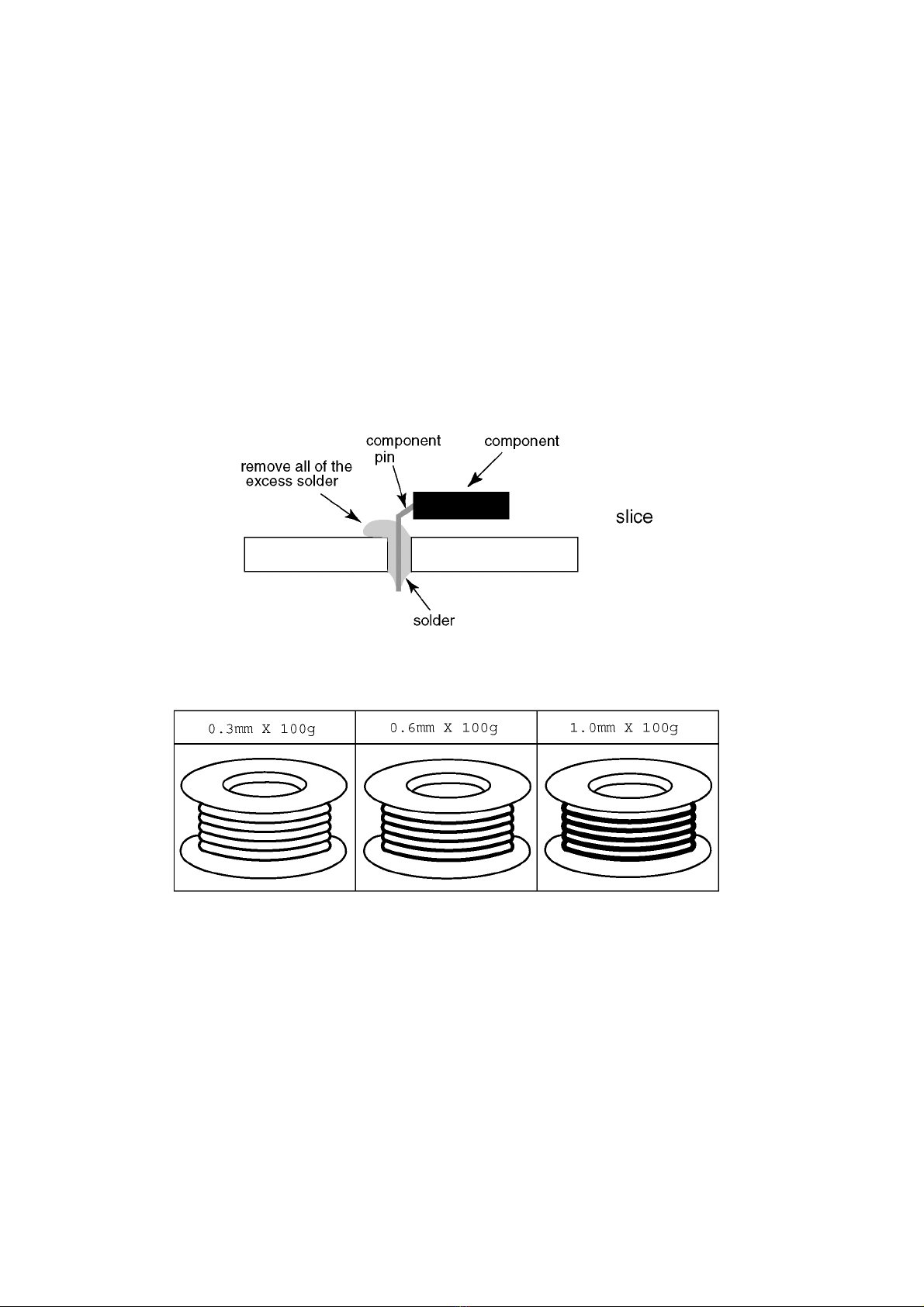

Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How-
ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

5

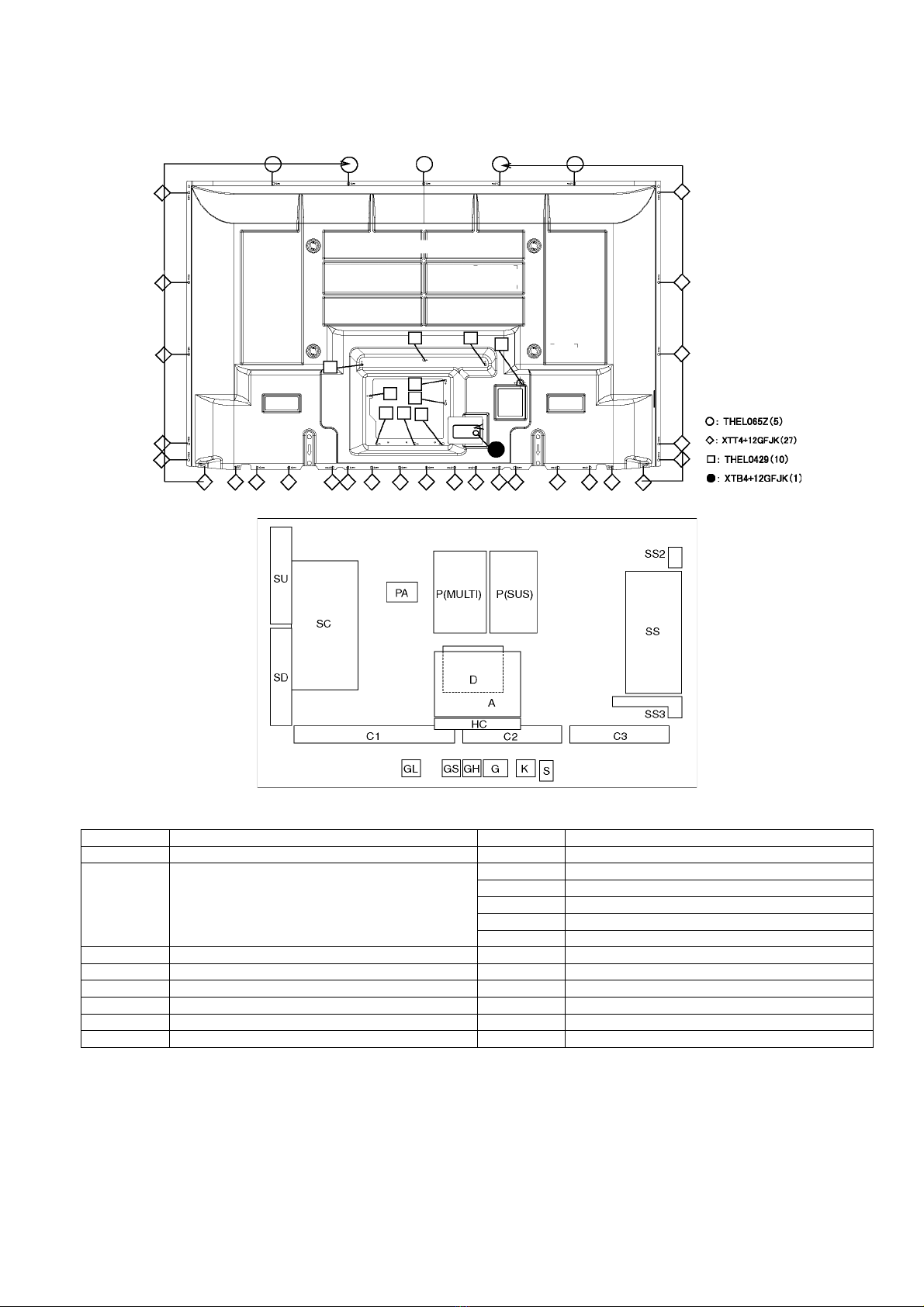

3 Service Navigation
3.1. Service Hint
Board Name Function Board Name Function
P Power Supply C1 Data Driver (Lower Right)
A DC-DC Converter
Speaker out, Sound Processor
AV Terminal, AV Switch
Digital Signal Processor, Micom, HDMI Interface
Peaks PRO, GC6
C2 Data Driver (Lower Center)
C3 Data Driver (Lower Left)
SC Scan Drive
SU Scan out (Upper)
SD Scan out (Lower)
D Format Converter, Plasma AI, Sub-Field Processor SS Sustain Drive
K Remote receiver, Power LED SS2 Sustain connector (Upper)
S Power Switch SS3 Sustain connector (Lower)
GS SD Card Slot GH HDMI4 in
GL SD Blue LED G Front Terminal, Key Switch
HC PC in, Audio out PA Fan control

6
3.2. Applicable signals

7
4 Specifications
Power Source AC 220 - 240 V, 50/60 Hz (A/M/MR)
AC 110 - 240 V, 50/60 Hz (MS)
Power Consumption
Average use 670 W
Standby condition 0.4 W (Without monitor out recording)
20 W (With monitor out recording)
Plasma Display panel
Aspect Ratio 16:9
Visible screen size 147 cm (diagonal)
1,284 mm (W) ×723 mm (H)
Number of pixels 2,073,600 (1,920 (W) ×1,080 (H))
Sound
Speaker Woofer ( 80mm) ×2pcs, Tweeter (23mm ×100mm) ×2pcs
Audio Output 31 W (15.5 W + 15.5 W), 10% THD
Headphones M3 (3.5 mm) stereo mini Jack ×1
PC signals VGA, SVGA, XGA, SXGA
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
Receiving Systems / Band name
(M/MR/MS only)
Receiving Systems / Band name PAL B/G Reception of Off air broadcasts
(A only) DVB-T 7 MHz VHF / UHF (Australia) free-to-air TV broadcast reception
PAL 60 Hz
M.NTSC
NTSC
Playback of NTSC tape from some PAL Video recorders (VCR)
Playback from M.NTSC Video recorders (VCR)
Playback from NTSC Video recorders (VCR)
Receiving Channels
(Regular TV)
(M/MR/MS only)
VHF BAND
2-12 (PAL/SECAM B, K1)
0-12 (PAL B AUST.)
1-9 (PAL B N.Z.)
1-12 (PAL/SECAM D)
1-12 (NTSC M Japan)
2-13 (NTSC M USA)
UHF BAND
21-69 (PAL G, H, I/SECAM G, K, K1)
28-69 (PAL B AUST.)
13-57 (PAL D, K)
13-62 (NTSC M Japan)
14-69 (NTSC M USA)
CATV
S1-S20 (OSCAR)
1-125 (USA CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
5A, 9A (AUST.)
Aerial - Rear VHF/UHF (M/MR/MS only) Standard Belling & Lee connector (A only)
Operating Conditions
Temperature: 0 °C - 40 °C
Humidity: 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1 Input
AUDIO L - R RCA PIN Type ×2 0.5 V[rms]
VIDEO RCA PIN Type ×1 1.0 V[p-p] (75 Ω)
COMPONENT Y
PB/CB, PR/CR
1.0 V[p-p] (including synchronization)
±0.35 V[p-p]
AV2 Input
AUDIO L - R RCA PIN Type ×2 0.5 V[rms]
VIDEO RCA PIN Type ×1 1.0 V[p-p] (75 Ω)
COMPONENT Y
PB/CB, PR/CR
1.0 V[p-p] (including synchronization)
±0.35 V[p-p]
AV3 Input
AUDIO L - R RCA PIN Type ×2 0.5 V[rms]
VIDEO RCA PIN Type ×1 1.0 V[p-p] (75 Ω)
S VIDEO Mini DIN 4-pin Y:1.0 V[p-p] (75 Ω) C:0.286 V[p-p] (75 Ω)

8
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
• Pedestal : ST-58R4-WG (For safety approval)
AV4 Input
AUDIO L - R RCA PIN Type ×2 0.5 V[rms]
VIDEO RCA PIN Type ×1 1.0 V[p-p] (75 Ω)
S VIDEO Mini DIN 4-pin Y:1.0 V[p-p] (75 Ω) C:0.286 V[p-p] (75 Ω)
Monitor Output
AUDIO L - R RCA PIN Type ×2 0.5 V [rms] (high impedance)
VIDEO RCA PIN Type ×1 1.0 V[p-p] (75 Ω)
Others
HDMI 1-4 Input TYPE A Connectors This TV supports “HDAVI Control 3” function.
PC Input HIGH-DENSITY D-SUB 15PIN R, G, B/ 0.7 V [p-p] (75 Ω)
HD, VD/TTL Level 2.0 - 5.0 V [p-p] (high impedance)
DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber optic
Card slot SD Card slot ×1
Dimensions (W ×H ×D) 1,445 mm ×949 mm ×409 mm (With Pedestal)
1,445 mm ×898 mm ×109 mm (TV only)
Mass 63.5 kg Net (With Pedestal)
59.0 kg Net (TV only)

9
5 Service Mode
5.1. How to enter into Service Mode
While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds.
5.1.1. Key command
[1] button...Main items Selection in forward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in forward direction
[4] button...Sub items Selection in reverse direction
[RED] button...All Sub items Selection in forward direction
[GREEN] button...All Sub items Selection in reverse direction
[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

10
5.1.2. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
5.1.3. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

11
5.2. Service tool mode
5.2.1. How to access
1. Select [SRV-TOOL] in Service Mode.
2. Press [OK] button on the remote control.
5.2.2. Display of SOS History

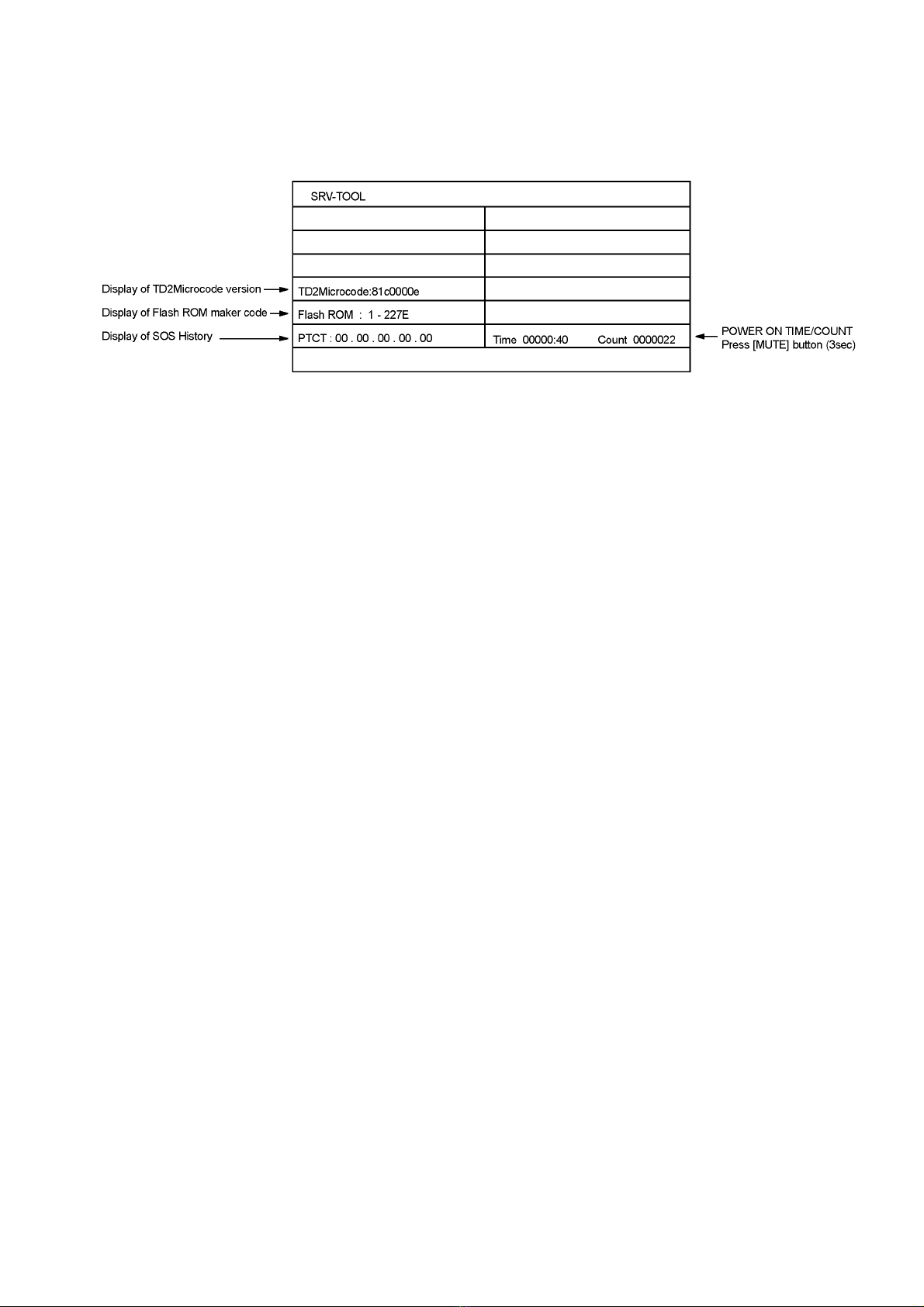

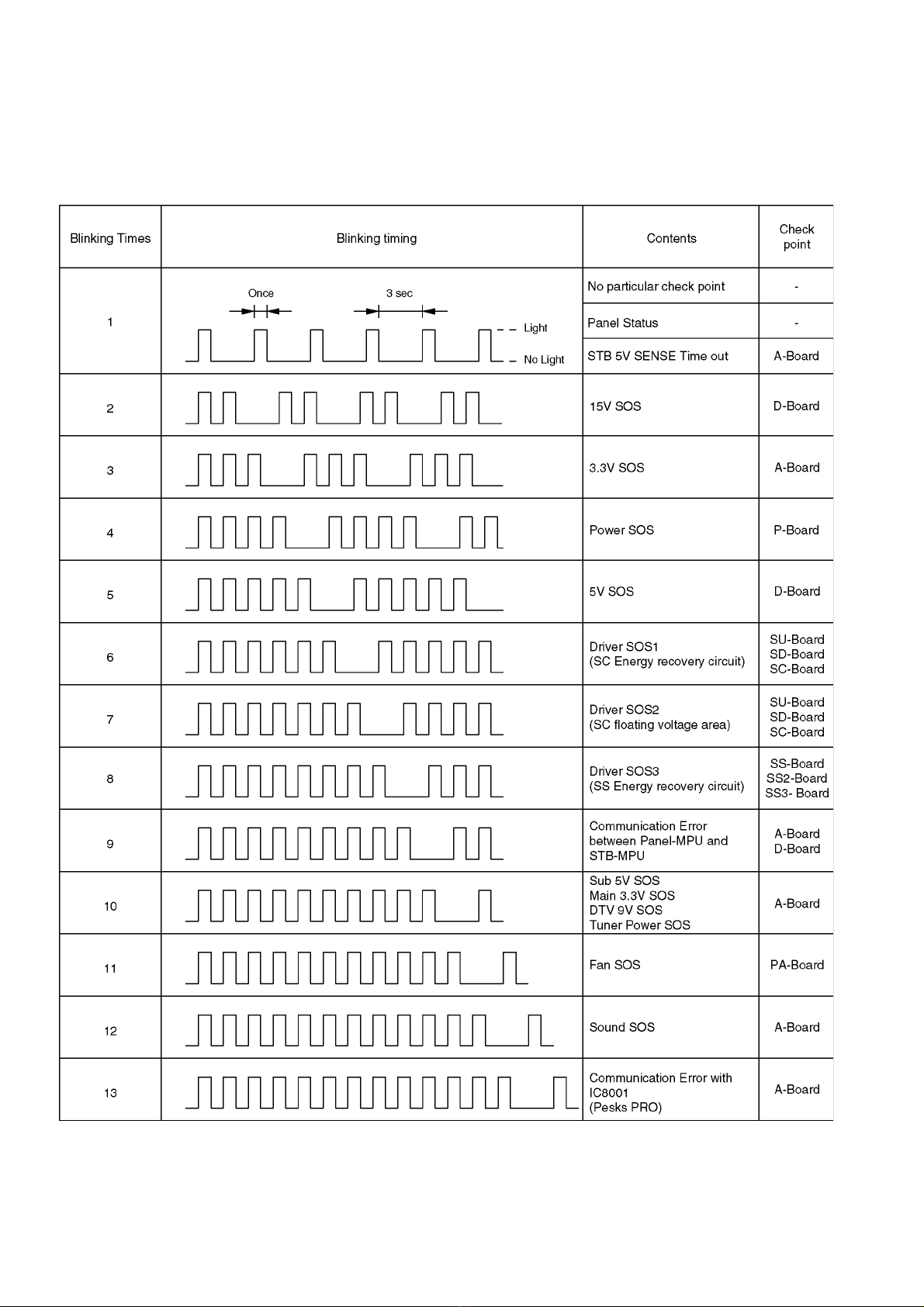

SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory ship-
ment setting].
5.2.3. POWER ON TIME/COUNT
To display TIME/COUNT menu, highlight position, then press MUTE for 3sec.
Time : Cumulative power on time, indicated hour : minute by decimal
Count : Number of ON times by decimal
Note : This indication will not be cleared by either of the self-check or any command.
5.2.4. Exit
1. Disconnect the AC cord from wall outlet or switch off the power with the [POWER] button on the main unit.

12
5.3. Hotel mode
1. Purpose
Restrict a function for hotels.
Access command to the Hotel mode setup menu
In order to display the Hotel mode setup menu, please
enter the following command (within 2 second).
[TV] : Vol. [Down] + [REMOTE] : AV (3 times)
Then, the Hotel mode setup menu is displayed.
2. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet or switch off
the power with the [POWER] button on the main unit.
3. Explain the Hotel mode setup menu
item Function
Hotel Mode Select hotel mode ON/OFF
Initial INPUT Select input signal modes.
Set the input, when each time power is switched
on.
Selection :
Off/Analogue/DVB/AV1/AV2/AV2S/AV3/AV3S/
COMPONENT/PC/HDMI1/HDMI2/HDMI3/HDMI4
• Off: give priority to a last memory. However,
Euro model is compulsorily set to TV.
• AVnS/AVnC: only Euro model selectable
• PC: selectable with VGA option
Initial POS Select programme number.
Selection :
Off/0 to 99
• Off: give priority to a last memory
Initial VOL level Adjust the volume when each time power is
switched on.
Selection/Range :
Off/0 to 63
• Off: give priority to a last memory
Maximum VOL
level
Adjust maximum volume.
Range :
0 to 63
Button lock Select local key conditions.
Selection :
Off/SETUP/MENU/All
• Off: altogether valid
• SETUP: only F-key is invalid
(Tuning guide(menu) can not be selected.)
• MENU: only F-key is invalid
(only Volume/Mute can be selected.)
• ALL: altogether invalid.
Remote lock Select remote control key conditions.
Selection :
Off/SETUP/MENU
• Off: altogether valid
• SETUP: only Setup menu is invalid
• MENU: Picture/Sound/Setup menu are invalid

13
6 Troubleshooting Guide
Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
6.1. Check of the IIC bus lines
6.1.1. How to access
Self-check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
Self-check indication and forced to factory shipment setting:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote con-
trol for more than 3 seconds.
6.1.2. Screen display
6.1.3. Check Point
Confirm the following parts if NG was displayed.
6.1.4. Exit
Disconnect the AC cord from wall outlet or switch off the power with the [POWER] button on the main unit.

14
6.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

15

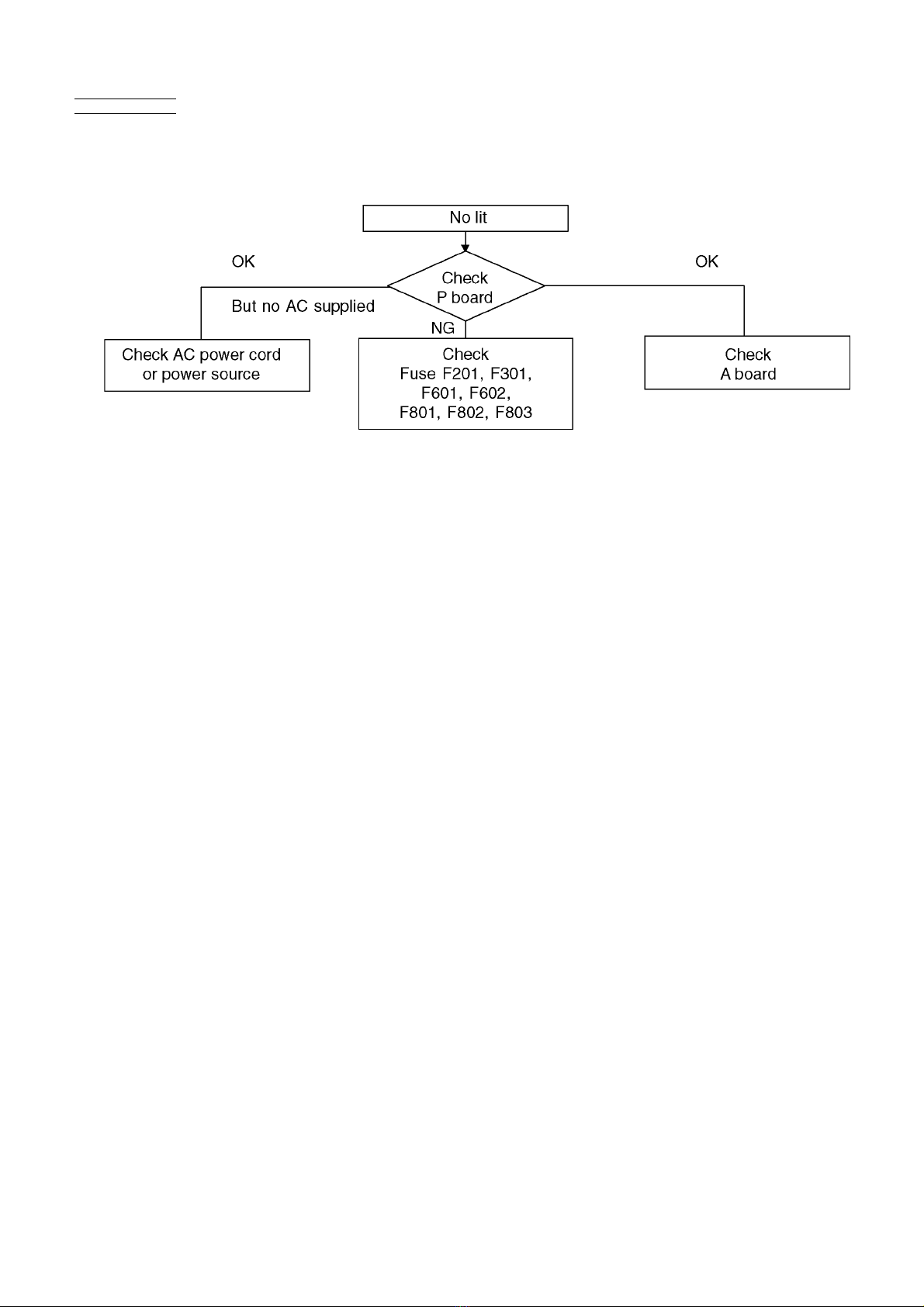

6.3. No Power
First check point
There are following 2 states of No Power indication by power LED.
1. No lit
2. Red is lit then turns red blinking a few seconds later. (See 6.2.)

16
6.4. No Picture

17
6.5. Local screen failure
Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.
Fig-1

18
7 Disassembly and Assembly Instructions
7.1. Remove the Rear cover
1. See Service Hint. (Section 3)

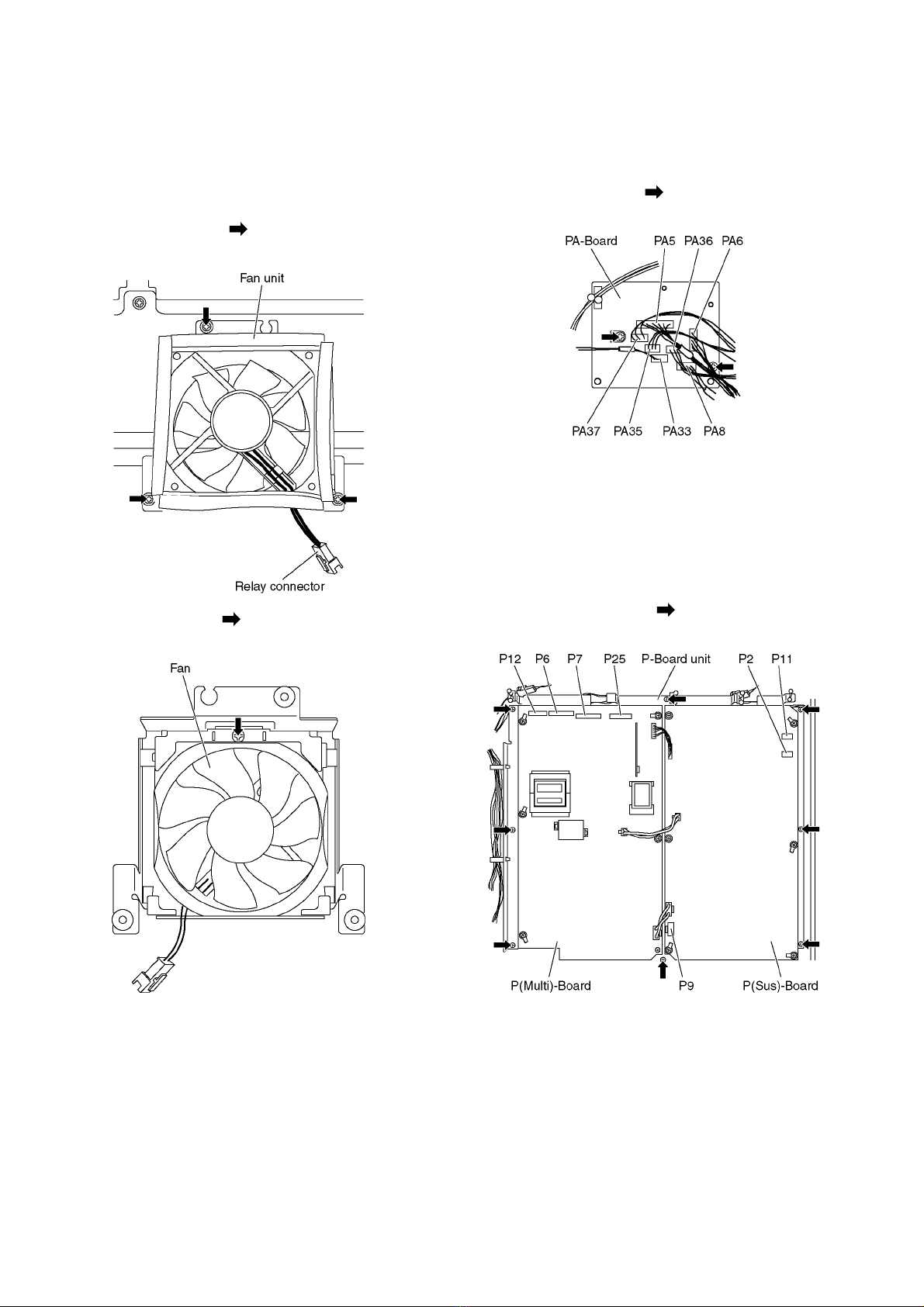

7.2. Remove the Fan unit
1. Unlock the cable clampers to free the cable.
2. Remove the screws (×3 ).
3. Remove the relay connectors and remove the Fan unit.
4. Remove the screw (×1 ) on the back side.
5. Remove the Fan.
7.3. Remove the PA-Board
1. Disconnect the connectors (PA5, PA6, PA8, PA33, PA35,
PA36 and PA37).
2. Remove the screws (×2 ).
3. Remove the PA-Board.
7.4. Remove the P-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for dis-
charge from electrolysis capacitors.
1. Unlock the cable clampers to free the cable.
2. Disconnect the connectors (P2, P6, P7, P9, P11, P12 and
P25).
3. Remove the screws (×8 ) and remove the P-Board
unit.

19
4. Remove the screws (×34 ) on the back side.
5. Disconnect the connectors (P51-P52, P53-P54 and P55-
P56).
6. Remove the screws (×12 ).
7. Remove the molding props (×6 ).
8. Remove the P(Multi)-Board.
9. Remove the molding props (×6 ).
10. Remove the P(Sus)-Board.
Note:
When assembling the P(Multi)-Board and the P(Sus)-
Board, the position of each hole of the insulation sheets(A,
B, C, D) is set to the position of each hole of the P(Multi)-
Board and the P(Sus)-Board and then assemble them.
( marks indicate setting positions.)
P-Board backside
7.5. Remove the Rear Terminal
cover
1. Remove the screws (×2 , ×3 , ×1 ).
2. Remove the Rear Terminal cover.

20
7.6. Remove the tuner unit
1. Unlock the cable clampers to free the cable.
2. Disconnect the connectors (A1, A3, A5, A6, A7, A8, A9,
A11, A51, A53, H11 and H12).
3. Remove the screws (×4 ) and remove the tuner unit.
7.7. Remove the A-Board
1. Remove the tuner unit. (See section 7.7.)
2. Remove the bridge connector (A12, A13 and A14).
3. Remove the screws (×8 ) and remove the A-Board.
7.8. Remove the HC-Board
1. Remove the tuner unit. (See section 7.7.)
2. Disconnect the bridge connectors (A12, A13 and A14).
3. Remove the screws (×2 ) and remove the HC-Board.
7.9. Remove the Speaker box
(Woofer/L, Woofer/R)
1. Unlock the cable clampers to free the cable.
2. Disconnect the relay connectors.
3. Remove the screws (×4 each) and remove the
Speaker box (Woofer/L, Woofer/R).
