Panasonic Viera TC-P42X60H User manual

© Panasonic Corporation 2013.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.MTNC130470AE
42 inch Class 720p Plasma HDTV
Model No. TC-P42X60H
GPH16DU Chassis
TABLE OF CONTENTS
PAGE PAGE
1 Different points---------------------------------------------------- 2
1.1. Mechanical Replacement Parts List ------------------ 2
1.2. Electrical Replacement Parts List --------------------- 2
2 Block Diagram----------------------------------------------------- 3
2.1. Main Block Diagram -------------------------------------- 3
2.2. Block (1/4) Diagram--------------------------------------- 4

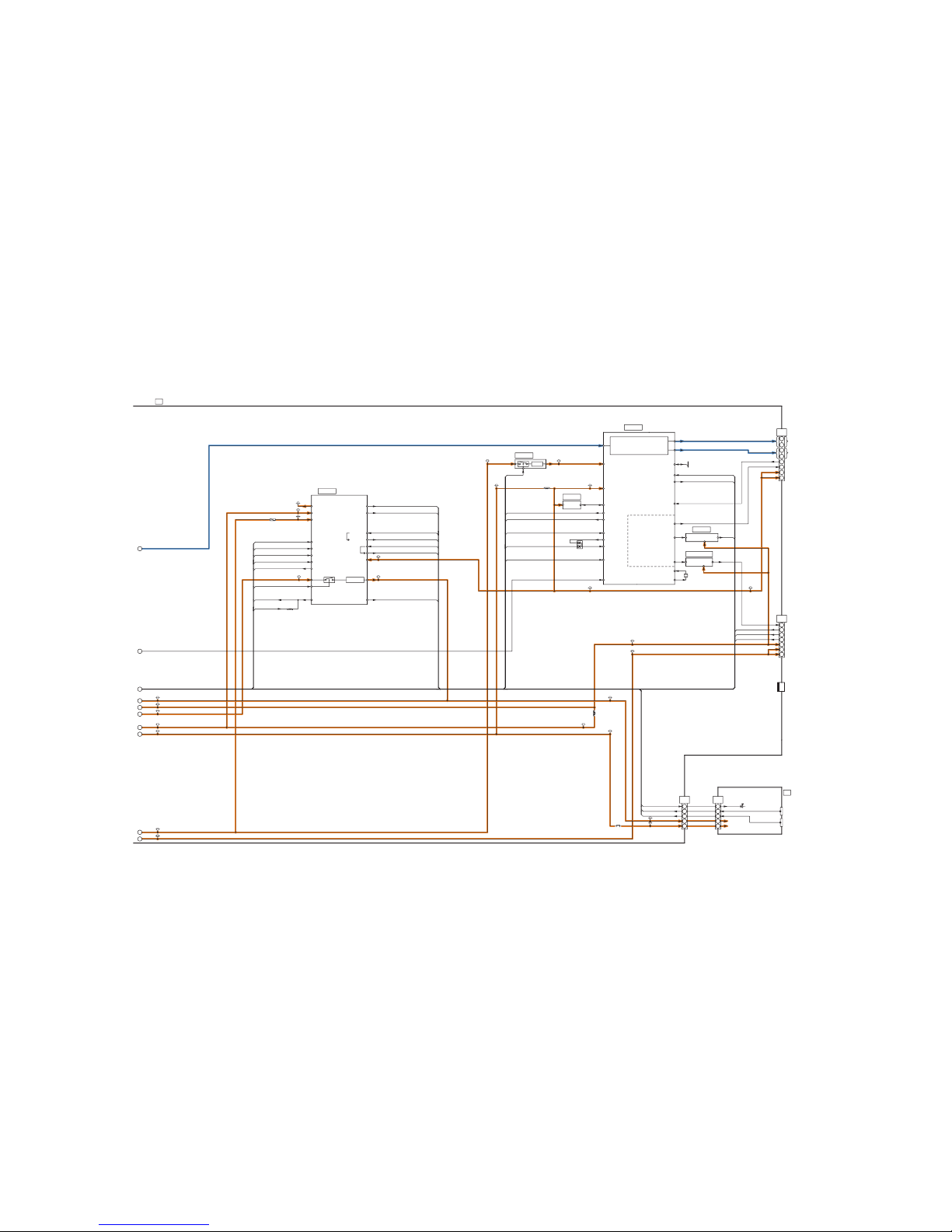

2.3. Block (2/4) Diagram--------------------------------------- 5
3 Schematic Diagram ---------------------------------------------- 6
3.1. A-Board (1/13) Schematic Diagram------------------- 6

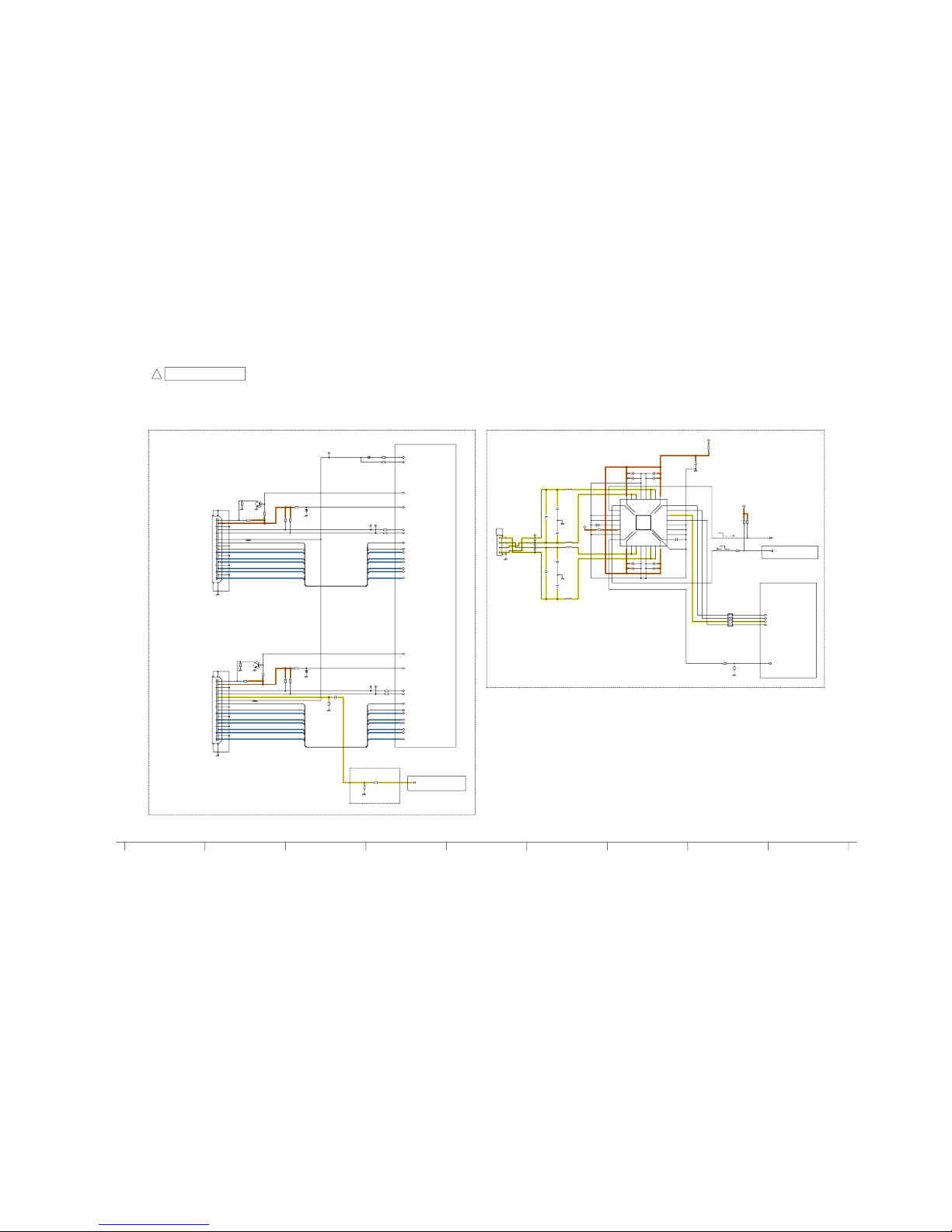

3.2. A-Board (2/13) Schematic Diagram------------------- 7
3.3. A-Board (3/13) Schematic Diagram------------------- 8

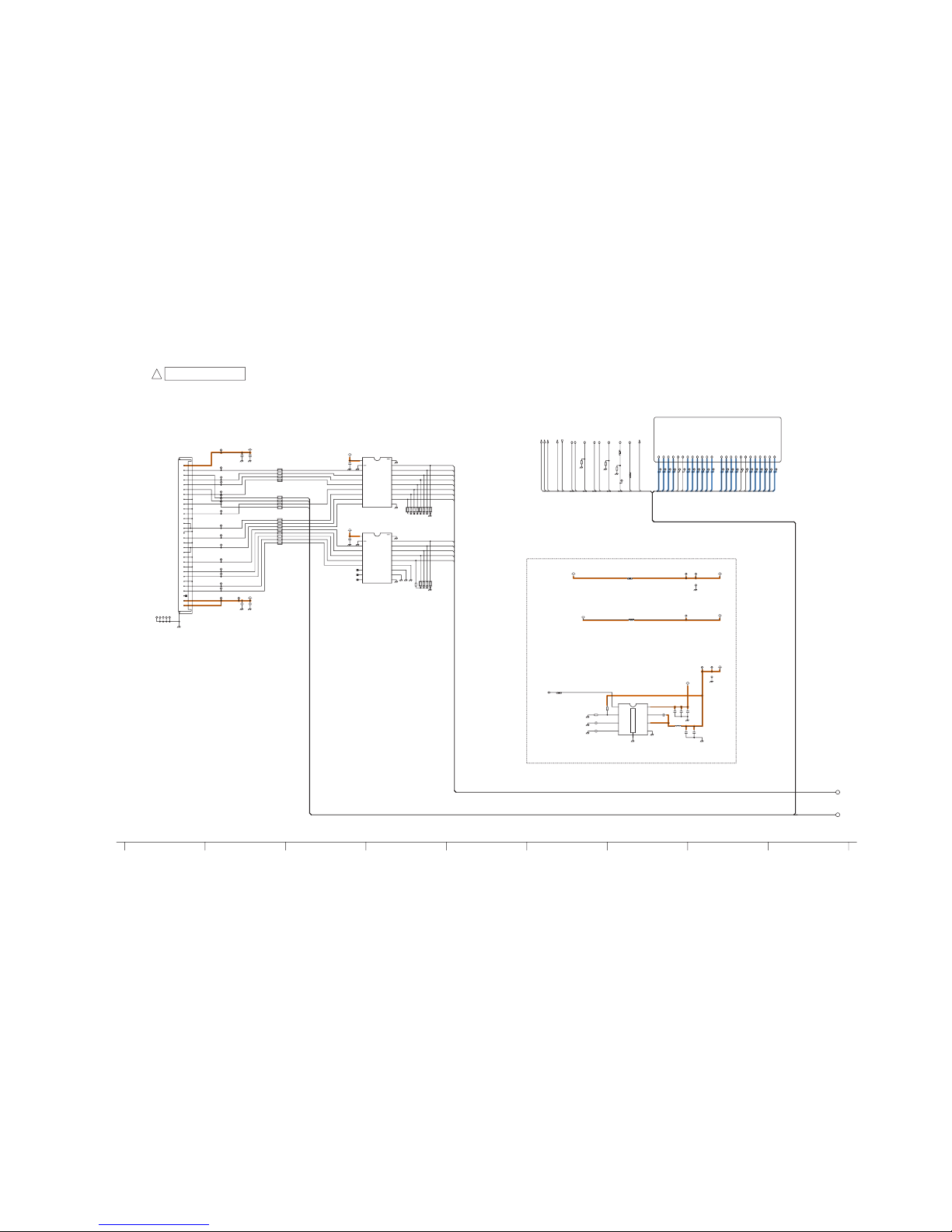

3.4. A-Board (4/13) Schematic Diagram------------------- 9
3.5. A-Board (5/13) Schematic Diagram------------------10
3.6. A-Board (6/13) Schematic Diagram------------------ 11
3.7. A-Board (7/13) Schematic Diagram------------------12
3.8. A-Board (8/13) Schematic Diagram------------------13
3.9. A-Board (9/13) Schematic Diagram------------------14

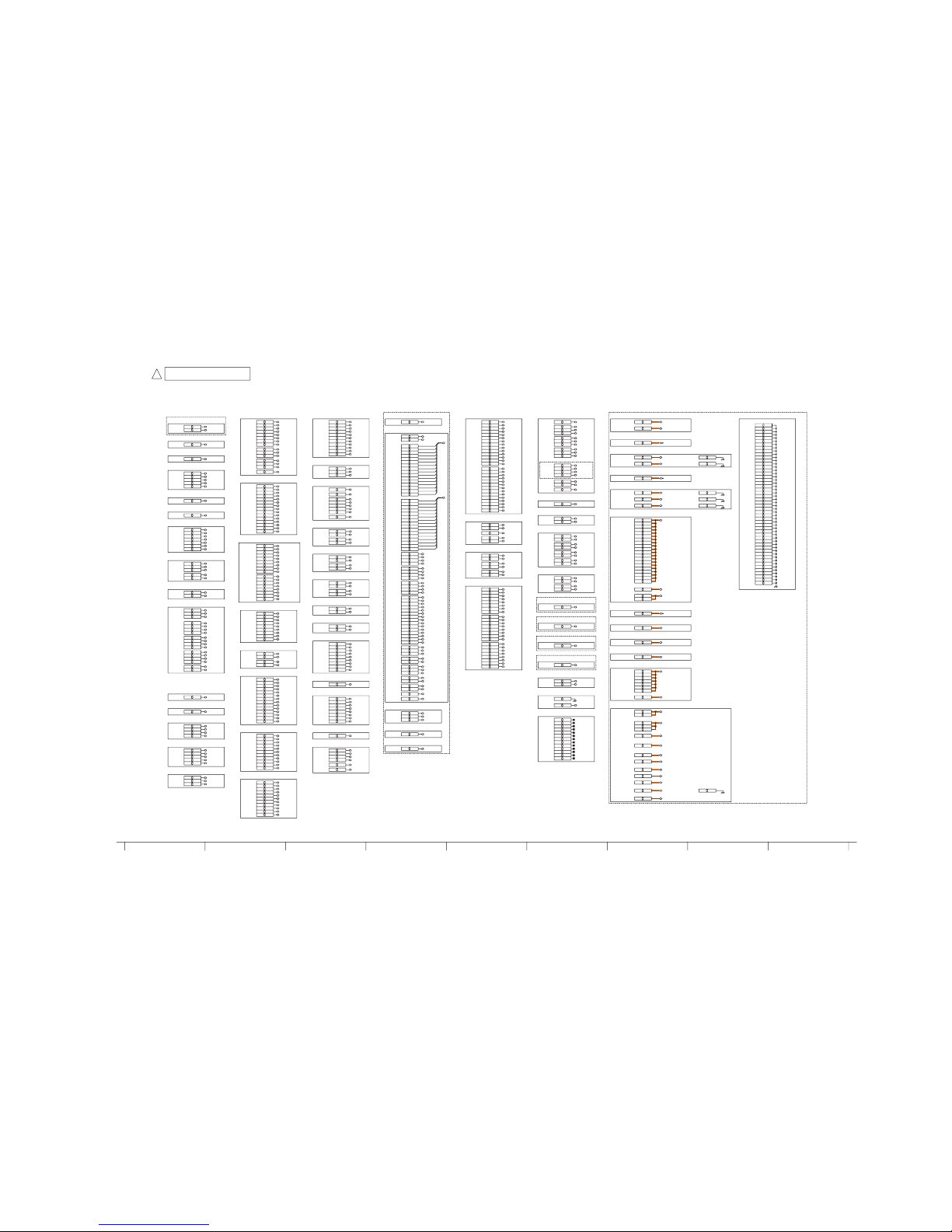

3.10. A-Board (10/13) Schematic Diagram ----------------15
3.11. A-Board (11/13) Schematic Diagram ----------------16
3.12. A-Board (12/13) Schematic Diagram ----------------17
3.13. A-Board (13/13) Schematic Diagram ----------------18
4 Printed Circuit Board-------------------------------------------19

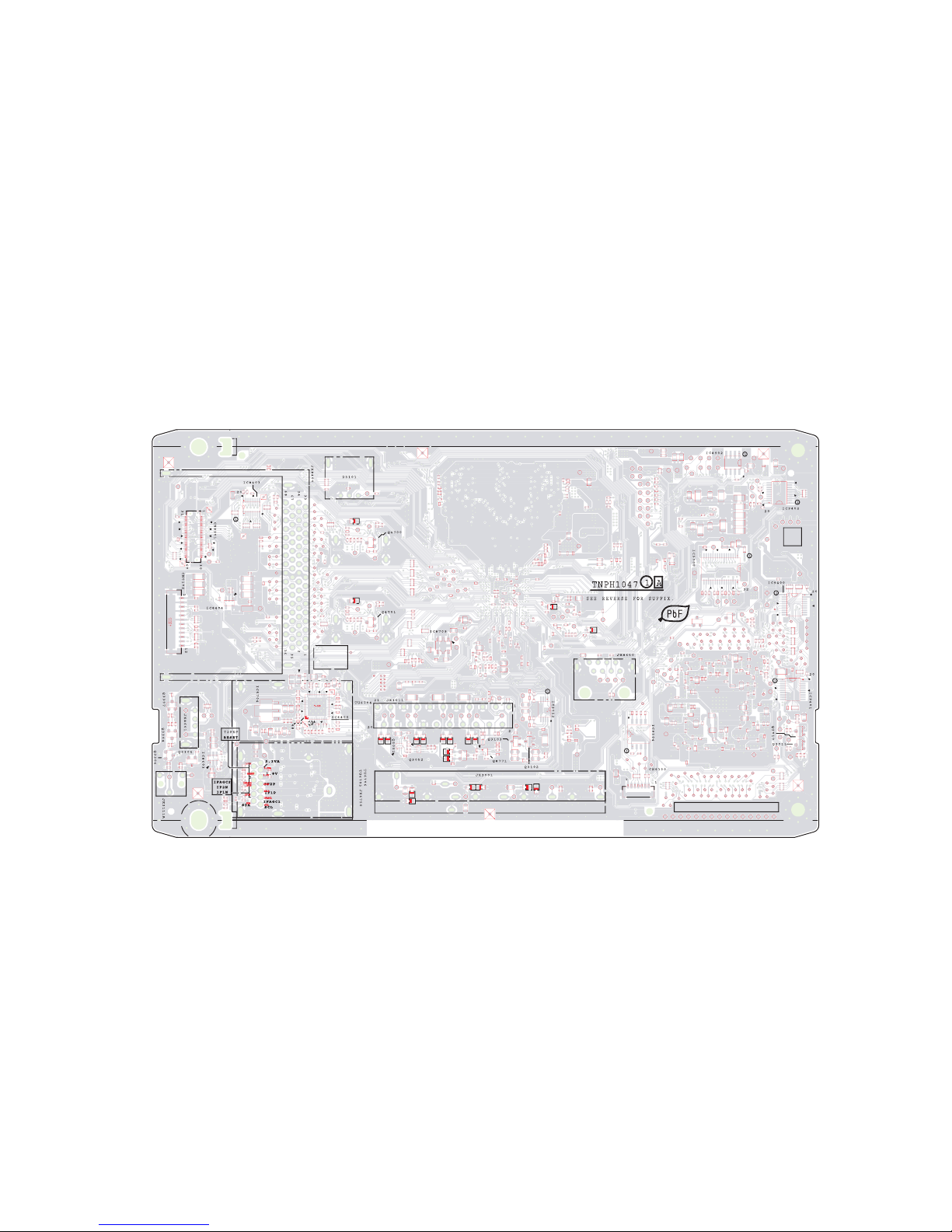

4.1. A-Board (Foil side) ---------------------------------------19
4.2. A-Board (Component side)-----------------------------20
5 Exploded View and Replacement Parts List -----------21
5.1. Electrical Replacement Parts List --------------------21
Please file and use this manual together with the service manual for Model No.
TC-P42X60, ORDER NO. MTNC130218CE.

2
1 Different points
1.1. Mechanical Replacement Parts List
1.2. Electrical Replacement Parts List
Ref. No. Parts No. Parts name & Description Pcs Remarks
TC-P42X60 TC-P42X60H
1MD42H16C2A MD42H16C5A PLASMA DISPLAY PANEL 1 PAVCA
33 N2QAYB000820 N2QAYB000822 REMOTE CONTROL 1 PAVCA
TEWB633 ----- GASKET (T2XW7XL15) 0
----- TEWB389 GASKET(T2*W7*L20) 1 PAVCA
----- THTD030J SCREW(STA_BRA-CON_MET:1 BC:24
CAB-CON_MET:3)
28
34 TQB2AA0705 TQB2AA0695 INSTRUCTION BOOK(ENGLISH/
SPANISH)
1PAVCA
TUX2AE0631 ----- ATTACHMENT METAL 0
----- TUX5ZE0244 SIDE SHIELD METAL 1 PAVCA
16 TXFKU1513SER TXFKU2413SER REAR COVER 1 PAVCA
----- XTB4+8GFJ SCREW(CAB-FE_CH:2) 2
----- XTV3+8GFJK SCREW 2
----- XYN3+F6FJ SCREW(C:8) 8
----- XYN3+F6FJ SCREW(PSS:5 SN:5) 10
----- XYN3+F6FJ SCREW(A-PRINT:4) 4
----- XYN3+J10FJ SCREW 8
----- XYN3+J10FJ SCREW 4
----- XYN4+E6FJ SCREW(INLET:1) 1
----- XYN4+F8FJ SCREW(M8_MTL:4) 4
----- XYN4+F8FJ SCREW(STD_BRA-CH:4 STD_BRA-
CONT_METAL:1)
5
----- XYN5+F18FN SCREW 5X18 4
Ref. No. Parts No. Parts name & Description Pcs Remarks
TC-P42X60 TC-P42X60H
PCB TXN/A1UNUUS TXN/A1UAUXS CIRCUIT BOARD A 1 (RTL)PAVCA

3
2 Block Diagram
2.1. Main Block Diagram
(LED:10TIMES)
(LED:6TIMES)
(LED:8TIMES)
(LED:12TIMES)
(LED:9TIMES)
(LED:10TIMES)
(LED:2TIMES)
(LED:7TIMES)
(LED:6TIMES)
(LED:6TIMES)
COLD
(LED:8TIMES)
HOT
(LED:7TIMES)
P
P
L/R
V/YPbPr/RGB
USB
ARC
(HDMI2)
P5V
TUNER_POWER_SOS
SUB3.3V
A1
L/R
DMD IIC1
SOS7_SC2
PD5L
STB3.3V
SOS8_SS
SPI
FLASH
AUDIO
SOS8_SS
PANEL_MAIN_ON
USB_DP/DN
SCAN CONTROL
C.A.T.S. SENSOR
SUSTAIN CONTROL
SOUND_SOS
DIGITAL
DCDC
SOS7_SC2
F15V
SUB3.3V
ANALOG-ASIC
SUB1.1V
C.A.T.S_SENSOR
TUNER_POWER_SOS
P15V
SUB1.5V
MAIN AV INPUT,PROCESSING
F15V
STB5V
P5V
SUB3.3V
DCDC
ICEOUT
EU_TU_1.8V
A20
SUB3.3V
SUB5V
F15V
SOS_DCC
SOS6_SC1
DDR3
A12
PANEL_MAIN_ON
USB_DP/DN
P15V
PANEL_SOS
SUB5V
STB3.3V
POWER LED
EU_TU_1.8V
DCDC
TMDS DATA
AUDIO OUT
HDMI1,2
V/YPbPr/RGB
PANEL_SOS
SPEAKER(R)
NAND
FLASH
AV IN
LVDS DATA
REMOTE_RECEIVER
STM
K
HDMI I/F
L
SOUND15V
R
PEAKS sLD8
REMOTE RECEIVER
C.A.T.S_SENSOR
P3.3V
SUB3.3V
P15V_DET
NAND FLASH I/F
P5V
DCDC
REMOTE_IN
SUB5V
STB3.3V
DCDC
P1.2V
ASDOUT0
P1.2V
P3.3V
DIGITAL AUDIO OUT
DCDC
SUB1.5V
SOS6_SC1
DCDCIN
P15V
P3.3V
SUB1.1V
TEMP
SENSOR
SUB3.3V
VIDEO DATA
A30
LVDS I/F
SUB3.3V_SENSE
AMP
SUB5V
SPEAKER(L)
ARCOUT
STB5V
K10
A
DDR3 I/F
RF_I_P/N IF_P/N IF_P/N
RF IN TUNER
R_LED_ON LED_R
VIDEO/
COMPONENT
DCDC
HDMI3.3V
HDMI3.3V
KEYSCAN KEY3
KEYSCAN KEY3
(FFC_OFF_DET)D_UHZ
A6A
MID
VDA
DATA
DRIVER
P3.3V
VDA
DATA
DRIVER
P3.3V
POWER
FACTOR
CONTROL
P3.3V
SCAN CONTROL
SN2
P15V
F15V
SN-BOARD
ENERGY RECOVERY
SOS DETECT
STB5V
SOS7_SC2
SOUND15V
RECTIFIER
VIDEO DATA
C25
MAIN
CONVERTER
C20C10
RECTIFIER
VDA
BUFFER
SCAN DRIVE
STANDBY
VOLTAGE
CONVERTER
P3.3V
AC CORD
DATA
DRIVER
SCAN
DRIVER
VAD GEN.
C21
VSCAN GEN.
DATA
DRIVER
SN
SOS8_SS
P5V
SUSTAIN CONTROL
DATA
DRIVER
VIDEO DATA
P15V
CONTROL
PULSE
DATA
DRIVER
MID
VIDEO DATA
VDA
OPERATION
KEYS
KEYSCAN
DATA
DRIVER
MID
PSS
SOS6_SC1
KEY BUTTON
RELAY
P35
KEY3
P15V
POWER SUPPLY, SUSTAIN DRIVE
VSUS
POWER SW
DATA DRIVER (LEFT)
F15V
C1 C2
VSUS
P6
VDA
SS-BLOCK
SCAN
DRIVER
P9
DATA
DRIVER
VDA
SOUND15V
SN-BOARD
SCAN DRIVE
SOS DETECT
VSUS
DATA DRIVER (RIGHT)
P5V
PANEL_
MAIN_ON
STB5V
P2
SN20
VSUS
VIDEO DATA P3.3V
