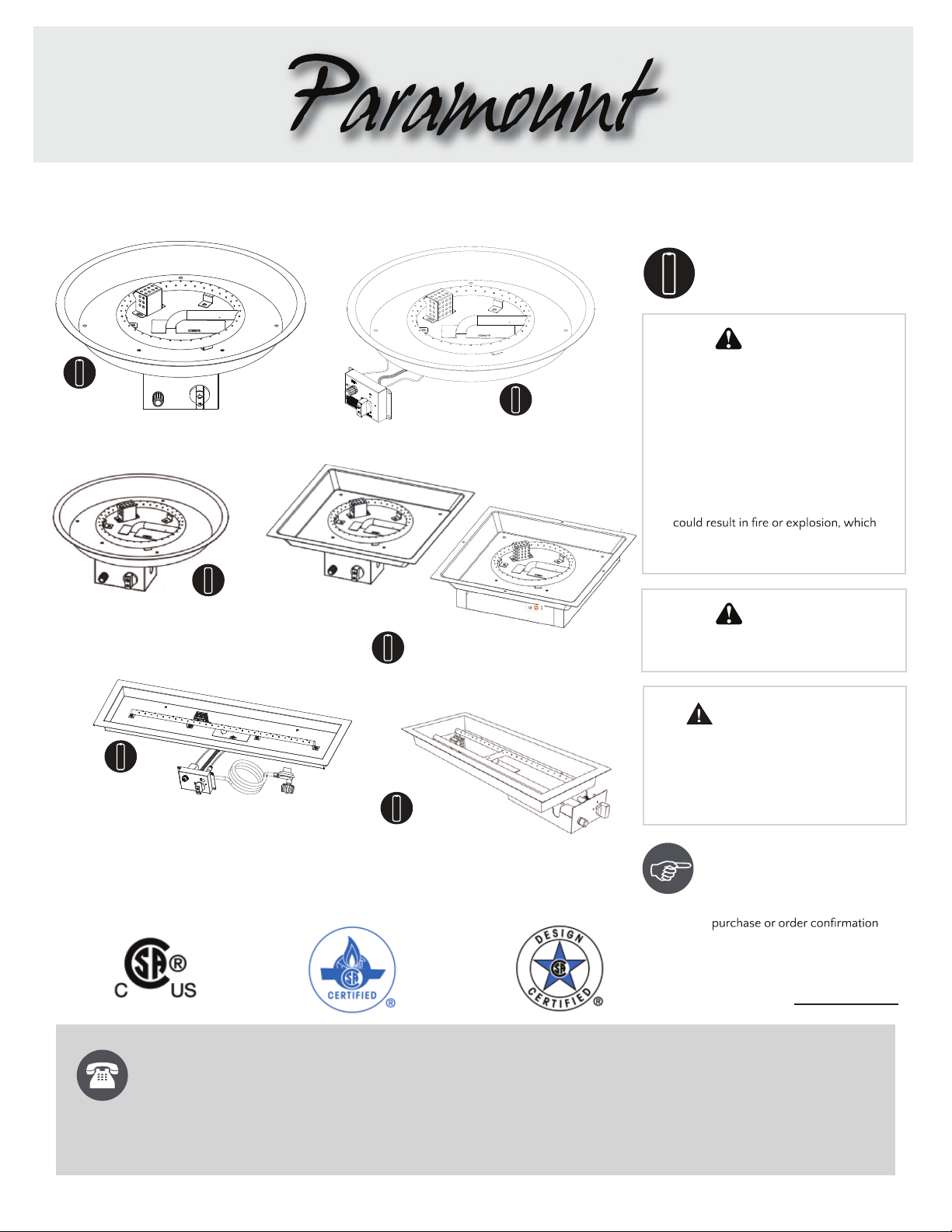

Paramount Fitness FPB-RD-007 User manual

Convertible Burner
[email protected] or call us toll-free at
[phone], 7:30 a.m. – 4:00 p.m., PST, Monday – Friday .
WARNING
FOR YOUR SAFETY
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
Maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions
could cause property damage, personal
injury, or death.
WARNING
For Outdoor Use Only
ATTACH YOUR
RECEIPT HERE
Keep a copy of your proof of
which will be needed if you
need to contact us about
warranty coverage.
Purchase Date:
WARNING
This product can expose you to chemicals
including carbon monoxide which is known to the
State of California to cause birth defects or other
reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Questions, problems, missing parts?
Before returning to your retailer, contact our exceptional customer service.
Contact us by email at
Model # : FPB-RECT-003
Item #: ULC-PZ18-C-E Model # : FPB-RECT-002
Item #: ULC-PC75-H-E
Item #: ULC-PZ48-C-E
Model # : FPB-RD-002
Item #: ULC-PY54-C-E
Model # : FPB-RD-006
Item #: ULC-PY19-C-E
Requires
(1) AAA
Model # : FPB-RD-007
Item #: ULC-PY19-C-E
Requires
(1) AA
Requires
(1) AAA
Requires
(1) AAA
+
_
Electronic ignition.
Requires (1) AAA or (1) AA.
(Not Included)
+
_
Requires
(1) AAA
+
_
Requires
(1) AAA
+
_
+
_
+
_
+
_
Model # : FPB -SQ-001
Model # : FPB-SQ-005
Item #: ULC-PZ48-C-E

Page 28-31
Page 27
Page 26
Page 25
Page 21-24
Page 5-8
Page 15-21
Page 9-14
TABLE OF CONTENTS
BEFORE YOU BEGIN
Please read and understand this entire manual before attempting to assemble, operate or install
this appliance.
This manual contains important information about the assembly, operation and maintenance of this
this manual. Keep this manual for future reference and to educate new users of this appliance.
Page 2
Table of Contents/Before You Begin
Page 3-4
Safety Information
Operating Instructions
Converting from Propane Natural Gas
Care and Maintenance
Troubleshooting / Warranty Information
Warranty Information
Contact us for assistance: [email protected] | [phone] 2
/Operation/Safety
of

Contact us for assistance: [email protected] | [phone]

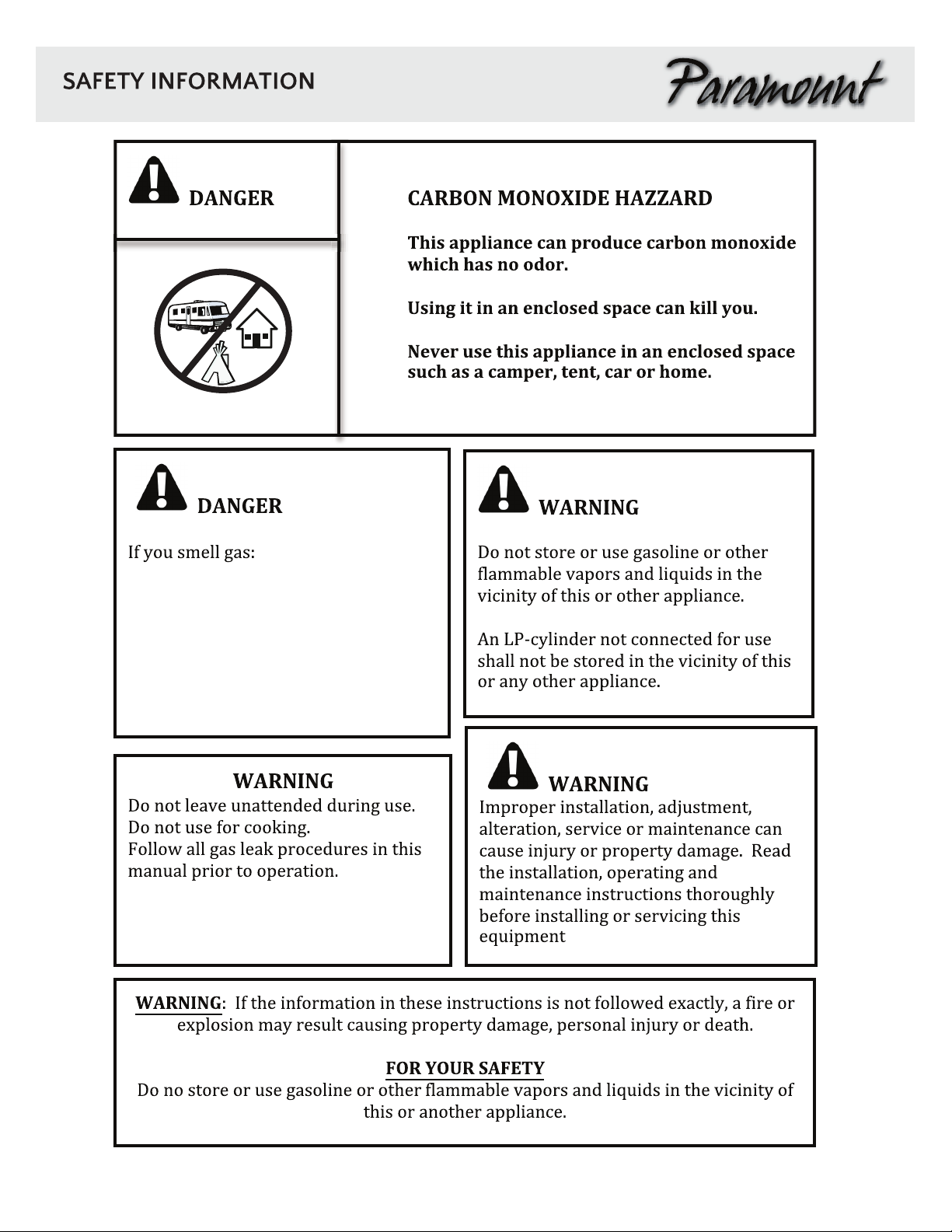

SAFETY INFORMATION
SAFETY INFORMATION
This appliance has been tested to and
complies with the ANS Z 21. 7-201 , Outdoor
Decorative Gas Appliances
Outdoor Gas Fireplaces. The installation must
conform to local codes or in the absence of
local codes to the National Fuel Gas Code.
ANS Z223.1. This manual contains important
information about the assembly, operation and
maintenance of this appliance. General
few pages and is also located throughout
the manual. Keep this manual for future
reference and to educate new users of this
product. This manual should be read in
conjunction with the labeling on the product.
Safety precautions are essential when any
mechanical or gas fueled equipment is
involved. These precautions are necessary
when using, storing, and servicing. Using
the equipment with the respect and caution
demanded will reduce the possibilities of
personal injury or property damage. The
following symbols shown below are used
extensively throughout this manual. Always
heed these precautions, as they are essential
when using any mechanical or gas fueled
equipment.
DANGER
EXPLOSION—FIRE HAZARD
•Keep solid combustibles, such as building
materials, paper, or cardboard a safe
distance away from the appliance as
recommended by the instructions.
•Provide adequate clearances around air
openings into the combustion chamber.
•Never use the appliance in spaces which
do or may contain volatile or airborne
combustibles, or products such as
gasoline, solvents, paint thinner, dust
particles, or unknown chemicals.
• During operation, this appliance can be a
source of ignition. Keep appliance area clear
and free from combustible materials,
gasoline, paint thinner, cleaning solvents
Do not use the appliance in areas with high dust
content. Minimum appliance clearances from
combustible materials: 2 feet (24 inches)
from the sides & 2 feet (24 inches) from
the rear, 6 feet (72 inches) from ceiling.
•Never store propane near high heat, open
ignition sources or where temperatures
exceed 120 degrees F (49 degrees C).
•Propane vapors are heavier than air and
can accumulate in low places. If you smell
gas, leave the area immediately.
• Never install or remove a propane cylinder
pilot lights, or other ignition sources or
while the appliance is hot to the touch.
from top and 2 feet (24 inches) from sides.
• Store the propane cylinder outdoors in a
well ventilated space out of the reach of
children. Never store the propane cylinder
in an enclosed area (house, garage, etc.).
If the appliance is to be stored indoors, disconnect
the propane cylinder for outdoor storage.
WARNING
Failure to comply with the precautions and
instructions provided with this appliance can
result in death, serious bodily injury and
property loss or damage from hazards of
of carbon monoxide poisoning. Only
persons who can understand and follow
the instructions should use or service
this appliance.
WARNING
We cannot foresee every use which may be
made of our appliance. Check with your local
your appliance use, Other standards govern
the use of fuel gases and heat producing
authorities can advise you about these. If no
local codes exist, follow National Fuel Gas
Code, ANS Z223.1. In Canada, installation
must conform to local codes. If no local
codes exist, follow the current National
standards of CANADA CAN/CGA-B 149.2.
WARNING
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death.
Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
WARNING
Do not store or use gasoline or other
of this or any other appliance. An LP-cylinder
not connected for use shall not be stored in
the vicinity of this or any other appliance.
DANGER
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
3. If odor continues, keep away from the
appliance and immediately call your gas
WARNING / DANGER
WARNING/DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING:
FOR OUTDOOR USE ONLY
CARBON MONOXIDE HAZARD
This appliance is a combustion appliance.
All combustion appliances produce carbon
monoxide (CO) during the combustion
process. This product is designed to
produce extremely minute, non-hazardous
amounts of CO if used and maintained
in accordance with all warnings and
out of the appliance.
• Carbon Monoxide (CO) poisoning
headaches, dizziness, fatigue and possibly
death. You can’t see it and you can’t smell
it. It’s an invisible killer. If these symptoms
are present during operation of this
product get fresh air immediately!
• For outdoor use only.
• Never use inside house, or other
unventilated or enclosed area.
This appliance consumes air (oxygen) Do
not use in unventilated or enclosed areas
to avoid endangering your life.
This appliance is red hot during use and can
and vapors well away from the appliance.
3

1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away
from the appliance and
immediately call your gas
supplier or fire department.
Contact us for assistance: [email protected] | [phone] 4

5
ULC-PY19-C-E :
Model # :

6
SPECIFICATIONS - FPB-RD-007 & FPB-RD-006

7

Contact us for assistance: [email protected] | [phone] 8

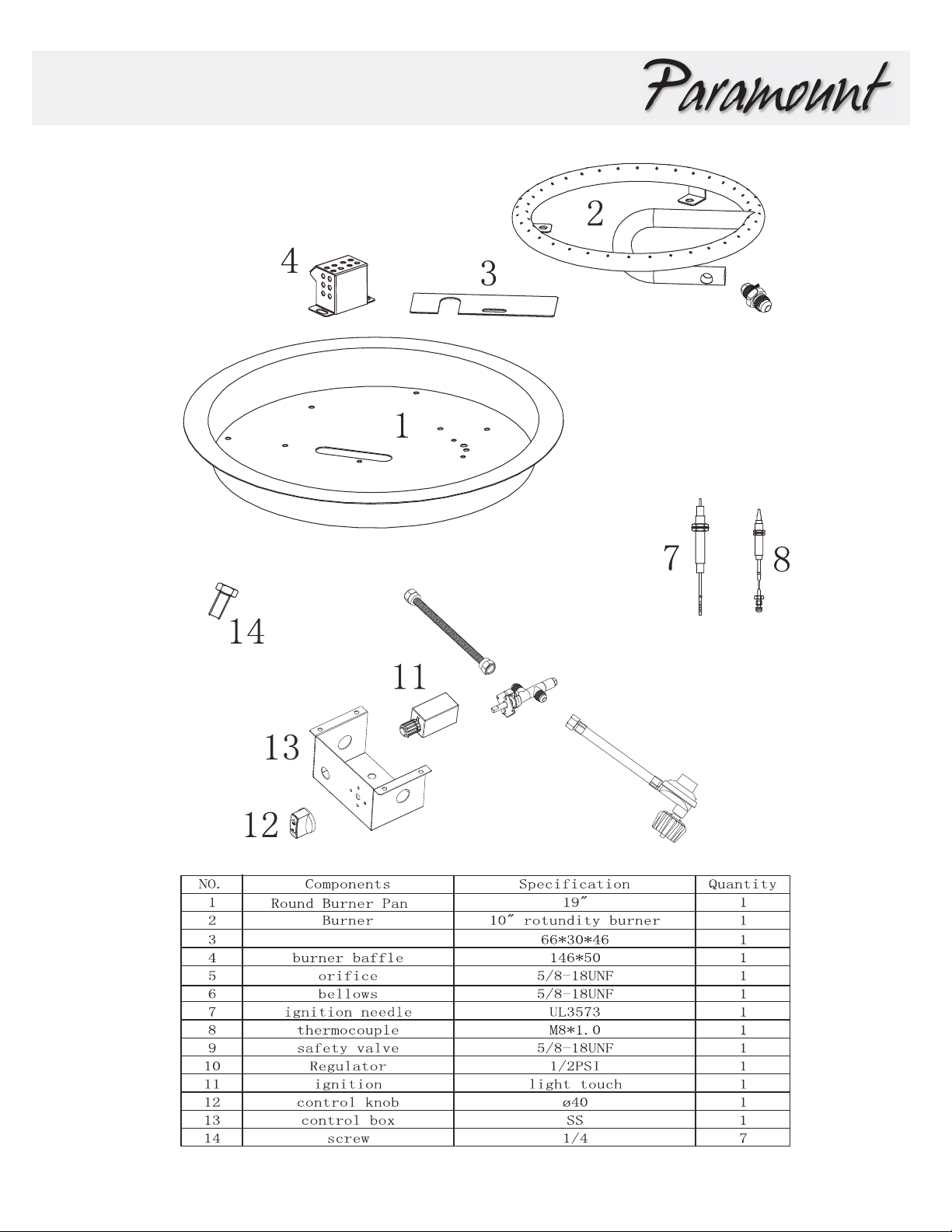

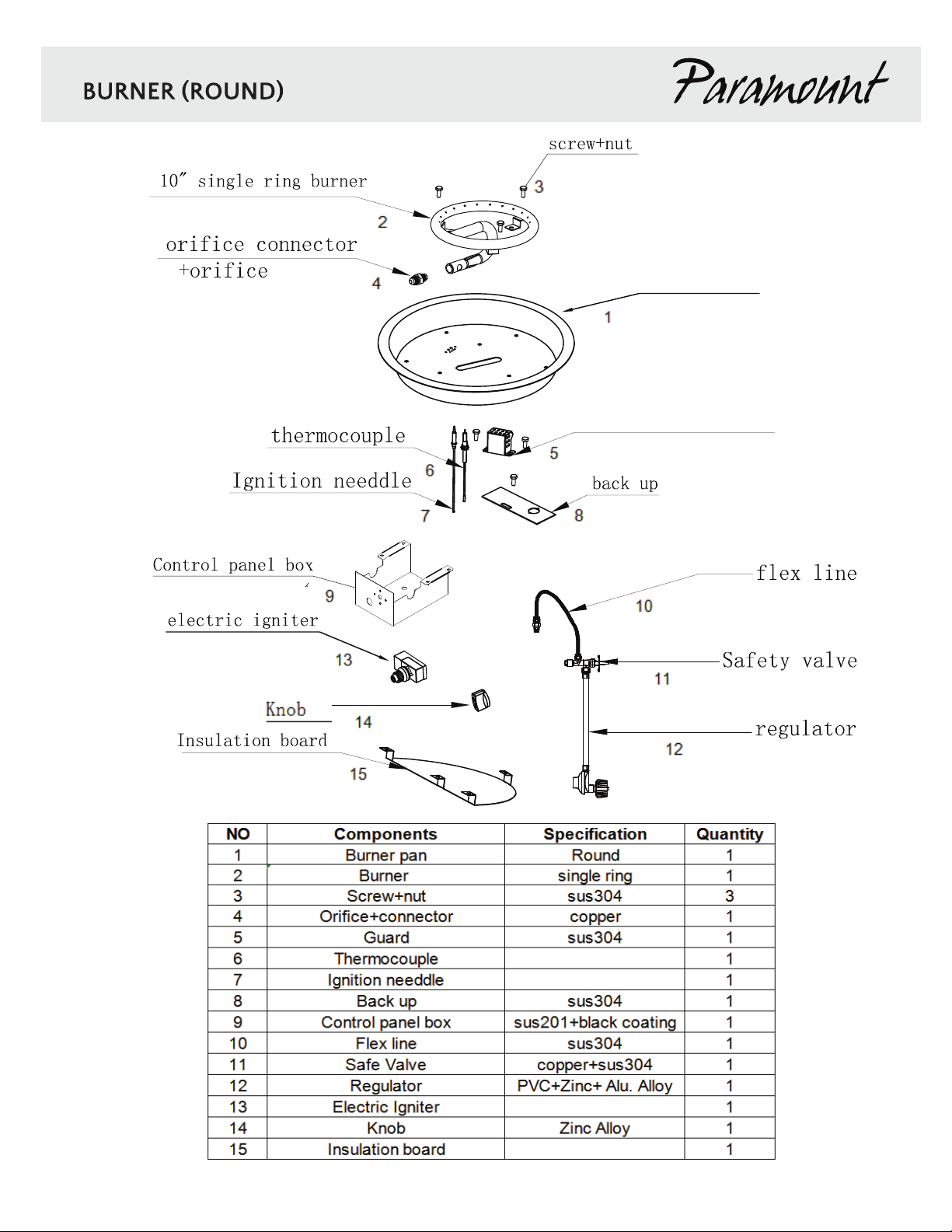

PARTS LIST -
Contact us for assistance: [email protected] | [phone] 9
Model # : FPB-RD-006
Item #: ULC-PY19-C-E

10
10
9
5
back up burner plate
Contact us for assistance: [email protected] | [phone] 10

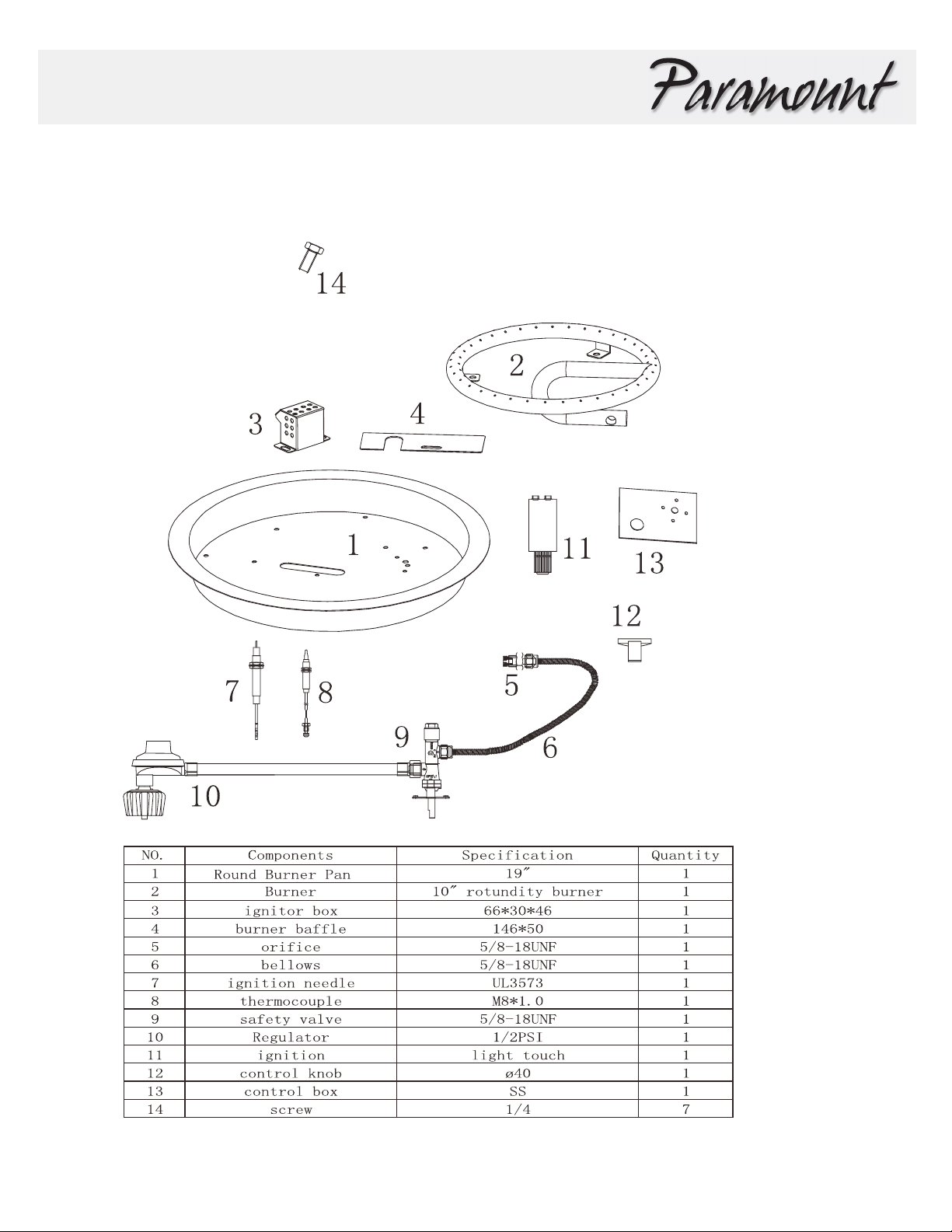

PARTS LIST - Model # : FPB-RD-007
Item #: ULC-PY19-C-E

Contact us for assistance: [email protected] | [phone] 11

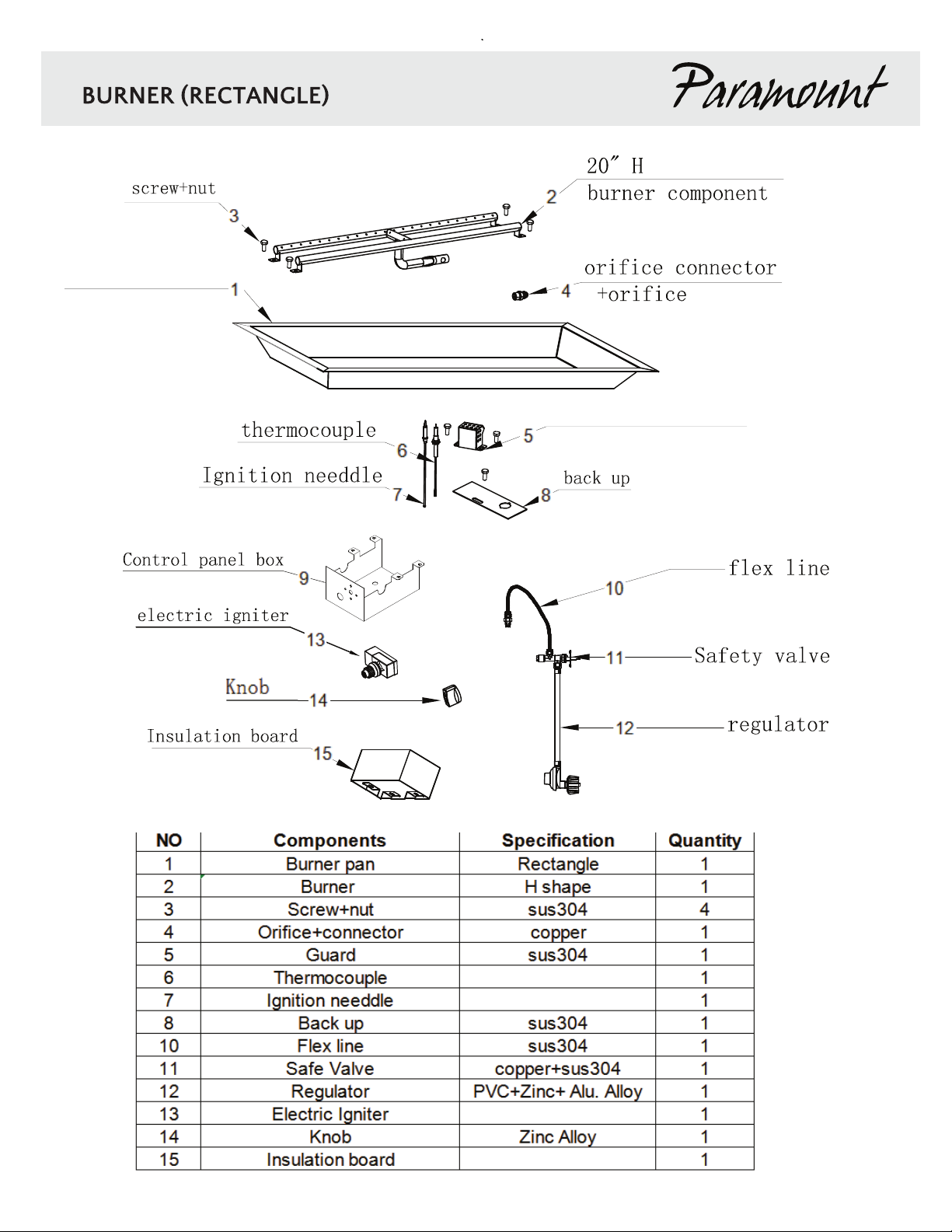

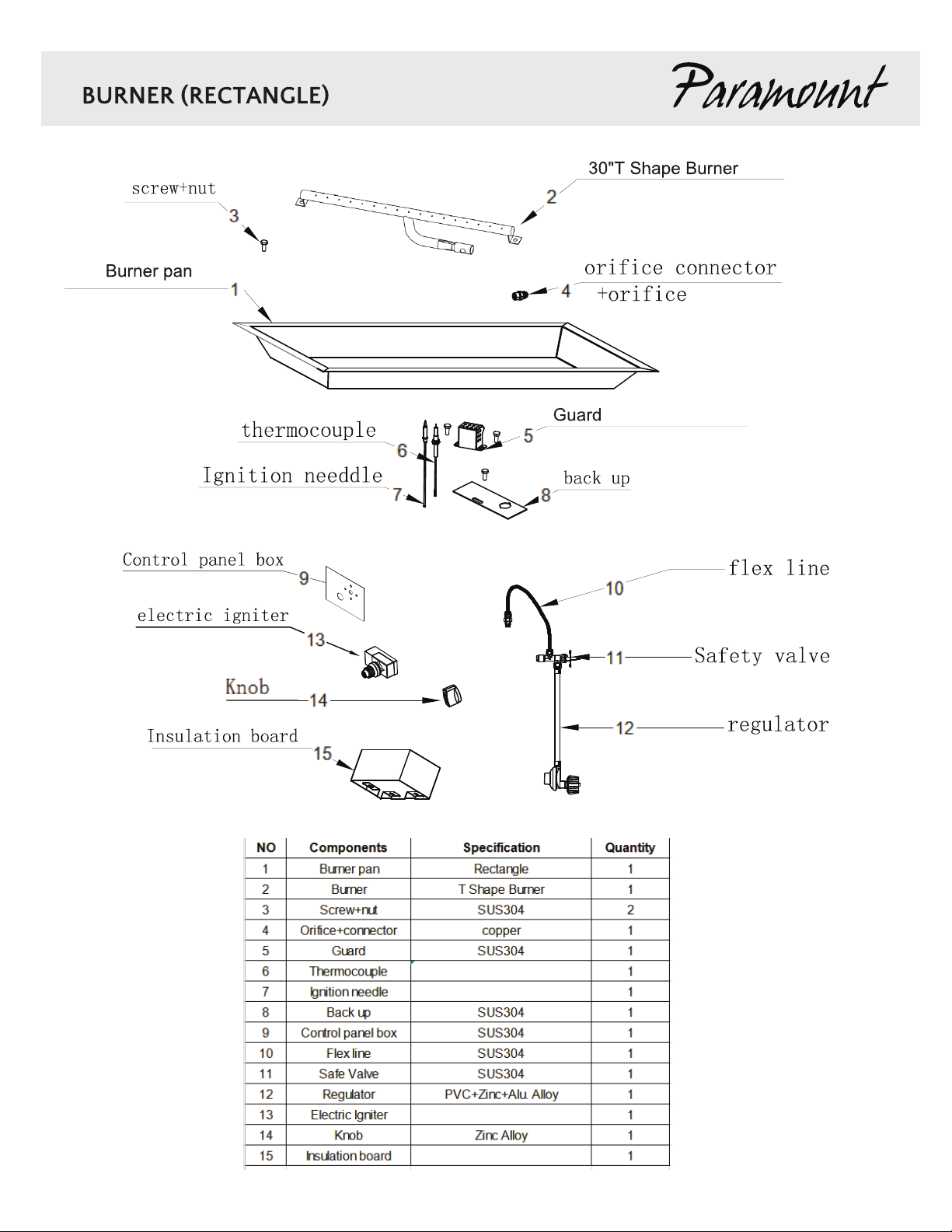

Model # : FPB -RECT-003
Item #: ULC-PZ18-C-E

Lore
Contact us for assistance: [email protected] | [phone] 12
Model No : FPB-SQ-001 & FPB-SQ-005
Item No :

Burner pan
Guard
Contact us for assistance: [email protected] | [phone] 13
Model # : FPB-RECT-002
Item #: ULC-PC75-H-E

Burner pan
Guard
Contact us for assistance: [email protected] | [phone] 14
Model # : FPB-RD-002
Item #: ULC-PY54-C-E

15

16

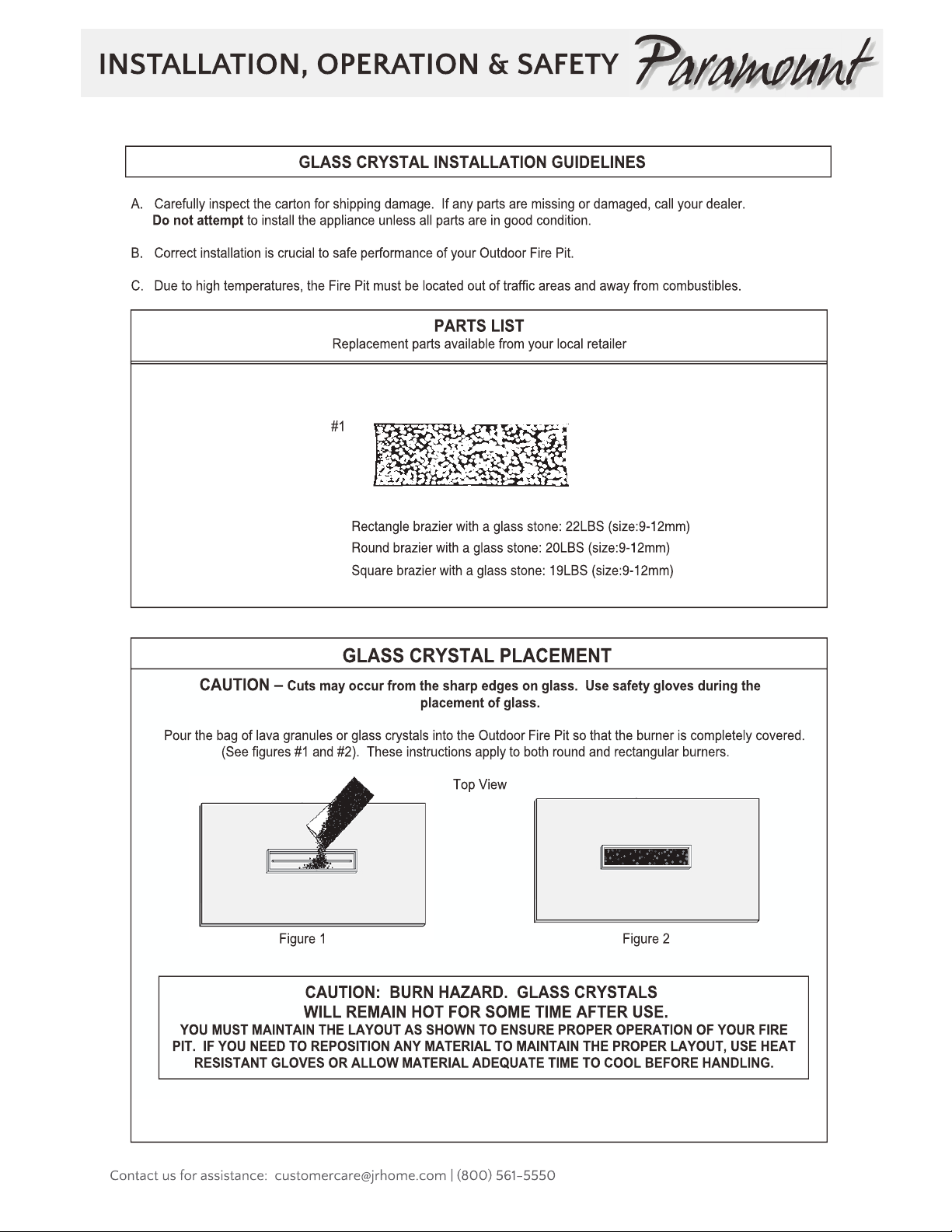

17

18

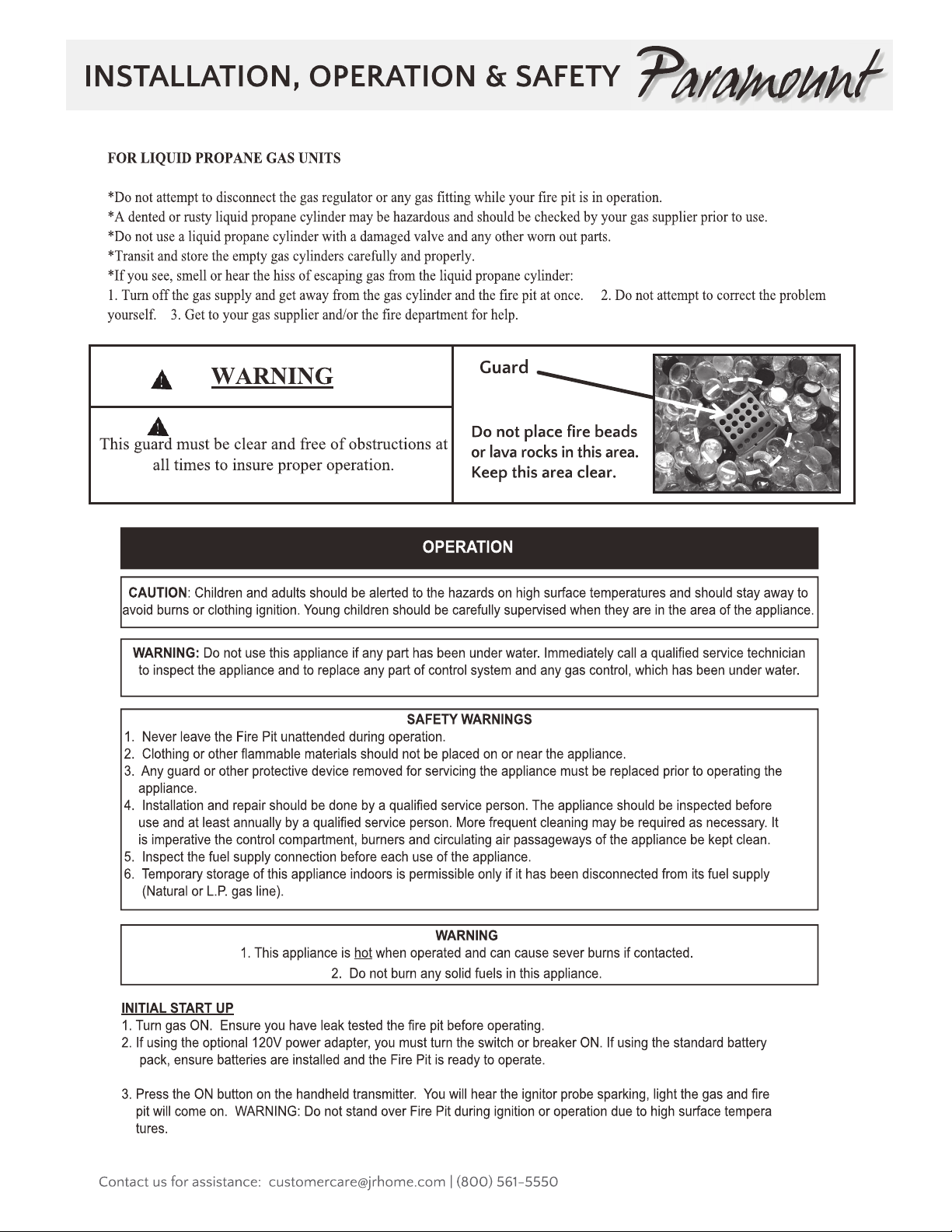

WARNING
*Do not use this fire pit for cooking.
*Do not burn any other materials than are supplied with and intended for use in this fire pit.
*Do not pour water into fire pit.
*The installation of this product must conform with local codes.
*Do not use this fire pit if any part has been under water.
*Do not store a spare or disconnected liquid propane cylinder under or near this fire pit.
*After a period of storage, and/or non use, the propane fire pit should be checked for gas leaks and burner obstructions before use.
*Do not operate the propane fire pit if there is a gas leak present.
*Never use a flame to check for gas leaks.
*Combustible materials should never be within 10 feet of the top, back or sides of your propane fire pit.
*Do not put any other fire pit cover or anything flammable on, or beneath the fire pit.
*The propane fire pit should never be used by children. Children must be supervised when they are anywhere near the appliance.
*Users should be alerted to the hazards of high surface temperatures and keep a safe distance to avoid burning or clothing ignition.
*Pay attention when operating the fire pit. It is hot in use and should never be left unattended. Do not move it while in operation.
*Should fire go out while burning, turn the gas valve off. Follow the instruction and wait five minutes before attempting to relight.
*Never use charcoal or any other solid fuel in the fire pit. Never put clothing or other flammable materials on or near the fire pit.
*Never lean over the open fire pit or place hands or fingers on the upper portion of an operational unit.
*Keep ventilation openings in cylinder enclosure(FIRE PIT BODY) free and clear of debris.
*Do not rest feet on the fire pit.
*Please take out the battery when not using the fire pit for an extended length of time.
*Do not enlarge valve orifices or burner ports when cleaning the valve or burner.
*Cylinder supply system must be arranged for vapor withdrawal
*LP Tank used must include a collar to protect the cylinder valve
*Never fill the cylinder beyond 80% full
*Liquid propane gas is not natural gas. Only use propane for this fire pit.
*The conversion or attempted use of natural gas in a liquid propane unit or liquid propane gas in a natural gas unit is dangerous
and should only be done by a service person.
*Do not use this fire pit on vehicles or boats. Always operate the appliance on flat ground outdoors.
*Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
*Do not use this fire pit unless all parts are in place.
*Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
*Inspect the hose before each use of the appliance
*The hose assembly must be replaced prior to the appliance being put into operation
if there is evidence of excessive abrasion or wear or if the hose is damaged.
2) provided with a listed overfilling prevention device; and
3) provided with a cylinder connection device compatible with the connection for the appliance.
* If the pvc component is damaged ,please send email to [email protected]
* Locating the hose out of pathways where people may trip over it or in areas where the hose may be subject to accidental damage.
* the burner must be replaced prior to the appliance being put into operation if it is evident that the burner is damaged.
* If the burner component be damaged,please send email to [email protected]
The LP-gas supply cylinder to be used must be:
1) constructed and marked in accordance with the U.S. Department of Transportation(D.O.T.)
Specificat ions for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable;
Contact us for assistance: [email protected] | [phone] 19

20
