PETROL LAWNMOWER
EN
OWNERS MANUAL
PPLM-21196

32
INTRODUCTION/INTENDED USE CONTENTS
WHAT'S IN THE BOX ............................................................................... 4-5
DESCRIPTION OF PRODUCT PARTS ......................................... 6-7
SAFETY INFORMATION ........................................................................ 8-9
SAFETY INSTRUCTIONS ...................................................................... 10-12
ASSEMBLY ........................................................................................................ 13-19
PREOPERATION .......................................................................................... 20-21
ENGINE STARTING PROCEDURE ............................................. 22-24
OPERATION ..................................................................................................... 26-28
MAINTENANCE ............................................................................................. 30-34
STORING YOUR MOWER .................................................................... 36
TRANSPORTING YOUR MOWER .................................................. 37
TROUBLESHOOTING ............................................................................. 38-39
SPECIFICATIONS ....................................................................................... 40
DECLARATION OF CONFORMITY ............................................... 41
This manual has been produced by Parker Products
Ltd. and should be kept with the product and
referenced for operation, maintenance and
troubleshooting.
This manual contains an overall description of the
product, together with all the necessary information for
using the product correctly and safely. It is highly
recommended that this manual is read prior to any
operation or maintenance of this product. The safety
precautions and warnings are to ensure your safety
and protect you from harm or damage to the product.
All photographs and drawings in this manual are
supplied by Parker Products Ltd. to help you with the
operation and maintenance of the product. The
information contained in this manual was accurate at
the time of production, however Parker Products Ltd.
may make modifications to the product without
notification.
This Petrol lawn mower has been designed for cutting
lawn areas in private house and hobby gardens.
The machine is to be used only for its prescribed
purpose, any other use is deemed to be a case of
misuse. The user/operator and not the
manufacturer will be liable for any damage or injuries of
any kind caused as a result of this.
Please note that our equipment has not been designed
for use in commercial, trade or industrial applications.
Our warranty will be voided if the machine is used in
commercial, trade or industrial businesses or for
equivalent purposes.

4

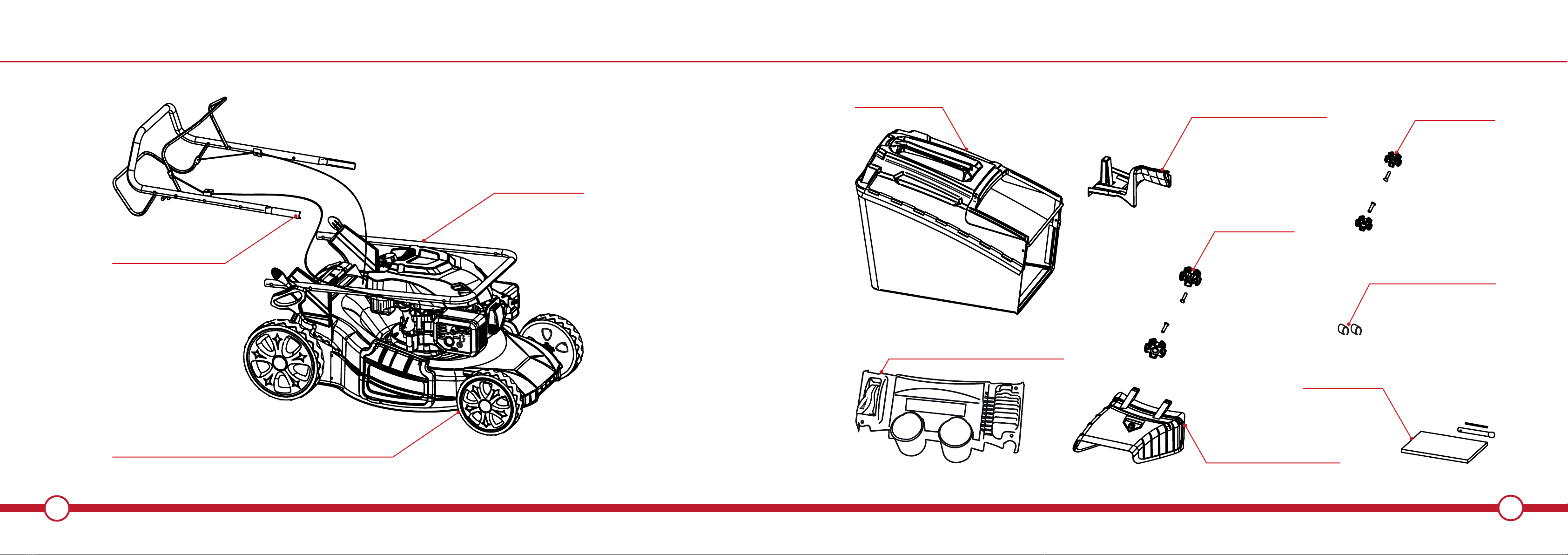

WHAT’S IN THE BOX
5
GRASS BAG
CABLE SECURING CLIPS
SIDE DISCHARGE CHUTE
MULCHING PLUG SMALL
FIXING KNOBS
SPARK PLUG
WRENCH
USER MANUAL
UPPER HANDLE
LOWER HANDLE
LARGE
FIXING KNOBS
PUNCTURE PROOF WHEELS
WHAT’S IN THE BOX
(SOMETIMES PRE-INSTALLED)
DRINKS HOLDER
(THROTTLE ASSEMBLY PRE INSTALLED)

6 7
LOWER HANDLE
FIXING KNOB

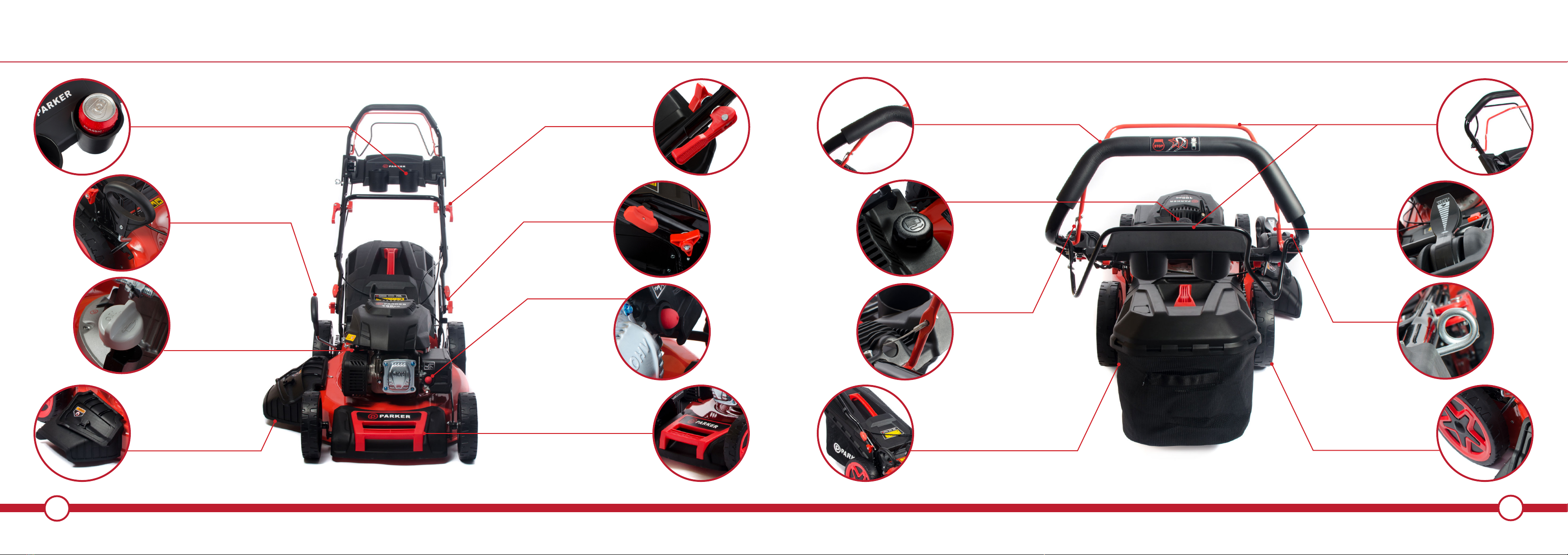

DESCRIPTION OF PRODUCT PARTS DESCRIPTION OF PRODUCT PARTS
SOFT GRIP HANDLE
FUEL TANK CAP
BRAKE LEVER
COLLECTION BAG
HANDLES
BRAKE LEVER (RED)
DRIVE LEVER (BLACK)
THROTTLE
PUNCTURE
PROOF WHEELS
ROPE GUIDE
DRINKS HOLDER
HEIGHT
ADJUSTMENT HANDLE
ENGINE OIL FILLER CAP
SIDE
DISCHARGE CHUTE
UPPER HANDLE
FIXING KNOB
FUEL PRIMER
FRONT CARRY HANDLE

8 9
REMOVE SPARK PLUG LEAD BEFORE
MAINTENANCE
RISK OF INJURY. DO NOT OPEN OR REMOVE
SAFETY SHIELDS WHILE ENGINE IS RUNNING.
WEAR EAR PROTECTION & EYE PROTECTION
WHEN OPERATING.
BEWARE OF SHARP BLADES
WARNING! EXHAUST GAS CONTAINS TOXIC
SUBSTANCES. DO NOT RUN THE ENGINE IN
CLOSED OR POORLY VENTILATED AREAS.
SAFETY INFORMATION
NEVER REFUEL WHILE THE ENGINE IS
RUNNING
DO NOT TOUCH THE MOVING PARTS OF THE
MACHINE UNTIL THEY ARE COMPLETELY
STOPPED.
GUARANTEED SOUND POWER LEVEL
CONFORMS TO CURRENT SAFETY
STANDARDS
WASTE ELECTRICAL PRODUCTS SHOULD NOT
BE DISPOSED OF WITH HOUSEHOLD WASTE.
PLEASE RECYCLE WHERE FACILITIES EXIST
CHECK YOUR LOCAL AUTHORITY OR
RETAILER FOR RECYCLING ADVICE
SAFETY INFORMATION
i
WARNING- To reduce the risk of injury, user must read instruction manual.
SAFETY INFORMATION
IMPORTANT
PLEASE READ THESE INSTRUCTIONS FULLY BEFORE ASSEMBLING AND OPERATING
Description Of Symbols.
Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explications which accompany them must be
perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents.
This symbol, before a safety comment, indicates a precaution, a warning or a danger. Ignoring this warning can lead
to an accident for yourself or for others. To limit the risk of injury, fire, or electrocution always apply the
recommendations indicated..
KEEP BY STANDERS AWAY.
HOT SURFACES WILL BURN FINGERS
OR PALMS

10 11
TRAINING
• Read the instructions carefully. Be familiar with the controls and the
proper use of the equipment.
• Never allow children or people unfamiliar with these instructions to
use the lawnmower. Local regulations can restrict the age of the
operator.
• Never mow while people, especially children, or pets are nearby.
• Keep in mind that the operator or user is responsible for accidents
or hazards occurring to other people or their property.
PREPARATION
• While mowing, always wear substantial footwear and long trousers.
Do not operate the equipment when barefoot or wearing open
sandals.
• Thoroughly inspect the area where the equipment is to be used and
remove all objects which can be thrown by the machine.
• Warning - petrol is highly flammable.
Store fuel in containers specifically designed for this purpose;
Refuel outdoors only and do not smoke while refuelling;
Add fuel before starting the engine. Never remove the cap of the fuel
tank or add petrol while the engine is running or when the engine is
hot;
If petrol is spilled, do not attempt to start the engine but move the
machine away from the area of spillage and avoid creating any
source of ignition until petrol vapours have dissipated;
Replace all fuel tank and container caps securely;
• Replace faulty silencers.
• Before using, always visually inspect to see that the blades, blade
bolts and cutter assembly are not worn or damaged. Replace worn
or damaged blades and bolts in sets to preserve balance.
• On multi-bladed machines, take care as rotating one blade can
cause other blades to rotate.
SAFETY INSTRUCTIONS. SAFETY INSTRUCTIONS.
OPERATION
• Do not operate the engine in a confined space where dangerous
carbon monoxide fumes can collect.
• Mow only in daylight or in good artificial light.
• Avoid operating the equipment in wet grass, where feasible.
• Always be sure of your footing on slopes.
• Walk, never run.
• For wheeled rotary machines, mow across the face of slopes, never
up and down.
• Exercise extreme caution when changing direction on slopes.
• Do not mow excessively steep slopes.
• Use extreme caution when reversing or pulling the lawnmower
towards you.
• Stop the blade(s) if the lawnmower has to be tilted for transportation
when crossing surfaces other than grass, and when transporting
the lawnmower to and from the area to be mowed.
• Never operate the lawnmower with defective guards, or without
safety devices, for example deflectors and/or grass catchers, in
place.
• Do not change the engine governor settings or over speed the
engine.
• Disengage all blade and drive clutches before starting the engine.
• Start the engine or switch on the motor carefully according to
instructions and with feet well away from the blade(s).
• Do not tilt the lawnmower when starting the engine or switching on
the motor, except if the lawnmower has to be tilted for starting. In
this case, do not tilt it more than absolutely necessary and lift only
the part which is away from the operator.
• Do not start the engine when standing in front of the discharge
chute.

SAFETY INSTRUCTIONS.
• Do not put hands or feet near or under rotating parts. Keep clear of
the discharge opening at all times.
• Never pick up or carry a lawnmower while the engine is running.
• Stop the engine and disconnect the spark plug wire , make sure that
all moving parts have come to a complete stop and, where a key is
fitted remove the key:
Before clearing blockages or unclogging chute;
Before checking, cleaning or working on the lawnmower;
After striking a foreign object. Inspect the lawnmower for damage
and make repairs before restarting and operating the lawnmower;
If lawnmower starts to vibrate abnormally (check immediately);
• Stop the engine and disconnect the spark plug wire, make sure that
all moving parts have come to a complete stop and, where a key is
fitted remove the key:
Whenever you leave the lawnmower;
Before refuelling;
• Reduce the throttle setting during engine shut down and, if the
engine is provided with a shut-o valve, turn the fuel o at the
conclusion of mowing.
• Go slow when using a trailing seat.
MAINTENANCE AND STORAGE
• Keep all nuts, bolts and screws tight to be sure the equipment is in
safe working condition.
• Never store the equipment with petrol in the tank inside a building
where fumes can reach an open flame or spark.
• Allow the engine to cool before storing in any enclosure.
• To reduce the fire hazard, keep the engine, silencer, battery
compartment and petrol storage area free of grass, leaves, or
excessive grease.
• Check the grass catcher frequently for wear or deterioration.
• Replace worn or damaged parts for safety.
• If the fuel tank has to be drained, this should be done outdoors.
12 13
ASSEMBLY
2
Once the wheel is secured to the spindle, snap the
decorative wheel facia into position to complete
installation.

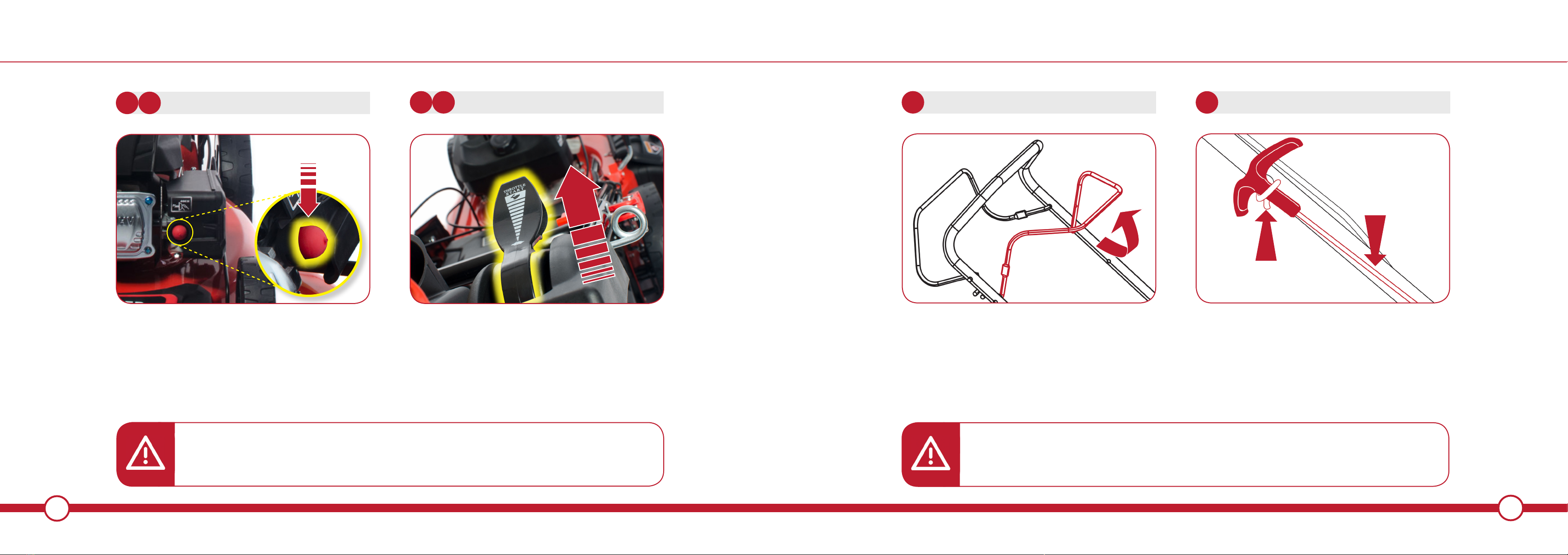

WHEEL ASSEMBLY
1
To attach the wheels feed the washer provided over the
wheel spindle. Place the wheel on to the spindle then
tighten the bolt provided to secure the wheel in place.
WHEEL ASSEMBLY
NOTE: Make sure the larger diameter wheels are attached to the rear of the mower

14 15
ASSEMBLY. ASSEMBLY
4
Fasten the lower handle to The device by using two
bolts and two small knobs on each side.
Fix the connection cord to the handle with the cord
clips (supplied).
1CORD CLIP ATTACHMENT
2UPPER HANDLE ASSEMBLY
LOWER HANDLE ASSEMBLY
Unfold the upper handle and fix it to lower handle by
using the big knobs and the bolts on each side.
X
X
X
X
X
3

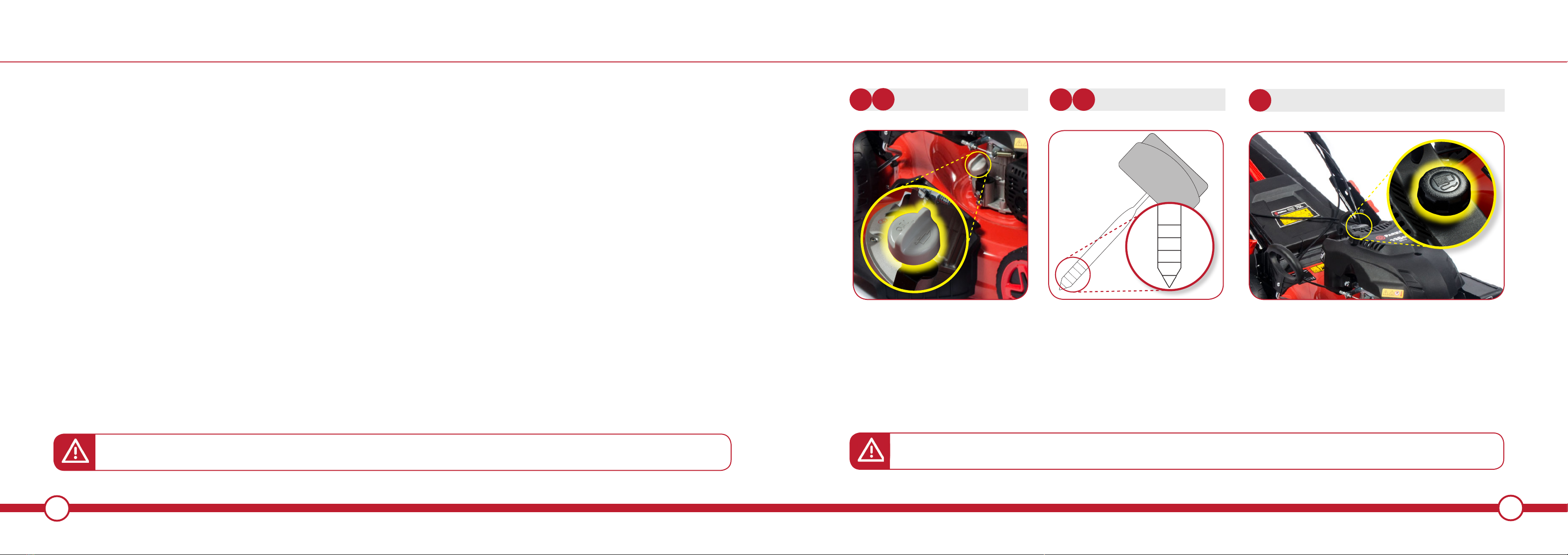

Attach the rope guide to the right hand side upper
handle with the domed nut and bolt provided. The
rope guide should be situated on the same side as the
recoil starter rope and handle to function correctly.
ROPE GUIDE ATTACHMENT
NOTE: Make sure the rope guide is
on the right handle, when you stand
behind the mower.
X

1716
ASSEMBLY ASSEMBLY

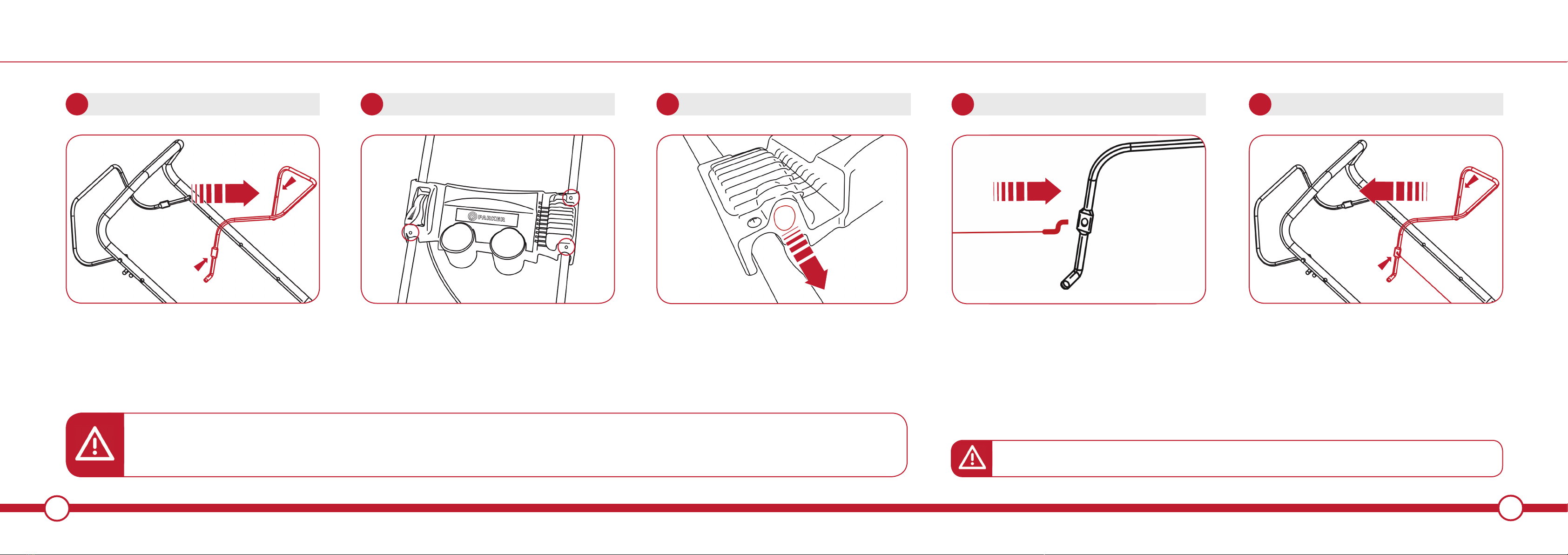

NOTE: The brake cable must be reattached to the lever before attempting to reinstall the lever
3
Feed the brake cable through the brake cable guide
hole. The clutch cable does not go through the brake
lever guide hole.
1BRAKE LEVER ASSEMBLY 2BRAKE LEVER ASSEMBLY
BRAKE LEVER ASSEMBLY
Attach the drinks holder and throttle assembly on to
the upper handle. Secure the holder with the screws
and nuts provided.
Depress each side of the brake lever gently inwards
and remove the lever from the handle assembly.
Disconnect the brake cable from the lever
With the Brake Lever still removed from the machine,
thread the Brake Cable into the Brake Cable retaining
hole. The cable should be located on the outside edge
of the lever not the inside.
BRAKE LEVER ASSEMBLY
4 5 BRAKE LEVER ASSEMBLY
Re attach the brake lever with the brake cable
attached. Depress each side of the brake lever gently
inwards and relocate the brake lever into the Brake
Lever location holes situated on the upper handle.
NOTE: To disconnect the Brake cable the lever must be removed from the upper handle assembly.
NOTE: To function properly the drinks holder\Throttle assembly must be installed and the Brake Cable fed through the Brake cable guide hole
WARNING: The Drive Cable (Clutch Cable) does not go through the Brake Cable Guide Hole.

18 19
ASSEMBLY
ASSEMBLY
Lift the side discharge cover with one hand
and hook the side discharge duct on to the
spaces on the hinge. Then release the side
discharge cover to secure the duct in
position
3DISCHARGE CHUTE ASSEMBLY
NOTE: When using the side discharge function, first remove the grass Bag and plug the mulching plug firmly into place.
2MULCHING PLUG ASSEMBLY
Lift the rear discharge cover with one hand
and hook in the grass bag. Release the rear
discharge cover to secure the grass bag in
position
1BAG TO MOWER ASSEMBLY
Remove the grass bag. Push the
plastic mulching plug into the rear
discharge chute until it is locked in place.
Release the flap, it will close back to cover
the mulching plug.
REAR DISCHARGING
ACCESSORY SETTINGS
This lawn mower has four functions,
these functions can be converted by
changing the accessory setting.
Please refer to the following chart for
setting requirements. The chart
indicates which accessory is required
for the desired function.
A solid black circle indicates when an
accessory is needed for the mower to
perform the desired function as and
when required.
FUNCTION
ACCESSORY SETTING
REAR BAGGING
MULCHING
SIDE DISCHARGING
MULCHING PLUG GRASS BAG SIDE DISCHARGE DUCT
NOTE: When installing an accessory please follow the required steps provided on the adjacent page (page 19) carefully.

20 21
CAUTION! THE FOLLOWING PROCEDURES AND ADJUSTMENTS MUST BE PERFORMED BEFORE THE ENGINE IS STARTED.
DO NOT ATTEMPT TO MAKE ANY OF THESE ADJUSTMENTS WHILE THE ENGINE IS RUNNING.
CAUTION! To prevent engine damage the engine is shipped without oil or petrol. The engine must be filled with the correct grade of oil and petrol
before starting the engine.
NOTE! Running the engine with a low oil level will cause engine damage. It is recommend that high detergent, premium quality 4-stroke engine oil
is used. Using non-detergent oil can shorten the engine’s service life and using 2-stroke oil will damage the engine.
CAUTION! Always use high quality detergent oil classified SAE30 oil (or equivalent e. g SAE 10W/30, often termed as 4 Stroke lawn mower oil). Never
use additives with recommended oil. To prolong the life of your engine it is important that the oil is changed after the first 5 hours of use.
NOTE! To Check the engine oil level ,stop engine and place the mower on a level surface.
CAUTION! Always use clean, fresh unleaded petrol. Purchase fuel in quantities that can be used within 30 days. Never mix oil with petrol.
CAUTION! Do not fill into the base of neck to allow for fuel expansion. Do not overfill the fuel tank.
CAUTION! WARNING! Petrol is highly flammable and extreme precaution must be taken when handling or working with it. Keep out of reach of
children.
WARNING! Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flame or sparks in the area where the engine is refuelled
or where petrol is stored. Avoid repeated or prolonged contact with skin or inhalation of vapour
PRE-OPERATION
PRE-OPERATION
Remove the oil filler dipstick and wipe oil from it with a clean cloth, Insert the
dipstick into the oil filler neck, but do not tighten.
Remove dipstick and check the oil Level, the oil level must be between the Min
and Max marks on the dipstick.
The engine will not start without suicient oil. If near the lower level, fill to upper
level with the recommended oil (SAE30 or equivalent).
1CHECK FUEL
Remove the cap. Remove the warning tag, check the
fuel level. Refill the tank if the fuel level is low. Pour fuel
carefully to avoid overfilling or spilling fuel.
There should be no fuel in the filler neck. Tighten the
filler cap finger tight.
2
CHECK OIL 1CHECK OIL
AB
NOTE: Please be aware there maybe trace elements of oil on the dipstick from factory testing and calibration.
NOTE: Clean around filler caps before removing. Clean any overflow or splashes of petrol/oil before starting.
NOTE: To start the engine, make sure that the HT lead is located on the spark plug and the machine is filled with suicient oil and petrol.
min
max

22 23
ENGINE STARTING PROCEDURE
ENGINE STARTING PROCEDURE
When starting a cold engine, press down the Primer
fully 3-5 times.
3
For lawnmower with throttle control put the throttle
control lever in the START position before starting
WARNING! Using the primer too many times may cause the engine to flood. When starting a warm
engine, the primer does not need to be used. If the engine stops due to a lack of petrol, refill and press
down the primer 3-5 times.
A3B
PRIMING THE ENGINE SETTING THE THROTTLE
PRESS X
SECURING THE STARTER ROPE
Stand behind the mower, pull the engine Start/Stop
lever toward the upper handle. Place your other hand
on the starter handle, pull the starter handle out
approx. 10-15cm until you feel a resistance and then
start the Engine with a sharp pull.
Once the engine is running, put the starter rope Into the
rope guide
NOTE: If the engine fails to start after three pulls, repeat the process.
NOTE: If the engine won’t start after you have operated the starter several times, the engine may
be flooded with excess fuel.
START/STOP LEVER
45
ROPE
GUIDE
STARTER
ROPE

24
ENGINE STARTING PROCEDURE
25
If the engine won’t start after you have operated the starter several times,
the engine may be flooded with excess fuel.
TO CLEAN A FLOODED ENGINE
• Release the engine start/stop lever to stop engine.
• Remove the spark plug, dry it, and then reinstall it.
• Pull the engine start/stop lever toward upper handle.
• Operate the starter as described on (page 23).
NOTE: Install the spark plug carefully by hand, to avoid
cross-threading. After the plug is seated tighten 1/8 to 1/4 turn
with a spark plug wrench to compress the washer.
START/STOP LEVER
REMOVE SPARK PLUG WITH WRENCH
THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK

26 27
STOPPING THE ENGINE
Release the engine start/stop lever, it will return to its Initial
position and the engine will automatically switch o.
OPERATION
OPERATION
The cutting height is adjusted with the cutting height
adjusting handle. Pull the handle out and select the
desired cutting height. When released the handle
snaps Into position.
From position 1 to position 8. The cutting height ranges
from 25mm to 75 mm
CUTTING HEIGHT ADJUSTMENT
WARNING: Adjust the cutting height
only when the engine is switched o.
START/STOP LEVER
DRIVE LEVER(CLUTCH LEVER)
SELF PROPELLED FUNCTION
This unit equipped with self-propelled system. If you press the
drive lever (clutch lever), the lawnmower will start to move with
the engine running. To stop, simply release the drive lever..
+MAX
TO
MIN
-
MAX
MIN
mm 25mm

28 29
OPERATION
MOWING
Select your required setting.
Start the engine and allow it run, and set it to required speed.
Keep a firm grip on the upper handle with engine stop/start lever and drive lever(clutch lever) closed and walk along with it self-propelling to start
mowing.
WORKING ADVICES
• Walk, never run with the mower, be very careful when mowing uneven or rough ground.
• Mow across slopes, never up and down.
• Be careful when changing the direction of the mower on a slope.
• Do not mow excessively steep slopes.
• The best result will be achieved if the grass is dry. Wet grass will tend to clog the blade and the grass collection system.
• Never use the lowest cutting height for the first cut of the season or in drought conditions.
• Only about one thirds of the grass height should be cut.
• When mulching, to ensure that the cut grass can be scattered eiciently, do not cut high or wet grass. When you have been cutting for several
minutes, please stop the mower, and clean the blade and the deck.
• Do not remove grass debris in the mower casing or on the blade by hand or with your feet. Instead use suitable tools such as a brush or broom.
WARNING Always observe the strictest safety procedures when using the lawnmower. Carefully read the safety instructions
of this manual before proceeding with use.
WARNING! Never open the ejector flap when the grass bag has been detached (to be emptied) and the engine is still
running. The rotating blade can cause serious injuries!
THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK

30 31
MAINTENANCE MAINTENANCE
MAINTENANCE SCHEDULE
Performing routine maintenance correctly on your lawnmower will ensure you get years of trouble free use. Please keep this manual safe for
future reference. It is recommended that the following maintenance schedule is adhered to. This will ensure the lawn-mower operated correctly
and is safe to use.
HOURS OF USE HOURS OF USE HOURS OF USE
AIR FILTER CLEAN CLEAN REPLACE
SPARK PLUG CHECK CLEAN REPLACE
ENGINE OIL CHECK REPLACE CHECK
ENGINE OIL TO BE CHANGED AFTER  HRS
CLEANING
GENERAL CLEANING
• The lawn mower should be cleaned thoroughly every time after it has been used.
• Always clean your lawnmower immediately after use.
• Do not allow grass cuttings and other debris to become dry and hard on any of the mower surfaces.
• Dried grass remnants and dirt may impair the mowing operation.
• Check that the grass chute is free of any residual grass. Remove any such residue.
• Check the underside of the lawn mower and the blade mount. for this purpose ,tilt the Lawn mower onto its left side (opposite the oil filler neck)
WARNING! Before performing any maintenance or cleaning work, switch o the engine and wait until the blade has stopped.
NOTE: Before placing the lawn mower on its side, fully drain the fuel tank using a petrol extraction pump. Do not tilt the lawn
mower by more than 90 degrees.
CAUTION! Improper repairs can result in the product functioning unsafely. This endangers yourself and your environment.
Faults which cannot be rectified with the aid of following table may be rectified by a specialist company only (customer service centre).
Please be aware that any improper repairs will also invalidate the warranty and additional costs may be incurred.
Use only genuine spare parts. Only these spare parts are designed and suitable for the product. The use of other spare parts not only voids the
warranty, you can also endanger yourself and your environment.

32 33
MAINTENANCE
MAINTENANCE
SPARK PLUG MAINTENANCE
• Once the engine has cooled , twist o the spark plug.
• Remove the spark plug using a spark plug wrench.
• Clean the spark plug with a wire brush (not supplied)
• Using a feeler gauge set the gap to 0.75mm.
• Install the spark plug carefully
• After the spark plug is seated , tighten with a wrench. .
AIR FILTER MAINTENANCE
• Remove the air cleaner outside cover. (X)
• Separate the Air Filter (Y) from the Air Filter Housing (Z).
• Clean air filter with warm water and mild soap.
Allow air filter to dry thoroughly before re-installation
• Install the air filter assembly onto the carburettor and secure with screw.
WARNING! Never run the engine
without the air filter element installed.
CHANGING THE ENGINE OIL
• Tilt the lawnmower towards the oil filler , have a container ready to catch the oil and remove the dipstick . once the oil has been emptied.
• Replace the dipstick and wipe clean any spillages.
• Refill with 500ml SAE30 oil or equivalent i. e SAE5W/30, SAE10W/30.
• When the dipstick is rested on the filler pipe (i. e. not tightened ), the oil level must be between the Min and Max marks on the dipstick.
• Start the engine and allow it to run briefly.
• Stop the engine, wait one minute and check the oil level. top up if necessary.
CAUTION! The engine must be filled with the correct grade of oil and petrol before starting the engine.
NOTE! Running the engine with a low oil level will cause engine damage. It is recommend that high detergent, premium
quality 4-stroke engine oil is used. Using non-detergent oil can shorten the engine’s service life and using 2-stroke oil will damage the engine.
CAUTION! Always use high quality detergent oil classified SAE30 oil (or equivalent e. g SAE 10W/30, often termed as 4 Stroke lawn mower oil).
Never use additives with recommended oil. To prolong the life of your engine it is important that the oil is changed after the first 5 hours of use.
NOTE! To Check the engine oil level ,stop engine and place the mower on a level surface.
NOTE: Do not overfill. Wipe away any spilt oil.
SPARK PLUG
AIR FILTER
SET THE GAP
TO .MM
X
Y
Z

34 35
MAINTENANCE
BLADE REPLACEMENT
Secure blade and unscrew the blade bolt using a
spanner wrench. Remove the washer and the blade.
Fit a new blade or re-sharpen the blade. Locate the
blade on the two studs and then replace the washer
and bolts. Make sure the blade is located correctly and
then firmly tighten the bolt. Do not over tighten. The up
turn of the blade must project into the motor
compartment.
FOR SAFETY REASONS YOU SHOULD ONLY EVER HAVE YOUR BLADE
SHARPENED , BALANCED AND MOUNTED BY AN AUTHORISED SERVICE
WORKSHOP. FOR OPTIMUM RESULTS IT IS RECOMMENDED THAT THE
BLADE SHOULD BE INSPECTED ONCE A YEAR.
WARNING! You will need garden gloves (not provided) and a spanner wrench
(not provided) to remove the blade.
WARNING! Always handle the blade with care, sharp edges could cause injury
USE GLOVES. Renew your metal blade after 50Hrs mowing or 2yrs whichever
is sooner regardless of condition.
WARNING! If the blade is cracked or damaged replace it with a new one.
WARNING! Don’t hold the blade by hand directly.
NOTE! Maintain the sharpness of the blade when cutting grass. If the blade has
worn excessively and become pitted and blunt, it should be replaced or
sharpened. The sharpness of the blade will aect the performance of the
lawnmower.
NOTE: For safety reasons we recommend that the blade only be changed by someone qualified and authorized to do so
THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK

36 37
TRANSPORTING YOUR MOWER
STORING YOUR MOWER
STORING THE LAWNMOWER FOR SHORT PERIODS
The lawnmower can be stored for short periods of time (less than 15 days) without performing any storage maintenance. Before placing the
lawnmower into storage always carry out the following:
• Allow the engine to fully cool.
• Ensure the grass bag is empty.
• Clean all debris from under the mower deck.
• Store the lawnmower on flat and level surface with the mower upright.
• Store in a safe place which is not accessible by children or people who are not familiar with operation.
STORING THE LAWNMOWER FOR EXTENDED PERIODS
If the lawnmower is to be place into storage for more than 15 days, storage maintenance must be performed on the lawnmower. If the following
steps are not carried out, when you next operate the lawnmower it may not start correctly and may need to be serviced.
• Empty the petrol tank with a petrol suction pump if available.
• Start the engine and let it run until any remaining petrol has been used up.
• Change the oil at the end of every season. To do so, remove the used engine oil from a warm engine and refill with fresh oil
• Clean the cooling fins of the cylinder and the housing
• Be sure to clean the entire machine to protect the paint.
• Store the machine in a well-ventilated place.
CAUTION! Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes can cause explosions and fire
TRANSPORT
• Empty the petrol tank
• Always let the engine run until it has used up the remainder of petrol in the tank.
• Empty the engine oil from the warm engine.
• Remove the spark plug boot from the spark plug.
• Clean the cooling fins of the cylinder and the housing.
• Use the original packaging to ship whenever possible.

38 39
TROUBLESHOOTING
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Loud while running,
machine vibrates heavily
Screws are loose Check screws
Blade fasteners are loose Check blade fasteners
Blade is unbalanced Replace blade
Engine does not start
Start/Stop Lever not engaged Engage Start/Stop Lever
Spark plug is defective Replace
Blade is worn or damaged Contact Customer Services
Fuel tank is empty Refill with fuel
Engine may be flooded Remove spark plug and dry
Engine runs unsteady
Air filter is soiled Clean
Spark Plug is soiled Clean
PROBLEM POSSIBLE CAUSE SOLUTION
Uneven mowing
Blade is blunt Sharpen blade
Cutting too low Adjust height
Grass Bag not filling
suiciently
Blade is worn Replace
Grass Bag is clogged Empty
Lawn/Grass is wet Allow to dry
Discharge chute blocked Clean
Underside of mower deck clogged Clean
Cutting height is wrong Adjust height
