Parmco MW-KITCHEN User manual

Installation
and Operating
Instructions
Model: MW-KITCHEN
Microwave Oven &
Cooktop Combo
As part of Parmco Appliances commitment to improving and updating product ranges,
it reserves the right to alter, change and update, technical specifications and appearance
attributes of this and all Parmco Appliances products

2
Dear Valued Customer,
Thank you and congratulations on purchasing your new Parmco Microwave &
Cooktop Combo.
All Parmco products are made to the highest quality and design standards. We are
sure you will enjoy your new product.
As a note please read through these instructions carefully. These will assist you in
gaining a complete understanding of the functions and features offered by your
microwave oven
Please take special note of all detailed warnings, cautions, and usage instructions,
as failure to abide by these may effect any product warranty claims.
We hope you enjoy your new appliance. If you would like to find out more about
this product or any other products in Parmco’s extensive range visit us on the web
at www.parmco.co.nz.
Regards,
The Parmco Team

3
Read carefully and keep for future reference
• The built-in safety switches prevent the microwave oven from operating when the door is open. Do not tamper with
them, or attempt to operate the oven with the door open as open door operation can result in exposure to
microwave energy.
• It is particularly important that the oven door closes properly and that there is no damage to the: (1) door, (2) hinges
and latches, or (3) door seals and sealing surface.
• Do not remove the outer case, door or control panel at any time. Doing so may cause exposure to extremely
high voltage.
• Install or locate this microwave oven only in accordance with the installation instructions found in the ‘Installation’
section.
• Do not store the microwave oven outdoors.
• Accessible surfaces of the microwave oven may get HOT while it is operating.
• Do not allow food spills or cleaner residue to accumulation door sealing surfaces.
• Failure to maintain the microwave oven in a clean condition could lead to deterioration of the surface
adversely affecting the life of the appliance and possibly result in a hazardous situation.
• This microwave oven is specifically designed for domestic heating, cooking and defrosting food only
must be used as described in this manual. It is not designed for industrial or non domestic use
• Do not use corrosive chemicals in this microwave oven.
• Do not operate the microwave oven empty. If food or water is not present to absorb the microwave energy,
the microwave can be damaged.
• DO NOT use this microwave oven near water, a swimming pool or other wet environment.
• Do not attempt to dry clothing or newspapers in the microwave oven. These items can ignite.
• Do not use the microwave oven cavity for storage purposes. Do not leave paper products, cooking utensils, or food
in the cavity when not in use
• Keep the power cord away from hot surfaces and DO NOT let the power cord hang over the edge of tables or
counters.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons.
• Do not force the turntable to rotate by hand. This may cause damage to the unit.
• DO NOT use metal utensils during microwave operation as this will cause arcing. Continuous arcing will damage the
unit. Should arcing occur, stop the program and remove the utensil.
• Only use utensils that are suitable for use in the microwave.
• Care should be taken not to obstruct any air vents located on the top, rear, side and bottom of the oven.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the unit.
• This appliance is not intended for use by persons (including children) with reduced physical or sensory
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they don’t play with the appliance
If the door, hinges/latches or door seals are damaged, the microwave oven must not be operated until it has
been repaired by an authorised service person.
2. It is hazardous for anyone except authorised service personnel to carry out any service or repair to this
combination microwave oven, especially if it involves the removal of a cover which gives protection against
exposure to microwave energy.
3. Liquids and foods must not be heated in sealed containers since they are liable to explode.
4. Accessible parts may become hot during use. To avoid burns young children should be kept away.
5. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
DO NOT disassemble this appliance, as touching some of the internal components can cause serious personal injury
or death.
CAUTIONS - READ CAREFULLY

4
Power cord and plug
This microwave oven must be earthed. In the event of an electrical short circuit, earthing reduces the risk of
electric shock by providing an escape wire for the electric current. This oven is equipped with a power cord having an
earthing wire with an earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.
Consult a qualified electrician or serviceman if the earthing instructions are not completely understood or if doubt
exists as to whether the oven is properly earthed.
Food safety
• Do not heat food in a can in the microwave oven as it can explode. Always remove from the can and place in a
suitable container.
• Fat for deep frying should not be heated in the microwave oven, because the fat temperature cannot be controlled,
hazardous situations can result.
• Popcorn may be prepared in the microwave oven, but only in special packages or utensils designed
specifically for this purpose. This cooking operation should never be unattended.
• Pierce foods with non-porous skins or membranes such as apples, potatoes, chicken liver and egg yolk
to prevent steam build-up and bursting.
Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when
handling the container.
When heating liquids, e.g. soups, sauces and beverages in your microwave oven, overheating the liquid beyond
boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To
prevent this possibility the following steps should be taken:
1. Avoid using straight-sided containers with narrow necks.
2. Do not overheat.
3. Stir the liquid before placing the container in the oven and again halfway through the heating time.
4. After heating, allow to stand in the oven for a short time, stirring again before carefully removing the container.
Some products such as whole eggs and sealed containers
–
For example, closed glass jars – may explode and should not be heated in this oven. Occasionally, poached eggs
may explode during cooking.
–
Always pierce the yolk, then cover and allow the standing time of one minute before removing cover.
–
The contents of feeding bottles and baby jars shall be stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
Got a question and not sure of the answer?
Need to know more about your product or want to see
what other great products Parmco has to offer?
Visit the Parmco Appliances website to see the entire
Parmco product range and find out more about this New
Zealand owned and operated kitchen appliances company
www.parmco.co.nz

5
Power consumption:
Output:
Grill Heater:
Convection:
Large Hotplate
Small Hotplate
Operating Frequency:
Outside Dimensions:
Oven Cavity Dimensions:
Oven Capacity:
Uncrated Weight:
230V~50Hz,1450W
900W
1200W
1350W
1000w
500w
2,450MHz
520mm(W) X 530mm(D) X 300mm(H)
350mm(W) X 372mm(D) X 232mm(H)
30litres
Approx. 22kg
BEFORE CALLING FOR SERVICE
1. If the oven will not turn on or the display does not appear / disappears:
a) Check to ensure that the oven is plugged in securely. If not, remove the plug from the outlet, wait
10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating
properly, test the outlet with another appliance.
2. If the microwave will not begin its requested action:
a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed (engaging the safety interlocks). As if these are not
in a locked [position the microwave will (as a safety measure) not run.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT PARMCO APPLIANCES.
If the Microwave is still under warranty, please refer to you warranty terms and conditions. If these are met,
then contact Parmco Appliances
Note:
The appliance is for household use for heating food and beverages using electromagnetic energy and for
indoor use only. This appliances is not intended for commercial purposes.
Any use of this appliance that breaches the cautions as laid out in this manual will void the product
warranty.
RADIO INTERFERENCE
This microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs,
it may be eliminated or reduced by the following procedures.
a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get stronger signal reception.

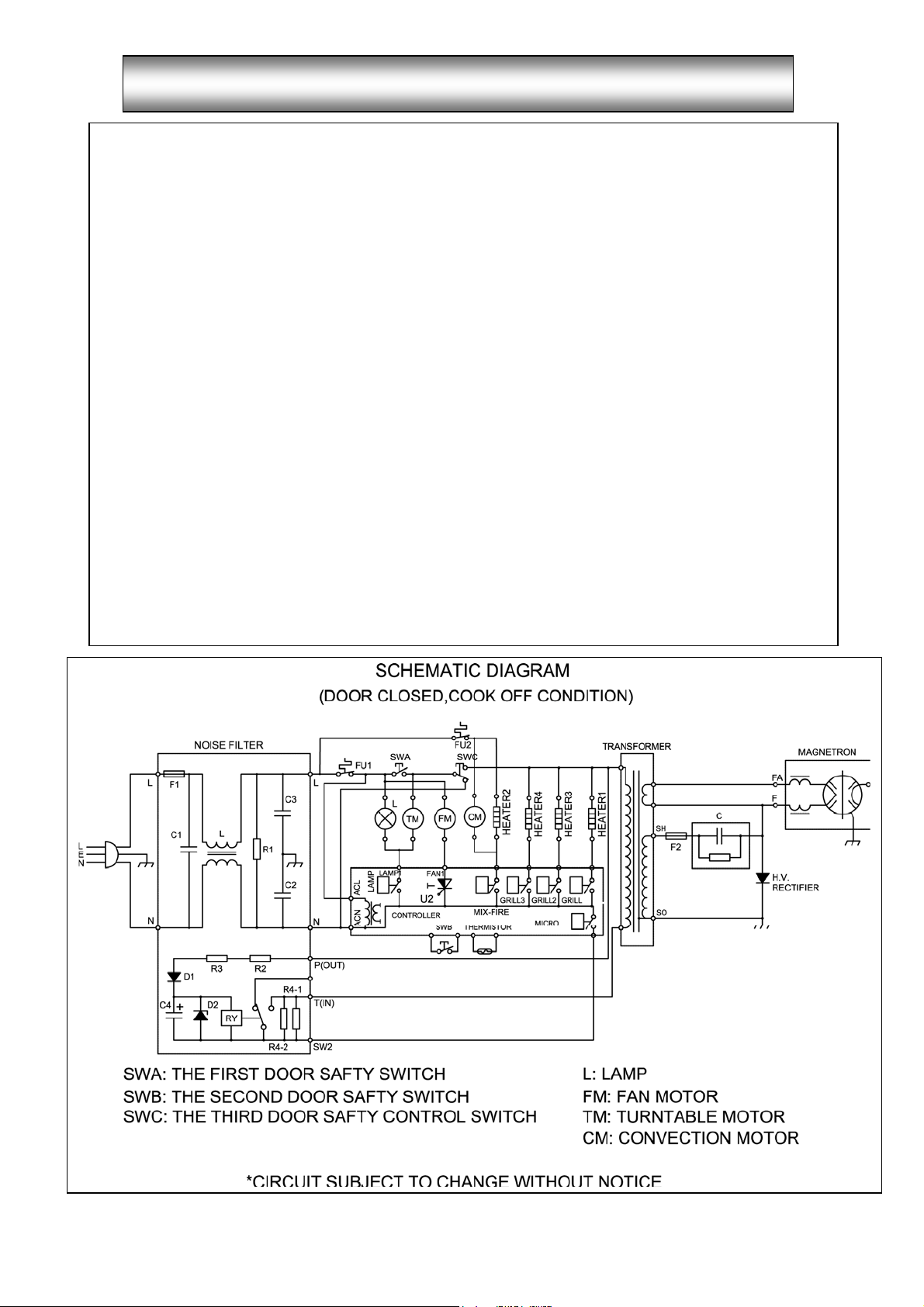

SPECIFICATIONS

6
1. Make sure all the packing materials are removed from the inside of the microwave door.
2. Inspect the oven after unpacking for any visual damage such as:
Misaligned Door
Damaged Door
Dents or Holes in Door Window and Screen
Dents in Cavity
If any of the above are visible, DO NOT use the oven.
3. This Microwave Oven weighs 22 kg and must be placed on a horizontal surface strong enough to support
this weight
WARNING-THIS APPLIANCE MUST BE EARTHED.
1. Ensure the plug socket is within easy reach for the power cord. DO NOT force the cord over a significant
distance or stretch the cord excessively
2. This oven requires 1.5 KVA for its input. Please consult an authorised service agent for any installation
requirements
4. The oven must be placed away from high temperature areas and steam.
5. DO NOT place anything on top of the oven.
6. DO NOT remove the turn -table drive shaft.
CAUTION: This oven is protected internally by ac 250V,10 Amp Fuse.
The wires in this mains lead are coloured in accordance with the following code:
As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with
the letter E or by the earth symbol coloured green of green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured
black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured red.
Green and Yellow:
Blue:
Brown:
Earth
Neutral
Live
INSTALLATION
IMPORTANT

7

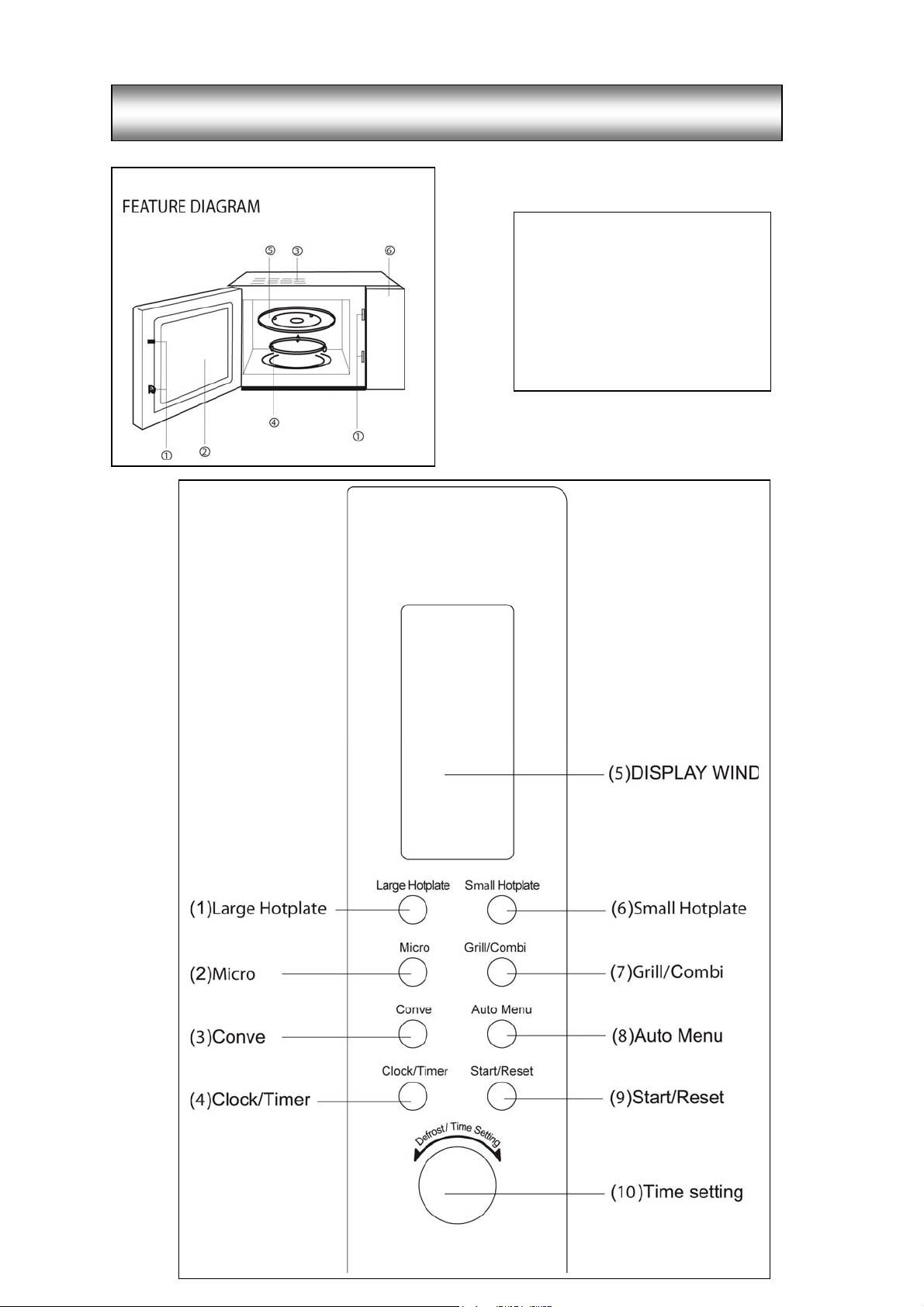

(1) Door Safety Lock System
(2) Oven Window
(3) Oven Air Vent
(4) Roller Ring
(5) Glass Tray
(6) Control Panel
(7) Sensor
(8) Grill rack
FEATURES

8
1.Single Button Heating
With the press of a button you can heat everyday items quickly and conveniently
1. Place desired item on turntable
2. Press the “Start/Reset” button, the microwave will heat at 100% for 1 minute
3. You will hear 5 beeps at the end of the cooking cycle
Standard Operation
There are two methods of heating using this microwave. Automatic and Manual
2. Automatic Heating
Automatic heating will run the microwave at 100% power for a time specified by you.
1. Set the timer to your desired length using the “Defrost/Timer”. Turn to the right for heating
2. Press the “Start/Reset” button.
The microwave will run at 100% power for the time length selected
3. Manual Heating
With Manual operation you can select both the power at which the microwave will run and the time.
Press the “Micro” button until the display reads the desired power setting
The power settings read as follows on the microwave display.
P100 – 100% power (see fig.1)
P70 – 70% power
P50 – 50% power
P30 – 30% power
P10 – 10% power

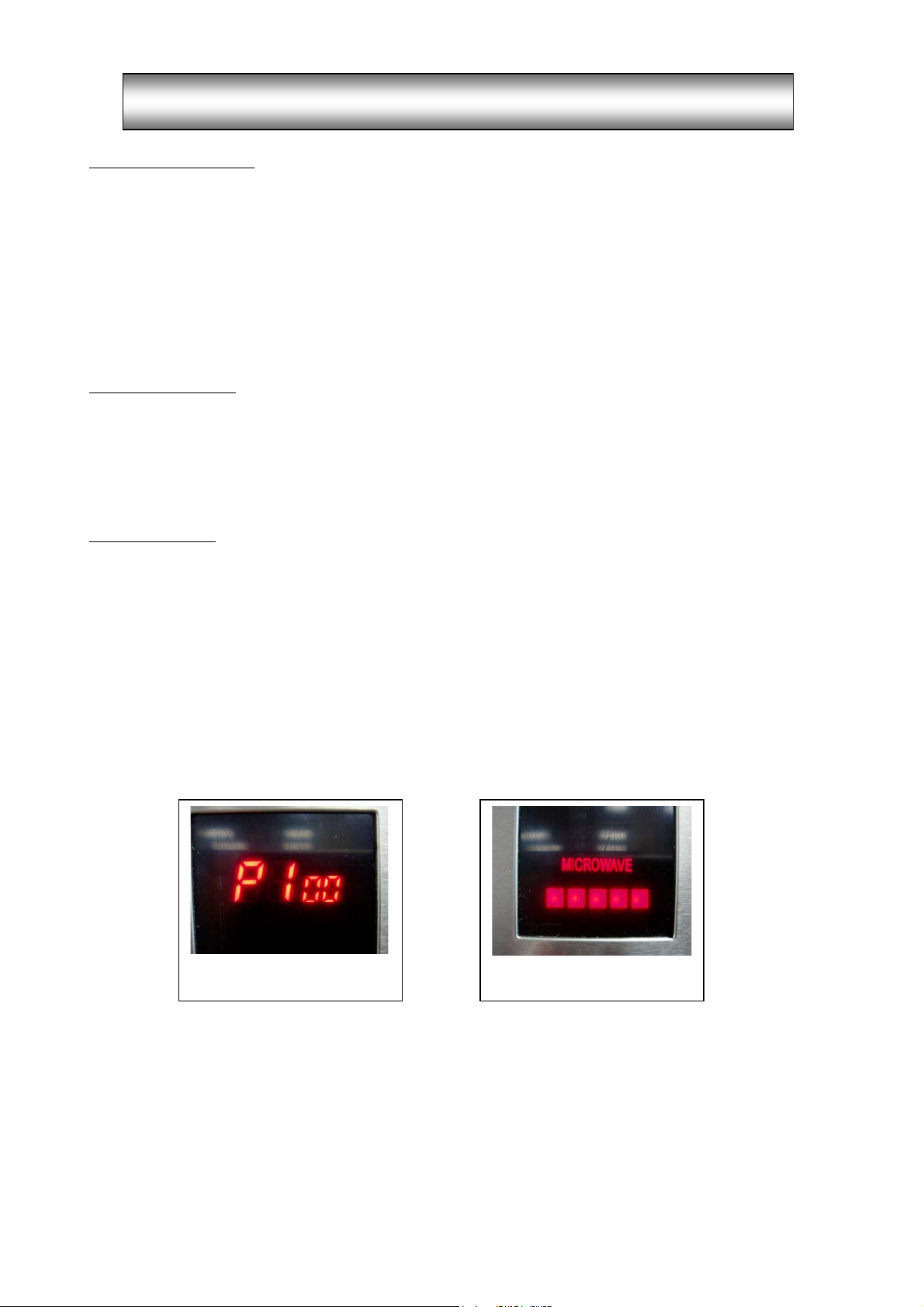

The red bar at the base of the microwave display screen (see fig. 2) also shows the corresponding power level.
1. Use the control dial called “Defrost/Timer” to select the desired time length for heating (00.10 – 60.00
minutes)
2. Press the “Start/Reset” button to begin.
3. The microwave will now cook at the selected power level and time length.
Fig.2
Fig.1
OPERATING YOUR MICROWAVE

9
4. Auto Weight Defrost
Your microwave can also be used to defrost based on the weight of the desired item
E.g. 0.5 kg of meat:
1. Rotate the “Defrost/ Timer” control dial to the left until the display read 0.5
2. Press “Start/Reset”
The microwave will now begin to defrost at a set time length and power setting
5. Auto Menu
There are a number of auto menu options available with this microwave. These menus are useful for cooking
predetermined items based on their food type and weight.
There are six settings and a number of different weight settings for each. Follow the below grid to guide you to
the most appropriate setting for you
Selecting an auto menu option is simple. Follow these steps:
1. Review the table below. Establish which auto option best suits your desired meal
2. Press the “Auto Menu” button. The display will now read A-, select the desired meal type by continuing to
press the “Auto/Menu” button until you have selected the correct option
3. Rotate the “Defrost/Timer” dial to select the weight of your meal. Again, use the below chart to make the
appropriate choice.
4. Press the “Start/Reset” button to commence.
6. Using The Grill
Using the grill function is as easy as using the microwave options. Follow these steps to grill your food to
perfection
1. Press the “Grill” button. G-1 will be displayed, this indicates the grill has been selected
2. Use the “Defrost/Timer” dial to select the length of time you wish to grill for
3. Press the “Start /Reset” Button, the grill will begin to heat.
The heating element located on the top of the microwave cavity will begin to heat.
The grill will run in two stage, after the first stage of grilling is complete it will beep twice, indicating that
your food is ready to be turned. Should you wish for it to continue, simply leave the microwave as is. After 1
minute of inactivity it will automatically recommence its grilling cycle

10
9. Setting the Cloc
k
This microwave runs on a 24-hour clock. To set this please follow these steps:
1. Press the “Clock/Timer” button. The hour display will flash, indicating the clock is waiting to be set.
2. Use the Defrost/Timer dial to select the desired hour time
3. Press the Clock/Timer again, the minutes display will now be flashing
4. Use the Defrost/Timer dial to select the desired minutes time
5. Press the Clock/Timer button again. The time is now set
7. Using Combination Mode
Combination mode is where you use more than one method of cooking at one time to heat your food. This
model has 3 different combination options
Option 1. Convection + Microwave Cooking (230°c Convection + 50% Microwave) (Displayed as C-1)
This option is ideal for roasting or baking
Option 2. Grill + Convection (50% Grill + 230°c Convection) (Displayed as C-2)
Ideal for fast crisping etc.
Option 3. Grill + Microwave (45% Grill + 55% Microwave) (Displayed as C-3)
For fast grilling
Using this mode is easy. Follow these steps:
1. Press the “Grill/Combi” button until desired option is displayed (C-1, C-2, C-3)
2. Use the “Defrost/Timer” control to set the desired cooing length
3. Press the “Start/Reset” button to begin cooking
8. Using Convection Mode
This microwave can be used as a convection oven. It can be preheated for traditional cooking. The default
temperature for preheating is 230°c, but by repeatedly pressing the “Conve” button you can alter it’s preheating
default to the desired temperature
Once the appliance has reached the set preheating temperature it will beep twice letting you know you can now
place food into the oven.
To set the cooking time see as follwos:
1. Press the “Conve” button to select convection cooking
2. Use the “Defrost/Timer” dial to select the desired cooking length
3. Press the “Start/Reset button to begin cooking

11
10. Setting The Timer
This function allows you to set a predetermined start cooking time, the power at which you want to cook and
the time length you wish to cook for
To set this, follow these steps:
1. Press the “Clock/Timer” button (just like setting the clock) Using the “Setting the Clock” steps above as a
guide, set the desired time you wish for the microwave to turn on and begin cooking (Don’t worry this will
not alter your clocks default time!)
2. Immediately after setting the desired turn on time, press the “Micro” button and select the desired power
level at which you wish to cook.
3. After this use the “Defrost/Timer” dial to select the length of time you wish to cook for
4. Now press the “Start/Reset” button.
You will hear two beeps indicating the timer has been set. You will also notice a small red clock symbol appears
above the default time. This is a reminder that a switch on timer has been inputted.
At the selected turn on time the microwave will beep 2 times and then begin cooking based on the inputted
time length. It will beep 5 times at the conclusion of its cooking cycle.
11. Using the Hotplates
To use the either of the hotplates please see as follows:

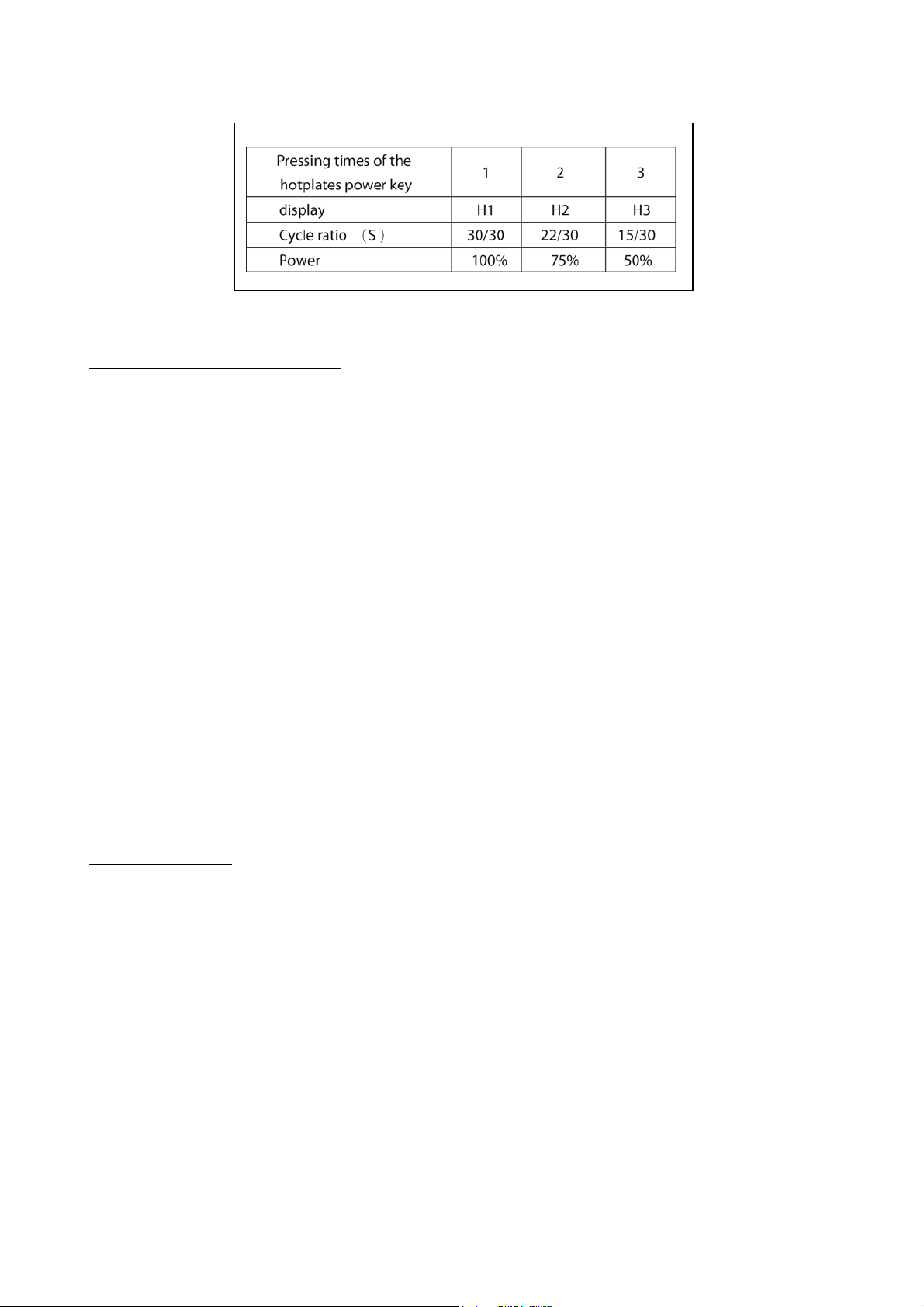

1. Press “Large hotplate or Small Hotplate ”button, it will show “H1, H2, H3” in the display and the hotplate
function icon will flash.
2. Choose the power level by repeatedly pressing the “Large Hotplate or Small Hotplate” button
3. Input the cooking time with “Defrost/Timer” dial
4. Press the “Start/Reset” button to begin operation
To cease operation, press the “Start/Reset” or hold the power key of the large hotplate for 2 seconds, it will stop
running and return to standby.
Example: to heat food on 75% power for 50 minutes
a) Press “Large hotplate ” button, select “H2” power;
b) Rotate the “Defrost/Time Setting” to set the time 50 minutes;
c) Press “Start/Reset”
*Please note the maximum cooking time on the hotplate is 90 minutes

12
12. Child Safety Loc
k
To lock the microwave and prevent use press the “Auto menu” & “Clock/Timer” buttons down at the same time
for 2 seconds This will lock the microwave.
To unlock repeat the above, this will unlock the machine ready for use.
13. Start/Reset Button
To stop the microwave at any time in it’s operation press the “Start/Reset” button. This will cancel all operation
Large/Small Hotplates Combination:
Running the hotplates in combination with each other is no problem. To run both hotplates at once simply press
the either the “Large Hotplate” or “Small Hotplate” buttons at any time to set to desired levels and time lengths. Use
the instructions in the previous heading to set to desired settings (11.Using the Hotplates)
To cease the operation of a particular hotplate while leaving the other running, press and hold the corresponding
hotplate button for two seconds. This will return it to standby mode. Alternatively to shut both off press the
“Start/Reset” button.
Notes:
-When the hot plates are in operation the turntable and microwave light will not operate due the power draw
running the hotplates. The power light will also not be displayed
-To check the power levels on the hotplate, press the corresponding hotplate key, it will display to power level it
is operating at for 3 seconds.
-The timer for each hotplate is displayed in the top left (large hotplate – in large font) and top right (small
hotplate in small font) of the digital display.
-If you wish to change the power level of a hotplate after you have begun cooking, simply press the power
button for the hotplate you wish to alter until you have the desired power setting. You may also alter the timer
setting at this point if desired by using the “Defrost/Timer” dial. PLEASE NOTE: In order to change the timer
during operation you must select the power setting prior to altering the timer. Doing this will ensure the
correct element is selected
-The maximum cooking time available is 90 minutes
-When the hotplates have been operating for longer than 10 minutes, at the conclusion of operation, the
cooling fan will come on and run for the final minute of the timed settings.

13
1.Turn the oven off and remove the power plug from the wall before cleaning.
2.Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a
damp cloth. DO NOT use any harsh clean detergents or abrasives
3.The outside oven surface should be cleaned with a damp cloth. To prevent damage to operating parts
inside the oven, water should not be allowed to seep into the ventilation openings.
4.Do not allow the control panel to become wet. Clean with a soft, damp cloth, Do not use detergents,
abrasives or spray-on cleaners on this
5.If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur
when the microwave oven is operated under high humidity conditions. This is part of normal operation and is
not a fault or problem
6.It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm soapy water.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid the build up of grit. Simply wipe the
bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be
washed in mild sudsy water or a dishwasher provided a low caustic level detergent is used.
When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
8.Remove odours from your oven by combining a cup of water with the juice and skin of one lemon in a
deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.
9.When it becomes necessary to replace the oven light, please consult any authorised service agent.
LOOKING AFTER YOUR MICOWAVE

14
The Warranty:
Subject to the terms and conditions contained within this warranty, if any Combination Microwave is not of
Acceptable Quality (as defined in the Consumer Guarantees Act) within 2 years of the date of original purchase,
then Parmco Sales undertakes to repair or, at it’s sole discretion, replace the product.
The warranty does not cover the costs of transport, mileage or travelling time if the product is located beyond
30km of a recognised Service Agent.
This warranty is offered as an extra benefit, and does not affect other legal rights, which can not be modified
or excluded by agreement.
This warranty only applies to goods supplied and installed in the North and South Islands of New Zealand.
The provisions of this warranty are in addition to the rights and remedies available to consumers under the
Consumer Guarantees Act 1993.
The Warranty is not valid:
If the product is not installed and operated in accordance with the operating instructions.
If the product is not installed to comply with the electrical, gas, plumbing and other Regulations and Codes
of Practice in New Zealand.
If the product is operated on voltages or frequencies outside the normal range for domestic appliances in
New Zealand.
If the product is not used in normal domestic use or if it is used in a business as defined in the Consumer
Guarantees Act.
If any serial number has been removed or defaced.
If proof of date of purchase is not supplied, except at the sole discretion of Parmco Sales. Proof of purchase
can be for the product itself, or if installed with a kitchen or house then proof of purchase can be from a
Parmco reseller of products supplied by Parmco.
Liability under this warranty will not be accepted for:
Wear and tear from normal domestic use.
Damage in transport.
Damage caused to the product by neglect, abuse, negligence, wilful act or misuse.
Any defect caused by accident, misuse, neglect, tampering with or unauthorised modifications of the appliance
or any attempt at internal adjustment or repair by any person other than an Authorised Service Agent.
Service calls that relate principally to the following:
Instruction on how to use the product.
Repair or replacement of house fuses, electrical wiring, gas fitting or plumbing.
Wear and tear caused by normal use of the product.
Normal or scheduled maintenance including blocked filters or ducting.
Consumable items such as light bulbs.
Any damage to ceramic glass hobs caused by spills when cooking.
Any breakage or damage of glass items.
Any damage caused by non-recommended product used for cleaning, maintaining, lubricating or similar.
Any aspect relating to the installation of the product, or damage caused during installation.
Any third party (including reseller) or consequential loss or damage (direct or indirect) however arising.
