Parmco FR86WUBFF User manual

As part of Parmco Appliances commitment to improving and updating product ranges,
we reserve the right to alter, change and update technical specifications and appearance
attributes of all Parmco Appliances products. E&OE.
Model: FR86WUBFF
727626102021
INSTALLATION
AND OPERATING
INSTRUCTIONS

& OPERATED
100
0
0
EST. 1989
NZ OWNED
& OPERATED
100
0
0
EST. 1989
NZ OWNED
Dear Valued Customer,
Thank you and congratulations on purchasing your new Parmco appliance.
All Parmco products are made to the highest quality and design standards. We are sure
you will enjoy your new appliance.
As a note, please read through these instructions carefully. These will assist you in gaining
a complete understanding of the functions and features offered by your appliance.
Please take special note of all detailed technical information and installation instructions.
It is essential that you follow these instructions to ensure the safety and reliability of this
appliance.
Furthermore, not using appropriate personnel to install this appliance may affect any future
warranty claims lodged, so please check with Parmco Appliances before any installation is
carried out.
We hope you enjoy your new appliance. If you would like to find out more about this
product or any other products in Parmco’s extensive range, visit us online at
www.parmco.co.nz.
Regards,
The Parmco Team
p: 09 573 5678
f: 09 573 5699
e: [email protected].nz
w: www.parmco.co.nz
The Warranty:
• This appliance is intended for domestic use in the owners’
home. Use of the appliance for commercial purposes will limit the
warranty period (please see Parmco website for commercial
details).
• Subject to the terms and conditions contained within this
warranty, if the product is not of Acceptable Quality (as defined
in the Consumer Guarantees Act) within 7 years of the date of
original purchase, then Parmco Sales undertakes to repair or, at
it’s sole discretion, replace the product.
• The warranty does not cover the costs of transport, mileage or
travelling time if the product is located beyond 30km of a recognised
Service Agent.
• This warranty is offered as an extra benefit, and does
not affect other legal rights, which can not be modified or excluded
by agreement.
• This warranty only applies to goods supplied and installed in the
North and South Islands of New Zealand.
• The provisions of this warranty are in addition to the rights and
remedies available to consumers under the Consumer Guarantees
Act 1993.
The Warranty is not valid:
• If the product is not installed and operated in accordance with
the operating instructions.
• If the product is not installed to comply with the electrical,
gas, plumbing and other Regulations and Codes of Practice in
New Zealand.
• If the product is operated on voltages or frequencies outside the
normal range for domestic appliances in New Zealand.
• If the product is not used in normal domestic use, or if it is used in
a business as defined in the Consumer Guarantees Act.
• If any serial number has been removed or defaced.
• If proof of date of purchase is not supplied, except at the sole
discretion of Parmco Sales. Proof of purchase can be for the
product itself, or if installed with a kitchen or house then proof of
purchase can be from a Parmco reseller of products supplied by
Parmco.
• If the products are purchased in a second hand condition from
other parties (including but not limited to TradeMe, Sella, etc.)
Liability under this warranty will not be accepted for:
• Wear and tear caused by normal domestic use of the product.
• Damage in transport.
• Damage caused to the product by neglect, abuse, negligence,
wilful act or misuse.
• Any costs associated with the repair, replacement, removal or
reinstallation of products installed in a damaged condition.
• Any defect caused by accident, misuse, neglect, tampering
with or unauthorised modifications of the appliance or any a
ttempt at internal adjustment or repair by any person other than an
Authorised Service Agent.
• Service calls that relate principally to the following:
• Instruction on how to use the product.
• Repair or replacement of house fuses, electrical wiring, gas
fitting or plumbing.
• Normal or scheduled maintenance including blocked filters or
ducting.
• Consumable items such as light bulbs.
• Any damage to hobs caused by spills when cooking.
• Any breakage or damage of glass items.
• Any damage caused by non recommended product used for
cleaning, maintaining, lubricating or similar.
• Any aspect relating to the installation of the product, or damage
caused during installation including blocked access for repair.
• Any third party (including reseller) or consequential loss or
damage (direct or indirect) however arising.
Please contact Parmco at 09 573 5678 if your appliance
needs servicing under warranty. Please have your model
number and proof of purchase ready. Warranty repairs
must be authorized by Parmco.
Subject to updates without prior notice,
please visit www.parmco.co.nz for the latest version.
Product Date of purchase
Serial Number
Dealer / Retailer Name
Please retain this Warranty card together with receipt or other proof of
purchase date when seeking service during the warranty period
Parmco Appliances
extended 7 year
warranty
E&O.E. 727626102021

NAMES OF THE PARTS
1
Thank you for purchasing our products and thank you for placing your
confidence in us.
Please read this manual carefully before using. Follow instructions and keep
it for future reference.
Please follow the operating instructions and safety notices in the manual.
If any trouble arises please do not fix the appliance yourself, please contact
your retailer.
Names of the parts .......................................................................
Safety warnings ...........................................................................
Installation instructions ................................................................
Operation instructions..................................................................
Packing and moving.....................................................................
Maintenance................................................................................
Defrost........................................................................................
Disconnecting the appliance.........................................................
User notifications.........................................................................
Troubleshooting tips.....................................................................
Specifications and parameters......................................................
Packing list..................................................................................
CONTENTS
1
2
3
3
4
4
5
5
5
6
7
8
The under counter fridge freezer you purchased maybe an improved model which
may not be completely consistent with this manual. However the functions and
operating methods will not have changed.
When using this fridge freezer for the first time please leave upright for 24 hours
before plugging in, remove the adhesive tapes from the drawers, shelves, egg tray,
and the drain tube plug.
Do not pull or push the drawers and shelves fiercely during use in case of damage.
Adjust the temperature control as high as you can accept, This will save the
energy consumption.
Don’t open the refrigerator door continually if It will prevent it from working efficiently.
Please keep the combination of drawers and shelves of the fridge freezer consistent
with its original design.
1
2
3
4
5
6
Freezer compartment
Lamp and temperature control knob
Glass shelf
Rod
Lamp switch
Steel tube
1
2
3
4
5
6
成品为 大小A5
说明 书
70克双胶 纸
林志 映

2 3
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
11.
SAFETY WARNINGS
For ensure your personal safety, please follow the points below:
Do stop the power only by pulling the power plug out of the socket directly but not by
the wire.
Do not damage the refrigerant circuit.
This appliance is not intended for use by persons(including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Keep ventilation opening, in the appliance enclosure or in the built in structure,clear
of obstruction.
The circuitry for refrigerator must be isolated. The area of cross section of wire must
2
be larger than 0.75mm . The power plug should have its own socket, the socket must
be ground as adapter may cause the socket to overheat.
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.This appliance is intended to be used in household and similar applications
such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
Before you throw away your old refrigerator or freezer.
- Take off the doors;
- Leave the shelves in place so that children may not easily climb inside.
Do not use electrical appliance inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacture.
The voltage and frequency of this product should be 220-240V;50Hz. Please contact
the retailer if the wire is damaged and do not plug in.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
NOTICE:
When gas leaks from its container, don't pull the plug, out or in, for it may
arouse sparks and cause a fire.
1.
Don't place bottled beverage in the freezer, so as to prevent breaking.
Don't splash water on the rear of the appliance, for it may cause malfunction
or electric shock.
2.
3. Don’t store flammable materials such as, benzene, LP gas and glue etc
in the fridge freezer.
4.

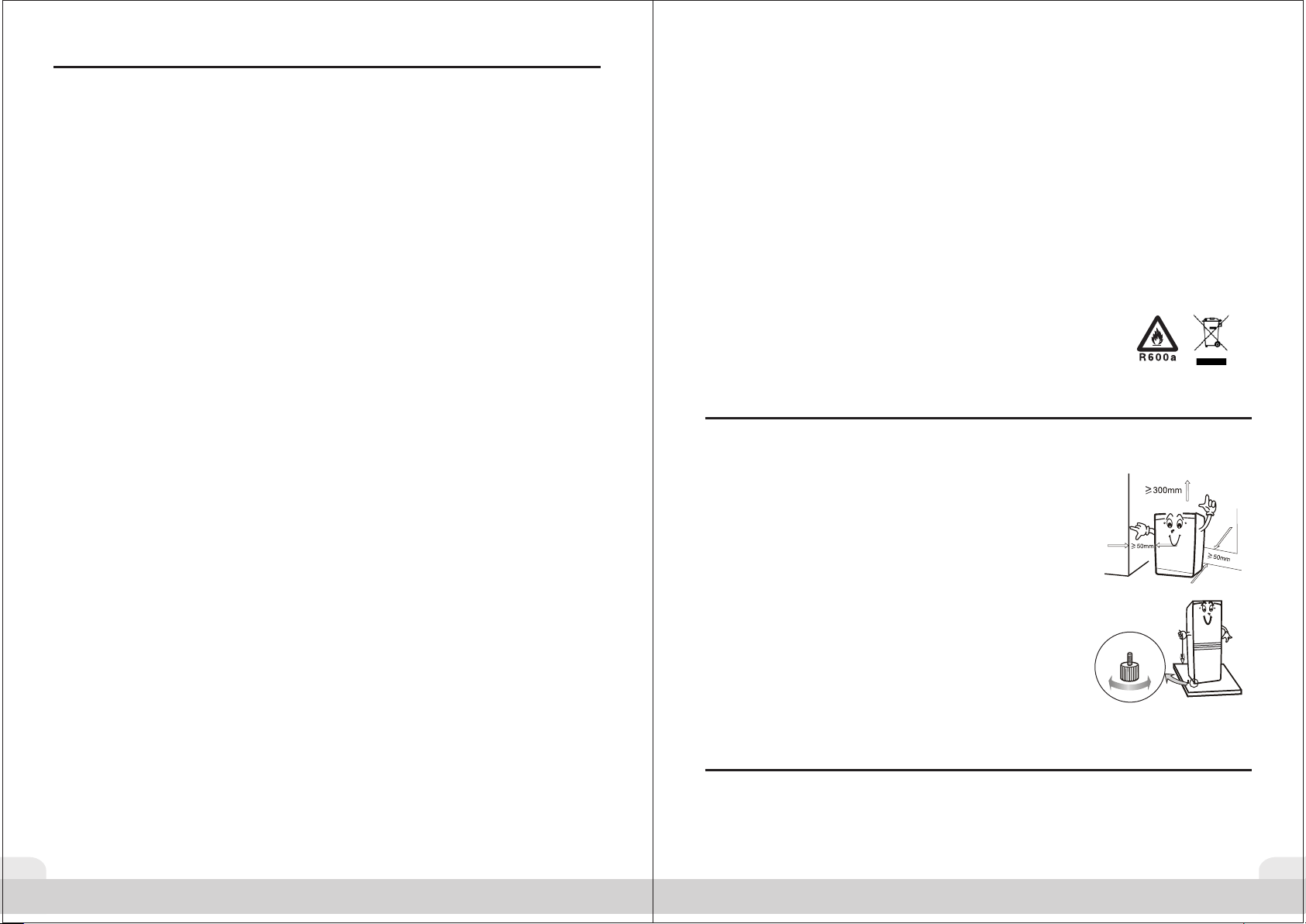

The Fridge freezer should be located on a completely flat surface , Leave 5~10 cm
between each side of the appliance and the wall, and leave 30 cm between the top
of the appliance and the work surface.
Choose a location which is not exposed to sunlight ,
high temperature or humid , as humidity maycause stain.
pull out the bottom panel before installation.
The appliance can be adjusted by rolling its two legs in
front the bottom when it is unstable. Rolling in clockwise
can rise up the machine.
The location should be firm and flat. An unsecure
position may cause noise and vibration:
(a)T he noise may be increased if the floor is not firm.
(b) Put a sheet under the appliance for solving the heat
emission if you need to position on carpet.
Make sure the adjustable legs are clung to the floor,
and set the appliance to slope backwards slightly to keep the doors tightly closed.
PLACEMENT OF FOOD
INSTALLATION INSTRUCTIONS
OPERATION INSTRUCTIONS
1.
2.
3.
4.
5.
6.
There should always be some space between items inside for air circulation.
1.
It is better not to place objects on top of the appliance which are magnetic, heavy
or filled with water. Electronic components may not work steadily if water gets inside.
5.
The refrigerant of this product is R600a,which is inflammable. So,make sure not to
damage the cooling system during the transportation and installation.
DISPOSAL:Appliances contain insulation gases and
refrigerants that must be disposed of correctly and in
line with current legislation. If you have any doubt
please contact your local authority for instructions .
6.
7.
Do not store object which is costly or impressible to temperature and , e.g. serum,
bacterin and so on.
WARNING: When positioning the appliance, ensure the supply cord
is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
成品为 大小A5
说明 书
70克双胶 纸
林志 映

54
INSTRUCTION FOR USAGE
Unpack , repack and carry
Please memorize the position of each accessory of the appliance
when unpacked, repack the product and check it carefully before
transportation.
Do not lift or pull the door or the door handle during transportation.
When moving, the appliance can not be sloped over 45 degrees
(the angle to the vertical direction). Please avoid strong vibration
and hit.
PACKING AND MOVING
1.
2.
3.
The appliance should be maintained and cleaned frequently. For your safety,
please pull the plug out of the socket before the cleaning.
Interior maintenance
Clean the interior of the appliance with clean warm water, wipe and dry with a
clean cloth. Do not use detergents abrasive powders or highly perfumed
cleaning products .
Door storage
It is easy to damage the door storage area please clean carefully.
Outer maintenance
Wipe when dusty with a piece of dry cloth. Do not use abrasive products.
MAINTENANCE
1.
2.
3.
The temperature of the refrigerator can be manually adjusted
by the thermostat control. The number shown on the dial does
not represent the temperature. The larger the number the lower
the interior temperature will be. 0 stands for off. Turn the dial
to 4 when in normal use. Adjust the dial to 7 for a lower interior
temperature and 1 for a higher.
The appliance is equipped with a screwing lamp or a long life LED interior light.
(Screwing lamp can be replaced by professionals. Long life LED is
non-replaceable.)
4.
Do not use any other equipment or method to push the
defrost process. It may destroy the cooling system.
DEFROST
You will need to defrost the freezer when the ice exceeds 3-5mm. Take all the
foods out of the compartment unplug the appliance. Open the doors and allow the
ice to melt wipe with a dry cloth.
DISCONNECTING THE APPLIANCE
In a general condition, do not stop the appliance in case of affecting
its life. After unplugging the power, please leave at least 5 minutes
before resumption.
USER NOTIFICATIONS
Attention
Do not splash water on the refrigerator, as it will cause oxidation and malfunction.
Electronic component such as on/off button should be wiped dry.
Cleaners such as soap powder, abrasive cleaning powder, alkali cleansers, chemical
cloth, thinner, alcohol, acid petroleum productand hot water should not be used to
clean the refrigerator as they may damage the painted cover and plastics.
Smear can damage the interior plastic component, so wipe it as soon as possible.
1.
2.
3.
Discontinuation during power failure
After power failure, do not put additional food in the appliance and reduce the frequency
of door opening.Make several ice cubes and put in a container if you know about
the power failure beforehand and put in the top of the fridge .
1.
Discontinuation during vacation
Please remove all perishable food from the fridge before short vacation and shut
door firmly, If you have a long vacation remove all food and turn off the power.
After defrosting, clean the appliance wipe dry and leave the doors open .
2.
Stop using
If the appliance has stopped working for a long period of time, Please unplug and
clean the appliance, The door should be kept open in order to prevent unpleasant
smells caused by food .
3.
After power failure, even in summer, the refrigerator can store food normally for several
hours.
Please check the points below after maintenance:
(1) Is there any damage or loss of the electronic wire ?
(2) Can the plug be put in the socket reliably and smoothly?
(3) Is the plug heating unconventionally?
4.
Food should be kept in sealed packages to avoid becoming
dry or with odour.
Hot food should be cooled down before placing into the
appliance. Otherwise, interior temperature and electronic
consumption will increase.
Reducing the frequency of the door opening can efficiently
slow down the electronic consumption.
Do not use any electronic equipment inside the appliance.
Warning
2.
3.
4.
成品为 大小A5
说明 书
70克双胶 纸
林志 映

The frame of the appliance will be warm during working by the defrost pipeline inside
it.
Please check the points above first.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
4.
76
Heavy frost occurs on the rear of the appliance
Putting humid or hot food into the appliance may cause this problem. Or it may be
caused by heavy environment moisture.
Disgusting odour happens
Food with strong odour should be packed tightly before being put inside the appliance.
Please check whether there is any deteriorated item or whether the liners are left dirty
for a long time.
Water leaks from the bottom of the refrigerator
The drain tube is jammed. Please use a proper tool to solve it.
The follow cases are not malfunction
Moisture may form dew on the outside of the product during the humid season, just
get it wiped.
The flow of refrigerant through the pipeline coil can cause a noise.
It is normal that the sides of product get warm as a result of the cooling pipeline
working.
5.
6.
7.
1.
2.
The compressor keeps working for a long period
The environment temperature may be too high. The doors may be opened frequently
or even they are left open. The temperature control knob setting in (4-7) state may
increase the working time of compressor.
4.
TROUBLESHOOTING TIPS
The refrigerator does not work
It may not be connected to the power supply(plug, power cut or fuse); Voltage is too
low.
The refrigerator does not work efficiently as expected
It may be caused by heavy frost, or by warm temperature setting,or by frequently
opening the door.
It is making an unusual noise
It may be caused by an imbalance please check all feet are of equal size and
the ground surface is flat .
1.
2.
3.
3.
Please get rid of the gasket of the door before the disposal.
The disposed apparatus should be handled by professional
staff, as it may be harmful to the environment.
Warning
SPECIFICATIONS AND PARAMETERS
Climate class
Electric shock protection type
Capacity (L) Freezer
Freezer
Refrigerator
Voltage (V)
Frequency (Hz)
Current (A)
Voice [dB(A)]
Energy consumption (kW.h/24h)
Refrigerant
Net Weight (Kg)
Dimension (mm)
Width
Depth
Height
T
I
60
220-240
50
0.6
R600a/30g
24.6
Refrigerator 0~8
487
592
893
<42
22
0.510
Interior
temperature ( C)
o
4
<-18
FR86WUBFF

9
成品为 大小A5
说明 书
70克双胶 纸
林志 映
