User Manual
Video Conference Auto Tracking Camera
- VC0004

Remote Control x 1
1
User Manual

● 4 MIC Array System
4 Digital MIC Array, 10 meter voice pick up
● Automatic Echo Noise Reduction Control(AEC)
Automatic Gain Control(AGC)
Automatic Noise Reduction Control(ANC)
● Automatic Voice Location
The camera will follow the voice and automatically
locate the person speaking, So that the speaker in the
meeting will always appear in the picture.
●1080P
2 million pixels 1/2.8inch HD CMOS sensor,
can achieve 1920x1080 HD picture
● Ultra-High Frame Rate
MJPEG Output Frame Rate 1080P/30fps
● USB 2.0
USB2.0 plug and play, easy to use
● Long-Range Control
Supporting RS232/USB2.0 interface long-range upgrade
maintain functions
● Control Protocol Automatic Identification Technology
VISCA, PELCO protocol automatic identification technology,
don’t need to dial-up or menu setup
● Image Flipping Technology
To achieve camera image flip, zoom, PTZ control and etc by
free exclusive control software.
● Multiple Application Scene
Education, Conference, Medical Treatment, etc.
2

Connect the speaker
(Speaker sold seperately)
Start button, click the camera to
confirm whether the camera is
connected correctly. If the screen
plays back the images captured
by the camera, the camera
is successfully connected.
3

You can adjust the camera settings
as needed.
If there are multiple cameras
or the camera is not displayed,
click to replace the camera.
Start button, click the camera to
confirm whether the camera is
connected correctly. If the screen
plays back the images captured
by the camera, the camera
is successfully connected.
You can adjust the camera settings
as needed.
If there are multiple cameras
or the camera is not displayed,
click to replace the camera.
4

Start “photo booth” and select
the VC0004 from the camera
The preview screen will play the
image taken by the VC0004
VC0004(10x Optical)
5

Brightness, Chroma, Saturation,
Contrast, Acutance
6

1. Built-in 4 digital microphone array and 10 Meter voice pickup.
2. Automatic Voice Location. The camera automatically rotates
and tracks the voice of the speaker.
3. 2.2M, 1/2.8’’ HD color CMOS sensor, 1920*1080HD display.
4. Horizontal -170°to 173°, vertical-30°to 90°camera rotation.
5. Support 3.5mm line speaker out external function.
Advanced Features
7

5. Remote Control Specification
8

1. Power button: Press the power button, the camera enters
standby mode
2. Answer/end button: Answer/end call
3. Volume button: Speaker volume down/up
4. Speaker mute button: Turn on/off the speaker mute
5. Microphone mute button: Turn on/off microphone mute
6. Bluetooth button: Turn on/off the microphone Bluetooth.
(Only for Bluetooth version, not for VC0004).
Bluetooth key + "*" key. Turn on the sound tracking function;
Bluetooth key + "#" key. Turn off the sound tracking function;
"*" key + number keys to adjust the camera sound tracking
sensitivity/time.
If you press "*" + the number 5 key first, the duration of the
person speaking needs to be greater than five seconds before
the camera can turn. The duration of speaking is less than
five seconds, the camera will not turn.
After successfully connecting the VC0004, the sound
tracking function will be turned on by default.
7. Menu button: Enter or exit the camera menu.
8. Camera PTZ control button: Use the control button to adjust
the camera to the position you want. Press the HOME button
to return the camera to the middle position.
9. Preset position setting button: Press the PRESET button +
number button (1-9) to save the corresponding preset position
of the camera.
10. Preset position clear button: Press the RESET button + number
button (1-9) to clear the corresponding preset position of the
camera.
11. Focus button
AUTO: Turn on Auto Focus mode
MANUAL: Turn on Manual Focus mode
FAR: Manual focus button to make distant objects clearer
NEAR: manual focus button to make nearby objects clearer
12. Camera zoom button: "+" camera lens zooms in, "-" camera
lens zooms out.
13. Number button: cooperate with setting/calling preset position
9

● Electrical Safety
Confirm country and local electrical safety standards when
using or installing the product. The product itself has no power
switch. Please stop power supply or plug out power socket
when it is not in a good working situation. Video wire and
control wire should be insulated and individually connected,
so that there is no confusion with other wires.
● Transportation with Care
Product should be protected against extreme stress,
vibration and moisture in transport, storage and installation.
It is transported by integrated packing style.
● Power Supply
Product supplies 12V DC power.
● Installation with Care
Don't turn the camera head manually. Doing so may result in
mechanical damage.
The product should be put on a stable horizontal table and
not be installed at an angle, which may cause a tilted image.
Don't focus the camera directly on the sun or other bright
objects no matter when in use or not, it may affect image quality.
Don't apply corrosive liquid, gas or solid, to avoid damaging
the cover which is made up of plastic material.
Make sure there is no obstacle with the camera's rotational
range when installing.
Never power on before installation has been completed.
● Prohibited Unauthorized Disassemble
There is no part for users to disassemble voluntarily.
Parrot Products is not responsible for any unauthorized
modification or dismantling.
Before the installation of the company's products, please read
the product manual carefully
6. Precaution
10

7. FAQ Processed
Image aspect
● No image displayed
1) To check whet her the camera power is connected, the
voltage is normal, and the power indicator is always on.
2) Plugin the power again, to check whether the camera can
self test normally.
3) To check whether the USB port and USB cable of the terminal
device are connected correctly.
● The image breaks frequently
To check whether the USB port and USB cable of the terminal
device are connected correctly.
● The definition is not good after accessing software
To check the software video input settings to see if the camera
video input is set to 1920 * 1080.
Control aspect
● Remote control doesn’t work
1) Check and replace the batteries.
2) Check if the camera working mode is correct.
● The serial port cannot be controlled
1) Check if the protocol and address of the camera are consistent.
2) Check if the camera USB cable is well connected.

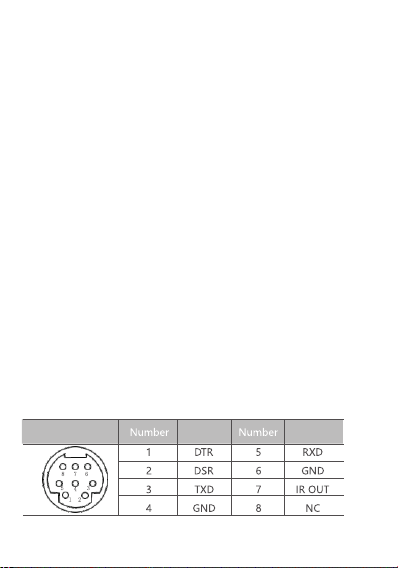

8. RS232
Camera Camera
Graphic
11

9. Warranty and Service Information
This product is provided a period of two (2) years from the date
of purchase for defects in materials and workmanship (subject
to the terms set forth below). It shall be returned to the dealer
in either its original packaging or packaging affording an equal
degree of protection. The following information must be presented
to obtain Warranty Service: (a) the product, (b) proof of
purchase, which clearly indicates the date of purchase and the
product type, and (c) reason for return.
This Warranty does not cover defects or damages that result
from:
(a) improper storage, misuse or abuse, accident or neglect,
such as physical damage (cracks, scratches, etc.) to the surface
of the product resulting from misuse;
(b) contact with liquid, extreme humidity, extreme heat, or food;
(c) use of the product or accessories for commercial purposes
or subjecting the product or accessories to abnormal usage
or conditions;
(d) other acts which are not the fault of Dealer.
This warranty does not cover damage due to improper operation,
maintenance or installation, or attempted repair by
anyone other than the dealer or the dealer’s authorized repair
center. This warranty does not cover defects or damages that
result from the use of Dealer’s branded or uncertified products,
accessories, or other peripheral equipment, nor does this
Warranty apply to products which have not been charged for
six (6) months. If the battery in a product has not been charged
for a period of six (6) months, the product might not function
or regain its full potential and long-term performance.
The dealer does not offer any warranty for such performance.
