Parrot Uncle F6298NW-EU User manual

CEILING FAN

F6298SN-EU
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
The equipment must be installed by a certified
electrician in accordance with the standards
in force in the country where the installation
takes place. Please remember to require your
installer to test all the fan functions before
leaving. In case of any doubt from the installer,
do not hesitate to contact us.
The mounting bracket must be attached to a
ceiling structure that is capable of supporting
length of the screws must be screwed into
the ceiling. If the fan is being installed onto a
ceiling junction box, secure the fan sufficiently
to prevent it from loosening or rotating.
The fan must be installed to ensure that the blades
fan’s blades and
which they could
the distance, the more efficient the airflow would be.
85
collide. It is important to note that the greater
any wall or other obstacle with
After installing the fan, ensure that all the
fastenings are secure and tightened in order to
avoid any noise caused by loose elements.
Some fastenings may become loose due to the
fan’s movement. Check all fastenings at least
twice a year to ensure that they are tight enough.
If necessary, they must be retightened.
0,85m
The mounting bracket must be attached
ceiling structure that is capable of supporting
to a
F6298NW-EU

Thank you for purchasing this quality product. To ensure correct function and safety, please read and save all
instructions before using the product
To avoid possible electric shock, tur he electricity at the main fuse box or circuit panel before you begin the fan installation or
before servicing the fan o .

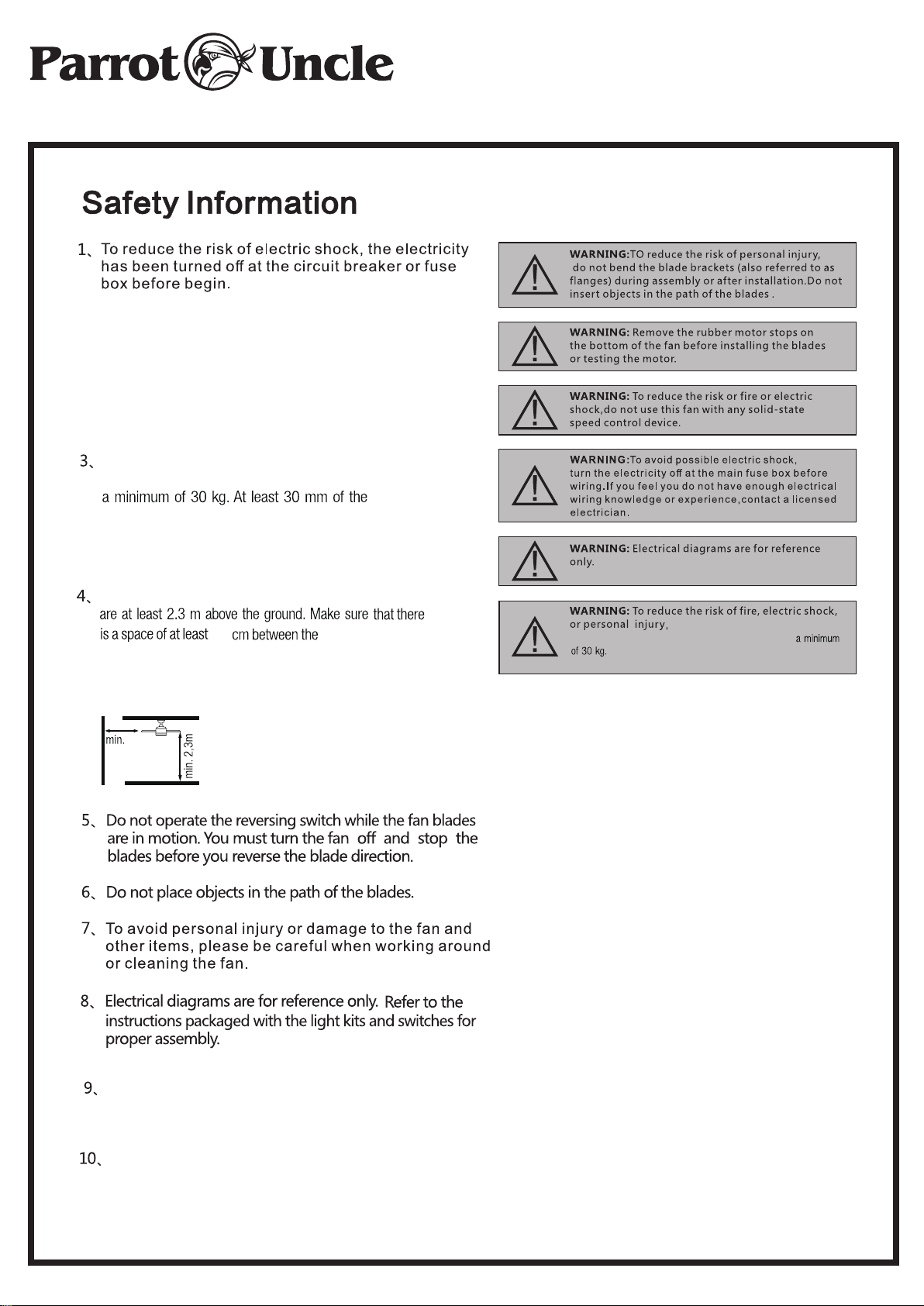

Read all instructions and safety information carefully before installing your fan and save these instructions.
Make sure all electrical connections comply with local codes or ordinances and the National Electrical Code. If you are unfamiliar with
electric wiring, please use a qualified and licensed electrician.
Make sure you have a location selected for your fan that allow clear space for the blades to rotate, and at least of clearance between the floor and
the fan blade tips. The fan should be mounted at least 85cm f rom walls or other upright structures.
WARNING:
Electrical diagrams are for reference only Refer to the instructions packaged with the light kits and switches for proper assembly.
After installation is complete, check that all connections are absolutely secure.
WARNING: To reduce the risk of electrical shock and fire, do not use this fan with any solid-state fan speed control device, or rheostat.
Do not separate the reverse switch until the fan has come to a complete stop.
Do not insert anything into the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as “flanges”) during assembly or after
installation. Do not insert objects in the path of the blades.
To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
Do not use water or detergent when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.
1.
2.
3.
4.
5.
6.
7.
.
8 .
9 .
10.
11.
12.
13..
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense and caution are necessary factors in the installation and operation of this fan.
NOTE: This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities are
different or are impaired, or lack of experience or knowledge, unless such persons are supervised or trained to operate the appliance
by a person responsible for their safety.
NOTE: Children should be supervised to ensure that they do not use appliances as a toy.
THANK YOU FOR YOUR PURCHASE
SAFETY TIP
ON
accessoriesinstallingr
t
n
F6298SN-EU
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
F6298NW-EU
2.3m
The mounting bracket must be attached to a
ceiling structure that is capable of supporting a minimum of 30 kg.
At least 30 mm of the length of the screws must be screwed into the ceiling.If the fan is being installed onto a ceiling junction box,secure the fan
sufficiently to prevent it from loosening or rotating.
.

Pls check whether above accessories are completed or not?Yes,and install.
1
2
3
2H4H 8H
Blade screw(1PC)
Remote control (1 PC)
Plastic wire nut(6 PCS)
Wood screw(4PCS) Plastic anchor(4PCS)
Expansion screw(2PCS)
F6298SN-EU
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
F6298NW-EU
5g
Balancing sticker (2PCS)
Balancing clip (1PC)
Mounting plate
Blade 3PCS
Fan-motor assembly

ceiling
mounting plate
X4
X2
F6298SN-EU
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
F6298NW-EU
70%
70%
100%
100%

FROM POWER SOURCE AC 220 VOLTAGE 50Hz
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
BROWN
BLACK OR ORANGE
BLACK
BLUE
BLUE
F6298SN-EU
F6298NW-EU
R E C E I V E R
L
N
BROWN
BLUE
BROWN
GREEEN
X4
X9
X9
X3

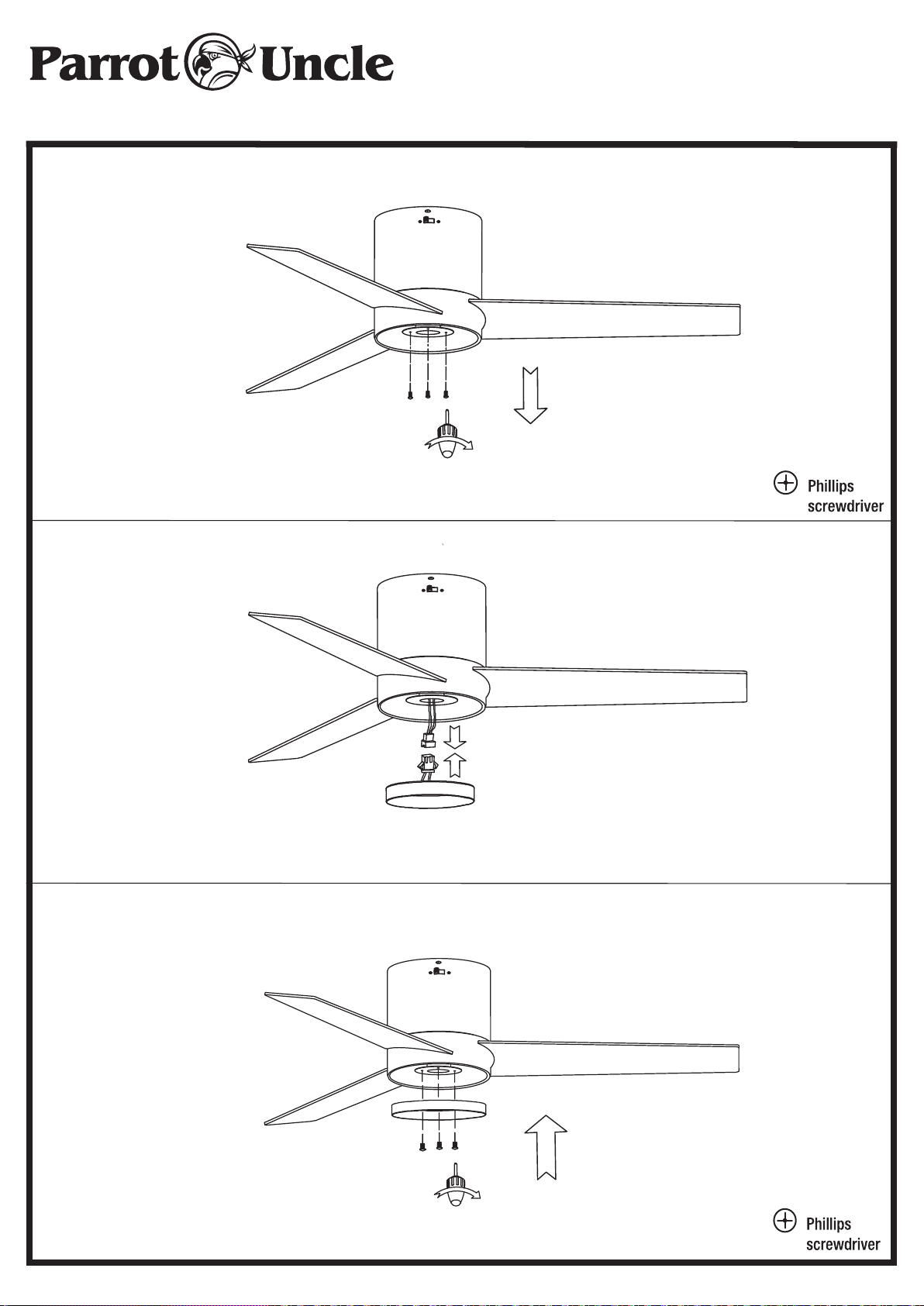

Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
F6298SN-EU
F6298NW-EU
X3
X3

controls
(WINTER TIME)
(SUMMER TIME)
d

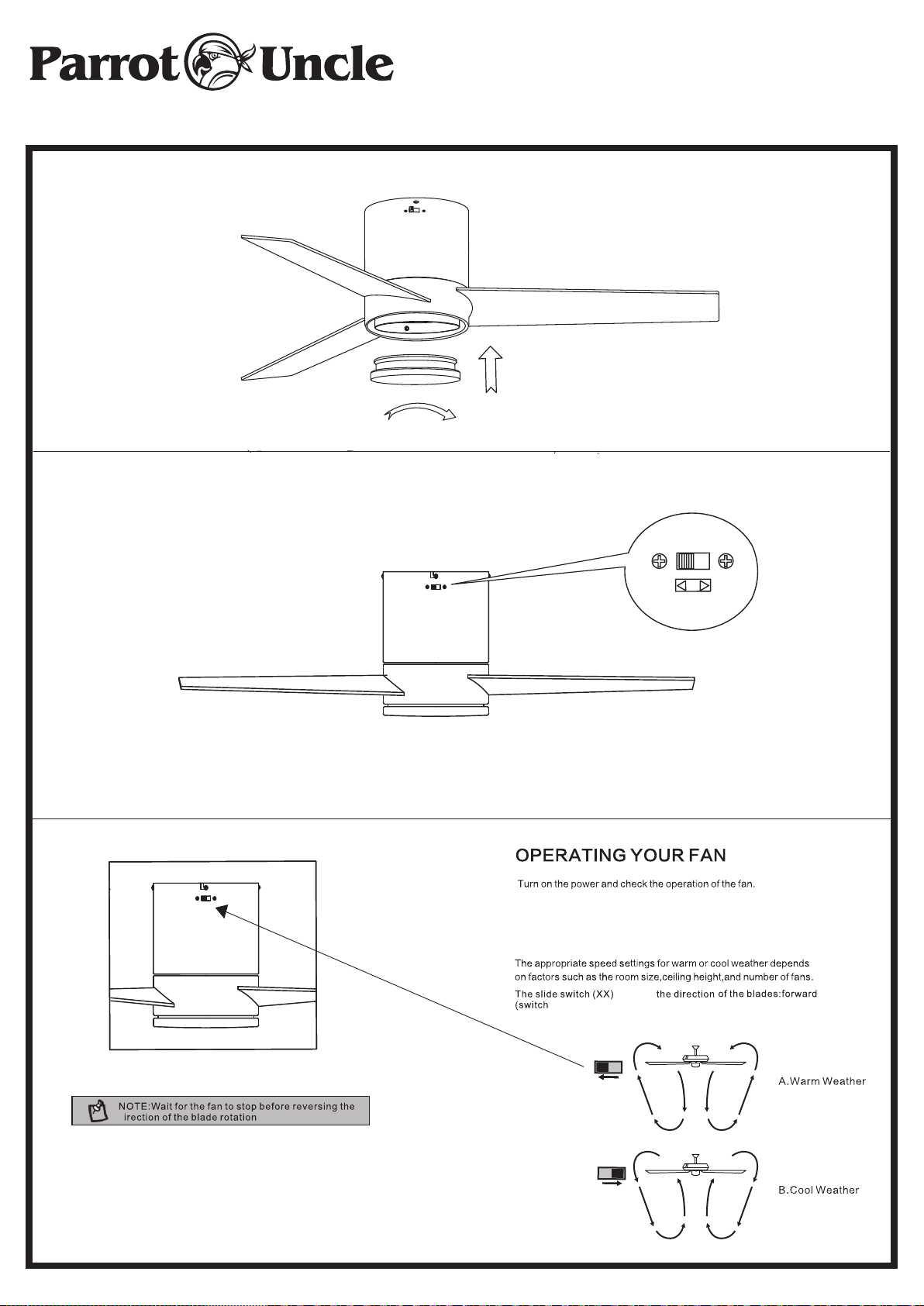

A.warm weather-(Forward) A Downward airflow creates a cooling e .
This allows you to set your air conditioner on a higher setting without
ag your comfort.
B.Cool weather-(Reverse) An upward airflow moves warm air o
ceiling.This allows you to set heating unit on a lower setting
g your comfort.
ffect
ffectin
ff the
affectin
The remote controller
controls the fan as follows:
3 key - for fan high spead
2 key - for fan medium spead
1 key - for fan low spead
OFF key - for fan off
LIGHT key - for light on and off (color selection)
2hr,4hr,8hr botton to set the FAN sleep timmer
left) or reverse (switch right).
without
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
F6298SN-EU
F6298NW-EU
FR

F6298SN-EU
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
F6298NW-EU
Remote controller
GENERAL INFORMATION
This remote controller is designed to separately control your ceiling fan speed and light ON/OFF.
There are four buttons (HI, MED, LOW, OFF) to control the speed of the fan and off.
The light button will control the light on and off.
The red indicator on the transmitter will light when one of the nine buttons is pressed.
INSTRUCTION OF INSTALLATION AND OPERATION
2.INSTALLING RECEIVER IN CEILING FAN
A. Safety precautions:
WARNING: HIGH VOLTAGE! Disconnect power by
removing fuse or switching off circuit breaker.
Do not use with solid state fans.
Electrical wire must meet all local and national
electrical code requirements.
Supply for fan must be 220/240 volt, 50Hz. Maximum
fan motor amps: 1.0, Maximum light watts: 180
incandescent or ballast.
Otherwise power can cause serious injury or death.
B. Installing receiver in fan:
a. Remove power from the circuit.
b. Remove ceiling fan canopy from the mounting
bracket.
c. Disconnect existing wiring between ceiling fan and
Supply in electrical junction box.
d. Make connections as follows, using the wire nuts
supplied:
CONNECT TO
Green fan wire ....Bare supply wire
Brown receiver wire(AC IN L) ....Brown supply wire
Blue receiver wire(AC IN N) ....Blue supply wire
Blue receiver wire(TO MOTOR N) ....Blue fan wire
Brown receiver wire(TO MOTOR L) ....Brown fan wire
Black/Orange receiver wire(FOR LIGHT) ....Black/Orange light wire
CA UTION: Ceil i ng An gle Shall N ot E x ceed 30 Degr ees,
Fo r Mo u nti ng Co ntr o ll er, M od el R E-026
FIG1
ACN ACL
ANT
COM FAN LIGHT
INPUT
OUTPUT
RECEIVER
Use wire connecting nuts supplied with the fan
(FIG.3)
FROM POWER SOURCE
AC 220~240 VOLT 50Hz
.
Use wire connecting nuts
supplied with the remote
controller.
WIRE NUT
RECEIVER
CANOPY
(FIG.4)
ANTENNA PUT AT OU TSIDE
OF CANOPY BOX CAN GET
MORE OPERATION
DISTANCE
BLUE
INPUT
OUTPUT
BROWN
ANT
CANOPY
RECEIVER
BLUE
BROWN
BLACK OR ORANGE
1.SETTING THE CODES
To set the codes, perform the following steps:
A. Setting the codes on the transmitter:
a. Remove battery cover. Press firmly on the arrow and slide battery cover off.
b. Slide code switches to your choice of up or down position. (Factory setting is all up. Do not use this position. Use a
Small screwdriver or ball point pen to slide firmly up or down (Figure 1)).
B. Setting the codes on the receiver:
The Learn Key must be pressed with in 30 seconds, after pressing the Power button.
If not, please press the Power button to restart.
Keep pressing the button learn key in excess of 3 second it becomes a LEARN status.
The receiver can remember the last codes status .The light flash two times.
TRANSMITTER
LEARN
CODE
COM
COD E

Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
If other fans or supply wires are different color, have this unit installed by qualified licensed electrician.
e. Push all connected wires up into junction box.
f. Lay the brown antenna wire on top of the receiver, and put the receiver into the mounting bracket.
g. Reinstall the canopy on the mounting bracket.
h. Restore power.
3. OPERATING TRANSMITTER:
A. Install 1.5 volt battery(not included). (To prevent damage to transmitter, remove the battery if not used for a long time).
B. Store the transmitter away from excessive heat or humidity.
C. This remote control unit is equipped with roll code combinations. In order to prevent possible interference from or to
other remote units such as garage door openers, car alarm or security system. If you find that your fan and light kit go
on and off without using your remote control, simply change the code combination in your transmitter and receiver.
D. Operating the buttons on the panel of the transmitter.
3 key -for fan high speed.
2 key-for fan medium speed.
1 key-for fan low speed.
OFF key-for fan off.
LIGHT key-for light ON/OFF.
2hr ,4hr ,8hr button to set the FAN sleep timer from
YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT.
OPERATION DISTANCE 20 FEET
TRANSMITTER
MODEL:
RE-011
Optional Wall Mounting for Transmitter Holder
Place in accessible area of your home, and screw the
transmitter holder into wall using the two screws
provided, slide hand unit into holder.
4. TROUBLE SHOOTING GUIDE
1. Fails to operate
a. Power to receiver ?
b. Receiver wired correctly ?
c. Fan manual speed control in highest position ?
d. Light kit switch turned on ?
e. Good battery in the transmitter ?
f. Code set at exact same positions in both transmitter and receiver ?
2. Won't operate at distance
If transmitter operates fan/light kit when up close, but not at 20 feet away.
Try placing the brown antenna wire higher, up through ceiling/outside the junction box.
NOTICE !
Your ceiling fan and light kit assembly must meet the following requirements:
1. Do not use with solid state fans.
2. Electrical rating: 220V~240V 50Hz
MAX. Motor amps: 1.0
MAX. Light watts: 180-(incandescent, or ballast non-dimmer, or LED)
WARNING
TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED WITH A WALL CONTROL/SWITCH.
LR03 1.5V AAA
LR03 1.5V AAA
F6298SN-EU
F6298NW-EU

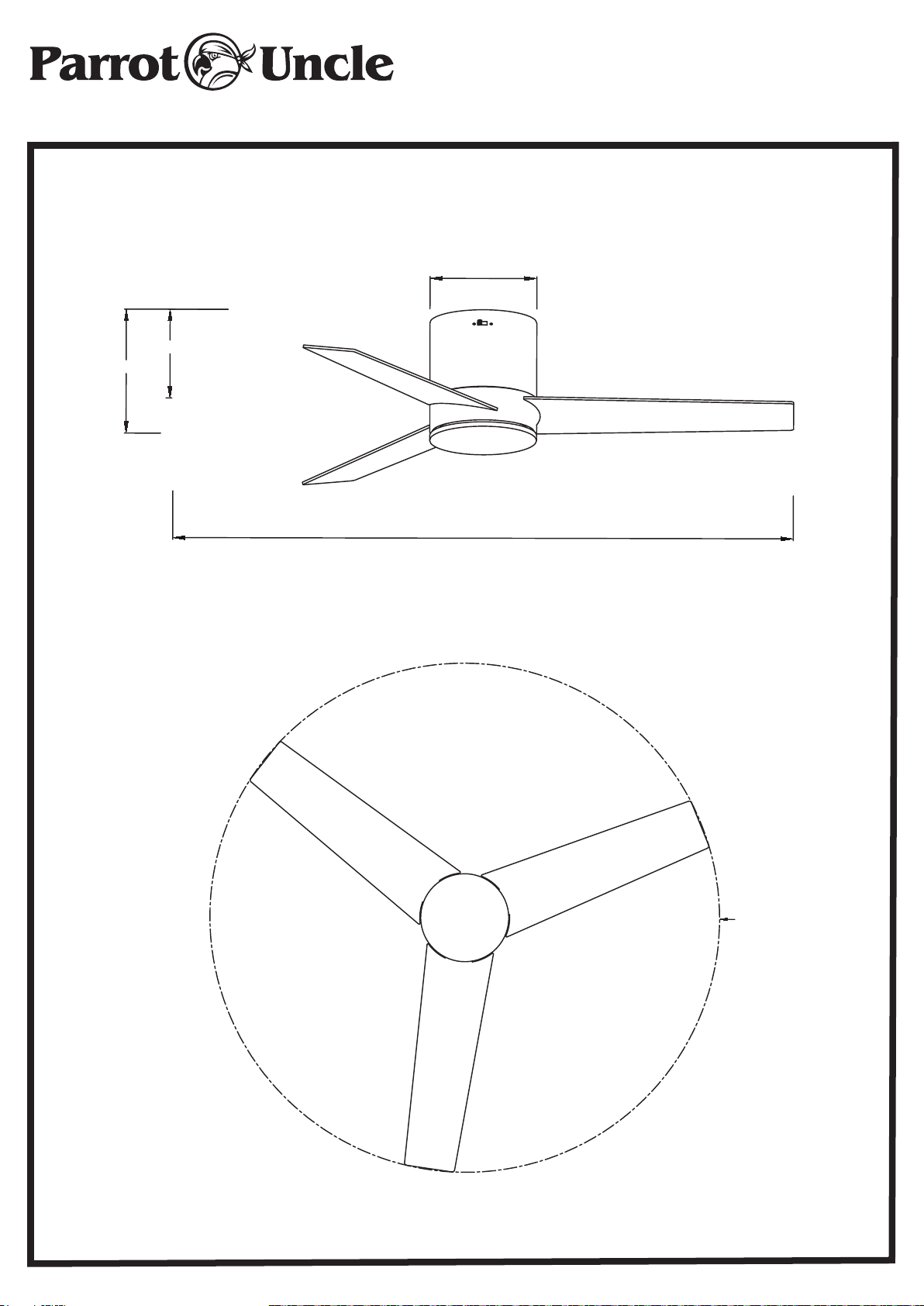

size of product
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
F6298SN-EU
F6298NW-EU
Ø1220
254
182
Ø210
mm
mm
mm
mm
Ø1220mm

Table of Contents
1. Fan / Remote is not working
2. Fan is noisy
3. Fan Wobbles
4. Light is not working
Please refer to the instruction sheet for detailed directions and descriptions of
installation steps
and requirements.
1. FAN / REMOTE IS NOT WORKING
Ensure the remote is within the 6m range of the receiver
To reset the remote control: 1) Turn off power to fan using the wall switch or circuit breaker. 2) Remove ba eries from remote.
3) Wait 10 seconds. 4) Replace ba eries and turn power on
Check ba eries to insure they are good and oriented correctly
Check to make sure the frequency switches (DIP Switches) from the remote to the receiver are set to the same frequency
Check the main and branch circuit fuses or breakers
If using a Variable Speed Wall Switch, ensure it is specifically designed for use with a ceiling fan.
Check the line wire connec ns to the fan and the switch wire conn e switch housing per the instru ns
[e-mail]
2. THE FAN IS NOISY
Make sure all motor housing screws are tened
Make sure the screws that a an blade to motor ar t
Make sure the wire nut connectors are not ra against each other or the interior wall of the switch housing
Allow 24-hour break in period. Most noises associated with the new fan may disappear during th me
If using a ceiling light kit, make sure the glassware is secur htly
Make sure there is a short distance/gap from the ceiling to the topof the canopy. The canopy should not touch the ceiling!
Make sure your ceiling box is secure and that the rubber isolator pads are used between the moun acket and outlet box
TROUBLESHOOTING GUIDE
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
F6298SN-EU
F6298NW-EU

3. THE FAN WOBBLES
Verify all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once fan is properly
installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs a er running the fan for 10 minutes, verify blade level using the following process:
a)
select a point on the ceiling above the p of one of the blades. Then select the fan blade and measure from the center
of the selected blade to point on the ceiling. Rotate the fan un e next blade is oned and repeat the
measurement using the same point from the ceiling for every blade. Measurements
should be within
Customer Service Support@parr
otuncle.com to order a complimentary Blade Balancing Kit
4. LIGHT IS NOT WORKING
Check Bulb to make sure it is installed correctly
Remove non-working bulb and replace with a bulb that is known to be a good working bulb
To reset the remote control: 1) Turn off power to fan using the wall switch or circuit breaker. 2) Remove ba eries from
remote. 3) Wait 10 seconds. 4) Replace ba and turn power on
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
0.32cm
0.32cm.
F6298SN-EU
F6298NW-EU

AFTER INSTALLATION
The fan blades have been adjusted in the factory to minimize any wobble
NOTE:CEILING FANS TEND TO MOVE DURING OPERATION DUE TO THE FACT THAT THEY
ARE MOUNTED ON A RUBBER CROMMET. IF THE FAN WAS MOUNTED RIGIDLY TO THE
CEILING, IT WOULD CAUSE EXCESS VIBRATION. MOVEMENT OF A FEW CENTIMENTERS
IS QUITE ACCEPTABLE AND DOES NOT SUGGEST ANY PROBLEM
WOBBLE”
TO REDUCE THE FAN WOBBLE: PLEASE CHECK THAT ALL SCREWS WHICH SECURED THE MOUNTING
BRACKET AND DOWNROD ARE SECURE.
BALANCING A WOBBLING CEILING FAN:
For your convenience, a Balancing Kit is included; please follow this procedure when balancing the fan:
1.Check that all blade and blade arm screws are secure.
2.Most fan wobbling problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the
blades. Measure this distance.Rotate the fan until the next blade is positioned for
measurement. Repeat for each blade. The distance deviation should be equal within
1/8"(0.32cm).
3.Use the enclosed Blade Balancing Kit if the blade
wobble is still noticeable.
4.If the blade wobble is still noticeable, interchanging two
adjacent (side by side) blades can redistribute the weight and possibly result in smoother
operation. WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARM WHILE INSTALLING, BALANCING THE BLADES, OR CLEANING THE FAN. DO
NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
NOISE
When it is quiet(especially at night) you may hear occasional small noises. This is normal. Please allow
a 24-hour “breaking-in” period, most noises associated with a new fan disappear during the time.
CARE AND CLEANING
1.Periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free cloth to
avoid scratching the paint finish. Please make sure to turn o electricity power before you clean your fan
2.Do not use water when cleaning your ceiling fan. It could damage the motor or the blades
and create the possibility of an electrical shock.
3.Motor has permanently lubricated ball bearing. No need to oil
NOTE: MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY CLEANING OR REPAIRS.
ff
Installation & Operating Instructions for the
Parrotuncle Owner's Installation ,Manual
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
F6298SN-EU
F6298NW-EU
