Pasquini Livia Auto User manual

1501 WEST OLYMPIC BOULEVARD
LOS ANGELES
CALIFORNIA 90015
WWW.PASQUINI.COM
1501 WEST OLYMPIC BOULEVARD
LOS ANGELES
CALIFORNIA 90015
WWW.PASQUINI.COM

TABLE OF
CONTENTS
LIVIA ESPRESSO MACHINES ................................................................01
LIVIA S / LIVIA AUTO ......................................................................02
MOKA GRINDER..............................................................................03
HEAVY DUTY BASES ........................................................................04
PORCELAIN CUPS / ACCESSORIES ........................................................05
SAFETY SHEET................................................................................06
CALL OUT, USE AND MAINTENANCE, LIVIA ACCESSORIES SUPPLIED ................07
BEFORE INSTALLATION / INSTALLATION AND PREPARATION FOR DAILY USE....08,09
MAKING ESPRESSO - FILLING PORTA-FILTER / ENGAGING PORTA-FILTER ..........10
BREWING ESPRESSO ........................................................................11
MAKING CAPPUCCINO, CAFFE LATTE, ETC ..............................................12
DIAGRAMS FOR USING “TURBO TIP” STEAM DIFFUSER ................................13
MAKING CAPPUCCINO WITH TRADITIONAL DIFFUSER ..................................13
CLEANING THE MACHINE ..............................................................14,15
PROGRAMMING - LIVIA AUTO ..............................................................16
TROUBLESHOOTING ..........................................................................17
MOKA GRINDER - USE / MAINTENANCE ..........................................18,19
MOKA GRINDER ADJUSTMENTS ......................................................20,21

1
LIVIA
ESPRESSO
MACHINES
LIVIA TECHNICAL SPECIFICATIONS:
ETL listed for home
& commercial usage.
• Power 120v. 60hz
• Resistance 1200 w.
• Pump pressure
15 bar max.
• Reservoir 3.5 liter
• Boiler 1.3 Liter
• Width 11.5"
• Depth 15"
• Height min. 12.5"
• Height max. 16.5"
(Lid open)
• Add 4” for base
• Weight 36 lbs.
• Ship weight 46 lbs.
LIVIA S LIVIA AUTO

2
LIVIA S:
The Livia S is a Semi-Automatic espresso machine. It has been designed and built like a
commercial machine so it can steam milk and brew espresso at the same time! Just
pour water in the large .9 gallon removable reservoir, and switch on the machine.
LIVIA AUTO:
The Livia Auto is a fully programmable automatic espresso machine.
It features a volumetric coffee dosing system that guaranties the exact amount of
espresso according to your taste. The Livia Auto also includes an on-off brew cycle
feature that bypasses the programmable buttons.
Livia's are built to last:
•High polished stainless steel coachwork
•Anti-rust powder coated steel frame
•All copper boiler and “Naval” brass (lead free) components
•Livia pump capable of producing 15 - 16 bar pressure
•Powerful steam jet
•Hot water for tea
•Only 7 minute heat up time
•Removable reservoir
All Livia's feature an on-board microprocessor that manages all the low water safety
needs. This prevents the pump and boiler from burning out.

3
MOKA
GRINDER
(WITH DOSER)
AND
MOKA “SELF”
(DOSERLESS)

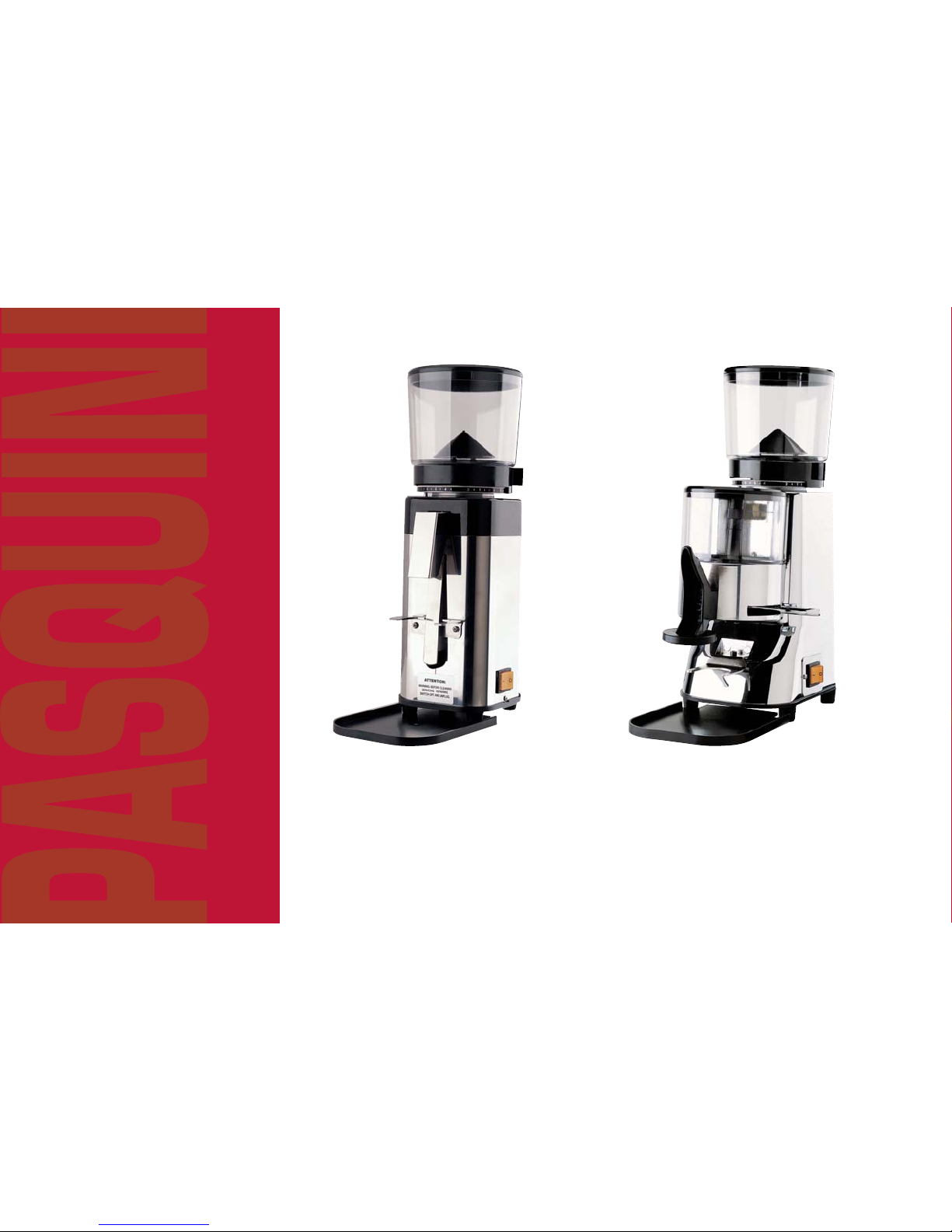

The Moka Grinder is built using the same components and precision of a commercial
grinder, and meets all the requirements needed for any espresso machine. The Moka
features, a fully adjustable coffee doser, high temperature carbon steel grinding mills,
and a built in tamper.
MOKA GRINDER
“SELF”
(doserless)
MOKA GRINDER
CHROME
(with doser)

4
HEAVY
DUTY
BASES
Pasquini bases are intended to keep the espresso area clean and efficient.
All bases (3 sizes available) are made of stainless steel, and are equipped with
a steel reinforced rubber knock out bar which is used to dislodge the spent
coffee. The drawers are removable for easy cleaning.
MOKA GRINDER BASE: 8”
Specifically designed for the Moka Grinder.
Size: 4"(H) x 8"(W) x 16"(D)
LIVIA BASE: 14”
Specifically designed for the Livia machine.
Size: 4"(H) x 14"(W) x 16"(D)
DOUBLE BASE: 19”
Perfect for mounting the Livia and the Moka Grinder. The double base
includes two pull out drawers: One knock out drawer, and a second drawer for
accessories.
Size: 4"(H) x 19"(W) x 16"(D)

PORCELAIN
CUPS
IMPORTED
FROM ITALY
"PASQUINI" LOGO CUPS AND SAUCERS.
These are authentic Italian cups that one would find in any Italian caffe.
Manufactured by the premier porcelain company in Italy. These cups are made of
thick, top quality porcelain.
Available in 3 sizes: 8 oz. Caffe Latte cups, 6 oz. Cappuccino cups, 3 oz. Espresso cups.
ACCESSORIES
A. Steaming pitchers are made in Italy
of high-grade polish stainless steel
(500 ml.).
B. 7 gram measuring spoon.*
C. Porta-filter with pod filter insert.
(pod filter, also sold separately)
D. Group head cleaning kit.
E. Rubber back flush disc.
F. Stainless steel back flush disc.*
* Included with machine
** Pod adaptor available.
G. Steam tip, traditional 4 hole style
or turbo tip style.*
H. Plastic tamper.*
I. Standard single cup filter, 7 - 8 grams.*
J. Large single cup filter, 8 - 10 grams.
K. Standard double cup filter, 14 - 16 grams.*
L. Large double cup filter, 16 - 21 grams.
M.Chrome draw.
5
A
C
M
DEFGHIJKL
B
8 oz. 6 oz. 3 oz.

6
SAFETY SHEET
Very Important Instructions:
READ FIRST: WARNING: HOT SURFACES.
The Livia espresso machine heats up to very high temperatures, and creates
steam that can cause severe burns. Do not allow inexperience people or
children to use the machine without proper guidance.
•Please observe normal safety practices.
•Due to hot splashing liquids, do not operate machine barefoot or without
proper clothing.
•Do not modify electrical plug. Electrical plug must be grounded.
•High voltage, unplug machine before servicing.
•Do not use electrical extensions or similar devices.
•Only qualified service persons should remove any panels.
•Keep original shipping box.
The Livia is intended to dispense espresso, hot water, and steam for heating
liquids only.
All other usages are to be considered unfit and therefore strictly forbidden.
Manufacture shall not be held responsible for damages due to misuse or
uses unsuitable for espresso machines.

USE & MAINTENANCE:
1. On-Off Switch
2. Steam Control Knob
3. Heating Indicator Light
4. Safety Light
5. Brew Switch (semi-auto)
5A.Cup Selection Pad
(automatic machine only)
5B.One-Cup Selection
5C.Two-Cup Selection
5D.Program/Semi-auto
Selection
6. Water Reservoir Lid
7. Hot Water Knob
8. Group
9. Porta-Filter
10.Power Cord
11.Steam Wand
- Full Swing Level
12.Hot Water Spout
13.Defuser/Steam Tip
14.Manometer Gauge
(boiler pressure)
15.Back Flush Tube
The Livia is supplied with
the following Accessories:
• Measuring Spoon
(7 grams)
• Single Cup Filter
(7 - 8 grams)
• Double Cup Filter
(14 - 16 grams)
• Plastic Tamper
• Stainless Steel
Back Flush Disc
7
56 43
1
2
13
10
11
9
14
8
7
12
15
LIVIA S
5B 5C 5D
LIVIA
AUTO
5A
USE & MAINTENANCE
The Use & Maintenance manual is a guide on how to operate the Livia
machine only. You must have experience in using espresso machines in order
to obtain perfect espresso beverages, and fully enjoy the Livia. For first time
users, please refer to the "Tips" Guide at www.pasquini.com. This will help
guide you in the right direction.
