Patriot PA0054 User manual

ELECTRIC CONVECTION OVEN
OPERATOR MANUAL
Model Number:PA0054 / PA0055 / PA0098
Please read and keep these instructions.

2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and
have it ready when you call to ensure a faster service.

3
Patriot Counter top Convection Ovens are constructed of highly
polished stainless steel with high performance heating elements and
rear fans, stainless steel door handle, chrome plated wire racks and rack
slides. The bake chamber is made of stainless steel. The oven door is
double pane tempered glass and features a heavy-duty hinge
mechanism. Thermostat range for PA0054 & PA0055 is 150°F to500°F,
while for PA0098 is 150°F to 550°F. Timer range is 0 to 120 minutes.
Oven features a heat indicator light and power light. Oven holds either
3 or 4 standard size baking sheets. Units available in various voltages
and is shipped with a NEMA plug installed.

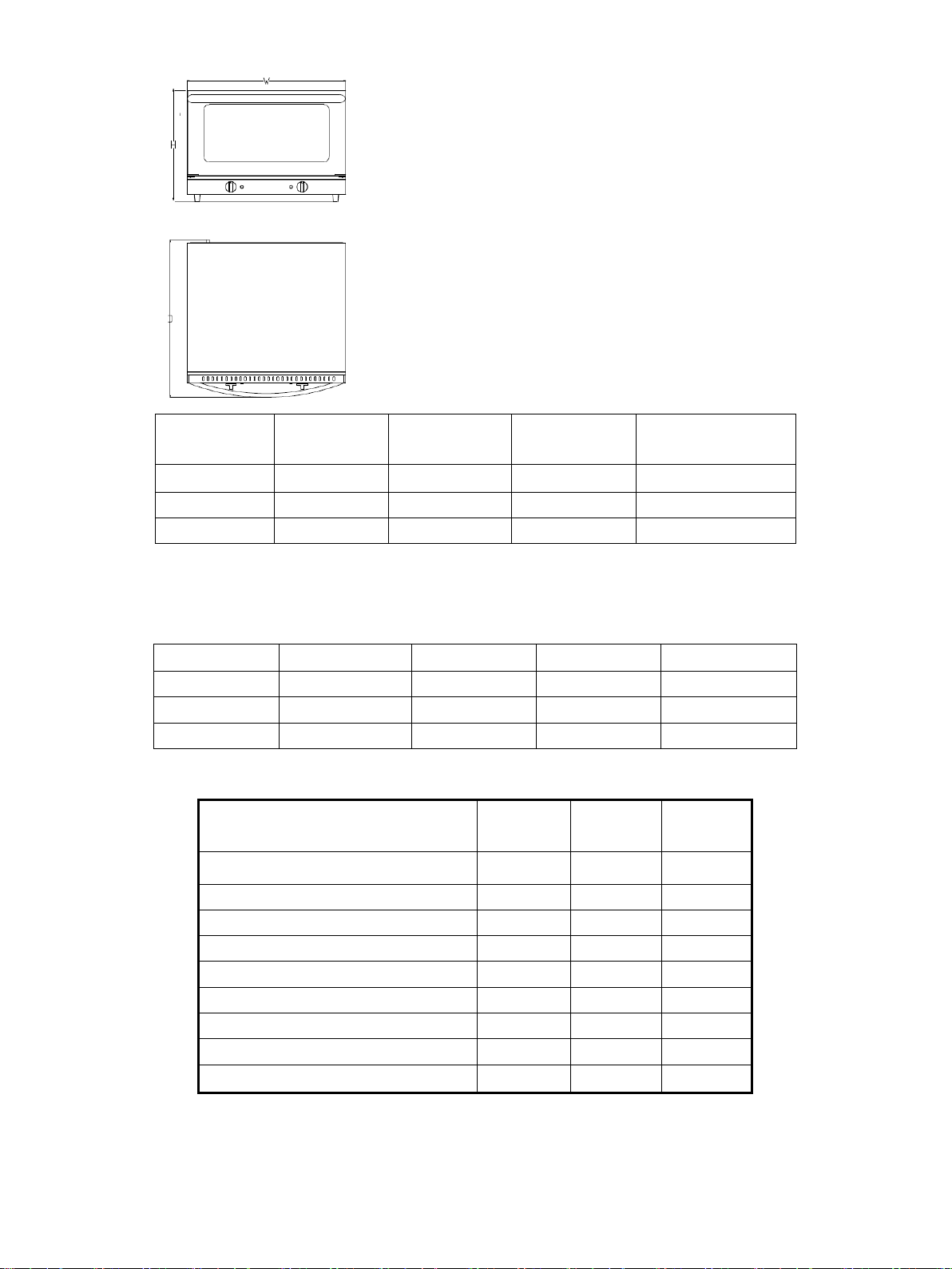

MODELNO. “W” Width
Inches/CM
“H” Height
Inches/CM
“D” Depth
Inches/CM
Approximate
Ship Weight lbs/kg
PA0054
18
3/4
(47.5)
15 (37.4)
18 (50.4)
35 (17.6)
PA0055 23 (58) 16 (40.4) 22 1/2(57.8) 50 (23.66)
PA0098 23 (58) 20 (51) 22 1/2(57.8) 59 (27)
ELECTRICAL SPECIFICATIONS
MODEL NO.
Voltage
Wattage
Amps
NEMA Plug
PA0054 120V,60Hz 1440 15A 5-15P
PA0055 120V,60Hz 1600 15A 5-15P
PA0098
208V~240V,60Hz
2100-2800
18A
6-20P
OVEN FEATURE PA0054 PA0055 PA0098
Number of Racks
3
4
4
Domestic Sheet Size
1/4
1/2
1/2
Stainless Steel Oven Chamber
yes
yes
yes
Number of Motors/Fan(s)
1
1
1
Timer yes yes yes
Top Browning Element
no
no
no
Steam Feature
no
no
no
Manual Reset Hi-Limit Protection
yes
yes
yes
SPECIFICATION

4
THIS APPLIANCE MUST BE GROUNDED AT THE TERMINAL PROVIDED. FAILURE
TO GROUND THE APPLIANCE COULD RESULT IN ELECTROCUTION AND DEATH.
INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL QUALIFIED TO WORK
WITH ELECTRICITY AND PLUMBING. IMPROPER INSTALLATION CAN CAUSE
INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT. UNIT MUST BE INSTALLED IN
ACCORDANCE WITH ALL APPLICABLE CODES.
NOTICE The data plate is located on the rear board of the unit. The oven voltage, wattage,
serial number, and clearance specifications are on the data plate.
This information should be carefully read and understood before proceeding with the
installation.
NOTICE The installation of this unit must conform to applicable national, state and locally
recognized installation standards.
The installation of any components such as a vent hood, grease extractors, fire
NOTICE extinguisher systems, must conform to their applicable National, State and locally
recognized installation standards.
MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES
AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO WEAR RUBBER
GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING.
CAREFULLY READ THE WARNING AND FOLLOW THE DIRECTIONS OF THE LABEL
OF THE CLEANER TO BE USED.
KEEP WATER AND SOLUTIONS OUT OF CONTROLS.
NEVER SPRAY OR HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC.
BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THE APPLIANCE WHEN
THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE. BEFORE REPLACING
ANY PARTS, DISCONNECT THE UNIT FROM THE ELECTRIC POWER SUPPLY.
NOTICE Never use chlorine sanitizer in contact with stainless steel surfaces longer than 10
minutes. Longer contact can cause corrosion.

5
GENERAL INFORMATION
This equipment is designed and sold for commercial use only by personnel trained and
experienced in its operation and is not sold for consumer use in and around the home nor for use
directly by the general public in food service locations.
Before using your new equipment, read and understand all the instructions & labels
associated
with the unit prior to putting it into operation. Make sure all people associated with its use
understand the units operation & safety before they use the unit.
All shipping containers should be checked for freight damage both visible and concealed.
This unit has been tested and carefully packaged to insure delivery of your unit in perfect
condition.
If equipment is received in damaged condition, either apparent or concealed, a claim must
Be made with the delivering carrier.
Concealed damage or loss - if damage or loss is not apparent until after equipment is
unpacked, a request for inspection of concealed damage must be made with carrier within
15 days. Be certain to retain all contents plus external and internal packaging materials for
inspection. The carrier will make an inspection and will supply necessary claim forms.
UN-CRATING
The oven will arrive assembled, just take out the trays underneath and put into the oven to be
ready for use. Prior to un-crating move the oven as close to its final location as practical. This will
protect it from damage associated with moving (scratches, dings, dropping).
These ovens weigh between35-112lbs. For safe handling, installer should obtain help as
needed, or employ appropriate materials handling equipment (such as a forklift, dolly, or pallet
jack) to remove the unit from the container and move it to the place of installation.
ANY STAND COUNTER OR OTHER DEVICE ON WHICH THE OVEN WILL BE LOCATED
MUST BE DESIGNED TO SUPPORT THE WEIGHT OF THE OVEN.
NEVER lay oven with the control side down, this will damage the controls.
INSTAL
INSTALLATION

6
LOCATION
DO NOT install the Counter top Convection Oven directly on the Floor.
DO NOT install oven closer than 1" on the control side, from another oven.
DO NOT install oven closer than 12" on the control side, from a uncontrolled heat
source (char broiler, open flame, griddle, etc.)
DO NOT CONNECT TO DIRECT CURRENT (DC).
DO NOT CONNECT TO ANY OTHER TYPE OF CURRENT THAT IS OTHERWISE SPECIFIED
FOR THIS SPECIFIC UNIT, OR MACHINE WILL BE SERIOUSLY DAMAGED.
Before Using Your oven
Before cooking anything in your oven for the first time, please follow these simple instructions:
Using a small amount of detergent, wash the handle and roasting racks with soapy water. (NOTE: Do not
use a spray or abrasive polishing agent). Gently wipe down interior walks with a damp cloth. While washing
this Units, do not to touch the electric heating element. Do not soak the inside of the oven with water.
After washing and thoroughly drying the surfaces noted above, place the roasting racks back inside the
oven.
Close the oven door and preheat the oven to its highest temperature setting for 5 minutes.
Turn off the heating elements and open the oven door in order to remove any smoky residue from inside
the oven. The heating elements are well lubricated and this initial use will help burn off the extra grease. A
light amount of smoke is normal during this process.
Using Your Oven
To start your oven, you need to turn on the temperature dial to set your desired cooking temperature, and
turn on the timer dial to set the cooking time.
CAUTION: During the baking process, make sure that no metal accessory comes in contact with the
electric heating elements.
CAUTION: Foods baked in this oven will be hot. Wear protective hand coverings when reaching into oven
to retrieve food.
TYPICAL OPERATION SEQUENCE
ACTION
RESULT
Press the ON/OFF switch.
Button lights up.

7
Adjust Temperature to desired setting and
move timer to manual position.
Fan, heat and indicator light comes on.
Fan will reverse only on CRCC-100 model.
Indicator lights shuts off.
Oven has reached desired temperature.
Load product into oven.
See Hints & Suggestions - “Loading the Oven”
Set Timer to desired cook time.
Timer stars timing down, the fan and heat turns
on.
1-Shot Steam (CRCC-50S &CRCC-100 models
only)
See Convection Oven Baking Guide, Convection
Ovens In General.
Cooking timer times out.
When 0 is reached the fan and heat shuts off,
and the ON/OFF switch remains lit.
Unload Oven
See Hints & Suggestions - “Unloading the Oven”
Timer
The range of the timer on this unit is 0-120 minutes. Turning the timer to the “0” position, the cooking time
is over and the timer will “ding” to alert.
If you need to reset the baking time while the oven is in operation, simply turn the timer to a new position.
The oven will reset the time according to the revised requirement without needing to be turned off.
When the set baking time has been reached, the oven will chime and the heating elements will NOT
automatically shut off.
Temperature Control Knob
The temperature range of this unit is 0-500 degrees Fahrenheit on 120V models and 0-550 degrees
Fahrenheit on 208-240V models. This thermostatic switch controls the temperature inside the oven and
helps to maintain the proper temperature during various heating, roasting and baking applications.
Power & Heating Indicator Light
Anytime this appliance is connected to the power supply with the temperature knob turned on, the power
and heating indicator light will be on and the fan motor will begin to operate.
Protection Component
If the temperature of this oven reaches an unsafe limit, the electrical components will shut off and it will
stop operating in order to prevent overheating.
MAINTENANCE
Contact the factory, a service representative or a local service company for service or
required maintenance.
•Oven interiors should be wiped down daily and thoroughly cleaned weekly using warm water
and mild detergent. DO NOT use caustic cleaners.

8
CLEANING
•Always start cleaning with a cold oven.
•The stainless exterior can easily be cleaned using stainless steel cleaner.
•Always follow the cleaner manufacturer’s instructions when using any cleaner.
•Care should be taken to prevent caustic cleaning compounds from coming in contact with the
fan wheel.
•The oven racks, rack slides, may be cleaned outside the oven cavity using oven cleaner.
•Using any harsh chemicals will result in the removal of the ETC coating and etching of the
porcelain below it. The oven interior should only be cleaned using a mild soap and a non metal
scouring pad. DO NOT use caustic cleaners.
•Always apply stainless steel cleaners when the oven is cold and rub in the direction of the metal’s grain.
KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR HOSE CONTROL CONSOLE.
MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUSMEMBRANES AND CLOTHING.
PRECAUTIONS SHOULD BE TAKEN TO WEARRUBBER GLOVES, GOGGLES OR FACE SHIELD AND
PROTECTIVE CLOTHING.
CAREFULLY READ THE WARNING AND FOLLOW THE DIRECTIONS ON THELABEL OF THE CLEANER TO
BE USED.
NEVER LEAVE A CHLORINE SANITIZER IN CONTACT WITH STAINLESS STEELSURFACES LONGER THAN
10 MINUTES. LONGER CONTACT CAN CAUSECORROSION.
