Paul Agnew ilektro User manual

U S E R I N S T R U C T I O N S AND
I N S T A L L A T I O N
IMPORTANT NOTE
THE HEATER OUTLET GRILLE BECOMES VERY HOT WHILST IN OPERATION. DO NOT COVER THE OUTLET GRILLE OR
ANY PART OF THE APPLIANCE. FOR USE WITH 110V - 120V 60HZ ELECTRICITY SUPPLY ONLY. PLEASE READ THESE
INSTRUCTIONS CAREFULLY BEFORE INSTALLATION KEEP THE INSTRUCTIONS IN A SAFE PLACE.THEY WILL BE
NEEDED WHEN MAINTENANCE OR SERVICING IS REQUIRED. THIS APPLIANCE MUST BE EARTHED.
Version 1 04/04/23
Contents of manual may be updated without notice.
For the latest version of this manual please refer to our
website: www.paulagnewdesigns.com.au
SLIMLINE RANGE

2
USER MANUAL
CONTENTS
THIS MANUAL COVERS THE FOLLOWING MODELS
ONLY:
IS50 IS60 & IS72
BOX CONTENTS 3
HOW TO USE YOUR APPLIANCE
HOW TO INSTALL YOUR APPLIANCE
REFERENCE INFORMATION
TERMS AND CONDITIONS WARRANTY
148 COCHRANES ROAD, MOORABBIN,
VICTORIA 3189
FULL TERMS AND CONDITIONS ARE DETAILED
IN THE WARRANTY STATEMENT ON THE
WEBSITE WWW.PAULAGNEWDESIGNS.COM.AU.
IN THE EVENT OF ANY CONFLICT OF
INFORMATION THE WORDING ON THE WEBSITE
SHALL PREVAIL. IMPORTANT NOTE: SHOULD
ANY PROBLEMS BE EXPERIENCED WITH YOUR
PRODUCT, CLAIMS MUST FIRST BE SUBMITTED
TO THE RETAILER WHERE THE APPLIANCE
WAS PURCHASED FROM WHO WILL OFFER
IMMEDIATE ASSISTANCE.
REGISTRATION NUMBER:
IN ACCORDANCE WITH EUROPEAN DIRECTIVE
2012/19/ EU, WASTE ELECTRICAL AND
ELECTRONIC EQUIPMENT (WEEE) MUST NOT
BE DISPOSED OF WITH HOUSEHOLD WASTE.
AT THE END OF ITS USEFUL LIFE PLEASE TAKE
THIS PRODUCT TO AN APPROPRIATE
RECYCLING CENTRE OR COLLECTION POINT.
YOU CAN FIND
YOUR NEAREST RECYCLING CENTRE BY USING
THE BANK LOCATOR AT
WWW.RECYCLE-MORE. CO.UK FOR UK
CUSTOMERS,
WWW.ACOR.ORG.AU FOR AUSTRALIA
CUSTOMERS
WWW.WEEEIRELAND.IE FOR CUSTOMERS
IN THE REPUBLIC OF IRELAND, OR BY
CONTACTING YOUR LOCAL AUTHORITY
1. IMPOTANT SAFETY INFORMATION
2. REMOTE CONTROL INSTRUCTIONS
6
3. OPERATING INSTRUCTION
4. MAINTENANCE AND CARE 10
12
13
17
5. TECHNICAL SPECIFICATION
6. GENERAL INSTALLATION
7. SETTING THE FUEL BED
8. ELECTRICAL CONNECTION
9. WIRING DIAGRAM
10. EXPLODED DIAGRAM
11. PRODUCT DIMENSION
4
19
26
18
9
20

3
BOX CONTENTS
PLEASE CHECK THAT THE FOLLOWING COMPONENTS ARE INCLUDED WITHIN THE BOX. IF
ANYTHING IS MISSING OR DAMAGED, PLEASE CONTACT THE RETAILER AND DO NOT USE
THE APPIANCE UNTIL YOU HAVE EVERYTHING.
APPLIANCE WITH POWER LEAD
REMOTE CONTROL HANDSET AND BATTERIES.
FIXING BRACKETS
INSTRUCTION MANUAL.
LOG SET.
EMBER CRYSTALS.

4
• READ ALL OF THE INSTRUCTIONS
CAREFULLY BEFORE USING THE APPLIANCE.
INSTRUCTIONS ARE AVAILABLE ONLINE AT
WWW.PAULAGNEWDESIGNS.COM
• REMOVE ALL PACKAGING AND DISPOSE OF
AT AN APPROPRIATE RECYCLING FACILITY.
• DO NOT USE THIS APPLIANCE IN THE
IMMEDIATE SURROUNDINGS OF A BATH,
SHOWER, SWIMMING POOL OR ANY OTHER
AREA WHERE THE APPLIANCE COULD COME
INTO CONTACT WITH WATER OR HUMIDITY,
E.G. A BATHROOM.
• DO NOT ALLOW THE APPLIANCE TO BE
COVERED OR LET THE AIR INLET/OUTLET
BECOME OBSTRUCTED AS THE APPLIANCE
MAY OVERHEAT. PLEASE NOTE THE
WARNING SYMBOL ON THE APPLIANCE.
FOR INDOOR USE ONLY. THIS APPLIANCE IS
NOT SUITABLE FOR USE OUTSIDE THE
HOUSE.
• KEEP THE POWER CORD AWAY FROM HOT
SURFACES AND HOT CONDITIONS. DO NOT
ROUTE THE POWER LEAD IN FRONT OF THE
APPLIANCE.
• THIS APPLIANCE MUST BE INSTALLED IN A
PURPOSE BUILT STUD-WORK ENCLOSURE
OR MOUNTED EXTERNALLY
• ENSURE THE APPLIANCE IS LEVEL AND THAT
FURNITURE, CURTAINS ETC. ARE
POSITIONED NO CLOSER THAN 1M.
• WHEN THE APPLIANCE HAS BEEN
INSTALLED THE POSITION OF THE PLUG
MUST BE ACCESSIBLE OR AN ISOLATION
SWITCH WILL BE INSTALLED AWAY FROM
THE APPLIANCE.
• WHERE THE ELECTRICITY SUPPLY CABLE
HAS TO PASS THROUGH A MASONRY WALL,
STONE SURROUND ETC. ENSURE SUITABLE
RUBBER BUSHES ARE FITTED AT POSSIBLE
WEAR POINTS.
• NEVER LEAVE CHILDREN
UNSUPERVISED WITH AN
UNGUARDED HEATER.
• NEVER OBSTRUCT OR COVER THE
HEATER OUTLET.
• NEVER INSTALL OR USE THIS
PRODUCT WHERE IT MAY COME
IN CONTACT WITH WATER I.E. A
BATHROOM OR WET ROOM.
• NEVER USE AEROSOLS OR STEAM
CLEANERS NEAR THIS PRODUCT.
• NEVER ROUTE THE ELECTRIC CABLE
NEAR THE HEATER OUTLET.
• NEVER ROUTE THE ELECTRIC
CABLE UNDER CARPETS OR FLOOR
COVERINGS.
• NEVER INSTALL THIS PRODUCT
CLOSE TO CURTAINS OR
COMBUSTIBLE MATERIALS.
• NEVER USE THE HEATER TO DRY
CLOTHES OR OTHER OBJECTS.
• NEVER REMOVE THE FIREPLACE
SURROUNDING WITHOUT ISOLATING
THE ELECTRIC SUPPLY.
HOW TO USE YOUR APPLIANCE
1. IMPORTANT SAFETY
INFORMATION

5
IF YOU ARE INSTALLING YOUR
APPLIANCE IN TO AN EXISTING
CHIMNEY CAVITY
•
IF THE ELECTRICITY SUPPLY CABLE IS
DAMAGED DO NOT USE THE APPLIANCE
UNTIL IT HAS BEEN REPLACED. FOR SAFETY
REASONS THE REPLACEMENT HAS TO BE
CARRIED OUT BY A SERVICE AGENT OR A
SIMILARLY COMPETENT ELECTRICIAN.
•
CAUTION: IN ORDER TO AVOID A HAZARD
DUE TO INADVERTENT RESETTING OF THE
THERMAL CUT OUT, THIS APPLIANCE
MUST NOT BE SUPPLIED THROUGH AN
EXTERNAL SWITCHING DEVICE, SUCH AS A
TIMER, OR CONNECTED TO A CIRCUIT THAT
IS REGULARLY SWITCHED ON AND OFF BY
THE UTILITY
•
DO NOT OPERATE THE APPLIANCE IF IT IS
DAMAGED.
•
REPAIRS OF ELECTRICAL APPLIANCES
MUST ONLY BE PERFORMED BY AN
ELECTRICAL ENGINEER. SHOULD THE
APPLIANCE FAIL TO OPERATE, OR IN CASE
OF ANY DAMAGE, PLEASE CONTACT THE
RETAILER FROM WHOM THE APPLIANCE
WAS PURCHASED.
•
CAUTION: SOME PARTS OF THIS
PRODUCT CAN BECOME VERY HOT AND
CAUSE BURNS. PARTICULAR ATTENTION
MUST BE GIVEN WHERE CHILDREN AND
VULNERABLE PEOPLE ARE PRESENT.
•
CHILDREN AGED FROM 3 YEARS AND LESS
THAN 8 YEARS SHALL ONLY SWITCH ON/
OFF THE APPLIANCE PROVIDED THAT IT HAS
BEEN PLACED OR INSTALLED IN ITS
INTENDED NORMAL OPERATING POSITION
AND THEY HAVE BEEN GIVEN SUPERVISION
OR INSTRUCTION CONCERNING USE OF THE
APPLIANCE IN A SAFE WAY AND
UNDERSTAND THE HAZARDS INVOLVED.
CHILDREN AGED FROM 3 YEARS AND
LESS THAN 8 YEARS SHALL NOT PLUG IN,
REGULATE AND CLEAN THE APPLIANCE OR
PERFORM USER MAINTENANCE
• ENSURE THE FLOOR AREA THE APPLIANCE
WILL SIT ON IS FLAT AND FREE FROM
LOOSE MATERIAL
• ENSURE THE FLUE OUT FROM THE
CHIMNEY CAVITY IS SEALED
• IN ORDER TO INSTALL YOUR APPLIANCE
EFFECTIVELY DISCUSS WITH YOUR
RETAILLER THE SURROUND NEEDED TO
ENCLOSE YOUR APPLIANCE INTO THE
INSTALLATION LOCATION
• TO PROVIDE POWER TO THE APPLIANCE
INSTRUCT A QUALIFIED ELECTRICIAN TO
INSTALL A POWER SOCKET INSIDE THE
CHIMNEY CAVITY, ENSURING THERE IS AN
ISOLATION SWITCH ACCESSIBLE OUTSIDE
THE CAVITY
HOW TO USE YOUR APPLIANCE
1. IMPORTANT SAFETY
INFORMATION

6
HOW TO USE YOUR APPLIANCE

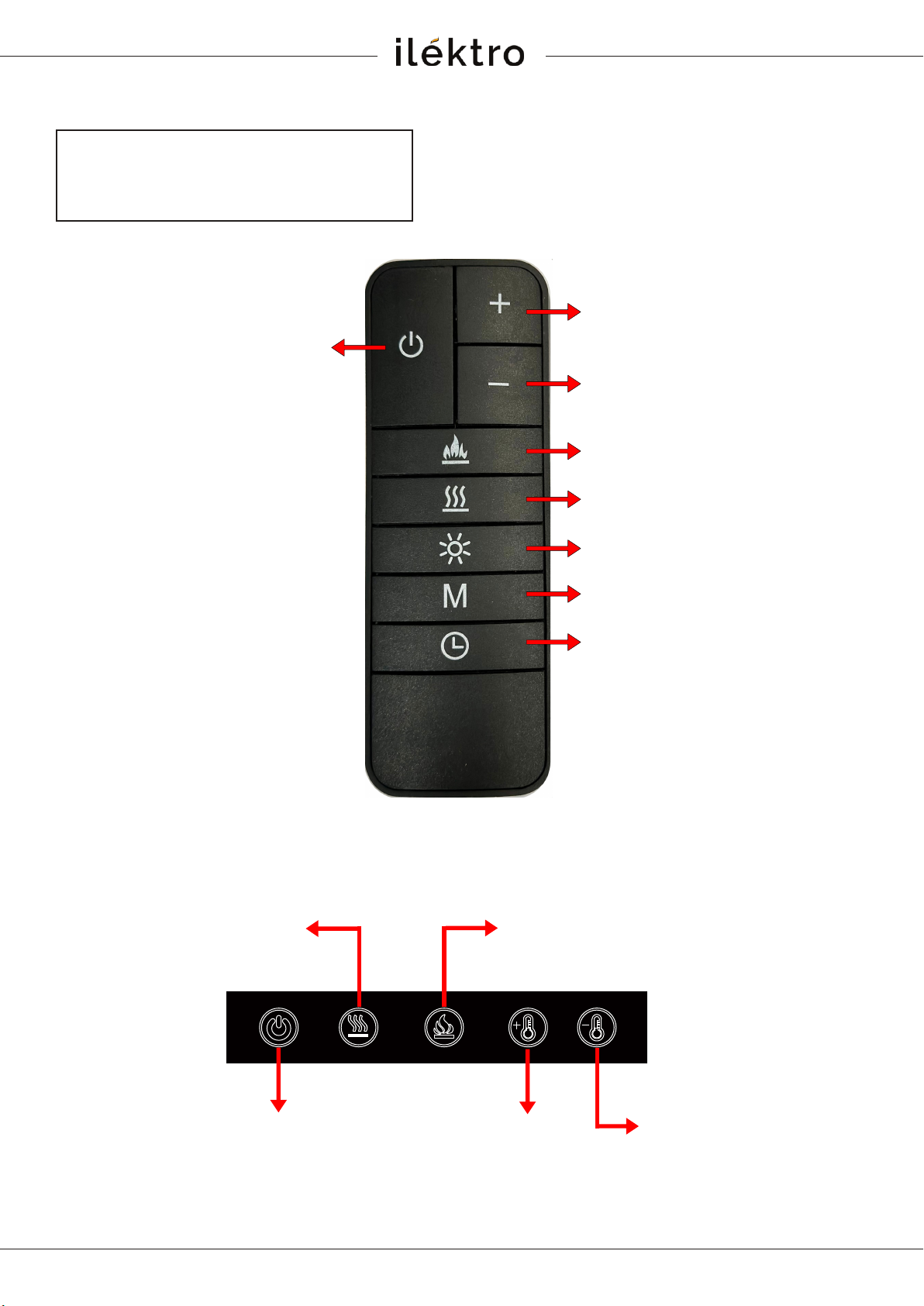

2. REMOTE CONTROL BUTTONS
AND DISPLAY
POWER
BUTTON
TEMP +/ PLUS
BUTTON
TEMP -/ MINUS
BUTTON
FLAME PICTURE
BUTTON
HEATER BUTTON
FUEL BED
BUTTON
TIMER MODE
BUTTON
TIME SETTING
BUTTON
TEMP +
BUTTON
TEMP -
BUTTON
HEATER
BUTTON
POWER
BUTTON
FLAME PICTURE
BUTTON
FIG: 05 REMOTE CONTROL BUTTONS
FIG: 06 DISPLAY CONTROL BUTTONS

7
�ON/OFF: TURNS APPLIANCE ON AND OFF.
�FLAME COLORS:
6 COLORS (1-2-3-4-5-6): 1. YELLOW 2. RED 3. BLUE 4. YELLOW + RED 5. YELLOW + BLUE 6. YELLOW + RED +
BLUE
�(+) (-) FLAME BRIGHTNESS:
5 SETTINGS (F5-F4-F3-F2-F1) FLAME DIMS FROM F5 TO F1. F5 IS THE BRIGHTEST SETTING.
�EMBER BED COLOR:
6 COLORS (1-2-3-4-5-6): 1. ORANGE (DEFAULT) 2. RED 3. PURPLE 4. BLUE 5. SKY BLUE 6. GREEN
�HEATER:
3 SETTINGS (H0-H1-H2): H0-NO HEATER OR BLOWER, H1-HEATER BLOWS WARM AIR 900W, H2-HEATER
BLOWS WARM AIR AT 1800W
�(+) (-) TEMPERATURE SET:
RANGE 15-30 DEGREES: CONTROL (+) TO INCREASE THE TEMPERATURE AND CONTROL (-) TO DECREASE
THE TEMPERATURE. HEATING IS ONLY TURNED ON WHEN THE SET TEMPERATURE IS ABOVE ROOM
TEMPERATURE.
�(+) (-) EMBER BED BRIGHTNESS:
5 SETTINGS (L5-L4-L3-L2-L1): EMBER BED DIMS FROM L5 TO L1. L5 IS THE BRIGHTEST SETTING.
�TIMER:
9 SETTINGS (30MIN, 1HR, 2HR, 3HR, 4HR, 5HR, 6HR, 7HR, 8HR): PRESS BUTTON UNTIL REACH DESIRED
SETTING. REFER FOLLOWING PAGE FOR WEEKLY TIMING SETTINGS.
HOW TO USE YOUR APPLIANCE
2. REMOTE CONTROL BUTTONS
AND DISPLAY

8
HOW TO USE YOUR APPLIANCE
2. REMOTE CONTROL BUTTONS
AND DISPLAY
SETTING THE TIME & DAY (24 HOUR CLOCK)
1. PRESS THE POWER BUTTON TO TURN THE
APPLIANCE ON.
2. PRESS AND HOLD THE TIME SETTING
BUTTON FOR 2SECS TO DISPLAY THE TIME
AND DAY AS PER FIG XX (NO NUMBERS
SHOWN AS TIME NOT SET).
3. PRESS THE TIME SETTING BUTTON AND
THE DAY YOU ARE SETTING WILL FLASH -
FIG XX
4. ADJUST THE DAY SETTING USING THE +
AND -
5. PRESS THE TIME SETTING BUTTON AND
THE HOUR YOU ARE SETTING WILL FLASH.
ADJUST THE HOUR SETTING USING THE +
AND - BUTTONS.
6. PRESS THE TIME SETTING BUTTON AND
THE MINUTE YOU ARE SETTING WILL
FLASH. ADJUST THE MINUTE SETTING
USING THE + AND - BUTTONS.
7. PRESS THE TIME SETTING BUTTON TO SET
THE TIME AND EXIT THE TIME/DAY SET-UP.
SETTING THE WEEKLY TIMER
THE TIMER ALLOWS FOR TWO ON/OFF PERIODS
(M1/M2) FOR EACH DAY OF THE WEEK AND THE
TIMER CAN BE SET USING THE FOLLOWING
PROCEDURE:
1. PRESS THE POWER BUTTON TO TURN
THE APPLIANCE ON.
2. PRESS AND HOLD THE TIMER MODE
BUTTON FOR 2SECS TO ENTER THE
TIMER SETTINGS. THE SETTINGS FOR
THE 1ST ON/OFF PERIOD (M1) FOR THE
MONDAY WILL BE SHOWN WITH THE 1ST
ON TIME AND HOUR SETTING FLASHING -
FIG xx. THE GREEN "ON" LIGHT BULB
SIGNIFIES THAT YOU ARE SETTING THE
ON TIME.
3. ADJUST THE HOUR SETTING USING THE
+AND - BUTTONS AND PRESS THE TIME
SETTING BUTTON TO SELECT THE
MINUTE SETTING. WITH THE MINUTE
SETTING FLASHING, ADJUST THE
MINUTE SETTING USING + AND -
BUTTONS.
4. PRESS THE TIME SETTING BUTTON AND
THE DISPLAY WILL MOVE TO THE 1ST
OFF TIME SETTING - FIG xx. THE RED
"OFF" LIGHT BULB SIGNIFIES THAT YOU
ARE SETTING THE OFF TIME.
5. REPEAT STEPS 2 AND 3 TO SET THE 1ST
OFF TIME.
FIG: XX
MO
FIG: XX
FIG: XX
FIG: XX

9
HOW TO USE YOUR APPLIANCE
2. REMOTE CONTROL BUTTONS
AND DISPLAY
SETTING THE WEEKLY TIMER (CONTINUED)
6. PRESS THE TIME SETTING BUTTON AND
THE DISPLAY WILL MOVE TO THE 2ND ON/
OFF PERIOD (M2) WITH THE 2ND ON TIME
SETTING DISPLAYED.
7. REPEAT 2 AND 5 TO SET THE 2ND ON/OFF
PERIOD - FIG xx
8. PRESS THE TIME SETTING BUTTON AND
THE DISPLAY WILL MOVE TO THE 1ST ON/
OFF PERIOD (M1) FOR TUESDAY WITH THE
1ST ON TIME SETTING DISPLAYED.
9. REPEAT STEPS 2 TO 8 FOR TUESDAY'S
SETTINGS AND REPEAT TIHIS PROCESS
FOR WEDNESDAY TO SUNDAY'S SETTINGS.
10. HAVING CONFIRMED SUNDAY'S SETTINGS,
EXIT THE TIMER SETTINGS BY NOT USING
THE REMOTE FOR 10 SECONDS AND THE
APPLIANCE WILL DEFAULT INTO NORMAL
OPERATION MODE. TO ACTIVATE THE
TIMER SETTINGS, PRESS THE TIMER MODE
BUTTON UNTIL THE TIMER SYMBOL IS
DISPLAYED ON THE SCREEN - FIGxx
THERMAL SAFETY CUT OUT
IF THE SAFETY CUT OUT FOR THE HEATER
TRIPS THE APPLIANCE HAS OVERHEATED.
IF THIS HAPPENS:
• SWITH OFF THE DEVICE FROM THE
ISOLATION SWITCH AND ALLOW IT TO
COOL DOWN FOR A MINIMUM OF 2 HOURS
• CHECK THE HEATER OUTLET VENTS FOR
ANY OBSTRUCTION AND CLEAR IF
NECESSARY. SEE MAINTENANCE SECTION
FOR GUIDANCE
• PLUG IN THE APPLIANCE AND SWITCH IT ON.
THE CUT OUT WILL RESET AND THE
APPLIANCE SHOULD FUNCTION NORMALLY.
• IF THE APPLIANCE CONTINUES TO NOT
FUNCTION CORRECTLY, CONTACT THE
RETAILER OR PLACE OF PURCHASE.
HOW TO USE YOUR APPLIANCE
3. OPERATING INSTRUCTIONS
DISPLAY INFORMATION:
TOP RIGHT CORNER OF THE APPLICANCE; ELEMENTS
OF THE DISPLAY ARE VISIBLE WHEN ILLUMINATED.
FIG: XX
FIG: XX

10
THERMAL SAFETY CUT OUT
IF THE SAFETY CUT OUT FOR THE HEATER
TRIPS THE APPLIANCE HAS OVERHEATED.
IF THIS HAPPENS:
• SWITH OFF THE DEVICE FROM THE
ISOLATION SWITCH AND ALLOW IT TO
COOL DOWN FOR A MINIMUM OF 2 HOURS
• CHECK THE HEATER OUTLET VENTS FOR
ANY OBSTRUCTION AND CLEAR IF
NECESSARY. SEE MAINTENANCE SECTION
FOR GUIDANCE
• PLUG IN THE APPLIANCE AND SWITCH IT ON.
THE CUT OUT WILL RESET AND THE
APPLIANCE SHOULD FUNCTION NORMALLY.
• IF THE APPLIANCE CONTINUES TO NOT
FUNCTION CORRECTLY, CONTACT THE
RETAILER OR PLACE OF PURCHASE.
THE AIR INLET GRILLES ON THE FRONT OF
THE APPLIANCE SHOULD BE
UNOBSTRUCTED. FREE AIR NEEDS TO
CIRCULATE IN THIS AREA.
ALWAYS SWITCH OFF THE APPLIANCE
FROM THE ISOLATION SWITCH BEFORE
CLEANING OR UNDERTAKING AND
MAINTENANCE.
GENERAL CLEANING
•
ONLY CLEAN THE GLASS WHEN ITS COLD
• DO NOT USE ABRASIVE CLEANERS ON ANY
PART OF THE APPLIANCE
•
USE A LINT FREE CLOTH TO WIPE ANY
SURFACES
•
DO NOT SPRAY CLEANER INTO THE
APPLIANCE
CLEANING THE FUEL BED
TO ACCESS THE FUEL EFFECT IT WILL BE
NECESSARY TO REMOVE THE FRONT GLASS
VIEWING PANEL, SEE SERVICING SECTION
• ENSURE THE APPLIANCE IS SWITCHED OFF
AT ISOLATION SWITCH.
• REMOVE THE LOGS AND DUST CLEAN. DO
NOT WET THE LOGS.
• USE A LINT FREE DUSTER.
• LIFT ALL FUEL MEDIA OUT OF THE FIRE
AND WIPE FUEL BED DOWN.
• ENSURE NO MOISTURE REMAINS BEFORE
RETURNING THE LOGS INTO POSITION. SEE
LOG INSTALLATION PROCESS.
• CAUTION: REPLACE FRONT TRIM WHILE
REMOVING LOGS AND FUEL MATERIAL TO
ENSURE PIECES DO NOT FALL INTO THE
APPLIANCE
• REPLACE THE GLASS AND TRIM AS
DESCRIBED IN THE SERVICING INSTRUCTION
SECTION.
HOW TO USE YOUR APPLIANCE
3. OPERATING INSTRUCTIONS
HOW TO USE YOUR APPLIANCE
4. MAINTENANCE AND CARE

11
CLEANING THE OUTLETS
• ENSURE THE APPLIANCE IS SWITCHED
OFF AT THE ISOLATION SWITCH
• CLEAN THE AIR OUTLET GRILLES
REGULARLY WITH A SOFT CLOTH OR THE
NOZZLE OF A VACUUM CLEANER
•
DUST BUILD-UP CAN INHIBIT EFFICIENT
PERFORMANCE OF THE FAN AND LEAD TO
THE SAFETY CUT-OUT OPERATING.
• KEEP THE AREA AROUND THE APPLIANCE
CLEAN AND FREE OF FLUFF, DUST OR PET
HAIR.
•
IN PARTICULAR, BUILD-UP OF DUST ETC.
CAN OCCUR AROUND THE HEATER VENT
AREA. TAKE PARTICULAR CARE TO KEEP
THIS AREA FREE FROM SUCH PARTICLES
ON A REGULAR BASIS TO PREVENT BUILD-
UP.
BATTERY REPLACEMENT
WHEN THE REMOTE BATTERIES IS LOW IT
MUST BE CHANGED IMMEDIATELY. INSTALL
CORRECT REPLACEMENTS AND DISPOSE OF
THE OLD BATTERIES CAREFULLY.
HOW TO USE YOUR APPLIANCE
5.MAINTENANCE AND CARE
BATTERY REPLACEMENT
REMOTE CONTROL
BATTERY INFORMATION - SEE FIG.
1. SLIDE OPEN THE BATTERY COVER ON
THE BACK OF THE REMOTE CONTROL
2. INSTALL AAA BATTERIES INTO THE
REMOTE CONTROL
3. REPLACE THE BATTERY COVER
Fig.35
DISCARD LEAKY BATTERIES
DISPOSE OF BATTERIES IN THE
PROPER MANNER ACCORDING TO LOCAL
REGULATIONS.

12
FOR PRODUCT DIMENSIONS AND
INSTALLATION GUIDES FO R BUILDING THE
APPLIANCE INTO A LOCATION, PLEASE GO
TO WEBSITE: PAULAGNEWDESIGNS.COM.AU.
TO DOWNLOAD THE SPEC SHEET FOR YOUR
APPLIANCE
NOTE:
WEIGHTS UNIT ONLY NOT INCLUDING PACKAGING
SUITE APPLIANCE (S) WEIGHTS ARE NOT INCLUDING WOODEN SURROUND
HOW TO INSTALL YOUR
APPLIANCE
5.TECHNICAL SPECIFICATION
THIS APPL IANCE MUST BE
EARTHED
THIS APPLIANCE HAS BEEN CERTIFIED FOR
USE IN COUNTRIES OTHER THAN
THOSE STATED. TO INSTALL THIS
APPLIANCE IN THESE COUNTRIES, IT IS
ESSENTIAL TO OBTAIN THE TRANSLATED
INSTRUCTIONS AND IN SOME CASES THE
APPLIANCE WILL REQUIRE MODIFICATION.
CONTACT YOUR RETAILER FOR FURTHER
INFORMATION.
IS50 IS60 IS72
20 24 29
240V 60HZ 240V 60HZ 240V 60HZ
12V MN 21/23 12V MN 21/24 12V MN 21/25
FLAME PICTURE
ONLY 12W 14W 17W
HEATING ON 1800 WATT 1800 WATT 1800 WATT
UK BS1363 UK13A BS1363 UK13A BS1363 UK13A
AUSTRALIAN AS/NZS3112 AS/NZS3112 AS/NZS3112
EUROPEAN VDE 0620 VDE 0620 VDE 0620
MODEL
WEIGHT KG
VOLTAGE
BATTERY HANDSET TRANSMITTER
ELECTRICAL POWER
CONSUMPTION
SUPPLY CORD

13
NOTE: INSTALLATION SHOULD BE CARRIED
OUT BY A TRAINED INSTALLATION
TECHNICIAN. IF THE PRODUCT IS INSTALLED
INCORRECTLY YOUR WARRANTY MY BE
INVALID.
IT IS VERY IMPORTANT THAT THE AIR INLET
GRILLES ON THE FRONT SIDE OF THE
APPLIANCE ARE UNOBSTRUCTED AND
ADEQUATE SPACE IS LEFT TO ALLOW FREE
CIRCULATION OF AIR AROUND THIS AREA.
TOOLS REQUIRED
A SCREWDRIVER, SPIRIT LEVEL AND DRILL
MAY BE NEEDED.
UNPACKING THE FIREPLACE
WARNING! DO NOT USE THIS APPLIANCE IF
ANY PART HAS BEEN EXPOSED TO WATER.
IMMEDIATELY CALL A QUALIFIED SERVICE
TECHNICIAN TO INSPECT AND TO REPLACE
ANY PART OF THE ELECTRICAL SYSTEM IF
NECESSARY.
•
CAREFULLY UNPACK THE APPLIANCE. TAKE
CARE NOT TO DAMAGE THE SURFACE OF
THE APPLIANCE OR THE INSTALLATION
AREA. KEEP PLASTIC WRAPPING AWAY
FROM CHILDREN. BE RESPONSIBLE WHEN
HANDLING THE PACKING MATERIALS.
•
CHECK ALL PARTS AND ACCESSORIES ARE
REMOVED BEFORE DISPOSING OF ANY
PACKAGING.
•
IF NECESSARY, KEEP THE ORIGINAL
PACKAGING FOR FUTURE TRANSPORT AND/
OR STORAGE.
FITTING THE APPLIANCE
TAKE CARE WHEN LIFTING THE APPLIANCE,
OBTAIN ASSISTANCE IF REQUIRED AND
ALWAYS FOLLOW SAFE MANUAL HANDLING
TECHNIQUES.
WHEN IN DOUBT CONSULT YOUR RETAILER OR
SUITABLY QUALIFIED PERSON.
HOW TO INSTALL YOUR
APPLIANCE
6. GENERAL INSTALLATION

14
THE INSTALLATION OF THE
APPLIANCE MUST BE
COMPLETED BY A QUALIFIED
TECHNICIAN.
HOW TO INSTALL YOUR
APPLIANCE
6. CONFIGURING YOUR WINDOW
TYPE-1: WALL- MOUNTED INSTALLATION
STEP 1. REMOVE TWO SCREWS THAT
CONNECT GLASS WITH THE APPLIANCE,
THEN REMOVE THE GLASS.
STEP 2. REMOVE TWO SCREWS THAT CONNECT
WALL-HANGING BRACKET WITH THE APPLIANCE.
THEN REMOVE THE WALL-HANGING BRACKET.
REMOVE TWO SCREWS THAT CONNECT FIXED
PLATE WITH THE APPLIANCE. THEN REMOVE THE
FIXED PLATE.
STEP 3. INSTALL THE WALL HANGING BRACKET ON
THE WALL USING FOUR FIX BOTTOM BRACKET AND
FOUR 3.5 × 30 TAPPING SCREW. HANG THE
FIREPLACE ON THE BRACKET AND CONNECT THE
LOW SECTION OF FIXED PLATE WITH THE WALL BY
USING ONE FIX BOTTOM BRACKET AND ONE 3.5×
30 TAPPING SCREW.

15
TYPE-1: WALL- MOUNTED INSTALLATION
STEP 4. LAY OUT CRYSTALS AND LOGS ON THE
PLATE. HANG THE GLASS ON THE APPLIANCE,
TWISTING TWO SCREWS TO FIX THE GLASS.
TYPE -2: INSERTING INSTALLATION
STEP 1 AND STEP 2 ARE THE SAME AS THE STEPS
OF WALL-MOUNTING INSTALLATION.
STEP 3. PUSH THE MACHINE INTO THE MOUNTING
HOLE OF WOODEN FRAME OR DECORATIVE
WOODEN WALL, FIXED BY FOUR 4×12 SCREWS.
HOW TO INSTALL YOUR
APPLIANCE
6. CONFIGURING YOUR WINDOW

16
SIZE OF OPENINGS IN WOODEN FRAMES OR DECORATIVE WOODEN WALLS
L
H
D
MODEL NUMBER L H D
IS50
IS60
IS72
1126mm 480mm 120mm
1380mm 480mm 120mm
1684mm 480mm 120mm
TYPE -2: INSERTING INSTALLATION
STEP 4. LAY OUT CRYSTALS AND LOGS ON THE PLATE. HANG THE GLASS ON THE MACHINE, TWISTING
TWO SCREWS TO FIX THE GLASS.
HOW TO INSTALL YOUR
APPLIANCE
6. CONFIGURING YOUR WINDOW

17
• INCLUSIONS:
CERAMIC LOG SETS
AMBER CRYSTALS
BLACK CRYSTALS
• CAUTION CERAMIC LOG SETS ARE DELICATE. TAKE CARE WHEN HANDLING.
• STEP 1
SPREAD AMBER AND BLACK CRYSTALS ON FUEL BED
7. SETTING THE FUEL BED
•STEP 2
POSITION CERAMIC LOG AS PER THE DIAGRAM AS SHOWN BELOW. RANDOMLY STACK
AND OVERLAY LOGS AGAINST EACH OTHER.

18
HOW TO INSTALL YOUR
APPLIANCE
8. ELECTRICAL CONNECTION
WARNINGS AND CAUTIONS
TO AVOID ELECTRICAL SHOCK DO NOT OPEN THE BACK PANEL OF THE INSERT UNLESS THE POWER
HAS BEEN TURNED OFF
AND THE APPLIANCE HAS BEEN UNPLUGGED OR SWITCH OFF AT THE ISOLATION SWITCH.
ANY ELECTRICAL REPAIRS TO THIS APPLIANCE, SHOULD ONLY BE PERFORMED BY A QUALIFIED
TECHNICIAN.
ANY ELECTRICAL WIRING REPAIRS SHOULD ONLY BE PERFORMED BY A QUALIFIED TECHNICIAN.
AND ALSO, MUST COMPLY WITH LOCAL BUILDINGS CODES.
DISCONTINUE USE OF THIS ELECTRIC APPLIANCE IF ANY OF THE FOLLOW HAS OCCURRED: WATER
DAMAGE, IF APPLIANCE HAS BEEN OR DENTED, IF POWER CORD HAS BEEN DAMAGES, IF POWER
CORD BECOMES HOT TO TOUCH, IF THE APPLIANCE SMOKES OR SMELLS.
NOTE:
ILEKTRO SLIMLINE POWER CORD IS LOCATED ON THE BOTTOM RIGHT-HAND SIDE.


9 
i lektro
19
LN
FLAME LED BOARD
SWITCH
POWER BOARD
HEATING ELEMENT
BLOWER ASSEMBLY
CUT OUT
DISPLAY BOARD
FUEL BED LED BOARD
CONTROL BOARD
SYNCHROMOTOR
NTC

20
REFERENCE INFORMATION
10. EXPLODED DIAGRAM
IS50 EXPLODED DIAGRAM
