pellenc Cultivion User manual

SOIL CULTIVATOR
CULTIVION
OPERATING INSTRUCTIONS 58_80347-P
12/2019
ENG
Translation of the origi-
nal operating instructions
READ THE OPERATING INSTRUCTIONS
MANUAL CAREFULLY BEFORE USE
.

SOIL CULTIVATOR CULTIVION
58_80347-P
TABLE OF CONTENTS
1. INTRODUCTION ..................................................................................................................... 5
2. SAFETY ................................................................................................................................... 6
2.1. GENERAL SAFETY WARNINGS FOR THE TOOL ........................................................................ 6
2.1.1. WORK AREA SAFETY ...................................................................................................................... 6
2.1.2. ELECTRICAL SAFETY ....................................................................................................................... 6
2.1.3. PERSONAL SAFETY ......................................................................................................................... 6
2.1.4. POWER TOOL USE AND CARE ........................................................................................................ 7
2.1.5. USE OF BATTERY OPERATED TOOLS AND PRECAUTIONS FOR USE ............................................ 7
2.1.6. MAINTENANCE ................................................................................................................................. 7
2.1.7. TOOL’S END OF LIFE MANAGEMENT .............................................................................................. 7
2.2. SAFETY INSTRUCTIONS FOR THE SOIL CULTIVATOR CULTIVION ......................................... 8
2.3. SAFETY MEASURES ASSOCIATED WITH PELLENC CHARGER AND BATTERY USE ............ 8
2.4. STICKERS ........................................................................................................................................ 8

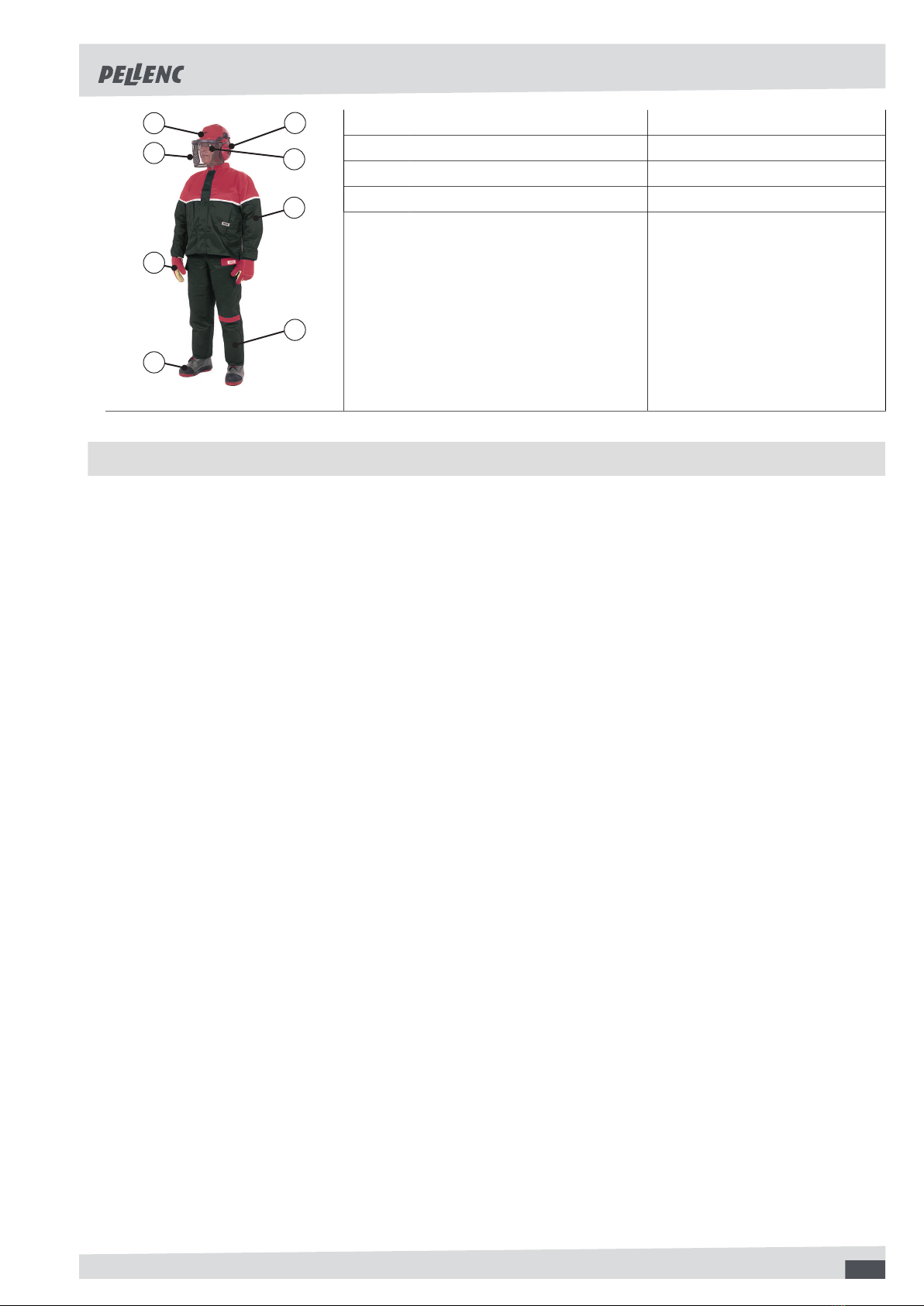

2.5. PERSONAL PROTECTION EQUIPMENT ....................................................................................... 8
2.6. GOOD PRACTICES FOR SAFE WORKING .................................................................................. 9
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS .................................................... 10
3.1. DESCRIPTION ................................................................................................................................ 10
3.2. TECHNICAL FEATURES ............................................................................................................... 11
4. COMMISSIONING ................................................................................................................. 12

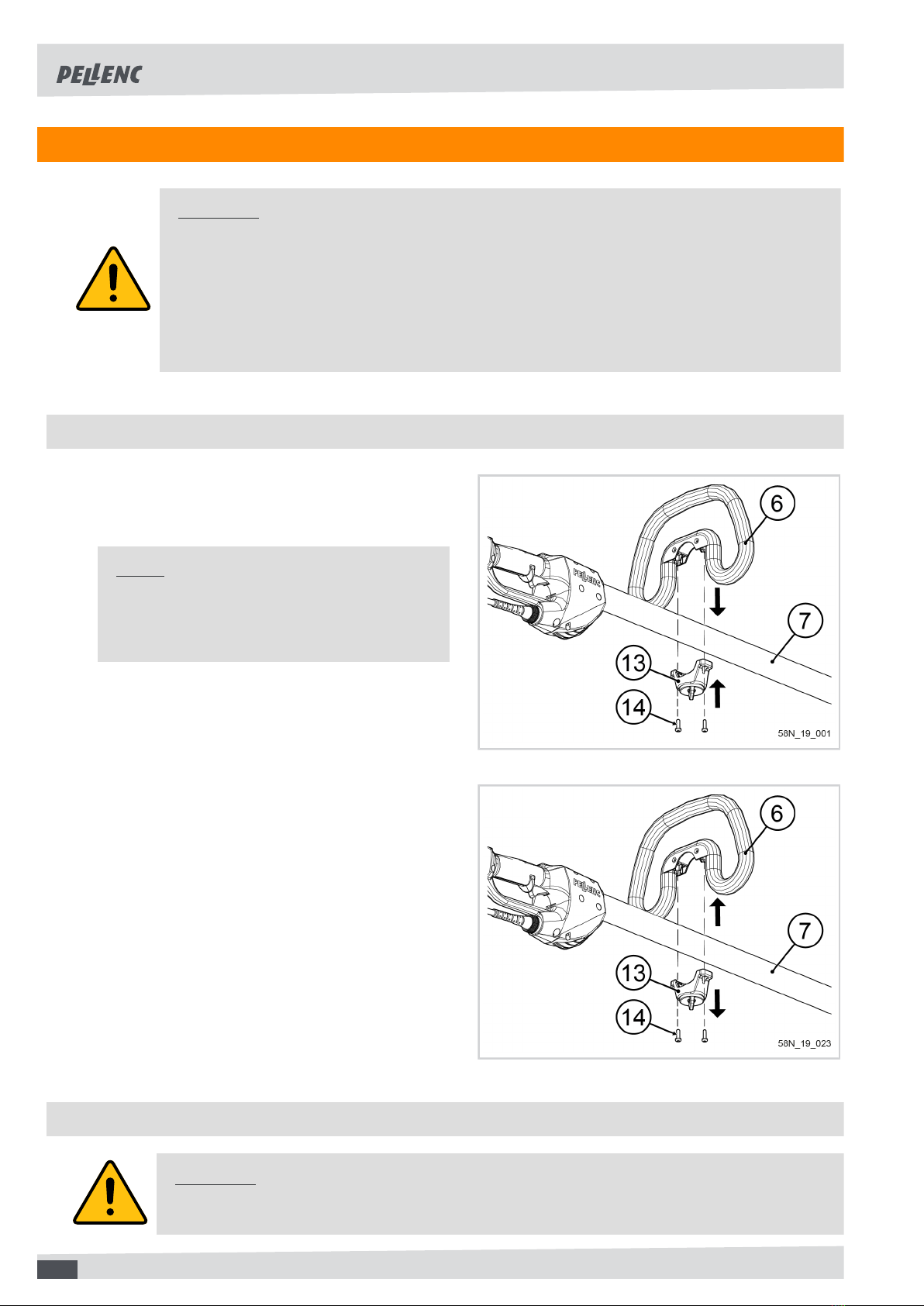

4.1. MOUNTING/DISMOUNTING THE FRONT HANDLE .................................................................... 12
4.2. FITTING THE TOOL HEAD ........................................................................................................... 12
4.2.1. MOUNTING THE BLADE ASSEMBLY .............................................................................................. 13
4.2.2. FITTING THE BLADE MOUNTING ASSEMBLY ONTO THE TOOL .................................................... 13
4.3. FITTING THE BATTERY ON THE HARNESS .............................................................................. 14

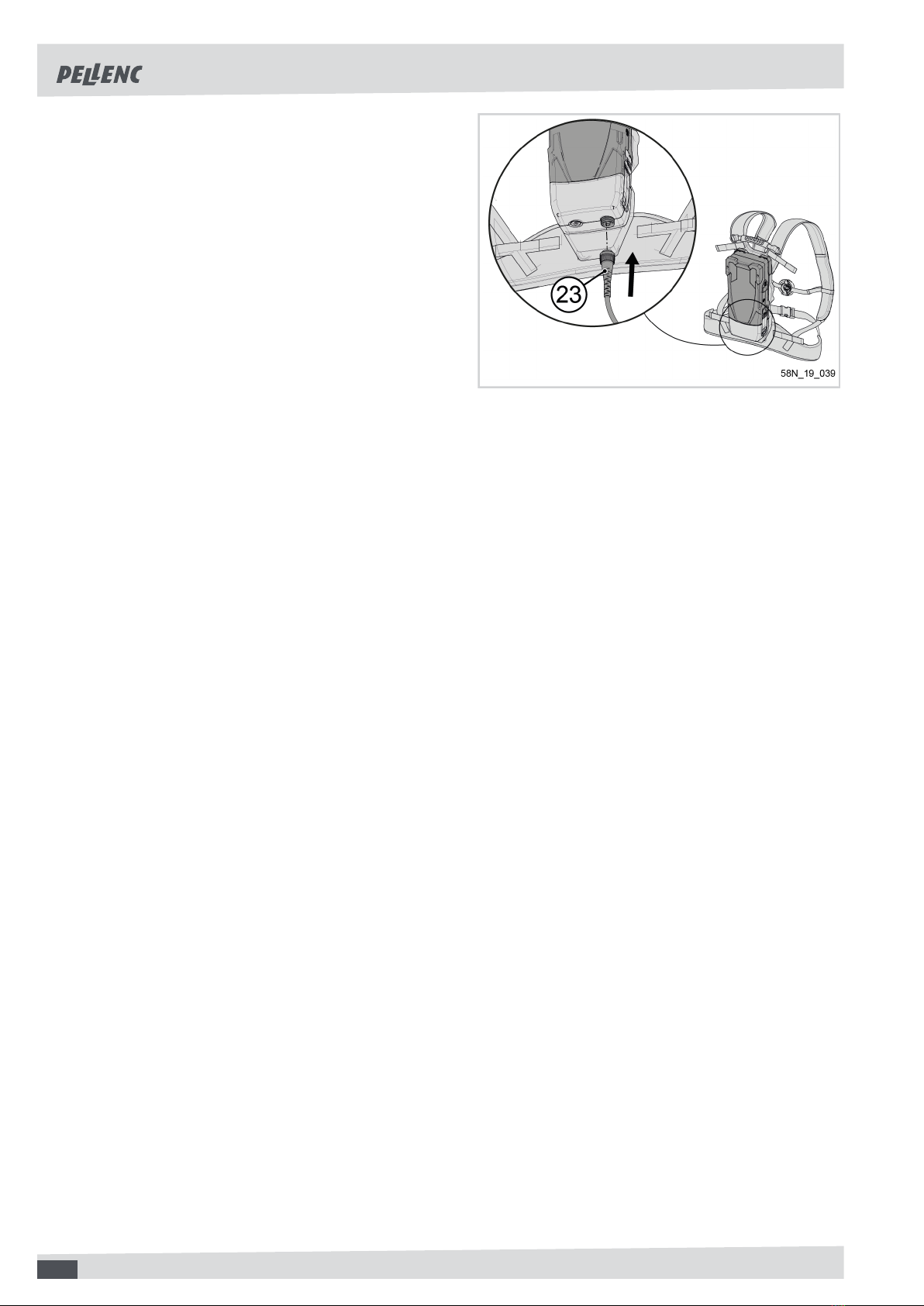

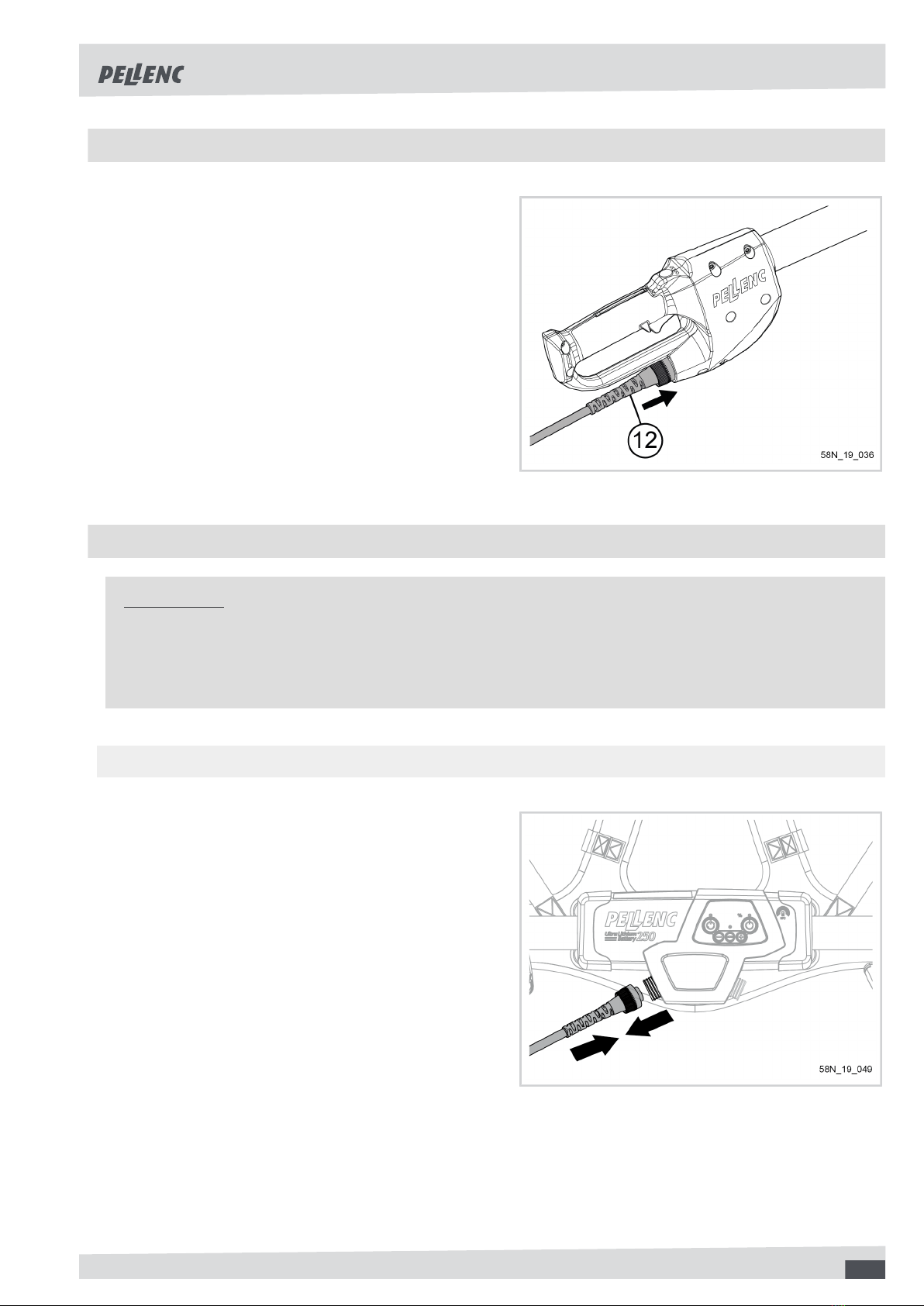

4.4. CONNECTING POWER CORD TO THE TOOL ............................................................................ 15
4.5. CONNECTING PELLENC BATTERIES TO THE TOOL ............................................................... 15

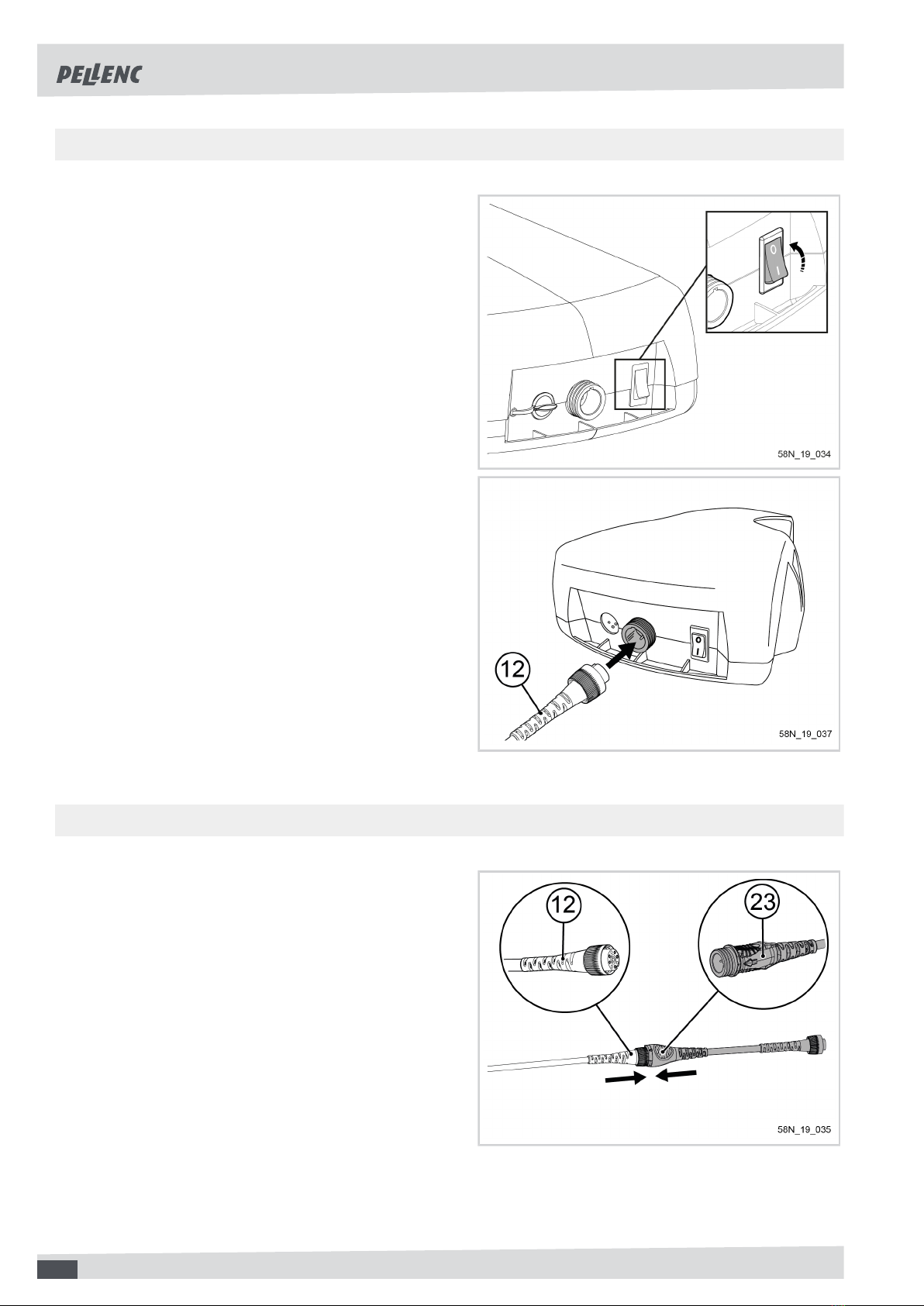

4.5.1. 250 BATTERY ................................................................................................................................. 15
4.5.2. 400 / 700 / 1100 ULIB BATTERY ...................................................................................................... 16

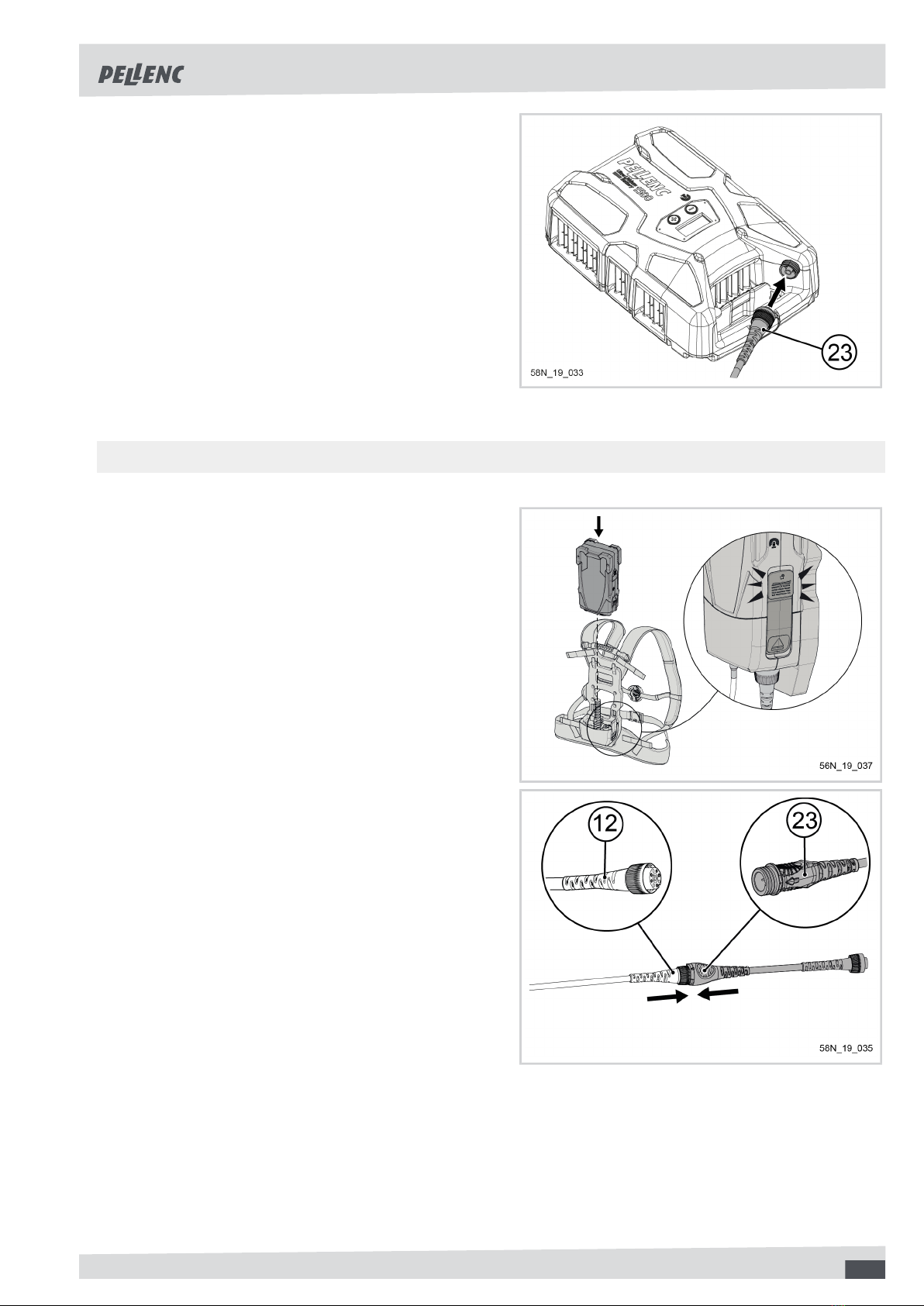

4.5.3. 750 / 1200 / 1500 ULIB BATTERIES ................................................................................................. 16
4.5.4. 260 / 520 ALPHA BATTERY ............................................................................................................. 17
5. USING THE TOOL ................................................................................................................ 19
5.1. ADJUSTING THE HARNESS ........................................................................................................ 19

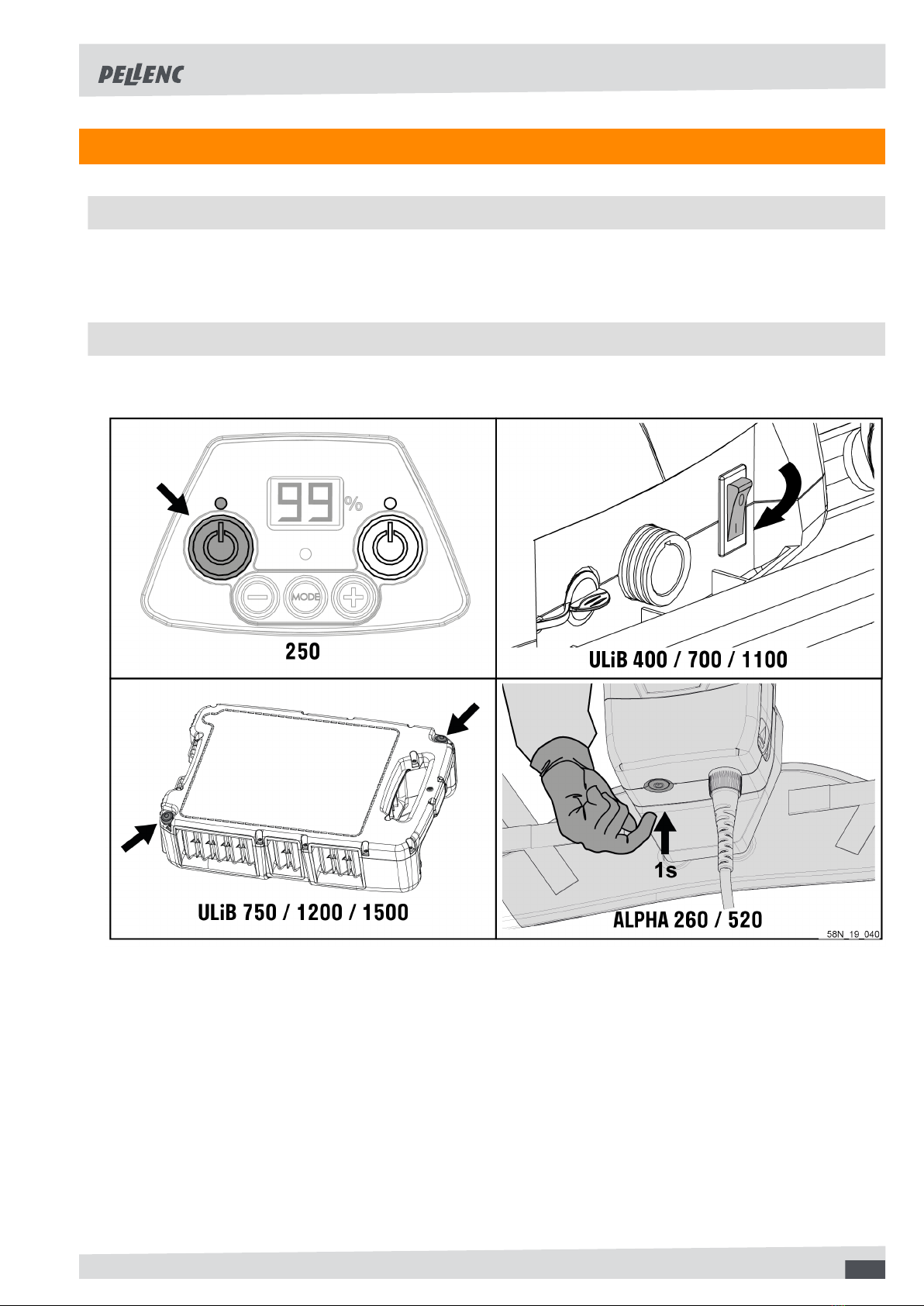

5.2. TURNING ON THE BATTERY ...................................................................................................... 19

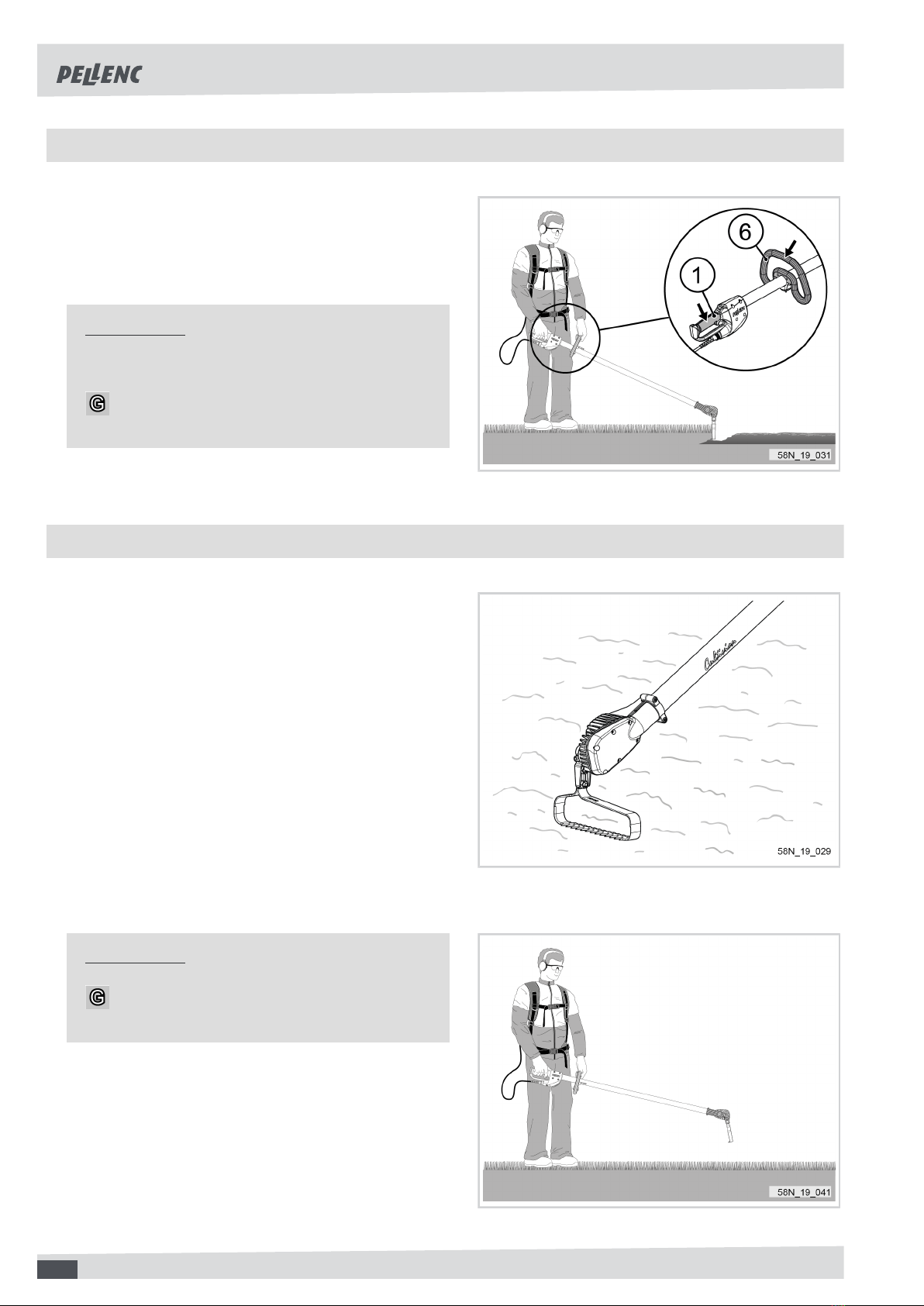

5.3. HOLDING THE TOOL .................................................................................................................... 20
5.4. START-UP IN NORMAL MODE .................................................................................................... 20
5.5. START-UP IN CONTINUOUS MODE ............................................................................................ 21
5.6. SPEED SELECTOR ....................................................................................................................... 23
5.7. SETTING THE TOOL HEAD TILTING POSITIONS ...................................................................... 23
5.8. VARIOUS USES ............................................................................................................................. 25
3

SOIL CULTIVATOR CULTIVION
58_80347-P
6. MAINTENANCE .................................................................................................................... 27
6.1. MAINTENANCE FREQUENCY ...................................................................................................... 27
6.2. CHECKING WORKING TOOL HEAD TIGHTENING .................................................................... 27
6.3. SHARPENING THE WORKING TOOL HEAD .............................................................................. 28
6.4. CHANGING THE WORKING TOOL HEAD ATTACHMENT ......................................................... 28
7. INCIDENTS AND TROUBLESHOOTING ............................................................................. 30
8. STORAGE AND TRANSPORT ............................................................................................ 31
9. ACCESSORIES AND CONSUMABLES .............................................................................. 32
9.1. LIST OF ACCESSORIES AND CONSUMABLES ........................................................................ 32
10. WARRANTIES .................................................................................................................... 34
10.1. GENERAL WARRANTIES ........................................................................................................... 34
10.1.1. STATUTORY WARRANTY ............................................................................................................. 34
10.1.2. COMMERCIAL WARRANTYPELLENC ............................................................................................ 34
10.1.3. PAID AFTER-SALES SERVICE ...................................................................................................... 35
11. EC STATEMENT OF COMPLIANCE ................................................................................ 37
11.1. "EC" DECLARATION OF CONFORMITY: CULTIVION .............................................................. 37
4

SOIL CULTIVATOR CULTIVION
58_80347-P
1. INTRODUCTION
Dear Customer,
Thank you for purchasing your Soil Cultivator Cultivion. Correctly used and maintained, this tool will give a satisfac-
tory performance for many years.
Warning
Your device contains numerous recoverable or recyclable materials. Return it to your
dealer or, failing this, to an approved servicing centre to be treated.
Comply with the regulations in force in your country as concerns environmental protection associated with your
activity.
Warning
It is imperative that you read through the ENTIRE user’s manual before using or servicing the
tool. Always comply with the instructions and illustrations in the manual.
All through this user guide you will find advisory notes and information entitled: REMARK, CAUTION / WARNING.
A REMARK provides additional information, clarifies a point or explains a step to be followed in detail.
WARNINGS or CAUTIONS call attention to a procedure which, if not performed or incorrectly performed, could
cause physical damage and/or serious injury.
The warning indicates that damage resulting from failure to comply with the procedures and instructions is not
covered by the warranty and the owner will be liable for any repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and
read these indications before using the tool. Immediately replace any indications that may become partially illegible
or deteriorated.
Refer to Section 2.4, “Stickers ” for the location diagram of the safety stickers affixed to the tool.
No part of this manual may be reproduced without the written permission of the company PELLENC. The illustra-
tions provided in this manual are for information purposes and are in no way contractual. The PELLENC company
reserves the right to make any modification or improvement to its products as deemed necessary without inform-
ing customers already in possession of a similar model. This manual forms an integral part of the tool and must
accompany the tool if it changes hands.
5

SOIL CULTIVATOR CULTIVION
58_80347-P
2. SAFETY
2.1. GENERAL SAFETY WARNINGS FOR THE TOOL
Warning
Read all the safety measures and all the instructions. Failure to comply with the following
instructions risks causing electric shock, fire and/or serious injury.
Note
Save all warnings and instructions for future reference.
The term "power tool" in the safety warnings refers to your battery-powered electric tool (without power cord).
2.1.1. WORK AREA SAFETY
1. Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks, which may ignite the dust or fumes.
3. Keep children and bystanders away while operating the power tool. Distractions can cause you to lose
control.
2.1.2. ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigera-
tors. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock (with the exception of tools for which the “IP” protection rating is specified).
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled power cords increase the
risk of electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) pro-
tected supply. Use of an RCD reduces the risk of electric shock.
Note
The term “residual current device (RCD)” can be replaced by the term “ground fault circuit interrupter (GFCI)”
or “earth leakage circuit breaker (ELCB)”.
2.1.3. PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use
a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal
injuries.
6

SOIL CULTIVATOR CULTIVION
58_80347-P
3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving
parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection devices can reduce dust-related hazards.
2.1.4. POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will
do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the
power tool before making any adjustments, changing accessories, or storing power tools. Such preven-
tive safety measures reduce the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained
users.
5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely
to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
2.1.5. USE OF BATTERY OPERATED TOOLS AND PRECAUTIONS FOR USE
1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
2.1.6. MAINTENANCE
1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
2.1.7. TOOL’S END OF LIFE MANAGEMENT
1. When the tool reaches the end of its life, PELLENCkeeps the end-of-life sheet of the equipment at
disposal. The end-of-life sheet provides instructions for safely removing components.
7

SOIL CULTIVATOR CULTIVION
58_80347-P
2.2. SAFETY INSTRUCTIONS FOR THE SOIL CULTIVATOR CULTIVION
1. Clear your work area before starting work.
2. Make sure that the Cultivion does not come into contact with anything other than soil and plants.
3. Do not use the Cultivion to dig very hard, stony soil or near thick roots.
4. Position yourself correctly to prevent accidents.
5. Keep people away from the machine when starting and operating the machine.
6. Never modify the connector in any way whatsoever.
7. The aluminium of the pole conducts electricity. Always keep the tool away from electrical lines, telephone lines,
and other sources of electricity.
8. THIS TOOL MAY CAUSE SEVERE INJURIES. Read the operating instructions manual carefully to learn about
the proper handling, operation, maintenance, start-up and stopping of the tool. Familiarize yourself with all its
controls and the proper use of the tool.
9. Use personal safety equipment. Always wear safety footwear.
10. Make sure the tool head attachment is not in contact with any object before starting the motor.
11. Always use an appropriate lifting tool that complies with the applicable labour regulations for working at heights.
12. When in use, the electric motor of the tool may heat up (risk of burns). Avoid contact with skin, clothing or any
flammable products (risk of explosion) during and after use.
13. No one other than the operator is authorized within a 3 metre radius.
2.3. SAFETY MEASURES ASSOCIATED WITH PELLENC CHARGER AND BATTERY USE
Refer to the relevant battery instructions of the PELLENC tool.
2.4. STICKERS
1. LwA sound power level guaranteed
2. Read the operating instructions manual
3. Wearing of safety boots is obligatory
4. Risk of burns (motor - cooling radiator of the elec-
tronic circuit board).
5. Do not expose to rain
2.5. PERSONAL PROTECTION EQUIPMENT
Equipment Wear
1 Safety helmet /
2 Protective visor /
3 Resistant work gloves /
8

SOIL CULTIVATOR CULTIVION
58_80347-P
4 Safety footwear Required
5 Ear protection Recommended
6 Safety goggles Recommended
7 Safety jacket or over-sleeves /
1
2
3
8
4
6
7
5
8 Work trousers Required
2.6. GOOD PRACTICES FOR SAFE WORKING
• Always hold the rear handle of the Cultivion with your right hand, and the front handle with your left hand.
• Keep your left arm straight for better control.
• Use PELLENC working tools.
• Maintain working tools in good operating condition.
• Remain in a steady position.
• Keep feet away from the tool head when working.
• Only work in soil with your Soil Cultivator.
9

SOIL CULTIVATOR CULTIVION
58_80347-P
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS
3.1. DESCRIPTION
1. Rear handle
2. Speed selector (4 speeds)
3. LED power and speed indicator
4. Drive trigger
5. Electronic circuit board cooling radiator
6. Front handle
7. Pole
8. Head
9. Blade mounting assembly
10. Weeding blade
11. Joints clip
12. Power cord
Note
The handle of your Soil Cultivator Cultivion is com-
mon to several different PELLENC tools. The part
shown opposite is a safety button locked in the
pressed position.
No action on your part is necessary.
10

SOIL CULTIVATOR CULTIVION
58_80347-P
3.2. TECHNICAL FEATURES
Model CULTIVION
Power 380 W
Weight 3,100 g
Dimensions (l x w x h) 400 x 1710 x 300 mm
Width of work tool depending on the model
Oscillation speed of working tool head 13 to 15 Hz
Battery life According to use and battery type
Determination of the sound levels and vibration rates is based on the operating conditions at the nominal maximum
speed.
Values defined according to acoustic measurement standards NF EN ISO 11201 and NF EN ISO 3744.
Minimum
speed (1)
Maximum
speed (4)
Maximum weighted sound pressure level A (ref. 20 µPa)
at the user's position (uncertainty of K = 2.5 dB(A)) LpA = 75 dB(A) LpA = 75 dB(A)
Weighted peak sound pressure level C (ref. 20 µPa) at the user's position LpC < 130 dB(C)
Symbol Value Unit Reference Remark
Lwam 91 dB(A) 1 pW Measured sound
power level
Lwag 92 dB(A) 1 pW Guaranteed
sound power level
The measured sound level and the guaranteed sound power level were measured according to a procedure in
accordance with Directive 2000/14 / EC Annex V.
CULTIVION soil cultivator
with 22 cm weeding blade Speed 1 (800 strokes/ min) Speed 4 (885 strokes/ min)
Front handle, 10 m/s² 18.5 m/s²
Rear handle, 6 m/s² 13.5 m/s²
Measurement uncertainty, K 3.0 3.0
Vibration emission value according to EN ISO 22867 and EN 60745-1
11

SOIL CULTIVATOR CULTIVION
58_80347-P
4. COMMISSIONING
Caution
Before any maintenance intervention on the tool:
1. Check that the battery is turned off. Depending on the battery model, turn off either via the
push button or via the on/off switch (stop position is "0") located on the battery.
2. Disconnect the power supply cord from the battery.
For more information, refer to the user manual supplied with the battery.
4.1. MOUNTING/DISMOUNTING THE FRONT HANDLE
Mounting
1. Fit the front handle (6) onto the pole (7).
Note
To obtain a comfortable position for the user, it
is necessary to adjust the position of the front
handle (6) on the pole (7).
2. Fit adjustment thumbwheel wheel (13) on the pole
(7).
3. Remove the 2 screws (14) a Torx 25 screwdriver.
4. Lock the adjustment thumbwheel (13) to block the
position of the front handle (6) on the tool.
Dismounting
1. Unscrew the adjustment thumbwheel (13) of the
front handle (6).
2. Remove the 2 screws (14) a Torx 25 screwdriver.
3. Remove the front handle (6) from the tool,
4. Remove the adjustment thumbwheel (13).
4.2. FITTING THE TOOL HEAD
Caution
Always wear protective gloves when handling the tool.
12

SOIL CULTIVATOR CULTIVION
58_80347-P
4.2.1. MOUNTING THE BLADE ASSEMBLY
1. Insert the two nuts (15) in the spaces provided in the
mounting part (16).
2. Position the weeding blade (10) on the mounting
part (16).
3. Fit the tightening screws (17).
4. Tighten the screws (17) using a 5 mm hex socket
and a torque wrench.
Important
Tightening torque: 6 N.m
Important
Never work with the tightening screws (17) loos-
ened.
Note
The procedure is identical for all blade models. Only
the weeding blade is shown here.
4.2.2. FITTING THE BLADE MOUNTING ASSEMBLY ONTO THE TOOL
1. Once fitted together, position the blade mounting as-
sembly (9) on the shaft (18), aligning the mark on
the mounting part (16) with the "0" mark on the head
casing(19).
Note
The head of the machine has a graduated rotating
shaft from -4 to +4, passing through a 0 position.
For further information on how to adjust the working
tool head position, see pages Section 5.7, “Setting
the tool head tilting positions”.
13

SOIL CULTIVATOR CULTIVION
58_80347-P
2. Place the nut (20) in the position provided on the
mounting part (16).
3. Fit the washer (21) and screw (22).
4. Tighten the screw (22) using a 5 mm hex socket and
a torque wrench.
Important
Tightening torque: 12 N.m
Important
Do not forget the nut (20) and the washer (21) during assembly.
4.3. FITTING THE BATTERY ON THE HARNESS
To mount the battery on your harness, refer to the mounting instructions provided with your harness.
Important
After mounting, the battery must be solidly attached and secured on your harness. If this is not the case then
the mounting needs to be re-checked.
14

SOIL CULTIVATOR CULTIVION
58_80347-P
4.4. CONNECTING POWER CORD TO THE TOOL
1. Connect the power cord (12) to the Soil Cultivator on
the connector located on the rear handle of the tool.
2. Screw it in all the way.
3. Check that the power cord is properly connected.
4.5. CONNECTING PELLENC BATTERIES TO THE TOOL
Important
Always check the remaining battery-life before use. If necessary, recharge the battery using the charger.
To prolong the life of the connectors, it is advisable to protect them when they are disconnected. Avoid leaving
the connectors in contact with abrasive or dirty surfaces, or subjecting them to major impacts (falls).
4.5.1. 250 BATTERY
1. Connect the power cord (12) of the Soil Cultivator to
the connector on the battery.
2. Screw it in all the way.
3. Check that the power cord is properly connected.
15

SOIL CULTIVATOR CULTIVION
58_80347-P
4.5.2. 400 / 700 / 1100 ULIB BATTERY
1. Before electrically connecting the battery to the Cul-
tivion, check that the battery switch is in the ‘off’ po-
sition (position '0').
2. Connect the power cord (12) of the Soil Cultivator to
the connector on the battery.
3. Screw it in all the way.
4. Check that the power cord is properly connected.
4.5.3. 750 / 1200 / 1500 ULIB BATTERIES
1. Connect the power cord (12) of the Soil Cultivator
to the red connector of the adaptor cord (23) (ref.
57239).
1. Screw it in all the way.
16

SOIL CULTIVATOR CULTIVION
58_80347-P
3. Connect the adaptor cord (23) to the connector on
the battery.
4. Screw it in all the way.
5. Check that the power cord is properly connected.
4.5.4. 260 / 520 ALPHA BATTERY
1. Connect the battery on the harness, making sure it
is the right way round.
3. Slide the battery into the base guide, until the clip
locks.
3. Connect the power cord (12) of the Soil Cultivator
to the red connector of the adaptor cord (23) (ref.
57239).
4. Screw it in all the way.
17

SOIL CULTIVATOR CULTIVION
58_80347-P
5. Fit the connector to the adaptor (23).
6. Screw it in all the way.
18

SOIL CULTIVATOR CULTIVION
58_80347-P
5. USING THE TOOL
5.1. ADJUSTING THE HARNESS
1. Put on your harness. To adjust your harness according to your body size, refer to the fitting instructions provided
with your harness.
5.2. TURNING ON THE BATTERY
1. Turn on the battery by pressing the On/Off button.
19

SOIL CULTIVATOR CULTIVION
58_80347-P
5.3. HOLDING THE TOOL
1. Hold the tool by the rear handle (1) and the front
handle (6).
2. Be sure to check that the tool is not touching any-
thing.
3. The nom_outil is in ‘start’ position.
Important
Do not work anywhere other than in soil.
Never disconnect the battery cable without
checking that the battery switch is at 0.
5.4. START-UP IN NORMAL MODE
1. For improved stability hold the machine in its oper-
ating position, with the tool attachment held off the
ground.
2. Turn on the battery by pressing the On/Off button (refer to Section 5.2, “Turning on the battery”). .
If any LED on the handle is on, the tool is ‘On’ and ready to operate.
Important
Always start the motor before bringing the tool
head into contact with the ground.
3. Lift the so that it does not touch the ground when
starting up.
20
