Pelsue 1325D User manual

Part #109998-001
Product Manual:
Model #1325D
Axial Ventilator
T.A. Pelsue Company
2500 South Tejon Street
Englewood, Colorado, USA 80110
Tel. [phone] or 303-936-7432
Fax. [phone]
Internet: www.pelsue.com
Email: [email protected]
ISO 9001 Certified

Page 2 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016

Page 3
#109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
Since our inception in 1963 – the T.A. Pelsue Company has designed and manufactured high
quality equipment to improve the personnel ef-
ciency and working conditions in various under-
ground, conned, and outdoor areas.
Founded by T. Allen Pelsue, the company has estab-
lished a continuing reputation for excellence in the
production of ne products for a broad spectrum of
industry throughout the world.
Now, in our second generation of family direction,
continued commitment to innovation and quality
makes Pelsue a leading source of equipment for
many types of conned spaces. We specialize
in safety, retrieval, fall arrest, ventilation, cable
placing, splicing, and maintenance nationally and
abroad. With more than 70,000 square feet of facil-
ities available, Pelsue continues the dedication that
has made us pre-eminent in this eld.
ISO 9001 Certified

Page 4 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
Table of Contents
Section Description Page #
1.0......................................General Information.................................. 5
1.1...........................Quality Policy
1.2...........................Pelsue Product Warranty
2.0......................................Introduction & Product Information........ 7
2.1...........................Serial Number
3.0......................................Conguration & Assembly........................ 8
3.1...........................Parts Diagram & List
3.2...........................Wiring Diagram
4.0...................................... Safety.......................................................... 11
4.1...........................Safety Alert Symbol
4.2...........................General Safety Information
5.0......................................Product Operation.....................................13
5.1...........................Product Description & Capabilities
5.2...........................Start-Up & Operating Procedures

Page 5
#109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
1.0 General Information
T.A. Pelsue Company
Quality Policy
OUR GOAL IS THE PURSUIT OF NEVER-ENDING IMPROVEMENT IN
PRODUCT QUALITY AND BUSINESS SYSTEMS.
METHODS TO BE EMPLOYED IN ATTAINING THIS GOAL WILL INCLUDE
NEW PRODUCT QUALITY PLANNING, EMPLOYEE TRAINING, AND
UTILIZATION OF EMPLOYEE INVOLVEMENT GROUPS TO SOLVE
PROBLEMS.
IN AN INCREASINGLY COMPETITIVE MARKETPLACE, ENSURING
CUSTOMER SATISFACTION IS ONE OF THE DIFFERENTIATORS THAT
SETS YOU APART FROM THE PACK AND YIELDS A COMPETITIVE
ADVANTAGE.
THEREFORE, WE WILL SUPPORT TOTAL CUSTOMER SATISFACTION BY
IMPLEMENTING THE ISO 9001 QUALITY SYSTEM AND PROVIDING
THE NECESSARY ATMOSPHERE AND TRAINING TO NURTURE THIS
CONCEPT THROUGHOUT OUR ORGANIZATION.
WE WILL MAKE EVERY BUSINESS DECISION AS THOUGH THE QUALITY OF
THE PART OR SERVICE PROVIDED WAS DESTINED FOR OUR OWN
OR OUR FAMILY’S USE. WE WILL ALWAYS THINK QUALITY FIRST.
EVERY T.A. PELSUE COMPANY EMPLOYEE IS EXPECTED TO COMMIT TO
THIS PHILOSOPHY IN THE PERFORMANCE OF HIS OR HER DAILY TASKS.
QUALITY FIRST!
T.A. PELSUE COMPANY SENIOR MANAGEMENT TEAM
1.1 Quality Policy

Page 6 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
1.2 - Pelsue Product Warranty
PELSUE PORTABLE PRODUCT WARRANTY
Pelsue products are designed and engineered to perform as stated in published specications. Quality materi- 
als and workmanship are used in the manufacture of this product. With regular maintenance and proper care,
Pelsue equipment provides many trouble free hours of operation.
The T.A. Pelsue Company warrants to the buyer that material furnished will conform to specications and will 
be free from defects in material and workmanship from the date of shipment to the original buyer, for the period
listed by product description on the reverse side of this warranty statement.
In the event of failure of any components of a Pelsue product within the warranty period, service must be pre- 
approved by the T.A. Pelsue Company and service must be performed by the T.A. Pelsue Company Parts and
Service Department in Englewood Colorado, or at the option of T.A. Pelsue Company, service may be per-
formed at any designated service center, which may include any authorized service center for the component
manufacture.
Damage or failure due to misuse, mishandling, or unauthorized modications will not be covered by this war- 
ranty. Unless otherwise agreed, the T.A. Pelsue Company shall repair or replace the defective components
within (30) calendar days of notice of failure. T.A. Pelsue Company’s obligation hereunder, shall be limited to
the repair or replacement of the product or component as set forth above, and shall not include any liability
whatsoever for damages caused by such failure, including but not limited to consequential or incidental dam-
ages owing from use or lack of use of product.
Any replacement, repair, modication, installation or other service performed by the T.A. Pelsue Company 
shall be warranted by the remainder of the unexpired period of the warranty, or for a period of (90) calendar
days, whichever is longer.
All materials or parts returned for credit or warranty shall be returned only with prior approval, and will be sub- 
ject to factory inspection before credit is allowed. Parts claimed defective will be replaced upon request and
will be invoiced as purchased, subject to credit when the parts claimed to be defective have been received and
examined by the factory.
This warranty is expressly in lieu of all other warranties expressed or implied, including any warranties of mer- 
chantability or warranties of tness for any particular use and all other obligations or liabilities in connection
with the sale of this equipment.
Product Description Warranty Coverage*
Ventilators • ........................................................................................1 year
Heaters • ............................................................................................1 year
Ventilator Hoses/Ducts • ....................................................................3 months
Pel-Cans and Caddys • ......................................................................1 year
Hose Adapters • .................................................................................1 year
Manhole Shields & Manhole Guards • ...............................................1 year
Pel-Brite Work Lights • .......................................................................6 months
Planks and Plank Supports • .............................................................6 months
Duct Rodders and Accessories • .......................................................6 months
Submersible Pumps • ........................................................................6 months
Discharge and Suction Hoses for Pumps • ........................................3 months
Wheel Chocks • .................................................................................1 year
*From date of shipment to original buyer.
T.A. Pelsue Company, 2500 South Tejon Street, Englewood, Colorado 80110, 800-525-8460

Page 7
#109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
2.0 - Introduction & Product Information
MODEL:__________________________________________
Serial Number :_____________________________________
2.1 - Serial Number
Product Serial Number
Always give your dealer the serial number of your Pelsue conned space
ventilator product when ordering parts or requesting service or other infor-
mation.
The identication & serial number decal is permanently embossed with a
serial number. The identifcation & serial number decal is located on the main
Ventilator housing as shown in Fig. 2a . The serial number decal will appear
as shown to the right in Fig. 2b. A space has been provided below for the
recording of the serial number for future reference.
Figure 2b: #1325D
Serial Number Plate
SERIAL
NUMBER
LOCATION

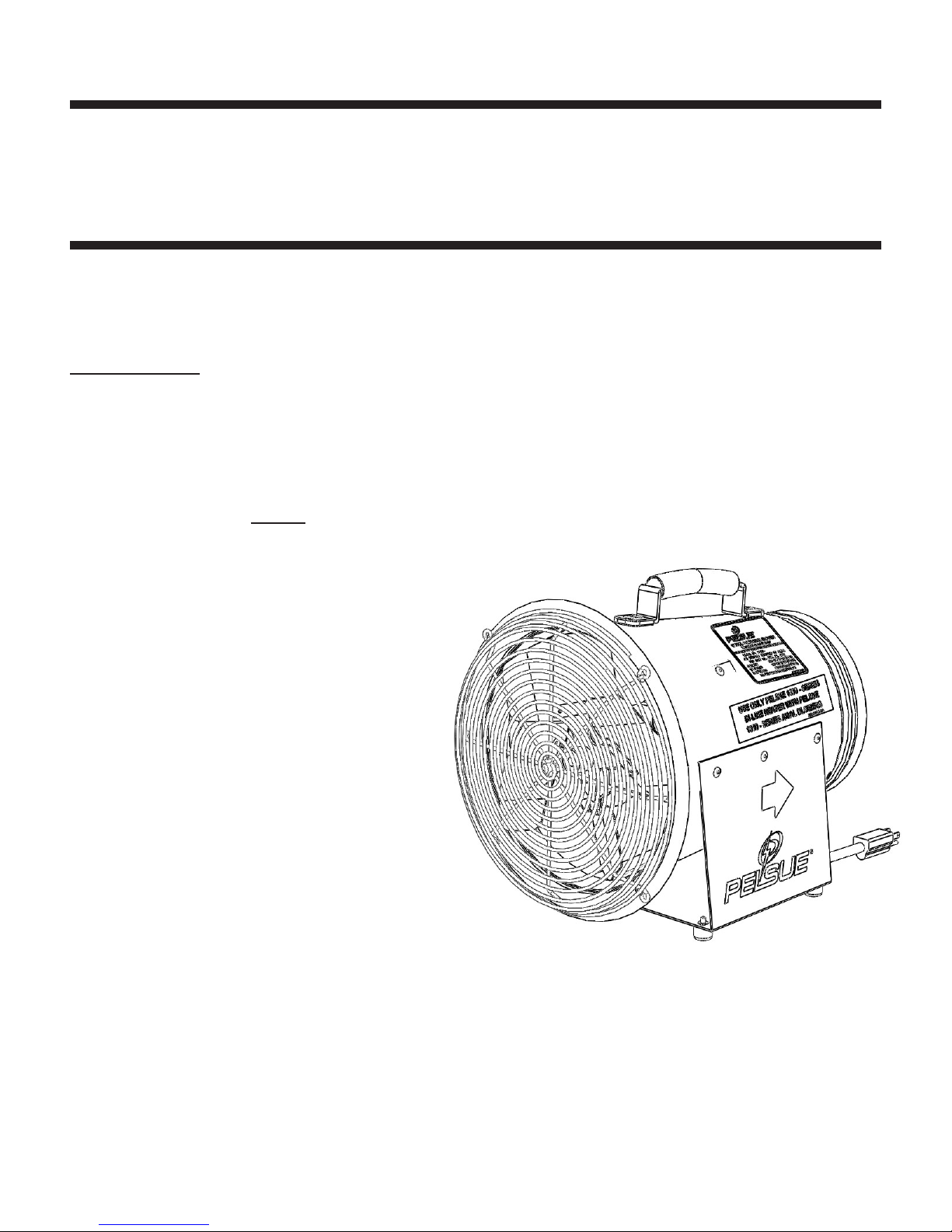

Figure 2a: Serial Number
Location
#1325D
Congratulations on your choice of a Pelsue Model #1325D Axial Ventilator to compliment your conned space ven-
tilation operation. This equipment has been designed and manufactured to exceed conned space requirements and
regulations in order to meet the needs of the discriminating operator for efciency and safety during conned space
entry operations.
Safe, efcient and trouble-free operation and maintenance of the system requires that anyone who will be operating,
maintaining, or inspecting the equipment, read, understand and follow all the operation, safety, maintenance, and inspec-
tion instructions contained within this manual. This manual covers the Pelsue Model #1325D Axial Ventilator. Use the
Table of Contents as a guide to nd specic information.
Keep this manual available for future reference if required, and as a tool in the training of new operators.
This product is a part of a system for conned space
ventilation operations. The user must read, understand
and follow the instructions contained in this manual
before using this equipment. Failure to follow these
instructions could result in serious injury or death.

Page 8 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
3.0 - Conguration & Assembly
Upon initial receipt of the #1325D Axial Ventilator, inspect the packaging for any evidence that the product may have
been damaged in shipment. While unpacking the product, inspect all of the components for damage. If damage to any
of the components is discovered, Alert the shipping carrier immediately of the damage to the shipment.
Refer to the following parts breakdown diagram (Figure #3.1a & #3.1b) and the accompanying parts list (Table #3.1a &
#3.1b) for identication of parts in the event replacements become necessary. The parts list table displays applicable
part numbers, descriptions, and quantity per assembly.
**Refer to parts list above if replacement parts are required. Replacement parts can be ordered from the T.A. Pelsue
Company at 800-525-8460.
3.1 Parts Diagram & List
Table 3.1a: #1325D
Parts List
Item
Number
Part Number Description Quantity
3110006-001 WELDMENT - AXIAL HOUSING, 1300D / 1400D 1
4110021-001 BASE - AXIAL BLOWER, PAINTED & SILKSCREENED 1
5100188-001 FOOT - RUBBER, 3/4" OD, W/ WASHER 4
6100405-004 STRAIN RELIEF - WATERTIGHT, 1/2" HUB, 0.250"- 0.375" DIAM. 1
726E-005700 CORDSET - W/MOLDED PLUG 16/3 SJTOW RATED 1
8119268-001 FAN BLADE - 10" DIA., 3/8" SHAFT, 3450 RPM, ALUM, CW 1
9118809-001 MOTOR MOUNT - AXIAL BLOWERS, HDPE / STEEL BLOWER HOUSINGS 1
10 110002-010 ASSEMBLY - AXIAL MOTOR 120V/60Hz/1Ph, 1/3Hp. W/CAPACITOR, 3/8"SHAFT 1
11 126038-001 END PLATE - AXIAL MOTOR, AFT (OUTLET) END, MOTOR SUPPORT 1
12 110000-001 GRILLE - OUTLET, 1300D/1400D, AS POWDER COATED IN BLACK 1
13 126038-002 VERTICAL RIB - AXIAL MOTOR, STEEL HOUSING, HANDLE LOCATION ATTACHMENT 1
14 124331-001 HANDLE - OVER-MOLDED VINYL HANDLE W/ RIVET-ON ENDS 1
15 68N-004300 WASHER - LOCK, INTERNAL TOOTH, #10, PLATED 2
16 68N-035000 SCREW - MACHINE, HEX HD, SLOT, 10-24 UNC X 3/8", PLATED 2
17 104977-001 GRILLE - INTAKE, 1300D/1400D, AS POWDERCOATED BLK 1
18 104151-001 WASHER - RIVET BACK UP, 7/32" ID X 7/16" OD, SS 6
19 100050-006 WASHER - FLAT, #10, TYPE A, W, PLATED 6
20 110733-001 LOCKNUT - HEX WITH NYLON INSERT, 10-32, BLACK 6
21 118518-001 RIVET - STAVEX, BLIND FLANGE DOME, BLACK, .188" DIA 14
22 118519-001 RIVET - STAVEX, BLIND FLANGE DOME, BLACK, .188" DIA 8
23 26E-014100 TERMINAL - BUTT SPLICE, 16GA - 14 GA, NYLON INSUL (NOT SHOWN) 3
24 26E-040210 TERMINAL - QUICK DIS. FEMALE, 18-22, 1/4 TAB, NYL INS (NOT SHOWN) 2
25 105343-001 TUBING - HEAT SHRINK, BLK, 3/8" (NOT SHOWN) 6
26 110005-001 DECAL - ID & SERIAL PLATE, 1325D AXIAL BLOWER 1
27 104011-001 DECAL - "USE ONLY PELSUE 1600-SERIES IN-LINE..." 1300 SERIES 1
Table 3.1b: #110002-010
Parts List
Item
Number
Part Number Description Quantity
3110002-001 MOTOR - ELECTRIC, AXIAL, 3/8" SHAFT, 120VAC 1
4110007-001 CAPACITOR - 7.5 MFD, 370 VAC, 60 HZ 1
5110288-001 COVER - RUBBER, CAPACITOR CONNECTION 1
6119023-001 GASKET, FOAM STRIP, 3/8" X 1" X 11" LG. NEOPRENE W/PSA CLOSED CELL 0.091
7114628-001 CAPACITOR BRACKET - 7.5 MFD, 370 VAC, 60HZ 1

Page 9
#109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
3.1 Parts Diagram & List (continued)
Figure 3.1a: #1325D
Parts Diagram
17
21
8
9
20
19
10
11
10
12
13
1920
21
22
22
18
3
26
27
7
18
18
6
21
14
5
22
15
16
Figure 3.1b: #110002-010
Parts Diagram
5
4
3
6
7

Page 10 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
MOTOR
1/3 HP
120 VAC
60 HZ
BUTT SPLICE
14/16
(3X)
CAPACITOR
7.5 MFD
370 VAC, 60 HZ
PLUG
120 VAC, 60 HZ
(BN)
(BN)
(BK)
(WT)
(BK)
(WT)
(GN)
(GN)
Figure 3.2a: #1325D
Wiring Diagram
3.2 Wiring Diagram
Shown below in Figure 3.2a, is a wiring diagram of the motor and the cordset.

Page 11
#109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
The following section will address the safety precautions which must be adhered to when working with Pelsue conned
Space Ventilation equipment such as the #1325D Axial Ventilator. Any user must familiarize themselves with the infor-
mation in this section before utilizing the equipment.
SIGNAL WORDS:
Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The appropriate signal
word for each message has been selected using the following guidelines:
DANGER- Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. This
signal word is to be limited to the most extreme situations or for hidden or unseen hazards.
WARNING- Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury and
includes obvious and hidden hazards. It may also be used to alert against unsafe practices.
CAUTION- Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It
may also be used to alert against unsafe practices.
You are responsible for the safe operation of your Pelsue #1325D Axial Ventilator. You must ensure that anyone who
will operate or work around the equipment be familiar with conned space ventilation procedures. This manual will take
you step-by-step through the workings and capabilities of the #1325D Axial Ventilator and alert you to all good safety
and operating practices while using the system.
Remember, you are the key to safety. Good safety practices not only protect you but also the people around you. Make
these practices a working part of your safety program. Be certain that everyone operating in or around a conned space
is familiar with the procedures recommended and follows safety precautions. Remember, most accidents can be pre-
vented. Do not risk injury or death by ignoring good safety practices.
• The most important safety device on this equipment is a safe operator. It is the operator’s responsibility to read
and understand all safety and operating instructions in the manual and to follow these. Most accidents can be
avoided.
• A person must understand the operation of this equipment and be trained in it’s usage before operating the
equipment. An untrained operator exposes himself and others to possible serious injury or death.
• Do not modify the equipment in any way. Unauthorized modication may impair the function and/or safety and
could affect the life of the equipment.
• Think SAFETY! Work SAFELY!
4.0 - Safety
4.1 - Safety Alert Symbol
SAFETY ALERT SYMBOL
This Safety Alert symbol means ATTENTION! BECOME ALERT! YOUR SAFETY
IS INVOLVED!
The Safety Alert symbol identies important safety messages on your Pelsue Con-
ned Space Product and in the manual. When you see this symbol, be alert to the
possibility of personal injury or death. Follow the instruction in the safety message.
Why is this symbol important to you?
3 BIG Reasons: Accidents Disable and Kill.
Accidents Cost You Money.
Accidents Can Be Avoided.
!

Page 12 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
4.2 - General Safety Information
! CAUTION ! - Be sure the Ventilator is disconnected from the power source before doing any
maintenance or repair work on the Ventilator.
! CAUTION ! - Check all power cords for cuts, frayed ends, or brittle insulation. See parts list
for replacement cord part number.
! CAUTION ! - The user must ensure that the Ventilator is located where it cannot fall into water
inadvertently and the extension cords or plug connections do not lay in water.
Safety Precautions:
It is necessary to follow these safety precautions, each time, prior to using the product.
The Safety Precautions is not limited to, but must include the following items;
Do not use the Ventilator for anything other than its intended use.1.
2. Do not wear loose clothing that can become entangled in operating machinery. Do not operate the Ventilator without
inlet or outlet screen guards in place.
Do not place ngers or any other object through inlet or outlet screens.3.
Always operate the Ventilator from a properly grounded ground fault circuit interrupter-equipped receptacle.4.
Never handle energized power cords with wet hands.5.
Never let extension cords or plug connection lay in water. Locate the Ventilator so that it cannot fall into water inad-6.
vertently.
Never use cords with frayed , cut, or brittle insulation. Check the cord for sound connections to the ground fault inter-7.
rupter receptacle.
Never use this Ventilator in an explosive environment.8.
Ensure that toxic fumes are not blown into a conned space. 9.
Unattended use of equipment is not recommended.10.
For Parts & service;
T.A. Pelsue Service Department
2500 South Tejon STreet
Englewood, Colorado 80110
Phone: [phone] or 303-936-7432
Fax: [phone]
www.pelsue.com
!

Page 13
#109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
5.0 - Product Operation
The Pelsue #1325D Axial Ventilator is built with a cold rolled steel housing for exceptional strength and durability. The
Pelsue #1325D Axial Ventilator is specically designed for conned space applications. All specications, instructions,
and procedures provided within this manual or upon Pelsue Specication Documents are based upon and only valid
for usage with Pelsue accessories. The T.A. Pelsue Company can not verify equipment safety and/or compliance when
utilized with anything other than Pelsue approved conned space accessories.
Axial Ventilator - #1325D
General Specications
• Weight - 19.5 LBS.
• Height - 14-1/2”
• Width - 13”
• Length - 14-1/2”
Model Specications & Performance
#1325D
• Voltage 120VAC, 60Hz
• Amperage 4
• H.P. 1/3 (.248kW)
• Free Air 1004 CFM (28.4 m3/min)
• One 90º Bend 568 CFM (16.6 m3/min)
• Two 90º Bends 555 CFM (15.7 m3/min)
5.1 - Product Description & Capabilities
The following section will address the capabilities and the general operation of the Pelsue #1325D Axial Ventilator. The
instructions contained within this section should be adhered to each and every time the product is used. Any person
tasked with installing or operating the piece of equipment should be familiar with these procedures.
Figure #5.1a: #1325D
Axial Ventilator
Features:
• Low Maintenance
• Specically designed to provide a completely
portable source of fresh air
Materials & Construction
• Main Structure: - Cold Rolled Steel
• Hardware - Plated Steel
Additional Requirements & Notes
• The #1325D Axial Ventilators are single-speed Ventilators.

Page 14 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
Prior to Operation, the #1325D Axial Ventilator should be congured and prepared according to the following guide-
lines.
1. Pre-Operation Inspection:
It is necessary to perform a visual inspection, each time, prior to using the product. If deciencies are found, remove the
product from service and contact the T.A. Pelsue regarding repair. The following checklist coupled with Figure #5.2a
should be used as a guide to determine whether the equipment is in good operating condition prior to usage. Equipment
that is not in good condition can endanger the safety of the entrant and attendant during use.
The Pre-Operation Visual Inspection is not limited to, but must include the following items;
a. Check the Ventilator inlet and outlet guard screens for obstructions.
b. Remove any objects around the immediate area that could be sucked into the Ventilator.
c. The cordset is properly attached to the Ventilator.
d. The rubber feet are attached.
5.2 - Start-Up & Operating Procedures

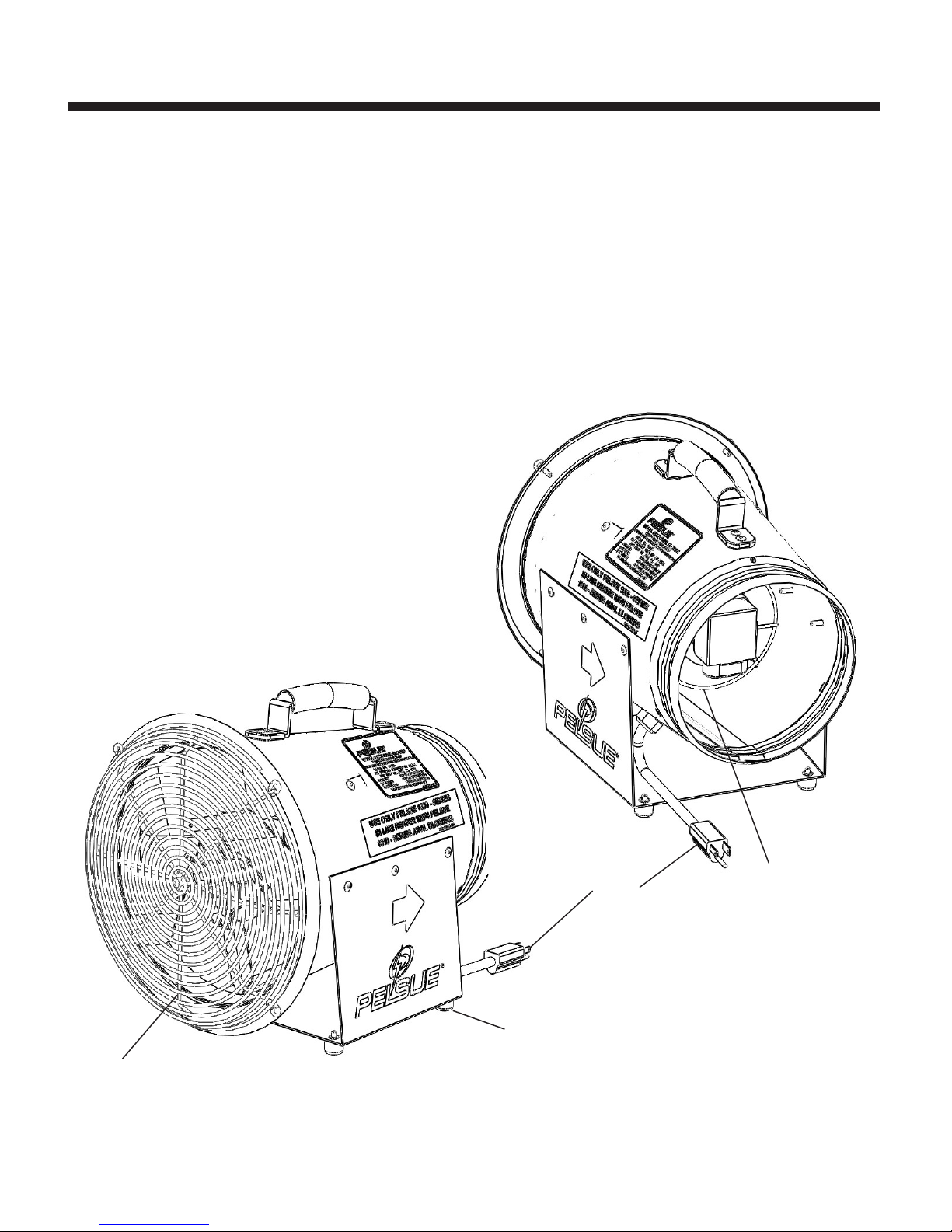

Figure #5.2a: #1325D Axial Ventilator
Pre-Operation Inspection Points
Inlet Guard
Cordset
Rubber Feet
Outlet Guard

Page 15
#109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016
2. Setup of 1325D Axial Ventilator:
Choose a location where installation will provide suitable proximity to the work area yet minimize obstructions during use
and in the event a rescue is necessary. Once a location is chosen;
Ventilator should be placed 1.5 meters upwind where possible, from the conned space, and have its inlet pointed a.
into the wind. This will reduce the chance of contamination being blown into the conned space.
(Refer to Fig. #5.2b)
Plug the Ventilator power cord to a properly grounded receptacle.b.
Extend and place the Ventilator hose as required.c.
When Ventilator operation is no longer required, unplug the power cord. Coil and store the power cord in thed.
space between the housing and base or in the outlet port of the Ventilator.
Important Notes:
During conned space entry operations, it should not be assumed that the ventilator will maintain the air inside -
the conned space at a safe condition. When the ventilator is in use, the air inside the conned space should be
monitored continuously for the presence of poisonous gases and/or toxic fumes.
Ensure that the Ventilator provides positive airow the entire time during usage. The axial Ventilator can be used -
with an accessory Pelsue Air Flow Alarm (FLO-CHEK) in order to alert the entrants that positive ventilation is lost.
5.2 - Start-Up & Operating Procedures (continued)

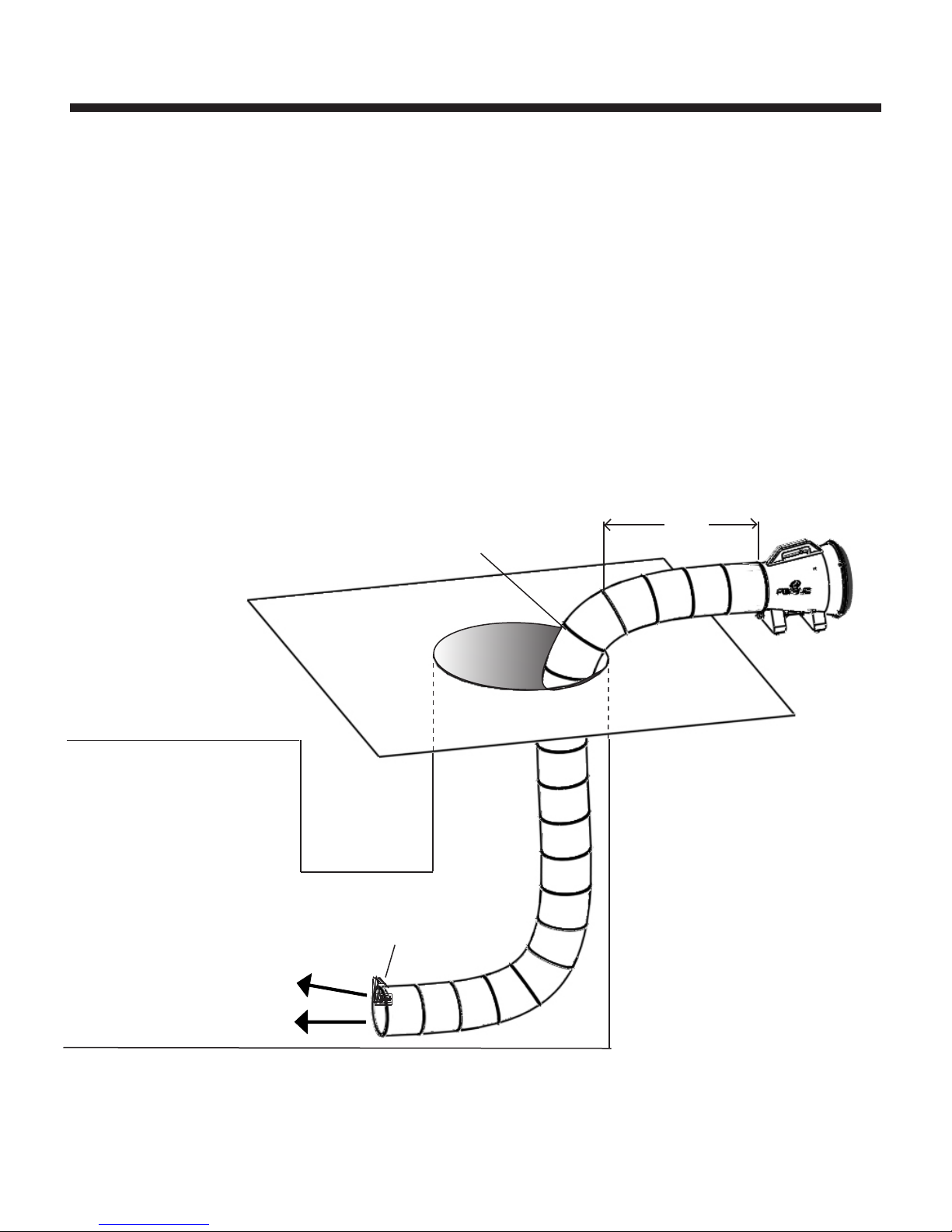

Figure #5.2b: Axial Ventilator
Setup in Conned Space
Conned Space
Airow
1.5 m
Air Flow Alarm (Optional)
!WARNING! - The user must
ensure that the power cord is cor-
rectly installed in order to prevent
damage to the product and injury
to the operator.
Ventilation Hose

ISO 9001 Certified
T.A. Pelsue Company
2500 South Tejon Street, Englewood, Colorado, USA 80110
Toll free 800-525-8460 or 303-936-7432 Fax. [phone]
Internet: www.pelsue.com Email: [email protected]
