Product Manual:
Model #1400P
Axial Ventilator (12VDC)
T.A. Pelsue Company
2500 South Tejon Street
Englewood, Colorado, USA 80110
Tel. [phone] or 303-936-7432
Fax. [phone]
Internet: www.pelsue.com
Email: [email protected]
ISO 9001 Certified

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014
Page 2

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014 Page 3
Since our inception in 1963 – the T.A. Pelsue Company has designed and manufactured high
quality equipment to improve the personnel ef-
ciency and working conditions in various under-
ground, conned, and outdoor areas.
Founded by T. Allen Pelsue, the company has estab-
lished a continuing reputation for excellence in the
production of ne products for a broad spectrum of
industry throughout the world.
Now, in our second generation of family direction,
continued commitment to innovation and quality
makes Pelsue a leading source of equipment for
many types of conned spaces. We specialize
in safety, retrieval, fall arrest, ventilation, cable
placing, splicing, and maintenance nationally and
abroad. With more than 70,000 square feet of facil-
ities available, Pelsue continues the dedication that
has made us pre-eminent in this eld.
ISO 9001 Certified

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014
Page 4
Table of Contents
Section Description Page #
1.0......................................General Information.................................. 5
1.1...........................Quality Policy
1.2...........................Pelsue Product Warranty
2.0......................................Introduction & Product Information........ 7
2.1...........................Serial Number
3.0......................................Conguration & Assembly........................ 8
3.1...........................Parts Diagram & List
4.0...................................... Safety.......................................................... 10
4.1...........................Safety Alert Symbol
4.2...........................General Safety Information
5.0......................................Product Operation.....................................12
5.1...........................Product Description & Capabilities
5.2...........................Start-Up & Operating Procedures

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014 Page 5
1.0 General Information
T.A. Pelsue Company
Quality Policy
OUR GOAL IS THE PURSUIT OF NEVER-ENDING IMPROVEMENT IN
PRODUCT QUALITY AND BUSINESS SYSTEMS.
METHODS TO BE EMPLOYED IN ATTAINING THIS GOAL WILL INCLUDE
NEW PRODUCT QUALITY PLANNING, EMPLOYEE TRAINING, AND
UTILIZATION OF EMPLOYEE INVOLVEMENT GROUPS TO SOLVE
PROBLEMS.
IN AN INCREASINGLY COMPETITIVE MARKETPLACE, ENSURING
CUSTOMER SATISFACTION IS ONE OF THE DIFFERENTIATORS THAT
SETS YOU APART FROM THE PACK AND YIELDS A COMPETITIVE
ADVANTAGE.
THEREFORE, WE WILL SUPPORT TOTAL CUSTOMER SATISFACTION BY
IMPLEMENTING THE ISO 9001 QUALITY SYSTEM AND PROVIDING
THE NECESSARY ATMOSPHERE AND TRAINING TO NURTURE THIS
CONCEPT THROUGHOUT OUR ORGANIZATION.
WE WILL MAKE EVERY BUSINESS DECISION AS THOUGH THE QUALITY OF
THE PART OR SERVICE PROVIDED WAS DESTINED FOR OUR OWN
OR OUR FAMILY’S USE. WE WILL ALWAYS THINK QUALITY FIRST.
EVERY T.A. PELSUE COMPANY EMPLOYEE IS EXPECTED TO COMMIT TO
THIS PHILOSOPHY IN THE PERFORMANCE OF HIS OR HER DAILY TASKS.
QUALITY FIRST!
T.A. PELSUE COMPANY SENIOR MANAGEMENT TEAM
1.1 Quality Policy

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014
Page 6
1.2 - Pelsue Product Warranty
PELSUE PORTABLE PRODUCT WARRANTY
Pelsue products are designed and engineered to perform as stated in published specications. Quality materi- 
als and workmanship are used in the manufacture of this product. With regular maintenance and proper care,
Pelsue equipment provides many trouble free hours of operation.
The T.A. Pelsue Company warrants to the buyer that material furnished will conform to specications and will 
be free from defects in material and workmanship from the date of shipment to the original buyer, for the period
listed by product description on the reverse side of this warranty statement.
In the event of failure of any components of a Pelsue product within the warranty period, service must be pre- 
approved by the T.A. Pelsue Company and service must be performed by the T.A. Pelsue Company Parts and
Service Department in Englewood Colorado, or at the option of T.A. Pelsue Company, service may be per-
formed at any designated service center, which may include any authorized service center for the component
manufacture.
Damage or failure due to misuse, mishandling, or unauthorized modications will not be covered by this war- 
ranty. Unless otherwise agreed, the T.A. Pelsue Company shall repair or replace the defective components
within (30) calendar days of notice of failure. T.A. Pelsue Company’s obligation hereunder, shall be limited to
the repair or replacement of the product or component as set forth above, and shall not include any liability
whatsoever for damages caused by such failure, including but not limited to consequential or incidental dam-
ages owing from use or lack of use of product.
Any replacement, repair, modication, installation or other service performed by the T.A. Pelsue Company 
shall be warranted by the remainder of the unexpired period of the warranty, or for a period of (90) calendar
days, whichever is longer.
All materials or parts returned for credit or warranty shall be returned only with prior approval, and will be sub- 
ject to factory inspection before credit is allowed. Parts claimed defective will be replaced upon request and
will be invoiced as purchased, subject to credit when the parts claimed to be defective have been received and
examined by the factory.
This warranty is expressly in lieu of all other warranties expressed or implied, including any warranties of mer- 
chantability or warranties of tness for any particular use and all other obligations or liabilities in connection
with the sale of this equipment.
Product Description Warranty Coverage*
Ventilators • ........................................................................................1 year
Heaters • ............................................................................................1 year
Ventilator Hoses/Ducts • ....................................................................3 months
Pel-Cans and Caddys • ......................................................................1 year
Hose Adapters • .................................................................................1 year
Manhole Shields & Manhole Guards • ...............................................1 year
Pel-Brite Work Lights • .......................................................................6 months
Planks and Plank Supports • .............................................................6 months
Duct Rodders and Accessories • .......................................................6 months
Submersible Pumps • ........................................................................6 months
Discharge and Suction Hoses for Pumps • ........................................3 months
Wheel Chocks • .................................................................................1 year
*From date of shipment to original buyer.
T.A. Pelsue Company, 2500 South Tejon Street, Englewood, Colorado 80110, 800-525-8460

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014 Page 7
2.0 - Introduction & Product Information
MODEL:__________________________________________
Serial Number :_____________________________________
Congratulations on your choice of a Pelsue Model #1400P Axial Ventilator to compliment your conned space ventila-
tion operation. The Model #1400P Ventilator is specically designed to provide a completely portable source of fresh
air. This ventilator is powered by a 12-volt DC electrical supply. This equipment has been designed and manufactured
to exceed conned space requirements and regulations in order to meet the needs of the discriminating operator for the
efcient and safe operations of personnel in a conned space.
Safe, efcient and trouble-free operation and maintenance of the system requires that anyone who will be operating,
maintaining, or inspecting the equipment, read, understand and follow all the operation, safety, maintenance, and inspec-
tion instructions contained within this manual. This manual covers the Pelsue Model #1400P Axial Ventilator. Use the
Table of Contents as a guide to nd specic information.
Keep this manual handy for frequent reference and to pass on to new operators.
2.1 - Serial Number
Product Serial Number
Always give your dealer the serial number of your Pelsue conned space
ventilator product when ordering parts or requesting service or other infor-
mation.

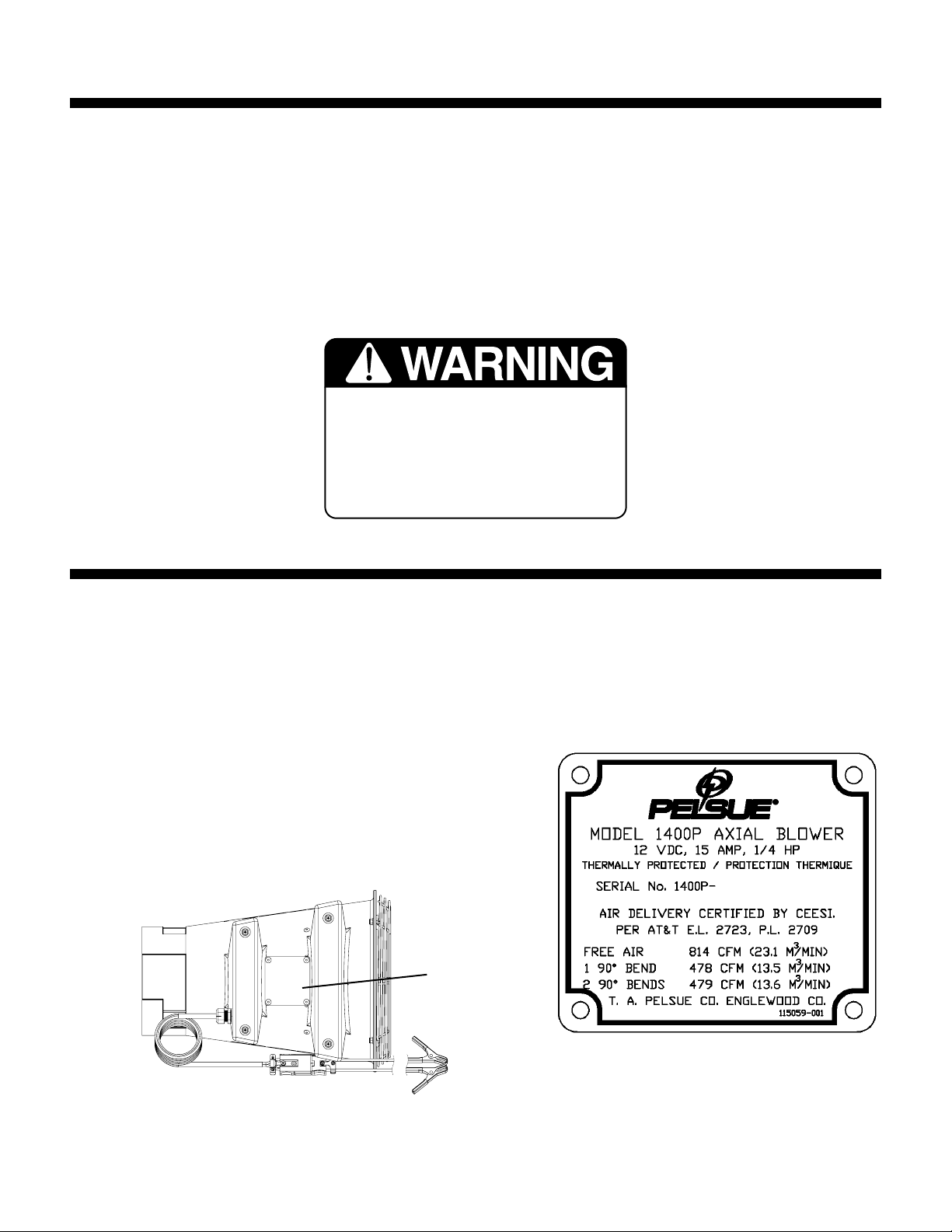

The serial number plate is permanently embossed with a serial number. The
serial number will be located on the plate location at the bottom of the axial
ventilator as shown in Fig. 2a . The serial number plate will appear as shown
to the right in Fig. 2b. A space has been provided below for the recording
of the serial numbers for future reference.
Figure 2b: #1400P
Serial Number Plate
SERIAL
NUMBER
LOCATION
Figure 2a: Serial Number
Location
#1400P
This product is a part of a system for conned space
ventilation operations. The user must read, understand
and follow the instructions contained in this manual
before using this equipment. Failure to follow these
instructions could result in serious injury or death.

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014
Page 8
3.0 - Conguration & Assembly
Upon initial receipt of the #1400P Axial Ventilator, inspect the packaging for any evidence that the product may have
been damaged in shipment. While unpacking the product, inspect all of the components for damage. If damage to any
of the components is discovered, Alert the shipping carrier immediately of the damage to the shipment.
Refer to the following parts breakdown diagram (Figure #3.1a) and the accompanying parts list (Table #3.1a) for iden-
tication of parts in the event replacements become necessary. The parts list table displays applicable part numbers,
descriptions, and quantity per assembly.
**Refer to parts list above if replacement parts are required. Replacement parts can be ordered from the T.A. Pelsue
Company at 800-525-8460.
Table 3.1a: #1400P
Parts List
3.1 Parts Diagram & List
Item
Number
Part Number Description Quantity
3100405-004 STRAIN RELIEF - WATERTIGHT, 1/2" HUB, 0.250"- 0.375" DIAM. 1
4119268-001 FAN BLADE - 10" DIA., 3/8" SHAFT, 3450 RPM, ALUM, CW 1
5118809-001 MOTOR MOUNT - AXIAL BLOWERS, HDPE / STEEL BLOWER HOUSINGS 1
6100188-001 FOOT - RUBBER, 3/4" OD, W/ WASHER 4
7118284-001 SCREW - MACHINE, PAN HD, PHILLIPS, 10-32 X 5/8, STAINLESS 4
8121861-001 SHAFT EXTENSION - 1400 SERIES BLOWERS, CARBON STEEL 1
9104638-001 SCREW - SET, CUP POINT, #8-32 X 3/8, GRADE 5, PLATED 1
10 122592-001 PLUG & BATTERY CLIP ASSEMBLY, 12 VDC, 30 AMP 1
11 110000-001 GRILLE - OUTLET, 1300D/1400D, AS POWDER COATED IN BLACK 1
12 118518-001 RIVET - STAVEX, CLEAR ZINC, 0.188 DIAMETER 8
13 122619-001 ASSEMBLY - CORD SET, 14/2 X 12 FT., 12-VOLT DC, MODEL 1400 SERIES AXIAL 1
14 104977-001 GRILLE - INTAKE, 1300D/1400D, AS POWDERCOATED BLK 1
15 100050-006 WASHER - FLAT, #10, TYPE A, W, PLATED 8
16 112178-001 LOCKNUT - NYLON INSERT, #10-24 UNC, BLK 4
17 115166-001 SCREW - TRUSS HEAD, PHILLIPS, 10-24 X 5/8", BLK 4
18 114761-P01 HOUSING, AXIAL FAN - ROTATIONALLY MOLDED 1
19 110733-001 LOCKNUT - HEX WITH NYLON INSERT, 10-32, BLACK 4
20 110004-001 MOTOR - 12VDC, 1/4 HP, .312" DIA. SHAFT, FOR 1400 SERIES AXIAL BLOWERS 1
21 115059-001 PLATE DECAL - 1400P, I.D. & SERIAL, ALUMINUM 1
22 122084-001 LABEL - "! CAUTION !, 15 AMP POWER SOURCE REQUIRED..." 1
23 26E-014100 TERMINAL - BUTT SPLICE, 16GA - 14 GA, NYLON INSUL (NOT SHOWN) 2
24 105343-001 TUBING - HEAT SHRINK, BLK, 3/8" (NOT SHOWN) 1

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014 Page 9
3.1 Parts Diagram & List (continued)
Figure 3.1a: #1400P
Parts Diagram
A
17
14
4
5
19
15
19
12
18
8
13
3
22
6
7
2112
10
15 16 112016
15
DETAIL A
9
14

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014
Page 10
The following section will address the safety precautions which must be adhered to when working with Pelsue conned
Space Ventilation equipment such as the #1400P Axial Ventilator. Any user must familiarize themselves with the infor-
mation in this section before utilizing the equipment.
SIGNAL WORDS:
Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The appropriate signal
word for each message has been selected using the following guidelines:
DANGER- Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. This
signal word is to be limited to the most extreme situations or for hidden or unseen hazards.
WARNING- Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury and
includes obvious and hidden hazards. It may also be used to alert against unsafe practices.
CAUTION- Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It
may also be used to alert against unsafe practices.
You are responsible for the safe operation of your Pelsue #1400P Axial Ventilator. You must ensure that anyone who will
operate or work around the equipment be familiar with conned space ventilation procedures. This manual will take you
step-by-step through the workings and capabilities of the #1400P Axial Ventilator and alert you to all good safety and
operating practices while using the system.
Remember, you are the key to safety. Good safety practices not only protect you but also the people around you. Make
these practices a working part of your safety program. Be certain that everyone operating in or around a conned space
is familiar with the procedures recommended and follows safety precautions. Remember, most accidents can be pre-
vented. Do not risk injury or death by ignoring good safety practices.
• The most important safety device on this equipment is a safe operator. It is the operator’s responsibility to read
and understand all safety and operating instructions in the manual and to follow these. Most accidents can be
avoided.
• A person must understand the operation of this equipment and be trained in it’s usage before operating the
equipment. An untrained operator exposes himself and others to possible serious injury or death.
• Do not modify the equipment in any way. Unauthorized modication may impair the function and/or safety and
could affect the life of the equipment.
• Think SAFETY! Work SAFELY!
4.0 - Safety
4.1 - Safety Alert Symbol
SAFETY ALERT SYMBOL
This Safety Alert symbol means ATTENTION! BECOME ALERT! YOUR SAFETY
IS INVOLVED!
The Safety Alert symbol identies important safety messages on your Pelsue Con-
ned Space Product and in the manual. When you see this symbol, be alert to the
possibility of personal injury or death. Follow the instruction in the safety message.
Why is this symbol important to you?
3 BIG Reasons: Accidents Disable and Kill.
Accidents Cost You Money.
Accidents Can Be Avoided.
!

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014 Page 11
4.2 - General Safety Information
! CAUTION ! - Be sure the ventilator is disconnected from the power source before performing
any maintenance or repair work on the ventilator.
! CAUTION ! - Check all power cords for cuts, frayed ends, or brittle insulation. See parts list
for replacement cord part number.
! CAUTION ! - The user must ensure that the ventilator is located where it cannot fall into water
inadvertently and the extension cords or plug connections do not lay in water.
Safety Precautions:
It is necessary to follow these safety precautions, each time, prior to using the product.
The Safety Precautions is not limited to, but must include the following items;
1. Do not use the ventilator for anything other than its intended use.
2. Do not wear loose clothing that can become entangled in operating machinery. Do not operate the ventilator without
inlet or outlet screen guards in place. (If guards are missing or damaged, contact the factory for replacements.)
3. Do not place ngers or any other object through inlet or outlet screens.
4. Always operate the ventilator from a properly wired & congured 12VDC power source.
5. Never handle energized power cords with wet hands.
6. Never let extension cords or plug connection lay in water. Locate the ventilator so that it cannot fall into water
inadvertently.
7. Never use this ventilator if it is not in good working condition. Never use power cords with frayed , cut, or brittle insu-
lation. Check the cord for sound connections to the power source.
8. Never use this ventilator in an explosive environment (i.e. gaseous or airborne dust).
9. Ensure that toxic fumes are not blown into a conned space.
10. Unattended use of equipment is not recommended.
!

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014
Page 12
The Pelsue Model #1400P Axial Ventilator is a single-speed, fresh-air ventilator equipped with 12 foot 12VDC power
plug connection and alligator clips for a direct battery connection.
The Pelsue #1400P Axial Ventilator is built from a high density polyethylene housing (HDPE), which has a high resis-
tance to chemicals and extreme temperatures, as well as a favorable strength to weight ratio. The Pelsue #1400P Axial
Ventilator is specically designed for conned space applications. All specications, instructions, and procedures pro-
vided within this manual or upon Pelsue Specication Documents are based upon and only valid for usage with Pelsue
accessories. The T.A. Pelsue Company can not verify equipment safety and/or compliance when utilized with anything
other than Pelsue approved conned space accessories.
Power Source***
The recommended power supply for the Model #1400P ventilator is a direct connection to a 12VDC automotive-type
battery. Another dedicated 12VDC power source can be used with a minimum in-rush rating amperage of 50 amps
and a continuous duty of 15 to 18 amps. ! Many automotive power ports & cigarette lighter outlets are not rated for the
required 15 amp draw, the T.A. Pelsue Company is not liable for any damage incurred when connecting the ventilator
to an under-rated 12VDC power supply source !
Axial Ventilator - #1400P
General Specications
• Weight - 12 LBS. (5.5 Kg.)
• Height - 15”
• Width - 13”
• Length - 17.5”
Model Specications & Performance
#1400P
• Voltage 12 VDC
• Amperage 15A - 18A
• H.P. 1/4 (0.187 kW)
• Free Air 814 CFM (23.1 m3/min)
• One 90º Bend 478 CFM (13.5 m3/min)
• Two 90º Bends 479 CFM (13.6 m3/min)
Features:
• Low Maintenance
• Specically designed to provide a completely
portable source of fresh air
Materials & Construction
• Main Structure: - Polyethylene Housing
• Hardware - Plated Steel
Additional Requirements & Notes
• The #1400P Axial Ventilator is a single-speed ventilator.
5.0 - Product Operation
5.1 - Product Description & Capabilities
The following section will address the capabilities and the general operation of the Pelsue #1400P Axial Ventilator. The
instructions contained within this section should be adhered to each and every time the product is used. Any person
tasked with installing or operating the piece of equipment should be familiar with these procedures.
Figure #5.1a: #1400P
Axial Ventilator

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014 Page 13
Prior to Operation, the #1400P Axial Ventilator should be congured and prepared according to the following guide-
lines.
1. Pre-Operation Inspection:
It is necessary to perform a visual inspection, each time, prior to using the product. If deciencies are found, remove the
product from service and contact the T.A. Pelsue regarding repair. The following checklist coupled with Figure #5.2a
should be used as a guide to determine whether the equipment is in good operating condition prior to usage. Equipment
that is not in good condition can endanger the safety of the entrant and attendant during use.
The Pre-Operation Visual Inspection is not limited to, but must include the following items;
a. Check the ventilator inlet and outlet guard screens for obstructions.
b. Remove any objects around the immediate area that could be sucked into the ventilator.
c. The cord & plug set is properly attached to the ventilator.
d. The rubber feet are attached.
5.2 - Start-Up & Operating Procedures

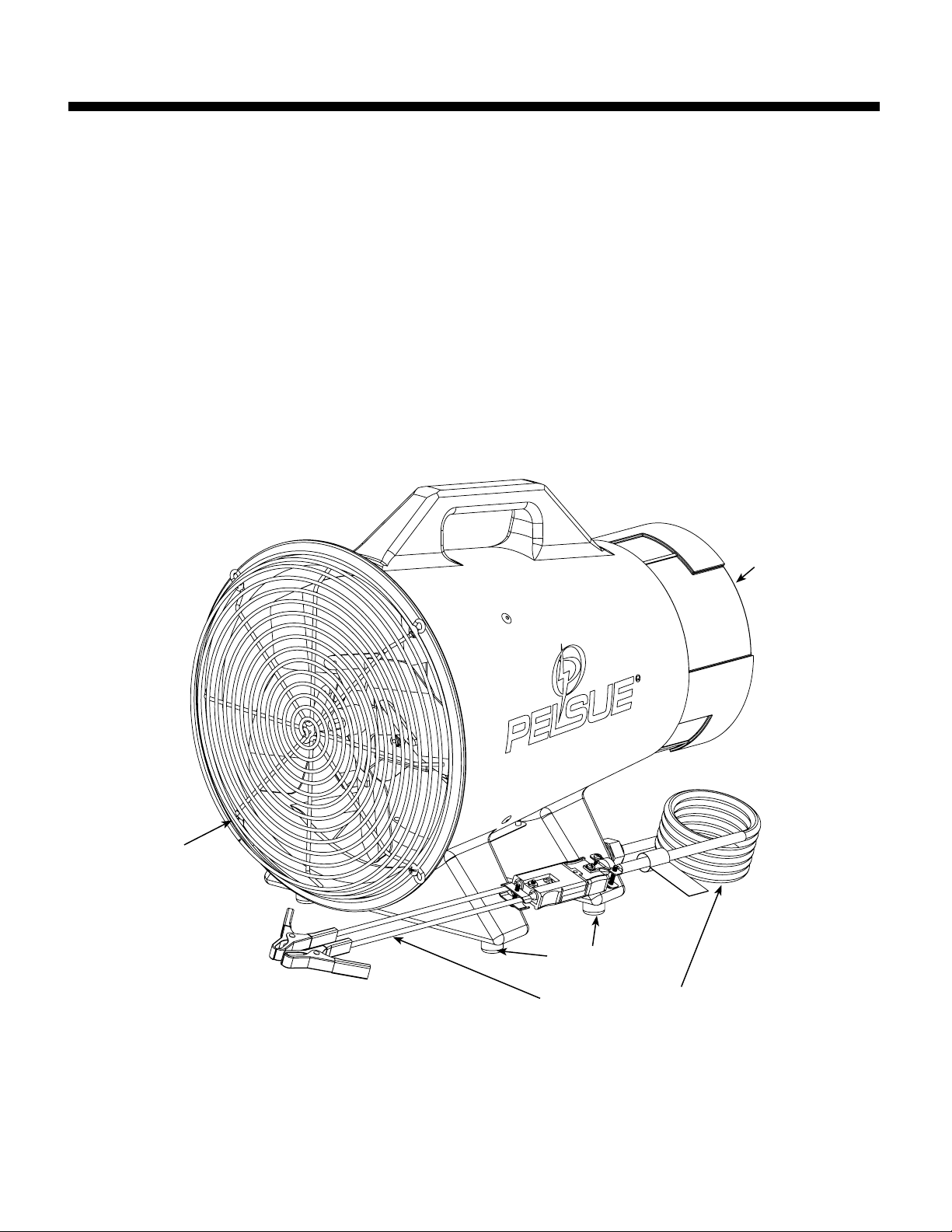

Figure #5.2a: #1400P Axial Ventilator
Pre-Operation Inspection Points
CORD & PLUG SET
OUTLET GUARD
INLET GUARD
RUBBER FEET

#115057-001 - Product Manual - Model #1400P Axial Ventilator - Revision 07 - Date: 03-28-2014
Page 14
2. Setup of 1400P Axial Ventilator:
Choose a location where installation will provide suitable proximity to the work area yet minimize obstructions during use
and in the event a rescue is necessary. Once a location is chosen;
Ventilator should be placed 1.5 meters upwind where possible, from the conned space, and have its inlet pointed a.
into the wind. This will reduce the chance of contamination being blown into the conned space.
(Refer to Fig. #5.2b)
Connect the ventilator to a suitable 12VDC power source as described in section 5.1b.
Extend and place the ventilator hose as required.c.
When ventilator operation is no longer required, unplug the power cord. Coil and store the power cord in the open-d.
ing of the molded handle, or wrap the cord around the molded legs.
Important Notes:
During conned space entry operations, it should not be assumed that the ventilator will maintain the air inside -
the conned space at a safe condition. When the ventilator is in use, the air inside the conned space should be
monitored continuously for the presence of poisonous gases and/or toxic fumes.
Ensure that the ventilator provides positive airow the entire time during usage. The axial ventilator can be used -
with an accessory Pelsue Air Flow Alarm (#FLO-CHEK) in order to alert the entrants that positive ventilation is
lost.
The Axial ventilator can also be used in conjunction with a Pelsue Airpac that connects to the ventilator and has-
storage built-in for the hose.
5.2 - Start-Up & Operating Procedures (continued)

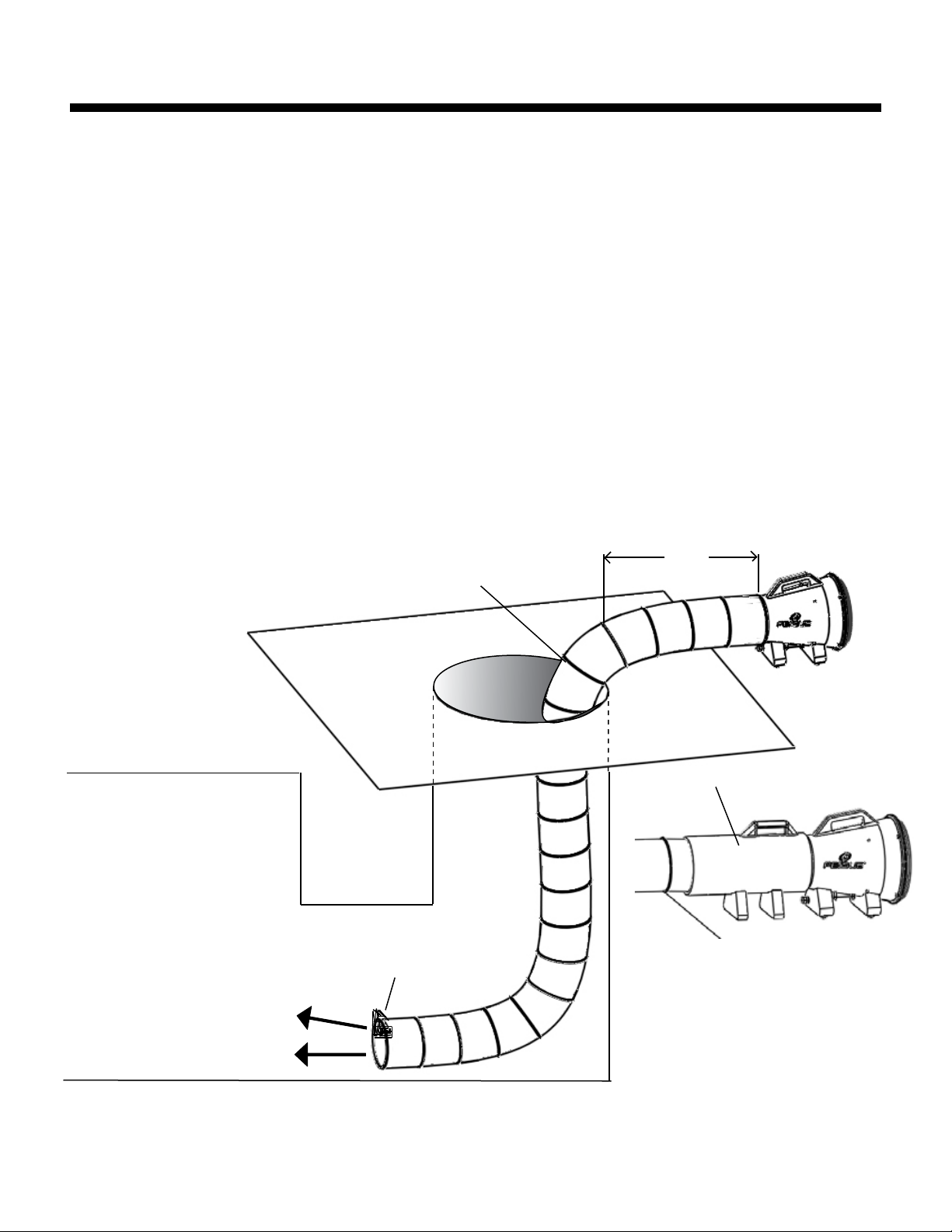

Figure #5.2b: Axial Ventilator
Setup in Conned Space
Conned Space
Airow
1.5 m
Air Flow Alarm (Optional)
Ventilation Hose
!WARNING! - The user must
ensure that the power cord is cor-
rectly installed in order to prevent
damage to the product and injury
to the operator.
Airpac

ISO 9001 Certified
T.A. Pelsue Company
2500 South Tejon Street, Englewood, Colorado, USA 80110
Toll free 800-525-8460 or 303-936-7432 Fax. [phone]
Internet: www.pelsue.com Email: [email protected]
