PeopleNet TABLET
Installation Guide
Version 1.1
A guide for new TABLET & new OBC installations.
(Refer to the PeopleNet TABLET Upgrade Guide if upgrading
from classic OBC to TABLET.)

2
© 2010 PeopleNet Communications. All rights reserved.
Revisions
Version Description of Version Date Completed
1.0
Initial Draft – Pete L. 12/06/2010
1.1
Potential Candidate – Matt H. 1/10/11
1.2
Release Candidate – Matt H. 1/13/11
1.3
Updated Tablet Photo-Josh 2/3/11
PeopleNet TABLET is a trademark of PeopleNet Communications Corporation.

3
© 2010 PeopleNet Communications. All rights reserved.
Table of Contents
R EVISIONS ............................................................................................................ 2
T ABLE OF F IGURES ................................................................................................ 4
B EFORE Y OU B EGIN ............................................................................................... 5
PeopleNet System Installation Manual............................................................................... 6
TABLET ............................................................................................................................. 6
TABLET Dock Install Kit..................................................................................................... 7
DC-DC Power Supply Kit ................................................................................................... 8
Additional Parts.......................................................................................................................... 8
Speaker Kit (Optional equipment) ...................................................................................... 9
I NSTALLATION ...................................................................................................... 11
TABLET Installation ......................................................................................................... 12
Mounting the TABLET Dock..................................................................................................... 12
DC-DC Installation ........................................................................................................... 13
Connecting the DC-DC Power Supply to the PeopleNet System.............................................. 13
Mounting the DC-DC Power Supply ......................................................................................... 14
Connecting Power to the DC-DC Power Supply ....................................................................... 15
Plugging in TABLET Dock, Keyboard, and Speaker................................................................. 16
F IRMWARE D OWNLOAD ......................................................................................... 17
g3 Firmware Download Process ...................................................................................... 18
S YNCHRONIZATION ............................................................................................... 19
TABLET-OBC Synchronization Process .......................................................................... 20
I NSTALLATION E XAMPLES ...................................................................................... 21
Three Views of a Tablet Installation ................................................................................. 22
S TILL H AVE Q UESTIONS ? ..................................................................................... 25
PeopleNet University........................................................................................................ 26

4
© 2010 PeopleNet Communications. All rights reserved.
Table of Figures
F IGURE 1: P EOPLE N ET I NSTALLATION M ANUAL ......................................................... 6
F IGURE 2: T HE TABLET DEVICE ............................................................................. 6
F IGURE 3: TABLET D OCK AND I NSTALL K IT ............................................................. 7
F IGURE 4: DC-DC P OWER S UPPLY K IT ................................................................... 8
F IGURE 5: S PEAKER K IT (O PTIONAL ) ....................................................................... 9

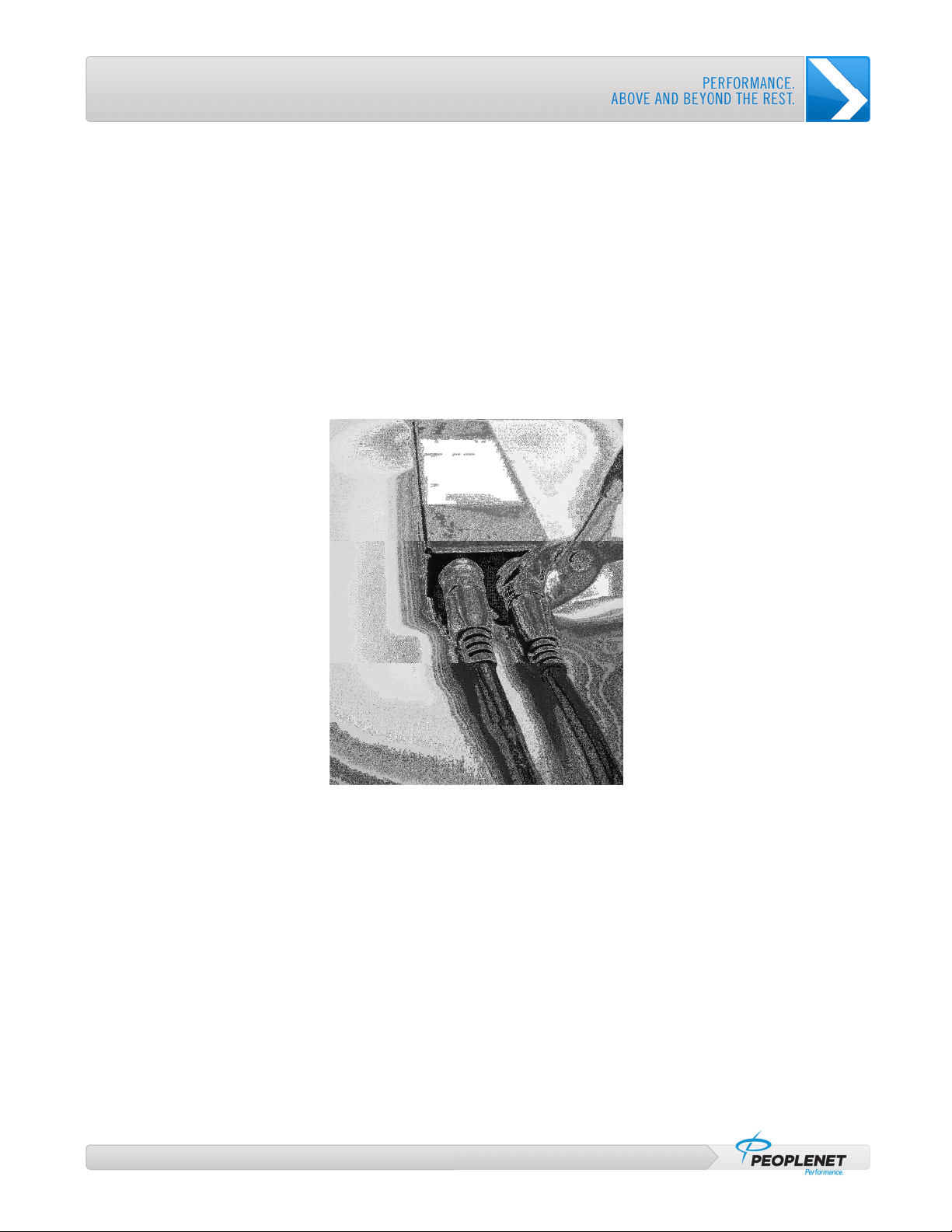

F IGURE 6: G ENTLY T IGHTEN C ONNECTORS UNTIL S NUG .......................................... 13

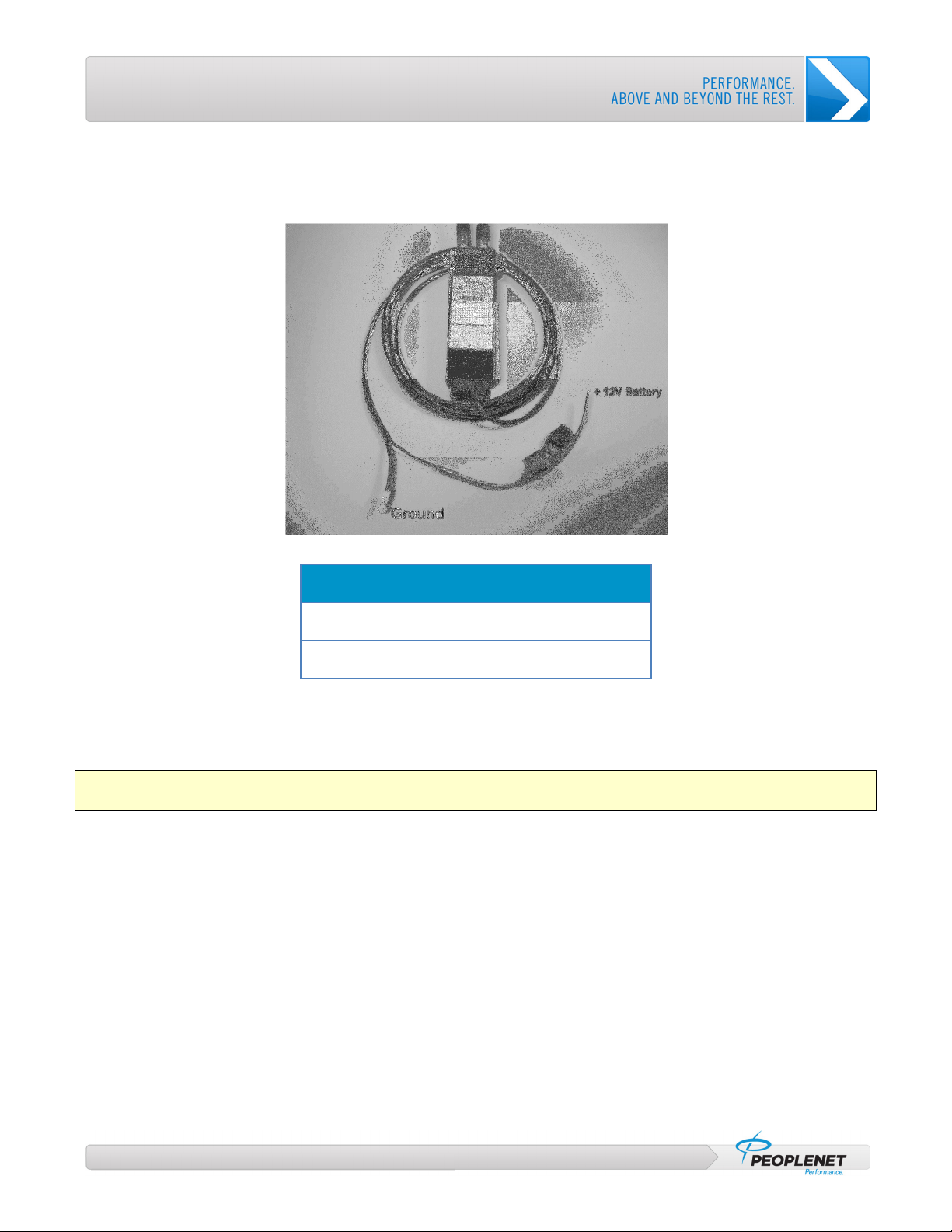

F IGURE 7: DC-DC P OWER S UPPLY W IRES ............................................................ 15
F IGURE 8: TABLET D OCK CONNECTIONS .............................................................. 16
F IGURE 9: USB C ONNECTION WITH E LECTRICAL T APE AND Z IP T IE ........................... 16
F IGURE 10: M OUNTED T ABLET B RACKET ................................................................ 22
F IGURE 11: M OUNTED T ABLET D EVICE ; N O K EYBOARD ........................................... 22
F IGURE 12: M OUNTED T ABLET D EVICE ; F RONT V IEW .............................................. 23

Before You Begin
An inventory of documentation and hardware before you install a new TABLET.

6
PeopleNet System Installation Manual
© 2010 PeopleNet Communications. All rights reserved.
PeopleNet System Installation Manual
You need to complete some of the procedures in the PeopleNet Installation Manual before proceeding with this
guide. These include the following three procedures:
•Mounting the g3 onboard computer (OBC)
•Mounting and connecting antennas
•Connecting the Main Cable to the OBC and the vehicle’s power source
Figure 1: PeopleNet Installation Manual
TABLET
This is the TABLET device itself and the TABLET in the TABLET Dock.
Figure 2: The TABLET device
Part #: M-010-0250

7
TABLET Dock Install Kit
© 2010 PeopleNet Communications. All rights reserved.
TABLET Dock Install Kit
The TABLET Dock Install Kit contains the following items pictured in Figure 3.
Qty Part Description Part #
1 TABLET Dock H-053-0503
1 TABLET Interface Cable L-016-0510
1 “L” Support Brace H-050-0110
4 8-32 x 1” PH PAN H-048-0500
Figure 3: TABLET Dock and Install Kit
Part #: M-010-0256

8
DC-DC Power Supply Kit
© 2010 PeopleNet Communications. All rights reserved.
DC-DC Power Supply Kit
The DC-DC Power Supply Kit contains the following items pictured in Figure 4.
Part Description
DC-DC power supply with power cord
15 Amp fuse and holder
Figure 4: DC-DC Power Supply Kit
Additional Parts
In addition to the parts listed above and shown in Figure 4, you will need the following parts:
Additional Parts
Zip ties to secure excess cabling
4 screws to mount the power supply
1 butt connector to attach the fuse holder
Electrical tape
Part #: E-006-0505

9
Speaker Kit (Optional equipment)
© 2010 PeopleNet Communications. All rights reserved.
Speaker Kit (Optional equipment)
The Speaker Kit includes the following items pictured in figure 5.
Qty Part Description Part #
1 Speaker H-040-0501
1 Speaker Mounting Bracket
2 Thumb Screws
Figure 5: Speaker Kit (Optional)
