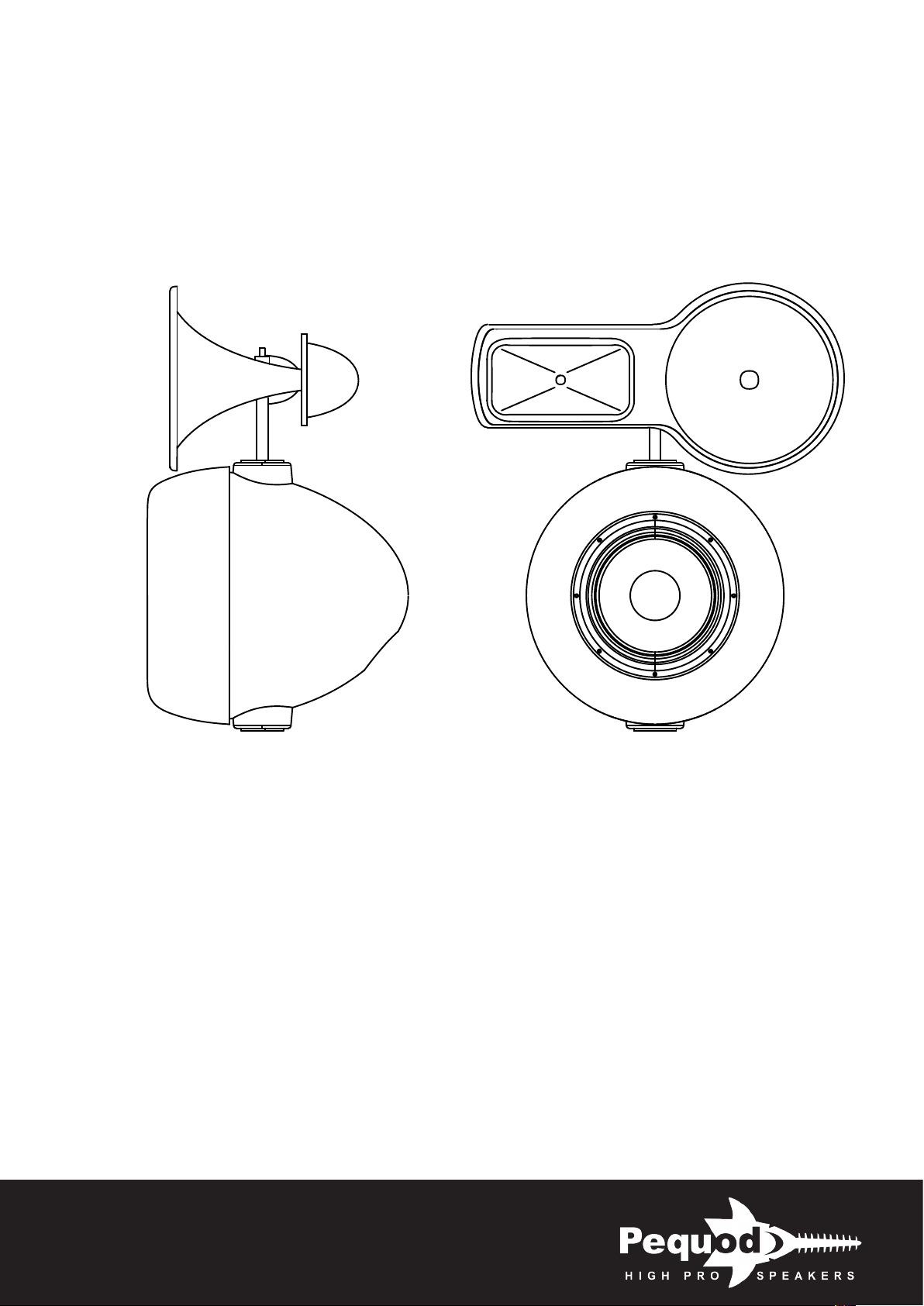

Pequod TWISTER 3.1 User manual

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
TWISTER 3.1
Two-way horn loaded passive system
User guide

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
Index
1 Technical Specications
2 Unpacking and Checking
3 Cables and Set-up
4 Installation and System Design
5 Accessories
6 Maintenance and Surface Protection
7 Warranty
8 Authenticity
TWISTER 3.1
Two-way horn loaded passive system

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
1 Technical Specications
EF5 Twister 3.1 is a passive 3-way horn-loa-
ded system with an extended low- frequen-
cy direct emission component. Professional
HI-PRO two-way audio system with horn-lo-
aded speaker technology, designed to seam-
lessly integrate with dedicated transducers,
built from high resistance composite mate-
rials for elevated sensitivity, dynamics, and
denition. Wide-angle coverage of a highly
controlled sound eld, and the ability to re-
ach high sound levels without perceptible
distortion. The system is characterized by
excellent sound quality the ability to reach hi-
gh-pressure ranges. A pair of large full-frontal
horns manage the high-mid frequency ran-
ge through a dedicated passive crossover(or
using a 2 ch amplier+DSP). The high-range
horn is characterized by a special high-end
derivation design. The long and complex de-
velopment with variable sections allows a
wide dispersion with powerful loading. The
Shockwave 2.1 mid-range horn has a uni-
que design that creates an extraordinary le-
vel of eciency and sensitivity. This allows for
excellent dynamics that distinguish the entire
system from the very rst listen. The extended
low-frequency direct emission component is
characterized by a light structure with a highly
resistant ovoid shell, containing a 15 “woo-
fer with a 30-400 Hz range and high sensiti-
vity. This component can alone cover the mid
and low frequencies or can be assisted by
additional subwoofers to cover the lower fre-
quencies with additional power. The LF driver
features a water-resistant cone. Components
such as the speakers, woofers, and compres-
sion drivers all represent world-class quality,
without commercial or technological compro-
mises. Thanks to its elevated sensitivity, the
system requires limited amplication power.
The EF5 Twister system is manageable throu-
gh bi- amplication with DSP for managing
cuts between the high-mid and low routes.
The two high-mid horn components are ma-
naged passively by a specic crossover lter.
A Full-Fat audio FFA 8004 is the recommen-
ded 4 channel amplier partnered in this sy-
stem (stereo conguration) with a dedicated
DSP. Otherwise, it can be managed actively
by three ampliers and by traditional DSP. Any
additional subwoofers are sold separately.
USER GUIDE
TYPE
FREQUENCY
RESPONSE
TOTAL
SENSITIVITY
LOW
FREQUENCY
MEDIUM
FREQUENCY
HIGH
FREQUENCY
NOMINAL
IMPEDANCE
CONTINUOUS
POWER HADLING
MANAGE
RECOMMENDED
AMPLIFIER
DISPERSION
CONSTRUCTION
MATERIALS
FINISH
PROTECTIVE
GRILLES
CONNECTORS
DIMENSIONS
WEIGHT
Two ways passive full-horn loaded with exten-
ded low frequencies direct emission component
40 Hz - 18 KHz
109 dB 1W/m with passive crossover for mid-hi-
gh component 97 dB 1W/m for low component
15” Low woofer 8 Ohm 1000 W nominal 2000 W
peak
2” (50 mm) MF compression driver 8 Ohm 80 W
nominal 160 W peak
1” (25 mm) HF compression driver 8 Ohm 60 W
nominal 120 W peak
4 Ohm with two way passive crossover for
mid-high component 8 Ohm for low component
400 W 4 Ohm for mid high frequencies
2000 W 8 Ohm for low frequencies
4 Ch amplier to a couple of Twister loudspea-
kers (outer passive crossover provided, for each
Twister horn loaded mid+hf)+DSP .
Horn loaded mid+hf :High-pass lter @400Hz,
24 dB/oct. LR;Relative Gain -12dB,Delay 0 ms
15”: High-pass lter @40Hz, 24 dB/oct.But; Low
pass lter @400Hz, 24 dB/oct. LR
If subwoofer is needed: Horn loaded mid+hf : as
above. 15”: High-pass lter @100Hz, 24 dB/oct.
LR, Low pass lter @400Hz, 24 dB/oct. LR
Full Fatt Audio FFA 8004 with crossover with
DSP
60° horizontal, 40° vertical
Fiber-reinforced composite, stainless steel
all ral color and texture on order
Twister is usually sold with this grid made of
stainless steel
3x Neutrik NL4 or custom preference
(W) 1100 mm (H) 950 mm (D) 700 mm
(W) 43 inch (H) 37 inch (D) 28 inch
14 Kg (31 lb) mid-high component, 22 Kg (48 lb)
low component

2: Unpacking
The Twister, like every other Pequod product, is built
with high standards of control and quality. At the end
of the production process and before packaging,
each system is tested: acoustically measured and
recorded in our company database. For each Twister
serial number, we have the related test les recor-
ded in the archive. Before being packed in its box
we complete an inspection of surfaces and structu-
res. Units are packed into wooden crates or heavy
cardboard boxes with internal foam padding before
shipping.
Extraction from box:
The Twister weighs: 14 Kg (31 lb) mid-high compo-
nent, 22 Kg (48 lb) low component each, and it’s
being shipped contained inside suitable wooden
packaging box. Its extraction from the box is achie-
vable by two operators, at least.
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
USER GUIDE
1100mm (43 inch )
700mm (28 inch )
950 mm (37 inch )
Notes: Twister is coded in 2 versions
mirrored, right and left (cod Right and cod Left), for
stereo conguration
1: Remove packing materials
and save for re-use
2: lift speaker body with
both hands when ready
L
R

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
3 Wiring and Settings

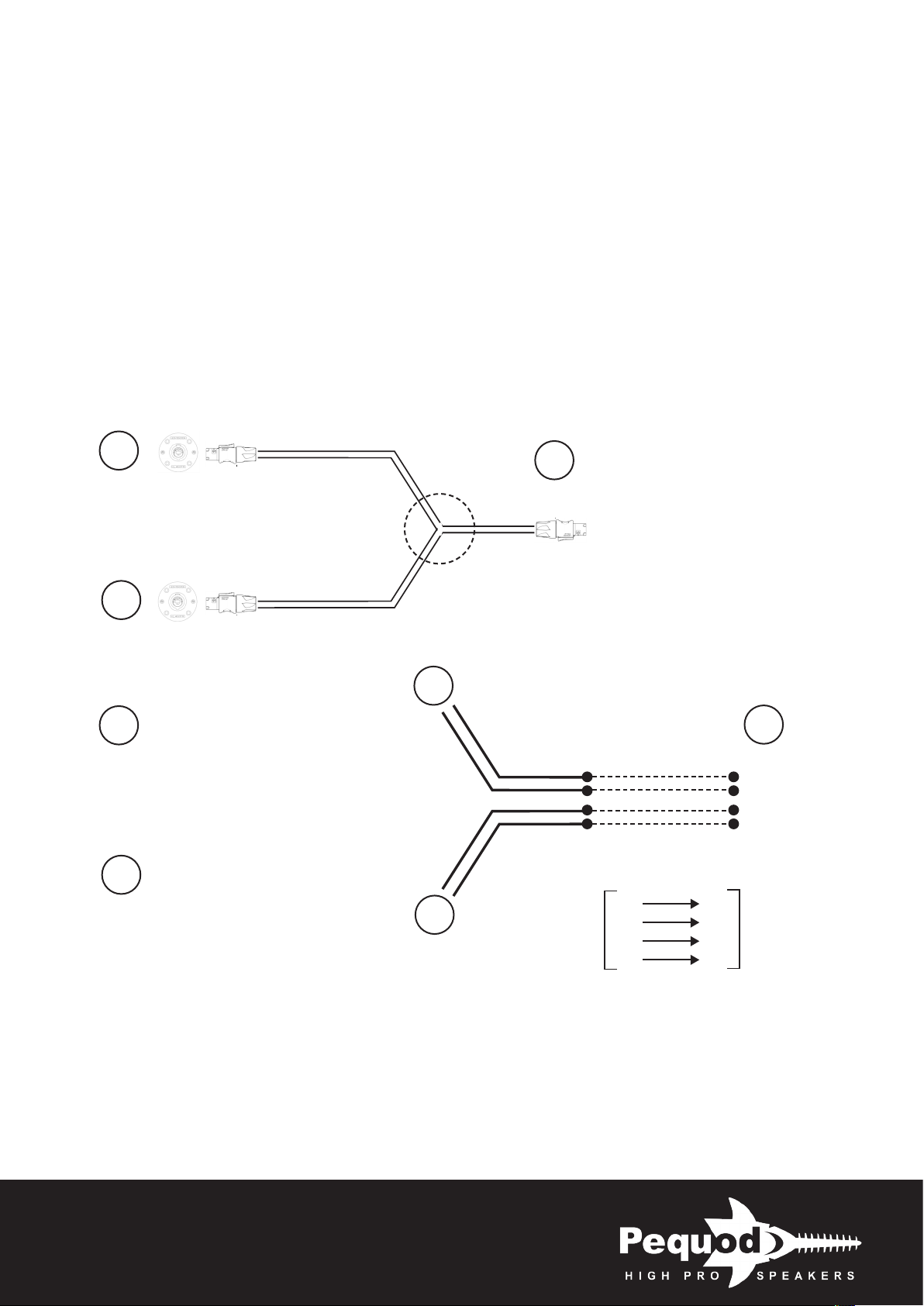

The Twister has 3 inputs made with a female NL4 connector. The mid + hf part is connected to the crossover
(housed in a crossover box of 3 types: standard box, cod.STBOXTWI; metal rack box, cod. RBOXTWI ; wea-
therproof box ,cod.WPBOXTWI ) by Y cable (if purchased from Pequod it is the code CAB03TWI) thus made:
two 2-pole cables (minimum section 2.5 sq.mm per pole, for cable lengths up to 15m), terminated with 2
male connectors (A and B) NL4FC (+ 1 / -1 connected , + 2 / -2 empty), merged into a single 4-pole cable
(minimum section 2.5 sq.mm per pole) terminated with 1 male connector (C) NL4FC (+ 1 / -1 connected, +
2 / -2 connected ) . See diagram below :
USER GUIDE
A
A
A
B
B
B
2p
2p
4p
C
C
NL4FC ( +1 -1 +2 -2 )
NL4FC ( +1 -1 )
NL4FC ( +1 -1 )
+1
+1
-1
-1
+2
+1
-2
-1
: Mid freq. horn
: High freq. horn
+1A
-1A
+1B
-1B
+1C
-1C
+2C
-2C

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]

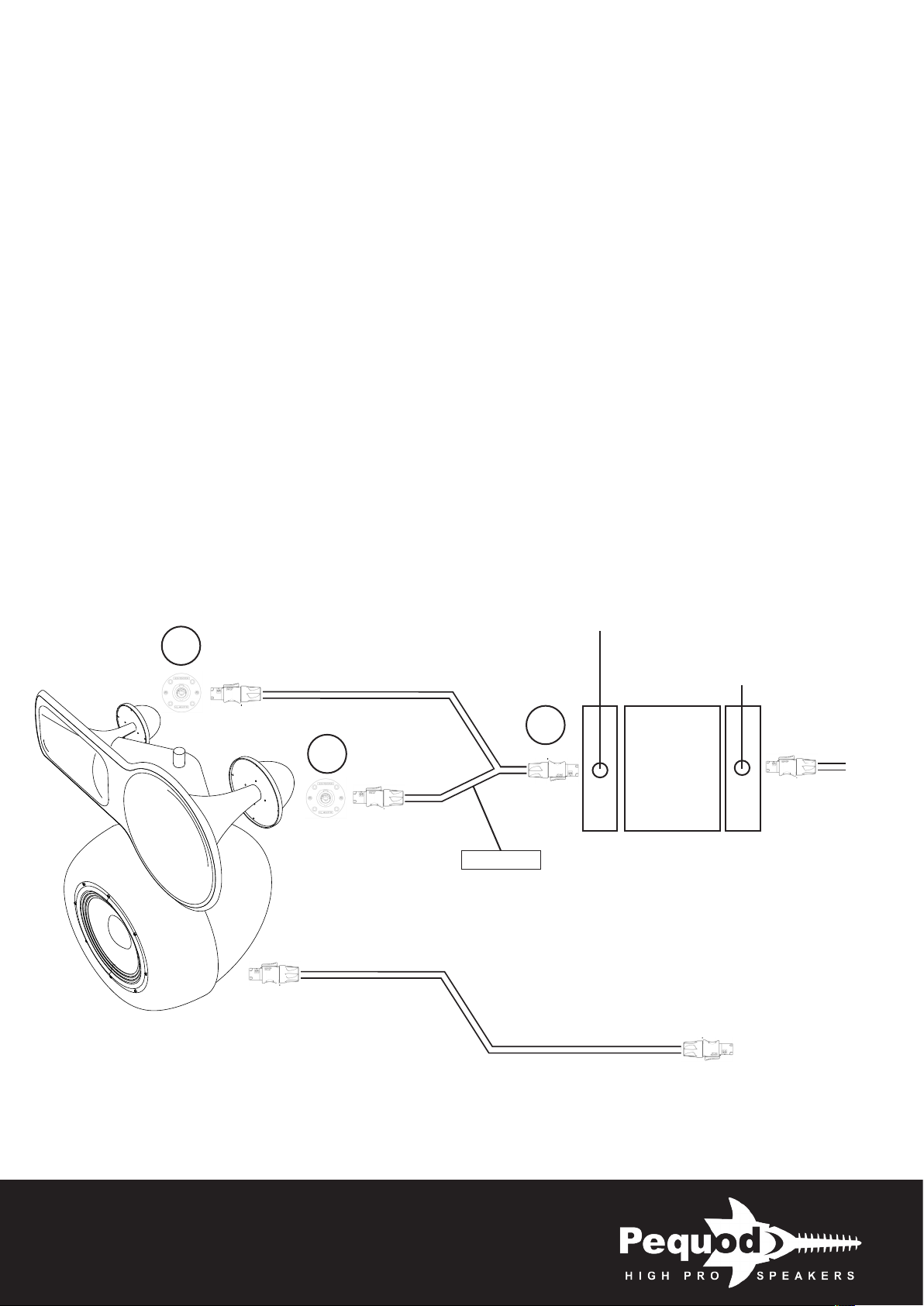

1) Cable between crossover and amp (not supplied): 2-pole cable (2.5 sq.mm minimum section
per pole up to 15 m cable length, in addition we recommend switching to 4 sq.mm per pole), ter-
minated with Nl4Fc male connector ( + 1 / -1 connected and corresponding to +1 red and -1 black
on the amplier, + 2 / -2 empty) to connect at the crossover input, which has NL4 female connector,
standard or WP on request.
2) Cable between Ovoid15 ”and amp (not supplied):
as above. In case of custom realization by the installer of the connection cables, we recommend
specifying installation-grade Low Smoke Zero Halogen (LSZH) cables for permanent installations.
The cables should use Oxygen Free Copper (OFC) of grade C11000 or above. For distances of
more than 15 meters between xover and ampliers we recommend increasing the section of the
cable poles to 4 sq.mm, to avoid excessive emission level losses. For lengths of less than 15 m,
you can use 2-pole cables, each with a section of 2.5 sq.mm.
DSP general settings:
Horn loaded mid + hf: High-pass lter @ 400Hz, 24 dB / oct. LR; Relative Gain - 10dB, Delay 0 ms
15 “: High-pass lter @ 40Hz, 24 dB / oct. But; Low pass lter @ 400Hz, 24 dB / oct. LR
If subwoofer is needed:
Horn loaded mid + hf: as above
15 “: High-pass lter @ 100Hz, 24 dB / oct. LR; Low pass lter @ 400Hz, 24 dB / oct. LR
A
B
2p
2p
2p
4p
C
NL4 female OUT
NL4
female IN
XOVER
NL4FC ( +1 -1 )
NL4FC ( +1 -1 )
To Amplier + DSP
NL4FC ( +1 -1 )
To Amplier + DSP
NL4FC ( +1 -1 )
CAB03TWI
NL4FC ( +1 -1 ) NL4FC
( +1 -1 +2 -2 )
Choice of Box Style:
1: Standard Box: STBOXTWI
1x Crossover Inside
2: Rack Box: cod. RBOXTWI
2x Corssover inside
3: Waterproof Box: cod. WPBOXTWI
1x Crossover inside

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
NL4
female IN
4 Installation and system design
Twisters can typically be used as a high quality system for listening areas, like a dance oor or for
a medium-sized audience of a live concert. In some cases it is necessary to use suitable subwoo-
fers (Ovoid or Hydra available from the Pequod catalog) to have a full range system. For on stage
installation facing an audience, they can be housed on their stand or, above the subwoofer (like
Ovoid18) for easy management and handling

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
4 Installation and system design
It should be borne in mind that optimal acoustic coverage is obtained by lifting the Twisters 2 -4 m
from the ground on the vertical plane, tilting them towards the audience, so that the ideal outgoing
axis between the HF and MF horns is oriented in an area placed between 1/2 and 2/3 of the depth
of the area to be soundtracked (dance oor or audience). On the horizontal plane, it is also neces-
sary to orientate the ideal axis coming out from Twister in an area that is placed at about 2/3 of the
depth of the area to be covered, on the center line of the area itself.
USER GUIDE
2 - 4 m
Audience
Sub
Sub Sub
Horizontal plane
Vertical plane
2-4m

5: Accessories
In the Pequod catalog there are some accesso-
ries to be used with Twister.
Cod. BAG01TWI: Protective PVC Bag sized for
Twister system, waterproof soft nish to protect
from scratches and weather.
Cod. GROV: Front Portection Grille of the wo-
ofer, made of stainless steel. Usually included
as standard component in most orders, dele-
te options is available when protection in not
needed.
Cod. BSSTTWI: stand with Concrete Base with
logo and stainless steel diameter 35mm tube
for supporting a freestanding Twister system
without Ovoid sub.
Cod. TBBOV18TWI: Ovoid Connection Pipe in
stainless steel diameter 35mm, length 350mm
suitable for coupling above the sub Ovoid 18
system. Other lengths available on demand.
Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
USER GUIDE
Cod. BAG01TWI:
Protective PVC Bag
Cod. GROV:
Front Portection Grille
Cod. BSSTTWI:
stand with Concrete
Base
Cod. TBBOV18TWI:
Ovoid Connection Pipe

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
6: Maintenance and Surface Protection
All Pequod units are built from a unique high
quality composite material which is inert to at-
mospheric agents and requires minimal regular
maintenance, just a simple cleaning of the sur-
faces with a soft cloth dampened with alcohol.
For best practice in long term care of the com-
posite components, and to obtain or restore
a truly professional level of surface nish, we

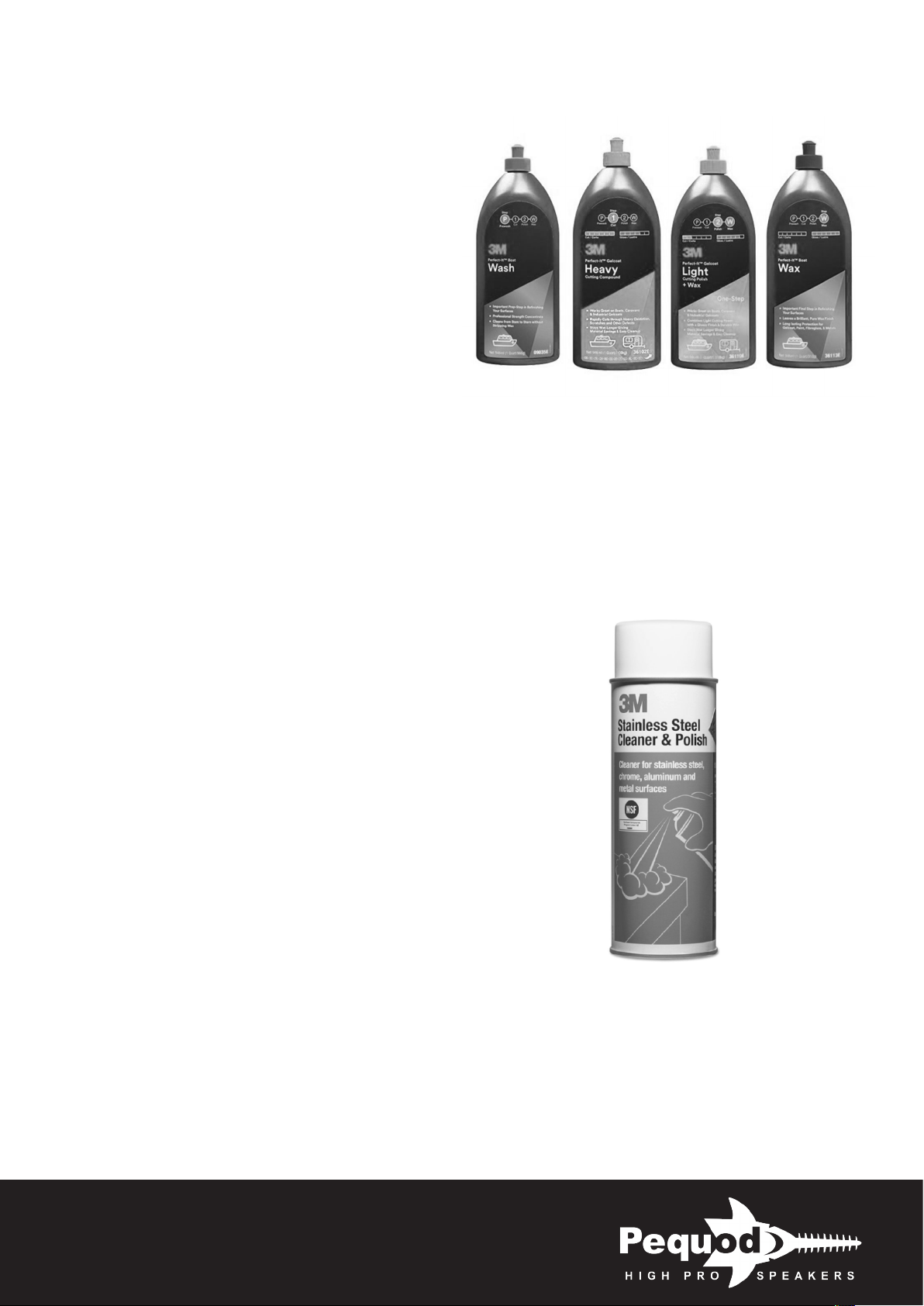

recommend using the 3M “Perfect ItTM” line of
Gelcoat cleaners and protective waxes (above
right).
Follow the instructions provided to ensure the
best possible nish for your Pequod composite
speaker bodies and accessories.
Many installations require Stainless Steel sup-
port structures or armatures to complete moun-
ting and assembly of dierent Pequod units. For
these components, we recommend cleaning
with 3M
TM
Stainless Steel Cleaner and Polish (ri-
ght).
USER GUIDE

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
7: Warranty
Pequod Acoustics oers a guarantee to the origi-
nal owner (person or company who purchased the
product brand new) of each new Pequod product
(provided it was purchased directly from Pequod or
through a Pequod Acoustics Authorised Dealer/ Di-
stributor) that it is free of defects in materials and
workmanship and that each product was tested in
the factory to meet or exceed all specications de-
clared. Each model has a test le recorded in our
database, related to its serial number.
The period of limited warranty is three (3) years from
the date of delivery to the original purchaser (as
shown on the original invoice or sales receipt; a copy
may be required as proof of warranty dates)
Pequod Acoustics will repair or replace (at its discre-
tion) all defective parts at no charge for labor or ma-
terials; subject to following provisions:
Pequod Acoustics shall take no responsibility for re-
pair or replacement under this warranty if:
a) The damaged product has been subject to misu-
se, accident, neglect or failure to comply with normal
maintenance procedures
b) There are improper alterations or unauthorized
parts or repairs.
c) The serial number has been altered, defaced or
removed and the original owner won’t be able to give
information related to our Anti-counterfeit authenti-
cation system (see below, section 8)
Pequod Acoustics will remedy any defect, regardless
of the reason for failure (except as excluded above)
by repair or replacement. Pequod Acoustics will ship
the product within a reasonable time after receipt of
the defective product at a Pequod Acoustics Autho-
rised Service Centre.
How to obtain service under warranty:
If a Pequod Acoustics product requires service, the
original owner must contact the Pequod Acoustics
dealer who supplied the product, to receive our Re-
turn Authorisation Code (RA code), and instructions
on how to return the product to the Pequod Authori-
sed Service Centre, or to Pequod Acoustics.
The original owner must give information about:
- Problems with the product
- Serial number
- Original invoice or sales receipt
- Anti-counterfeit system (see section 8)
After receiving the RA code the owner can pack the
unit in the original factory packaging if possible. Ple-
ase include a note describing the problem packed
together with the product. Do not send it separately.
All products being returned to the factory or service
center for repairs must be shipped prepaid. Ensure
safe transportation of your unit to the authorized ser-
vice center
Pequod Acoustics (or an Authorised Service Centre)
will initiate corrective repairs upon receipt of the re-
turned product, in order to complete the repairs and
ship back the product within a reasonable amount
of time.
If the repairs made by Pequod or a Pequod Authori-
sed Service Centre are not satisfactory to the owner,
they are instructed to give written notice to Pequod.
The original owner is not entitled to recover from
Pequod any incidental damages resulting from any
defect in the Pequod product. This includes any da-
mage to another product or products resulting from
such a defect.
The warranty is not extended by the length of time
which the owner is not engaged in active use of the
product. Repairs and replacement parts provided
pursuant to the warranty will be covered only by the
non-expired portion of the warranty.
USER GUIDE

Pequod Acoustics Srl.
Via del Madonnone 25, Florence, Italy
www.pequodacoustics.com
[email protected]
USER GUIDE
8: Authentication and Anti Counterfeiting Me-
asures
Each product by Pequod Acoustics is carefully
hand made using high quality components that
are, by themselves, dicult to replicate. But we
also protect our products using special marks
on the inside and outside, which are unique and
serve to authenticate original Pequod products.
Thus, each individual product has a special
mark, placed in a unique position. For each pro-
duct (each serial number) we keep a record of
the exact position where we placed this mark.
When warranty claims are made, or other reque-
sts that require authentication of an individual
Pequod product, we will ask the owner to pro-
vide a description of the identifying marker as
further proof of originality.
