Performax 241-0955 User manual

1
5.5AMP 3/8” DRILL
241-0955
Owner’s Manual
PRODUCT SPECIFICATIONS
Rating:
120 V, 60 Hz, AC
Amperes:
5.5 AMP
Chuck speed:
0–2,700 RPM (no load)
Chuck:
3/8" Keyless
Maximum drilling capacity in wood:
1" (25 mm)
Maximum drilling capacity in metal:
3/8" (10 mm)
Weight:
3 lb 12 oz (1.7 kg)
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665
Technical questions
Replacement parts
Parts missing from package

2
Product specifications ………….………………………………………………………………...
1
Table of contents ……………………………………………………………………..................
2
General safety warnings …………………………………………………………………………
3–4
Eye, ear & lung protection ……………………………………………………………………….
3–4
Electrical safety …………………………………………………………………………………...
4
Power tool safety ……………………………………………………………………..................
5–6
General safety rules ……………………………………………………………………………...
5
Work area ………………………………………………………………….……………………...
5
Electrical safety …………………………………………………………………………………...
5
Personal safety …………………………………………………………………………………...
5–6
Power tool use and care .………………………………………………………………………..
6
Service …………………………………………………………………………………………….
6
Specific safety rules ……………………………………………………………………………...
7
Extension cord safety ………………………………………………………….…………………
8

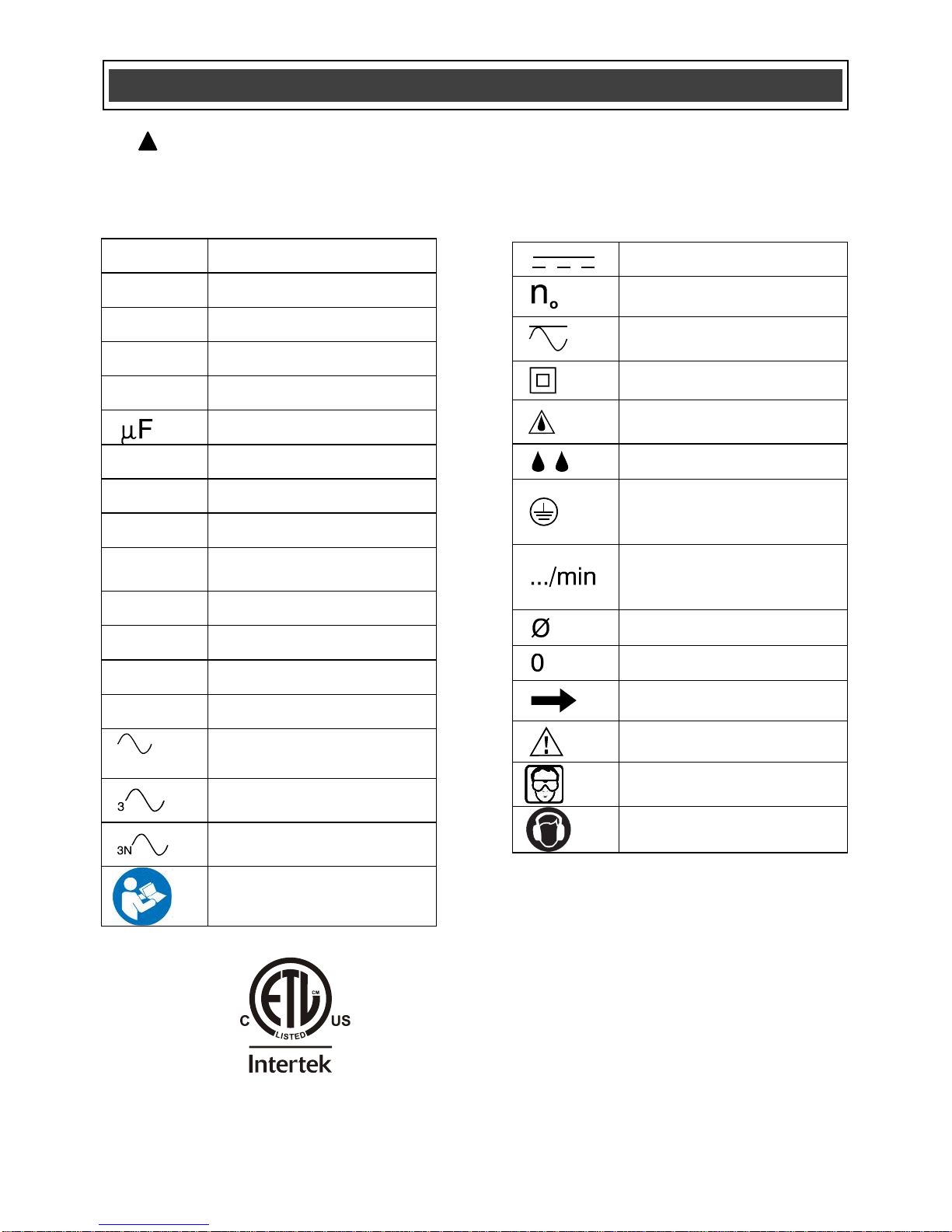

Symbols ……………………………………………………………………………………………
9

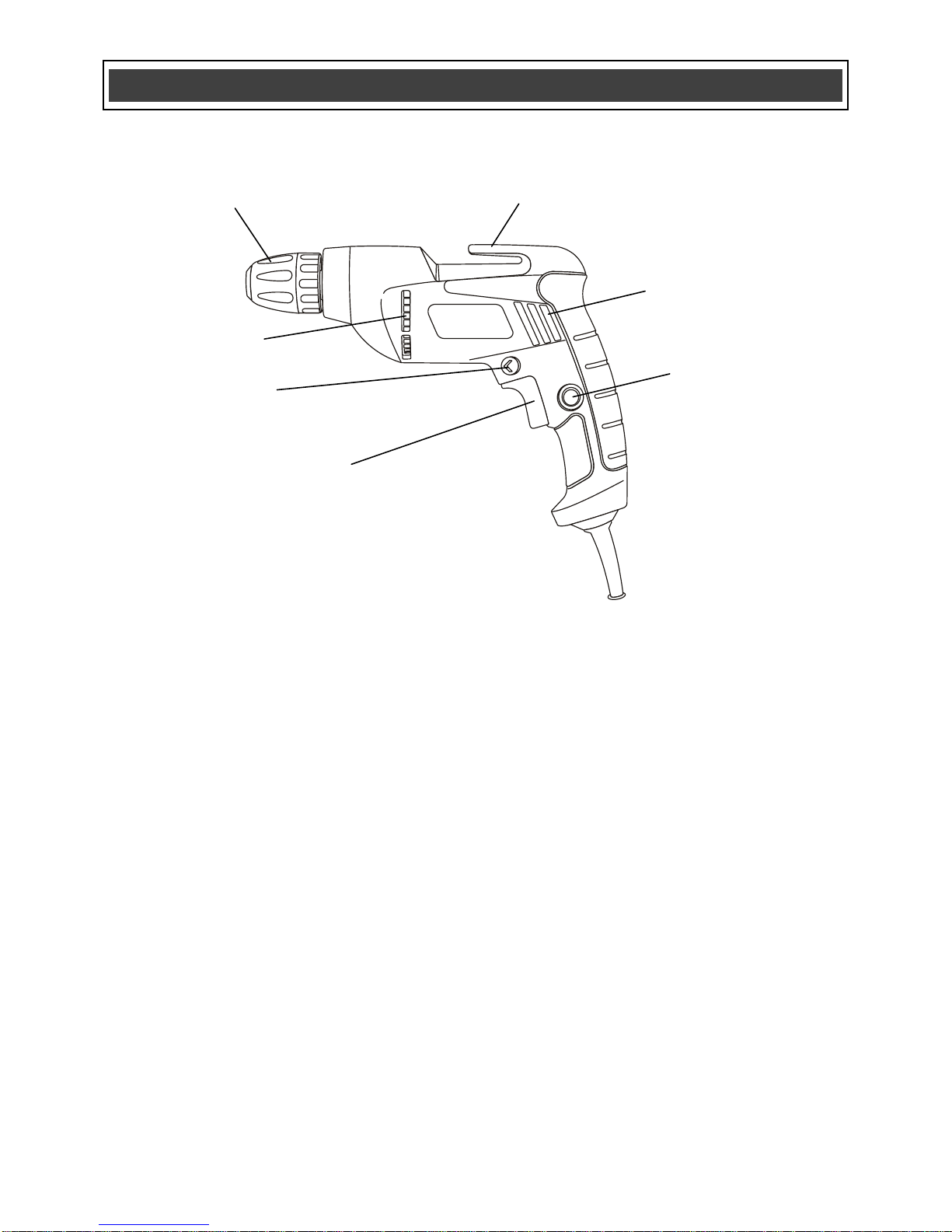

Know your drill …………………………………………………………………………………….
10
Assembly and operating …………………………………………………………………………
11–15

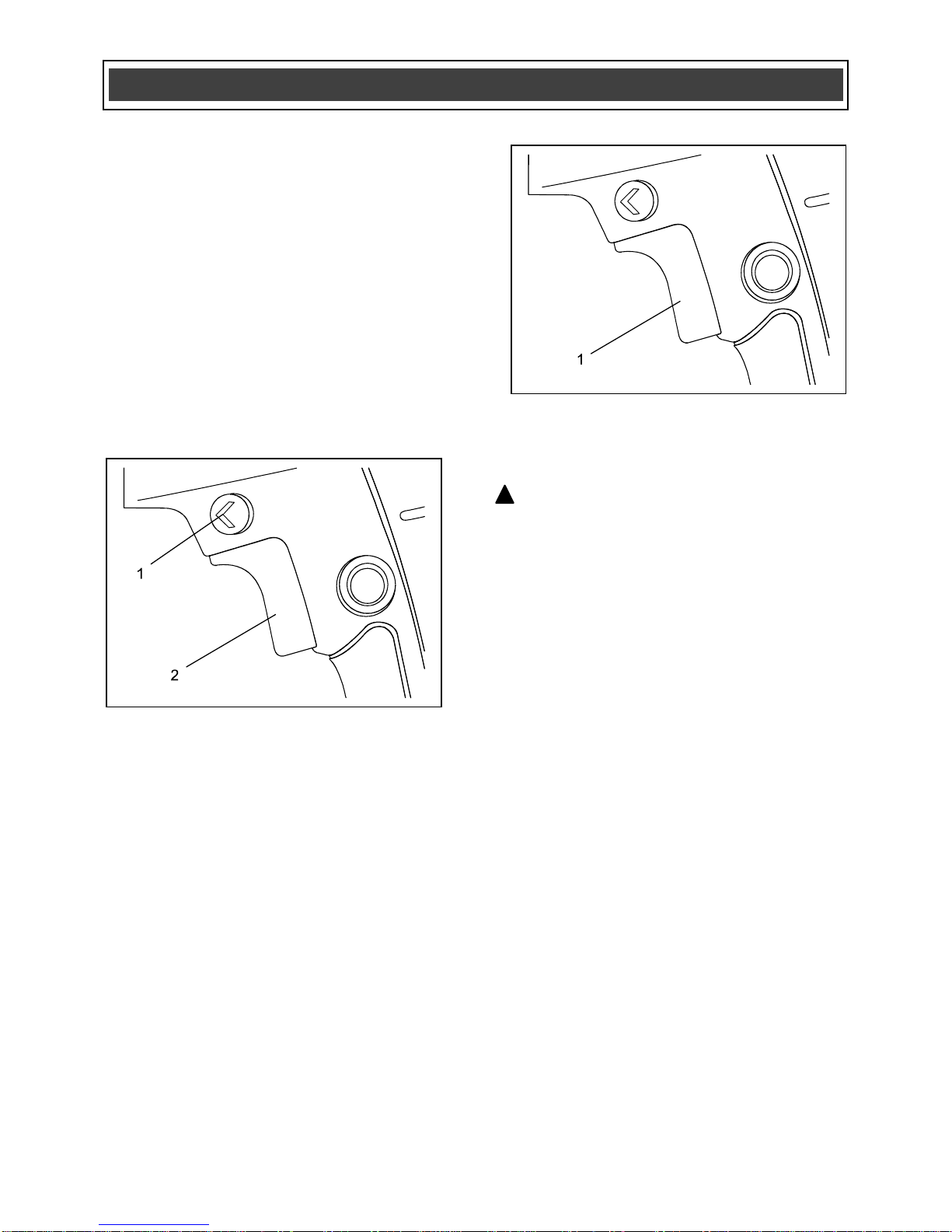

Forward/reverse switch ………………………………………………………………………….
11
Variable-speed switch ……………………………………………………………………………
11
Installing drill bits …………………………………………………………………………………
11–12
Removing bits …………………………………………………………………………………….
12
Trigger switch lock ………………………………………………………………………………..
12
Drilling ……………………………………………………………………………………………..
13
Removing the chuck ……………………………………………………………………………..
14–15
Retightening a loose chuck ……………………………………………………………………...
15
Maintenance ………………………………………………………………………………………
16

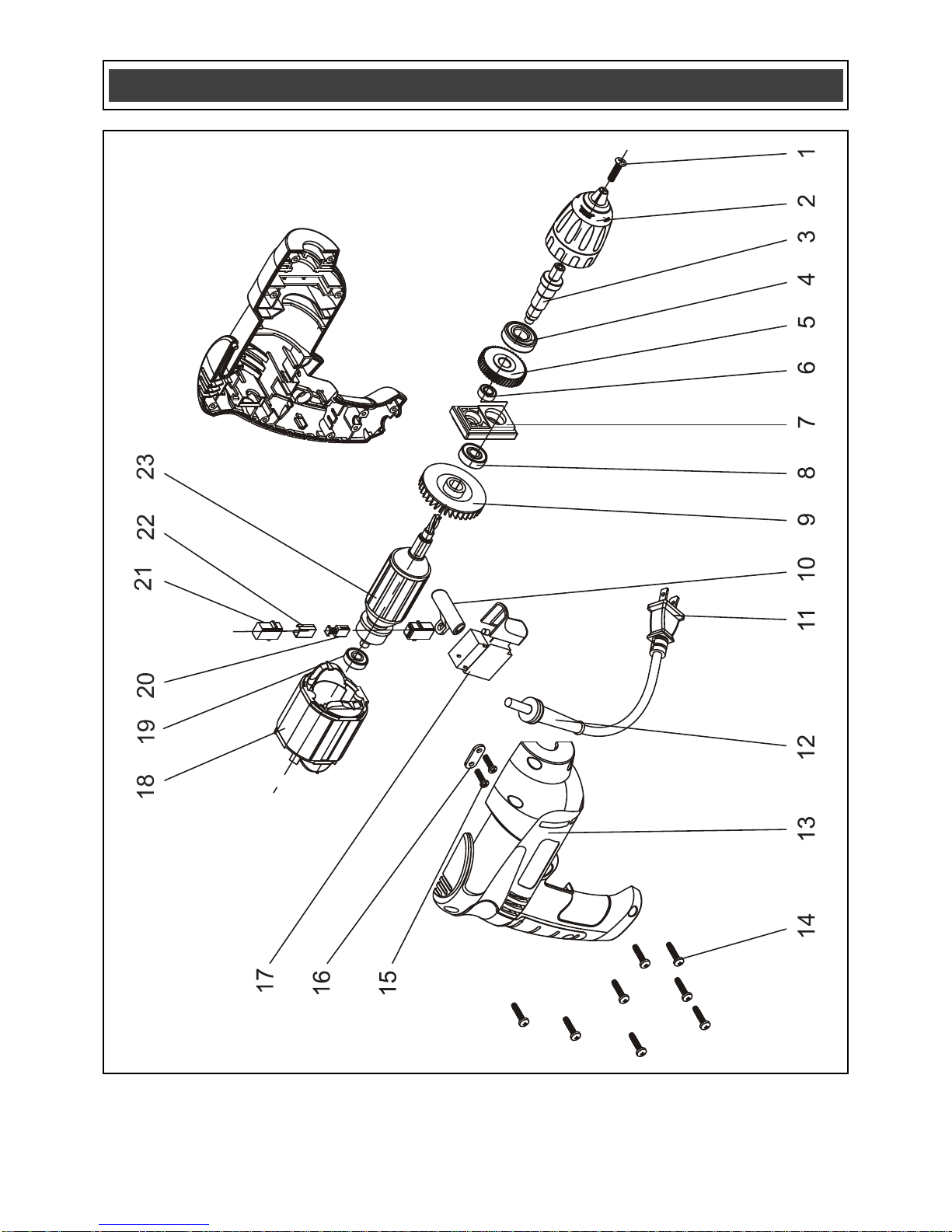

Exploded view …………………………………………………………………………………….
17
Parts list ……………………………………………………………………………………………
18
Warranty ……………………………………………………………………….………………….
19
TABLE OF CONTENTS

3
EYE, EAR & LUNG PROTECTION
SAVE THESE INSTRUCTIONS FOR REFERENCE
This instruction manual includes the following:
General Safety Rules
Specific Safety Rules and Symbols
Functional Description
Assembly
Operation
Maintenance
Accessories
WARNING: Use hearing protection, particularly during extended
periods of operation of the tool, or if the operation is noisy.
!
SAVE THESE INSTRUCTIONS FOR REFERENCE
GENERAL SAFETY WARNINGS
WARNING: Before using this tool or any of its accessories, read this
manual and follow all Safety Rules and Operating Instructions. The important
precautions, safeguards and instructions appearing in this manual are not
meant to cover all possible situations. It must be understood that common
sense and caution are factors which cannot be built into the product.
!
!
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
REQUIREMENTS or ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription
eyeglasses ARE NOT a replacement for proper eye protection.
WARNING: Non-compliant eyewear can cause serious injury if
broken during the operation of a power tool.

4
EYE, EAR & LUNG PROTECTION –cont’d
ELECTRICAL SAFETY
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
WARNING: Dust that is created by power sanding, sawing, grinding,
drilling, and other construction activities may contain chemicals that are
known to cause cancer, birth defects, or other genetic abnormalities. These
chemicals include:
Lead from lead-based paints
Crystalline silica from bricks, cement, and other masonry products
Arsenic and chromium from chemically treated lumber
The level of risk from exposure to these chemicals varies, according to how
often this type of work is performed. In order to reduce exposure to these
chemicals, work in a well-ventilated area, and use approved safety
equipment, such as a dust mask that is specifically designed to filter out
microscopic particles.
!
SAVE THESE INSTRUCTIONS FOR REFERENCE
WARNING: To avoid electrical hazards, fire hazards or damage to
the tool, use proper circuit protection.
This tool is wired at the factory for 120 V AC operation. It must be
connected to a 120 V AC, 15 A circuit that is protected by a time-delayed
fuse or circuit breaker. To avoid shock or fire, replace power cord
immediately if it is worn, cut or damaged in any way.
GENERAL SAFETY WARNINGS

5
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future
reference.
Work area safety
Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric
shock.
Avoid body contact with earthed or
grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an
increased risk of electric shock if your body is
earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
If operating a power tool in a damp location
is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a
ground fault circuit interrupter (GFCI) reduces
the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the
switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energizing power tools that have the
switch on invites accidents.
Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
POWER TOOL SAFETY
SAVE THESE INSTRUCTIONS FOR REFERENCE
!

6
PERSONAL SAFETY –cont’d
Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewelry or long hair can be caught in
moving parts.
If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
Power tool use and care
Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Hold power tools by insulated gripping
surfaces when performing an operation
where cutting tool may contact hidden
wiring or its own cord. Contact with a "live"
wire will make exposed metal parts of the tool
"live" and shock the operator
Service
Have your power tool serviced by a qualified
repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
POWER TOOL SAFETY
SAVE THESE INSTRUCTIONS FOR REFERENCE

7
WARNING: Know your drill. Do not plug
the drill into the power source until you have
read and understand this Instruction Manual.
Learn the tool’s applications and limitations,
as well as the specific potential hazards
related to this tool. Following this rule will
reduce the risk of electric shock, fire, or serious
injury.
Always wear eye protection. Any
power tool can throw foreign
objects into your eyes and cause
permanent eye damage.
ALWAYS wear safety goggles (not glasses) that
comply with ANSI safety standard Z87.1.
Everyday glasses have only impact resistant
lenses. They ARE NOT safety glasses.
WARNING: Glasses or goggles not in
compliance with ANSI Z87.1 could cause
serious injury when they break.
WARNING: Always use a safety shield,
hearing protection and dust mask when
drilling concrete.
Do not drill material too small to be securely
held.
Always keep hands out of the path of the drill
bit. Avoid awkward hand positions where a
sudden slip could cause your hand to move into
the path of the drill bit.
Secure the workpiece. Use clamps or a vise to
hold the workpiece. It is safer than using your
hand and it frees both hands to operate the tool.
Make sure there are no nails or foreign objects
in the part of the workpiece to be drilled.
Always remove the plug from the power source
before installing or removing a bit or accessory
from the chuck.
Do not install or use any drill bit that exceeds
7" (17.5 cm) in length or extends more than
6" (15 cm) beyond the chuck jaws. They can
bend or break suddenly.
Always make sure the chuck is tight and the drill
bit firmly tightened in the chuck before starting
drill.
Before starting the operation, jog the drill switch
to make sure the drill bit does not wobble or
vibrate.
Do not use fly cutters or multiple-part hole
cutters, because they can come apart or
become unbalanced during use.
Make sure the spindle has come to a complete
stop before touching the chuck or attempting to
change the drill bit.
SAVE THESE INSTRUCTIONS FOR REFERENCE
SPECIFIC SAFETY RULES
!
!
!
SAVE THESE INSTRUCTIONS FOR REFERENCE

8
WARNING: Keep the extension cord
clear of the working area. Position the cord so
it will not get caught on the workpiece, tools or
any other obstructions while you are working
with the power tool.
Make sure any extension cord used with this
tool is in good condition. When using an
extension cord, be sure to use one of heavy
enough gauge to carry the current the tool will
draw. An undersized cord will cause a drop in
line voltage resulting in loss of power and
overheating.
The table at right shows the correct size to use
according to cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge.
The smaller the gauge number the heavier the
cord.
Be sure your extension cord is properly wired
and in good condition. Always replace a
damaged extension cord or have it repaired by a
qualified electrician before using it. Protect your
extension cord from sharp objects, excessive
heat and damp or wet areas.
Use a separate electrical circuit for your power
tools. This circuit must not be less than 14
gauge wire and should be protected with either
a 15 A time delayed fuse or circuit breaker.
Before connecting the power tool to the power
source, make sure the switch is in the OFF
position and the power source is the same as
indicated on the nameplate. Running at lower
voltage will damage the motor.
MINIMUM GAUGE (AWG)
EXTENSION CORDS (120 V use only)
Amperage
rating
Total length
More
than
Not
more
than
25'
(7.5 m)
50'
(15 m)
100'
(30 m)
150'
(45 m)
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Applicable
EXTENSION CORD SAFETY
!
SAVE THESE INSTRUCTIONS FOR REFERENCE

9
V
Volts
A
Amperes
Hz
Hertz
W
Watts
kW
Kilowatts
Microfarads
L
Litres
kg
Kilograms
H
Hours
N/cm2
Newtons per square
centimetre
Pa
Pascals
OPM
Oscillations per minute
Min
Minutes
S
Seconds
or a.c.
Alternating current
Three-phase alternating
current
Three-phase alternating
current with neutral
Read all safety warnings
and instructions
Direct current
No load speed
Alternating or direct
current
Class II construction
Splash-proof
construction
Watertight construction
Protective grounding at
grounding terminal,
Class I tools
Revolutions or
reciprocations per
minute
Diameter
Off position
Directional arrow
Warning symbol
Wear your safety
glasses
Wear hearing protection
SYMBOLS
WARNING: Some of the following symbols may appear on the drill. Study these
symbols and learn their meaning. Proper interpretation of these symbols will allow for
more efficient and safer operation of this tool.
!
This symbol designates that this tool is
listed with U.S. requirements by
Underwriters Laboratories.
Conforms to UL Std. 60745-1 and
60745-2-1.
3042597
JD2022U-A
JD2050U

10
Chuck
Variable speed
trigger switch
Forward/reverse
button
Belt clip
Air vents
Trigger switch
lock-on button
Air vents
KNOW YOUR DRILL

11
FORWARD/REVERSE SWITCH
The forward/reverse switch (1) is conveniently
mounted above the trigger switch (2) (Fig. 1). To
make the drill rotate clockwise for drilling, push
the forward/reverse switch to the left. To make
the drill rotate counter-clockwise, push the
forward/reverse switch to the right.
NOTES:
a) Never change the position of the
forward/reverse switch while chuck is turning.
b) The trigger switch will NOT function with the
forward/reverse switch in the middle position.
VARIABLE-SPEED TRIGGER SWITCH
This drill is equipped with a variable-speed
ON/OFF trigger switch.
1. To start drill, gently squeeze the trigger
switch (1) (Fig. 2).
NOTE: The drill will turn at its slowest
speed when the trigger switch is depressed
slightly. The drill will turn at its fastest
speed when the trigger switch is fully
depressed.
2. To stop the drill, release the trigger switch.
NOTE: Drilling at a slow speed for an extended
period of time may cause the drill motor to
overheat. If drill gets hot, stop drilling and allow
it to cool for at least 15 minutes.
INSTALLING DRILL BITS
WARNING: Never hold the chuck body
with one hand and use the drill power to
rotate the drill body to loosen or tighten bits.
Serious injury may result.
This drill is equipped with a keyless chuck.
This chuck is designed to provide easy two-
handed tightening and loosening of the chuck
jaws.
1. To open the keyless drill chuck, grasp and
hold the chuck collar (1) with one hand
(Fig. 3). Rotate the chuck body (2) in a
counter-clockwise direction until the chuck
jaws (3) open wide enough to accept the
bit (4).
2. Insert the bit into the chuck the full length
of the jaws. Raise the front of your drill
slightly to prevent the bit from falling out of
the chuck jaws.
3. Tighten the chuck jaws onto the bit by
turning the chuck body in a clockwise
direction.
ASSEMBLY AND OPERATING
Fig. 1
Fig. 2
!

12
INSTALLING DRILL BITS –cont’d
NOTE: Make sure the bit is properly aligned in
the jaws and NOT at an angle. An improperly
aligned bit could be thrown from the chuck when
the drill is started.
4. Finish tightening the chuck jaws by holding
the chuck collar with one hand and firmly
tightening the chuck body by rotating it in a
clockwise direction.
NOTE: Hand tighten chuck jaws. Do NOT use
pliers.
WARNING: Do not insert drill bit into
chuck and tighten as shown in
Fig. 4. The drill bit MUST be properly inserted
with all three of the chuck jaws holding the bit
centred in the chuck. Failure to properly insert
drill bit could cause the drill bit to be thrown from
the chuck, resulting in possible serious injury or
damage to the chuck.
REMOVING BITS
1. To open the keyless drill chuck, grasp and
hold the chuck collar with one hand. Rotate
the chuck body in a counter-clockwise
direction until the chuck jaws open wide
enough to release the bit.
2. Remove the bit.
TRIGGER SWITCH LOCK
The trigger switch lock-on feature allows the
trigger switch to be locked in the ON position at
full speed when continuous operation for
extended periods of time is required (Fig. 5).
To lock the trigger switch in the ON position, pull
back on the trigger switch to start the drill.
Continue to squeeze the trigger until the drill
reaches its maximum speed. Push the trigger
switch lock button (1) into the drill handle.
Release the trigger switch while holding the
trigger switch lock button into the drill handle.
The drill will continue to run at full speed. To
release the trigger switch lock button, pull trigger
switch back and then release the trigger.
Fig. 3
ASSEMBLY AND OPERATING
Fig. 4
Fig. 5
!

13
DRILLING
When drilling into smooth, hard surfaces such
as metal, use a centre punch to mark the
desired hole location. This will prevent the drill
bit from slipping off centre as the hole is started.
The workpiece to be drilled should be secured in
a vice or with clamps to keep it from turning as
the drill bit rotates
(Fig. 6).
1. Check the drill bit to make sure it is firmly
locked into the drill chuck, and verify that
the forward/reverse switch is in the forward
position.
2. Hold the drill firmly with both hands
whenever possible. Use one hand to grasp
the handle and switch.
NOTE: Make sure the hand placed on the body
of the drill does not cover the air vents. Covering
these air vents will reduce motor cooling, and
possibly lead to overheating the motor.
3. While holding the drill firmly, place the point
of the drill bit at the point to be drilled.
Squeeze the switch trigger to start the drill.
NOTES:
a) Always use a higher drill speed when drilling
small holes.
b) Use a slower drill speed when drilling large
holes.
4. Move the drill bit into the workpiece
applying only enough pressure to keep the
bit cutting. Do not force the drill bit or apply
sideways pressure to elongate the hole.
!
ASSEMBLY AND OPERATING
Have you read "GENERAL SAFETY
WARNINGS”, "POWER TOOL SAFETY
WARNINGS", "SPECIFIC SAFETY
RULES", "EXTENSION CORD SAFETY"
and "SYMBOLS" on pages 3, 4, 5, 6, 7, 8
& 9 of this Instruction Manual? If not,
please do it now before you operate this
drill. Your safety depends on it!
Every time you use the drill you should
verify the following:
1. Chuck is tight.
2. Workpiece is properly secured.
3. Safety glasses are being worn.
Failure to adhere to these safety rules
can greatly increase the chances of
injury.
WARNING
!
Fig. 6

14
WARNING: Be prepared for binding
and bit breakthrough. When these situations
occur, the drill bit has a tendency to grab the
workpiece. This action will kick the drill
opposite to the direction of drill bit rotation,
and could cause loss of control when
breaking through material as you complete
drilling the hole. If you are not prepared, this
loss of control can result in serious injury.
When drilling metals, use a light oil on the drill
bit to keep it from overheating. The oil will
prolong the life of the drill bit and improve the
cutting action. If the bit jams in the workpiece, or
if the drill stalls, release the trigger switch
immediately. Remove the bit from the workpiece
and determine the reason for jamming.
REMOVING THE CHUCK
To remove the chuck:
1. Remove the drill plug from the power
source.
2. Insert a 5/16” (8 mm) or larger hex key (1)
into the chuck (2) and tighten the chuck
jaws securely (Fig. 7). Make sure each of
the chuck jaws (3) is seated on the flat
surfaces of the hex key.
3. Tap the hex key sharply with a mallet (4) in
a clockwise direction. This action will
loosen the screw in the chuck for easy
removal.
4. Open chuck jaws and remove the hex key.
5. Open the chuck jaws as far as possible.
6. Remove the chuck screw using a
#2 screwdriver (Fig. 8).
NOTE: Turn the screw CLOCKWISE to
remove it. This screw has a left-handed
thread.
7. Insert the hex key into the chuck and
tighten jaws of chuck securely
(Fig. 9). Tap the hex key sharply with a
mallet in a COUNTER-CLOCKWISE
direction. This will loosen the chuck on the
spindle. The chuck can now be unscrewed
and removed from the spindle by hand.
ASSEMBLY AND OPERATING
!
Fig. 7
Fig. 8

15
REMOVING THE CHUCK –cont’d
RETIGHTENING A LOOSE CHUCK
After installing a chuck that has previously been
removed, the chuck may become loose on the
spindle and develop a wobble. Also, the chuck
screw may become loose, causing the chuck
jaws to bind and preventing them from closing.
To tighten the chuck, follow these steps:
1. Insert the hex key into the chuck and
tighten the chuck securely.
2. Tap the hex key sharply with a mallet in a
CLOCKWISE direction (Fig. 10). This will
tighten the chuck on the spindle.
3. Open the chuck jaws and remove the hex
key.
4. Tighten the chuck screw using a
#2 screwdriver.
NOTE: Turn screw COUNTER-CLOCKWISE to
tighten it. This screw has a left-handed thread.
Fig. 10
ASSEMBLY AND OPERATING
Fig. 9

16
GENERAL
WARNING: When servicing, use only
identical replacement parts. The use of any
other part may create a hazard or cause
product damage.
DO NOT use solvents when cleaning plastic
parts. Plastics are susceptible to damage from
various types of commercial solvents and may
be damaged by their use. Use a clean cloth to
remove dirt, dust, oil, grease etc.
WARNING: Do not allow brake fluids,
gasoline, petroleum-based products,
penetrating oils, etc. to come into contact
with plastic parts. They contain chemicals
that can damage, weaken or destroy plastic.
DO NOT abuse power tools. Abusive practices
can damage the tool and the workpiece.
WARNING: DO NOT attempt to modify
tools or create accessories. Any such
alteration or modification is misuse and
could result in a hazardous condition
leading to possible serious injury. It will also
void the warranty.
LUBRICATION
All of the bearings in this tool are lubricated with
a sufficient amount of high-grade lubricant for
the life of the unit under normal conditions.
Therefore, no further lubrication is required.
MAINTENENCE
!
!
!

17
EXPLODED VIEW

18
WARNING: When servicing, use only original equipment replacement parts. The use of any other
parts may create a safety hazard or cause damage to the drill.
Any attempt to repair or replace electrical parts on this drill may create a safety hazard unless repairs
are performed by a qualified technician. For more information, call the Toll-free Helpline, at
1-866-349-8665.
Always order by PART NUMBER, not by key number.
Key #
Part #
Part Name
Quantity
1
4020030001
Screw
1
2
1140020004
3/8 Chuck
1
3
2040040017
Shaft
1
4
40100010052
Bearing 6001-RS
1
5
2010020001
Big Gear
1
6
40100110061
Bearing 687-RS
1
7
3140040003
Abutment
1
8
4010010048
Bearing 608-RS
1
9
3150010047
Fan
1
10
3120030023
F/R button
1
11
1190030001
AC cord & plug
1
12
3140010004
Cord Sleeve
1
13
3011010002
Housing
1
14
4030010078
Screw
8
15
4030010074
Screw
2
16
3150020001
Strain Relief
1
17
1040030023
Switch
1
18
1020010020
Stator
1
19
4010010046
Bearing 607RS
1
20
1230010026
Carbon Brush
1
21
3150060005
Brush Holder
1
22
2030070011
Copper Brush Holder
1
23
1010010023
Rotor
1
PARTS LIST
!

19
PERFORMAX®5.5AMP 3/8" DRILL WARRANTY
30-DAY MONEY BACK GUARANTEE:
This PERFORMAX®brand power tool carries our 30-Day Money Back
Guarantee. If you are not completely satisfied with your PERFORMAX®brand
power tool for any reason within thirty (30) days from the date of purchase, return
the tool with your original receipt to any MENARDS®retail store, and we will
provide you a refund –no questions asked.
2-YEAR LIMITED WARRANTY:
This PERFORMAX®brand power tool carries a 2-Year Limited Warranty to the
original purchaser. If, during normal use, this PERFORMAX®power tool breaks
or fails due to a defect in material or workmanship within two (2) years from the
date of original purchase, simply bring this tool with the original sales receipt
back to your nearest MENARDS® retail store. At its discretion, PERFORMAX®
agrees to have the tool or any defective part(s) repaired or replaced with the
same or similar PERFORMAX®product or part free of charge, within the stated
warranty period, when returned by the original purchaser with original sales
receipt. Not withstanding the foregoing, this limited warranty does not cover any
damage that has resulted from abuse or misuse of the Merchandise. This
warranty: (1) excludes expendable parts including but not limited to blades,
brushes, belts, bits, light bulbs, and/or batteries; (2) shall be void if this tool is
used for commercial and/or rental purposes; and (3) does not cover any losses,
injuries to persons/property or costs. This warranty does give you specific legal
rights and you may have other rights, which vary from state to state. Be careful,
tools are dangerous if improperly used or maintained. Seller’s employees are
not qualified to advise you on the use of this Merchandise. Any oral
representation(s) made will not be binding on seller or its employees. The rights
under this limited warranty are to the original purchaser of the Merchandise and
may not be transferred to any subsequent owner. This limited warranty is in lieu
of all warranties, expressed or implied including warranties or merchantability
and fitness for a particular purpose. Seller shall not be liable for any special,
incidental, or consequential damages. The sole exclusive remedy against the
seller will be for the replacement of any defects as provided herein, as long as
the seller is willing or able to replace this product or is willing to refund the
purchase price as provided above. For insurance purposes, seller is not allowed
to demonstrate any of these power tools for you.
For questions / comments, technical assistance or repair parts –
Please Call Toll Free at: 1-866-349-8665 (M-F 8am –6pm)
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
Rev 1.1 09/10/2013
Distributed by: Menard, Inc., Eau Claire, WI 54703
