1
ASSEMBLY, CARE & USE INSTRUCTIONS
CS-23IRM-MAH
CS-23IRM-WHT
Questions, problems, missing parts?
Before returning to your retailer,
call our customers service department at
1-855-571-1044 8 a.m. - 8 p.m., EST, Monday-Friday.
Please Keep This Manual For Future Reference

2
PACKAGE CONTENTS
HARDWARE CONTENTS (not shown actual size)
A
Remote Control
Qty. 1
Touch-up Pen
Qty. 1
AA BB

3

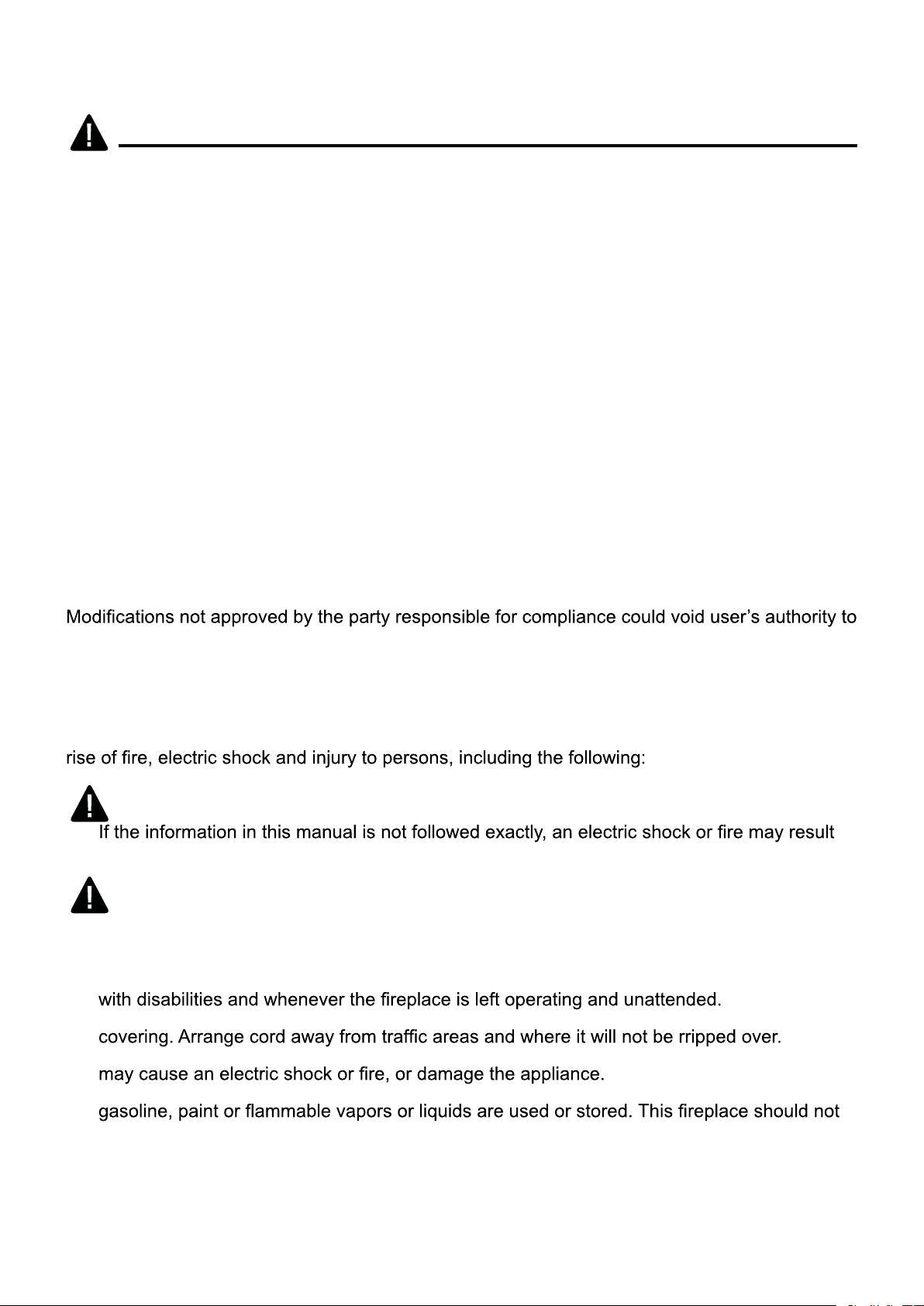

SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
This equipment has been tested and found to comply with the limits for Class B digital devices,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. The equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on. The user is encouraged to try and correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the
DANGER
•
causing property damage, personal injury or loss of life.
WARNING
•This appliance is hot when in use. To avoid burns, DO NOTlet bare skin touch hot surfaces.
Keep combustible material, such as furniture, pillows, bedding, papers, clothes and curtains,
at least 3 feet from this appliance.
•Extreme caution is necessary when any heater is used by or near children or individuals
•DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar
•Do NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this
•This appliance has hot and arcing or sparking parts inside. DO NOT use it in areas where
be used as a drying rack for clothing. Christmas stockings or decorations should not be
hung in the area of it.

4
SAFETY INFORMATION
•Use this appliance only as described in the manual. Any other use is NOT recommended by the
CAUTION
•If possible, ALWAYS unplug this appliance when not in use.
•DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions.
DO NOT operate any heater if it has been dropped or damaged in any manner. Disconnect
power at service panel and have heater inspected by a reputable electrician before reusing.
•
•
•DO NOT use outdoors.
•This heater is not intended for use in bathrooms, laundry areas and similar indoor locations.
NEVER place heater where it may fall into a bathtub or other water container.
•To disconnect this appliance, turn controls to the off position, then remove plug from outlet.
•ONLY connect to properly grounded outlets.
•This appliance, when installed, must be electrically grounded in accordance with local codes,
with the current CSA C22.1 Canadian Electrical Code or follow the National Electrical Code,
ANSI/NFPA N0.70.
•DO NOT block air intakes or exhaust in any manner. DO NOT use
on soft surfaces, like a bed, where opening may become blocked.
•The heaters MUST NOT be located immediately below a socket-outlet.
•ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an extension
cord or re-loadable power tap (outlet/power strip).
•There is a thermostat limiter inside the item. If the inner temperature overheats or abnormal
heating occurs, the thermostat protective device will cut off power supply to prevent damage
•DO NOT slide insert on top of wood to avoid scratching wood surface.
•DO NOT place any objects on top of insert and top air intake vents as this will cause unit to
Electrical Connection
SPECIFICATIONS
Voltage Amps Watts (max.)
120 VAC, 60 Hz 12.5 Amps 1500 Watts
•A 15-amp, 120-volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the
circuit breaker to trip or the fuse to blow when the heater is in operation. The unit comes
DO NOT exceed the
current rating of the current tap. ALWAYS plug heaters directly into a wall outlet/receptacle.
NEVER use with an extension cord or relocatable power tap (outlet/power strip).

5
SAFETY INFORMATION

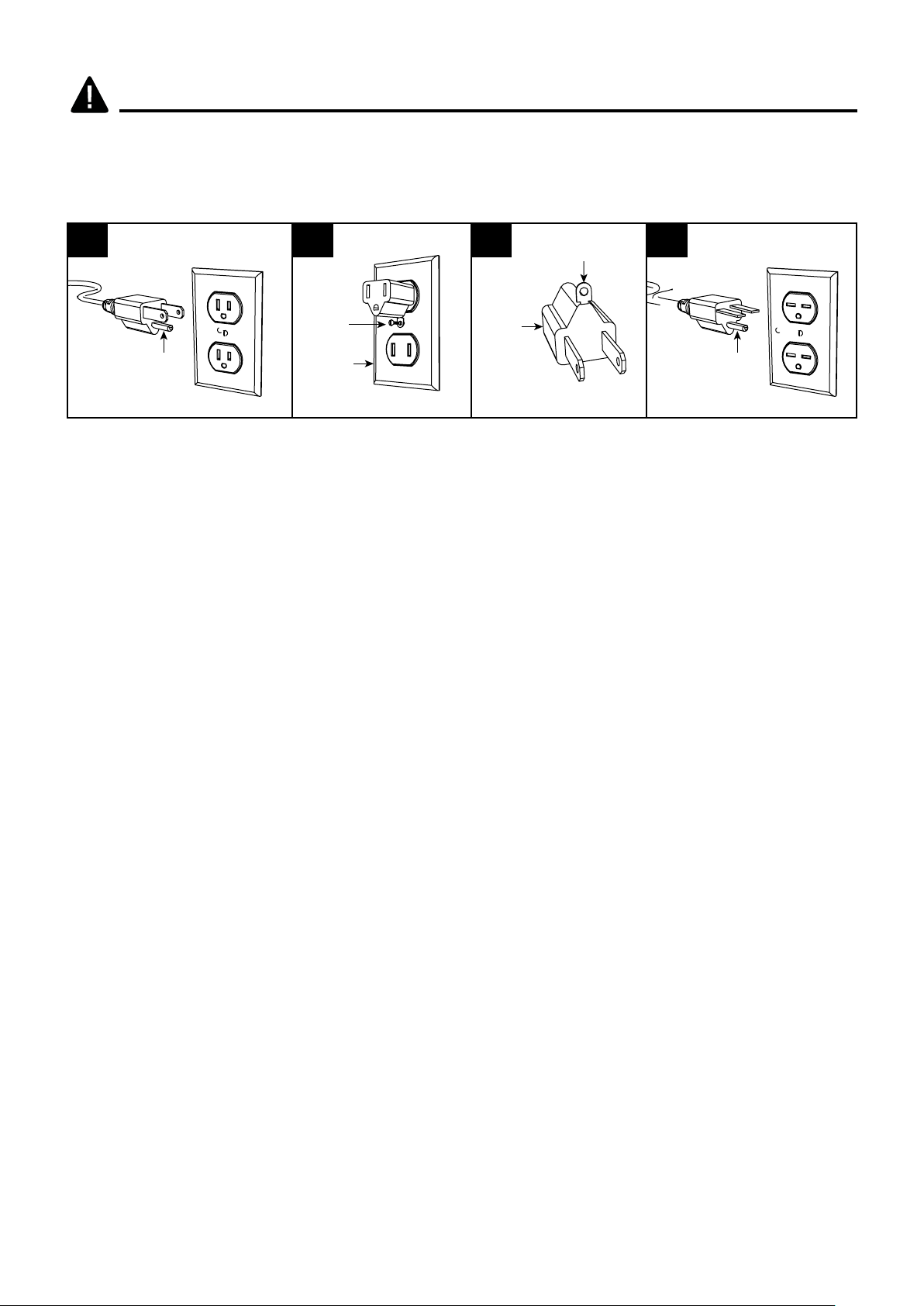

•This heater is for use on 120 volts. The cord has a plug as shown below. See illustration for
grounding instruction. An adapter as shown at C is available for connecting three-blade
grounding type plugs to two-slot receptacles. The green grounding lug extending from the
adapter must be connected to a permanent ground such as a properly grounded outlet box.
The adapter should not be used if a three-slot grounded receptacle is available.
SAVE THESE INSTRUCTIONS
A B C D
Grounding Pin Grounding Pin
Grounding Means
Metal
Screw
Cover of
Grounding
Box
Adapter

6

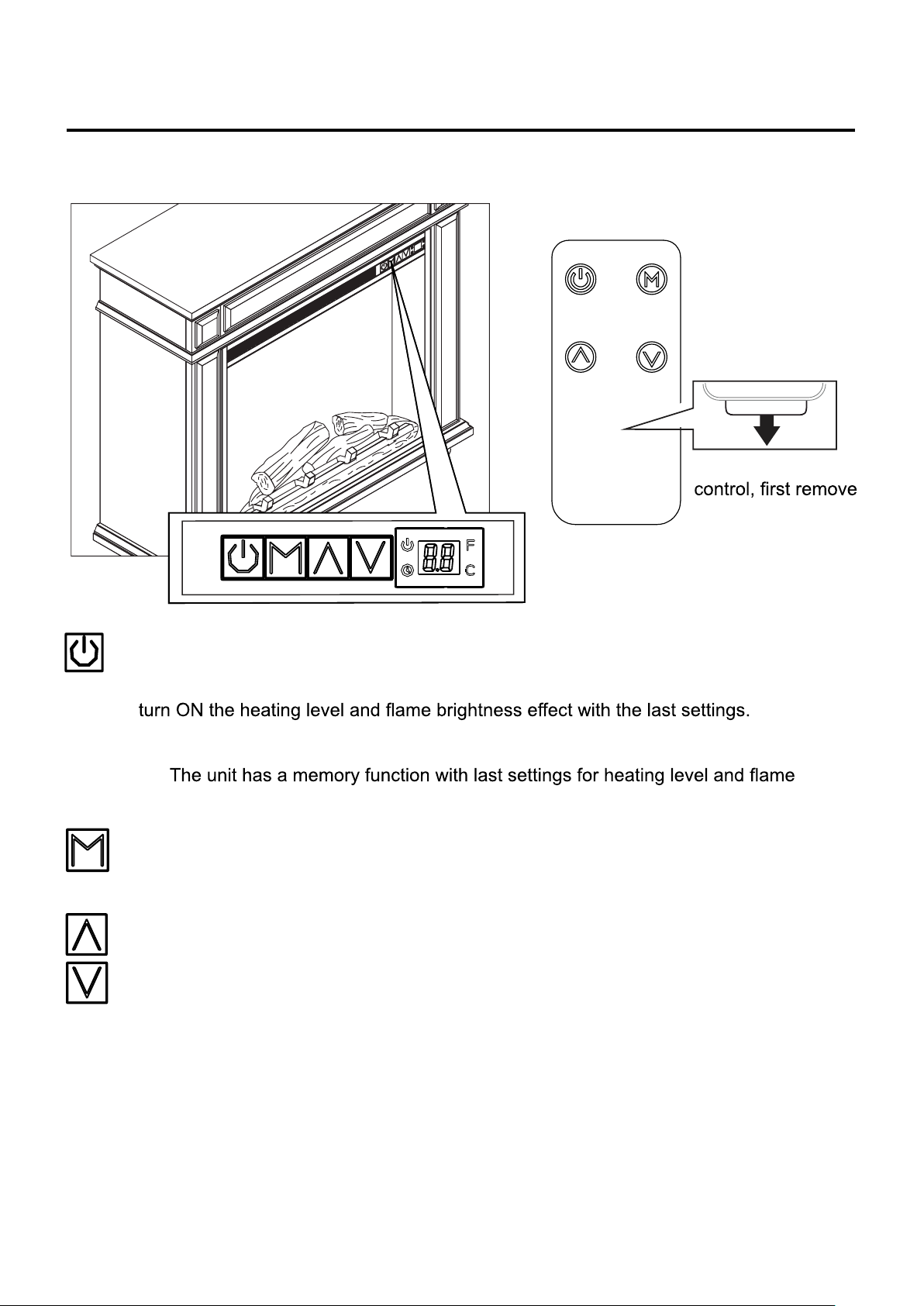

OPERATING INSTRUCTIONS
Power Button
•Pressing the power button will turn ON or OFF the unit.
•When the unit is in ON mode, the power icon indicator light will be shown green. And
•When the unit is in OFF mode, the power icon indicator light will be shown red.
Note:
brightness effect, unless the main power to the unit has been interrupted.
Mode Button
•Press the mode button to cycle through the different functions. Each time the mode
button is pressed, the mode will enter the next function - Temperature, Timer or Flame
Brightness.
UP Arrow Button
•Use up arrow button to increase the setting of the selected function.
Down Arrow Button
•Use down arrow button to decrease the setting of the selected function.
To use the remote
the plastic tab by
gently pullling it out
of remote control
(AA).
Control Panel Remote Control (AA)

7
OPERATING INSTRUCTIONS
Temperature Mode
• The temperature mode controls the heater’s thermostat setting.
• Use Up arrow button or Down arrow button to scroll through the pre-set temperature settings:
- Fahrenheit:65,70,75,80,85,90,HI,OF
- Celsius: 18,21,24,27,29,32,HI,OF
• Hold down the mode button for 3 seconds to toggle between Fahrenheit and Celsius.
A small “F” or “C” will display next to the temperature.
Note: This option is only available if using the control panel.
• When the ambient temperature is higher than the set temperature, heater will turn off
automatically.
Timer Mode
•. The timer mode shoud be used to set the countdown for the unit’s main power.
•. Use Up arrow button or Down arrow button to scroll through the timer settings,
0.0, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0.
• When the timer reaches zero, the heater and power will turn off automatically.
Flame Brightness Mode
•.
•
F0 (lowest), F1, F2, F3, F4, F5 (brightest).
Additional Function
• Heater Lock: When the unit is ON, press and hold the POWER button for 10 seconds to
will lock; all other buttons/functions will work as normal. To unlock the heater, simply press
and hold the POWER button for another 10 seconds.
Note: This option is only available if using the control panel.

8
• Make sure the unit is turned OFF and unplugged whenever you are cleaning the heater or
•
•
• Tips for using touch-up pen (BB): For scratches, stroke in direction of scratch. For worn areas,
stroke in the direction of wood grain. Rub excess colorant promptly with a soft cloth.
bearing life and require no further lubrication. However, periodic cleaning/vacuuming of the
fan/heater is recommended.
Replacing the Remote Control Battery
When the remote control (AA) stops operating or its range seems reduced, it is time to replace the
battery. Note: The battery should be removed if the product is to be left unused for a long time.
Caution: Non-rechargeable battery is not to be
recharged. Exhausted battery is to
be removed from the product.
1. The battery compartment is located on the back
end of the remote control (AA).
2. Press the small tab inward as you slide the
battery door open and remove the old battery.
3. Insert a new CR2025 lithium battery
(not included), ensuring the polarities of the
battery match the inside of the battery
compartment.
4. Re-insert the battery door.
Disposal of Used Battery
A battery may contain hazardous substances that could be endangering to environment and
human health.
• This symbol marked on the battery and/or packaging indicates that used
battery shall not be treated as municipal waste. Instead it shall be left at
the appropriate collection point for recycling.
• By ensuring the used battery is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health. The recycling of materials will help to conserve natural resources.
For more information about collection and recycling of used batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased this
item.
CARE AND MAINTENANCE
BATTERY
AA

9
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Error E1 displayed
on control panel.
The overheat sensor
has been engaged.
Unplug unit, wait 5-10 minutes, then the sensor will
reset itself. Plug the unit back in and turn on the
heater. If the problem persists, call customer service.
Note: The other functions will work normally. Until the
problem is solved, the error will only appear/sound
when the heater button is pressed.
Error E2 displayed
on control panel.
The thermostat
sensor is broken
or not working
correctly.
Unplug unit, wait 5-10 minutes, then the sensor will
reset itself. Plug the unit back in and turn on the
heater. If the problem persists, call customer service.
Note: The otherfunctions will work normally. Until the
problem is solved, the error will only appear/sound
when the heater button is pressed.
Error E3 displayed
on control panel.
The Heater is locked To unlock the heater, simply press and hold the
POWER button for 10 seconds.
No power; logs do
not glow.
The unit does not
have power.
Check the power cord is securely plugged into a
standard 120V outlet. Then check to make sure the
unit is powered on.
logs are glowing. powered off. achieved.
Heater and blower
do not power on but
rest of functions are
working.
The Heater is locked To unlock the heater, simply press and hold the
POWER button for 10 seconds.
Power cord gets
warm to the touch.
Normal operation. This is normal for a heater appliance as it requires
more current to operate. Check the connections of
the appliance cord and the outlet. Make sure the
plug and outlet frequently to determine if it is HOT;
if so, discontinue use of the appliance and consult
overheating outlet(s).
Remote control does
not work.
Weak or failing
battery.
Replace with a new battery. (Refer to page 8.)
Remote control
signal is weak and
only works
sometimes.
Pressing the buttons
too quickly.
Press the buttons slowly and steadily to ensure the
transmitter recognizes the request.
Using the remote
control too far away
or at an off angle.
Move closer to the insert; the remote control will
only work within a distance of 20 feet and 45
insert.
Fan motor continues
to blow after unit is
powered off.
Normal operation. This is a standard feature; the blower runs for an
additional minute to cool off heater tubes.

10
WARRANTY
This item is warrantied by the manufacturer to be free of material and manufacturing defects for
the time period of one year from the purchase date. This is subject to the following limitations
and conditions:
This mantel must be installed and operated in accordance with the installation instructions that
were provided with the product. Unauthorized repairs or alterations, accidents, willful abuse and
misuse of the product will nullify this warranty.
This warranty is non-transferable and is offered to the original owner in so long as the product
was purchased from a licensed and authorized supplier and re-seller of the product.
The warranty is limited to the repair or replacement of part(s) that have been determined to be
defective in material or workmanship. This is provided that the part(s) have been subjected to
“normal” conditions of use once the defect is agreed upon through the manufacturers inspection
process.
Any costs or related expenses that have arised from the transportation, construction, labor or
otherwise of same that have arisen from repairs, replacement, defective part(s) or otherwise the
same is not covered by this warranty, nor shall the manufacturer assume the cost.
The manufacturer may, at its discretion, fully discharge all obligations with respect to this
warranty by refunding the wholesale price of defective part(s).
The owner/user assumes all other risks, if any, including the risk of any direct, indirect or
consequential loss or damage arising out of use, or inability to use the product, except as
provided by law. All other warranties -- expressed or implied -- with respect to the product, its
components and accessories, or any obligations/liabilities on the part of the manufacturer are
hereby expressly excluded.
The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any
other liabilities with respect to the sale of the product.
The warranties as outlined within this document do not apply to non-accessories used in
conjunction with the installation of this product.
from state to state.
This warranty is void if:
2. Any unauthorized alterations, willful abuse, accident, or misuse of the product.
3. You do not have the original receipt.

11

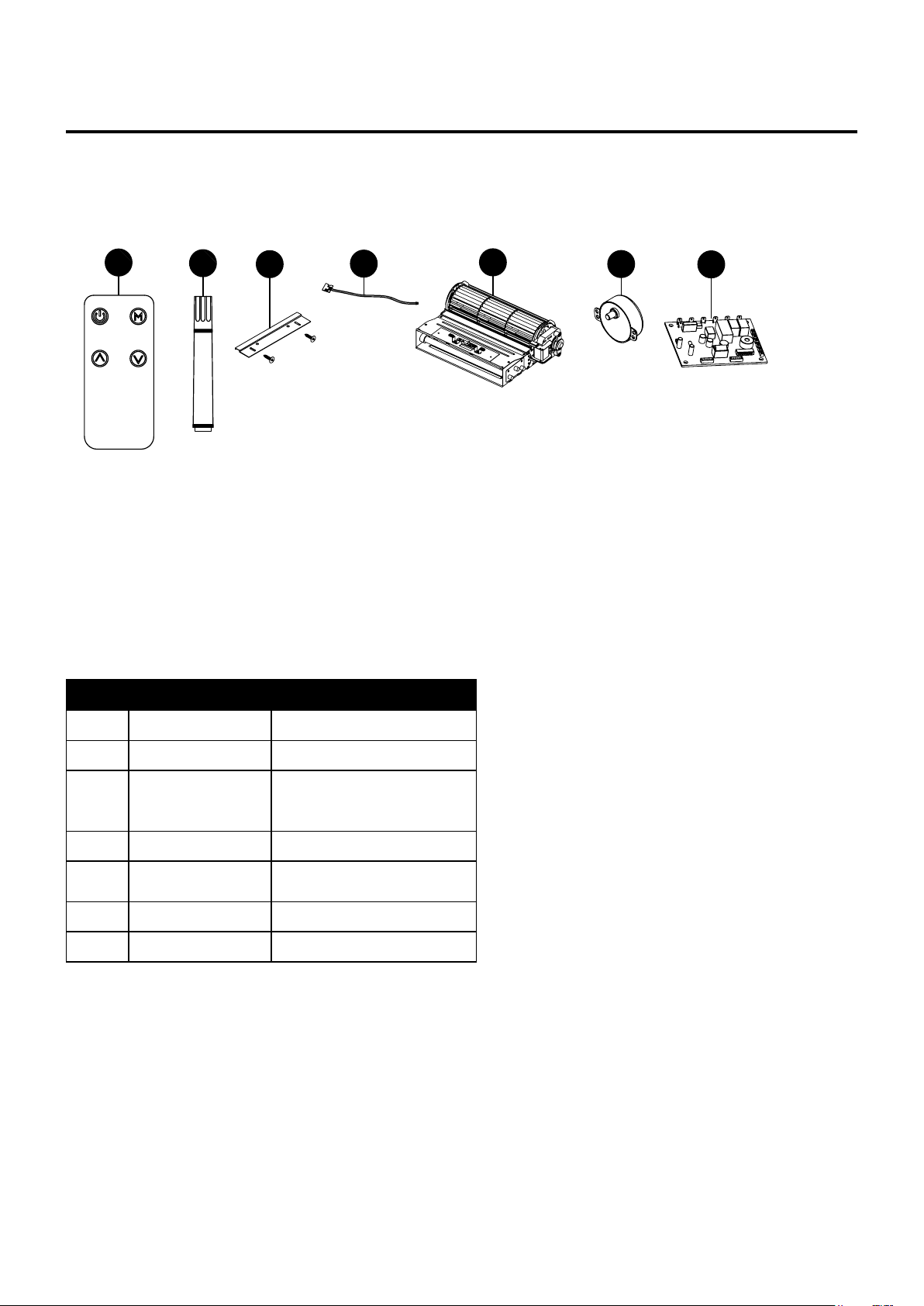

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-855-571-1044, 8 a.m. - 8 p.m.,
EST, Monday - Friday.
PART DESCRIPTION PART#
AA Remote Control SP2320PB-001
BB Touch-up Pen 1033FM-23-001
CC Insert Mounting Bracket (with
screws) 1033FM-23-002
DD Thermostat SP2320PB-002
EE Heater/Blower
Assembly SP2320PB-003
FF Spinner Motor SP2320PB-004
GG PCB Board SP2320PB-005
CC GG
DD EE FF
AA BB EE
