PFAFF silberblau 8311 User manual

8311
INSTRUCTION MANUAL
296-12-19 445/002
Instruction Manual engl. 10.12020
This instruction manual applies to machines
from the serial number 2 827 749 and software
version 0470/009 onwards.

Reprinting, reproduction and/or translation of PFAFF instruction manuals
(including parts thereof) is only permitted with our prior agreement and
citation of the source.
PFAFF Industriesysteme
und Maschinen GmbH
Hans-Geiger-Str. 12 - IG Nord
D-67661 Kaiserslautern
This instruction manual applies for all models and subclasses listed in chapter 3
Technical Data.

Contents ..................................................................................Page
Contents
3
1 Safety .................................................................................................................................... 5
1.01 Directives ............................................................................................................................... 5
1.02 General notes on safety ......................................................................................................... 5
1.03 Safety symbols ...................................................................................................................... 6
1.04 Important notes for the user .................................................................................................. 6
1.05 Operating and technical staff ................................................................................................. 7
1.05.01 Operating staff ....................................................................................................................... 7
1.05.02 Technical staff ........................................................................................................................ 7
1.06 Danger ................................................................................................................................... 8
2 Proper use.............................................................................................................................9
2.01 General .................................................................................................................................. 9
2.02 Machine versions ................................................................................................................... 9
2.02.01 8311 Standard ........................................................................................................................ 9
2.02.02 8311 Dual wheel .................................................................................................................. 10
3 Specifications ......................................................................................................................11
4 Disposal .............................................................................................................................. 12
4.01 Environmental protection ..................................................................................................... 12
5 Transportation, packing and storage ................................................................................ 13
5.01 Transportation to customer‘s premises ............................................................................... 13
5.02 Transportation inside the customer‘s premises ................................................................... 13
5.03 Disposal of packing materials .............................................................................................. 13
5.04 Storage ................................................................................................................................ 13
6 Explanation of symbols ..................................................................................................... 14
7 Controls .............................................................................................................................. 15
7.01 Summary of control elements ............................................................................................. 15
7.02 Main switch ......................................................................................................................... 16
7.03 Pedal .................................................................................................................................... 16
7.04 Control panel ........................................................................................................................ 17
7.04.01 Input functions ..................................................................................................................... 18
7.04.02 Key reactions ....................................................................................................................... 18
7.04.03 Display functions .................................................................................................................. 18
7.05 SD card reader and writer .................................................................................................... 19
8 Installation and commissioning ....................................................................................... 20
8.01 Installation ............................................................................................................................ 20
8.01.01 Adjusting the table-top height .............................................................................................. 20
8.02 Commissioning .................................................................................................................... 21
8.03 Switching the machine on/off ..............................................................................................22
9 Preparation ......................................................................................................................... 23
9.01 Initialization of the lifting drive (roller init) ............................................................................. 23
9.02 Selecting operating modes .................................................................................................. 24
10 Sealing ................................................................................................................................ 25
10.01 Sealing principle .................................................................................................................. 25
10.02 Description of the function keys .......................................................................................... 26
10.02.01 Motorised puller on/off ........................................................................................................ 27
10.02.02 Ultrasonic power/amplitude ................................................................................................. 28

Contents
Contents ..................................................................................Page
4
10.02.03 Welding force ....................................................................................................................... 29
10.02.04 Roller gap ............................................................................................................................ 30
10.02.05 Feed roller speed ............................................................................................................... 31
10.02.06 Cutting force (8311 – DUAL Cut&Seal model) .................................................................. 33
10.02.07 Opening / closing the feed rollers ........................................................................................ 35
10.02.08 Starting the sealing process manually ................................................................................. 35
10.02.09 Interrupting the sealing process .......................................................................................... 35
10.02.10 Manually turning the rollers backwards ............................................................................... 35
10.02.11 Input ..................................................................................................................................... 35
10.03 Basting ................................................................................................................................. 36
10.04 Selecting sealing parameters and program numbers .......................................................... 37
10.04.01 Selecting sealing parameters P1..P50 .................................................................................. 37
10.05 Manual sealing ..................................................................................................................... 39
10.05.01 Process in manual sealing production mode ....................................................................... 39
10.06 Dynamic sealing ................................................................................................................... 41
10.06.01 Process in dynamic sealing production mode ...................................................................... 41
10.07 Programmed sealing ............................................................................................................ 45
10.07.01 Pogram ................................................................................................................................. 45
10.08 Programmed dynamic sealing .............................................................................................. 51
10.09 Programmed sealing with sequence program ..................................................................... 51
11 Input .................................................................................................................................... 52
11.01 Overview of the functions in the input menu ...................................................................... 52
12 Care and Maintenance ....................................................................................................... 82
12.01 Maintenance intervals .......................................................................................................... 82
12.02 Cleaning the feed rollers ...................................................................................................... 82
12.03 Checking/adjusting the air pressure ..................................................................................... 83
12.04 Cleaning the air filter of the air-filter/lubricator ..................................................................... 83
13 Adjustment ......................................................................................................................... 84
13.01 Notes on adjustment ........................................................................................................... 84
13.02 Tools, gauges and other accessories .................................................................................. 84
13.03 Exchanging the transport rollers ......................................................................................... 84
13.04 Explanation of error messages ............................................................................................ 86
13.04.01 General errors ...................................................................................................................... 86
13.04.02 Error groups ......................................................................................................................... 86
13.04.03 Error numbers ...................................................................................................................... 87
13.04.04 Other messages (explanatory texts) .................................................................................... 88
13.05 List of outputs and inputs .................................................................................................... 89
13.05.01 Digital outputs ...................................................................................................................... 89
13.05.02 Digital input .......................................................................................................................... 89
13.05.03 Motors ................................................................................................................................. 89
13.05.04 Analog outputs ..................................................................................................................... 90
13.05.05 Analog inputs ....................................................................................................................... 90
13.05.06 Communikation .................................................................................................................... 91
13.05.07 Data storage ........................................................................................................................ 91
13.05.08 Others .................................................................................................................................. 91
13.06 Software update .................................................................................................................. 92
13.06.01 Software update of the touch panel ..................................................................................... 94
13.07 Resetting to factory setting .................................................................................................. 96
14 Circuit Diagrams .................................................................................................................. 97
14.01 Circuit Diagrams .................................................................................................................. 97

Safety
5
1 Safety
1.01 Directives
The machine was built in compliance with the European regulations specified in the
declaration of conformity.
As a supplement to this instruction manual, please also observe the generally applicable,
legal and other regulations and legislation – also in the country of use – and the valid
environmental protection regulations! Always comply with the locally applicable regulations
of the professional associations and other supervisory authorities!
1.02 General safety instructions
OThe machine may only be operated after you have become acquainted with the
associated instruction manual and only by operating personnel who have received
appropriate training!
OAlways follow the hazard and safety instructions attached to the machine!
OThe machine may only be operated for its intended purpose and only with the associated
safety covers, while adhering to all the relevant safety requirements.
OIsolate the machine by pulling out the mains plug from the power supply when replacing
the feed rollers or hot air nozzle, when leaving the work station and for maintenance and
adjustment work!
OThe daily maintenance work may only be carried out by suitably qualified personnel!
OThe machine must be isolated from the power supply and pneumatic supplies before
any servicing work or repairs are performed! The only permitted exceptions are for
adjustment work and functional tests by appropriately trained technical staff!
ORepairs and special maintenance work may only be carried out by technical staff or
people with appropriate training!
OWork on electrical equipment may only be carried out by qualified technical staff!
OWork on parts and equipment under voltage is not permitted!
Exceptions are regulated by the EN 50110 standards.
OModifications and changes to the machine may only be made in compliance with all of
the relevant safety requirements!
OOnly the replacement parts approved by us for usage may be used for repairs! We warn
you expressly that spare parts and accessories that are not supplied by us are also not
tested and approved by us. Fitting and/or using these products may therefore have
negative effects on features which depend on the machine design. We are not liable for
any damage caused by the use of non-Pfaff parts.

Safety
6

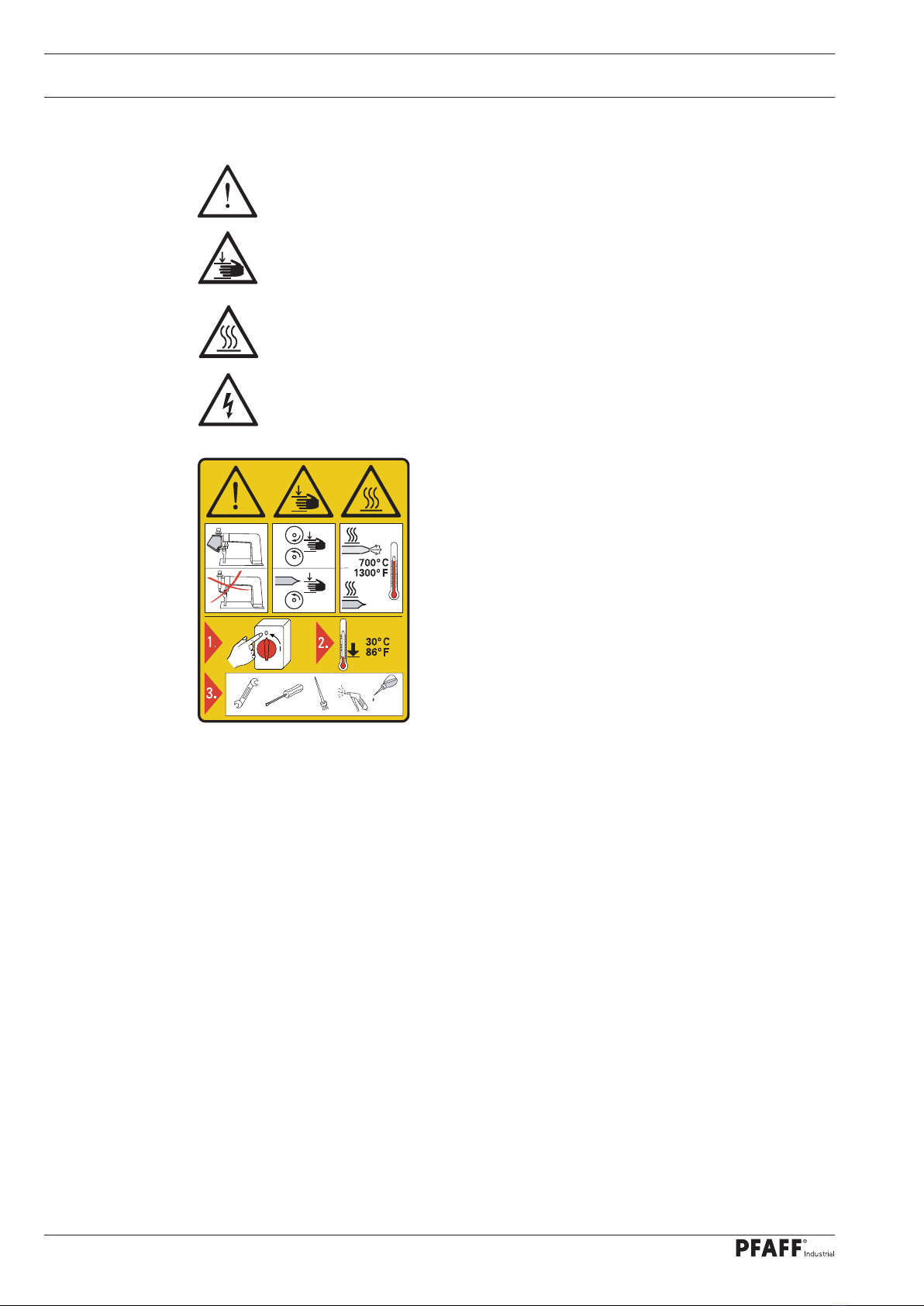

1.03 Safety symbols
Hazard point!
Special points of attention
Danger of hands being crushed!
Danger of burns from hot surface!
Fatal danger from electric voltage.
Caution!
Do not operate without finger guard and safety covers!
Turn off the main switch and let the machine cool
down before any set-up, maintenance and cleaning
work!
1.04 Special points of attention for the owner-operator
OThis instruction manual is a part of the machine and must be made available to the
operating personnel at all times.
OThe instruction manual must have been read before the initial start-up.
OThe operating personnel and technical staff must be instructed about the machine's
safety covers and about safe working methods.
OThe owner-operator may only operate the machine in a flawless condition.
OThe owner-operator must ensure that no safety covers are removed or disabled.
OThe owner-operator must ensure that only authorised persons work on the machine.
OThe owner-operator must make sure there is no high-frequency sealing equipment being
operated in direct proximity to the machine that exceeds the EMC limit values for the
machine according to EN 60204-31.
Additional information can be requested from the responsible sales centre.

Safety
7
1.05 Operating personnel and technical staff
1.05.01 Operating personnel
Operating personnel are persons responsible for setting up, operating and cleaning the
machine and for clearing faults in the sealing section.
The operating personnel are obligated to comply with the following points:
OThe safety instructions provided in the instruction manual must be followed for all work!
OAny work method jeopardising machine safety must be refrained from!
OTight-fitting clothing must be worn. The wearing of jewellery such as chains and rings is
prohibited!
OCare must be taken to ensure that no unauthorised persons are located in the machine's
hazard zone!
OAny changes occurring on the machine which impair its safety must be reported to the
owner-operator immediately!
1.05.02 Technical staff
Technical staff are persons with technical training in electricity/electronics and mechanics.
They are responsible for lubricating, servicing, repairing and adjusting the machine.
The technical staff are obligated to comply with the following points:
OThe safety instructions provided in the instruction manual must be followed for all work!
OTurn off the main switch and secure it against reactivation before starting any adjustment
and repair work!
ONever work on live parts and equipment! Exceptions are regulated by the EN 50110
standards.
OReattach the safety covers following repair and maintenance work!

Safety
8
1.06 Danger warnings
A work area of 1 m must be kept free in front of and behind the machine to
ensure unobstructed access at all times.
Fig. 1 - 01
1
23
Do not operate the machine without finger guard 1!
Danger of crushing if the fingers are drawn in!
During operation do not place your hands in the area of feed roller 2 and
sonotrode 3! Danger of fingers being drawn in and crushed!
During operation do not touch sonotrode 3!
Danger of burns from the heat-generating surface!

Proper use
9
2 Proper use
2.01 General
The PFAFF 8311 is available in three versions. The individual versions are described below,
see Chapter 2.02 Machine versions. All the machine versions are used for continuous sea-
ling of thin, thermoplastic materials, such as e.g. fleeces, felts, woven and knitted fabrics
using ultrasonics.
Any use of these machines which is not approved by the manufacturer shall be
considered as improper use! The manufacturer shall not be liable for any damage
arising out of improper use! Proper use shall also be considered to include com-
pliance with the operation, adjustment, service and repair measures specified by
the manufacturer!

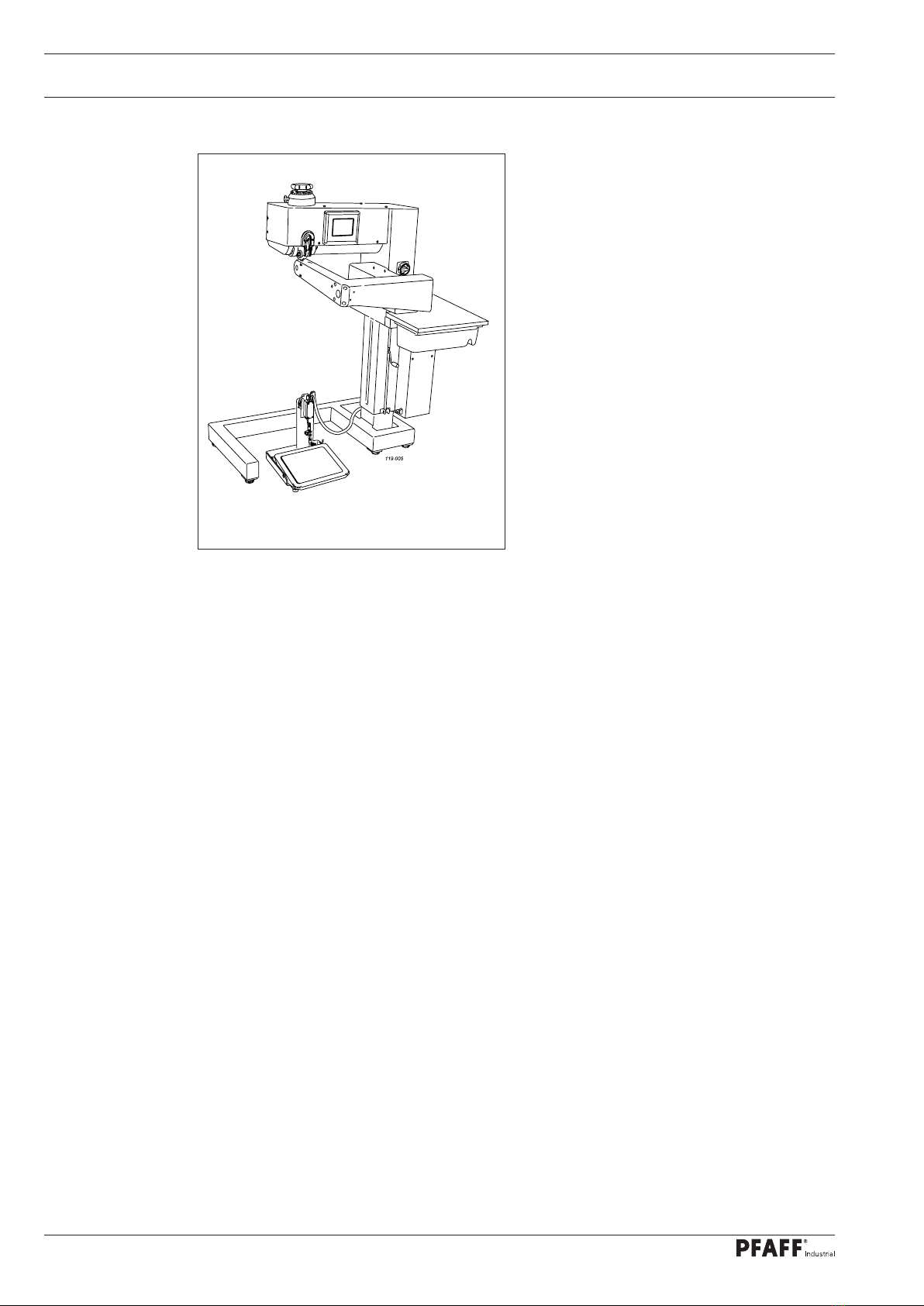

Fig. 2 - 01
2.02 Machine versions
2.02.01 8311 Standard
901-8311-001/001
Welding application
65 mm anvil wheel, 104 mm Sonotrode (10
mm wide), titanium knurling.
901-8311-005/001
Welding or Cut&Seal application
65 mm anvil wheel, 113 mm Sonotrode (10
mm wide), titanium knurling.

Proper use
10
Fig. 2 - 02
2.02.02 8311 Dual wheel
901-8311-105/001
Welding and/or Cut&Seal application
75 mm anvil wheel, 113 mm Sonotrode
(10 mm wide), titanium knurling.

Specifications
11
3 Specificationss
Dimensions:
Width: ............................................................................................................ approx. 1250 mm
Depth: ............................................................................................................. approx.. 650 mm
Height: ........................................................................................................... approx. 1400 mm
Passage width: ................................................................................................. approx. 410 mm
Max. through-passage under transport rollers: .............................................................. 20 mm
Connectivity data
Operating voltage: ..................................................................230 V ± 10%, 50/60 Hz, 1-phase
Max. input power: ......................................................................................................... 1000 VA
Mains protection: ................................................................................................................16 A
Leakage current: .......................................................................................................... < 5 mAu
Performance data:
Sealing pressure: .....................................................................................................100 - 500 N
Sealing power: ........................................................................................................ max. 400 W
Sealing speed: .................................................................................................. 0,1 - 10 m/min*
Noise data
Emission sound level at the workplace: ............................................................ LpA < 70 dB(A)n
(Noise measurement in acc. with DIN 45 635-48-A-1, ISO 11204, ISO 3744, ISO 4871)
Net weight: ........................................................................................................approx. 120 kg
s Subject to alterations
* Depending on transport roller diameter; stated max. value for 80 mm roller diameter
n K
pA = 2,5 dB
u Due to the use of network filters there is a nominal leakage current of < 5 mA.

Disposal
12
4 Disposal
4.01 Environmental protection
Careless disposal of the machine and its components may lead to environmental pollution.
OThe materials used for the machine are steel, aluminium, brass and various plastic
materials. The electrical equipment comprises plastic materials and copper.
ODismantle assemblies into individual components.
ODispose of the components in a proper and environmentally friendly manner while
adhering to all statutory and operational regulations.
OThe machine is to be disposed of according to the locally valid pollution control regula-
tions; if necessary, a specialist ist to be commissioned.
Care must be taken that parts soiled with lubricants are disposed of separately
according to the locally valid pollution control regulations!
The final decommissioning and disposal requires a complete disconnection of the entire
power supply, the dismantling of the mechanical components and the disposal of the media
that may remain in the machine.
All safety and environmental aspects must be taken into consideration when dismantling
and disposing of the machine.
Risk of environmental damage!
OObserve the applicable national and regional regulations and the
manufacturer's instructions when disposing of the machine.
OSegregate the different operating and auxiliary materials and dispose of
them in a proper manner.
Risk of fatal injury from electric shock!
ODisconnect the power supply when carrying out the dismantling and
disconnection work.
OWork to disconnect the electrical components must only be carried out by
qualified electricians.
Risk of uncontrolled machine movements!
Sufficient energy reserves remain in various supply systems (e.g. electrics,
electronics, pneumatics) after disconnecting the power supply (emergency stop
switch) that could have dangerous consequences in the case of intervention by
an unqualified person.
OMake sure that the EMERGENCY STOP switch and the compressed air are
switched off.

Transportation, packing and storage
13
5 Transportation, packing and storage
5.01 Transportation to customer‘s premises
The machines are delivered completely packed.
5.02 Transportation inside the customer‘s premises
The manufacturer cannot be made liable for transportation inside the customer‘s premises
nor to other operating locations. It must be ensured that the machines are only transported
in an upright position.
5.03 Disposal of packing materials
The packing materials of this machine comprise paper, cardboard and VCE fibre. Proper dis-
posal of the packing material is the responsibility of the customer.
5.04 Storage
If the machine is not in use, it can be stored as it is for a period of up to six months, but It
should be protected against dust and moisture.
If the machine is stored for longer periods, the individual parts, especially the surfaces of
moving parts, must be protected against corrosion, e.g. by a film of oil.

Explanation of symbols
14
6 Explanation of symbols
In this instruction manual, work to be carried out or important information is accentuated by
symbols. These symbols have the following meanings:
Note, information
Cleaning, care
Lubrication
Maintenance, repairs, adjustment, service work
(only to be carried out by technical staff)

Controls
15
7 Controls
7.01 Summary of control elements
OMain switch 1, see Chapter 7.02
OPedal 2, see Chapter 7.03
OControl panel 3, see Chapter 7.04
OSD card reader and writer 4, see Chapter 7.05

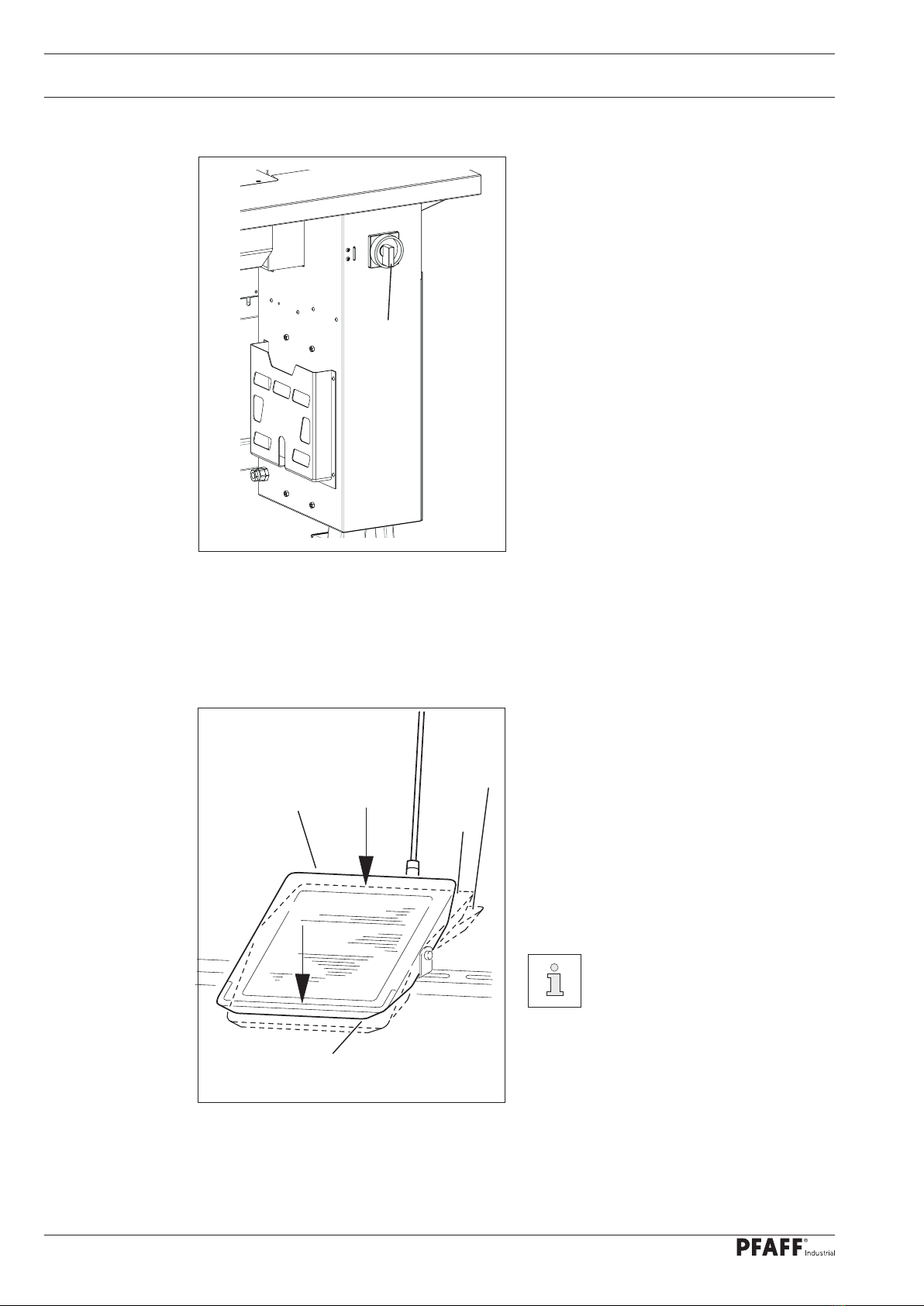

Fig. 7 - 01
1
4
2
3

Controls
16
Fig. 7 - 03
7.03 Pedal
Foot switch functions
0 = Rest position (welding stops)
+1 = Transport roller is lowered to welding
position.
+2 = Press and hold treadle:
Welding process begins and runs as
long as the treadle is pressed.
-1 = Lift transport roller
The function method of the
pedal depends on the selected
pedal mode (level or flip-flop
mode)
7.02 Main switch
OThe machine is switched on or off by
turning main switch 1.
Position "0": Machine is switched off
Position "I": Machine is switched on
+1
0
-1
+2
Fig. 7 - 02
1

Controls
17
The current operating statuses are indicated on the control panel 1. The machine is operated
with constant dialogue between the control unit and the operator; different pictograms and /
or texts are displayed for this purpose according to the operating status of the machine.
Pictograms or texts with a border represent functions that can be called up by pressing on
the respective points on the monitor. Pressing the respective function causes its immediate
actuation or activation/deactivation or another menu will appear (e.g. for entering a value).
Switched-on functions are indicated by an integrated LED.
Pictograms or texts without a border are only used for display purposes and cannot be called
up by pressing them.

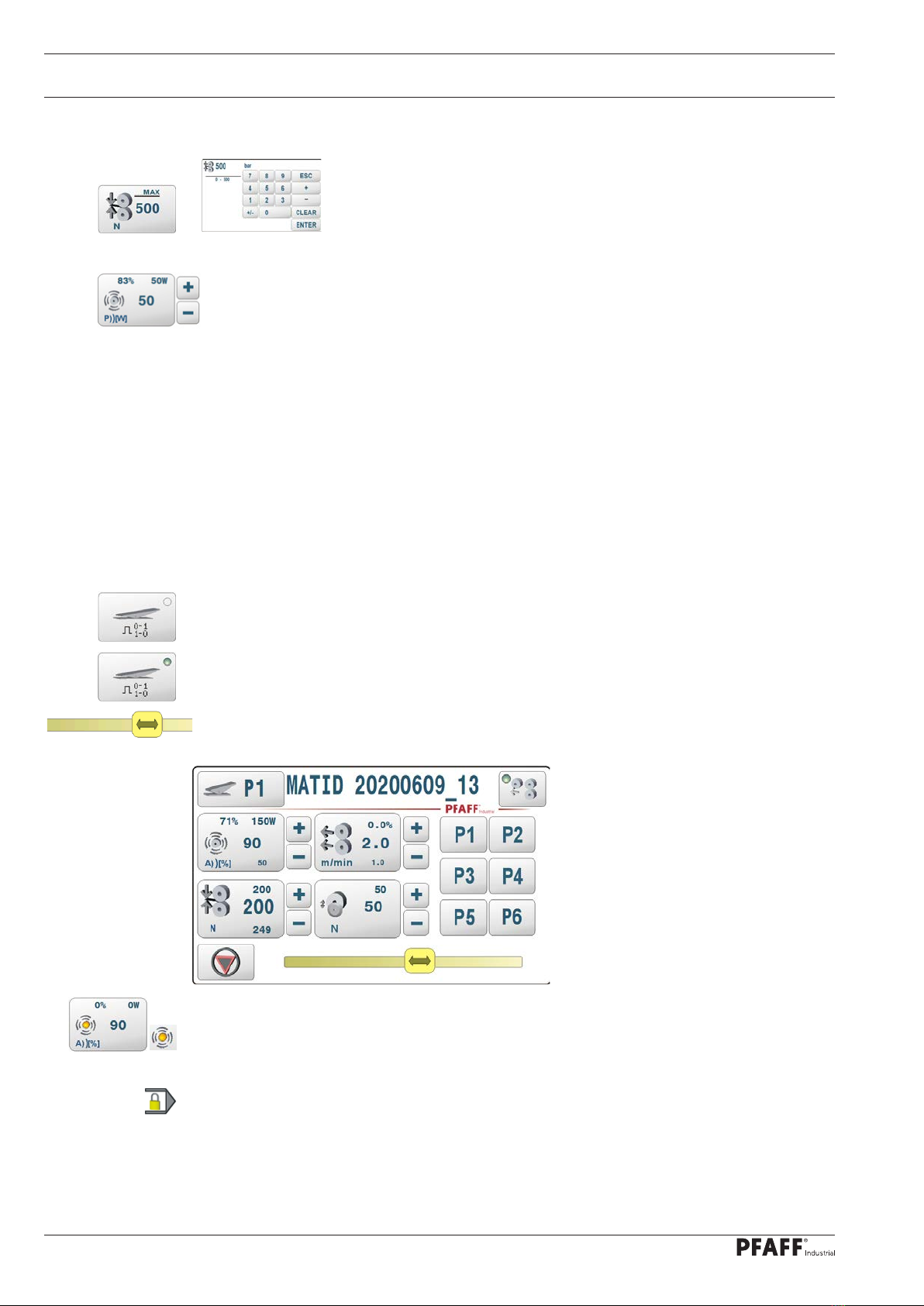

Presentation of functions (e.g. manual sealing 8311 Standard)
7.04 Control panel
Presentation of functions (e.g. input / settings)
Fig. 7 - 04
1

Controls
18
7.04.01 Input functions
The sealing parameter can be entered directly by pressing the key .
or
The respective setting value displayed next to it can be increased or de-
creased by pressing and holding the corresponding plus/minus key.
7.05.02 Key reactions
An acoustic signal sounds when a key is pressed. A dual acoustic signal sounds if it is not
permitted to perform the function in the current machine status.
7.05.03 Display functions
Keys that switch functions on or off are indicated with an LED.
Example
inactive
active
Dynamic processes are indicated with a slider.
A yellow LED indicates that the function is currently switched off (inactive).
The lock symbol indicates that certain functions are currently blocked for the user.

Controls
19
7.05 SD card reader and writer
An SD card reader and writer is installed in addition to the main switch. This allows the seal-
ing parameter sets to be stored on an SD card and read back from there. In addition, the ma-
chine software can be updated with an SD card.
Note:
The SD card must be formatted for FAT32. The tested maximum capacity may be 64GB
(large FAT32).

Set-up and Initial Commissioning
20
8 Set-up and Initial Commissioning
Check the machine for transport damage after unpacking it. Please notify the carrier and the
relevant PFAFF agency in the event of any damage.
The machine may only be set up and started up by qualified personnel! All of
the relevant safety regulations must always be complied with in this process!
8.01 Set-up
Suitable electrical and compressed air supply connections must be provided at the erection
site, see chapter 3 Technical Data. The erection site must also have a firm and level
subsurface and adequate lighting.
The table top is lowered for packaging purposes.
The adjustment of the table height is described below.
8.01.01 Setting the table height
OLoosen the screws 1 and 2.
OMove the table top to the desired working height by pulling it out and pushing it in and
align the table top horizontally.
Adjust the stand on both sides evenly to prevent it tilting.
OThe stand must have all four feet firmly on the ground to make sure it is positioned
securely.
OFirmly tighten the screws 1.
OAdjust and tighten the desired pedal position on the screws 2.
Fig. 8 - 01
1
2
1
