PFS BRO18NG User manual

INSTALLATION & OPERATION MANUAL
GAS FIREPLACE LOG
TIERED DUAL BURNER LOG SET
Complies with ANS Z21-84 2017
CSHM INTERNATIONAL 2017
Burner set for use with these styles and sizes of SureHeat Dual Burner Natural Gas Log Sets.
Models: BRO18NG, BRO24NG - CSO24NG, CSO30NG
MO18DBNG, MO24DBNG - SH18NG, SH24NG
DECORATIVE VENTED
— Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
Installation of this Energy Efficient Gas Log Set and provisions for combustion and ventilation air
must conform with the National Fuel Gas Code ANSI Z223.1/NFPA54, and any local codes.
PFS
®
US
May be used with accessory valve kits: MBV300 (Manual Ball Valve) CVS303 and RVS304
(Safety Pilot Kits) Safety Pilot Kits also used for LP gas conversion - add ACC18 Burner Media
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING: This product contains and/or generates chemicals known to
the State of California to cause cancer or birth defects, or other reproductive harm.

DUAL BURNER
PARTS LIST
Figure 1
Number of logs are determined by the size and model chosen.
Sets range from 4 to 9 logs.
1-6
GRANULES
(HEAVY WEIGHT BAG GLOWING EMBERS
(LIGHT WEIGHT BAG)
16 17
18
7
LEFT SIDE
KNOCKOUT PLUG
RIGHT SIDE
KNOCKOUT PLUG
8
9
12
10
14
REF.
18" SET
QTY.
24" SET 30" SET
1-6 Logs — ——— — —
7Grate 1 1 1
8Burner Pan SBNCJ00365A 1 1 1
9Dual Burner Bar RC0CB00002A 1 1 RC0CB00004A 1
10 3/4" Burner Support Spacer RMH-120-00420 1 RMH-120-00420 1 RMH-120-00420 1
11 3/8" Brass Orifice Elbow RMH-120-00082 1 RMH-120-00082 1 RMH-120-00082 1
12 3/8" Locknut RMH-120-00963 1 RMH-120-00963 1 RMH-120-00963 1
13 3/8" Flare to 1/2" NPT Inlet Fitting RMH-120-00653 1 RMH-120-00653 1 RMH-120-00653 1
14 Damper Stop Clamp RMH-120-00100 1 RMH-120-00100 1 RMH-120-00100 1
15 3/8" Flared Tubing 1 1 1
16 Granules WIP-130-00010 1 WIP-130-00010 1 WIP-130-00010 2
17 Glowing Embers WIP-130-00300 1 WIP-130-00300 1 WIP-130-00300 2
18 Back Log Standoffs 2 2 2
19 Thread Sealant RCSZZ00008A 1 1 1
20 Instruction Manual RMH-130-OMVVL 1 1 1
2
21 Washer RCODZ00145A 1 1 1RCODZ00145A RCODZ00145A
RMH-130-OMVVL RMH-130-OMVVL
DESCRIPTION PART NUMBER QTY. QTY.PART NUMBER PART NUMBER
SBNCJ00367A SBNCJ00366A
RC0CB00003A
KHH-ACT16 KHH-ACT16 KHH-ACT16
SPSCJ00106A SPSCJ00106A SPSCJ00106A
21
19
INSTALLATION& OPERATION
MANUAL
FIREPLACE GAS LOG
INSTALLER:Leave this manual with the appliance.
CONSUMER:Retain this manual for future reference.
— Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHATTO DO IF YOU SMELL GAS
Immediatlycall the gas supplier from a neighborsphone. Followthe gas
supplier’s instructions.
If youcannot reach the gas supplier, call the fire department.
— Installation and service must be performedb ya q ualified installer, service agency,
or thegas supplier.
WARNING:If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or lossof life.
ListedBy
OMNI-TestLaboratores,Inc.
Portland
OregonUSA
CSHMINTERNATIONAL 2011
Do not try to light any appliance
•
•
•
TIERED DUAL BURNER LOG SET
Burner set for use with all styles and sizes of SureHeat Dual Burner Natural Gas Log Sets.
Maybe usedwith accessoryCVS 303or RV S304 Safety Pilot Kit for added convenience or for LP conversion.
Complies withANSI Z21-84b-2004
20
15
RCSZZ00008A RCSZZ00008A
RCORJ00003A RCORJ00004A RCOLC00013A
30” sets will have 2)
TO 1/2" NPT
GASLINE
13
.311
11
FLARED
END
TO
BURNER
BAR
STOP! Verify that you have all of the listed parts
before attempting to install. If you do not have all
the parts, or are not sure, or if you have broken logs,
DO NOT RETURN THE SET. Instead, please call
our Custoer Service phone number -
[phone]

3
FIREPLACE PREPERATION
A. Professionally clean chimney and fireplace floor of any
combustible material to limit the smell from the system.
.
B. Open fireplace damper fully and install Damper Stop
Clamp with 1/4x2” set screw (Part 14#). This clamp is
Designed to allow any combustion by-products to vent
(See Fig.2) Should the Damper Stop Clamp supplied fit,
not fit, a permenant damper stop clamp must be inst-
alled that will keep the damper open at a distance of not
The damper must be in the fully open position anytime
the unit is in operation.
C. Prior to connecting the gas log set, make sure that the
gas supply to the fireplace is completely shut off.
PREFABRICATED
FIREPLACE
MASONRY
FIREPLACE
Figure 2. Damper stop clamp
PART NO. 14
less than 1 1/2”.
The smallest or minimum dimension of the chimney flue must be 8 inches in diameter . Do not use an
Energy fficient Gas Log Set if it is smaller than 8 inches. Do not use an Energy Efficient Gas Log Set if
fumes from the burner emerge into the room when the damper is fully open. This indicates that there is
not adequate draft for this log set and it must not be used until the fireplace draft is corrected.
This appliance must be installed with a Damper Stop Clamp (Part #14). When operating this gas log set,
the flue damper must be fully open.
The minimum inlet gas pressure for this appliance i s 7” water column for natural gas. The maximun inlet
This appliance must also be disconnected from the gas supply system by closing its individual manual
shutoff valve during any pressure testing at pressure equal to or less than 1/2 PSIG.
pressure is not to exceed 10” water column.
WARNING: For installation in a solid-fuel burning fireplace only. The fireplace chimney must have a perman-
ent vent opening to atmosphere of not less than 49.2 square inches, or as determined from the manufacturer's
installation instructions.
WARNING
: If you do not follow these instructions exactly, a fire or explosion may result, causing
property damage, personal injury or loss of life.
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING:Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Refer to the owner's information manual provided with this appliance. For assistance or additional
information consult a qualified installer, service agency or the gas supplier.
NOTE:The vent opening in the marking above shall be based on a 6-foot high chimney and the appliance in-
put rate as shown under MINIMUM FIREPLACE SIZE on Page 4..
This gas log set is only to be installed and burned in a fully ventedfireplace with a fully functional
damper and chimney that is free of any obstructions. The fireplace must be constructed of non-
combustible materials and approved to burn wood.
Do not place clothing or other flammable material on or near the appliance.
Children and adults should be alerted to the hazards of high surface temperature and should be kept
lear to avoid burns or clothing ignition.
Do not burn wood, solid fuels, or other material in any fireplace fitted with a gas log set.WARNING:
FOR YOUR SAFETY:
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other ap
pliance.
A Fireplace screen must be in place when appliance is operating. Unless other provisions are made for
combustion air, the fireplace screen must have openings for combustion air.
c
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the burner system which has been
under water.
E

4
D. Prefabricated fireplace: Refer to the manufactures fireplace instruction manual for specific
information regarding the running of a gas line into that particular model. A typical installation
involves the insertion of a 1/2 inch gas pipe through the gas line tube provided by the man-
ufacturer from outside the fireplace. The Knockout on the inside of the fireplace is removed
as the gas pipe is punched through the fireplace. (See Figure 3).
E. Masonry fireplace: A 1/2 inch gas supply line must be provided to the firebox. Most install-
access hole through the masonry wall. The supply line should be
secured and sealed by mortar within the access hole. The supply line should also have a
.
shutoff valve either in the wall or inside the fireplace (see Figure 4).
GAS LOG INSTALLATION
Figu re 3. Gas line installation - Prefabricated Fireplace Figure 4. Gas line installation - Masonry Fireplace
Figure 6. Burner bar connection
ations require drilling an
MINIMUM FIREPLACE SIZE
Siz e Depth Height Width NG-BTU
18 12" 20" 20" 50,000
24 14" 24" 25" 60,000
30 14" 24" 32" 70,000
(See Figure 1 Parts List as a guide to reference part numbers.)
BURNER PAN INSTALLATION
NOTE: Use pipe compound on all male threads to seal joints.
B. Locate 3/8” locknut (Part #12) and washer (Part #21), and
attach them to the 3/8” brass o
ri fice elbow (Part #11) Do
not fasten the locknut on the “ flare” end.
C. Slide the 3/4” burner support spacer (Part # 10) over the
Dual Burner bar (Part #9) and move spacer to opposite
side of the gas inlet connection (See Figure 6).
D. Secure the intake end of the Dual Burner bar (Part # 9)
to the burner pan (Part # 8) through the knock-out hole
selected (right or left hand) with the 3/8” brass orifice
elbow (Part # 11),3/8” locknut (Part # 12), and washer
(Part #21) previously assembled in Step B (See Figure 6).
E. T ighten elbow until firmly attached to the Dual Burner bar.
Then, firmly tighten the attached lock-nut on the elbow to
seal the burner bar to the wall of the burner pan.
A.
Determine if the fireplace has a right or left side gas line feed.
The circular“Dimpled” hole covering must be knocked out on
the appropriate side (right or left) of the burner pan.
Brace pan on workbench when removing burner
knock-out.
NOTE:
Strike knock-out plug with a punch or drift.
Figure 5. Burner bar placement
910
11
2112
“Part 10”
Burner
Spacer
Knock plug
out from the
inside

5
CONNECTING GAS SUPPLY TO BURNER ASSEMBLY
Natural Gas applications only:
A. Place burner pan assembly in the center of the fireplace.
B. Attach 3/8” Flare X 1/2” NPT gas valve (Part #13) to the 1/2 inch gas supply stub already in fireplace.
Be certain connections are tight and use pipe compound on all male NPT (pipe) threads to seal
joints.
C. Attach 3/8” flared tubing (Part #15) to burner pan assembly.. Attach opposite end to gas supply line by
carefully bending the flared tubing as needed to make the connection. Avoid kinking the tubing while
NOTE: A good method of bending the tube is to fill it with sand, bending the tube as needed to make th
e
connection.This method will eliminate kinking in the line. Once the tube is in the desired configuration,
be sure to empty the tube completely of any sand before tube is connected to the gas supply line and
D .
Be certain all connections are tight. Only use pipe compound on all male NPT (pipe) threads.
Test all connections with a soapy water solution, and with the gas supply turned on. If bubbles appear
on any connection, tighten and re-test. Once it is determined there are no leaks whatsoever, turn off
gas supply and move to next assembly step.

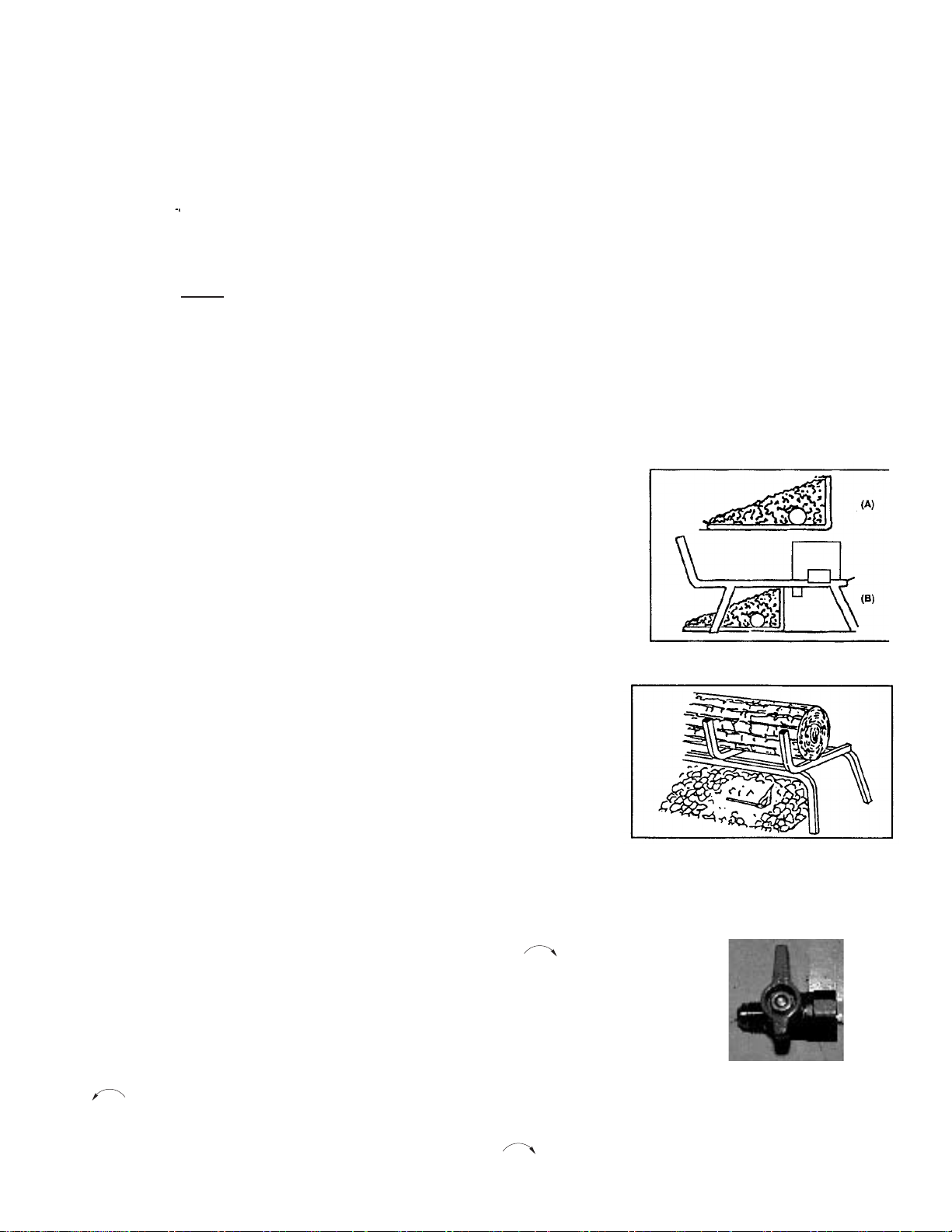

GRANULE, EMBER AND GRATE PLACEMENT
A. Spread granules (Part # 16) over the installed burner pan. Granules
should be sloped to the same angle as the burner pan filling the entire
pan. (See Figure 7A.)
B. Spread glowing embers (Part # 17) evenly over the top of the granules
covering the entire surface area, concentrating on the front and sides
of the burner pan for the most realistic burning effect.
C. Place log grate (Part # 7) over the burner pan aligning as shown.
(See Figure 7B.) Note that the burner pan is just ahead of the loc-
D.Attach back log Standoff (Part # 18) to the back part of the grate.
(See Figure 7B.)
NOTE: A hammer may be used to tap the back log stand-off in place.
It may be necessary to squeeze the back log stand-off with pliers after
attaching to the grate.
(Manual Valve / match lit only)
A. This appliance must be lighted by hand each time it is used. When lighting
the burner, follow these instructions exactly.
Figure 7 ( A & B) Granule and
Grate Placement
Figure 8. Lighting the log set
bending. If tubing must be cut, use a tubing cutter. Flare the cut end of tube with a flaring tool.
burner assembly.
WARNING: For installation in a solid-fuel burning fireplace only. The
ust have a permanent vent opening to atmosphere
inches, or as determined from the
manufacturer's installation instructions.
fireplace chimney m
of not less than 49.2 square
LIGHTING YOUR GAS LOG SET
ation of the log standoffs, with the front below the bend in the grate.
TO TURN OFF GAS TO APPLIANCE
Turn the manual gas control valve (Figure 9) clockwise to the OFF position.
Figure 9. Example of
Manual gas valve
(MBV300 shown)
Open chimney flue damper to the full open position.B.
Turn your gas control manual valve (Figure 9)clockwise to the full
OFF position.
Wait five (5) minutes to clear out any gas. If you then smell gas, STOP!
Follow “A” in the safety Information above on this label. If you don't smell
gas, go to the next step.
a burning match on the surface of the burner embers (SeeFi gure 8)
Do not hold match in hand. Turn your manual gas valve counterclockwise
the ON position.
C.
D.
PlaceE.

Place the two small logs (7) and (8) in
front of the grate as shown
12
3
4
5
6
7
8
Back Log Stand-Offs in placeLog Identification
LOG PLACEMENT
MODEL: BRO18NG
Place log (1) onto back left area of
the grate, perpendicular to log (2)
Place “Y” shaped log (4) onto left
of the grate ahead of raised area
Place log (3) at the front right of the
grate with the “burned” area to the flame
Place log (5) atop log (4), brace on
left center grate finger
Place log (6) atop logs (1) and (3)
6

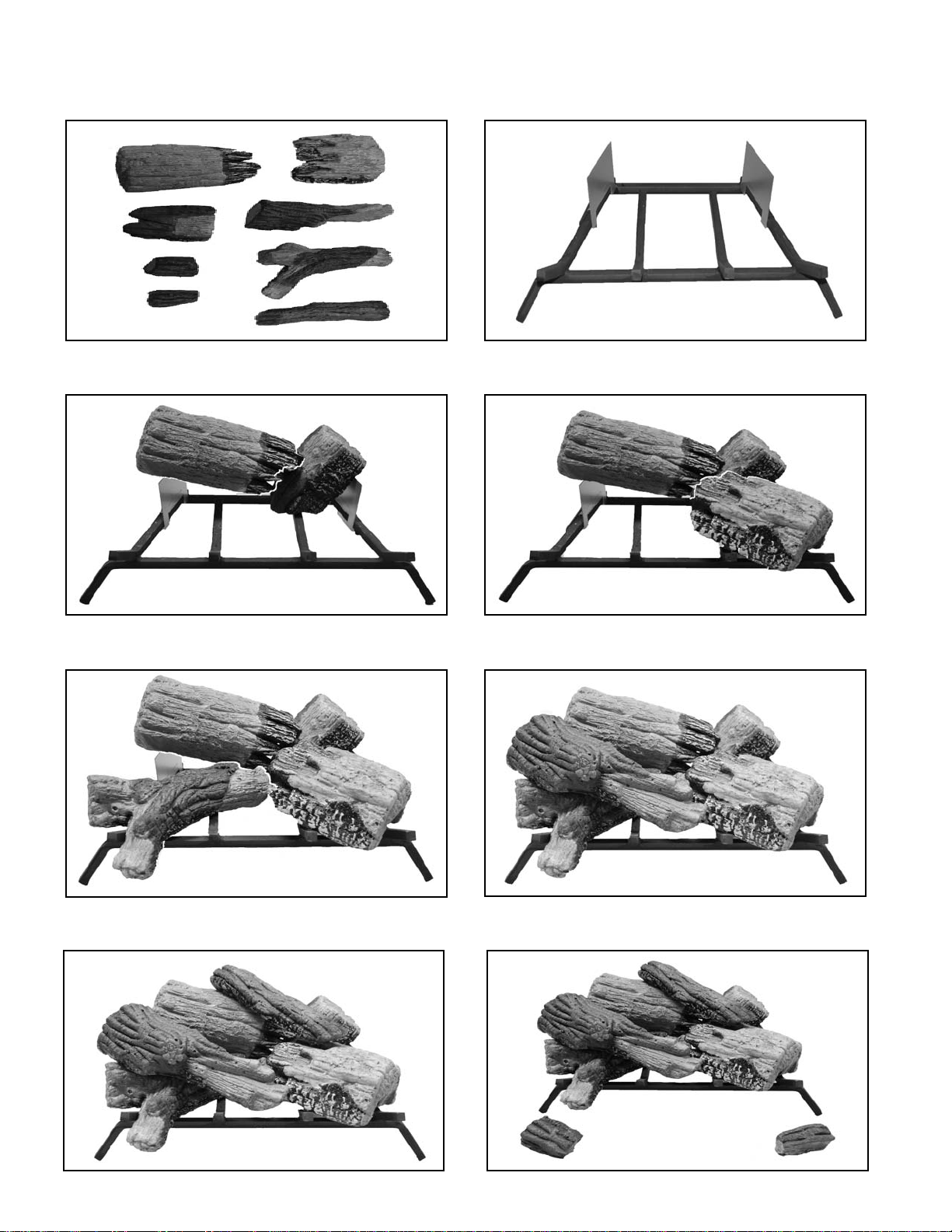

LOG PLACEMENT
MODEL: BRO24
5
Place log (1) onto back right
area of the grate
Place “Y” shaped log (2) onto left
of the grate ahead of raised area
Log Identification Back Log Stand-Offs in place
1
2
3
4
6
7
8
9
on the grate finger left of center
Place log (3) onto back left area of
the grate, perpendicular to log (1)
Place log (4) at the front right of the
grate with the “split” area to the flame
Place log (5) on to log (2) and brace it Place log (6) atop logs (5) and (4)
as shown
7

LOG PLACEMENT
MODEL: BRO24 Continued
Place the two small logs (7) and (8) in
front of the grate as shown
8

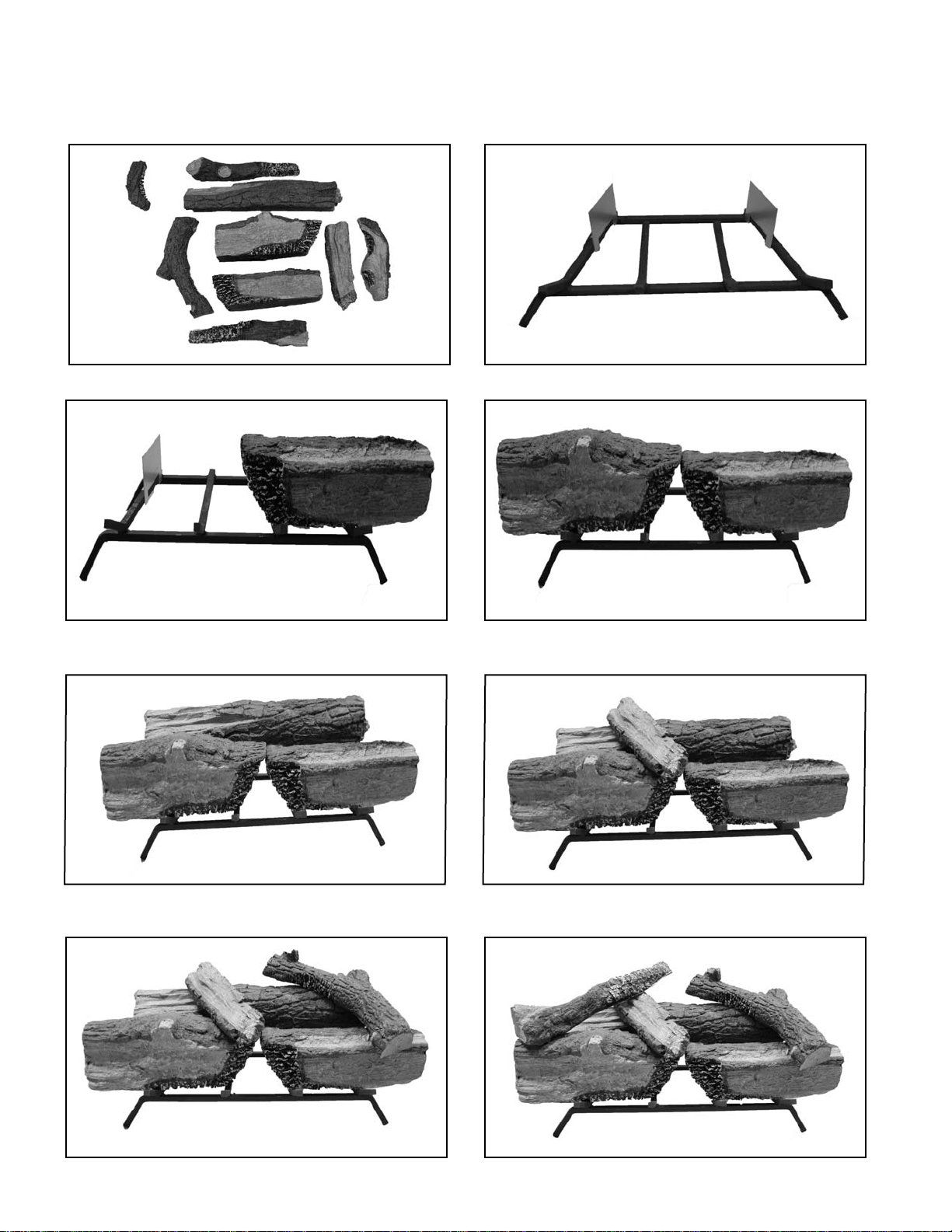

LOG PLACEMENT
MODEL: CSO24/CSO30
Place Right front log (1) onto
front area of the grate
Place back log (3) onto
raised area of the grate
Log Identification Back Log Stand-Offs in place
1
2
Place left front log (2) onto
front area of the grate
3
4
5
6
Place Cross-Log (4) at the center left
Place “Y” shaped Cross-Log (5) at right Place Cross-Log (6) from front left
to lay on log (5) as shown
7
8
9
9

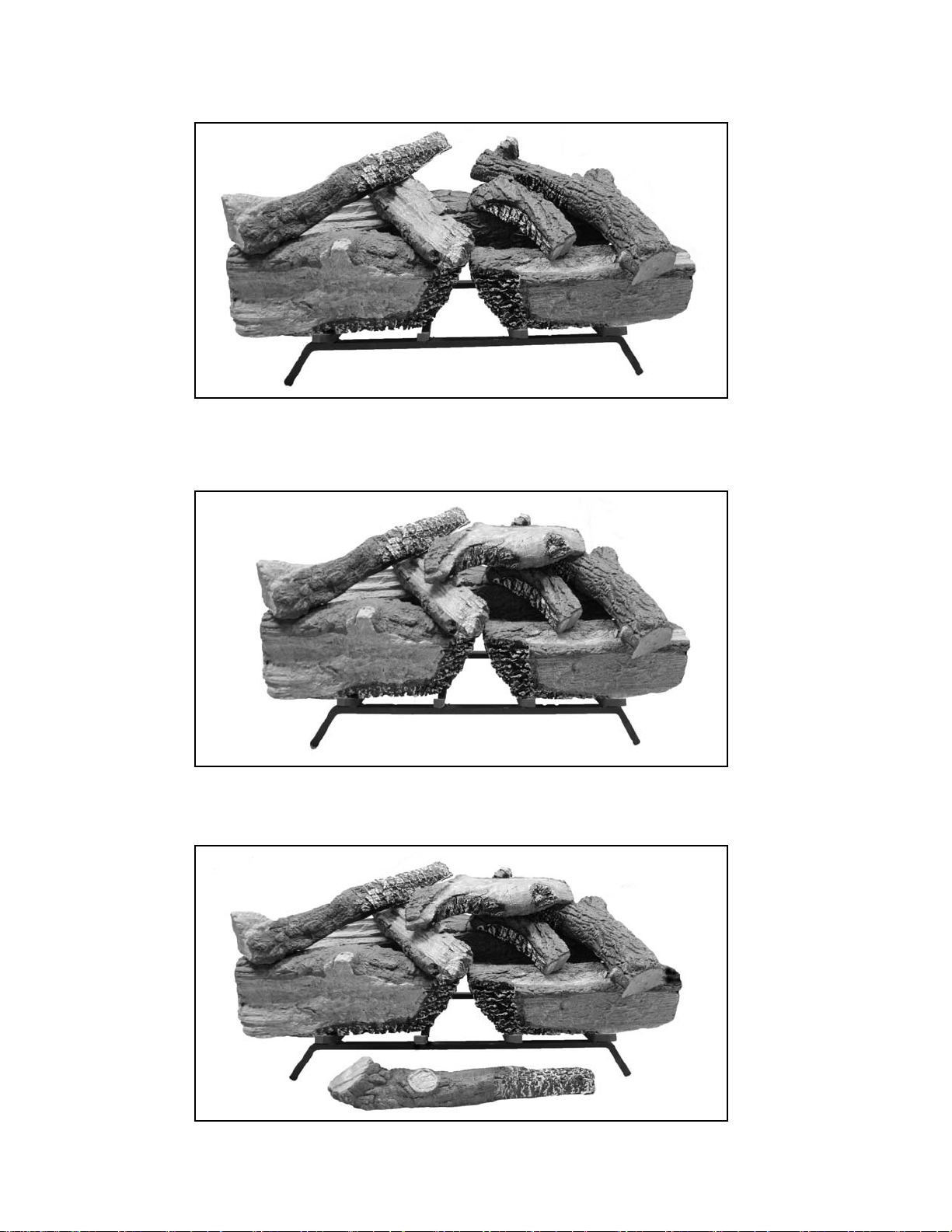

LOG PLACEMENT
MODEL: CSO24/CSO30 Continued
Place Cross-Log (8) at the top center
across logs (5) and (7)
Place Cross-Log (7) at the center right
Place log (9) in front of the set, on the fireplace floor
(Make sure it is in front of the burner pan)
10

LOG PLACEMENT
MODEL: MO18NG and MO24NG
Place Main Front Log (1) onto
front area of the grate
Place shorter back log (2) onto
Back Log Stand-Offs in place
Back Log Stand-Offs
1
2
3
4
5
6
Place Cross-Log (3) at the left side Place Cross-Log (4) at the center
Place Cross-Log (5) at the right side Place Cross-Log (6) from the center
to the right side
Log Identification MO18NG
11
STEP 1
STEP 2 STEP 3
STEP 4 STEP 5
STEP 6 STEP 7
Stand-offs
1
2
3
4
5
6

LOG PLACEMENT
MODEL: MO24NG (Continued)
Place Cross-Log (7) atop the center
Left (4) to the center right (5) logs
1
2
3
4
5
6
Log Identification MO24NG
Follow the first five steps from MO18NG
on previous page.
Place Cross-Log (5) at the center right Place “Y” Shaped Cross-Log (6)
at the right side as shown
12
7
STEP 6 STEP 7
STEP 8
56
7

LOG PLACEMENT

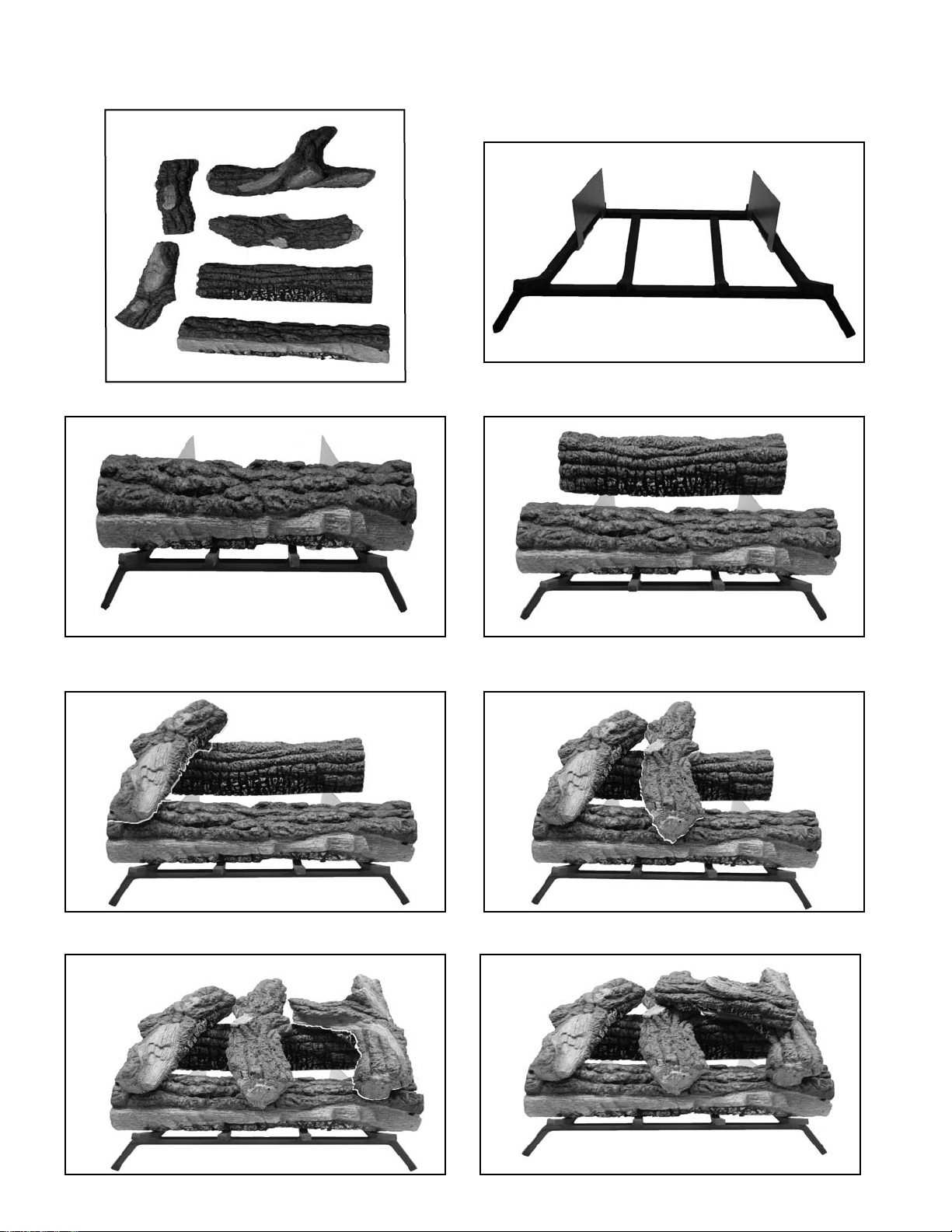

MODEL: SH18NG
Place main front log (1) onto
front area of the grate
Place shorter back log (2) onto
raised area of the grate
1
2
3
Log Identification Back Log Stand-Offs in place
Place Cross-Log (3) at the left side Place Cross-Log (4) at the right side
Place Cross-Log (5) at the center Place Cross-Log (6) from the center
to the right side
4
5
6
13

LOG PLACEMENT
MODEL: SH24NG
Place main front log (1)
onto front area of the grate
Place shorter back log (2)
onto raised area of the grate
Back Log Stand-Offs in placeLog Identification
Place Cross-Log (3) at the left side Place Cross-Log (4) at the center left
Place Cross-Log (5) at the center right Place Cross-Log (6) at the right side
14
1
2
3
4
5
6
7

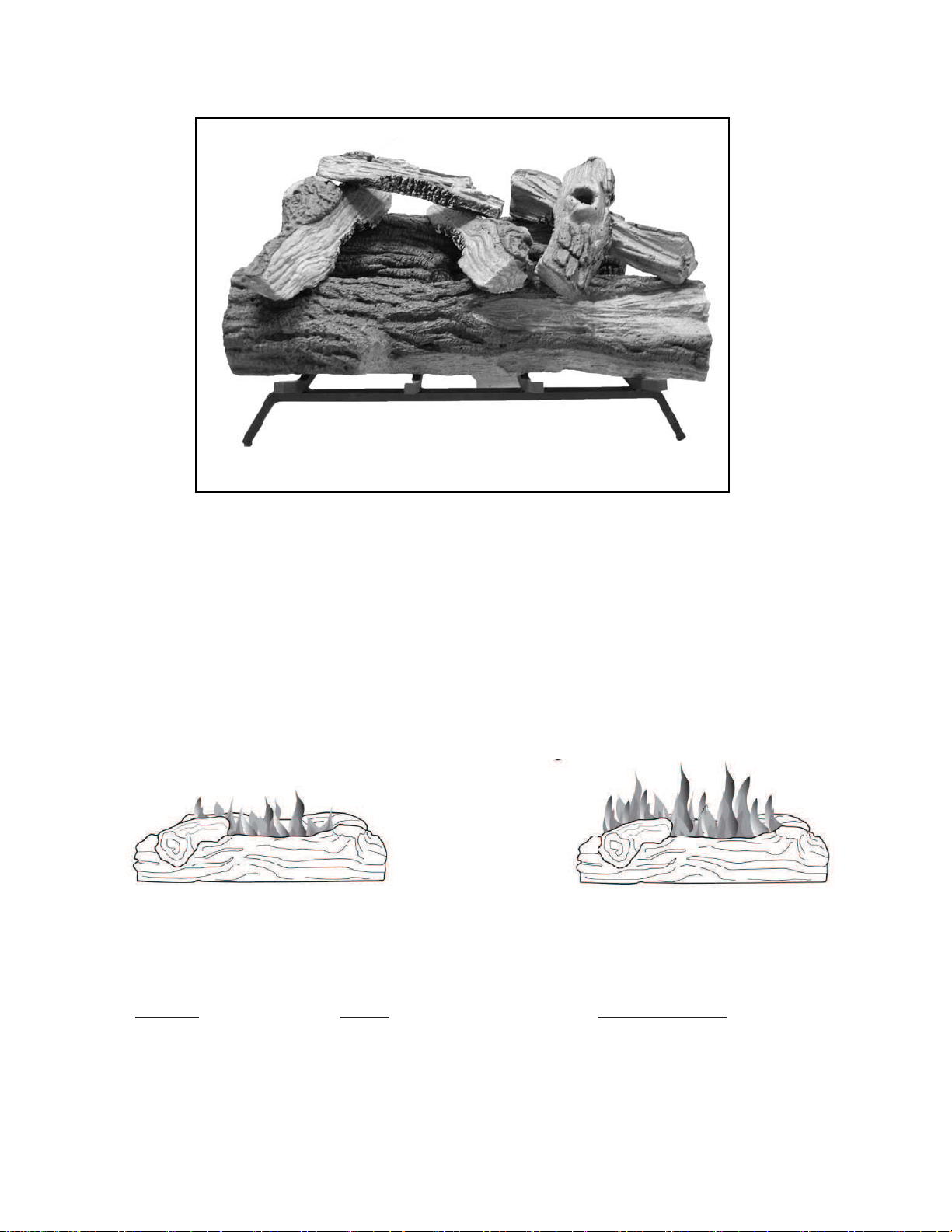

LOG PLACEMENT
MODEL: SH24NG Continued
Place cross-log (7) atop cross-log (6) and
to front center as shown
15
MAINTENANCE
Very little maintenance is required. The carbon deposit resulting from combustion is natural and adds to the
realistic appearance of the set. If carbon becomes excessive it can be lightly brushed or vacuumed away.
TROUBLE SHOOTING
Problem Cause Corrective Action
1. No Ignition -Valve not fully in “on” position -turn valve to “on” position
-gas line obstruction -inspect supply lines/ tube for
kinks or obstructions
2. Inadequate flame -Valve partially closed -open valve fully
-gas line partial obstruction -inspect burner tube for kinks
or obstructions
-log arrangement incorrect -rearrange logs to specified pattern
We recommend for the appliance and the fireplace flue to be professionally inspected and cleaned each year,
prior to operation.
Figure 11 - Incorrect Burner Flame Pattern
Figure 10 - Correct Burner Flame Pattern
Each time you operate the gas log set, pay attention to the flame pattern, and the amount of carbon (soot)
being produced. If the gas log set continuously produces excessive carbon, you may wish to rearrange the
stack of the logs to allow more free space for the flames.
VISUAL INSPECTION AND MONITORING OPERATION
(Excessive flame height, combined
with extremely yellow flames prod-
ucing carbon (soot)).

LIMITED WARRANTY
Warranty shall apply to the original purchaser at the original installation point only.
All logs are guaranteed for three years against manufacturer’s defects.
The burner assembly system is guaranteed for a period of (3) years from the date of purchase and will be replaced
for freight costs only.
General Warranty: This warranty does not apply in the case of improper installation, neglect, accident.
misuse or as a result of modifications of the original product.
All costs for removal and re-installation are the expressed responsibility of the purchaser.
For repair, replacement, or service to defective part(s) please contact our Customer Service Hotline, number below.
Thereafter with valid warranty registration and proof of purchase, call the Customer Service Hotline for authorization
to ship defective part prepaid and insured in original carton to Sure Heat Manufacturing.
3140 Moon Station Road,Kennesaw GA 30144. Goods returned improperly packaged are the sole responsibility of
purchaser.
It is agreed that any repair or replacement is the exclusive remedy from Sure Heat Manufacturing. In no case shall
Sure Heat be liable for any consequential damage or breach of this or any other warranty expressed or implied
whatsoever. This limitation as to consequential damages shall not apply in states where prohibited.
Purchased From: Date:
Size: 18" 24" 30" Model:
Name: Phone:
Address:
City: State: Zip:
Please photocopy and return to SHM International within 14 days of purchase.
If you have other questions, please contact the Customer Service Hotline - [phone]
RMH-130-OMVVL
Rev.2.2
02/2017
RTP2012A
SHM International 3140 Moon Station Road, Kennesaw GA 30144
