Phantom Cables CA-1120F2-GY User manual

TURBO HD
2 MP
Dome, Bullet & Turret Camera
User Manual
CA-1120F2-WH / CA-1120F2-GY
CA-1120F6-WH / CA-1420V-WH
CA-1220V-WH

Regulatory Information
FCC Information
Please take attention that changes or modification not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment
in a residential area is likely to cause harmful
interference in which case the user will be required to
correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European
standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as
unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is
marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery
to your supplier or to a designated collection point. For
more information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.

Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of
the nation and region.
Input voltage should meet both the SELV (Safety
Extra Low Voltage) and the Limited Power Source
with 12 VDC according to the IEC60950-1 standard.
Refer to technical specifications for detailed
information.
Do not connect multiple devices to one power
adapter to avoid over-heating or a fire hazard caused
by overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
Do not drop the camera or subject it to physical
shock.
Do not touch senor modules with fingers.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright
places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Keep the camera away from liquid while in use for
non-water-proof device.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.

While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
1Introduction
1.1 Product Features
The camera is applicable for both indoor and outdoor
conditions, and the application scenarios include road,
warehouse, underground parking lot, bar, etc..
The main features are as follows:
High performance CMOS sensor
Low illumination, 0.005 Lux @ (F1.8, AGC ON), 0 Lux
with IR
IR cut filter with auto switch
OSD menu with configurable parameters
Auto white balance
Internal synchronization
SMART IR mode
PoC (with -E)
3-axis adjustment
1.2 Overview
Before you start:
The cables of device vary according to different models.

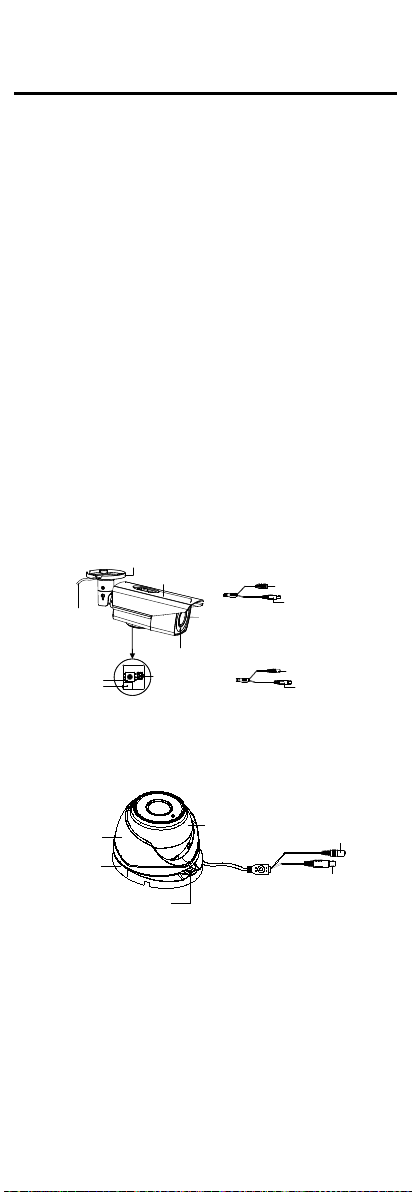

The cables of each type are shown in the figures below,
refer to the actual sample.
You can debug the camera by connecting an auxiliary
HD TVI cable to the auxiliary video output.
1.2.1 Overview of Type I Camera
Photoresistor
Model I Cables
Video Cable
Power Cord
24 VAC/12 VDC
Video Cable
Power Cord
12 VDC
Model II Cables
Main Body
Lens
Bracket
Cables
Auxiliary Video
Output
Menu Button
DIP Switch
Figure 1-1 Overview of Type I Camera
1.2.2 Overview of Type II Camera
Camera
Clip Plate
Enclosure
Video Cable
12 VDC
Power Cord
Mounting
Base
Figure 1-2 Overview of Type II Camera

2Installation
Before you start:
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is
power-off during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with
your power output to avoid the damage.
Make sure the wall is strong enough to withstand
three times the weight of the camera and the
bracket.
If the wall is cement, insert expansion bolts before
installing the camera. If the wall is wooden, use
self-tapping screws to secure the camera.
If the product does not function properly, contact
your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Installation of Type I Camera
2.1.1 Ceiling/Wall Mounting without Junction Box
Before you start:
Both wall mounting and ceiling mounting are suitable
for the bullet camera. Ceiling mounting will be taken as
an example in this section. And you can take steps of
ceiling mounting as a reference for wall mounting.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes and the cable hole (optional) in
the ceiling according to the drill template.
Figure 2-1 Drill Template
Note:
Drill the cable hole, when adopting ceiling outlet to
route the cable.
3. Route the cables through the cable hole, or the side
opening.
4. Fix the camera to the ceiling with supplied screws.
Figure 2-2 Fix the Camera to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.

For cement wall, expansion bolts are required to fix
the camera. For wooden wall, self-tapping screws
are required.
5. Connect the corresponding power cord, and video
cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the surveillance angle.
0° to 90°
0° to 360°
0° to 360°
1
2
3

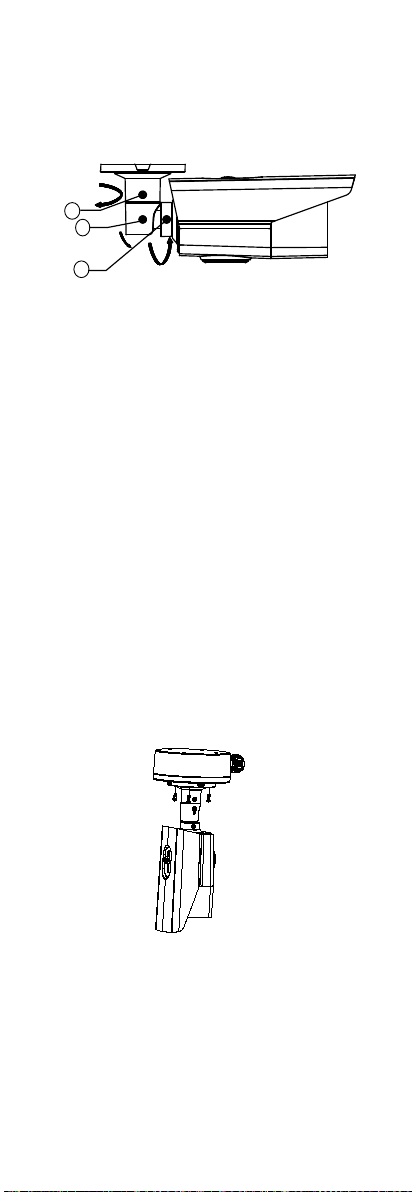

Figure 2-3 3-axis Adjustment
1) Loosen the No.1 adjusting screw to adjust the
pan position [0° to 360°]. Tighten the No.1
adjusting screw.
2) Loosen the No.2 adjusting screw to adjust the
tilting position [0° to 90°]. Tighten the No. 2
adjusting screw.
3) Loosen the No.3 adjusting screw to adjust the
rotation position [0° to 360°]. Tighten the No.3
adjusting screw.
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box separately.
Steps:
1. Paste the junction box’s drill template on the
ceiling/wall.
2. Drill screw holes and the cable hole (optional) in the
ceiling/wall according to the holes of the drill
template.
Note:
Drill the cable hole, when adopting ceiling outlet to
route the cable.
3. Take apart the junction box, and align the screw
holes of the bullet camera with those on the
junction box’s cover.
4. Fix the camera on the junction box’s cover.
Figure 2-4 Fix the Camera with the Gang Box
5. Attach the junction box’s body to the ceiling/wall by
aligning the screw holes of the junction box.
6. Secure the junction box’s body with supplied screws
on the ceiling/wall.

Screw
Junction
Box Body
Figure 2-5 Fix the Camera to the Ceiling
7. Route the cables through the cable hole, or the side
opening of the junction box.
8. Combine the junction box cover with its body.
Figure 2-6 Fix the Junction Box Cover back to its Body
9. Refer to step 6 of 2.1.1 Ceiling/Wall Mounting
without Junction Box to complete the installation.
2.2 Installation of Type II Camera
2.2.1 Ceiling/Wall Mounting without Junction Box
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes according to the drill template
and the cable hole (optional) in the ceiling/wall.
Figure 2-7 Drill Template
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
3. Loosen screws to remove the clip plate, and take
out the main body.
Clip Plate
Figure 2-8 Remove the Clip Plate
4. Fix the mounting base on the ceiling with supplied
screws.

Figure 2-9 Fix the Mounting Base on the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall, expansion bolts are required to fix
the camera. For wooden wall, self-tapping screws
are required.
5. Route the cables through the cable hole, or the side
opening.
6. Install the main body to the mounting base and
insert the clip plate.
Figure 2-10 Install the Turret Camera
7. Tighten the screws with the screw driver.
8. Connect the corresponding cables, such as power
cord, and video cable.
9. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure
below to get an optimum angle.
Pan Position
[0° to 360°]
Tilt Position
[0° to 75°]
Rotation Position
[0° to 360°]
Figure 2-11 3-axis Adjustment
1). Hold the camera body and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
2.2.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box separately.
Steps:
1. Paste the junction box’s drill template on the
ceiling/wall.
2. Drill screw holes and the cable hole (optional) in the
ceiling/wall according to the holes of the drill
template.

Figure 2-12 Drill Template of the Junction Box
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
3. Refer to step 3 of 2.2.1 Ceiling/Wall Mounting
without Junction Box to take out the camera’s main
body.
4. Take apart the junction box, and align the screw
holes of the camera with those on the junction
box’s cover.
5. Fix the camera’s mounting base on the junction
box’s cover with three PM4 × 10 screws.
Figure 2-13 Secure Screws on Junction Box’s Cover
6. Secure the junction box’s body on the ceiling/wall
with four PA4 × 25 screws.
Junction
Box Body
Figure 2-14 Secure the Junction Box’s Body on Wall
/Ceiling
7. Combine the junction box cover with its body by
tightening four screws on junction box’s cover.
Figure 2-15 Fix the Gang Box
8. Repeat steps 5 to 9 of 2.2.1 Ceiling/Wall Mounting
without Junction Box to complete the installation.

3Menu Description
Purpose:
Call the menu by clicking button on the PTZ Control
interface, or call preset No.95.
Steps:
1. Connect the camera with the TVI DVR, and the

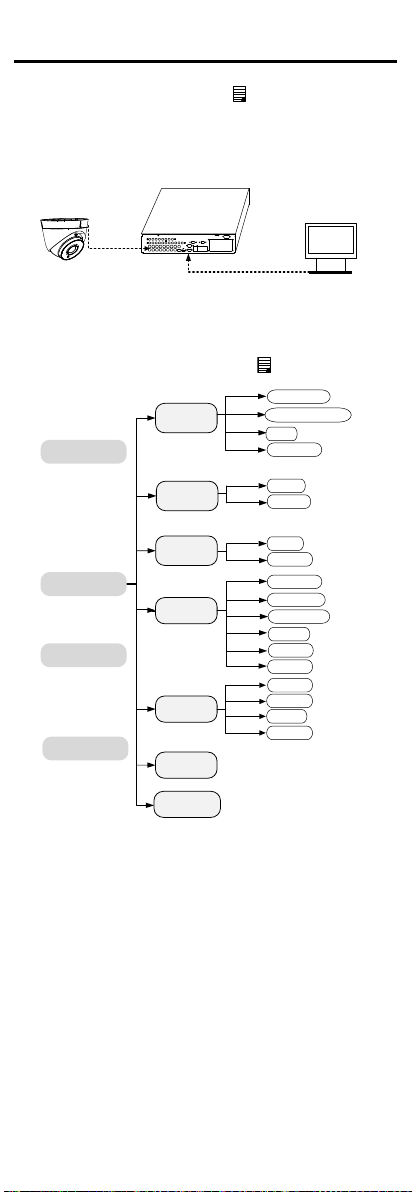

monitor shown as the Figure 3-1.
Camera
TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the analog camera, TVI DVR, and the
monitor to view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, or call
preset No. 95.
AE
WB
BRIGHTNESS
MAIN MENU
FORMAT
LANGUAGE
DAY NIGHT
VIDEO
SETTINGS
FUNC
RESET
SAVE & EXIT
PRIVACY
EXPOSURE MODE
AGC
SENSE UP
MODE
RETURN
MODE
RETURN
CONTRAST
SHARPNESS
COLOR GAIN
3D DNR
MIRROR
RETURN
MOTION
CAM ID
RETURN
FOCUS
Figure 3-2 Main Menu Overview
5. Click the direction arrow to control the camera.
1) Click up/down direction button to select the
item.
2) Click Iris + to confirm the selection.
3) Click left/right direction button to adjust the
value of the selected item.
3.1 FORMAT
PAL (Phase Alternating Lines)
PAL is a color encoding system for analog television
used in broadcast television systems in most countries.
NTSC: (National Television System Committee)
NTSC is the analog television system that is used in
most of North America, parts of South America,
Myanmar, South Korea, etc.
3.2 LANGUAGE
Supports English, and Chinese.

3.3 FOCUS
Move the cursor to FOCUS, and press the Iris+ to enter
the submenu. Click FOCUS+, FOCUS-, ZOOM+, and
ZOOM-to adjust the focus.
3.4 MAIN MENU
3.4.1 AE (AUTO EXPOSURE)
Auto Exposure describes the brightness-related
parameters, which can be adjusted by BRIGHTNESS,
EXPOSURE MODE, AGC, and SENSE UP.
EXPOSURE
BRIGHTNESS
EXPOSURE MODE
AGC
SENSE UP
RETURN
5
GLOBAL
MIDDLE
0
Figure 3-3 AE
BRIGHTNESS
Brightness refers to the brightness of the image.
You can set the brightness value from 1 to 10 to darken
or brighten the image. The higher the value, the
brighter the image is.
EXPOSURE MODE
You can set the EXPOSURE MODE as GLOBAL, BLC, and
WDR.
GLOBAL
GLOBAL refers to the normal exposure mode which
adjusts lighting distribution, variations, and
non-standard processing.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensates light to the
object in the front to make it clear, but this may cause
the over-exposure of the background where the light is
strong.
When BLC is selected as the exposure mode, the BLC
level can be adjusted from 0 to 8.
WDR (Wide Dynamic Range)
The wide dynamic range helps the camera provide clear
images even under backlight circumstances. WDR
balances the brightness level of the whole image and
provides clear images with details.
AGC (Auto Gain Control)
It optimizes the clarity of the image in poor light
conditions. The GAIN level can be set as HIGH, MIDDLE,
or LOW. Select OFF to disable the GAIN function.
Note:
The noise will be amplified when the GAIN is on.
SENSE UP
Sense up increases the exposure on a signal frame,
which makes a camera more sensitive to light so it can
produce images even in low lux conditions. You can set
the SENS-UP as OFF or AUTO according to different
light conditions.
The SENS-UP function will atomically adjust itself to x2,
x4, x6, x8, x10, x12, x14, and x16 according to the
different light conditions.
3.4.2 WB (White Balance)
White balance, the white rendition function of the
camera, is to adjust the color temperature according to

the environment. It can remove unrealistic color casts
in the image. You can set WB mode as ATW, or MWB.
ATW (Aoto Tracking White Balance)
Under ATW mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.
MWB (Manual White Balance)
You can set the R GAIN/B GAIN value from 1 to 255 to
adjust the shades of red/blue color of the image.
WB
MODE
R GAIN
B GAIN
RETURN
MWB
5
5
Figure 3-4 MWB MODE
3.4.3 DAY NIGHT
Color, BW (Black White), and AUTO are selectable for
DAY and NIGHT switches.
COLOR
The image is colored in day mode all the time.
B/W
The image is black and white all the time, and the IR
LED turns on in the low-light conditions.
AUTO
You can turn on/off the INFRARED and set the value of
SMART IR in this menu.
DAY NIGHT
MODE
INFRARED
SMART IR
RETURN
AUTO
ON
4
Figure 3-5 DAY NIGHT
INFRARED
You can turn on/off the IR LED to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure. The SMART IRvalue can be adjusted
from 1 to 8. The higher the value the more obvious
effects are.
3.4.4 VIDEO SETTING
Move the cursor to VIDEO SETTING and click Iris+ to
enter the submenu. CONTRAST, SHARPNESS, COLOR
GAIN, 3D DNR, and MIRROR are adjustable.
VIDEO SETTING
CONTRAST
SHARPNESS
COLOR GAIN
3D DNR
MIRROR
RETURN
5
5
5
5
DEFAULT
Figure 3-6 VIDEO SETTING

CONTRAST
This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 10.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 10.
COLOR GAIN
Adjust this feature to change the saturation of the color.
The value ranges from 1 to 10.
3D DNR (Digital Noise Reduction)
The 3D DNR function can decrease the noise effect,
especially when capturing moving images in low light
conditions and delivering more accurate and sharp
image quality. You can set the DNR value from 1 to 10.
MIRROR
DEFAULT, H, V, and HV are selectable for mirror.
DEFAULT: The mirror function is disabled.
H: The image flips 180° horizontally.
V: The image flips 180° vertically.
HV: The image flips 180° both horizontally and
vertically.
3.4.5 FUNC (Functions)
In the FUNC sub-menu, you can set the privacy mask,
the motion detection, and camera ID of the camera.
PRIVACY
The privacy mask allows you to cover certain areas
which you don’t want to be viewed or recorded. Up to
4 privacy areas are configurable.
PRIVACY
MODE
AREA 0
AREA 1
AREA 2
AREA 3
COLOR
TRANSPARENCY
RETURN
ON




RED
OFF
Figure 3-7 PRIVACY
Select a PRIVACY area. Set the DISPLAY status as ON.
Click up/down/left/down button to define the position
and size of the area.
MOTION
In the user-defined motion detection surveillance area,
the moving object can be detected and the alarm will
be triggered. Up to 4 motion detection areas can be
configured.
MOTION
MODE
AREA 0
AREA 1
AREA 2
AREA 3
SENSITIVITY
COLOR
TRANSPARENCY
RETURN
OFF




50
RED
OFF
Figure 3-8 MOTION
Select a MOTION area. Set the DISPLAY status as ON.
Click the up/down/left/right button to define the

position and size of the area. Set the SENSITIVITY from
0 to 100.
CAMERA ID
Edit the camera ID on this section.
CAM ID SETTING
MODE
CAM ID
X POSITION
Y POSITION
RETURN
ON

75
36
16
Figure 3-9 CAM ID SETTING
Set the MODE as on. Click up/don left/right button to choose
the camera ID and the position.
3.4.6 RESET
Reset all the settings to the default.
3.4.7 SAVE & EXIT
Move the cursor to SAVE & EXIT and click Iris+ to save
the setting and exit the menu.
