Pharos PTL600 Instructions for use

Pharos GPS Phone 600 Series
Hardware User's Manual

i
GPRS / EDGE Settings for AT&T / Cingular
Step 1 Step 2
♦Tap Start, Settings, the
Connections tab,
Connections, and then the
Tasks tab.
♦Tap Add a new modem
connection.
Step 3
♦Enter a new connection name
(i.e. Cingular GPRS).
♦Select Cellular Line (GPRS).
♦Tap Next.
Step 4
♦Enter Access point name
wap.cingular.
♦Tap Next.
♦Tap Finish.

ii
GPRS / EDGE Settings for T-Mobile
Step 1 Step 2
♦Tap Start, Settings, the
Connections tab,
Connections, and then the
Tasks tab.
♦Tap Add a new modem
connection.
Step 3
♦Enter a new connection name
(i.e. T-Mobile GPRS).
♦Select Cellular Line (GPRS).
♦Tap Next.
Step 4
♦Enter Access point name
wap.voicestream.com.
♦Tap Next.
♦Tap Finish.

1
Table of Contents
GPRS / EDGE Settings for AT&T / CINGULAR i
GPRS / EDGE Settings for T-Mobile ii
Table of Contents 1
Please Read Before Proceeding 6
Important Safety Precautions 7
Chapter 1: Voice Command Satellite Navigation 9
1.1 Navigation Device Installation 9
1.2 GPS Navigation Software Installation 10
1.3 Conditions for Using GPS Car Navigation 10
Chapter 2: Getting Started 12

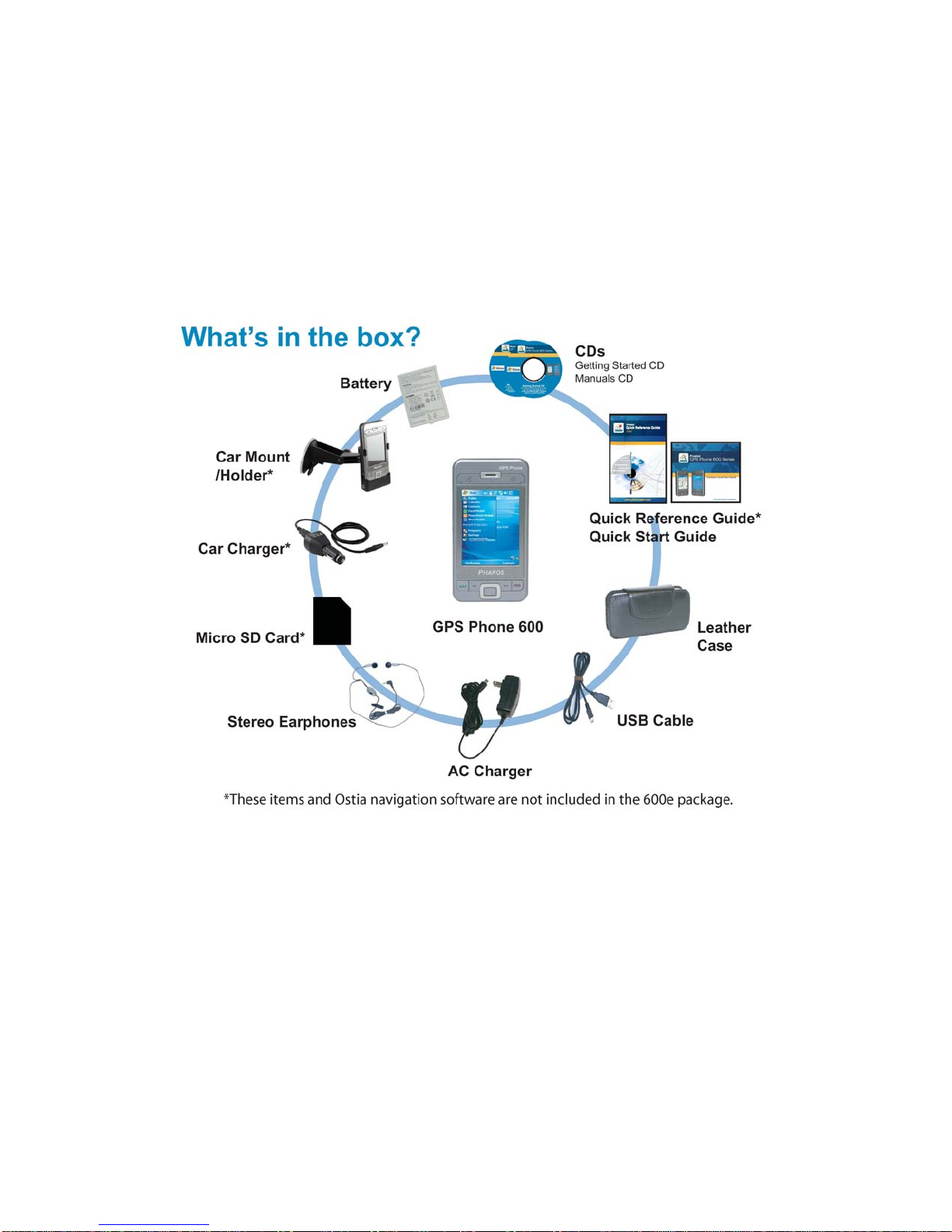

2.1 Package Contents 12

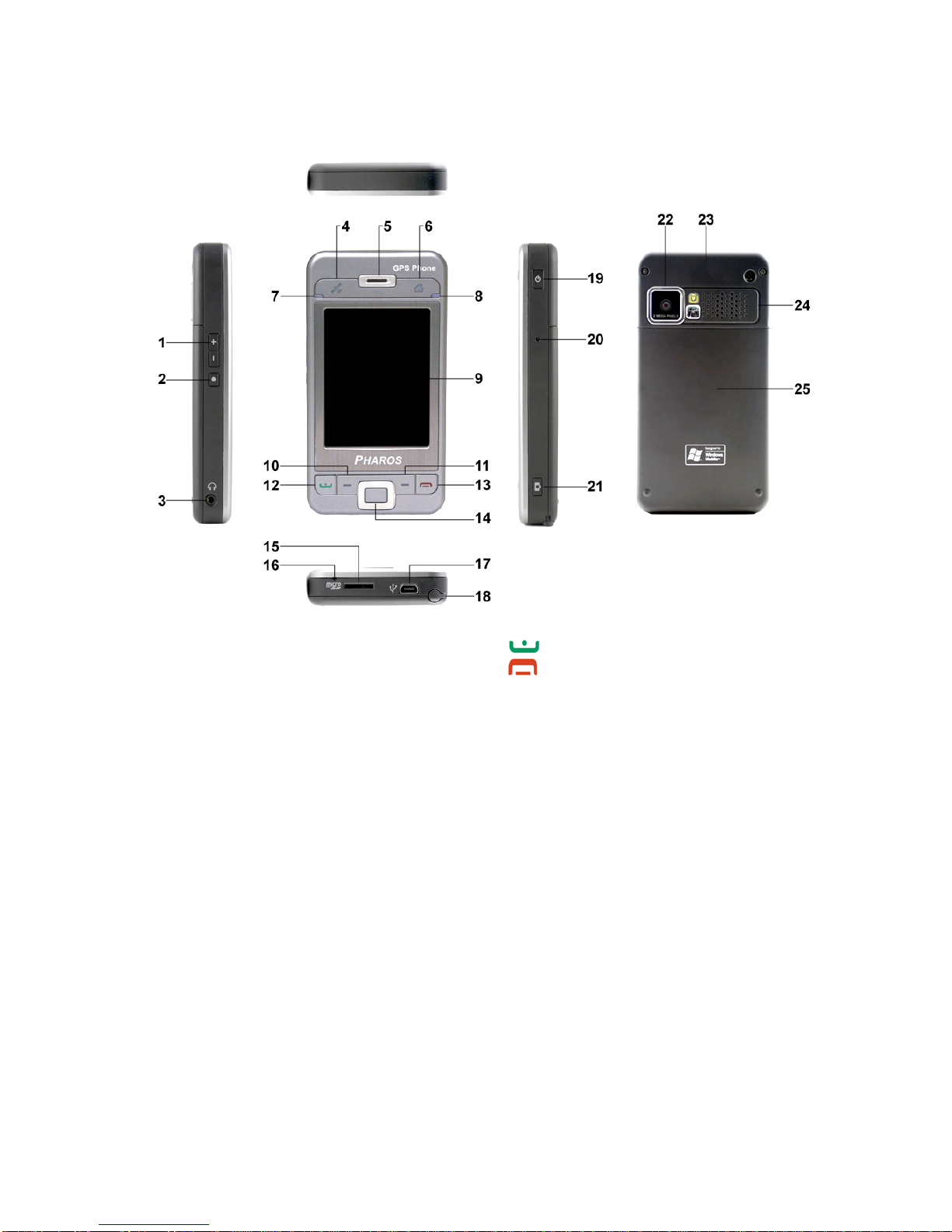

2.2 External Views 13
•Hardware Hot Key Functions 14
•Rear Side 15
2.3 Using the GPS Phone 600 for the First Time 16

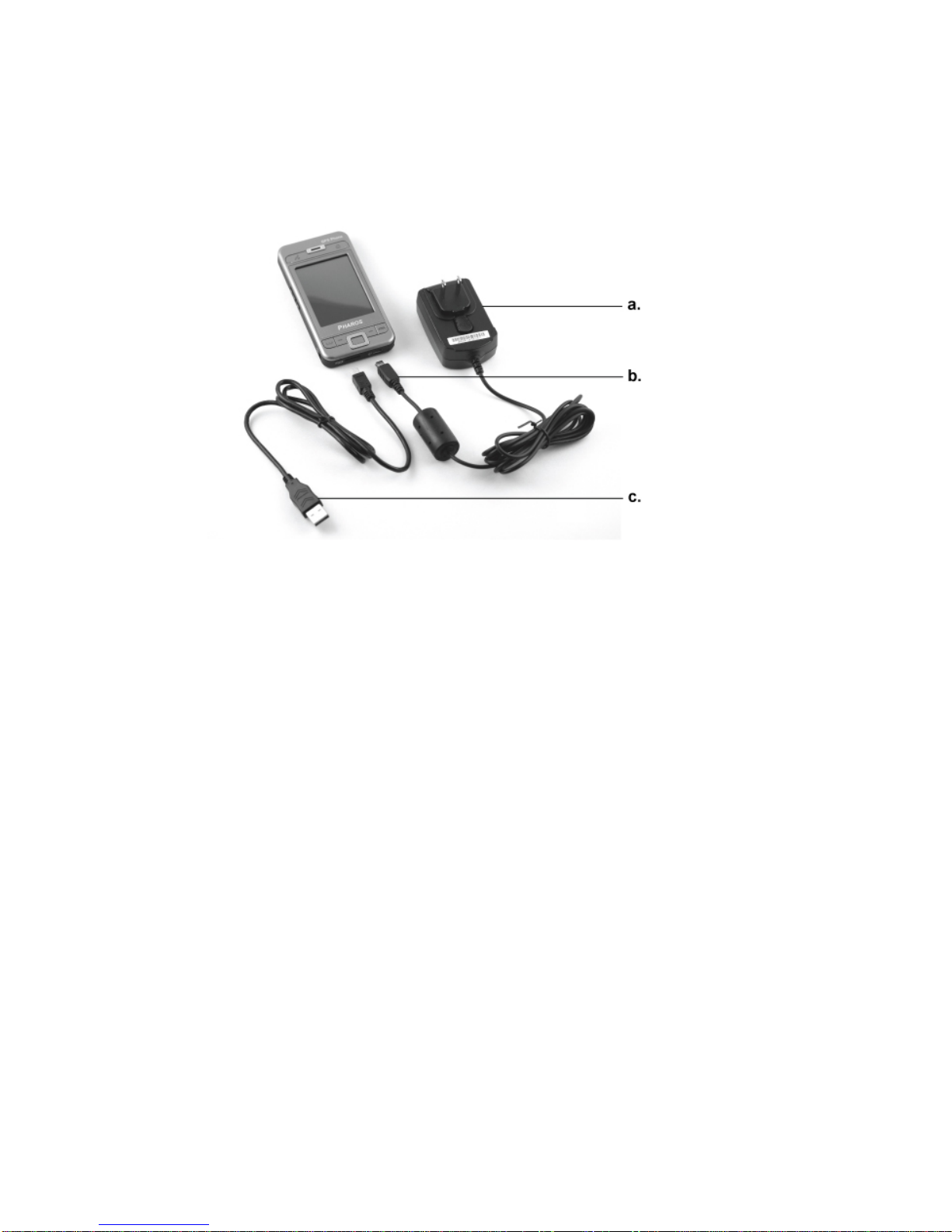

•Charging Power and Power Supply 16
•Re-installation or Replacing the Battery 18
2.4 Power On and Off 19
•Sleep Mode 19
•Turn on the Screen 20
•Restarting the GPS Phone 600 21
•Reset 21
•Cold Boot 22
Chapter 3: Using the GPS Phone 600 24
3.1 Start Screen 24
•Today Screen 25
•Programs 27
•System Application Programs 29
3.2 Entering Information on Your GPS Phone 600 31
•Entering Text Using the Input Panel 31
•Typing with the Soft Keyboard 32
•Using Letter Recognizer 32
•Using Block Recognizer 33
•Using Transcriber 33
•Selecting Typed Text 33
•Writing on the Screen 34

2
•Selecting Writing 34
•Convert Writing to Text 35
•Drawing on the Screen 36
•Creating a Drawing 36
•Selecting a Drawing 37
•Recording a Message 37
•Creating a Recording 38
•Using My Text 39
Chapter 4: Using the Phone 40
4.1 Installing and Removing the SIM Card 41
•Installing the SIM Card and Battery 41
4.2 Using the Phone 42
•Adjusting the Phone Volume 43
4.3 Turning the Phone On / Off and Making Calls 44
•Phone Toolbar 45
•Calling from Contacts 45
•Calling from Speed Dial 46
•Calling from the Call History 46
4.4 Customizing Your Phone 47
4.5 Phone Application Programs 48
•SIM Tool Kit 48
•SMS Sender 48
Chapter 5: Customize Your GPS Phone 600 49
5.1 Adjusting Settings 49
5.2 Notifications 50
5.3 Power Preference Settings 51
5.4 Backlight 52
5.5 Microphone 53
5.6 Adjusting the Volume 54
5.7 Find and Organizing Information 55
5.8 Navigation Bar and Command Bar 56
5.9 Pop-Up Menus 57
5.10 Redefine Hot Keys 58
Chapter 6: Using Microsoft ActiveSync 59
6.1 Installing and Using ActiveSync 60
•ActiveSync Connection Troubleshooting 61
6.2 USB Synchronization 62
•USB Synchronization 62
6.3 Synchronizing Using Bluetooth 65
Chapter 7: Connections 66
7.1 Connecting to the Internet 66

3
•Setting the GPRS / EDGE Connection 67
•Starting GPRS / EDGE Connection 68
•Disconnecting GPRS / EDGE 69
7.2 Using Bluetooth 70
•Bluetooth Connection Wizard 70
•Bluetooth Connection Setting 72
•Service 73
•Serial Port 74
•Bluetooth Headset 75
•FTP Sharing 75
7.3 CSD Type 76
7.4 Connecting with a Personal Computer 77
7.5 Wireless LAN Transmission 77
Chapter 8: Using Wireless LAN 78
8.1 Connecting to Wireless LAN 78
8.2 Configure Your Wireless Network
(Reference for a Normal Network Setup)
80
8.3 Configure Your Wireless Network
(Reference for Proxy Setup)
82
Chapter 9: Sending and Receiving Messages 84
9.1 E-mails and SMS Messages 84
•Synchronizing E-mail Messages 85
•Connecting Directly to the Mail Server 86
•E-mail Server Setup 87
•Using E-mails and SMS 88
•Direct Push Technology Alert 91
•Direct Push Technology Alert Settings 91
9.2 MSN Messenger 93
•Setting Up 94
•Working with Contacts 95
•Chatting with Contacts 96
Chapter 10: Multimedia 97
10.1 Using Camera 97
•Camera Mode 98
•Camera Mode Using Wizard 99
•Managing Pictures Shot by Continuous Shutter 100
•Digital Video Mode 101
•Digital Video Mode Using Wizard 103
•Speed Shooting Using the Hardware Hot Keys 104
10.2 FM Tuner 105
Chapter 11: Companion Programs 107

4
11.1 Calendar: Scheduling Appointments and Meetings 108
•Create an Appointment 109
•Use the Summary Screen 110
•Create Meeting Requests 110
•Schedule a Meeting 110
11.2 Contacts: Tracking Friends and Colleagues 111
•Create a Contact 112
•Find a Contact 113
•Use the Summary Screen 113
11.3 Tasks: Keeping a To Do List 114
•Create a Task 115
•Use the Summary Screen 116
11.4 Notes: Capturing Thought and Ideals 117
•Create a Note 117
11.5 Word Mobile 118
11.6 Excel Mobile 120
•Tips for Working in Excel Mobile 122
11.7 PowerPoint Mobile 123
11.8 Windows Media Player 124
11.9 Internet Explorer 125
•Using Internet Explorer 125
•Browse the Internet 126
•View Mobile Favorites 127
•The Mobile Favorites Folder 127
•Favorite Links 128
•Synchronize Mobile Favorites 128
•Create a Mobile Favorite 128
•Save GPS Phone 600 Memory 129
Chapter 12: Maintaining the GPS Phone 600 130
12.1 Adding or Removing Programs 130
•Add Programs Using ActiveSync 130
•Add a Program Directly from the Internet 131
•Add a Program to the Start Menu 131
•Remove Programs 132
12.2 Manage Memory 133
•View Memory Status 133
•Find Available Memory 135
12.3 System Information 138
Chapter 13: Specifications 139
Appendix 140
A.1 Regulation Notices and Safety Declaration 140
•Health and Safety Information 140

5
A.2 FCC Regulations 142
A.3 RF Exposure Information (SAR) 143
•SAR Information 143
•Holster Information 143
•Where to Find Information 144
A.4 FAQ 145

6
PLEASE READ BEFORE PROCEEDING
♦This device is not charged when you take it out of the box. When you use this
product the first time, we recommend that you install the battery as illustrated and
fully charge it for about 8 hours before use. Do not remove the battery pack when
the device is charging.
♦Before you install the SIM card, make sure to tap the ALL OFF Button in Wireless
Manager to turn off your GPS Phone 600’s mobile phone, Bluetooth, and
wireless LAN functions. Press the “Power Button” of the GPS Phone 600 to turn
off the screen. Otherwise, disconnection problems or damage to the SIM card
may occur.
♦When you are on a plane, in a medical facility or at a gas station where wireless
communications devices are not allowed and must be turned off, please go to
Wireless Manager and select the ALL OFF Button to turn off your GPS Phone
600’s mobile phone, Bluetooth, and wireless LAN functions. By pressing the
“Power Button” of the GPS Phone 600, you only turn off the display.
♦In case the GPS Phone 600 is damaged, send it back to the dealer for repair. Do
not attempt to disassemble the GPS Phone 600 on your own; otherwise the
warranty will be void. Your warranty will be invalidated if you open or tamper with
the device’s outer casing.
♦This document lists the functions, specifications, and illustrations for reference
only. Product specifications are subject to change.

7
Important Safety Precautions
When using this product the safety precautions below must be taken to offset possible
legal liabilities and damages.
Electrical Safety
This product is intended for use when supplied with power from the battery. Other
usage may be dangerous and will invalidate any approval given to this product.
Safety in Aircraft
Due to the possible interference caused by this product to an aircraft’s navigation
system and its communications network, using this product on board an airplane is
against the law in most countries.
Interference with Medical Equipment Functions
This product may cause medical equipment to malfunction. The use of this device is
forbidden in most hospitals and medial clinics.
Nonionizing Radiation
This product should be operated in the suggested normal condition only to ensure the
radioactive performance and safety of the interference. As with other mobile radio
transmitting equipment, users are advised that for satisfactory operation of the
equipment and for the safety of personnel, it is recommended that no part of the human
body be allowed to come too close to the antenna during operation of the equipment
Body-worn Operations
This device was tested for typical body-worn operations with the back of the phone kept
1.5 cm from the body. To maintain compliance with FCC RF exposure requirements,
use only belt-clips, holsters or similar accessories that maintain a 1.5 cm separation
distance between the user’s body and the back of the phone, including the antenna.
The use of belt-chips, holsters and similar accessories should not contain metallic
components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure requirements, and should be
avoided.
Road Safety
Vehicle drivers in motion are not permitted to use telephony services with handheld
devices, except in the case of emergency. In some countries, using hands-free devices
as an alternative is allowed.
Environment Restrictions
Do not use this product at gas or refueling stations. The use of this product is also
prohibited in fuel storehouses, chemical plants, and locations containing explosives.

8
Safety for Environments
Do not use this product in gas stations, fuel depots, chemical plants or where blasting
operations are in progress, or in potentially explosive atmospheres such as fueling
areas, below deck on boats, fuel or chemical transfer or storage facilities, and areas
where the air contains chemicals or particles, such as grain, dust, or metal powders.
Please be aware that sparks in such areas could cause an explosion or fire resulting in
badly injury or even death.
Explosive Atmospheres
When in any area with a potentially explosive atmosphere or where flammable materials
exist, the product should be turned off and user should obey all signs and instructions.
Sparks in such areas could cause an explosion or resulting in bodily injury or even
death. Users are advised not to use the equipment at refueling points such as service or
gas stations. Users are reminded of the need to observe restrictions on the use of radio
equipment in fuel depots, chemical plants or where blasting operations are in progress.
Areas with a potentially explosive atmosphere are often, but not always, clearly marked.
These include fueling areas, below desk on boats, fuel or chemical transfer or storage
facilities, and areas where the air contains chemicals or particles, such as grain, dust, or
metal powders.

9
Chapter 1
Voice Command Satellite Navigation
1.1 Navigation Device Installation
1. GPS Phone 600: Slide into the GPS Holder.
2. Car Charger: When GPS Phone 600 is low on power, recharge by
connecting one end to the car cigarette lighter/12 volt power outlet and
the other end to the socket on base of the GPS Holder.
3. Car Mount/Holder
Attention:
The GPS signal receiver is built into the GPS Phone 600. If car windscreen has
heat reflective metallic film, or the GPS Phone 600 is obstructed by other
objects, reception of the GPS signals may be affected.

10
1.2 GPS Navigation Software Installation
Please refer to the Ostia User Manual for instructions on installing and operating Ostia
Navigation software.
1.3 Conditions for Using GPS Car Navigation
By using this system you are agreeing to the following conditions:
♦When using this device, please use the included car mounting. Affix device
securely to the car mount. Please note that installation in the areas shown below
can be dangerous.
♦Please set navigation destination before driving. Do not operate the controls on this
system while driving. The responsibility for safe driving rests with you.
♦GPS positioning is limited by weather and usage location (tall buildings, tunnels,
underpasses, trees, bridges). Most GPS do not work indoors, nor can GPS signals
penetrate buildings, car sun shades and heat reflective film with metallic content.
Please use your GPS where it has a clear view of the sky.
♦The GPS system is built and operated by the U.S. Department of Defense which is
also responsible for its maintenance and calibration. Any changes made by them
may affect the operation and accuracy of the GPS system.
1. Do not place where it will obstruct driver vision.
2. Do not place over air bag.
3. Do not place where it can not be securely attached.
4. Do not place in path of activated air bag.

11
♦Wireless devices (mobile phones, speed radar detectors) may interfere with the
satellite signal and cause unreliable signal reception.
♦The GPS position fix is provided for your reference and should not affect actual
driver behavior.
♦The electronic map data provided in the navigation system is for reference only and
not intended for high precision applications. You should determine your exact
location based on actual road conditions.
♦When not in use, please do not leave the device inside the car. If exposed directly
to sunlight, the battery may overheat and cause damage to this device. This may
endanger the vehicle as well.

12
Chapter 2
Getting Started
2.1 Package Contents

13
2.2 External Views
1. Volume control keys
2. Screen orientation / record hot key
3. Earphone and microphone jack
4. Hot key for Ostia
5. Cell Phone speaker
6. Today Screen hot key
7. Left LED
♦WLAN active LED (Orange)
♦Bluetooth active LED (Blue,
blinks once)
♦GPS active LED (Blue,
blinks twice)
8. Right LED
♦Power charging LED (Red)
♦Cell phone active LED (Green)
9. Touch screen
10. Left Soft-Key
11. Right Soft-Key
12. Send button
13. End button
14. Navigation button.
Press the center of the button
to set as launch key.
15. Micro SD Slot
16. Microphone
17. Mini USB port
18. Stylus holder.
Slide the stylus out of the
holder. This is a two-stage
push-pull stylus.
19. Power button
20. Reset button
21. Camera shutter
22. Built-in camera lens / preview
mirror
23. Hidden antenna for cell phone
24. Speaker
25. Back cover. Battery is inside.

14
Hardware Hot Key Functions
Hardware
Button Short Press (Press once and release)
Long Press
(Press for a few
seconds and
release)
1 ♦Adjust volume
♦Zoom in/out during camera mode
N/A
2 Change screen orientation Voice recording
3 Hot key for Ostia N/A
4 Connect to Today Screen N/A
5 Connect to Phone/dial/redial/answer N/A
6 Left Soft-Key:
Soft-keys on the left.
To perform the command / function shown
above the button at the bottom of the screen
display.
N/A
7 Right Soft-Key:
Soft-keys on the right.
To perform the command / function shown
above the button at the bottom of the screen
display.
N/A
8 ♦Hang up during call
♦Disconnect during GPRS connection
♦Skip to Today’s screen while in other
programs.
N/A
9 ♦Power Button = open or close screen
♦Power Button + Reset Button = Cold boot
N/A
10 Reset Button N/A
11 Camera N/A

15
Rear Side
Installing the SIM Card
1. Insert the SIM card into the
SIM card slot with its golden
contacts facing down. Refer to
the picture on the right.
Installing the Battery
1. Insert the battery. Refer to the
picture on the right.
2. To keep the battery in place, push
the lock switch up. To take out the
battery, first pull the lock switch
down. Refer to the picture on the
right.

16
2.3 Using the GPS Phone 600 for the First Time
Charging Power and Power Supply
a. Connect the AC adapter plug to any household power outlet.
b. Connect the other plug from the AC adapter to the USB port. The
GPS Phone 600 starts to charge automatically.
c. If you need to connect GPS Phone 600 and a desktop computer,
connect the USB cable to the USB port on the GPS Phone 600
and connect the other end of the USB cable to the USB port on
the desktop computer. Your GPS Phone 600 will also charge at
the same time.
1. Remove the back cover. (If you are opening this product for the first time, the
main battery and the GPS Phone 600 are packed separately inside the product
package.)
2. Install the main battery properly and lock the battery securely (install the SIM card
first if you want to use the phone functions).
3. Connect the AC adapter to any household power outlet and connect the cord from
the AC adapter to the mini-USB port on the GPS Phone 600.

17
4. Cold Boot: Press and hold the “Power Button” with one hand, and use the stylus
tip to press the “Reset Button” with the other hand. Release the “Power Button”
and the “Reset Button” at the same time. Wait for the GPS Phone 600 to restart
and follow the instructions on the screen to complete screen alignment.
5. It will take about 8 hours to fully charge the battery the first time. Subsequent
charging will only take about 3 hours. After charging, you can disconnect the AC
Adapter and carry the GPS Phone 600 with you. To maintain reliable operation
charge the power regularly. View the battery icon on the upper right corner to
check the power usage condition.
6. The LED indicator on the upper left of the GPS Phone 600 displays the WLAN,
Bluetooth and GPS status.
WLAN Active Bluetooth Active GPS Active
Orange LED flashes Blue LED blinks once
every 4 seconds
Blue LED blinks twice
every 4 seconds
7. The LED indicator on the upper right of the GPS Phone 600 indicates the
charging status, cell phone status, and notices.
Charging Fully charged Insufficient power
Red LED lights up
Red LED goes off
Green LED lights up
Red LED flashes
Phone is on Caution or Warning
Green LED flashes Orange LED flashes
