Phase-Tech POWER LUX PL-10s User manual

POWER LUX DSP SUBWOOFER
OWNER’S MANUAL: PL-10s, PL-12s, PL-10p and PL-12p
Thank you for choosing Phase Technology®speakers.
We know there are a wide variety of choices available
today, and we sincerely appreciate your purchase of
our product. Phase Technology speakers are built to
exacting standards and will provide many years of
listening enjoyment.
Our speakers are the result of over ve decades of
designing and manufacturing. We hold many key
patents in loudspeaker technology including the
soft-dome tweeter. Our mission, our passion is to
constantly advance the art and science of accurate
audio reproduction. Our dedication ensures your new
speakers will accurately reproduce all the impact,
detail, and delicacy of today’s digital technology.
Regardless of application, serious audiophile
listening or home theater, we recommend that you
take the time to read this manual thoroughly before
connecting speakers to your amplier or receiver.
In the highly unlikely event that you should experience
a problem with set-up or operation, please contact
one of our authorized dealers for assistance, or
contact us directly.
• 325-Watt RMS, 750-Watt Peak Power
Integrated Amplier
• 10” or 12” Long Throw Mica-Graphite Poly Cone
with NBR Surround
• Sealed or 3” Ported Enclosure
• Signal Sensing Auto Turn On/Off
• Level and Phase Control
• 5 band Manual EQ
• Variable Crossovers
• Stereo LFE Inputs
• Stereo Line Outputs with Wide Range and
Subwoofer Mode Congurations
• Audio Control through MSE Sound Application
Phase Technology Corporation
13720 W. 109th Street
Lenexa, KS 66215
913.663.5600
www.mseaudio.com
[e-mail]
[INTRODUCTION] [FEATURES]
SAFETY INSTRUCTIONS .............................................. 2
GETTING STARTED & PRECAUTIONARY NOTES ....... 3
SUBWOOFER PLACEMENT .......................................... 3
HOOKING UP YOUR
POWER LUX DSP SUBWOOFER ..................................4
AMPLIFIER SETUP AND BASS MANAGEMENT .......... 5
SUBWOOFER AMPLIFIER PANEL ................................ 6
CARING FOR YOUR SPEAKERS .................................. 7
MAINTENANCE AND SERVICE .................................... 7
TROUBLESHOOTING ................................................... 7
WARRANTY .................................................................. 8
SPECIFICATIONS .......................................................... 9

[SAFETY INSTRUCTIONS]
CAUTION: To reduce the risk of electric shock, do not
remove cover (or back). No user-serviceable parts inside.
Refer servicing to qualied service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Explanation of Graphical Symbols
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert you to the presence of un-insulated
dangerous voltage within the product’s
enclosure that may be of sufcient magni-
tude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert you to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
1. Read Instructions - All the safety and operating instruc-
tions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instruc-
tions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions - All operating and other instructions
should be followed.
5. Water and Moisture - The appliance should not be used
near water - for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming
pool, etc.
PORTABLE CART WARNING
6. Carts and Stands - The appliance should
be used only with a cart or stand that is
recommended by the manufacturer.
7. Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
8. Ventilation - The appliance should be
situated so that its location or position does not interfere with
its proper ventilation. For example, the
appliance should not be situated on a bed, sofa, rug, or simi-
lar surface that may block the ventilation openings; or placed
in a built-in installation, such as a bookcase or cabinet that
may impede the ow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat
sources such as radiators, stoves, or other appliances that
produce heat.
10. Power Source - The appliance should be connected to
a power supply only of the type described in the operating
instructions or as marked on the appliance.
11. Power Cord Protection - Power supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed up or against them, paying particular at-
tention to cords at plugs, convenience receptacles, and the
point where they exit from the appliance.
12. Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
13. Nonuse Periods - The power cord of the appliance
should be unplugged from the outlet when left unused for a
long period of time.
14. Object and Liquid Entry - Care should be taken so
that neither objects fall nor liquids spill into the inside of the
appliance.
15. Damage Requiring Service - The application should be
serviced by qualied service personnel when:
a. The power supply cord or the plug has been damaged
b. Objects have fallen onto or liquid has been spilled into
the appliance
c. The appliance has been exposed to rain
d. The appliance does not appear to operate normally
or exhibits a marked change in performance
e. The appliance has been dropped or the
cabinet damaged.
16. Servicing - The user should not attempt to service the
appliance beyond those means described in the operating
instructions. All other servicing should be referred to
qualied service personnel.
17. Grounding or Polarization - Precautions should be
taken so that the grounding or polarization means of an
appliance is not defeated.
APPLICABLE FOR USA, CANADA OR WHERE
APPROVED FOR USAGE
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE PLUG TO WIDE SLOT, INSERT FULLY.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRESE ET POUSSER JUSQU
AU FOND.

POWER LUX DSP SUBWOOFER
For proper connection and therefore full enjoyment of your new Phase Technology speakers, we encourage
you to read this Owner’s Manual thoroughly, even if you are very familiar with installing speakers and home
entertainment equipment.
Speaker placement is very subjective. Placement follows the guidelines for the developers of multi-channel
home entertainment systems, yet is also guided by personal preferences. The proper spacing, location and
adjustment of front, rear, and center-channel speakers as well as subwoofers are critical for complete
enjoyment of your new speakers. This manual covers these topics thoroughly.
Before connecting your new speakers or other system components, turn the system power off and unplug
your amplier to avoid any possibility of damage from power surges or unbalanced loads before the system
is properly connected.
Observe speaker polarity carefully! Every cable, speaker terminal and amplier connection are clearly marked to
show their positive (+) and negative (-) polarities. For ideal system performance, always connect the positive side
of the cable (marked with a stripe, color and /or other indicator) to the positive terminals on your speakers and
amplier and the negative side of the cable to the negative terminals.
Amplier selection is critical to your enjoyment of your new speakers. If you are considering upgrading your
current component amplier or multi-function receiver, we suggest purchasing as much power as your budget
can afford. It will always be preferable to have an affordable high-powered model with fewer “bells and whistles”
than a lower-powered model straining to operate near its power limits.
High volume settings that produce audible distortion – indicating an under-powered amplier – could eventually
damage your speakers and your amplier.
Begin and end listening sessions at low volume levels so you will not power up your system the next time with
possibly harmful high voltages. A damaging surge also could result if you change the input source (from FM
tuner to CD player, for example) at high volume levels.
If you suspect that one channel of your amplier has failed, have it repaired immediately by your dealer. Damage
to your speakers could occur if you switch between the good and defective channels.
[SUBWOOFER PLACEMENT]
Subwoofer placement is less critical, because the frequencies they reproduce are omni directional. This means
the human ear doesn’t perceive these low frequencies as coming from a specic direction, enabling placement
of a subwoofer virtually anywhere in the listening room.
It’s best, however, to keep a subwoofer within the sound eld of the other speakers. The closer the subwoofer is
to a wall, the louder and more intense its bass output will be: this effect is even stronger when the sub is placed
in or near a room’s corner. If using two subwoofers, start by placing them next to the front left and right speak-
ers, in both front corners or one in the corner and one 1/3 of the way along the front wall from the corner. Each
room is different. Experiment with these options or try other locations until you get the best results. If you must
choose a less-than-ideal position, the output level of Phase Technology powered subwoofers is adjustable to
compensate for your listening environment.
[GETTING STARTED AND
PRECAUTIONARY NOTES]

WIRED DIRECT INPUT CONNECTION SETUP
Two RCA and two XLR inputs are offered on the rear panel of the subwoofer. Most A/V receivers and proces-
sors are equipped with a “Subwoofer Out” or “Pre-Amp Out” connection. Run a dedicated RCA or XLR inter-
connect cable from the “SUB OUT” terminal on your receiver or amplier to either the left or right “LINE IN”
terminal on the subwoofer. For more input sensitivity, connect both “SUB OUT” terminals on your receiver or
amplier to both the left and right “LINE IN” terminals. If there is only one “SUB OUT” terminal, connect to both
the left and right “LINE IN” terminals using a “Y connector.
[HOOKING UP YOUR POWER LUX DSP SUBWOOFER]
Special note: Turn off and unplug your amplier before connecting speakers.
Special Note: Observe Speaker Polarity Carefully!
Every cable, speaker, and amplier is clearly marked to show their positive (+) and negative (-)
terminals. Amps and speakers may use some combination of these symbols and/or colors to
indicate positive (usually red) and negative (usually black or white) connections. One strand of
your cable will also be ridged and/or marked with a colored line or other indicator on the posi-
tive side. For proper polarity and, thus, ideal system performance, always connect the positive
side of the cable to the positive terminals on your speakers and amplier and the negative side
of the cable to the negative terminals.
RECEIVER
PREAMP OUT
FRONT REAR SUB OUT

WIRED DIRECT INPUT CONNECTION SETUP
Two RCA and two XLR outputs are offered on the rear panel of the subwoofer. This subwoofer comes equipped
with the ability to select your line output conguration. The two conguration modes allow for different signal
conditioning based on your target speaker. Please see the MSE Sound Application user manual for more
information on how to select the line output conguration. To use the line out feature, run a dedicated RCA or
XLR interconnect cable from the “LINE OUT” terminal(s) on your subwoofer to the “INPUT” terminal(s) on your
additional speaker.
[AMPLIFIER SETUP AND BASS MANAGEMENT]
Many audio features of the Power Lux DSP subwoofer are controlled by the MSE Sound application. This mobile
application allows for control over the level, phase, ltering, as well as a fully adjustable equalizer, and more.
Please fully review the MSE Sound application user manual for an explanation of all features.
Many home theater receivers/processors have a feature that controls how the bass is processed and delivered
to the subwoofer. It also adjusts the amount of bass signal that is sent to your satellite speakers. Look carefully
in your amplier or receiver’s instruction manual for details on how to adjust for the speaker size (sometimes
called “Speaker Setup”) for your system.
ADDITIONAL SPEAKER
INPUT

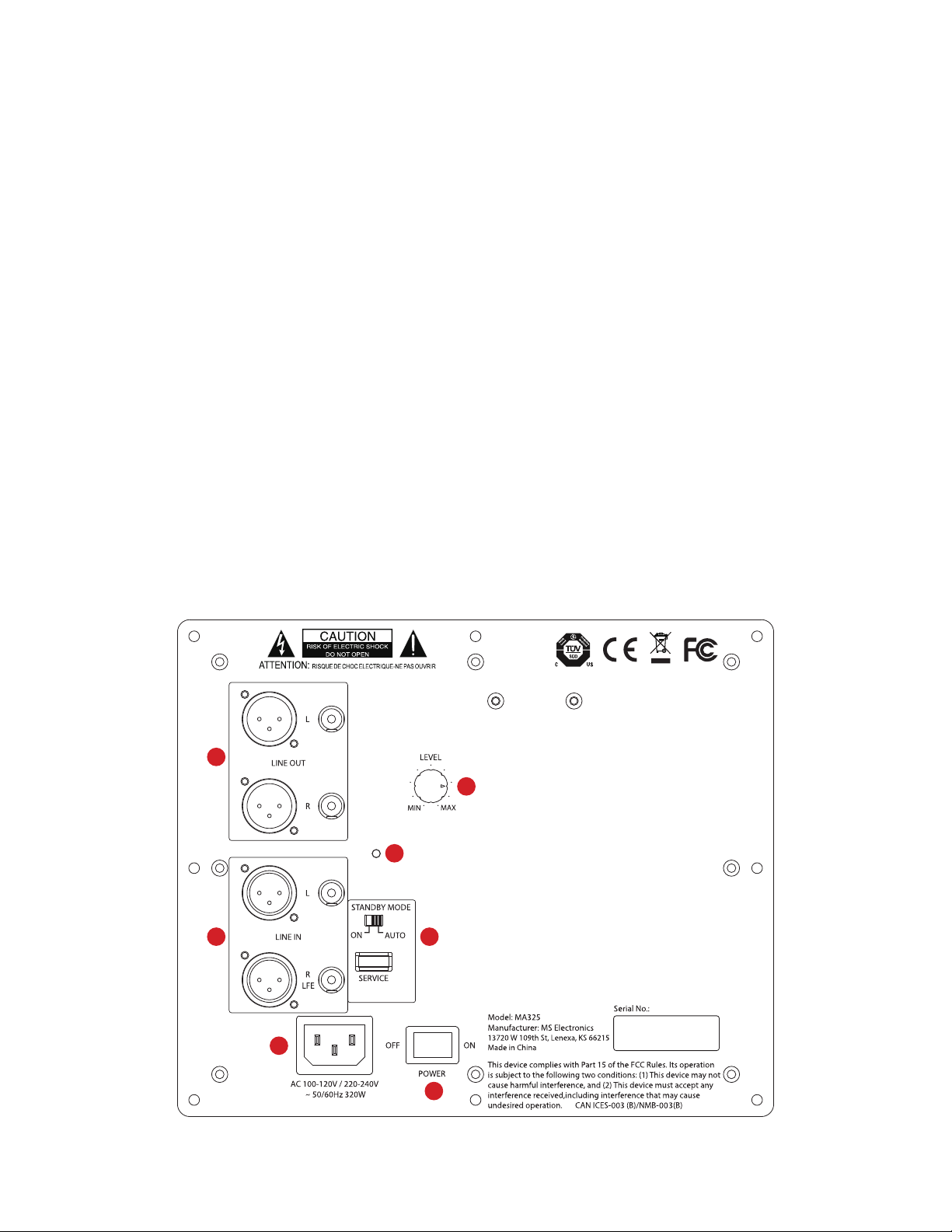

[SUBWOOFER AMPLIFIER PANEL]
1. Main Power Switch: “ON” and “OFF” switch.
2. Power Input: Connects to a standard AC power outlet with the supplied power cord. The Power Lux DSP
subwoofer is designed to adjust automatically to handle power sources of 100-240V, 50-60Hz.
3. LED Indicator: When LED is GREEN, the subwoofer is “ON” and ready to play. When LED is BLUE, the
subwoofer is connected to a mobile device through the MSE Sound application. When the LED is RED, the
subwoofer is in “STANDBY”. When the LED is ashing RED, the subwoofer is in “PROTECT”.
4. Level Control: This adjustment increases or decreases the input sensitivity, and thus the volume of the
Power Lux DSP subwoofer. It may take some experimentation to nd the best level for your system.
5. Standby Mode ON/AUTO: When this switch is left “ON”, the subwoofer will stay on until the main power
switch is turned “OFF”. When this switch is on “AUTO,” the subwoofer will go into “STANDBY” after
approximately ten (10) minutes of silence. Also, the subwoofer will automatically power on upon detection of an
audio signal. When a signal is detected, the LED will switch from RED to GREEN.
6. Line In: Using a high-quality RCA or XLR cable, connect the “SUB OUT” terminal on your receiver or
processor to the “LINE IN” terminal(s) on your Power Lux DSP subwoofer. (See wired direct input connection
setup instructions)
7. Line out: Using a high-quality RCA or XLR cable, connect the “LINE OUT” terminal(s) on your Power Lux
DSP subwoofer to the “LINE IN” terminal(s) of an additional subwoofer or wide range satellite speaker amplier.
(See wired direct output connection setup instructions)
1
2
3
56
7
4

[CARING FOR YOUR PHASE TECHNOLOGY SPEAKER]
[MAINTENANCE AND SERVICE]
[TROUBLESHOOTING]
All Phase Technology speakers are nished with a high degree of craftsmanship in either hand polished paint,
vinyl laminates or textured black nishes. We recommend using a lint-free rag with a small amount of glass
cleaner to maintain the long-lasting beauty of the nish. Avoid products containing silicones, oils, oil derivatives,
or solvents. Enclosures nished in vinyl laminates may be cleaned with a damp cloth as necessary.
Because of Phase Technology’s uncompromising quality control programs, it is unlikely that your speakers will
ever need service if connected and used as outlined in this Owner’s Manual. In the unlikely event that a problem
does occur, please contact your Phase Technology dealer. Your dealer has the necessary factory-authorized
parts and trained technicians to quickly restore your speaker to its original performance specications.
NO SOUND
1. Verify that all components are plugged in and turned on.
2. Check all speaker wires and cables for loose connections.
3. Check to see if you have selected the proper source on your amplier.
VOICES DO NOT APPEAR TO COME FROM BETWEEN THE SPEAKERS / BASS RESPONSE IS WEAK
1. Verify that all speaker connections from the amplier to the speakers are running PLUS+ to PLUS+
and MINUS- to MINUS-.
2. Check to see if there are any furnishings or plants that may be blocking the output of a speaker.
SOUND, BUT NO BASS (MOST LIKELY IN SYSTEMS WITH A SUBWOOFER)
1. Verify that the subwoofer is plugged into an AC outlet and power is turned on.
2. Check that the speaker wire / cable going from the amplier/receiver to the subwoofer is securely fastened.
3. Check the volume control of the subwoofer.
4. Refer to your amplier/receiver manual to make sure you have adjusted its bass output properly.
MUDDY OR BOOMY BASS
1. Check the volume control for the subwoofer. Excess volume can cause speakers to sound
distorted and unnatural.
2. Try adjusting the crossover control on the subwoofer or the subwoofer setup on your receiver to a
slightly lower frequency (example: reduce from 100 Hz to 80 or 60 Hz).
3. If the subwoofer or full-size speaker is close to a corner, side or back wall, try moving it away from the wall.
4. Bookshelf speakers placed in a semi-enclosed space or cabinet can articially emphasize bass output.
Reduce the bass control on your amplier or move the speakers to the front of the cabinet.
Alternatively, reposition the speakers to a more open location.
CONSTANT HUMMING SOUND FROM THE SPEAKERS
1. This problem could be caused by a ground loop condition. Inspect all signal connections for a
good ground connection.
2. If the noise persists, use a three to two prong AC adapter on the subwoofer power cable.
DISTORTED SOUND FROM THE SPEAKERS
3. This problem is usually caused by setting the volume control too high. Reduce the amplier/receiver
volume to a lower level.
4. If noise and distortion are audible at higher volume levels, your amplier may not be powerful enough.
Consider upgrading to a unit with higher power.
NOTE: Remember, even though your Phase Technology speakers can handle considerable power levels,
ANY speaker if used improperly can be damaged. Consult your Phase Technology dealer for assistance
in choosing a new amplier or receiver.

[WARRANTY]
[SPECIFICATIONS]
LIMITED WARRANTY: Phase Technology warrants its loudspeakers to be free from defects in material and
workmanship for a period of ten (10) years for speaker product, limited lifetime for CI speakers, and three (3)
years for the electronic components to the original purchaser. Purchase must be made from an authorized
Phase Technology dealer.
This warranty does not cover service or parts to repair damage caused by misuse, abuse, damage while in
transit, alterations, unauthorized repairs, failure to follow instructions, re, ood or any other cause beyond the
reasonable control of Phase Technology. Defects in speaker cabinets or grilles must be brought to the attention
of your dealer immediately after purchase. This warranty will be void if the products’ serial number has been
altered or removed.
Should your Phase Technology product require service, please call the MSE Audio customer service depart-
ment for a return authorization. All merchandise returned to Phase Technology without prior authorization will be
refused. For your return authorization number, please call 913.663.5600 or email [e-mail].
Model: PL-10s PL-12s PL-10p PL-12p
Description: 10” Sealed Subwoof-
er w/ DSP Amplier
12” Sealed Subwoof-
er w/ DSP Amplier
10” Ported Subwoofer
w/ DSP Amplier
12” Ported Subwoofer
w/ DSP Amplier
Frequency Response
(-3dB):
23Hz-300Hz 19Hz-300Hz 19Hz-300Hz 17Hz-300Hz
Amplier Power: 325 W Continuous,
750 W Peak
325 W Continuous,
750 W Peak
325 W Continuous,
750 W Peak
325 W Continuous,
750 W Peak
Max SPL
(RMS/PEAK):
103dB/114dB 109.5dB/120.5dB 104dB/115dB 110.5dB/120.5dB
Driver: 10” Long Throw
Mica-Graphite Poly
Cone w/ NBR Sur-
round
12” Long Throw
Mica-Graphite Poly
Cone w/ NBR Sur-
round
10” Long Throw
Mica-Graphite Poly
Cone w/ NBR Sur-
round
12” Long Throw
Mica-Graphite Poly
Cone w/ NBR Sur-
round
Filtering: 300Hz LFE, 40Hz-
200Hz LPF, 40Hz-
200Hz Lineout HPF
300Hz LFE, 40Hz-
200Hz LPF, 40Hz-
200Hz Lineout HPF
300Hz LFE, 40Hz-
200Hz LPF, 40Hz-
200Hz Lineout HPF
300Hz LFE, 40Hz-
200Hz LPF, 40Hz-
200Hz Lineout HPF
Line Level Inputs: (2) Stereo RCA, (2)
Stereo XLR
(2) Stereo RCA, (2)
Stereo XLR
(2) Stereo RCA, (2)
Stereo XLR
(2) Stereo RCA, (2)
Stereo XLR
Outputs: (2) Stereo RCA, (2)
Stereo XLR Outputs
(2) Stereo RCA, (2)
Stereo XLR Outputs
(2) Stereo RCA, (2)
Stereo XLR Outputs
(2) Stereo RCA, (2)
Stereo XLR Outputs
Grille: Black Cloth Black Cloth Black Cloth Black Cloth
Color Options: Textured Black Textured Black Textured Black Textured Black
Dimensions: 13.875” L x 12.5” W x
12.5” H
15.625” L x 14.5” W x
15” H
17.375” L x 14.5” W x
16.5” H
18.875” L x 16” W x
18” H
Weight: 37 lbs 47 lbs 46 lbs 59 lbs
Copyright © 2023 MS Electronics, LLC. All rights reserved. MSE Audio, Phase Technology and PhaseTech are registered trademarks
and “Speakers for your Life” is a trademark of MSE Audio, Overland Park, Kansas USA. Phase Technology is part of MSE Audio®.
www.phasetech.com.
www.mseaudio.com | 13720 W. 109th Street | Lenexa, KS 66215 | 913.663.5600 | [e-mail]
