PheeNet WAP-654G User manual

IEEE802.11b/g High Power
Wireless AP/Bridge
User‘s Manual WAP-654G, WAP-654GP
Ver. 1.1
http://www.gblmedia.com

2
Table of Contents
Table of Contents .......................................................................................................... 2
Package Contents .......................................................................................................... 4
Introduction ................................................................................................................... 5
Specification…………………………………………………………………………...7
Getting Started............................................................................................................. 10
Setup Wizard ............................................................................................................. 15

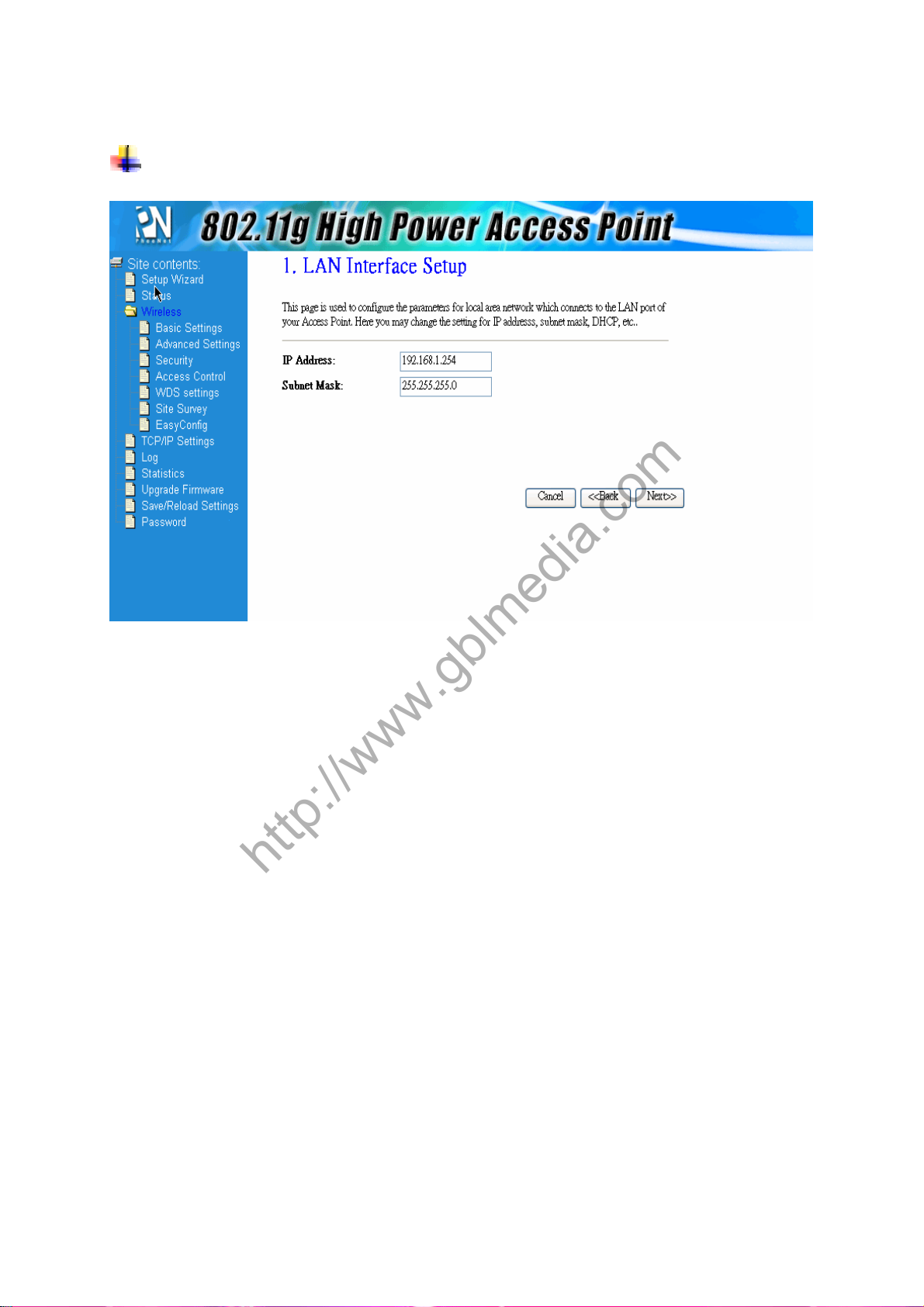

LAN Interface Setup…………………………………………………………….16
Wireless Basic Setting…………………………………………………………...17

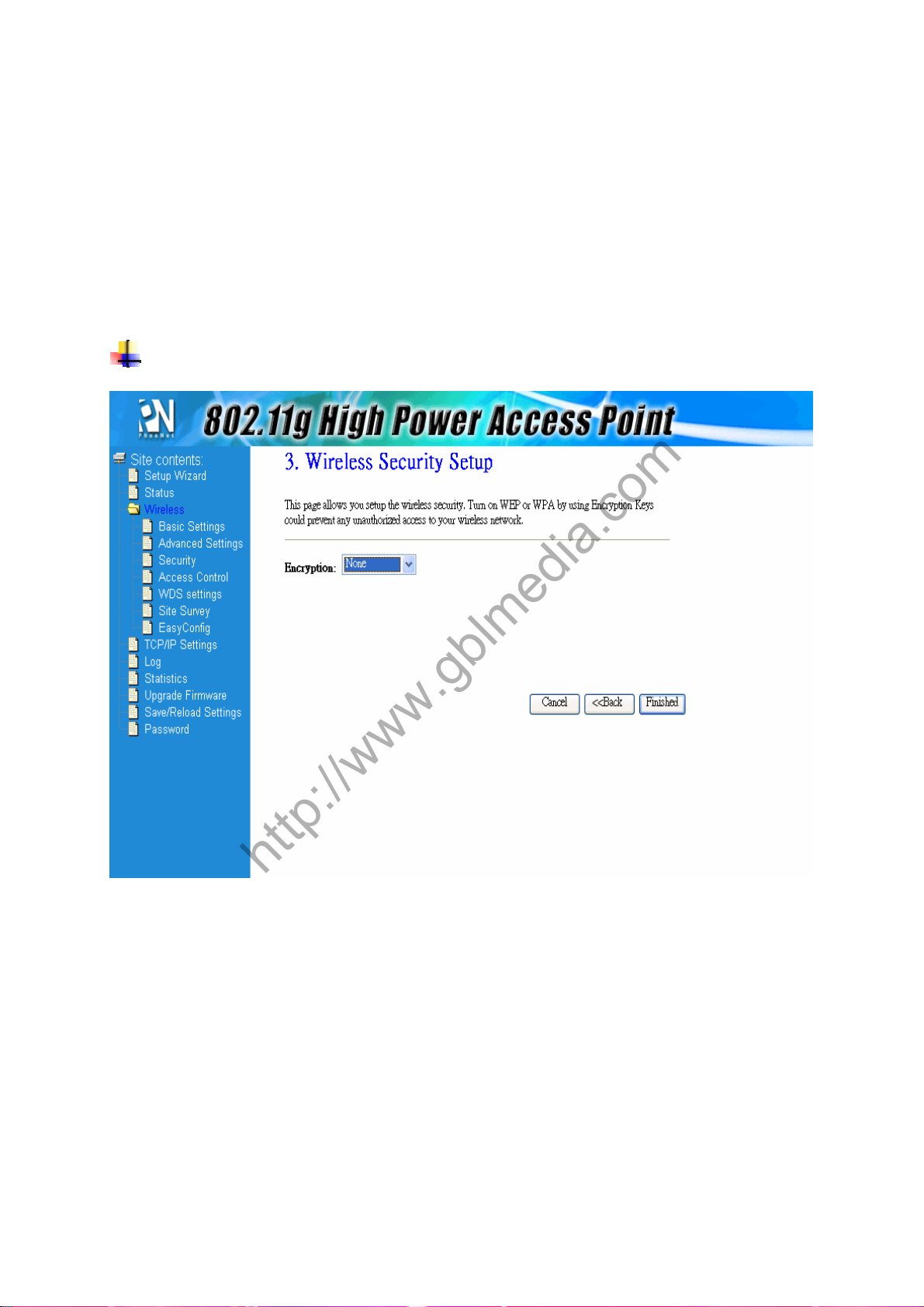

Wireless Security Setup………………………………………………………….20
Status………………………………..………………………………………………..21
Wireless………………………………………………………………………………22
Wireless Basic Setting..................................................... ………………………22
Wireless Advance Setting……………………………………………………….26
Wireless Security Setup…………………………………………………………28
Wireless Access Control………………………………………………………...35
WDS Setting…………………………………………………………………….38
Site Survey………………………………………………………………………40
Easy Config……………………………………………………………………..41
TCP/IP setting……………………………………………………………………….44
Lan Interface Setup……………………………………………………………...44
802.1d Spanning Tree…………………………………………………………...47
Log…………………………………………………………………………………....48
Statics.................................................................................................................... …..52
Upgrade firmware…………………………………………………………………..53
Save/Reload Settings…………………………………………………………..........54
http://www.gblmedia.com

3
Password…………………………………………………………..............................55
Trouble Shooting……………………………………………………………….…. .56
http://www.gblmedia.com

4
Package Contents
The standard package of the system includes:
zWireless High Power AP/Bridge x 1
zPower Core x 1
z2dBi Antenna x 1
zCAT.5 UTP x 1
zCD-ROM x 1
Note: Using a power supply with a different voltage than the one included with the High
Power Bridge will cause damage and void the warranty for this product.
http://www.gblmedia.com

5
Introduction
PheeNet WAP-654GP covers a large operating distance, providing a 802.11b/g High Power
WLAN which enables users to access the Internet or an organization’s network.
At up to five times the speed of previous wireless devices, you can work faster and more
efficiently, increasing productivity. With the PheeNet WAP-654GP, bandwidth-intensive
applications like graphics or multimedia will benefit significantly because large files are able
to move across the network quickly.
PheeNet WAP-654GP is suitable for manufacturing plants, industrial sites, military bases,
universities, hotels, airports and golf courses.
PheeNet WAP-654GP simultaneous AP and Bridge operations for backhaul applications.
Configurable in four different modes (access point, bridge, multi-point bridge, and wireless
client), PheeNet WAP-654GP offers 128-bit encryption, WPA and 802.1X authentication when
used with a RADIUS server, MAC address access control, and additional security features.
PheeNet WAP-654GP are based on industry standards to provide easy-to-use and compatible
high-speed wireless connectivity within your home, business or public access wireless
networks. PheeNet WAP-654GP wireless products will allow you to access the data you want,
when and where you want it. You will be able to enjoy the freedom that wireless networking
brings.A Wireless Local Area Network (WLAN) is a computer network that transmits and
receives data with radio signals instead of wires. WLANs are used increasingly in both home
and office environments, and public areas such as airports, coffee shops and universities.
Innovative ways to utilize WLAN technology are helping people to work and communicate
more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure
have proven to be beneficial for many users. Wireless users can use the same applications
they use on a wired network. Wireless adapter cards used on laptop and desktop systems
http://www.gblmedia.com

6
support the same protocols as Ethernet adapter cards. People use WLAN technology for many
different purposes:
Mobility - Productivity increases when people have access to data in any location within the
operating range of the WLAN. Management decisions based on real-time information can
significantly improve worker efficiency.
Low Implementation Costs - WLANs are easy to set up, manage, change and relocate.
Networks that frequently change can benefit from WLANs ease of implementation. WLANs
can operate in locations where installation of wiring may be impractical.
Installation and Network Expansion - Installing a WLAN system can be fast and easy and
can eliminate the need to pull cable through walls and ceilings. Wireless technology allows
the network to go where wires cannot go - even outside the home or office.
Inexpensive Solution - Wireless network devices are as competitively priced as conventional
Ethernet network devices. We can save money by providing multi-functionality, configurable
in one of three different modes.
Scalability - WLANs can be configured in a variety of ways to meet the needs of specific
applications and installations. Configurations are easily changed and range from Peer-to-Peer
networks suitable for a small number of users to larger Infrastructure networks to
accommodate hundreds or thousands of users, depending on the number of wireless devices
deployed.
PheeNet WAP-654GP Wireless Access Point utilizes the , 802.11b and the 802.11g standards.
The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the
maximum wireless signal rate of up to 54Mbps within the 2.4GHz band, utilizing OFDM
technology. This means that in most environments, within the specified range of this device,
you will be able to transfer large files quickly or even watch a movie in MPEG format over
your network without noticeable delays. This technology works by transmitting high-speed
digital data over a radio wave utilizing OFDM (Orthogonal Frequency Division Multiplexing)
http://www.gblmedia.com

7
technology. OFDM works by splitting the radio signal into multiple smaller sub-signals that
are then transmitted simultaneously at different frequencies to the receiver. OFDM reduces
the amount of crosstalk (interference) in signal transmissions. The PheeNet WAP-654GP will
automatically sense the best possible connection speed to ensure the greatest speed and range
possible. PheeNet WAP-654GP offers the most advanced network security features available
today, including WPA and WPA2. In addition to its compatibility with 802.11g devices,
PheeNet WAP-654GP is compatible with 802.11b devices. This means that if you have an
existing 802.11b network, or a network with a mixture of 802.11g, and 802.11b, the devices
in that network will be compatible with the PheeNet WAP-654GP.
802.1x: Authentication which is a first line of defense against intrusion. In the authentication
process, the Authentication Server verifies the identity of the client attempting to connect to
the network. Unfamiliar clients would be denied access.
Features
1. 4 Operation Modes : AP, Client, WDS, AP+WDS
2. Support AP/Bridge Mode simultaneously
3. Fully Backwards Compatible with all 802.11b Wireless Network
4. 54Mbps, Up to 5X Faster than 802.11b Products
5. Support 200mW High Power
6. Support Power Over Ethernet (WAP-654GP)
7. Wireless Distribution System(WDS) when running in Repeater mode
8. Maxmum Wireless Security with 802.1x, WPA, and AES
Specification
Industrial Standard
Standard IEEE 802.11g
http://www.gblmedia.com

8
IEEE 802.11b
IEEE 802.11
IEEE 802.3u 100Base-TX Fast Ethernet
ANSI/IEEE 802.3 N-way Auto-Negotiation
Interface 100/10 Base-TX (RJ-45) x 1
Security - 802.1x, WEP,WPA TKIP, WPA2 AES/Mixed mode for PSK
-WDS supported with WEP,TKIP and AES encryption
- Wireless access control by MAC address (deny or accept)
RF
Frequency Band 2.412~2.472 GHz ISM band
Signal Type & Modulation 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK)
802.11b : DSSS(CCK, DQPSK,DBPSK)
Antenna Detachable Antenna (Reverse SMA Connector)
Output Power 200mW
Transmit Power Variation 802.11g : Up to 21 dBm
802.11b : Up to 23 dBm
Sensitivity 802.11b
1Mbps: -91dBm, 2Mbps: -90dBm, 5.5Mbps:-89dBm,
11Mbps:-87dBm
802.11g
6Mbps:-84dBm, 9Mbps:-82dBm, 12Mbps:-79dBm,
18Mbps:-77dBm, 24Mbps:-75dBm, 36Mbps:-73dBm,
48Mbps:-70dBm, 54Mbps:-68dBm
Channels By Country (IEEE802.11d)
Operating Mode AP Mode : 802.11b/g Access Point(AP)
WDS Mode: Repeater
AP+WDS Mode : P2P, PTMP,
Client Mode :
Ad-Hoc and infrastructure mode
Support Radius client used in client mode
Support site survey scan and manual connect
Support MAC Clone
Management Web configuration
Hardware
POE Splitter of POE Built-in ( WAP-654GP )
http://www.gblmedia.com

9
Base Platform RTL8186
Clock Speed 180 MHz
Reset Switch Built-in Push-button momentary contact switch
SDRAM On board : 8Mbytes
Flash On board : 2Mbytes
Built-In LED Indicators Power Status always On / Blinking: while upgrading firmware
Ethernet On: Blinking: Active
Wireless Blinking : Active
Environment Operating Temperature:0~50℃
Storage Temperature:0~70℃
Humidity: 5%~95%(non condensing)
Power Supply 12 VDC, 1A input
Dimensions 112 (L) x 73(W) x 31(H) (mm)
Certificate FCC, CE
http://www.gblmedia.com

10
Wireless LAN Access Point Configuration
Getting Started
This Access Point provides web-based configuration tool allowing you to configure from
wired or wireless stations. Follow the instructions below to get started configuration.
From Wired Station
1. Make sure your wired station is in the same subnet with the Access Point.
The default IP Address and Sub Mask of the Access Point is:
Default IP Address: 192.168.1.254
Default Subnet: 255.255.255.0
Configure your PC to be in the same subnet with the Access Point.
1a) Windows 95/98/Me
1. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2. Double-click Network icon. The Network window will appear.
3. Check your list of Network Components. If TCP/IP is not installed, click the Add button
to install it now. If TCP/IP is installed, go to step 6.
4. In the Network Component Type dialog box, select Protocol and click Add button.
5. In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click
the OK button to start installing the TCP/IP protocol. You may need your Windows CD
to complete the installation.
6. After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list
of Network Components and then click the Properties button.
7. Check each of the tabs and verify the following settings:
•Bindings: Check Client for Microsoft Networks and File and printer sharing for
Microsoft Networks.
•Gateway: All fields are blank.
•DNS Configuration: Select Disable DNS.
•WINS Configuration: Select Disable WINS Resolution.
http://www.gblmedia.com

11
•IP Address: Select Specify an IP Address. Specify the IP Address and Subnet
Mask as following example.
9IP Address: 192.168.1.1(any IP address within 192.168.1.1~192.168.1.253
is available, do not setup 192.168.1.254)
9Subnet Mask: 255.255.255.0
8. Reboot the PC. Your PC will now have the IP Address you specified.
1b) Windows XP
1: Click the Start button and select Settings, then click Network Connections. The Network
Connections window will appear.
2: Double-click Local Area Connection icon. The Local Area Connection window will appear.
3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on your list.
Select it and click the Properties button.
4: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address automatically
and Obtain DNS server address automatically as shown on the following screen.
http://www.gblmedia.com

12
5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically
from your Broadband Router’s DHCP server.
Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server
available on your LAN.
Once you’ve configured your PC to obtain an IP address automatically, please proceed to
Step 3.
1c) Windows 2000
1. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2. Double-click Network and Dial-up Connections icon. In the Network and Dial-up
Connection window, double-click Local Area Connection icon. The Local Area
Connection window will appear.
3. In the Local Area Connection window, click the Properties button.
http://www.gblmedia.com

13
4. Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.
5. In the Internet Protocol (TCP/IP) Properties window, select Use the following IP
address and specify the IP Address and Subnet mask as following.
9IP Address: 192.168.1.1 (any IP address within 192.168.1.1~192.168.1.253 is
available, do not setup 192.168.1.254)
9Subnet Mask: 255.255.255.0
6. Click OK to confirm the setting. Your PC will now have the IP Address you specified.
1d) Windows NT
1. Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2. Double-click Network icon. The Network window will appear. Select the Protocol tab
from the Network window.
3. Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not
installed, click the Add button to install it now. If TCP/IP is installed, go to step 5.
4. In the Select Network Protocol window, select the TCP/IP Protocol and click the Ok
button to start installing the TCP/IP protocol. You may need your Windows CD to
complete the installation.
5. After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of
Network Protocols and then click the Properties button.
6. Check each of the tabs and verify the following settings:
•IP Address: Select Specify an IP address. Specify the IP Address and Subnet
Mask as following example.
9IP Address: 192.168.1.1 (any IP address within
192.168.1.1~192.168.1.253 is available, do not setup 192.168.1.254)
9Subnet Mask: 255.255.255.0
•DNS: Let all fields are blank.
•WINS: Let all fields are blank.
•Routing: Let all fields are blank.
7. Click OK to confirm the setting. Your PC will now have the IP Address you specified.
2. Enter 192.168.1.254 from Web Browser to get into the Access Point’s configuration
tool.
http://www.gblmedia.com

14
3. A screen will be popped up and request you to enter user name and password. The
default user name and password is as follows.
User Name: admin
Password: admin
Enter the default user name and password, then press OK button directly.
4. You can start configuring the Access Point.
From Wireless Station
1. Make sure your wireless station is in the same subnet with the Access Point. Please
refer to the step 1 above for configuring the IP Address and Sub Mask of the wireless
station.
2. Connect to the Access Point.
The Access Point’s default ESSID is “PheeNet” and the WEP Encryption function is
disabled. Make sure your wireless station is using the same ESSID as the Access Point
and associate your wireless station to the Access Point.
3. Enter 192.168.1.254 from Web Browser to get into the Access Point’s configuration
tool.
4. Enter the user name and password and then press OK button and you are available to
configure the Access Point now.
http://www.gblmedia.com

15
Setup Wizard
The setup wizard will guide you to configure access point for first time. Please follow the
setup wizard step by step.
http://www.gblmedia.com

16
LAN Interface Setup
This page is used to configure the parameters for local area network which connects to the
LAN port of your Access Point. Here you may change the setting for IP addresss, subnet mask,
DHCP, etc.
IP Address:
The default IP address is 192.168.1.254. Assign a static IP address that is within the IP
address range of your network
Subnet Mask:
Enter the subnet mask. All devices in the network must share the same subnet mask.
http://www.gblmedia.com

17
Wireless Basic Setting
This page is used to configure the parameters for wireless LAN clients which may connect to
your Access Point.
Band:
You can select 802.11B+G for 2.4Ghz Band,802.11B for 2.4Ghz,and 802.11G for 2.4Ghz.
Mode:
You can select AP, Client, WDS, and AP+WDS mode
a). AP:
To click Apply changes button.
http://www.gblmedia.com

18
b). Client:
To click Apply changes button.: Wireless->site survey,select a AP and click Connect button
c). WDS:
There are 2 APs shall set the same Channel.
AP-1 setting as below:
“Enable WDS” is selected, then input the “Add WDS AP MAC Address(AP-2 MAC
address)”, then click the “Apply change” Button.
AP-2 setting as below:
“Enable WDS” is selected, then input the “Add WDS AP MAC Address: “(AP-1 MAC
address)”, then click the “Apply change” Button.
http://www.gblmedia.com

19
d). AP+WDS:
To click Apply changes button.
Network Type:
If you select Client Mode before,you can select Infrastructure or AD hoc type.
SSID:
Service Set Identifier (SSID) is the name designated for a specific wireless local area network
(WLAN). The SSID’s factory default setting is PheeNet. The SSID can be easily changed to
connect to an existing wireless network or to establish a new wireless network.
http://www.gblmedia.com

20
Channel Number:
Select from channels 1-11. (FCC 1-11; ETSI 1-13).
Enable MAC Clone:
AP can set on MAC Clone with Ethernet PC.
Wireless Security Setup
This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption
Keys could prevent any unauthorized access to your wireless network.
http://www.gblmedia.com
