Philips AZ1200 User manual

MAGNAVOX
AZ 1200/AZ 1205 CD Radio Cassette Recorder
Owner's Manual
Mode d'emploi
Instructive de manejo
Toll Free Help Line
Ligne d'assistance en service libre
Linea de ayuda telefonica sin cargo
800-53I-0039.

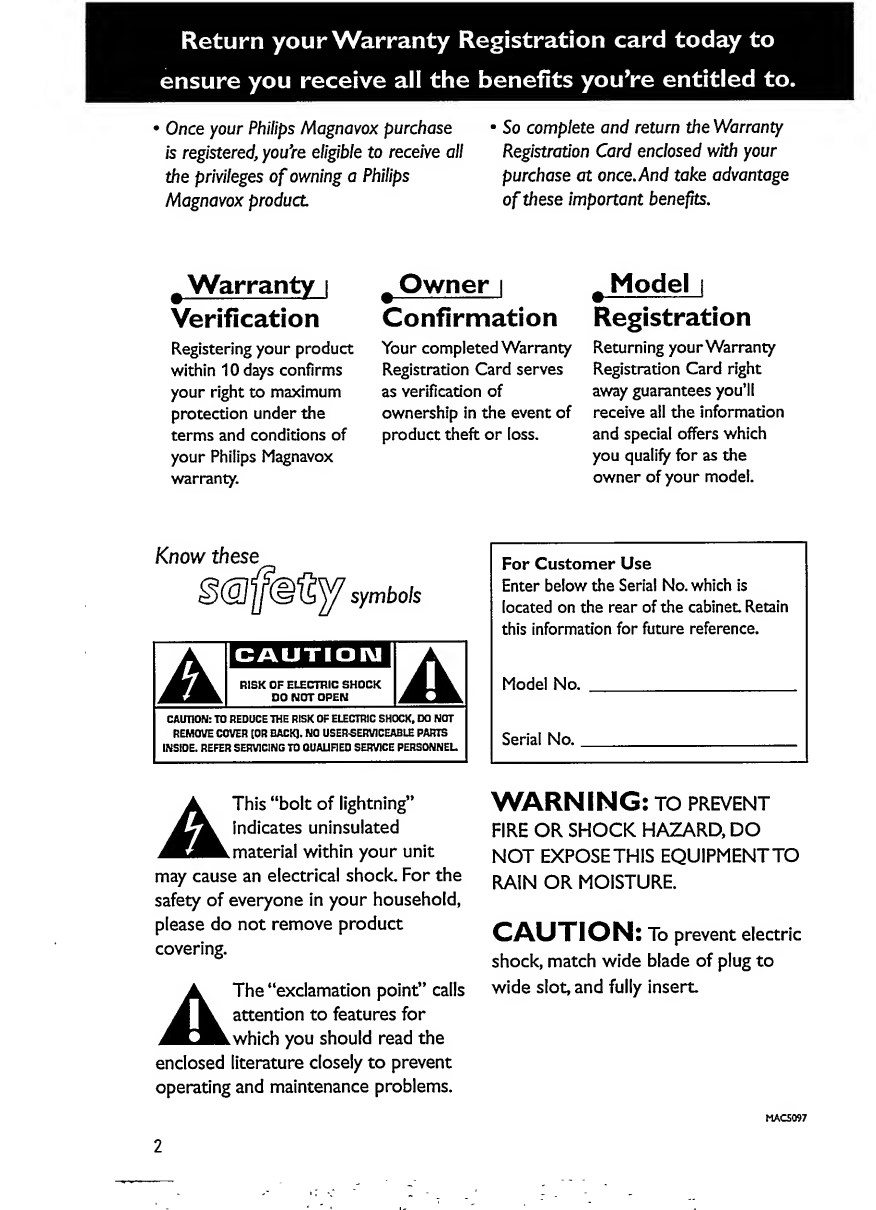

Return your Warranty Registration card today to
ensure you receive all the benefits you’re entitled to.
Once your Philips Magnavox purchase
is registered, youVe eligible to receive all
the privileges of ov/ning a Philips
Magnavox product
So complete and return the Warranty
Registration Card enclosed with your
purchase at once. And take advantage
of these important benefits.
^ Warranty i
Verification
Registering your product
within 10 days confirms
your right to maximum
protection under the
terms and conditions of
your Philips Magnavox
warranty.
^ Owner i
Confirmation
Your completed Warranty
Registration Card serves
as verification of
ownership in the event of
product theft or loss.
^ Model I
Registration
Returning your Warranty
Registration Card right
away guarantees you*ll
receive all the information
and special offers which
you qualify for as the
owner of your model.
Know these
symbols
A This “bolt of lightning”
indicates uninsulated
material within your unit
may cause an electrical shock. For the
safety of everyone in your household,
please do not remove product
covering.
The “exclamation point” calls
attention to features for
which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
MAC5097
A
CAUTIOIXI
RISK OF ELECTRIC SHOCK
DO NOT OPEN
A
CAimON: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER [OR BACKl. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUAUFIED SERVICE PERSONNEL
For Customer Use
Enter below the Serial No. which is
located on the rear of the cabinet Retain
this Information for future reference.
Model No. _
Serial No._
WARNING: to prevent
FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
CAUTION: To prevent electric
shock, match wide blade of plug to
wide slot, and fully insert.
2

English
Safety instructions.2 & 4
Introduction.5
Controls.6-7
Power supply.8
Basic functions.9
Radio.9
CD player.10-12
Cassette recorder.13-14
General information.15
Troubleshooting.16
Limited warranty.17
cn
e
UJ
Frangais
Conseils de securite... ...18-19 Lecteur de CD. ...24-26
Comandes. ...20-21 Platine cassette. ...27-28
Alimentation.
.22
Informations general...
.29
Fonctions de base 23 Recherche de pannes
30
Radio. .23 Garantie limitee. .31
Espahol
Instrucciones
sobre seguridad.32-33
Controles ..34-35
Fuente de alimentacidn.36
Funciones basicas.37
Radio.37
Reproductor CD.38-40
Grabadora.41-42
Informacion general.43
Localizacion de averias.44
Garantia limitada.45
Canada
English: This digital apparatus does not exceed the Class B limits for radio noise emis¬
sions from digital apparatus as set out in the Radio Interference Regulations of the Cana¬
dian Department of Communications.
Fran9ais: Cet appareil numerique n'emet pas de bruits radio§lectriques ddpassant les li-
mites applicables aux appareils numeriques de Classe B preserves dans le Rbglement sur
le Brouillage Radioelectrique edicte par ie Ministere des Communications du Canada.
Mexico
Es necesario que lea cuidadosamente su instructivo de manejo.
3

SAFETY INSTRUCTIONS - Read before operating equipment
This product was designed and manufactured to
meet strict quality and safety standards. There are.
however, some installation and operation precautions
which you should be particularly aware of.
1, Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
Z Retain Instructions - The safety and operating
instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance
and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use
instructions should be followed.
5. Water and Moisture - The appliance should not
be used near water«for example, near a bathtub,
washbowl, kitchen sink, laundry tub. in a wet
basement or near a swimming pool, etc.
6. Carts and Stands - The appliance should be
used only with a cart or stand that is recommended
by the manufacturer.
6A. An appliance and cart combination
■ should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance and
cart combination to overturn.
7. Wall or Ceiling Mounting - The appliance
should be mounted to a wall or ceiling only as
recommended by the manufacturer.
8. Ventilation - The appliance should be situated
so that its location or position does not interfere with
its proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings; or,
placed in a built-in installation, such as a bookcase
or cabinet that may impede the flow of air through
the ventilation openings.
9. Heat - The appliance should be situated away
from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that
produce heat.
10. Power Sources - The appliance should be
connected to a power supply only of the type
described in the operating instructions or as marked
on the appliance.
11. G r ounding or Polarization -
Precautions should be taken so
that the grounding or polarization
means of an appliance is not
defeated.
Polarized Plug
CAUTION “ To prevent electric shock, match
the wide blade of this plug to the wide slot, fully
insert. Do not use this (polarized) plug v/ith an
extension cord, receptacle or other outlet unless the
blades can be fully inserted to prevent blade
exposure.
12. P ower-Cord Protection - Power supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them, paying particular attention to cords
and plugs, convenience receptacles, and the point
where they exit from the appliance.
13. C leaning - The appliance should be cleaned only
as recommended by the manufacturer.
14. P ower Lines - An outdoor antenna should be
located away from power lines.
15. Nonuse Periods - The power cord of the appli¬
ance should be unplugged from the outlet when left
unused for a long period of time.
16. Object and Liquid Entry - Care should be taken
so that objects do not fall and liquids are not spilled
into the enclosure through openings.
17. Damage Requiring Service - The appliance
should be serviced by qualified service personnel
when:
A. The power-supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has spilled into
the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate
normally or exhibits a marked change in
performance; or
E. The appliance has been dropped, or the
enclosure damaged.
18. S er vicing - The user should not attempt to
service the appliance beyond that described in the
operating instructions. All other servicing should be
referred to qualified service personnel.
91/8 EL 4562-1
4

PHILIPS
MAK^AVOK Visit our World Wide Web Site at http://www.rnagnavox.corn
PHILIPS [SEmSSa
Congratulations on your purchase,
and welcome to the **fiimily!**
Dear Philips Magnavox product owner:
Thank you for your confidence in Philips Magnavox.\buVe selected one of the
best-built, best-backed products available today. And we’ll do everything in our
power to keep you happy with your purchase for many years to come.
As a member of the Philips Magnavox “family,” you’re entitled to
protection by one of the most comprehensive warranties and outstanding
service networks in the industry.
What’s more, your purchase guarantees you’ll receive all the information
and special offers for which you qualify, plus easy access to accessories
from our convenient home shopping network.
And most importantly you can count on our uncompromising commitment
to your total satisfaction.
All of this is our way of saying welcome-and thanks for investing in a
Philips Magnavox product.
Sincerely,
Robert Minkhorst
President and Chief Executive Officer
P.S. Remember, to get the most from your Philips Magnavox
product, you must return your Warranty Registration Card
within 10 days. So please mail it to us right now!

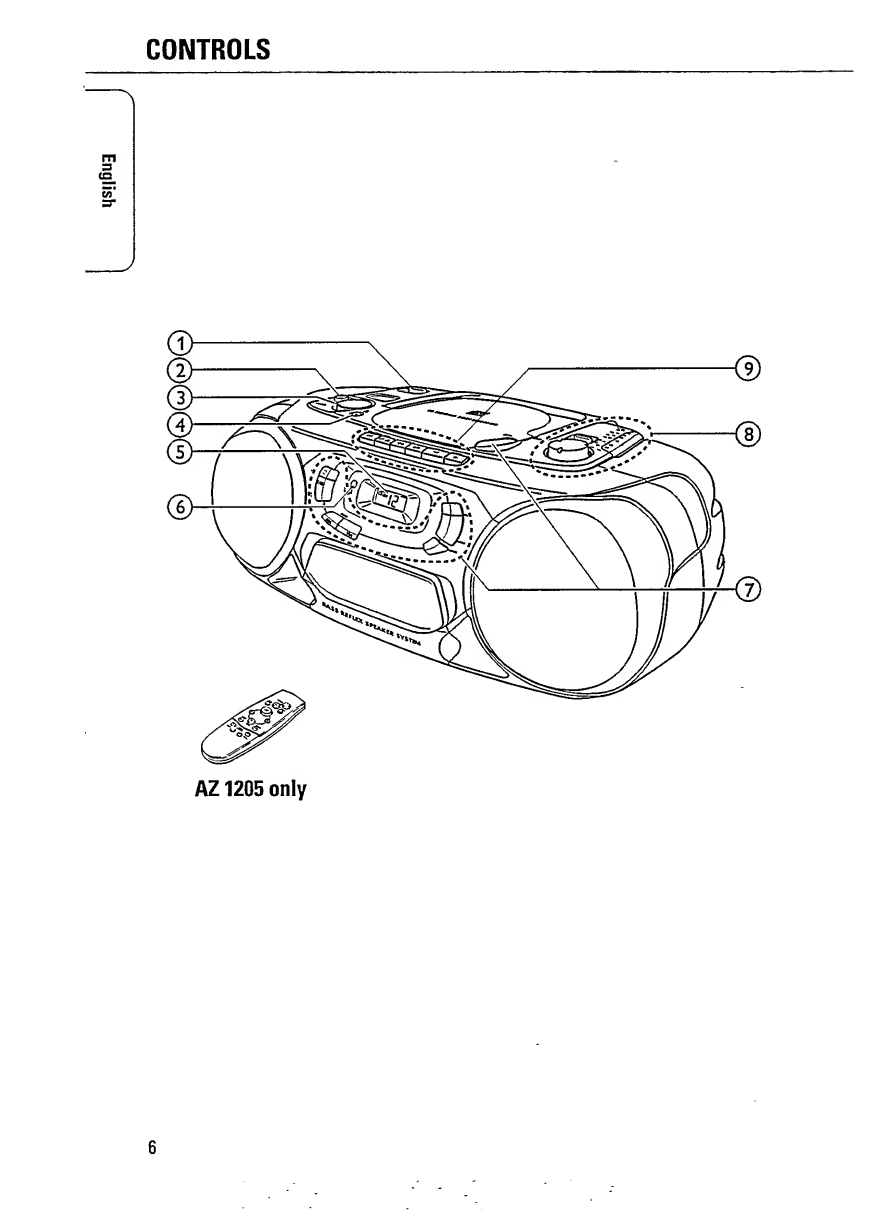

CONTROLS

CONTROLS
BASIC FUNCTIONS
(T) POWER:
CD, TUNER, TAPE...se!ects the sound source
(DDBB.enhances the bass
(D VOLUME.adjusts the volume level
@0.3.5mm headphone socket
Note: Connecting the headphones will switch
off the speakers.
(D Display
® REMOTE SENSOR-sensor for the infrared
remote control (AZ 1205
only)
@CD PLAYER
A OPEN. ...opens the CD
compartment
STOPD.
...stops CD play and erases
the program
PLAY-PAUSE >ID...starts and interrupts CD
play
SEARCH KM WH..
...skips and searches
forward and backward
PROGRAM.
...programs track numbers
and reviews the program
SHUFFLE.
...plays CD tracks in random
order
REPEAT.
...repeats a track, the entire
CD, or the program
(D RADIO
TUNING. ...tunes to radio stations
BAND.
...selects the wave band
©CASSEHE RECORDER
PAUSE DD.interrupts recording or
playback
STOP-OPEN □ A,..stops the tape and opens
the cassette compartment
SEARCH .rewinds the tape
SEARCH «.fast forwards the tape
PLAY <.starts playback
RECORD O.starts recording
REMOTE CONTROL (AZ1205 only)
VOLUME T A . decreases or increases the
volume level
SHUFFLE.plays CD tracks in random
order
REPEAT.repeats a track, the entire
CD, or the program
HI . starts and interrupts CD
play
N ► !.selects the beginning of a
current, previous or
subsequent track of a CD
■ . stops CD play and erases
the program
SEARCH ◄◄ ►► . searches backward/forward
in a CD track
Note: Tfte TUNER CONTROL keys on the remote
control have no function with this set
r
V.
7
English

English

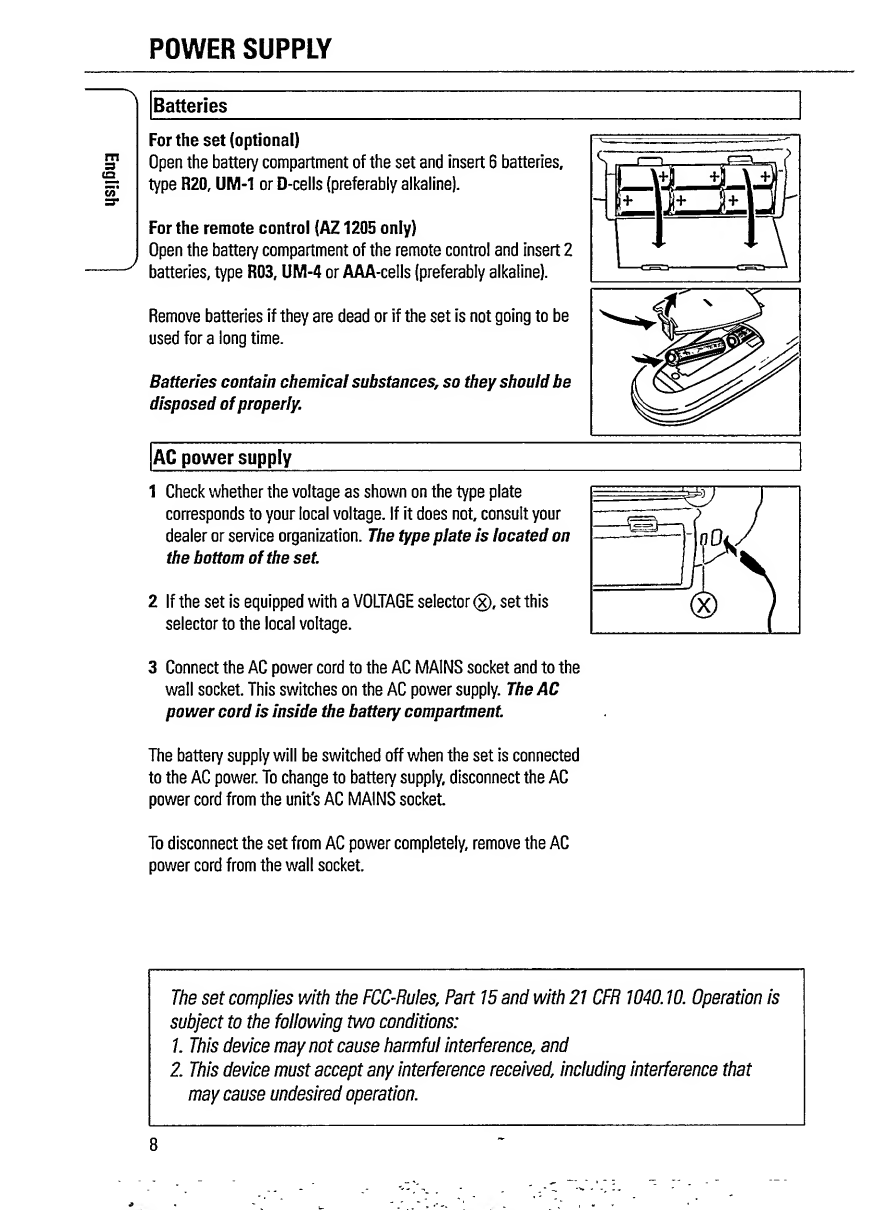

POWER SUPPLY
Batteries
For the set (optional)
Open the battery compartment of the set and insert 6 batteries,
type R20, UM-l or D-cells (preferably alkaline).
For the remote control (AZ1205 only)
Open the battery compartment of the remote control and insert 2
batteries, type R03, UIVI-4 or AAA-cells (preferably alkaline).
Remove batteries if they are dead or if the set is not going to be
used for a long time.
Batteries contain chemicai substances, so they should be
disposed of properly
AC power supply
1 Check whether the voltage as shown on the type plate
corresponds to your local voltage. If it does not, consult your
dealer or service organization. The type plate is located on
the bottom of the set
2 If the set is equipped with a VOLTAGE selector (g), set this
selector to the local voltage.
3 C onnect the AC power cord to the AC MAINS socket and to the
wall socket. This switches on the AC power supply. The AC
power cord is inside the battery compartment
The battery supply will be switched off when the set is connected
to the AC power. To change to battery supply, disconnect the AC
power cord from the unit's AC MAINS socket.
To disconnect the set from AC power completely, remove the AC
power cord from the wall socket.
The set complies with the FCC-Hules, Part 15 and with 21CFR 1040.10. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
8

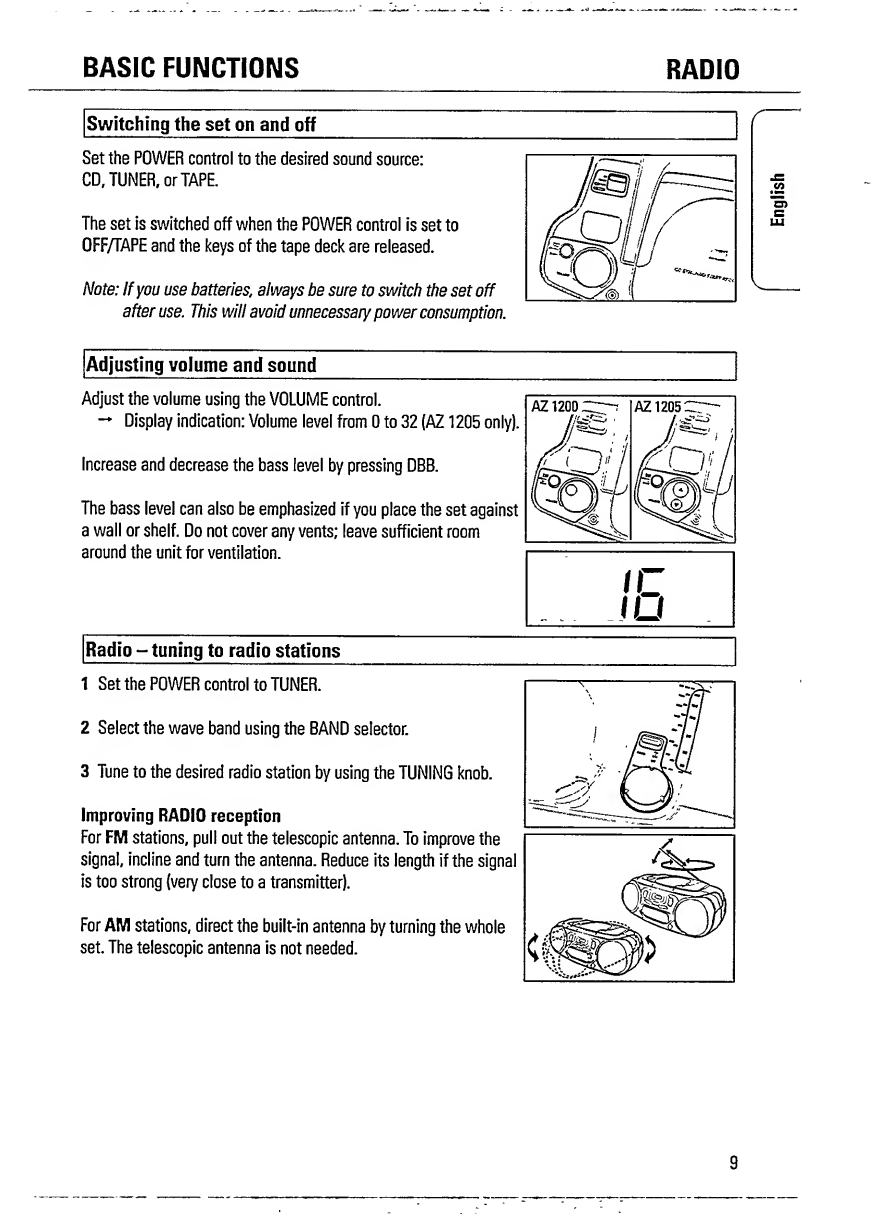

BASIC FUNCTIONS
RADIO
Switching the set on and off
Set the POWER control to the desired sound source:
CD, TUNER, or TAPE,
The set is switched off when the POWER control Is set to
OFF/TAPE and the keys of the tape deck are released.
Note: If you use batteries, always be sure to switch the set off
after use. This will avoid unnecessary power consumption.
Adjusting volume and sound
Adjust the volume using the VOLUME control.
— Display indication: Volume level from 0 to 32 (AZ1205 only).
Increase and decrease the bass level by pressing DBB.
The bass level can also be emphasized if you place the set against
a wall or shelf. Do not cover any vents; leave sufficient room
around the unit for ventilation.
Radio ~ tuning to radio stations
1 Set the POWER control to TUNER.
2 Select the wave band using the BAND selector.
3 Tune to the desired radio station by using the TUNING knob.
Improving RADIO reception
For FM stations, puli out the telescopic antenna. To improve the
signal, incline and turn the antenna. Reduce its length if the signal
is too strong (very close to a transmitter).
For AM stations, direct the built-in antenna by turning the whole
set. The telescopic antenna is not needed.
9
English

English
CD PLAYER
Playing a CD
1 Set the POWER control to CD.
2 Press A OPEN to open the CD compartment.
3 Insert an audio CD (printed side up) and close the CD
compartment.
The CD player starts and scans the contents list of the CD.
Then, the CD player stops. Display indication: the total
number of tracks.
4 Press the PLAY-PAUSE 1>DD button to start CD play.
Display indication: the current track number.
5 Press the STOP □ button to stop CD play.
Display indication: the total number of tracks.
You can interrupt CD play by pressing PLAY-PAUSE >00. Continue
CD play by pressing the button again.
Display indication: the current track number flashes.
Note: CD play will also stop if:
- you open the CD compartment
- the end of the CD is reached, or
“ you move the POWER control to TUNER or TAPE.
If you make a mistake when operating the CD player, or if the
CD player cannot read the CD, the display shows E or no. (See
"TROUBLESHOOTING".)
If you press PLAY-PAUSE >00 and there is no CD inserted, the
display shows no.
Environmental information
All redundant packing material has been omitted. We have tried to make the packaging easy to
separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your set consists of materials which can be recycled if disassembled by a specialized company
Please observe the local regulations regarding the disposal of packing materials, dead batteries
and old equipment _
10
