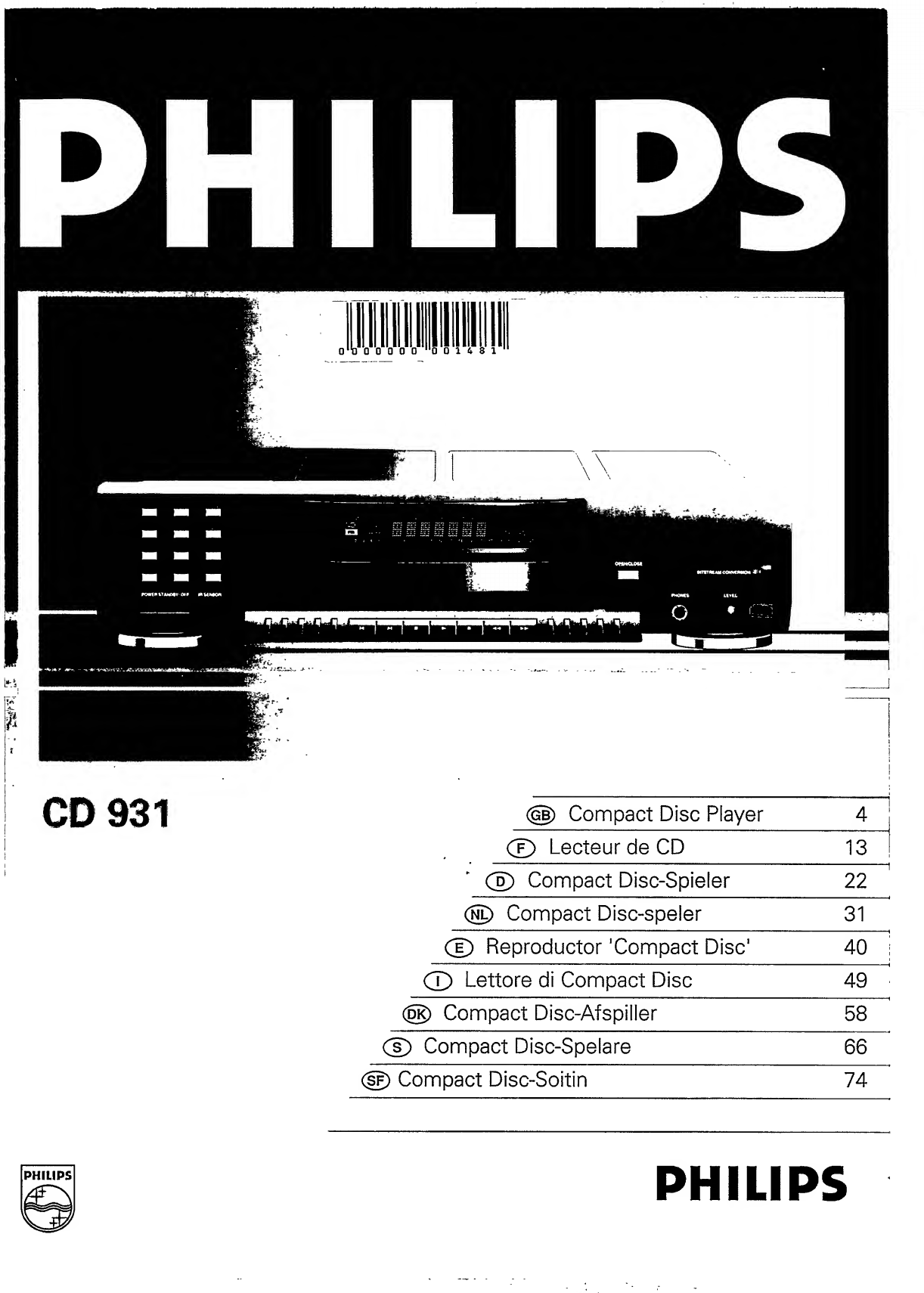

Philips CD 931 User manual

I CD 931
|
!
i
© Compact Disc Player
4
CD Lecteur de CD
13
CD Compact Disc-Spieler 22
(n£) Compact Disc-speler
31
(D Reproductor 'Compact Disc' 40
© Lettore di Compact Disc
49
(dk) Compact Disc-Afspiller
58
CD Compact Disc-Spelare
66
© Compact Disc-Soitin
74
PHILIPS
PHILIPS

@> Mexico mom
Es necesario que lea cuidadosamente su instructive de
manejo.
A
PRECAUCION - ADVERTENCIA
I NO ABRIR, RIESGO DE CHOQUE ELECTRICO 1
ATENCION
VERIFIQUE QUE EL VOLTAJE DE ALIMENTACION
SEA EL REQUERIDO PARA SU APARATO
PARA EVITAR EL RIESGO DE CHOQUE ELECTRICO, NO QUITE LA TAPA;
EN CASO DE REQUERIR SERVICIO, DIRIJASE AL PERSONAL AUTORIZADO DE PHILIPS. I
NOM
(n) Norge
Typeskilt finnes bak pa apparaten.
(aus) Australia
Guarantee and service.,......page 83
(nz) New Zealand
Guarantee and service....................page 83
o>
c
III
U>
'co
o
c
05
Xm
LL
.c
o
i/>
+-»
3
a>
a
</>
“a
c
jo
a>
T5
0)
Z
(gb) English.. -....----.-.page 4 x:
Technical data... . . . . .p age 12
(?) Francais. ..........page 13
Caracteristiques techniques... . . . . . . p a g e 21
(d) Deutsch. . . . . . S e ite 22
Technischen Daten.Seite 30
(nl) Nederlands. ......-pagina 31
Technische gegevens... .. . .. p agina 39
(?) Espanol. .pagina 40
Datos tecnicos..........pagina 48
CD Italiano. p a g i n a 49
Dati tecnici...........pagina 57
(dk) Dansk. .side 58
Tekniske data.................................. .. . . . . . s i d e 65
(D Svenska. .sida 66
Tekniska data.....................sida 73
(sf) Suomi. sivu 74
Tekniset tiedot.. s i vu 82
o
*c
co
a
V)
LU
O
c
<0
CO
</)
C
CO
Q
CO
</>
c
0)
>
O)
£
o
3
CO
3

English
<§D INSTALLATION
Thank you for selecting the Philips CD 931 Compact
Disc Player.
A Compact Disc Player of the state-of-the-art Philips 900
series, the CD 931 combines supreme playback quality with
a high degree of user-friendliness.
UNPACKING
With this player are supplied:
- a connection cable (ANALOG OUT);
- a remote control;
- batteries for the remote control;
- a cinch lead (DIGITAL OUT).
• Remove all packaging materials from the player and the
accessories.
POWER SUPPLY SETTING
• Check that the type plate on the rear of your player indicates
the correct supply voltage.
• If your mains supply voltage is different, consult your dealer
or our Service Organisation.
Certain versions of this player are equipped with a voltage
selector (4), which enables you to set the player to the correct
mains voltage yourself. When changing the voltage setting, it is
also necessary to change the mains fuse (5) to one of the
correct rating: T200 mA (slow blow fuse) for 110/127 V;
T100 mA (slow blow fuse) for 220 V - 230 V/ 230 V - 240 V.
FITTING A MAINS PLUG (U.K. only)
This apparatus is fitted with an approved moulded 13 Amp plug.
To change a fuse in this type of plug proceed as follows:
• Remove fuse cover and fuse.
• Fix new fuse which should be a BS1362 5A, A.S.T.A. or
BSI approved type.
• Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should
be cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of 5A.
If a plug without a fuse is used, the fuse at the distribution board
should not be greater than 5A.
NOTE: The severed plug must be disposed to avoid a possible
shock hazard should it be inserted into a 13A socket elsewhere .
HOW TO CONNECT A PLUG
The wires in the mains lead are coloured in accordance with the
following code: BLUE - ’NEUTRAL 1 ('N') BROWN - ’LIVE’ CL')
As these colours may not correspend with the colour markings
identifying the terminals in your plug, proceed as follows:
• The BLUE wire must be connected to the terminal which is
marked with the letter 'N' or coloured BLACK.
• The BROWN wire must be connected to the terminal which
is marked with the letter 'L' or coloured RED.
• Do not connect either wires to the earth terminal in the plug
which is marked by the letter 'E' or by the safety earth
symbol or coloured green or green-and-yellow.
Before replacing the plug cover, make certain that the cord
grip is clamped over the sheath of the lead - not simply over
the two wires.
CONNECTIONS
1 DIGITAL OUT
This output supplies a digital signal and can therefore only
be connected to an input which is suitable for this signal.
Use here the cinch lead supplied.
Never connect this socket to a non-digital input of an
amplifier, such as AUX, CD, TAPE, PHONO, etc!
2 ANALOG OUT
For the connecting cable to the amplifier.
• Insert a red plug into the ’R’ socket and the other plug into
the ’L' socket.
• Insert the two other plugs into the corresponding sockets of
the CD or AUX input of your amplifier.
You can also use the TUNER or TAPE IN connection, but
never the PHONO input!
3 ESI BUS (Enhanced System Intelligence)
For connecting up the equipment when you are incorporating
the player in a HiFi system with ESI BUS connection (e.g. the
PHILIPS 900 series).
When connecting the ESI BUS to the ESI BUS of the HiFi
system the CD player should be switched off[
4 Voltage selector (not all versions)
See Tower supply setting’.
5 Mains fuse holder (not all versions)
See Tower supply setting’.
4

OPERATION <§D
FRONT OF PLAYER
1 POWER STANDBY/OFF - Switching on and off.
2 PRG(program)
- Opening and closing the memory when compiling a
programme.
- Storing a programme in the FTS memory.
3 1-0 digit keys
- Selecting another track during play.
- Selecting a track to start play with.
- Selecting tracks when compiling a programme.
- Entering the recording time when making a tape recording.
4 CLR(clear)
- Erasing track numbers from a programme.
- Erasing favourite track selections from the FTS memory.
5 l(nfra) R{ed) SENSOR- Receives the signals from the
remote control.
6 Display - Informs you about the functioning of the player.
7 OPEN/CLOSE - Opening and closing the CD compartment.
The compartment also closes when the front is pressed
briefly.
8 PHONES - Connecting headphones.
9 LEVEL - Adjusting the volume when listening with head¬
phones.
10 REVIEW
- Checking a programme.
- Checking the PRESETS memory.
11 SHUFFLE - Playing in random order.
12 SCAN - Automatically playing the beginning of each track.
13 REPEAT - Repeating play.
14 FTS - Activating the FTS memory {FTS = Favourite Track
Selection).
15 H TRACK H
- Selecting another track during play.
- Selecting a track to start play with.
- Selecting the recording time when making a tape recording.
16 STOP/CP
- Stopping play.
- Erasing a programme (CP = Clear Programme).
17 PLAY/REPLAY
- Starting play.
- Returning to the beginning of a track.
18 PAUSE - Interrupting play.
19 ◄◄ SEARCH ►► - Fast search to a particular passage
during play.
20 PRESETS - Entering personal preferred settings.
21 EDIT
- Entering the recording time when making a tape recording.
- Entering the playing time in the TIMER EDIT mode.
22 FADER - Fading in and out during play.
23 AUTO SPACE - Automatic insertion of an extra pause
between tracks.
24 TIME - Selecting the time information you want to see.
REMOTE CONTROL
- The buttons on the remote control have the same functions
as the corresponding ones on the player;
PREV(ious) = W TRACK and NEXT = TRACK ► !.
- Extra keys:
- VOLUME +
Adjusting the sound level when the player is connected to
an amplifier or HiFi system without its own remote control.
- The life of the batteries of the remote control is around one
year. For replacement only use batteries of the type R03,
UM4 or AAA.
NOTE!
When the CD player is incorporated in a HiFi system with
ESI BUS connection the player can be operated with the
remote control of the system.
When connecting the ESI BUS of the CD player to the ESI
BUS of the HiFi system the CD player should be switched
off :
5
English

English
<§D OPERATION
"\ DISPLAY
REPEAT - Lights up when you repeat a CD or a programme.
REPEAT 1 - Lights up when you repeat a track.
(((O - Lights up when the player receives a command from the
remote control (only if no ESI BUS connection has been
made).
FTS
- Flashes after the FTS key has been pressed.
- Lights up when an FTS programme is played.
SHUFFLE - Lights up when the tracks are played in random
order.
PROGRAM
- Flashes when a programme is being compiled.
- Lights up when a programme is being played.
TRACK - Indicates:
- what track is being played;
the number of tracks on the CD or in a programme.
TRACK TIME - Indicates the elapsed playing time of the track
being played.
REM(aining) TRACK TIME - Indicates the remaining playing
time of the track being played.
TOTAL REM(aining) TIME - Indicates the remaining playing
time of the CD or a programme.
TOTAL TIME - Indicates the total playing time of the CD or a
programme.
PAUSE - Lights up when play is interrupted.
AUTOSPACE - Lights up when an extra pause is inserted
between the various tracks.
11 inn FADER .mi II- Indicates the fade-in and fade-out time.
EDIT - Lights up when the player is put into the EDIT mode.
1-20 track number indicator - Shows the number of tracks
on the CD.
+20 - Lights up when there are more than 20 tracks on the CD.
READING - Lights up when the CD's contents list is being
scanned.
LOADED - Lights up when you press STOP/CP during the
scanning of the CD's contents list.
NO DISC - Lights up when you try to start play while there is
no CD in the compartment.
ERROR - Lights up if you try to start play when the CD is inserted
with the printed side facing down or if the CD is damaged.
WRONG TRACK - Lights up if you select a non-existent track
number.
GO TO PLAT - Lights up if you try to activate a function for
which you must first start play.
GO TO STOP - Lights up if you try to activate a function for
which you must first stop play.
PLAYBACK (PLAY/REPLAY)
NOTE!
Use only audio CDs; no CD-ROM, CD-1 or CDV.
• Press POWER STANDBY/OFF to switch the player on.
• Open the CD compartment by pressing OPEN/CLOSE.
- OPEN lights up.
• Insert an audio CD, printed side up, and close the
compartment.
- CLOSE lights up, followed by READING; the number of
tracks and the playing time of the CD are shown on the display.
• Press PLAY/REPLAY to start play.
You can also press PLAY/REPLAY immediately after inserting
the CD; the compartment then closes automatically.
- The number indicator shows how many tracks are on the
CD; when a track has been played its number disappears.
- The track being played is always shown under TRACK and
its elapsed playing time is shown under TRACK TIME.
- Play will stop after the last track.
• Press POWER STANDBY/OFF to switch the player off.
You can interrupt playback by pressing PAUSE; PAUSE then
lights up. Press PLAY/REPLAY to restart; if you first press
PAUSE again and then PLAY/REPLAY, the current track starts
again from the beginning.
If you press PLAY/REPLAY during play, the current track starts
again from the beginning.
You can stop playback by pressing STOP/CP or OPEN/CLOSE.
SELECTING ANOTHER TRACK DURING PLAY (1-0)
• Key in the desired number (numbers consisting of two
figures must be keyed in within 2 seconds),
- The music stops and a moment later the selected track
begins to play.
You can also select the number by using TRACK ► ! or
W TRACK.
SEARCHING FOR A PASSAGE DURING PLAY
( ◄ ◄ SEARCH ►► )
• Hold ◄◄ down to search backwards to the beginning.
• Hold ►► down to search forwards to the end.
The searching speed is determined by how long a key is
pressed:
- the first 2 seconds fairly slowly, with sound;
- then at the maximum speed, with no sound.
If you reach the end of the last track and release play will
resume a few seconds before the end of the CD.
STARTING WITH A PARTICULAR TRACK (1-0)
• Key in the required number (numbers consisting of two
figures must be keyed in within 2 seconds).
- Play starts from the selected track.
You can also select the number by using TRACK ► ! or
K TRACK and then pressing PLAY/REPLAY.
6

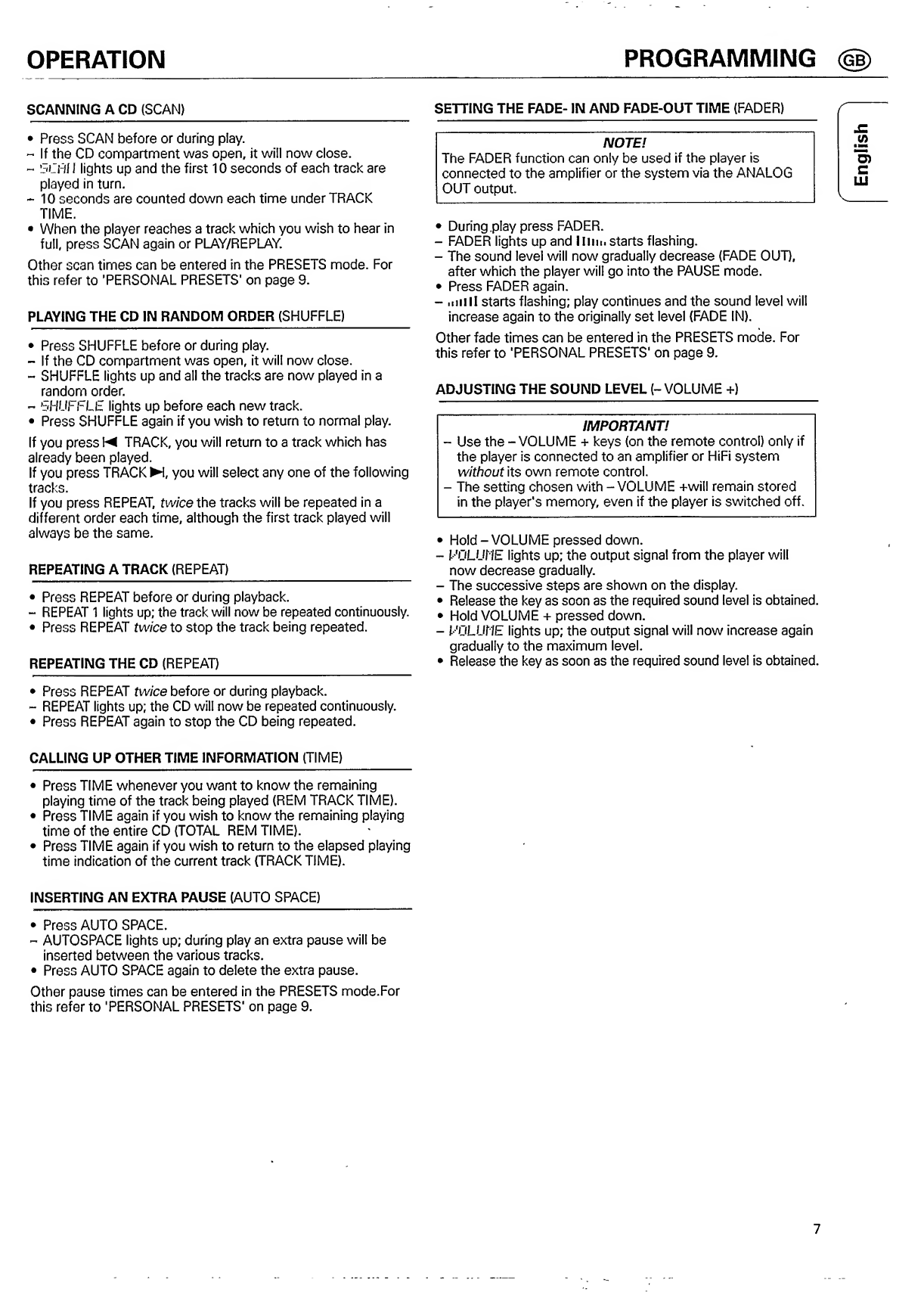

OPERATION
PROGRAMMING (gb)
SCANNING A CD (SCAN)
SETTING THE FADE- IN AND FADE-OUT TIME (FADER) f
• Press SCAN before or during play.
- If the CD compartment was open, it will now close.
~ SLrtl i lights up and the first 10 seconds of each track are
played in turn,
- 10 seconds are counted down each time under TRACK
TIME.
• When the player reaches a track which you wish to hear in
full, press SCAN again or PLAY/REPLAY.
Other scan times can be entered in the PRESETS mode. For
this refer to ’PERSONAL PRESETS' on page 9.
PLAYING THE CD IN RANDOM ORDER (SHUFFLE)
• Press SHUFFLE before or during play.
- If the CD compartment was open, it will now close.
- SHUFFLE lights up and all the tracks are now played in a
random order.
- SHUFFLE lights up before each new track.
• Press SHUFFLE again if you wish to return to normal play.
If you press K TRACK, you will return to a track which has
already been played.
If you press TRACK H, you will select any one of the following
tracks.
If you press REPEAT, twice the tracks will be repeated in a
different order each time, although the first track played will
always be the same.
REPEATING A TRACK (REPEAT)
• Press REPEAT before or during playback.
- REPEAT 1 lights up; the track will now be repeated continuously.
• Press REPEAT twice to stop the track being repeated.
REPEATING THE CD (REPEAT)
NOTE!
The FADER function can only be used if the player is
connected to the amplifier or the system via the ANALOG
OUT output.
• During play press FADER.
- FADER lights up and 11iin. starts flashing.
- The sound level will now gradually decrease (FADE OUT),
after which the player will go into the PAUSE mode.
• Press FADER again.
- .mill starts flashing; play continues and the sound level will
increase again to the originally set level (FADE IN).
Other fade times can be entered in the PRESETS mode. For
this refer to 'PERSONAL PRESETS' on page 9.
ADJUSTING THE SOUND LEVEL (- VOLUME +)
IMPORTANT!
- Use the - VOLUME + keys (on the remote control) only if
the player is connected to an amplifier or HiFi system
without its own remote control.
- The setting chosen with - VOLUME +wi!l remain stored
in the player's memory, even if the player is switched off.
• Hold - VOLUME pressed down.
- FOLUilE lights up; the output signal from the player will
now decrease gradually.
- The successive steps are shown on the display.
• Release the key as soon as the required sound level is obtained.
• Hold VOLUME + pressed down.
- VOLUME lights up; the output signal will now increase again
gradually to the maximum level.
• Release the key as soon as the required sound level is obtained.
• Press REPEAT twice before or during playback.
- REPEAT lights up; the CD will now be repeated continuously.
• Press REPEAT again to stop the CD being repeated.
CALLING UP OTHER TIME INFORMATION (TIME)
• Press TIME whenever you want to know the remaining
playing time of the track being played (REM TRACK TIME).
• Press TIME again if you wish to know the remaining playing
time of the entire CD (TOTAL REM TIME).
• Press TIME again if you wish to return to the elapsed playing
time indication of the current track (TRACK TIME).
INSERTING AN EXTRA PAUSE (AUTO SPACE)
• Press AUTO SPACE.
- AUTOSPACE lights up; during play an extra pause will be
inserted between the various tracks.
• Press AUTO SPACE again to delete the extra pause.
Other pause times can be entered in the PRESETS mode.For
this refer to 'PERSONAL PRESETS' on page 9.
7
English

English
<§D PROGRAMMING
FAVOURITE TRACK SELECTIONS
STORING A PROGRAMME (PROGRAMME and 1-0)
You can store 30 tracks from each CD in any required
sequence in a programme.
• In STOP mode, press PRG(program) to open the memory.
- PROGRAM lights up and PROGRAM starts flashing.
• Key in the required numbers; every number you key in will
be directly included in the programme.
- Each time you key in (= store) a track number, the number of
tracks and the playing time of your programme will be
shown under TRACK and TOTAL TIME.
- The track number indicator always shows which numbers
have been stored.
• Press PRG(program), STOP/CP or PLAY/REPLAY to quit the
PROGRAM mode.
FULL lights up if you exceed the maximum of 30 tracks.
A programme can also be stored in the player's permanent
(FTS) memory. Your favourite track selection of a given CD
can then be called up and played whenever you wish. The
selection will remain stored in the FTS memory even if you
play the entire CD or compile a different programme from it
The number of CDs which can be stored in the FTS memory
depends on the number of tracks in each programme.
NOTE!
The FTS button must always be used together with other
buttons L After pressing FTS, the message FTS PROGRAM-
F‘L A Y “ SHUFFLE - CANCEL appears on the display twice
Press the next button within the time this message is
displayed otherwise the player will go back to the STOP
mode.
CHECKING THE PROGRAMME (REVIEW)
• Press REVIEW prior to, during or after programmed play.
- REVIEW lights up.
- All the numbers appear in the programmed sequence under
TRACK.
- Under TRACK TIME you will see the playing time of each
track.
NO FROGRRM lights up if no track numbers have yet been
stored.
With REVIEW you can proceed more rapidly to the next block
of information.
PLAYING THE PROGRAMME (PLAY/REPLAY)
• Press PLAY/REPLAY.
- Playback starts with the first number of the programme.
All keys (except EDIT, PRG(program), CLR(clear), PRESETS and
FTS) can be used during programmed play.
Search for a particular passage is only possible within the track
being played.
STORING A FAVOURITE SELECTION (FTS and PROGRAM)
• Press FTS.
- FTS starts flashing.
- FTS PROGRAM - PLRY - SHUFFLE - CRNCEL appears on
the display twice.
• Press PRG(program) to open the memory.
• Compile your programme as described in the
'PROGRAMMING' section.
• Press PRG(program) again.
- FTS lights up, with next to it the ranking number of this
programme.
- The selection is now stored in the FTS memory under this
number.
NOTE!
- If a selection of a particular CD has already been stored,
then it is automatically erased and the new selection is
stored under the old ranking number.
- If NO SPACE appears, then the FTS memory is full you
must erase one or more old FTS programmes to make
room to store the new programme.
ERASING A PROGRAMME (STOP/CP or OPEN/CLOSE)
• Press STOP/CP twice or, if the CD has already stopped, just
once; you can also press OPEN/CLOSE straight away.
- The programme has now been erased.
ERASING A TRACK FROM THE PROGRAMME (CLEAR)
• Press REVIEW before or after programmed play (STOP
mode).
- REVIEW lights up.
- All the numbers appear in the programmed sequence under
TRACK.
• Press CLR(clear) as soon as the number you wish to erase
appears.
- The number disappears from the number indicator; it has
now been erased.
- The display shows the remaining programme time for a few
seconds.
FTS PROGRAMMED PLAY (FTS and PLAY/REPLAY)
• Press FTS.
- FTS starts flashing.
- FTb FRUbRRM “ PLA Y ~ SHUFFLE - CANCEL appears on
the display twice.
• Press PLAY/REPLAY.
- The chosen selection will now be played.
• Press STOP/CP twice if you wish to revert to normal play.
If NO FTS FROGRRM appears, no favourite selection has
been stored.
All keys (except EDIT, PRG(program), CLR(clear), PRESETS and
FTS) can be used while a favourite selection is being played.
Search for a passage is only possible in the track which is
being played.
8

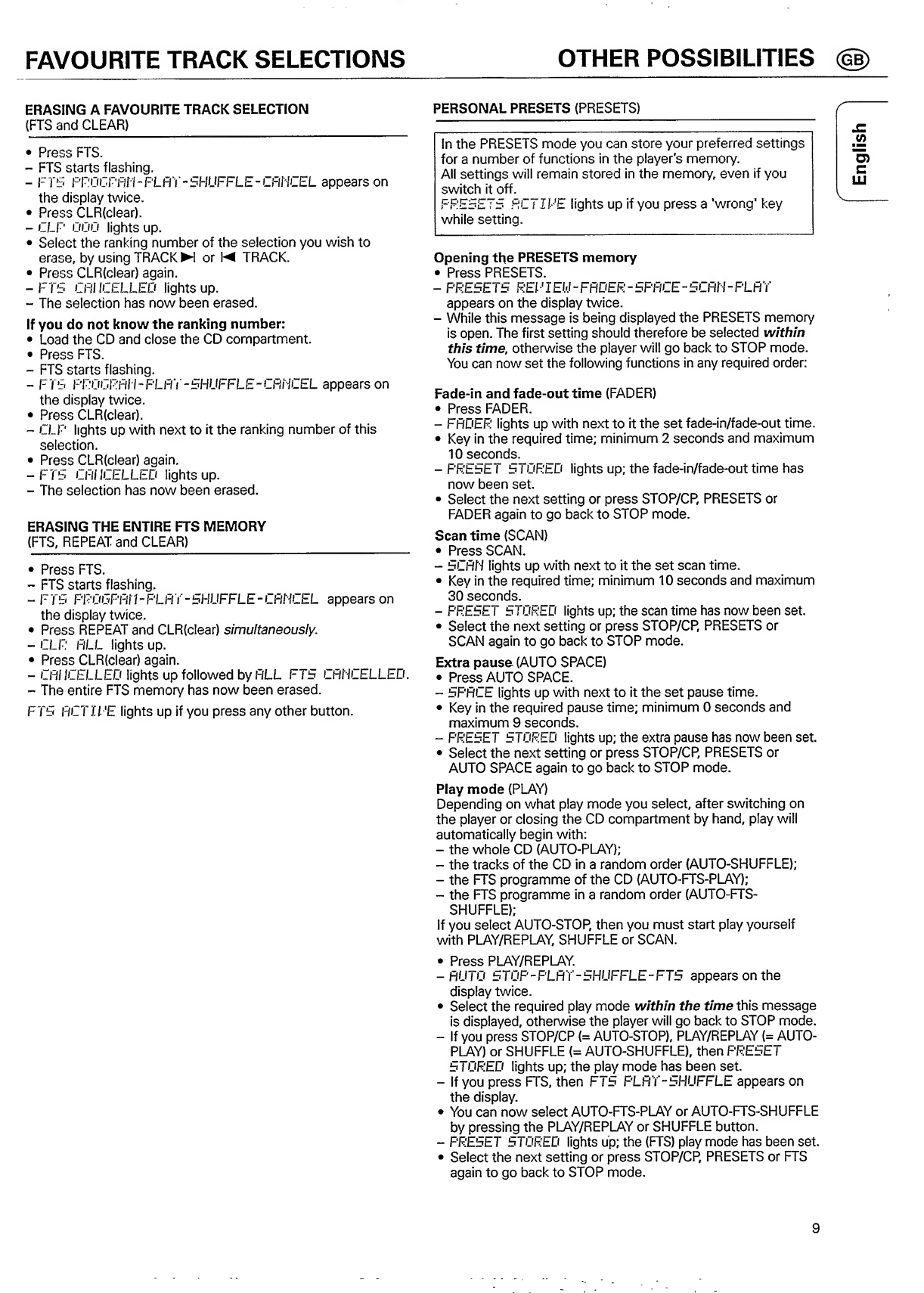

FAVOURITE TRACK SELECTIONS
OTHER POSSIBILITIES @>
ERASING A FAVOURITE TRACK SELECTION
(FTS and CLEAR)
• Press FTS.
- FTS starts flashing.
- FTS PROGRAM - PL A V - SHUFFLE - CANCEL appears on
the display twice.
• Press CLR(clear).
- CLP OOO lights up.
• Select the ranking number of the selection you wish to
erase, by using TRACK ► ! or ! ◄ TRACK.
• Press CLR(clear) again.
- FTC Chi /CELLED lights up.
- The selection has now been erased.
If you do not know the ranking number:
• Load the CD and close the CD compartment.
• Press FTS.
- FTS starts flashing.
- FTC PROGRAM - FLfiV - SHUFFLE - lFiNCEL appears on
the display twice.
• Press CLR(clear).
- CLP lights up with next to it the ranking number of this
selection.
• Press CLR(clear) again.
-FTC CANCELLED lights up.
- The selection has now been erased.
ERASING THE ENTIRE FTS MEMORY
(FTS, REPEAT and CLEAR)
• Press FTS.
- FTS starts flashing.
-FTC PROGRAM-PLAT-SHUFFLE-CANCEL appears on
the display twice.
• Press REPEAT and CLR(cIear) simultaneously.
- CLP ALL lights up.
• Press CLR(clear) again.
- CANCELLED lights up followed by ALL FTh CANCELLED.
- The entire FTS memory has now been erased.
FTC liCTIl 'E lights up if you press any other button.
PERSONAL PRESETS (PRESETS)
r
In the PRESETS mode you can store your preferred settings
for a number of functions in the player's memory.
All settings will remain stored in the memory, even if you
switch it off.
PRESETS RETIRE lights up if you press a ’wrong’ key
while setting.
Opening the PRESETS memory
• Press PRESETS.
- PRESETS REOIEU-FRDER-SPREE-SCRH-FLOY
appears on the display twice.
- While this message is being displayed the PRESETS memory
is open. The first setting should therefore be selected within
this time, otherwise the player will go back to STOP mode.
You can now set the following functions in any required order:
Fade-in and fade-out time (FADER)
• Press FADER.
- FADER lights up with next to it the set fade-in/fade-out time.
• Key in the required time; minimum 2 seconds and maximum
10 seconds.
- PRESET STORED lights up; the fade-in/fade-out time has
now been set.
• Select the next setting or press STOP/CP, PRESETS or
FADER again to go back to STOP mode.
Scan time (SCAN)
• Press SCAN.
- SCAN lights up with next to it the set scan time.
• Key in the required time; minimum 10 seconds and maximum
30 second^.
- PRESET S I OREL) lights up; the scan time has now been set.
• Select the next setting or press STOP/CP, PRESETS or
SCAN again to go back to STOP mode.
Extra pause (AUTO SPACE)
• Press AUTO SPACE.
- SPACE lights up with next to it the set pause time.
• Key in the required pause time; minimum 0 seconds and
maximum 9 seconds.
- PRESET STORED lights up; the extra pause has now been set.
• Select the next setting or press STOP/CP, PRESETS or
AUTO SPACE again to go back to STOP mode.
Play mode (PLAY)
Depending on what play mode you select, after switching on
the player or closing the CD compartment by hand, play will
automatically begin with:
- the whole CD (AUTO-PUW);
- the tracks of the CD in a random order (AUTO-SHUFFLE);
- the FTS programme of the CD (AUTO-FTS-PLAY);
- the FTS programme in a random order (AUTO-FTS-
SHUFFLE);
If you select AUTO-STOP, then you must start play yourself
with PLAY/REPLAY, SHUFFLE or SCAN.
• Press PLAY/REPLAY.
- AU 1 0 Si OF 1 - PL A Y - h MUFFLE -FTS appears on the
display twice.
• Select the required play mode within the time this message
is displayed, otherwise the player will go back to STOP mode.
- If you press STOP/CP (= AUTO-STOP), PLAY/REPLAY (= AUTO-
PUW) or SHUFFLE {= AUTO-SHUFFLE), then PRESET
S i OR ED lights up; the play mode has been set.
- If you press FTS, then FTS PLAT-SHUFFLE appears on
the display.
• You can now select AUTO-FTS-PLAY or AUTO-FTS-SHUFFLE
by pressing the PLAY/REPLAY or SHUFFLE button.
- PRESET STORED lights up; the (FTS) play mode has been set.
• Select the next setting or press STOP/CP, PRESETS or FTS
again to go back to STOP mode.
9
English

English
<§D OTHER POSSIBILITIES
Checking the PRESETS memory (REVIEW)
As long as the player is in the PRESETS mode you can check
the PRESETS memory:
• Press REVIEW.
- PRESETS lights up; all settings will now be shown on the display.
• With REVIEW you can proceed more rapidly to the next
block of information.
- PRESETS REP I E W - FRDER - SPACE - SCAN - PLAT
appears on the display twice.
• Press STOP/CP or PRESETS again to go back to STOP mode.
EDIT
The EDIT function has two recording modes (EDIT and EDIT
OPTIMAL) and one play mode (TIMER EDIT).
In the EDIT and EDIT OPTIMAL mode you can store the
recording time of the tape in the player memory.
In the TIMER EDIT mode you can store a required playing
time.
EDIT - The player will determine which tracks fit on one
side of the tape and will stop after the last track.
EDIT OPTIMAL - The player will now make optimal use of
the available recording time by e.g. recording a track for
side B on side A if there is still some recording time left.
TIMER EDIT-Towards the end of the entered playing time
the sound level will gradually decrease according to the set
FADE time (PRESETS). If necessary, the CD or the
programme will be partly repeated to fill the entered time.
NOTE!
- The EDIT function cannot be used for CDs containing
more than 29 tracks.
- The - VOLUME + keys may not be used during recording
(EDIT and EDIT OPTIMAL) as they affect the strength of
the signal from the player.
NOTE!
- As soon as you press PLAY/REPLAY the other player
functions (except TIME and REVIEW) will temporarily be
switched off to prevent the recording being interfered
with; tDI ! RETIRE lights up if you press one of the
other buttons during play/recording.
- You can stop playback/recording by pressing STOP/CP or
OPEN/CLOSE; EDIT CANCELLED then lights up.
- Should the CD or the programme be longer than the total
recording time of the tape, play will stop after the last
track that fits onto side B of the tape.
Playback in the TIMER EDIT mode:
• Press EDIT three times (in STOP mode).
- TIMER EDIT lights up and TIMER appears on the display.
• Select the required playing time with TRACK ► ! or the 1-0
digit keys: 30 tilth 46 M IN, SONIN, 30NXN, IOOMIN
or IRQ MIN.
- The track number indicator indicates the tracks (of the CD or
the programme) which will be played during the entered
time.
• Press PLAY/REPLAY.
You can also start play by pressing SHUFFLE; the tracks will
then be played in a random order.
- Towards the end of the entered playing time the sound level
will gradually decrease. If necessary, the CD or the
programme will be partly repeated to fill the entered time.
- At the end of the fade-out time play will stop.
NOTE!
- As soon as you press PLAY/REPLAY or SHUFFLE the
other player functions (except TIME and REVIEW) will
temporarily be switched off; EDIT RCTIl '£ lights up if
you press one of the other buttons during play
- You can stop playback by pressing STOP/CP or
OPEN/CLOSE; EDIT CANCELLED then lights up.
Recording in the EDIT (OPTIMAL) mode:
• In STOP mode, press EDIT once to select the (normal) EDIT
mode or twice to select the EDIT OPTIMAL mode.
-EDIT or OPTIMAL lights up.
• With ! ◄ TRACK ► ! you can now select the required
recording time: C 50, C 46, C 60, C 30, C 100 or C 120.
Other recording times can be selected using the 1-0 digit keys.
- A lights up and the track number indicator shows which
tracks fit onto side A of the tape.
• You can now record the entire CD or a programme from it.
• Press PLAY/REPLAY.
- The numbers for side A of the tape will be played one after
the other.
- After each track the pause time set in the PRESETS mode
(AUTO SPACE) will be inserted.
- AUTOSPACE lights up.
- After the last track play will stop.
- B lights up and the track number indicator now indicates the
-tracks for side B.
• Turn the tape over.
• Press PLAY/REPLAY.
- The remaining tracks will now be played.
LISTENING WITH HEADPHONES (PHONES!
• Connect headphones with a 6.3 mm jack plug to the
PHONES socket.
• The sound level is adjusted with the LEVEL control.
10

SYSTEM ASPECTS ®
ENHANCED SYSTEM INTELLIGENCE (ESI)
It the player is connected via the ESI BUS sockets to the
ESI BUS sockets of a H 1 F 1 system (e.g. the PHILIPS 900
series), the player can be operated via the remote control of
the system. In addition, the functions mentioned below are
then accessible {if available in the system):
NOTE!
When connecting the ESI BUS to the ESI BUS of the HiFi
system the CD player should be switched off.
CD DUBBING (synchronized recording)
• Set the player to the STOP, EDIT or EDIT OPTIMAL mode.
• Press CD SYNC. (CD DUBBING) on the cassette deck.
- Playback starts but nothing is being recorded yet; you can
now adjust the recording level.
• Press PLAY on the deck.
- Recording starts and after 6 seconds play starts again at the
beginning of the CD or the programme.
- After each track the pause time set in the PRESETS mode
(AUTO SPACE) will be inserted.
- At the end of side A of the tape, play will stop; the current
track will be recorded again on side B of the tape (except
when EDIT or EDIT OPTIMAL is active).
- After the last track playback and recording will stop.
STAND BY
r
• With the STAND BY button on the remote control of the
system you can set the player to STAND BY mode.
The player will go to STAND BY mode automatically if the
whole system is set to STAND BY mode.
- If the CD compartment was open, it will now close. v
- Any programme present will be erased.
• Press any of the following buttons to cancel the STAND BY
mode:
PLAY/REPLAY, STOP/CP, SCAN, SHUFFLE, 1-0, EDIT,
OPEN/CLOSE, K TRACK K FTS, PRESETS or
PRG(program).
TIMER
• Using the TIMER function you can have playback (of a CD or
a programme) started at a particular time; for this refer to the
operating instructions of the tuner (e.g FT930).
- 11 HER CANCELLED lights up if there is no CD in the CD
compartment at the moment playback is supposed to start
or if you press any button during playback in the TIMER
mode.
NOTE!
- As soon as you start recording, the other player functions
(except TIME and REVIEW) will temporarily be switched
off to prevent the recording being interfered with;
i J t Ul HUH i i fb FiC f H ’£ lights up if you press one of the
other buttons during play/recordmg.
- You can stop playback/recording by pressing STOP/CP or
OPEN/CLOSE, CO - 0008 i i IG CPi /CELLED then lights
up
- During dubbing the volume set with - VOLUME + will be
cancelled and returned to the sound level set on the
amplifier.
The - VOLUME + keys may not be used during dubbing
as they affect the strength of the signal from the player.
- The CD DUBBING function will be cancelled if the CD
player (or the system) is set to STAND BY mode
AUTOMATIC SOURCE SELECTION
If the AUTO SELECT button on the amplifier is pressed, the
CD player will automatically be activated as soon as you press
PLAY/REPLAY, SCAN or SHUFFLE.
AUTOMATIC STOP
If the AUTO SELECT button on the amplifier is pressed, the
CD player will automatically go into the PAUSE mode as soon
as another source in the system is selected (except when
EDIT or CD DUBBING is active).
11
English

English
(gb) ADDITIONAL INFORMATION
■ \ MAINTENANCE
The CDs
• Never write on the printed side of a CD.
• Do not attach any stickers to the CD.
• Keep the shiny surface of the disc clean. Use a soft lint-free
J cloth and always wipe the disc in a straight line from centre
to edge.
• Never use cleaning agents for conventional records.
• Detergents or abrasive cleaning agents should not be used
either.
The player
• A chamois leather slightly moistened with water is sufficient
for cleaning the player.
• Do not use cleaning agents containing alcohol, spirits,
ammonia or abrasives.
FAULTS AND THEIR LIKELY CAUSES
If a fault occurs, run through the points listed below before
taking your player for repair. Check whether:
- condensation has formed on the lens of the laser due to a
dramatic change in temperature; this will disappear
automatically after some time;
- the CD has been inserted correctly with the printed side up
and that there is a CD in the compartment;
- the CD is dirty, badly scratched or warped;
- the player has been connected to the PHONO socket of the
amplifier;
- the sound level of the CD player has been set at normal
level. See 'ADJUSTING THE SOUND LEVEL' to change the
setting.
If the fault remains, try to clear it by switching the player off
and on again.
If this also fails to help, consult your dealer.
TECHNICAL DATA
Typical Audio Performance
Frequency range:... ....2 Hz-20 kHz
Amplitude linearity:....................
.0.03 dB (20 Hz - 20 kHz)
Phase linearity:. ........0.5° (20 Hz-20 kHz)
Linearity on-90dB:.
.0 dB
Dynamic range:...
.97 dB
Signal-to-noise ratio:.......
.112 dB (A-weighted)
Channel separation:.
.105 dB
Total harmonic distortion:...........
............... . 0 0018%
D/A conversion: Bitstream conversion (128 x oversampling.
1 bit, 3rd order noise shaper), in differential mode
Audio output level:..
Impedance PHONES socket:......
.8-1000 ohms
Power supply
Mains voltage and frequency: see the type plate on the rear
of the player
Power consumption:.
......................10 W approx
Safety requirements:.... .IEC 65
Cabinet
Material/finish:....metal and polystyrene with decorative trim
Dimensions (w x h x d):...
...........435 x 106 x 300 mm
Weight:....
.........................4 kg approx.
Subject to modification
This Compact Disc player complies with radio interference
requirements as laid down in EC regulations.
Under no circumstances should you repair the player
yourself as this will invalidate the guarantee!
12

(aus) Australia
(nz) New Zealand
Guarantee and Service valid for Australia
The benefits given to the purchaser by this warranty are in addition to all
other rights and remedies, which, under the Trade Practices Act or other
Commonwealth or State law, the purchaser or owner has in respect of the
product.
The Philips product carries the following warranties:
~C*series HiFi-systems 12 months.
-Compact Disc Players: 12 months.
-Home Audio Systems: 6 months.
“Clock radios, portable radios, cassette recorders, cassette players and radio
recorders: 90 days.
Any defect in materials or workmanship occurring within the specified period
from the date of delivery, will be rectified free of charge by the retailer from
whom this product was purchased.
Note: Please retain your purchase docket to assist prompt service.
Conditions of this warranty
1, All claims for warranty service must be made to the retailer from whom
this product was purchased. All transport charges incurred in connection
with warranty service or replacement will be paid by the purchaser.
2. These warranties do not cover batteries and extend only to defects in
materials or workmanship occurring under normal use of the product
where operated in accordance with our instructions.
Philips Consumer Products Division,
Technology Park
Figtroe Drive, Australia Centre
Homebush 2140,
New South Wales
Guarantee and Service for New Zealand
Thank-you for purchasing this quality Philips product.
Philips New Zealand Ltd guarantees this product against defective compo¬
nents and faulty workmanship for a period of 12 months. Any defect in
materials or workmanship occurring within 12 months from the date of
purchase subject to the following conditions will be rectified free of charge
by the retailer from whom this product was purchased.
Conditions
1. The product must have been purchased in New Zealand. As proof of
purchase, retain the original invoice or cash receipt indicating the date of
purchase.
2. The guarantee applies only to faults caused by defective components, or
faulty workmanship on the part of the manufacturer.
3. The guarantee does not cover failures caused by misuse, neglect, normal
wear and tear, accidental breakage, use on the incorrect voltage, use
contrary to operating instructions, or unauthorised modification to the
product or repair by an unauthorised technician.
4. Reasonable evidence (in the form of a sales docket or completed
guarantee card) must be supplied to indicate that the product was
purchased no more than 12 months prior to the date of your claim.
5. In the event of a failure. Philips shall be under no liability for any injury,
or any loss or damage caused to property or products other than the
product under guarantee.
This guarantee does not prejudice your rights under common law and statute,
and is in addition to the normal responsibilities of the retailer and Philips.
Howto claim
Should your Philips product fail within the guarantee period, please return it
to the retailer from whom it was purchased. In most cases the retailer will be
able to satisfactorily repair or replace the product.
However, should the retailer not be able to conclude the matter satisfactorily,
or if you have other difficulties claiming under this guarantee, please contact
The Guarantee Controller
Philips New Zealand Ltd.
BP.O. Box 41.021
Auckland
® (09)84 94160
fax [phone]
83

CD 931
3104115 2094 2
Printed in Singapore
