Philips Norelco Multigroom Pro QG3380 User manual
User manual
QG3380
1
4
Introduction
Congratulations on your purchase and welcome to
offers, register your product at www.philips.com/
welcome.

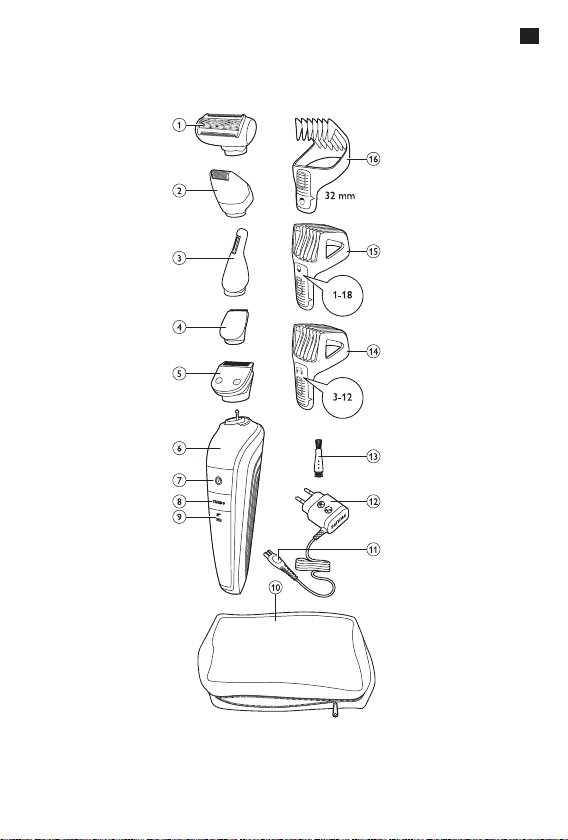

General description (Fig. 1)
1 Body shaver
2 Mini-foil shaver
3 Nose/ear hair trimmer
4 Precision trimmer
5 Full metal beard trimmer
6 Handle
7 On/off button
8 TURBO button
9 Battery status indicator
10 Storage pouch
11 Small plug
12 Adapter
13 Cleaning brush
14 Body trimming comb (3-12mm)
15 Beard and moustache comb (1-18mm)
16 Hair clipping comb (3-20mm)
Important
Read this user manual carefully before you use the
appliance and save it for future reference.
Danger
- Keep the adapter dry.
Warning
- Check if the voltage indicated on the adapter
corresponds to the local mains voltage before you
connect the appliance.
ENGLISH
- The adapter contains a transformer. Do not cut
off the adapter to replace it with another plug, as
this causes a hazardous situation.
- This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
- Keep the appliance and its cord out of the reach
of children.
Caution
- Use, charge and store the appliance at a
temperature between 5°C and 35°C.
- Only use the adapter supplied to charge the
appliance.
- If the appliance is subjected to a major change in
temperature, pressure or humidity, let the appliance
acclimatise for 30 minutes before you use it.
- If the adapter is damaged, always have it replaced
with one of the original type in order to avoid a
hazard.
- Always check the appliance before you use it. Do
not use the appliance if any of its parts is damaged
or broken, as this may cause injury.
Compliance with standards
- The appliance complies with the internationally
approved IEC safety regulations and can be safely
used in the bath or shower.
- This Philips appliance complies with all standards
properly and according to the instructions in this
user manual, the appliance is safe to use based on
ENGLISH 5
Charging
Charging takes approximately 1 hour.When the
appliance is fully charged, it has an operating time of
up to 50 minutes.When the battery status indicator
lights up orange, the battery is running low (approx.
10 minutes of operating time left) indicating you
need to recharge the appliance soon.
Note:You can also quick charge the appliance,
a 5 minute charge equals approximately 5 minutes of
operating time.
1 Switch off the appliance before you charge it.
2 Insert the small plug into the appliance.
3 Put the adapter in the wall socket.
Using the appliance
The appliance is equipped with a turbo power
boost for fast results and a memory function that
remembers the last used speed setting.
Body trimming
It is recommended to trim your body hair when it is
dry because wet hair tends to stick to the body.
Your skin also needs some time to adjust to the
procedure.
not to use the trimmer without the trimming comb.
ENGLISH6
1 Place the trimmer on the handle (1) and turn it
2 Slide the body trimming comb into the guiding
grooves on both sides of the handle.
3 Press the setting selector (1) and slide the
comb to the desired hair length setting (2).
You can choose any setting between 3 and 12mm in
steps of 1mm.
4 Switch on the appliance.
5 To trim the hair, move the trimming comb
through the hair slowly.
6
ENGLISH 7
Body shaving
You can use the body shaver wet or dry to shave
hair on all parts of the body below the neckline. Do
not use the body shaver to shave or trim facial or
scalp hair.
unit right away (see chapter ‘Replacement’).
1 Place the body shaver on the handle (1) and
2 Switch on the appliance.
3 Place the shaving foil unit on the skin.Always
make sure that the shaving foil unit is in full
contact with the skin.
4 Move the appliance slowly and against the
direction of hair growth. Press lightly.
Tip: Stretch your skin with your free hand to make the
hairs stand upright and minimise the chance of skin
irritation.
ENGLISH8
Hair clipping
Preparing for hair clipping
1 Make sure that the head of the person whose
hair you intend to cut is at the same level as
your chest.This ensures that all parts of the
head are clearly visible and within easy reach.
2 Comb the hair in the growth direction.
Hair clipping with hair clipping comb
1 Place the trimmer on the handle (1) and turn it
2 Slide the hair clipping comb into the guiding
grooves on both sides of the handle.
3 Press the setting selector (1) and slide the
comb to the desired hair length setting (2).
You can choose any setting between 3 and 20mm in
steps of 1mm.
Tip:Write down the hair length settings you selected
to create a certain hairstyle as a reminder for future
clipping sessions.
4 Switch on the appliance.
5 Move the appliance slowly and against the
direction of hair growth. Press lightly.
3 - 20
ENGLISH 9
Note: Since hair grows in different directions, you need
(upward, downward or across).
6
comb is in full contact with the scalp to obtain
an even result.
Make overlapping passes over the head to ensure
that you cut all the hair that needs to be cut.
highest setting (20mm) to familiarise yourself with the
appliance.
Hair clipping without hair clipping comb
You can use the trimmer without comb to clip hair
very close to the skin (to a length of 1mm) or to
create contours.
Caution: Be careful when you clip without the
comb because the trimmer removes every hair it
comes in contact with.
1 Press the setting selector (1) and slide the
comb upwards (2).Then pull the comb off the
appliance (3).
2 Before you start to contour the hairline around
the ears, comb the hair ends over the ears.
ENGLISH10
3 Tilt the appliance in such a way that only one
edge of the trimmer touches the hair.
Only cut the hair ends.The hairline should be close
to the ear.
4 To contour the neckline and sideburns, turn
the appliance and make downward strokes.
5 Move the appliance slowly and smoothly.
Follow the natural hairline.
Beard trimming
careful. Do not move the trimmer too fast. Make
smooth and gentle movements.
Beard trimming with the beard and
moustache comb
1 Place the trimmer on the handle (1) and turn it
2 Slide the beard and moustache comb into the
guiding grooves on both sides of the handle.
3 Press the setting selector (1) and slide the
comb to the desired hair length setting (2).
You can choose any setting between 1 and 18mm in
steps of 1mm.
ENGLISH 11
4 Switch on the appliance.
5 Slowly move the trimmer against the hair
growth direction. Press lightly and always make
sure the surface of the comb is in full contact
with the skin.
highest setting (18mm) to familiarise yourself with the
appliance.
Styling/contouring your beard
You can use the precision trimmer to cut shapes in
beard hair or scalp hair. It cuts hair very close to the
skin (to a length of 1mm).
Caution: Be careful when you use the precision
trimmer because it removes every hair it comes in
contact with.
1 Place the precision trimmer on the handle (1)
2 To achieve a good cutting result, move the
precision trimmer against the direction of
hair growth.Always make sure the precision
trimmer is in full contact with the skin.
3 Make careful and controlled movements with
the precision trimmer.
ENGLISH12
Grooming facial hair (nose and ear hair)
Trimming nose hair
1 Place the nose/ear hair trimmer on the handle
2 Make sure your nostrils are clean.
3 Switch on the appliance and insert the tip of
the trimmer into one of your nostrils.
Do not insert the tip more than 0.5cm into your
nostril.
4 Slowly move the tip in and out while turning it
round at the same time to remove unwanted
hair.
To reduce the tickling effect, make sure that you
Trimming ear hair
1 Place the nose/ear hair trimmer on the handle
2 Clean the outer ear channel. Make sure it is
3 Switch on the appliance and move the tip softly
round the ear to remove hairs that stick out
beyond the rim of the ear.
4 Carefully insert the tip into the outer ear
channel.
Do not insert the tip more than 0.5cm into the ear
channel as this could damage the eardrum.
ENGLISH 13
Cleaning
Never use compressed air, scouring pads, abrasive
cleaning agents or aggressive liquids such as petrol
or acetone to clean the appliance.
Note:The appliance does not need any lubrication.
Clean the appliance after each use.
1 Make sure the appliance is switched off and
disconnected from the mains.
2 Remove any comb and/or attachment from the
appliance.
3 Blow and/or shake out any hair that has
accumulated in the attachments and/or combs.
4 Clean the attachments, the combs and the
appliance under a lukewarm tap or with the
cleaning brush.
5 Clean the adapter with the cleaning brush or a
dry cloth.
Keep the adapter dry.
Cleaning the mini-foil shaver
1 After each use, pull the top part of the mini-foil
shaver off the bottom part.
The shaving foil is very delicate. Handle it carefully.
If the shaving foil is damaged, do not use the mini-
foil shaver anymore.
Do not clean the shaving foil with the
cleaning brush, as this may cause damage.
ENGLISH14
2 Blow and/or shake out any hair that has
accumulated inside the mini-foil shaver.
3 Clean the top part of the mini-foil shaver under
a lukewarm tap.
Cleaning the body shaver
1 After each use, pull the shaving foil unit out of
the body shaver.
The shaving foil is very delicate. Handle it carefully.
If the shaving foil is damaged, do not use the body
shaver anymore.
Do not clean the shaving foil with the
cleaning brush, as this may cause damage.
2 Blow and/or shake out any hair that has
accumulated inside the body shaver.
3 Clean the body shaver and the shaving foil unit
under a lukewarm tap.
ENGLISH 15
Storage
Store the appliance and attachments in the storage
pouch to prevent damage, or store it on the storage
stand.
Ordering accessories
To purchase accessories for this appliance, please
visit our online shop at www.shop.philips.com/
service. If the online shop is not available in your
country, go to your Philips dealer or a Philips service
for your appliance, please contact the Philips
If the adapter is damaged, always have it replaced with
one of the original type in order to avoid a hazard.
Only replace damaged or worn attachments or
combs with original Philips replacement attachments
or combs.
Shaving foil unit of body shaver
If you use the body shaver frequently, replace the
shaving foil unit of the body shaver (type number
TT2000) every year. Replace a damaged shaving foil
unit immediately.To replace the shaving foil unit:
1 Pull the shaving foil unit off the body shaver.
2 Snap the new shaving foil unit onto the body
shaver.
ENGLISH16
Environment
- Do not throw away the appliance with the normal
household waste at the end of its life, but hand
doing this, you help to preserve the environment.
- The built-in rechargeable battery contains
substances that may pollute the environment.
Always remove the battery before you discard
collection point for batteries. If you have trouble
removing the battery, you can also take the
appliance to a Philips service centre.The staff of
this centre will remove the battery for you and
will dispose of it in an environmentally safe way.
Removing the rechargeable battery
Only remove the rechargeable battery when you
discard the appliance. Make sure the battery is
completely empty when you remove it.
Be careful, the battery strips and housing parts are
very sharp.
1 Make sure the appliance is disconnected from
the mains.
2 Remove the attachment.
3 Remove the front cover of the appliance with a
front cover and back cover.
4 Remove the back cover of the appliance from
the inner.
ENGLISH 17
5
area and apply force to separate the inner.
6 Unhook the snap hooks on both sides of the
inner.
7
printed circuit board.
8
rechargeable batteries.
9 Cut the wires to separate the rechargeable
batteries and the printed circuit board from
the appliance.
10 Cut or snap off the battery tabs to separate
the rechargeable batteries from the printed
circuit board.
Guarantee and service
If you need service or information or if you have a
problem, please visit the Philips website at
www.philips.com/support or contact the Philips
there is no Consumer Care Centre in your country,
go to your local Philips dealer.
ENGLISH18
19
Introduktion
Tillykke med dit køb og velkommen til Philips! For at
få fuldt udbytte af den support, Philips tilbyder, skal
du registrere dit produkt på www.philips.com/
welcome.
1 Bodyshaver
2 Minifolieshaver
3 Næse-/ørehårstrimmer
4 Præcisionstrimmer
5 Skægtrimmer i metal
6 Håndgreb
7 On/off-knap
8 TURBO-knap
9 Batteristatusindikator
10 Opbevaringsetui
11 Lille stik
12 Adapter
13 Rensebørste
14 Kropstrimmekam (3-12 mm)
15 Kam til skæg og overskæg (1-18 mm)
16 Hårklipperkam (3-20 mm)
Vigtigt
Læs denne brugsvejledning omhyggeligt igennem,
inden apparatet tages i brug, og gem den til
eventuelt senere brug.
Fare
- Hold adapteren tør.
Advarsel
- Kontrollér, om den angivne netspænding på
adapteren svarer til den lokale netspænding, før du
slutter strøm til opladeren.
DANSK
- Adapteren indeholder en transformer. Adapteren
må ikke klippes af og udskiftes med et andet stik,
da dette vil forårsage en farlig situation.
- Dette apparat er ikke beregnet til at blive brugt af
personer (herunder børn) med nedsatte fysiske
og mentale evner, nedsat følesans eller manglende
erfaring og viden, medmindre de er blevet vejledt
eller instrueret i apparatets anvendelse af en
person, der er ansvarlig for deres sikkerhed.
- Hold apparatet og ledningen uden for børns
rækkevidde.
Forsigtig
- Brug, oplad og opbevar altid apparatet ved en
temperatur mellem 5°C og 35°C.
- Apparatet må kun oplades med den medleverede
adapter.
- Hvis apparatet udsættes for store temperatursving-
ninger, tryk eller fugtighed, skal du lade det akklima-
tisere sig i 30 minutter, inden det tages i brug.
- Hvis adapteren beskadiges, skal den altid udskiftes
med en original adapter af samme type for at
undgå en farlig situation.
- Kontroller altid apparatet, før du bruger det.
Undlad at anvende apparatet, hvis en del er
beskadiget eller i stykker, da det kan medføre
personskade.
Overholdelse af standarder
- Produktet opfylder de internationale IEC-
sikkerhedsregler og kan uden risiko bruges i
kar- eller brusebad.
- Dette Philips-apparat overholder alle
standarder for elektromagnetiske felter (EMF).
Ved korrekt anvendelse i overensstemmelse
med instruktionerne i denne brugervejledning
er apparatet sikkert at anvende ifølge den
videnskabelige viden, der er tilgængelig i dag.
DANSK20
Other manuals for Norelco Multigroom Pro QG3380
1
This manual suits for next models
1
Table of contents
Languages:
Other Philips Electric Shaver manuals
Philips
Philips PQ217 User manual
Philips
Philips Prestige S9000 User manual
Philips
Philips S7000 series User manual
Philips
Philips SP9871 User manual
Philips
Philips HQ664/17 User manual
Philips
Philips QG3340 User manual
Philips
Philips AT887 User manual
Philips
Philips HC9490/15 User manual
Philips
Philips PT919 User manual
Philips
Philips OneBlade QP2531 User manual
Philips
Philips NORELCO NT9105 User manual
Philips
Philips HQ5890/75 User manual
Philips
Philips QC5380 User manual
Philips
Philips QC5570/40 User manual
Philips
Philips Norelco G390 User manual
Philips
Philips Bodygroom TT2021/32 User manual
Philips
Philips Sensotec HQ8 User manual
Philips
Philips Beard Trimmer QT4020/10 User manual
Philips
Philips NORELCO S7371 User manual
Philips
Philips HQ40 User manual
