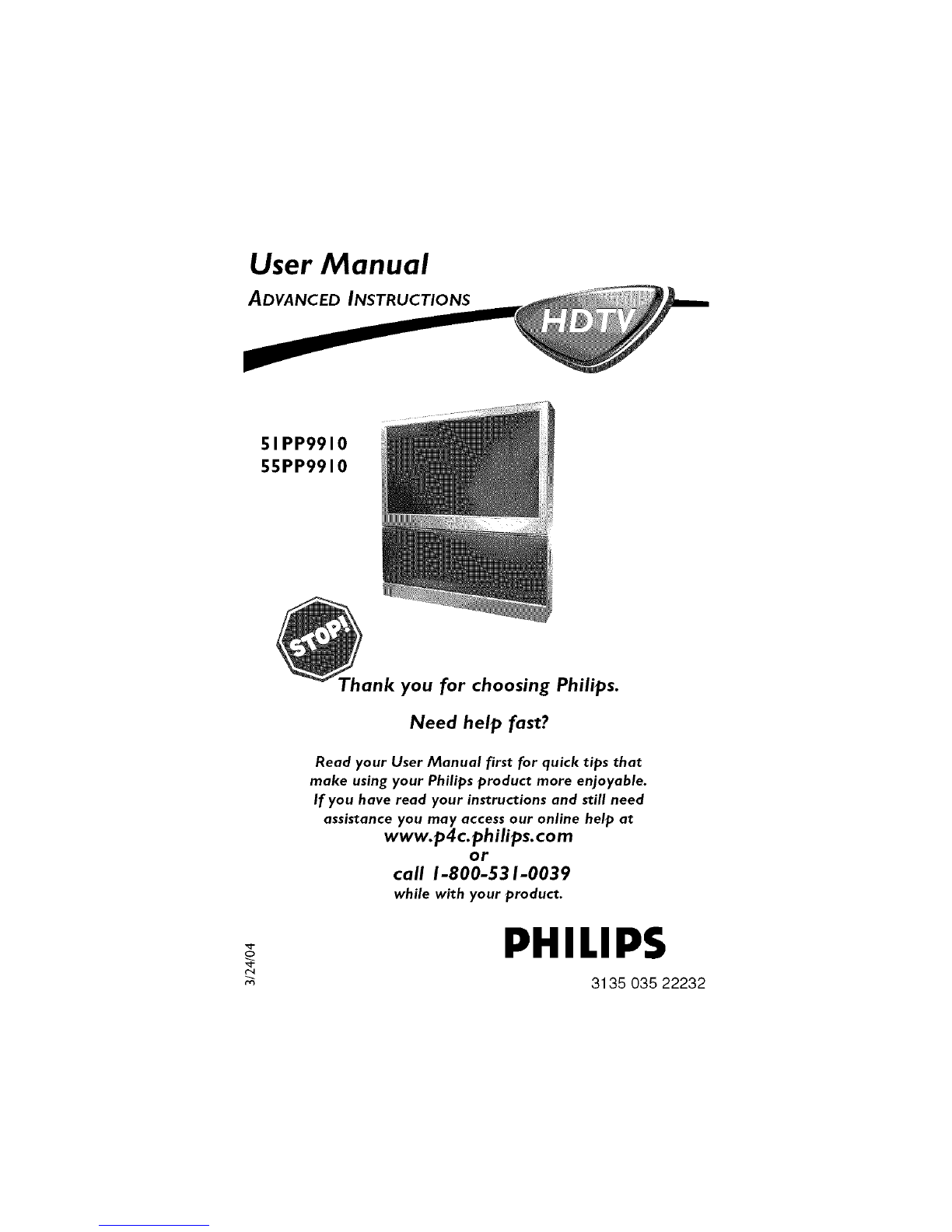

Philips 51PP9910 User manual

User Manual
51PP9910
55PP9910
Thank you for choosing Philips.
Need help fast?
Read your User Manual first for quick tips that
make using your Philips product more enjoyable.
If you have read your instructions and still need
assistance you may access our online help at
www.p4c.philips.com
or
call 1-800-531-0039
while with your product.
PHILIPS
3135 035 22232

Side I PANEL PANEL PANEL PANEL PANEL _3AO:_
1÷4_ 5A0__11
/
PANEL PANEL
Side 2
/
PANEL PANEL PANEL
2 6_7 12__13 PANEL
34
f/
_" _ x_ou I Ira.me
PANEL PANEL PANEL PANEL PANEL _P_b_su_n
3 8 --9 14--.-15 ,_.
PANEL PANEL PANEL PANEL PANEL PANEL
16_ _ 17 _22__23 _28__ 29
/
PANEL PANEL PANEL PANEL PANEL PANEL
18 _ _19 24__25 30___31
f f f
PANEL PANEL PANEL PANEL PANEL PANEL
20- -21 26--_27 32--33---

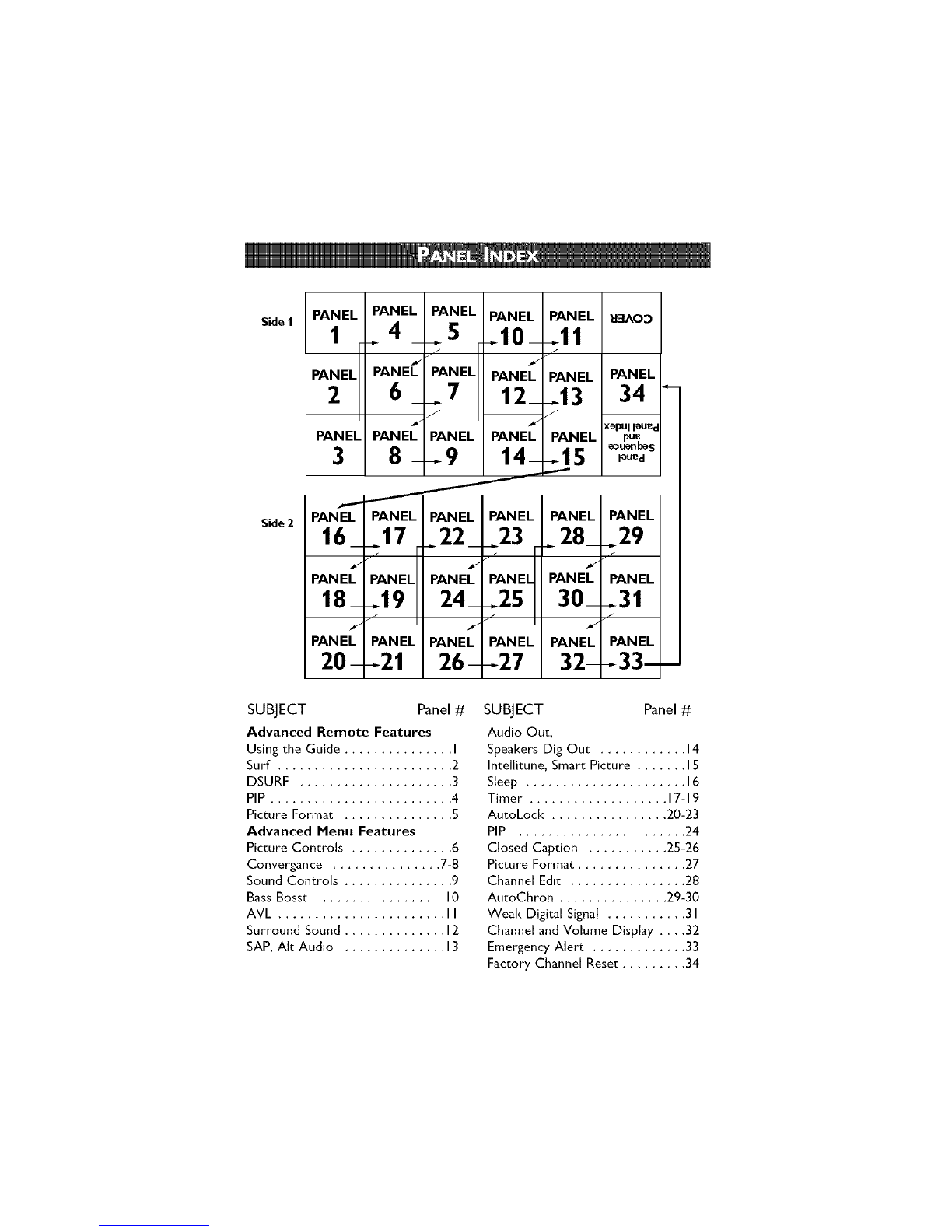

SUBJECT Panel #
Advanced Remote Features
Using the Guide ............... I
Surf ........................ 2
DSURF ..................... 3
PIP ......................... 4
Picture Format ............... 5
Advanced Menu Features
Picture Controls .............. 6
Convergance ............... 7-8
Sound Controls ............... 9
Bass Bosst .................. I0
AVL ....................... I I
Surround Sound .............. 12
SAP, Air Audio .............. 13
SUBJECT Panel #
Audio Out,
Speakers Dig Out ............ 14
Intellitune, Smart Picture ....... I 5
Sleep ...................... 16
Timer ................... 17-19
AutoLock ................ 20-23
PIP ........................ 24
Closed Caption ........... 25-26
Picture Format ............... 27
Channel Edit ................ 28
AutoChron ............... 29-30
Weal< Digital Signal ........... 3 I
Channel and Volume Display .... 32
Emergency Alert ............. 33
Factory Channel Reset ......... 34

LIJ_II_'_ I / I I:l[e]llTl'_

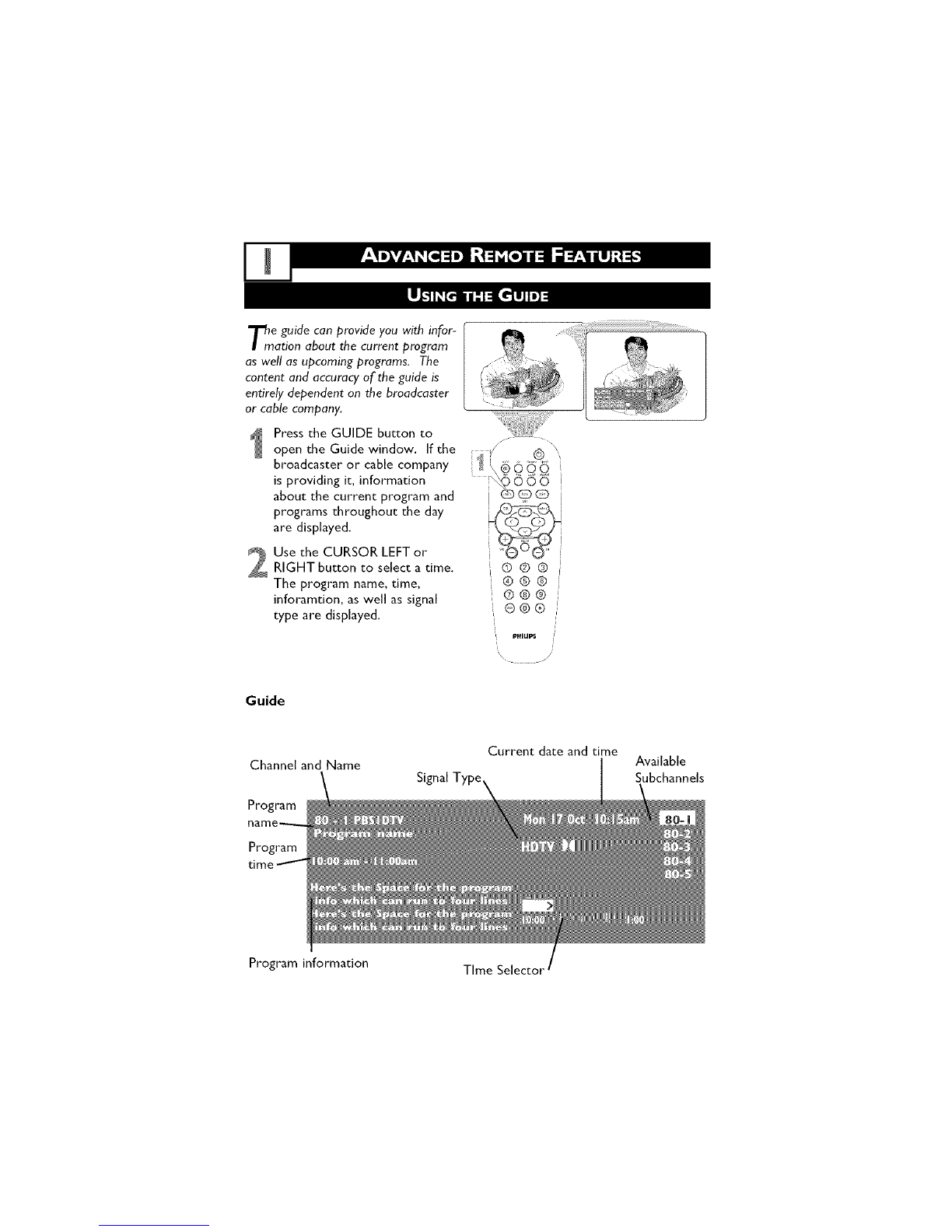

nmeguide can provide you with infor-
ation about the current program
as well as upcoming programs, The
content and accuracy of'the guide is
entirely dependent on the broadcaster
or cable company,
Press the GUIDE button to
open the Guide window. If the
broadcaster or cable company
is providing it, information
about the current program and
programs throughout the day
are displayed.
Use the CURSOR LEFT or
RIGHT button to select a time.
The program name, time,
inforamtion, as well as signal
type are displayed.
©®@
®@@
®@®
O©® i
P_ILIPf
Guide
Channel and Name
Program
Signal Type
Current date and time Available
Subchannels
Program
Program information Time Selector

fter you set up a list of your
favorite signal sources in the SURF
list, you can press the SURF button to
see the list and quickly tune to a
favorite signal source. Place up to 10
signal sources in the SURFlist.
Once you are viewing the
channel you want to add to
the surf list, press the SURF
button. The Surf list box
appears. The number of the
current channel is shown with
ADD? to the right. Press the
CURSOR RIGHT button to
add the channel to the Surf
list. The text should switch
from "add?" to "delete?" The
text gives the next available
action, therefore, when it says
"delete?" the channel has been
added.
Press the NUMBER but-
tons, CH(annel) +/- but-
tons to select another signal
source to add to the Surf list.
Press the SURF button and
then the CURSOR RIGHT
button to add the channel to
the list.
Repeat this step, filling the list
with up to 10 favorite signal
sources. NOTE: If you exceed
10 channels a warning message
will inform you to delete a
channel before adding another.
To tune to a favorite signal
source from the list, press
the SURF button. The Surf
list box appears. Press the
SURF button or the CURSOR
DOWN button or UP as many
times as necessary tO tune to
the channel.
®@@ ,
' ®@® J
pHlUpS l
\/'
HELPFUL HINTS
•To delete asignal source
from the list, press the
SURF button. The Surf list
box appears. Press the
SURF button or the
CURSOR DOWN button
or UP as many times as
necessary to select the
signal source to be delet-
ed. Then press the CUR-
SOR RIGHT button to
delete the signal source.
The screen will say
"add?" when the channel
has been deleted.

Le_]'T2_'4iB],:,]T']'_
SURF locks the tuner into a "digi-
tal only" mode. Like a "'Caps
Lock" button on a computer keyboard,
DSURF limits channel selection to digi-
tal channels only.
Press DSURF.
Use Channel + or - to select a
channel, Only digital channels
are available, A small icon, /_
appears next to the channel to
indicate DSURF is activated.
Press DSURF again to return
to normal channel selection
and the DSURF icon disappears
PRILIPS
'i

T_a e Picture-In-Picture (PIP) feature
Ilows you to display a subscreen
within your main screen and watch two
video sources at once. Because your set
has one tuner, you need to use a VCR
as a second tuner for your PIP picture.
Tune to your favorite show on the main
screen while scanning other AV inputs in
the PIP window. See panel 24 to select
the PIP source.
Press the PIP button to
turn PIP on.
Press the PIP button asec-
ond time to make the PIP win-
dow smaller.
"_ To select a video source to
%watch in the PIP window, see
_' "Selecting a PIP Source" on
panel 24.
Press the PIP button a third
time to turn PIP off.
MOVING THE PIP SCREEN
Press the POS button. Eachtime
you press this button, the PiP screen
moves to another corner of the main
screen.
FREEZING THE PIP SCREEN
Press the FREEZE button. The
picture in the PIP screen stands still.
Stopping motion allows you to write
down onscreen phone numbers or
addresses.
SWITCHING THE MAIN AND PIP
SCREENS
Press the SWAP button. The main
screen and PIP screen change places.
X j POSmON
FR_EZ_
SWAp

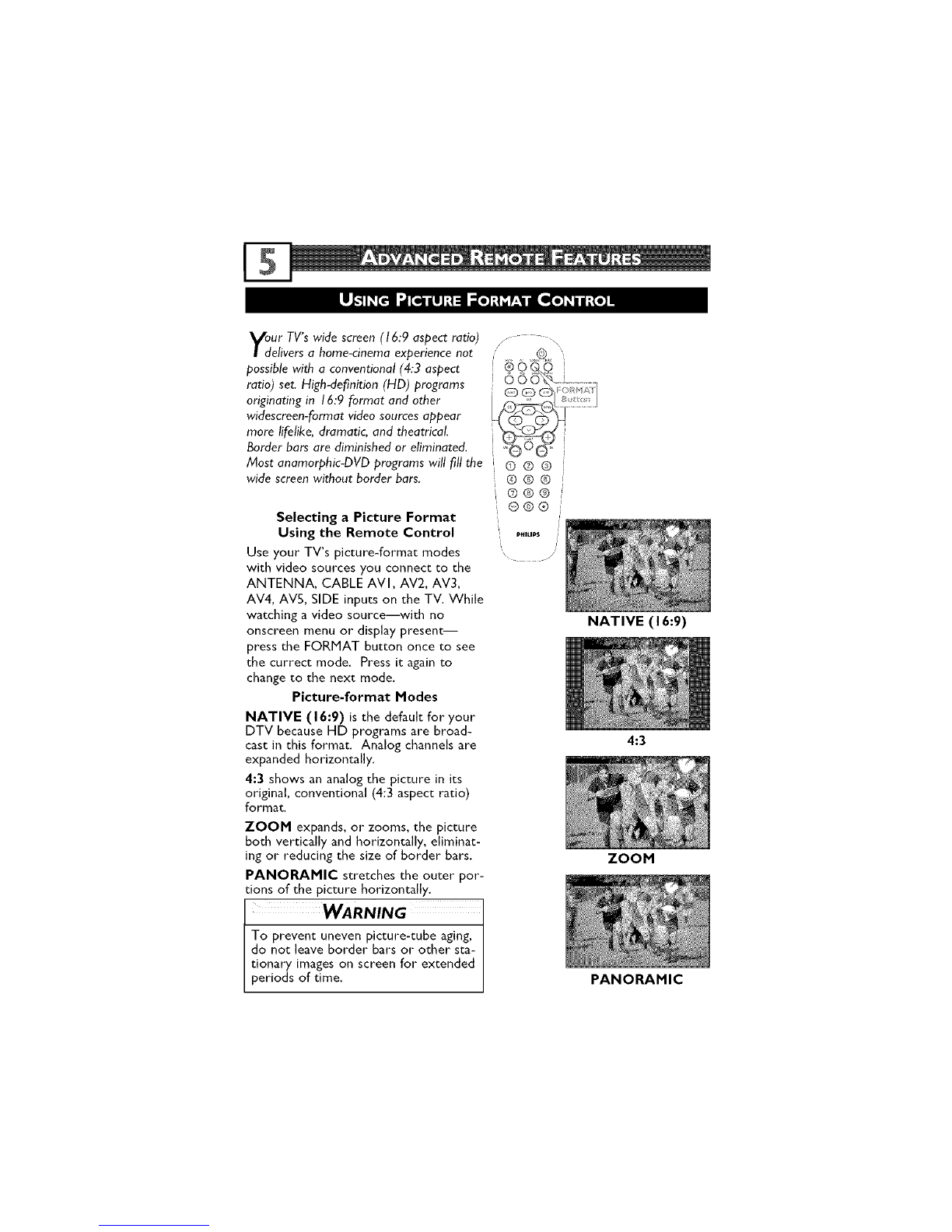

odurTV's wide screen (16:9 aspect ratio)
elivers a home-cinema experience not
possible with a conventional (4:3 aspect
ratio) set. High-definition (HD) programs
originating in 16:9 format and other
widescreen-format video sources appear
more lifelike, dramatic, and theatrical.
Border bars are diminished or eliminated,
Most anamorphic-DVD programs will fill the i
wide screen without border bars,
Selecting a Picture Format
Using the Remote Control
Use your" TV's picture-format modes
with video sources you connect to the
ANTENNA, CABLE AVI, AV2, AV3,
AV4, AV5, SIDE inputs on the TV. While
watching a video source--with no
onscreen menu or display present--
press the FORMAT button once to see
the currect mode. Press it again to
change to the next mode.
Picture-format Modes
NATIVE (16:9) is the default for your
DTV because HD programs are broad-
cast in this format. Analog channels are
expanded horizontally.
4:3 shows an analog the picture in its
original, conventional (4:3 aspect ratio)
format.
ZOOM expands, or zooms, the picture
both vertically and horizontally, eliminat-
ing or reducing the size of border bars.
PANOPo0_MIC stretches the outer por-
tions of the picture horizontally.
©@@
©@@
®@®
@@®
_ltlpS
/
To prevent uneven picture-tube aging,
do not leave border bars or other sta-
tionary images on screen for extended
periods of time.
NATIVE (16:9)
4:3
ZOOM
PANORAMIC

o adjust your TV picture controls,
electachannel and follow these
steps.Seedescriptions of the picture-
adjustment options below.
Press the MENU button on
the remote control to show the
onscreen menu.
Press the CURSOR RIGHT
button. BRIGHTNESS will be
highlighted and an adjustment bar
will be shown to the right.
Press the CURSOR RIGHT
button or LEFT to adjust the
BRIGHTNESS level of the pic-
ture. Or press the CURSOR
DOWN button to select anoth-
er picture control to adjust.
Press the INFO/EXIT button
to exit the menu.
Picture-adjustment Options
Remember, when the bar scale is cen-
tered the control settings
are at levels. Picture adjust-
ments are described as follows:
BRIGHTNESS raises and lowers the
black level of the picture.
PICTURE raises or lowers the intensity
of the picture (also called contrast).
SHARPNESS improves the detail in the
picture.
COLOR adds or eliminates color.
TINT adjusts the picture to obtain natu-
ral skin tones.
COLOR TEMP offers NORMAL,
COOL, or WARM picture preferences.
NORMAL keeps whites white.
WARM makes whites less blue.
COOL makes whites more blue.
FHILIPS
i'
\/
• BB[GHT_ESS
• SHARPNESS
• COLO_
• TINT
PKT_E
• PKTU_E
•TINT
• PICTUE
•SHArPnESS
• _OLO_
P_T_
P_T_

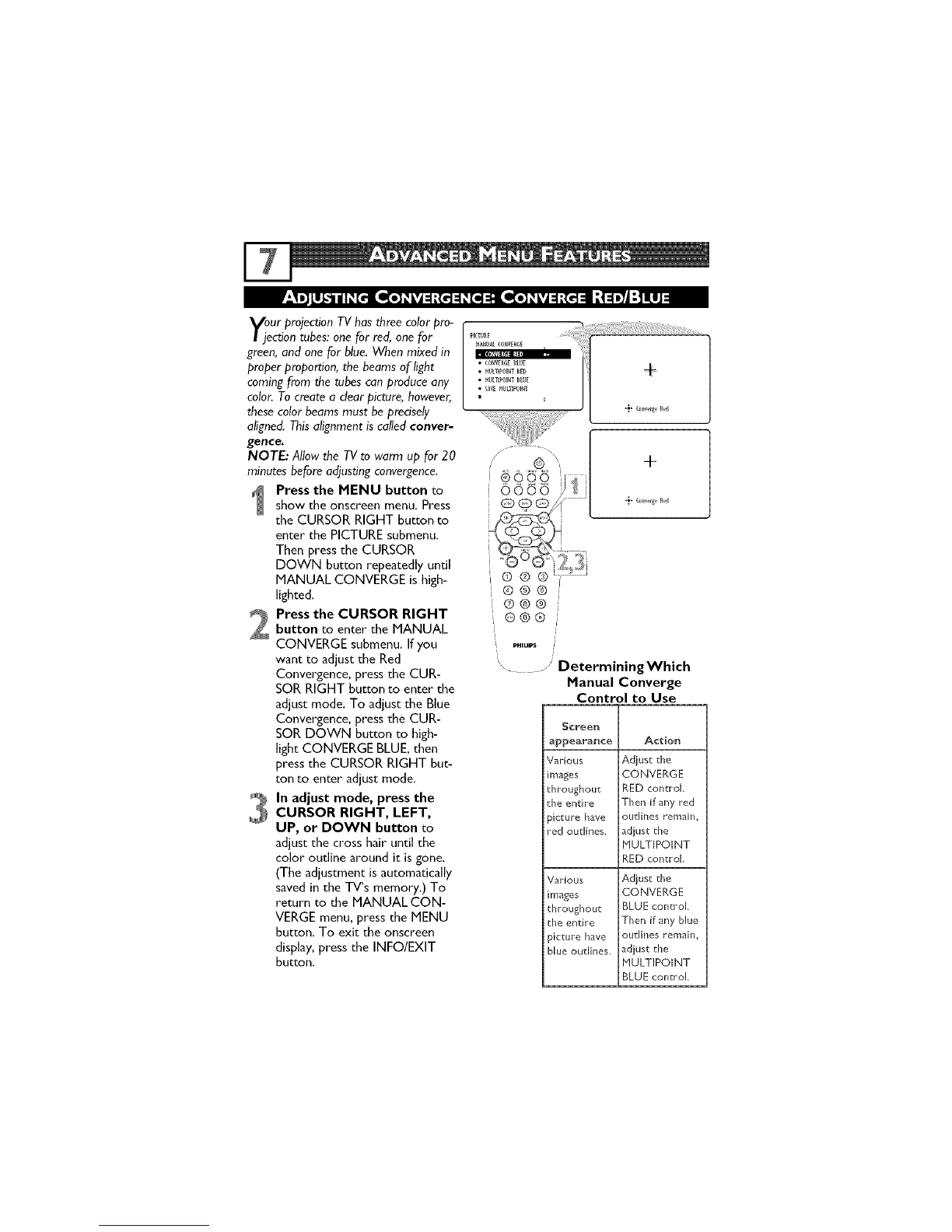

urPr ec'ionTVhas h eco'orPrI ....i
|]ection tubes: one for red, one for F'_TUkE ....
green, and one for blue. When mixed in
properproportion,thebeamsoflight :',°U_L_,E_O_,E_L_U_
coming from the tubes can produce any • _{0LTIPOlUTBLUE
color. To create aclear picture, however, : sA_,um_o_uT,
these color beams must be precisely
aligned. This alignment is called conver-
gence.
NOTE: Allow the W to warm up for 20
minutes before adjusting convergence.
Pressthe MENU button to
show the onscreenmenu. Press
the CURSORRIGHT button to
enter the PICTUREsubmenu.
Then pressthe CURSOR
DOWN button repeatedly until
MANUAL CONVERGE is high-
lighted.
Pressthe CURSOR RIGHT
button to enter the MANUAL
CONVERGE submenu,Ifyou
want to adjust the Red
Convergence, press the CUR-
SOR RIGHT button to enter the
adjust mode. To adjust the Blue
Convergence, press the CUR-
SOR DOWN button to high-
light CONVERGE BLUE,then
press the CURSOR RIGHT but-
ton to enter adjust mode.
In adjust mode, press the
CURSOR RIGHT, LEFT,
UP, or DOWN button to
adjustthe cross hair until the
color outline around it is gone.
(The adjustment is automatically
saved in the TV's memory.) To
return to the MANUAL CON-
VERGEmenu, press the MENU
button. To exit the onscreen
display, press the INFO/EXIT
button.
!i_!i!i!i!ii_iiiii!i!{ii!ii:iiiiii!i!iiiiiiiii!i!ii!i!iiiiiii!i¸i!i¸i!ii!iiii!i¸iiiiiiii!i:iiiiii:iiiiiiiiiii@i¸iiljlijliii!_iiii_ii_.................
+
-._. 0,,,w,ge t_d
+
.}. Om_rge ted
®@@
®@®
J
PHILIPS /
.." Determining Which
Manual Converge
Control to Use
Screen
appearance Action
Various Adjusc the
images CONVERGE
throughout RED control
the entire Then if any red
)icture have outlines remain,
red outlines, adjust the
HULTIPOINT
RED control.
Various Adjust the
images CONVERGE
throughout BLUE conEroL
the entire Then if any blue
picture have outlines remaim
blue outlines, adjust the
PIULTIPOINT
BLUE control

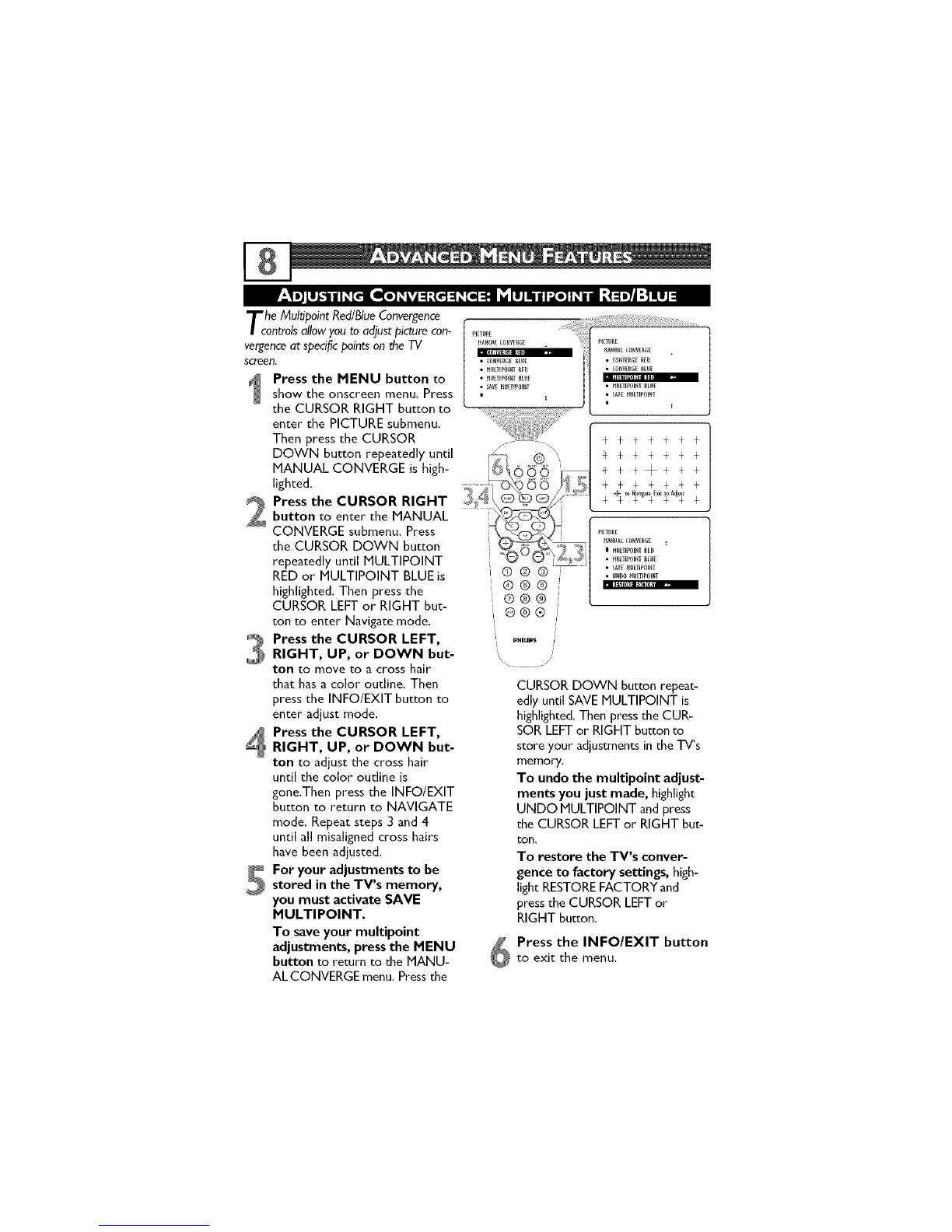

he MultJpointRed/BlueConvergence
ontrolsallow you to adjust picture con-
vergenceat specificpoints on the TV
screen.
Press the MENU button to
show the onscreen menu, Press
the CURSOR RIGHT button to
enter the PICTURE submenu,
Then press the CURSOR
DOWN button repeatedly until
MANUAL CONVERGE is high-
lighted,
Press the CURSOR RIGHTbutton to enter" the MANUAL
CONVERGE submenu. Press
the CURSOR DOWN button
repeatedly until MULTIPOINT
RED or HULTIPOINT BLUE is
highlighted. Then press the
CURSOR LEFT or RIGHT but-
ton to enter Navigate mode.
Press the CURSOR LEFT,RIGHT, UP, or DOWN but-
ton to move to a cross hair
that has a color outline. Then
press the INFO/EXIT button to
enter adjust mode.
Press the CURSOR LEFT,
RIGHT, UP, or DOWN but-
ton to adjust the cross hair
until the color outline is
gone.Then press the INFO/EXIT
button to return to NAVIGATE
mode. Repeat steps 3 and 4
until all misaligned cross hairs
have been adjusted.
For your adjustments to be
stored in the TV's memory,
you must activate SAVE
MULTIPOINT.
To save your multipoint
adjustments, press the MENU
button to return to the MANU-
AL CONVERGE menu. Press the
,i'
\, /
CURSOR DOWN button repeat-
edly until SAVE MULTIPQINT is
highlighted. Then press the CUR-
SOR LEFT or RIGHT button to
store your adjustments in the TV's
memory.
To undo the multipoint adjust-
ments you just made, highlight
UNDO MULTIPOINT and press
the CURSOR LEFT or RIGHT but-
ton,
To restore the TV's conver-
gence to factory settings, high-
light RESTORE FACTORY and
press the CURSOR LEFT or
RIGHT button.
Press the INFO/EXlT button
to exit the menu.
