Pinnacle Outdoor GardenShed User manual

GardenShed
3.0W x 2.3D x 2.4Hm
Tools required: Drill, measuring tape, Phillips-head screw driver, rivet gun, rubber mallet, sturdy ladder, shifting spanner, 2 saw horses, 3mm
steel drill bit, 4mm steel drill bit and a 9mm masonry drill bit.
Assembly instructions
3.0m Gable Series
Congratulations on purchasing your new Pinnacle garden shed. Before assembling, we recommend
you read the instructions thoroughly. Your new shed comes with pre-drilled holes to make assembly
quicker. We recommend you assemble the shed using a trestle table or sawhorses and planks. This
will ensure that you are working off the ground and make it easier for you. Assembly is a two-person
job and should not be attempted in windy conditions.

GardenShed 3.0 x 2.3 x 2.4m
CONCRETE SLAB 2400mm
CONCRETES LAB3 100mm
Build your garden shed in 7 easy steps!
Step 1: Check all parts against the component list
Step 2: Assemble the rear wall panels
Step 3: Assemble the side wall panels
Step 4: Assemble the roof panels
Step 5: Assemble the front wall panel
Step 6: Assemble the front door
Step 7: Fit the panels together
IMPORTANT: It is recommended that your new shed is secured to a concrete slab as per the specifications in this manual.
Concrete slab: Please ensure that your site is level. It is recommended that your slab is 100mm thick and you use builder’s
plastic and F52 reinforcing mesh. We recommend that you make your slab approximately 100mm bigger than the base
dimensions of your shed. This will allow for a 50mm edge around your shed. We recommend that you slope the 50mm edges
downward by 10mm so that rain water can drain away from your shed.
100mm
CONCRETE SLAB 3100MM
CONCRETE SLAB 2400MM

Step 1: Check all parts against the component list
Lay out all parts with number facing outwards and check off against parts list.
Picture Description Component Location Part
No. QTY Box No. Check
Sheet Sheet 2000x770 Rear wall
side wall 9F 10 1
Sheet Sheet 1579x770 Roof S30 2 2
Sheet Sheet 1579x770 Roof S31 2 2
Sheet Sheet 1579x770 Roof S32 2 2
Sheet Sheet 2000x717 Front 13A 1 2
Sheet Sheet 2000x717 Front 13B 1 2
Door Sheet Sheet 1943x770 Door 5K 1 2
Door Sheet Sheet 1943x770 Door 5J 1 2
Channel Channel 1943 Door 24H 1 1
Channel Channel 1943 Door 24J 2 1
Channel Channel 768 Door M26 2 2

GardenShed 3.0 x 2.3 x 2.4m
Picture Description Component Location Part
No. QTY Box No. Check
Channel Channel 764 Door M27 1 2
Channel Channel 764 Door M28 1 2
Jamb Jamb 1943 Door J21 1 1
Brace Brace 1075 Door U4 4 2
Channel Channel 1124 Side wall
roof 26A 4 2
Channel Channel 1124 Side wall
roof 26B 4 2
Channel Channel 1494 Rear wall 27C 1 1
Channel Channel 1494 Rear wall 27D 1 1
Channel Channel 1124 Roof 26E 2 1
Channel Channel 1124 Roof 26F 2 1
Channel Channel 1494 Rear wall 27H 1 1
Channel Channel 1494 Rear wall 27I 1 1
Channel Channel 1124 Side wall 26J 2 1

Picture Description Component Location Part
No. QTY Box No. Check
Channel Channel 1124 Side wall 26K 2 1
Channel Channel 1494 Front 27L 1 1
Channel Channel 1494 Front 27M 1 1
Channel Channel 1494 Front 27N 1 1
Channel Channel 1494 Front 27P 1 1
Channel Channel 1549 Front 28 1 2
Channel Channel 674 Front 33R 1 2
Channel Channel 674 Front 33L 1 2
Channel Channel 1098 Side wall 34R 2 2
Channel Channel 1098 Side wall 34L 2 2
Channel Channel 1468 Rear wall 35R 1 2
Channel Channel 1468 Rear wall 35L 1 2
Jamb Jamb 1998 Front 41L 1 1
Jamb Jamb 1998 Front 41K 1 1

GardenShed 3.0 x 2.3 x 2.4m
Picture Description Component Location Part
No. QTY Box No. Check
Jamb Jamb 1549 Front 43 1 2
Bracing Corner bracing 1998 Corners Z23 4 2
Lip Lip 1582 Roof L4 4 2
Gable cap Gable cap 1125 Roof E2 2 2
Connector Gable cap connector 450 Roof E3 1 2
Ridge beam Ridge beam 1125 zinc Roof 62 2 1
Gable R/H Gable 1470 Roof G7 2 2
Gable L/H Gable 1470 Roof G8 2 2
Logo cap Logo cap Roof 95 2 2
Roof brace Roof brace zinc Roof 96 2 1
Ridge beam
connector
Ridge beam connector
450mm zinc Roof 67 1 1
Channel
connector
Channel connector
188mm Side wall 66 11 2

Picture Description Component Location Part
No. QTY Box No. Check
Joining brace Brace Door W 2 2
Fittings part list:
Picture Component QTY Picture Component QTY
Self-tapping screws(10mm) 400 Self-tapping screws (16mm) 35
4 x 10mm Rivet 20 3 x 10mm Rivet 70
Pad bolt (part 70) 1 Keeper (part 71) 2
65 x 65mm barrel
bolt plate (part 75) 160mm barrel bolt (part 74) 2
Mid wall brace bracket
(part 72) 4 Base bracket 11
5/16” x 19mm
Hexagonal bolt 11 5/16” Hexagonal nut 11
Mid wall channel connector 3 Self tapper safety cover 40
C h a n n e l s a f e t y c o v e r
(L type) 1Channel safety cover (R type) 1
Plastic stopper 8 Sleeve anchor bolt 11
Qty checking date: ____ / ____ / _____
Qty checking personal badge number: _______________
Signature: _________________________________________
In the unlikely event that you find you are missing a part, please contact Pinnacle at 1800 349 776. A copy of proof of purchase may be requested.
Note: All fittings are placed inside box 2.

GardenShed 3.0 x 2.3 x 2.4m
Shed overview:
9F
S31
27D
27C
26A
26B
26J
26K
26B
26E
26E
26F
26F
27H
27I
26J
27P
27N
27M
27L
28
35R
35L
34L
34R
34L
33R
33L
26B
26A
41L
34R
43
66
66
66
96
72
66
26K
13A
96
L4
26A
66
62
E2
66
L4
66
E2
67
E3
L4
L4
26B
26A
66
74
74
M28
M27
W
71
24J 24H
M26
M26
W
70
75
J21
5K
U4
71
66
66
9F
9F
9F 9F 9F
9F 9F 9F
9F
13B
S32
S30 S30
S32
S31
5J
U4
U4
U4
24J
41K
G7
G8
G7
G8
Z23
95
95
Z23
Z23
Z23
62

9
9F
9F
9F
9F

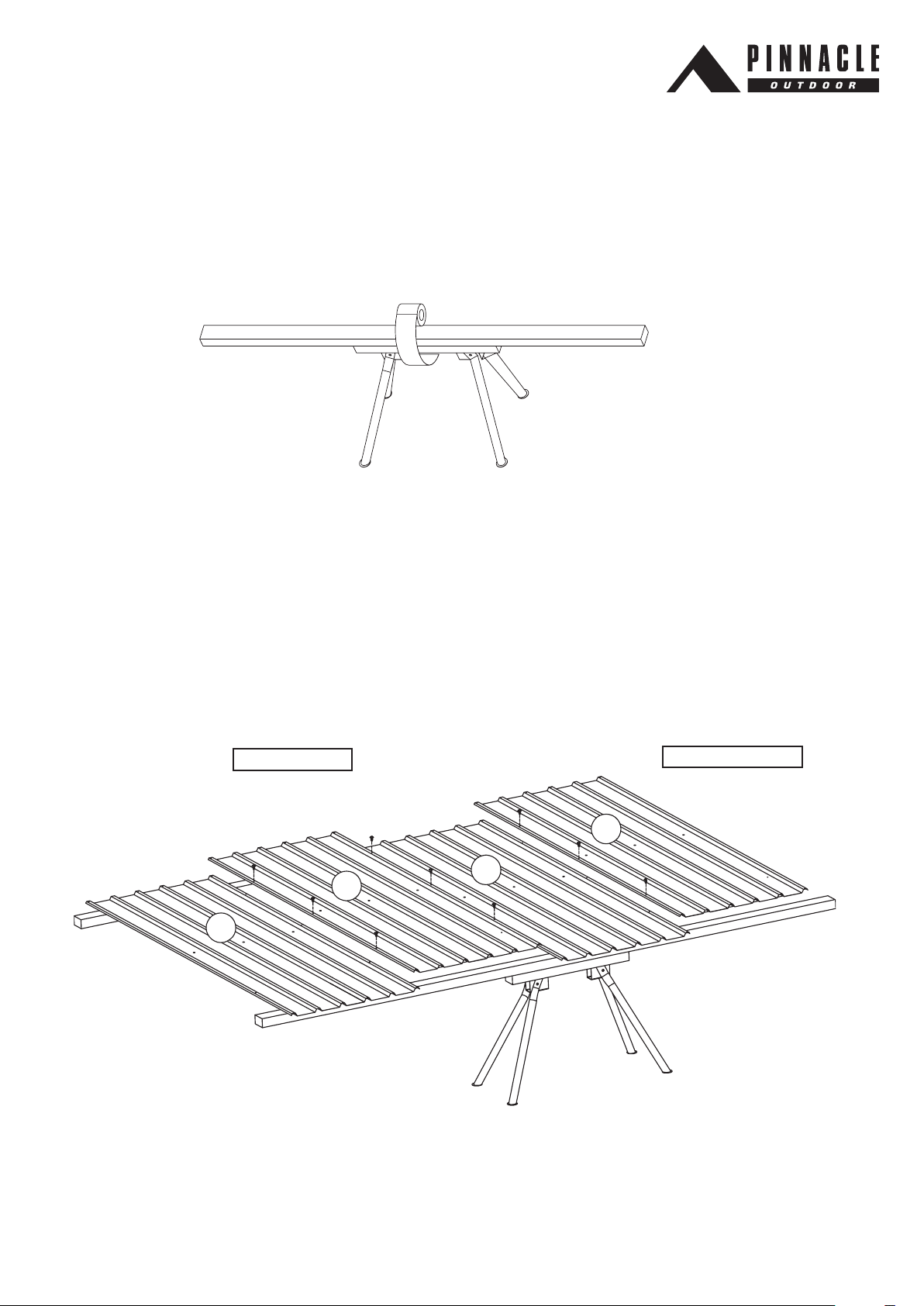

Step 2: Assemble the rear wall panels
You will find it easier to assemble your shed using sawhorses with timber studs attached (timber needs to be the same length as the
shed (3.0 M)) or alternatively, a trestle table.
Place 4 x part 9F (sheeting) on your worktable and join together with the self-tapping screws as per the diagram below.
RIDGES FACING UP
ROOF TOP EDGE

GardenShed 3.0 x 2.3 x 2.4m
10
A
27I
27H
27C
27D
9F
9F
9F
9F
B
27I
27H
27C
9F 27D
9F
9F
9F
Step 2: Assemble the rear wall panels (continued)
Now fit parts 27I, 27H (top channel) and parts 27C, 27D (bottom channels) to the sheeting by tapping it in (diagram A) or sliding it in
(diagram B). Make sure the small lip of the channel is always facing out. This ensures rainwater cannot build up inside your shed. Make
sure parts 27I and 27H are used as top side channels.
RIDGES FACING UP
Tip: If panel and screw holes do not line up, try pulling panel to match up holes.
ROOF TOP EDGE
A
B
ROOF TOP EDGE
RIDGES FACING UP

11
Step 2: Assemble the rear wall panels (continued)
Now fix parts 35R and 35L (mid wall channels) joined by a mid wall channel connector to the sheeting with self-tapping screws.
Please note that the groove should face downwards. Fix other channels with self-tapping screws. Apply part 66 (channel connector)
on top and bottom channels to enhance the strength. NOTE: Screws are applied to both sides of the connectors. All screws marked
with a cross should not be fixed at this stage.
35L
27H
27I
27D
27C
35R 66
66
35L
35R
66
Mid wall channel
connector
RIDGES FACING UP
ROOF TOP EDGE
ROOF TOP EDGE
BACK VIEW

GardenShed 3.0 x 2.3 x 2.4m
12
66
66
34R
34L
9F
26J
26K
26B
26A
9F
9F
Step 3: Assemble side wall panels
Place 3 x parts 9F (sheeting) on your worktable and join together with the self-tapping screws as per the diagram below. Now fit parts
26K, 26J (top channels) and parts 26A, 26B (bottom channels) to the sheeting by tapping or sliding it in. Make sure the small lip on the
channels is always facing out. This ensures rainwater cannot build up inside your shed. Make sure parts 26K and 26J are used as top
side channels. Now fix parts 34R and 34L (mid wall channels) to the sheeting with self-tapping screws. Please note the groove should
face downwards. Fix other channels using self-tapping screws. Enhance the structural strength by applying part 66 (channel connector).
NOTE: Screws are applied to both sides of the connectors. All screws marked with a cross should not be fixed at this stage.
RIDGES FACING UP
ROOF TOP EDGE

13
Step 3: Assemble side wall panels (continued)
Repeat the same steps for the other side. NOTE: All screws marked with a cross should not be fixed at this stage.
34R
34L
26J
26K
26B
66
26A
BACK
ROOF TOP EDGE

GardenShed 3.0 x 2.3 x 2.4m
14
66
66
26A
26B
26F
26E
S30
S32
S31

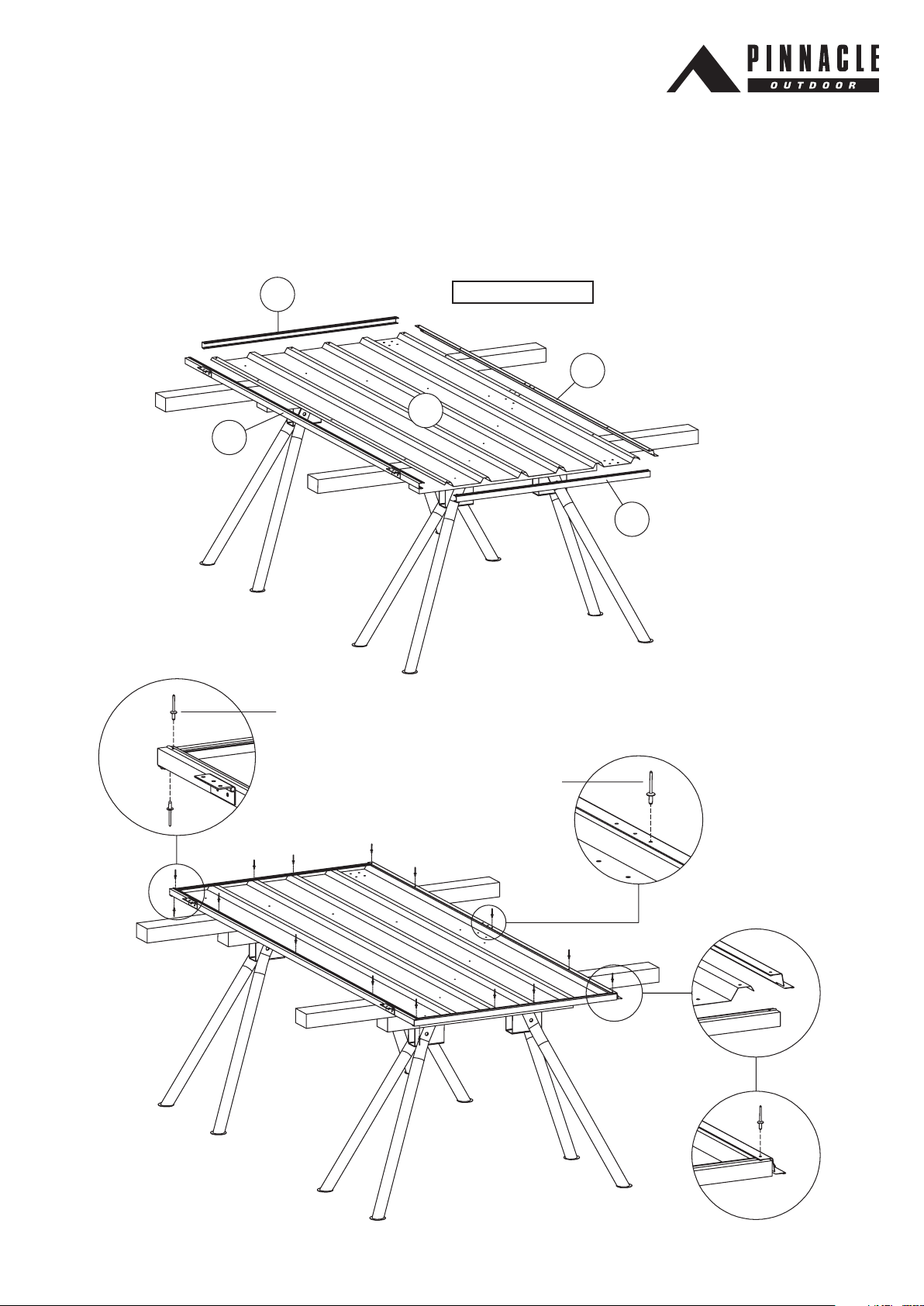

Step 4: Assemble the roof panels
Place parts S30, S31 and S32 (sheeting) on your worktable and join together with the self-tapping screws as per the diagram below.
Enhance the structural strength by applying part 66 (channel connector). Note that screws are applied to both sides of the connectors.
RIDGES FACING UP
Fix parts 26F, 26E, 26A and 26B (channels) using self-tapping screws as per the diagram below. Please ensure parts 26A and 26B
are attached to the side of sheeting which has pre-punched holes as per the diagram below. Make sure the small lip on the channel is
always facing out. This ensures rainwater cannot build up inside your shed.
ROOF TOP EDGE
ROOF TOP EDGE
RIDGES FACING UP

15
Step 4: Assemble the roof panels (continued)
Leave 4 corners unfixed in this stage. Repeat the same steps for the other roof panel.

GardenShed 3.0 x 2.3 x 2.4m
16
Step 5: Assemble the front wall panels
Fix parts 41L and 41K (jamb) to parts 13A and 13B (sheeting) with self-tapping screws. Make sure the small lip on the channel is always
facing out. This ensures rainwater cannot build up inside your shed. NOTE: All screws marked with a cross should not be fixed at this stage.
Fix parts 27P, 27N (top channels), 43 (jamb), 27L, 27M, and part 28 (bottom channels) with self-tapping
screws. Make sure the small lip on the channels is always facing out. This ensures rainwater cannot build
up inside your shed. Enhance the top channels by applying part 66 (channel connector).
13A
41K
13B
41L
13B
27M
27N
13A 28
43
27L
27P
66
28
27M
27L
RIDGES FACING UP
RIDGES FACING UP
ROOF TOP EDGE
ROOF TOP EDGE

17
33R
33L
Step 5: Assemble the front wall panels (continued)
Now fix parts 33R and 33L (mid wall channels) to the sheeting with self-tapping screws. Make sure the small lip on the channel is always
facing out. This ensures rainwater cannot build up inside your shed.
RIDGES FACING UP
ROOF TOP EDGE

GardenShed 3.0 x 2.3 x 2.4m
18
24J
24H
5K
FIXW ITH3 .0*10MMR IVET
FIXW ITH3 .0*10MMR IVE
T
FIXW ITH3 .0*10MMR IVET
M26
M26
Step 6: Assemble the front doors
Place part 5K (door sheet) on the worktable. Fit 2 x parts M26, 24J, 24H (channels) to the door and fix them with 3.0 x 10mm rivets.
Make sure the small lip on the channel is always facing out. This ensures rainwater cannot build up inside your shed.
RIDGES FACING UP
FIX WITH 3.0MM RIVETS
FIX WITH 3.0MM RIVETS
FIX WITH 3.0MM RIVETS

19
FIXW ITH3 .0*10MMR IVET
FIXW ITH3 .0*10MMR IVET
5J
J21
24J
M28
M27
Step 6: Assemble the front doors (continued)
Place part 5J (door sheet) on the worktable. Fit parts M27, M28, 24J (channels), part J21 (jamb) to the door and fix them with 3.0 x
10mm rivets. Make sure the small lip on the channel is always facing out. This ensures rainwater cannot build up inside your shed.
RIDGES FACING UP
FIX WITH 3.0MM RIVETS
FIX WITH 3.0MM RIVETS

GardenShed 3.0 x 2.3 x 2.4m
20
U4
U4
BACK
W5K / 5J

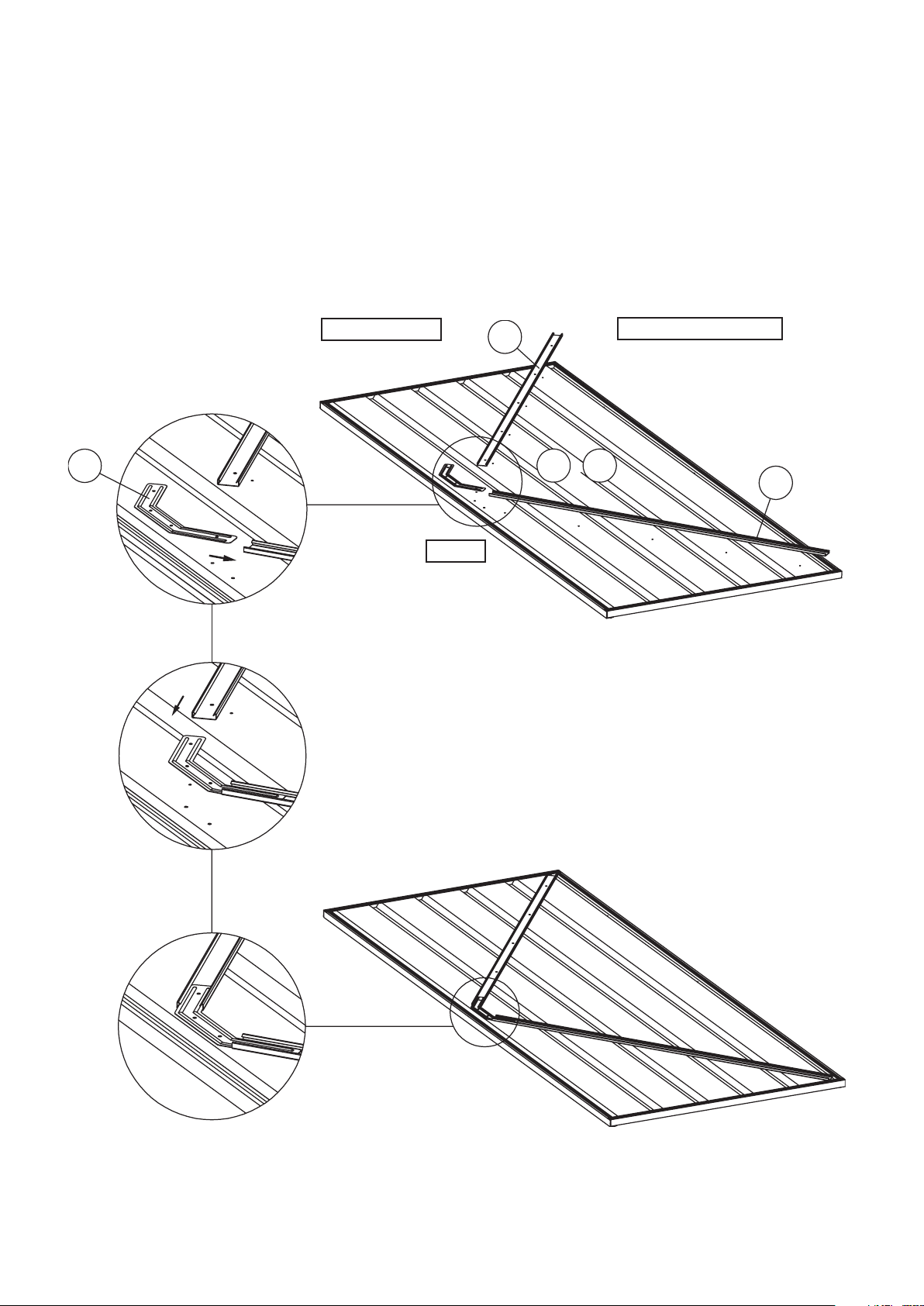

Step 6: Assemble the front doors (continued)
Once channels are fitted to both doors, align 2 x part U4 (brace) and part W (joining brace) with holes on the back of the door and
position temporarily with some tape or simply hold in place.
RIDGES FACING DOWN
ROOF TOP EDGE
